Hyundai Genesis 2016 Owners Manual

2-65
Safety system of your vehicle
2
In an angled collision, the force of
impact may direct the occupants in a
direction where the air bags would
not be able to provide any additional
benefit, and thus the sensors may
not deploy any air bags.Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehicle
causing it to “ride” under a vehicle
with a higher ground clearance. Air
bags may not inflate in this "under-
ride" situation because deceleration
forces that are detected by sensors
may be significantly reduced by such
“underride” collisions.Front air bags may not inflate in
rollover accidents because air bag
deployment could not provide protec-
tion to the occupants.
However, side impact and curtain air
bags may inflate when the vehicle is
rolled over by a side impact collision,
if the vehicle is equipped with side air
bags and curtain air bags.
Also, if the vehicle is equipped with a
rollover sensor, side impact and cur-
tain air bags may inflate in a rollover.
ODH033076ODH033077OBH038062

2-66
Safety system of your vehicle
Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated and the colli-
sion energy is absorbed by the vehi-
cle structure.
SRS care
The SRS is virtually maintenance-
free and there are no parts you can
safely service by yourself. If the SRS
air bag warning light does not illumi-
nate when the Engine Start/Stop but-
ton is in the ON position, or continu-
ously remains on, have your vehicle
immediately inspected by an author-
ized HYUNDAI dealer.
Any work on the SRS system, such
as removing, installing, repairing, or
any work on the steering wheel, the
front passenger's panel, front seats
and roof rails must be performed by
an authorized HYUNDAI dealer.
Improper handling of the SRS system
may result in serious personal injury. To reduce the risk of serious
injury or death, take the follow-
ing precautions:
Do not attempt to modify or
disconnect the SRS compo-
nents or wiring, including the
addition of any kind of badges
to the pad covers or modifica-
tions to the body structure.
Do not place objects over or
near the air bag modules on
the steering wheel, instrument
panel, or the front passen-
ger's panel above the glove
box.
Clean the air bag pad covers
with a soft cloth moistened
with plain water. Solvents or
cleaners could adversely
affect the air bag covers and
proper deployment of the sys-
tem.
We recommend that inflated
air bags be replaced by an
authorized HYUNDAI dealer.
(Continued)
WARNING
ODH033078

2-67
Safety system of your vehicle
2

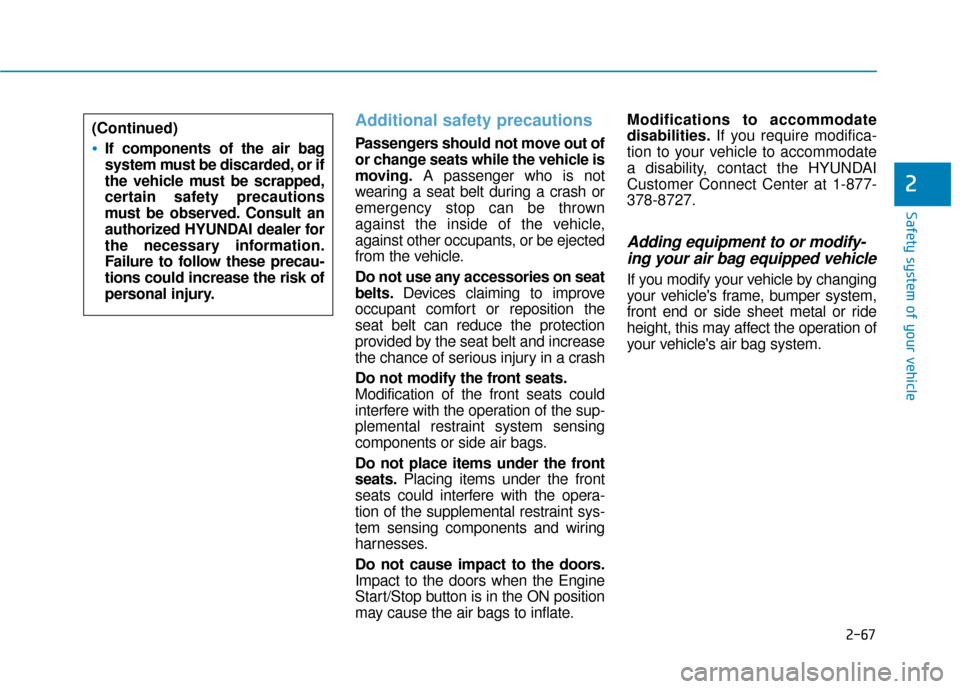

Additional safety precautions
Passengers should not move out of
or change seats while the vehicle is
moving.A passenger who is not
wearing a seat belt during a crash or
emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or be ejected
from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the
seat belt can reduce the protection
provided by the seat belt and increase
the chance of serious injury in a crash
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the sup-
plemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front
seats could interfere with the opera-
tion of the supplemental restraint sys-
tem sensing components and wiring
harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON position
may cause the air bags to inflate. Modifications to accommodate
disabilities.
If you require modifica-
tion to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 1-877-
378-8727.
Adding equipment to or modify- ing your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle's air bag system.
(Continued)
If components of the air bag
system must be discarded, or if
the vehicle must be scrapped,
certain safety precautions
must be observed. Consult an
authorized HYUNDAI dealer for
the necessary information.
Failure to follow these precau-
tions could increase the risk of
personal injury.

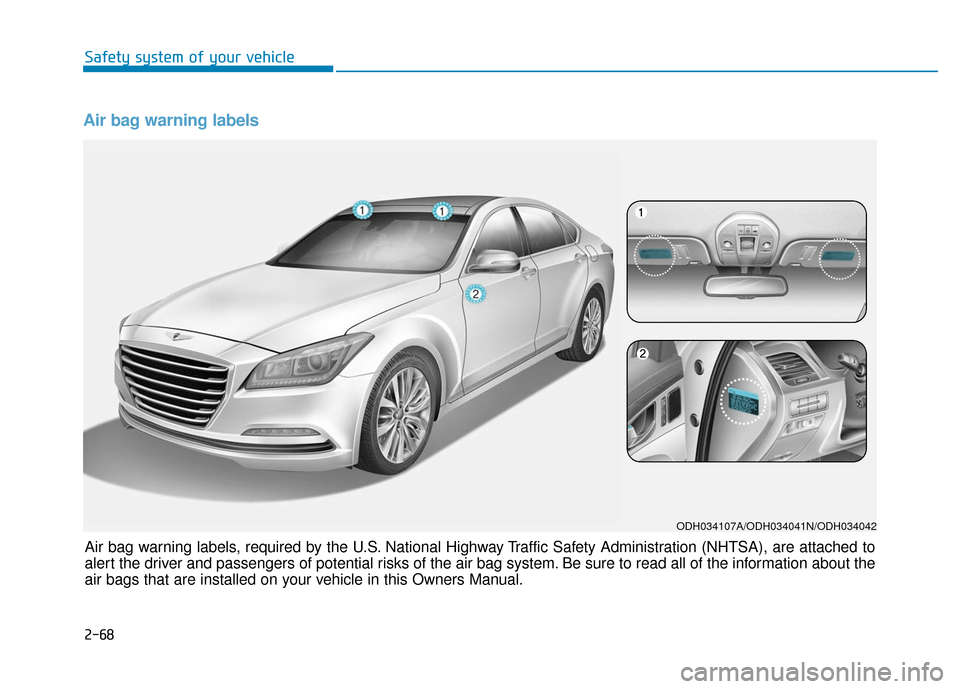

Air bag warning labels
ODH034107A/ODH034041N/ODH034042
Air bag warning labels, required by the U.S. National Highway Traffic Safety Administration (NHTSA), are attached to
alert the driver and passengers of potential risks of the air bag system. Be sure to read all of the information about the
air bags that are installed on your vehicle in this Owners Manual. Safety system of your vehicle
2-68

Convenient features of your vehicle
Accessing your vehicle .........................................3-4
Smart key ........................................................................\
...3-4
Smart key precautions .....................................................3-7
Immobilizer System ..........................................................3-9
Door locks .............................................................3-11
Operating door locks from outside the vehicle ......3-11
Power Door Latch ...........................................................3-12
Operating door locks from inside the vehicle ........3-12
Auto door lock/unlock features ................................3-14
Child-protector rear door locks ..................................3-14
Theft-alarm system.............................................3-15
Driver position memory system .........................3-16
Storing positions into memory ...................................3-16
Resetting the driver's seat memory system ...........3-17
Easy access function .....................................................3-18
Steering wheel......................................................3-19
Electric power steering (EPS) ......................................3-19
Tilt steering / Telescope steering...............................3-19
Heated steering wheel ...................................................3-20
Horn ........................................................................\
............3-21
Mirrors ...................................................................3-22
Inside rearview mirror....................................................3-22
Outside rearview mirror ................................................3-36
Reverse parking aid function.......................................3-39
Windows ................................................................3-40
Power windows................................................................3-41
Panorama sunroof ...............................................3-44
Sunshade ........................................................................\
...3-44
Sliding the sunroof ........................................................3-45
Tilting the sunroof ........................................................3-45
Closing the sunroof ........................................................3-46
Resetting the sunroof ....................................................3-47
Exterior features .................................................3-48
Hood ........................................................................\
...........3-48
Trunk ........................................................................\
..........3-49
Smart trunk.......................................................................3\
-55
Fuel filler door .................................................................3-59
Instrument cluster................................................3-62
Instrument Cluster Control............................................3-63
LCD Display Control ........................................................3-63
Gauges ........................................................................\
.......3-64
3

LCD display ...........................................................3-68
LCD Modes ........................................................................\
3-68
Trip Computer Mode.......................................................3-69
Turn By Turn (TBT) Mode ............................................3-70
ASCC/LKAS Mode ...........................................................3-70
A/V Mode........................................................................\
..3-70
Information Mode ...........................................................3-71
User Settings Mode ........................................................3-73
Warning Messages..........................................................3-80
Trip computer .......................................................3-90
Overview........................................................................\
....3-90
Trip A/B ........................................................................\
.....3-91
Fuel Economy...................................................................3-92
Digital Speedometer .......................................................3-94
Warning and indicator lights ..............................3-95
Warning lights ..................................................................3-95
Indicator Lights ..............................................................3-103
Head Up Display (HUD).....................................3-107
Description ......................................................................3-\
107
Head Up Display ON/OFF ...........................................3-108
Head Up Display Information .....................................3-108
Head Up Display Setting .............................................3-109
Light .....................................................................3-1\
10
Exterior lights ................................................................3-110
Smart High Beam ..........................................................3-112
Welcome system ...........................................................3-117
Interior lights..................................................................3-118
Wipers and washers ..........................................3-123
Windshield wipers ........................................................3-123
Windshield washers ....................................................3-125
Driver assist system ..........................................3-126
Rear view camera .........................................................3-126
Parking Guide System ..................................................3-127
Parking Assist System .................................................3-128
Defroster .............................................................3-132
Rear window defroster ...............................................3-132
Automatic climate control system ...................3-134
Automatic heating and air conditioning ..................3-135
Manual heating and air conditioning .......................3-136
System operation ..........................................................3-144
Climate control air filter ............................................3-146
Air conditioner refrigerant and compressor
lubricant ........................................................................\
..3-147
Air Conditioning refrigerant label .............................3-147
Windshield defrosting and defogging ............3-148
Auto defogging system ON/OFF...............................3-150
3

Convenient features of your vehicle
3

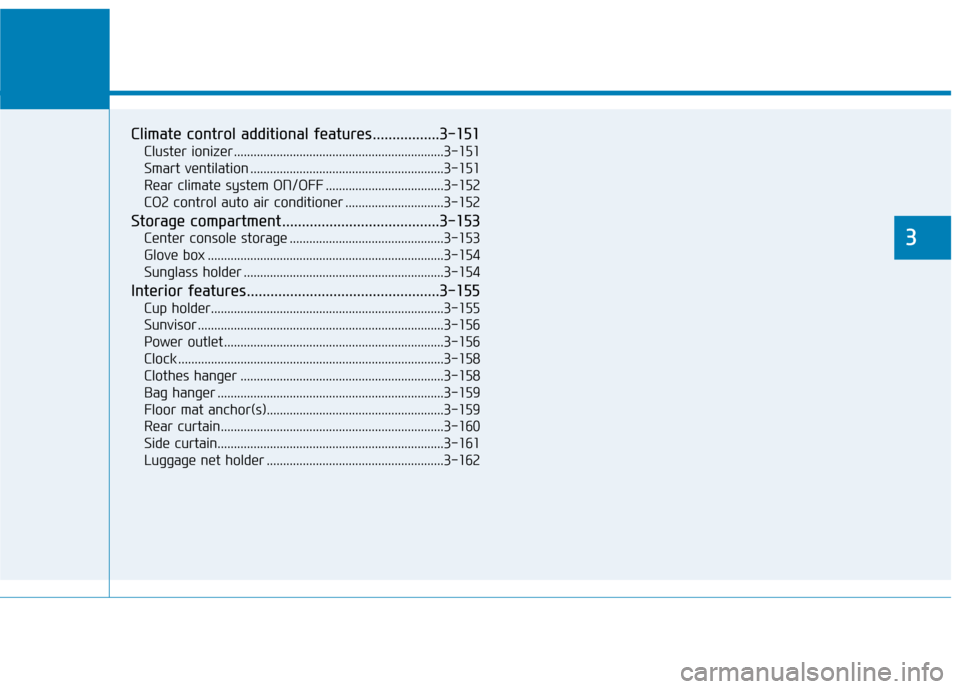

Climate control additional features.................3-151
Cluster ionizer ................................................................3-151
Smart ventilation ...........................................................3-151
Rear climate system ON/OFF ....................................3-152
CO2 control auto air conditioner ..............................3-152
Storage compartment ........................................3-153
Center console storage ...............................................3-153
Glove box ........................................................................\
3-154
Sunglass holder .............................................................3-154
Interior features.................................................3-155
Cup holder.......................................................................3\
-155
Sunvisor ........................................................................\
...3-156
Power outlet ...................................................................3-156\
Clock ........................................................................\
.........3-158
Clothes hanger ..............................................................3-158
Bag hanger .....................................................................3-1\
59
Floor mat anchor(s)......................................................3-159
Rear curtain....................................................................3-16\
0
Side curtain.....................................................................3-1\
61
Luggage net holder ......................................................3-162
3

3-4
Convenient features of your vehicle
Smart key
1. Door Lock
2. Door Unlock
3. Trunk Unlock
4. Panic
Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
a door (and trunk) and even start the
engine.
Locking
To lock :
1. Close all doors, engine hood andtrunk.
2. Either press the door handle but- ton or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will blink and the chime will sound
once. Also, the outside rearview
mirror will fold, if the outside
rearview mirror folding switch is in
the AUTO position.
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
✽ ✽NOTICE
The door handle button will only
operate when the smart key is with-
in 28~40 inches (0.7~1 m) from the
outside door handle.
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for
three seconds if any of the following
occur:
• The Smart Key is in the vehicle.
The Engine Start/Stop button is in
ACC or ON position.
Any door except the trunk is open.
A A C
CC
CE
E S
SS
SI
IN
N G
G
Y
Y O
O U
UR
R
V
V E
EH
H I
IC
C L
LE
E
ODH043002ODH043024
Do not leave the Smart Key in
your vehicle with unsupervised
children. Unattended children
could press the Engine Start/
Stop button and may operate
power windows or other con-
trols, or even make the vehicle
move, which could result in
serious injury or death.
WARNING

3-5
Convenient features of your vehicle
Unlocking
To unlock:
1.Carry the Smart Key.
2. Either press the driver’s outsidedoor handle button or press the
Door Unlock button (2) on the
smart key.
3.The driver’s door will unlock. The hazard warning lights will blink two
times. Also, the outside rearview
mirror will unfold, if the outside
rearview mirror folding switch is in
the AUTO position. If you press the driver's outside
door handle button or Door Unlock
button on the smart key again with-
in four seconds, then all the doors
will unlock.
✽ ✽
NOTICE
• The door handle button will only
operate when the smart key is with-
in 28~40 inches (0.7~1 m) from the
outside door handle and other peo-
ple can also open the doors.
• If you press the front passenger's outside door handle, while carrying
the Smart Key, all doors will unlock.
• After unlocking the doors, the doors will lock automatically after
30 seconds unless a door is opened.
• You can change the system to the Central Door Unlock mode (unlock
all the doors when you press the
unlock button one time). To change
between Two Stage Unlock mode
and Central Door Unlock mode,
perform the following:
Press the lock button and unlock
button on the smart key at the
same time for 5 seconds or more.
The hazard warning lights will
blink four times.
Trunk opening
To open:
1. Carry the smart key.
2. Either press the trunk handle but-
ton or press and hold the Trunk
Unlock button (3) on the smart key
for more than one second.
3. The hazard warning lights will blink two times.
Once the trunk is opened and then
closed, the trunk will lock automati-
cally.
✽ ✽ NOTICE
The trunk handle button will only
operate when the smart key is with-
in 28 inches (0.7 m) from the trunk
handle.
Panic button
Press the Panic button (4) and hold
for more than one second. The horn
sounds and hazard warning lights
blink for about 30 seconds. To cancel
the panic mode, press any button on
the Smart Key.
3
ODH043002

3-6

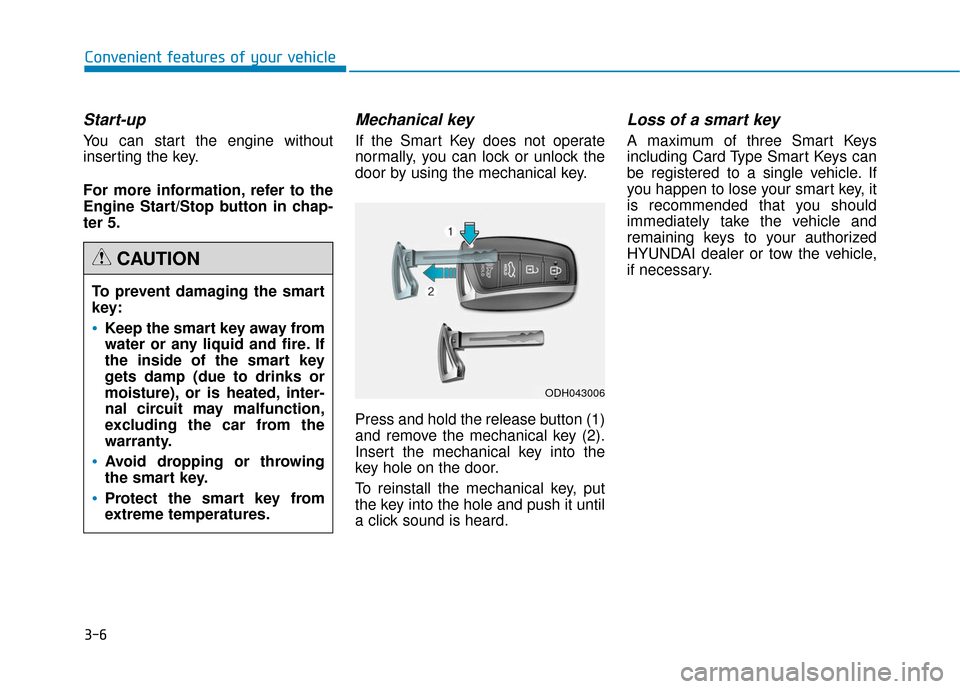

Start-up
You can start the engine without
inserting the key.
For more information, refer to the
Engine Start/Stop button in chap-
ter 5.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
Press and hold the release button (1)
and remove the mechanical key (2).
Insert the mechanical key into the
key hole on the door.
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
Loss of a smart key
A maximum of three Smart Keys
including Card Type Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key, it
is recommended that you should
immediately take the vehicle and
remaining keys to your authorized
HYUNDAI dealer or tow the vehicle,
if necessary.
Convenient features of your vehicleTo prevent damaging the smart
key:
•Keep the smart key away from
water or any liquid and fire. If
the inside of the smart key
gets damp (due to drinks or
moisture), or is heated, inter-
nal circuit may malfunction,
excluding the car from the
warranty.
Avoid dropping or throwing
the smart key.
Protect the smart key from
extreme temperatures.
CAUTION
ODH043006
