Hyundai Genesis 2016 Owner's Manual

7-77
7
Maintenance
Trunk fuse panel (Battery box fuse panel)
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
✽ ✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODH073037
ODH074038N
• Battery box fuse panel

7-78
Maintenance
Fuse NameFuse ratingCircuit Protected
9B+100ARear Junction Block (Fuse - RR HTD/ P/TRUNK/ ECS/ F/LID/ P/DOOR RR RH/ DR LOCK 2/ P/DOOR
RR LH/ AMP/ P/SEAT PASS 2/ DR LOCK 1/ TRUNK/ S/HEATER RR RH/ S/HEATER RR LH/ P/WDW RH/
F/PUMP)
8B+80AMetal Core Block (PCB #2 Fuse - TCU/ ECU 1/ START/ IG 1)
AMS10ABattery Sensor

7-79
7
Maintenance
L
LI
IG
G H
H T
T
B
B U
U L
LB
B S
S
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
✽ ✽
NOTICE
After heavy driving, rain or wash-
ing, headlamp and trunk lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
the outside temperature. This is sim-
ilar to the condensation on your win-
dows inside your vehicle during the
rain and doesn’t indicate a problem
with your vehicle. If the water leaks
into the lamp bulb circuitry, have
your vehicle checked by an author-
ized HYUNDAI dealer.
Headlamp, position lamp, turn
signal lamp, side marker and
front fog lamp bulb replace-
ment
Type A
(1) Turn signal lamp/Position lamp
(2) Headlamp (High)/
Daytime running lights
(3) Headlamp (Low)
(4) Side marker
(5) Fog lamp
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, press
the Engine Start/Stop button
to the OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
ODH073039
■
Type A

7-80
Maintenance
Type B
(1) Turn signal lamp/Daytime running lights
(2) Headlamp (High/Low)
(3) Side marker
(4) Position lamp
(5) Fog lamp
Headlight (HID type) If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
✽ ✽ NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs.
HID lamps are estimated by the
manufacturer to last twice as long or
longer than halogen bulbs depend-
ing on their frequency of use. They
will probably require replacement
at some point in the life of the vehi-
cle. Cycling the headlamps on and
off more than typical use will short-
en HID lamps life. HID lamps do not
fail in the same manner as halogen
incandescent lamps. If a headlamp
goes out after a period of operation
but will immediately relight when
the headlamp switch is cycled it is
likely the HID lamp needs to be
replaced. HID lighting components
are more complex than conventional
halogen bulbs thus have higher
replacement cost.
ODH073039
■
Type B
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
WARNING
If your vehicle is equipped with
High Intensity Discharge (HID)
headlights, these headlights
contain mercury. So if you need
to have your vehicle disposed,
you should remove the HID
Headlights before disposal. The
removed HID headlights should
be recycled, re-used or dis-
posed as hazardous waste.
CAUTION

7-81
7
Maintenance
✽
✽NOTICE
We recommend that the headlamp
aiming be adjusted after an accident
or after the headlamp assembly is
reinstalled at an authorized
HYUNDAI dealer.
Headlamp 1.Turn off the engine.
2.Open the hood.
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. (Bulb type)
Remove the connector (A) and pull
the BI-FUNCTION lamp. (BI-
FUNCTION type)
5.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. (Bulb type)
Connect the BI-FUNCTION lamp
to the cable and install the connec-
tor (A). (BI-FUNCTION type)
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
ODH074065N
ODH074064N
ODH073064L
■ Low beam
■High beam
■Headlamp (BI-FUNCTION)
A
A

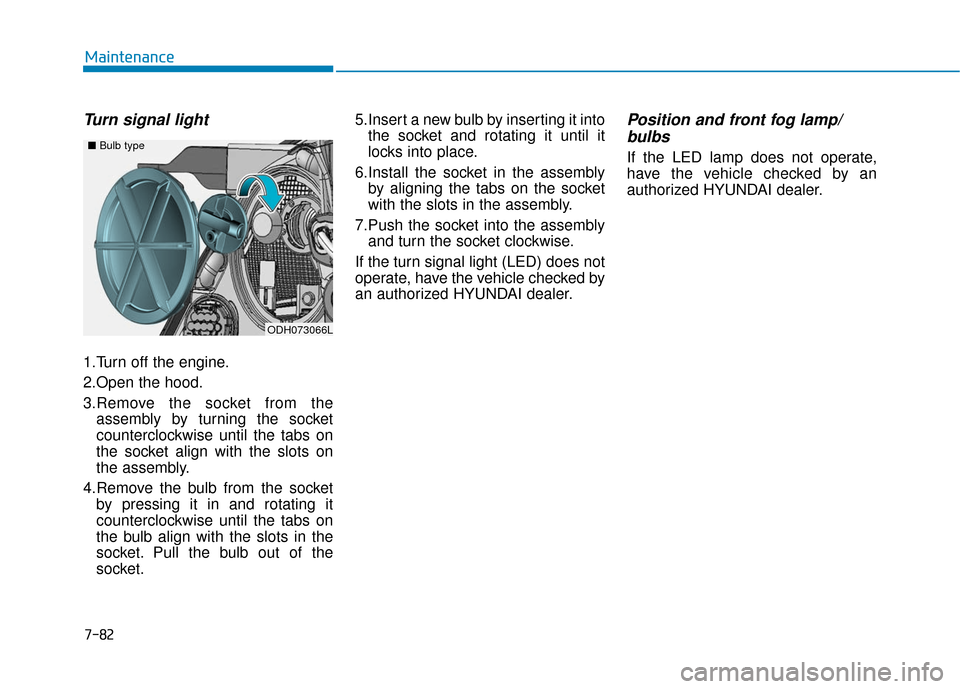

7-82
Maintenance
Turn signal light
1.Turn off the engine.
2.Open the hood.
3.Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly and turn the socket clockwise.
If the turn signal light (LED) does not
operate, have the vehicle checked by
an authorized HYUNDAI dealer.
Position and front fog lamp/ bulbs
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
ODH073066L
■
Bulb type

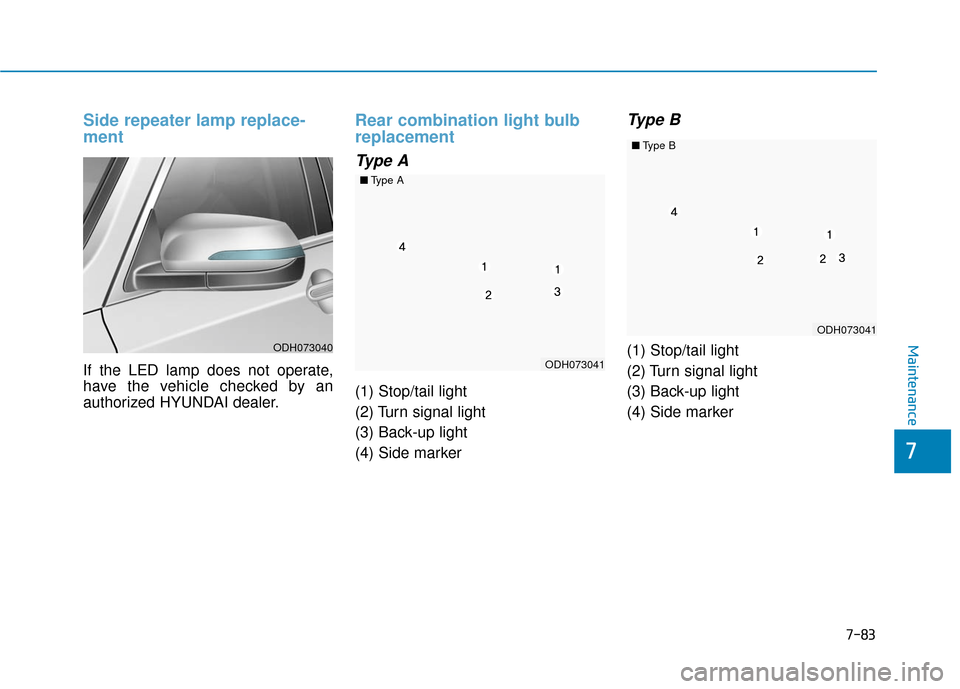

7-83
7
Maintenance
Side repeater lamp replace-
ment
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Rear combination light bulb
replacement
Type A
(1) Stop/tail light
(2) Turn signal light
(3) Back-up light
(4) Side marker
Type B
(1) Stop/tail light
(2) Turn signal light
(3) Back-up light
(4) Side markerODH073040
ODH073041
■
Type A
ODH073041
■
Type B

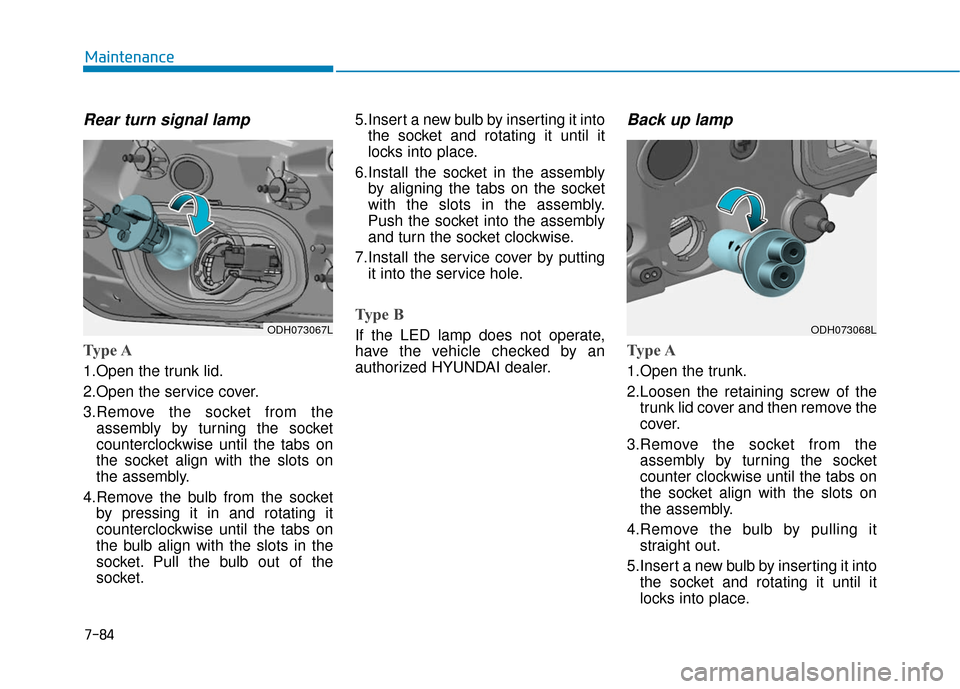

7-84
Maintenance
Rear turn signal lamp
Type A
1.Open the trunk lid.
2.Open the service cover.
3.Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket. 5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7.Install the service cover by putting it into the service hole.
Type B
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Back up lamp
Type A
1.Open the trunk.
2.Loosen the retaining screw of thetrunk lid cover and then remove the
cover.
3.Remove the socket from the assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb by pulling it straight out.
5.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
ODH073067LODH073068L

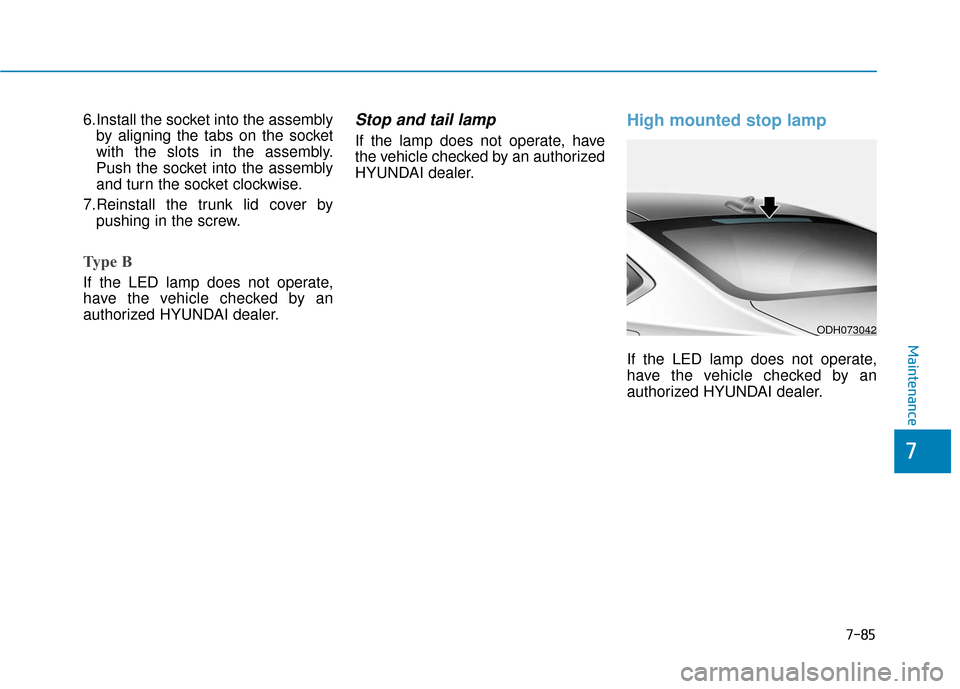

7-85
7
Maintenance
6.Install the socket into the assemblyby aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7.Reinstall the trunk lid cover by pushing in the screw.
Type B
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Stop and tail lamp
If the lamp does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
High mounted stop lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
ODH073042

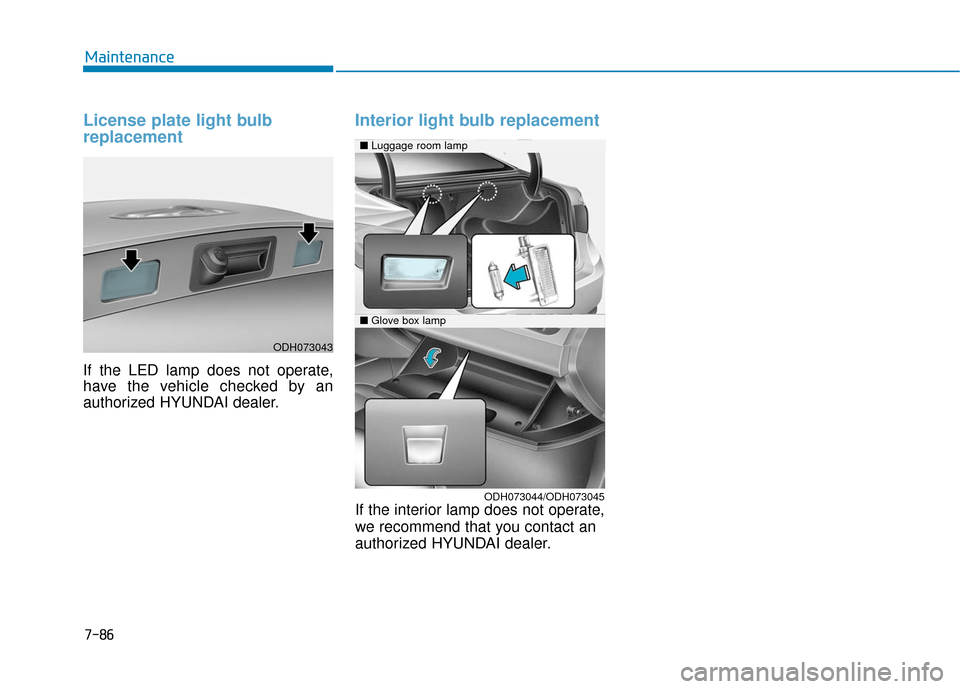

7-86
Maintenance
License plate light bulb
replacement
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Interior light bulb replacement
If the interior lamp does not operate,
we recommend that you contact an
authorized HYUNDAI dealer.
ODH073043
■Luggage room lamp
■Glove box lamp
ODH073044/ODH073045
