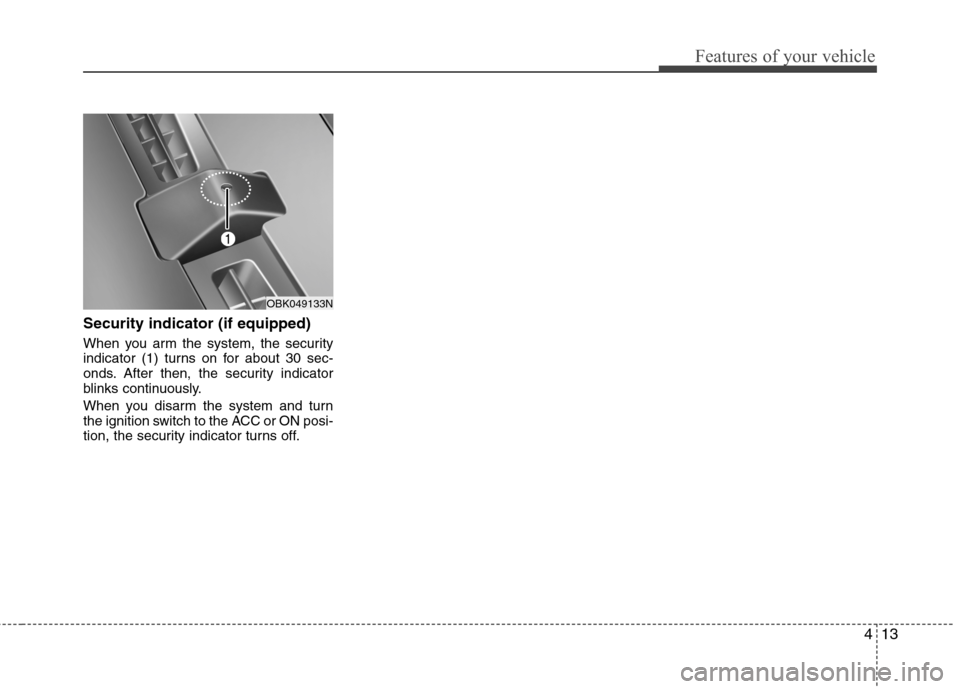

413
Features of your vehicle
Security indicator (if equipped)
When you arm the system, the security
indicator (1) turns on for about 30 sec-
onds. After then, the security indicator
blinks continuously.
When you disarm the system and turn
the ignition switch to the ACC or ON posi-
tion, the security indicator turns off.
OBK049133N

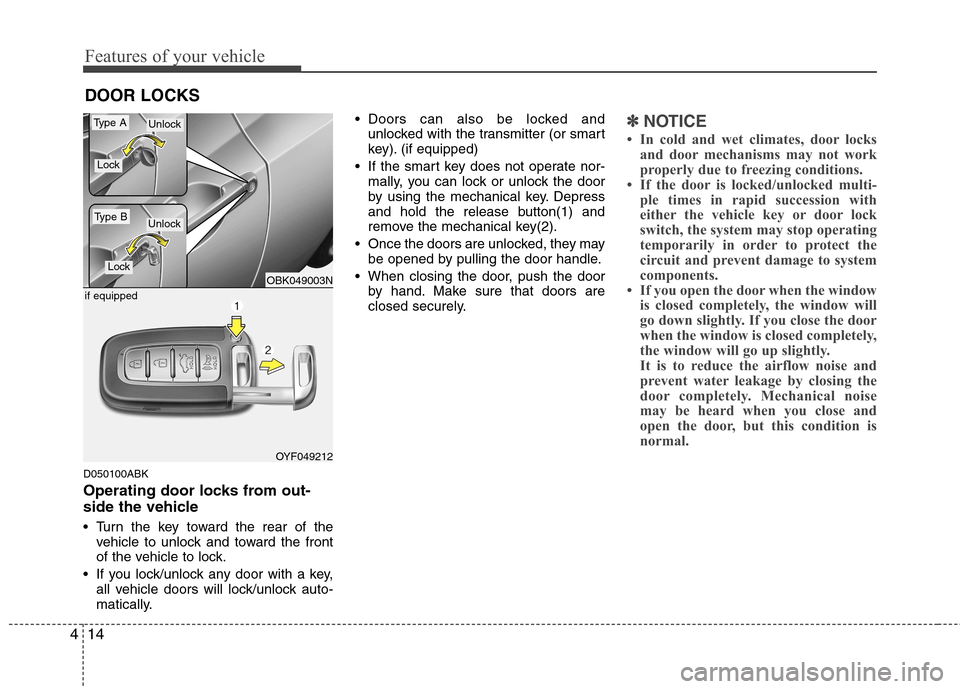

Features of your vehicle
14
4
D050100ABK
Operating door locks from out-
side the vehicle
Turn the key toward the rear of the
vehicle to unlock and toward the front
of the vehicle to lock.
If you lock/unlock any door with a key, all vehicle doors will lock/unlock auto-
matically. Doors can also be locked and
unlocked with the transmitter (or smart
key). (if equipped)
If the smart key does not operate nor- mally, you can lock or unlock the door
by using the mechanical key. Depress
and hold the release button(1) and
remove the mechanical key(2).
Once the doors are unlocked, they may be opened by pulling the door handle.
When closing the door, push the door by hand. Make sure that doors are
closed securely.
✽✽ NOTICE
 In cold and wet climates, door locks and door mechanisms may not work
properly due to freezing conditions.
 If the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operating
temporarily in order to protect the
circuit and prevent damage to system
components.
 If you open the door when the window is closed completely, the window will
go down slightly. If you close the door
when the window is closed completely,
the window will go up slightly.
It is to reduce the airflow noise and
prevent water leakage by closing the
door completely. Mechanical noise
may be heard when you close and
open the door, but this condition is
normal.
DOOR LOCKS
OBK049003N
OYF049212
if equipped
Type A
Type B
Lock
Lock
Unlock
Unlock

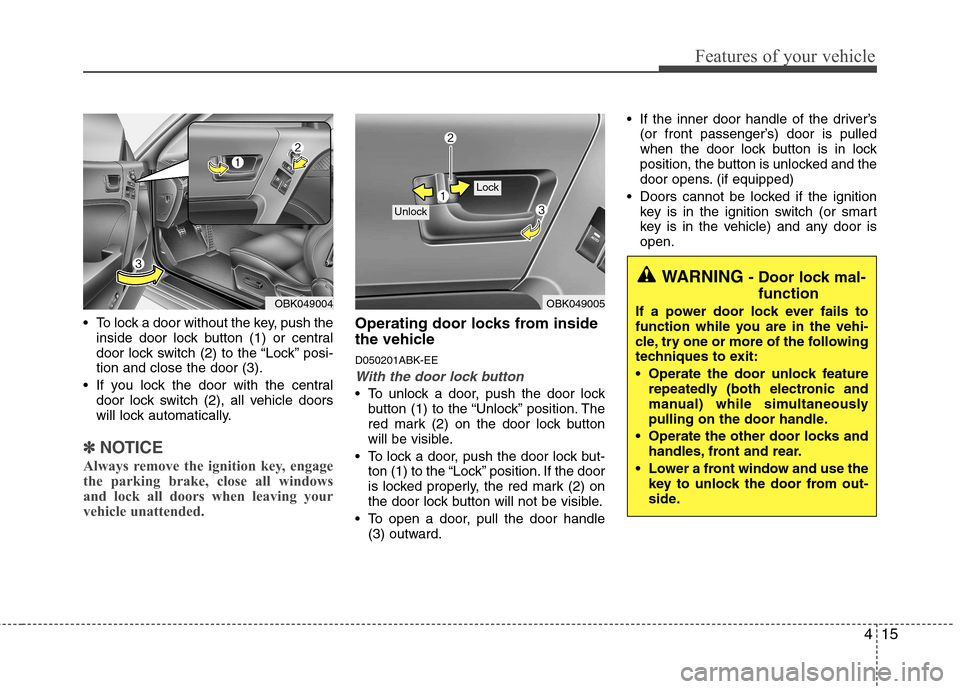

415
Features of your vehicle
To lock a door without the key, push theinside door lock button (1) or central
door lock switch (2 ) to the “Lock” posi-
tion and close the door (3).
If you lock the door with the central door lock switch (2), all vehicle doors
will lock automatically.
✽✽ NOTICE
Always remove the ignition key, engage
the parking brake, close all windows
and lock all doors when leaving your
vehicle unattended.
Operating door locks from inside
the vehicle D050201ABK-EE
With the door lock button
To unlock a door, push the door lock button (1) to the “Unlock” position. The
red mark (2) on the door lock button
will be visible.
To lock a door, push the door lock but- ton (1) to the “Lock” position. If the door
is locked properly, the red mark (2) on
the door lock button will not be visible.
To open a door, pull the door handle (3) outward. If the inner door handle of the driver’s
(or front passenger’s) door is pulled
when the door lock button is in lock
position, the button is unlocked and the
door opens. (if equipped)
Doors cannot be locked if the ignition key is in the ignition switch (or smart
key is in the vehicle) and any door isopen.
OBK049005
Lock
Unlock
WARNING - Door lock mal-
function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the following
techniques to exit:
Operate the door unlock feature repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the key to unlock the door from out-
side.
OBK049004

Features of your vehicle
16
4
D050202ABK

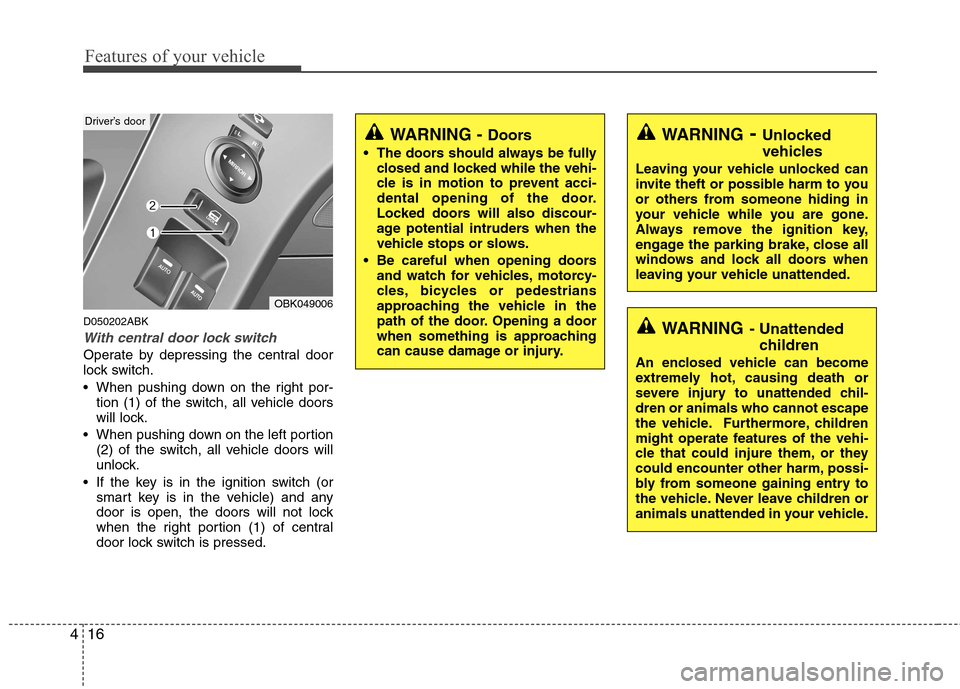

With central door lock switch
Operate by depressing the central door
lock switch.
When pushing down on the right por-
tion (1) of the switch, all vehicle doors
will lock.
When pushing down on the left portion (2) of the switch, all vehicle doors will
unlock.
If the key is in the ignition switch (or smart key is in the vehicle) and any
door is open, the doors will not lock
when the right portion (1) of central
door lock switch is pressed.
WARNING - Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING - Unattended
children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING - Doors
The doors should always be fully closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
OBK049006
Driver’s door

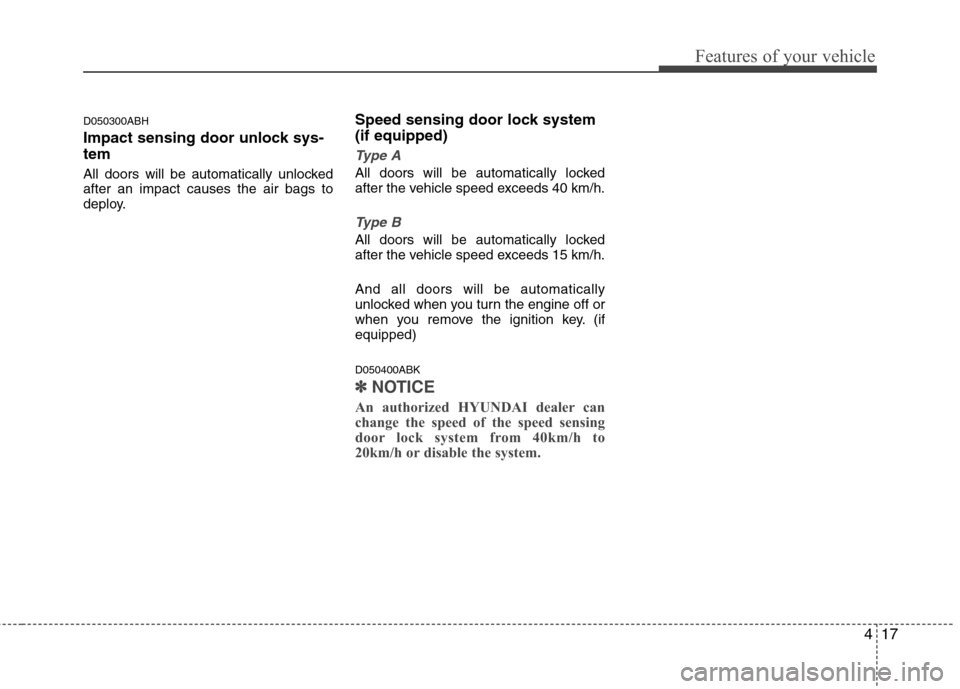

417
Features of your vehicle
D050300ABH
Impact sensing door unlock sys- tem
All doors will be automatically unlocked after an impact causes the air bags to
deploy.Speed sensing door lock system (if equipped)
Type A
All doors will be automatically locked
after the vehicle speed exceeds 40 km/h.
Type B
All doors will be automatically locked
after the vehicle speed exceeds 15 km/h. And all doors will be automatically
unlocked when you turn the engine off or
when you remove the ignition key. (ifequipped) D050400ABK
✽✽
NOTICE
An authorized HYUNDAI dealer can
change the speed of the speed sensing
door lock system from 40km/h to
20km/h or disable the system.

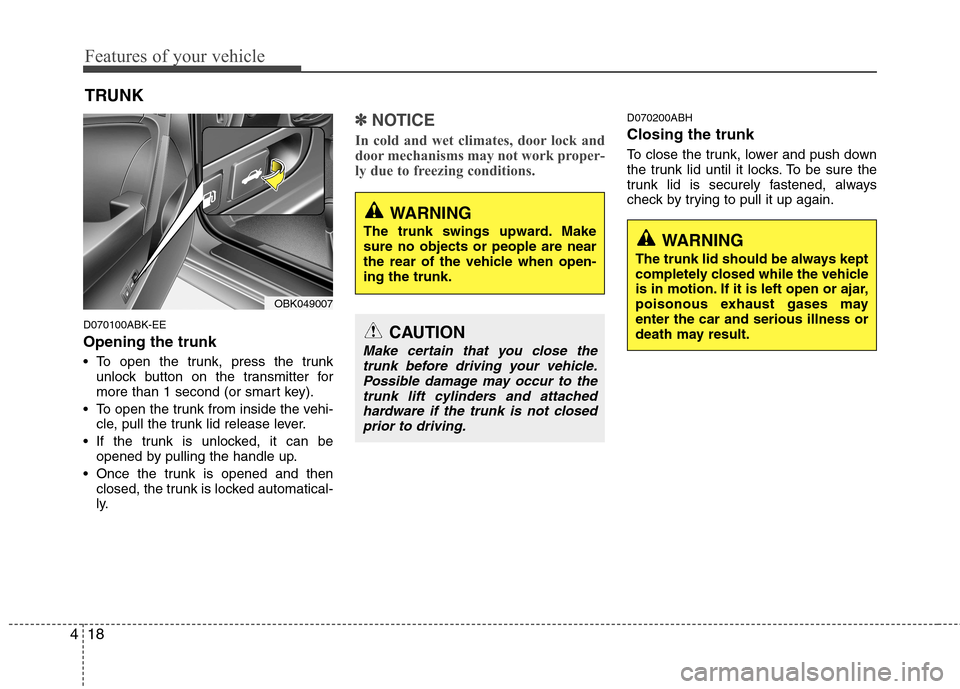

Features of your vehicle
18
4
TRUNK
D070100ABK-EE Opening the trunk
To open the trunk, press the trunk unlock button on the transmitter for
more than 1 second (or smart key).
To open the trunk from inside the vehi- cle, pull the trunk lid release lever.
If the trunk is unlocked, it can be opened by pulling the handle up.
Once the trunk is opened and then closed, the trunk is locked automatical-
ly.
✽✽ NOTICE
In cold and wet climates, door lock and
door mechanisms may not work proper-
ly due to freezing conditions.D070200ABH Closing the trunk
To close the trunk, lower and push down
the trunk lid until it locks. To be sure the
trunk lid is securely fastened, always
check by trying to pull it up again.
WARNING
The trunk lid should be always kept
completely closed while the vehicle
is in motion. If it is left open or ajar,
poisonous exhaust gases mayenter the car and serious illness or
death may result.
OBK049007
CAUTION
Make certain that you close the trunk before driving your vehicle. Possible damage may occur to thetrunk lift cylinders and attached
hardware if the trunk is not closedprior to driving.
WARNING
The trunk swings upward. Make sure no objects or people are near
the rear of the vehicle when open-ing the trunk.

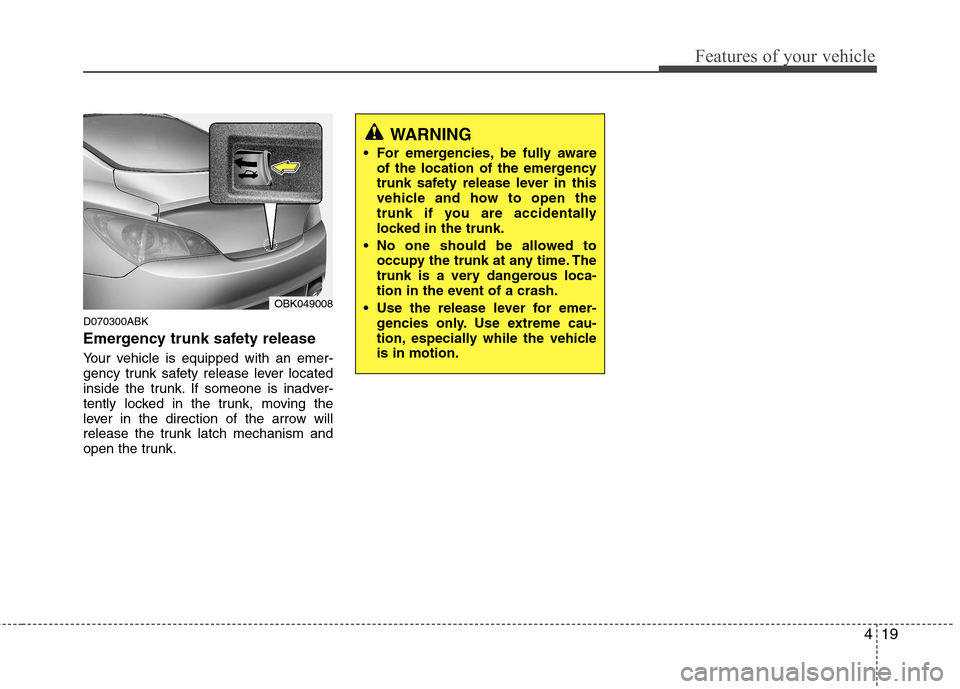

419
Features of your vehicle
D070300ABK
Emergency trunk safety release
Your vehicle is equipped with an emer-
gency trunk safety release lever located
inside the trunk. If someone is inadver-
tently locked in the trunk, moving the
lever in the direction of the arrow will
release the trunk latch mechanism and
open the trunk.
OBK049008
WARNING
For emergencies, be fully aware of the location of the emergency
trunk safety release lever in this
vehicle and how to open the
trunk if you are accidentally
locked in the trunk.
No one should be allowed to occupy the trunk at any time. The
trunk is a very dangerous loca-
tion in the event of a crash.
Use the release lever for emer- gencies only. Use extreme cau-
tion, especially while the vehicleis in motion.

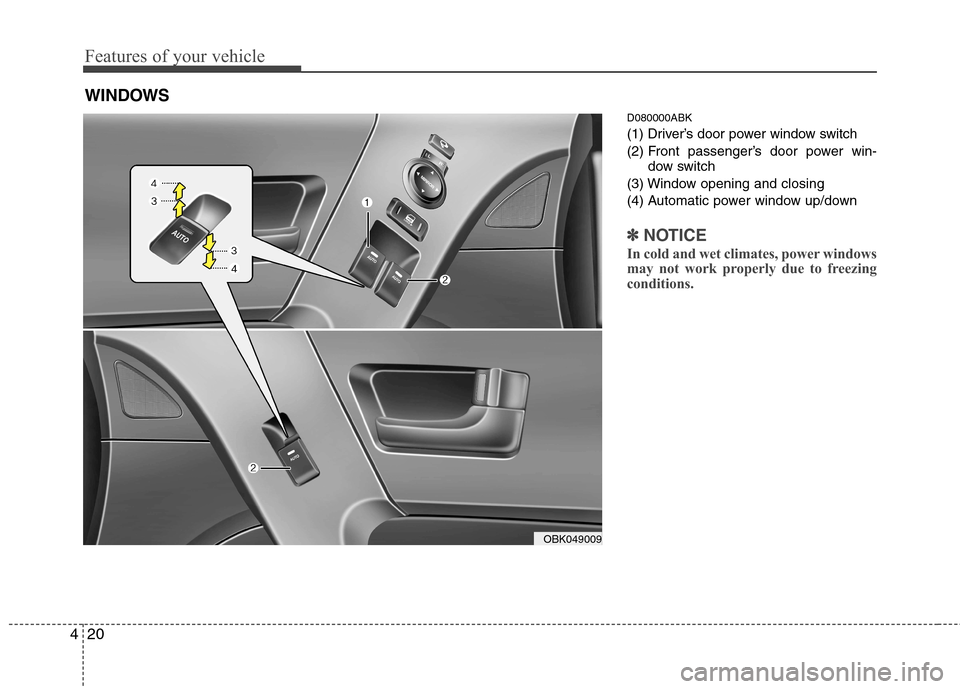

Features of your vehicle
20
4
D080000ABK
(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Window opening and closing
(4) Automatic power window up/down
✽✽ NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
WINDOWS
OBK049009

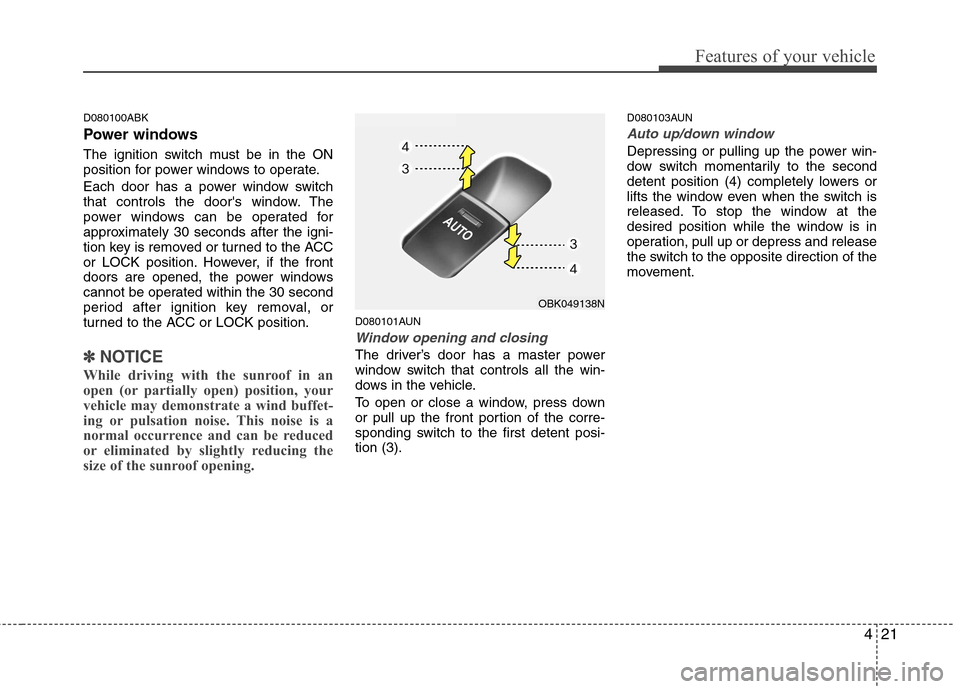

421
Features of your vehicle
D080100ABK
Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door's window. The
power windows can be operated for
approximately 30 seconds after the igni-
tion key is removed or turned to the ACC
or LOCK position. However, if the front
doors are opened, the power windows
cannot be operated within the 30 second
period after ignition key removal, or
turned to the ACC or LOCK position.
✽✽NOTICE
While driving with the sunroof in an
open (or partially open) position, your
vehicle may demonstrate a wind buffet-
ing or pulsation noise. This noise is a
normal occurrence and can be reduced
or eliminated by slightly reducing the
size of the sunroof opening.
D080101AUN
Window opening and closing
The driver’s door has a master power
window switch that controls all the win-
dows in the vehicle.
To open or close a window, press down
or pull up the front portion of the corre-
sponding switch to the first detent posi-tion (3). D080103AUN
Auto up/down window
Depressing or pulling up the power win-
dow switch momentarily to the second
detent position (4) completely lowers or
lifts the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or depress and release
the switch to the opposite direction of the
movement.
OBK049138N

Features of your vehicle
22
4

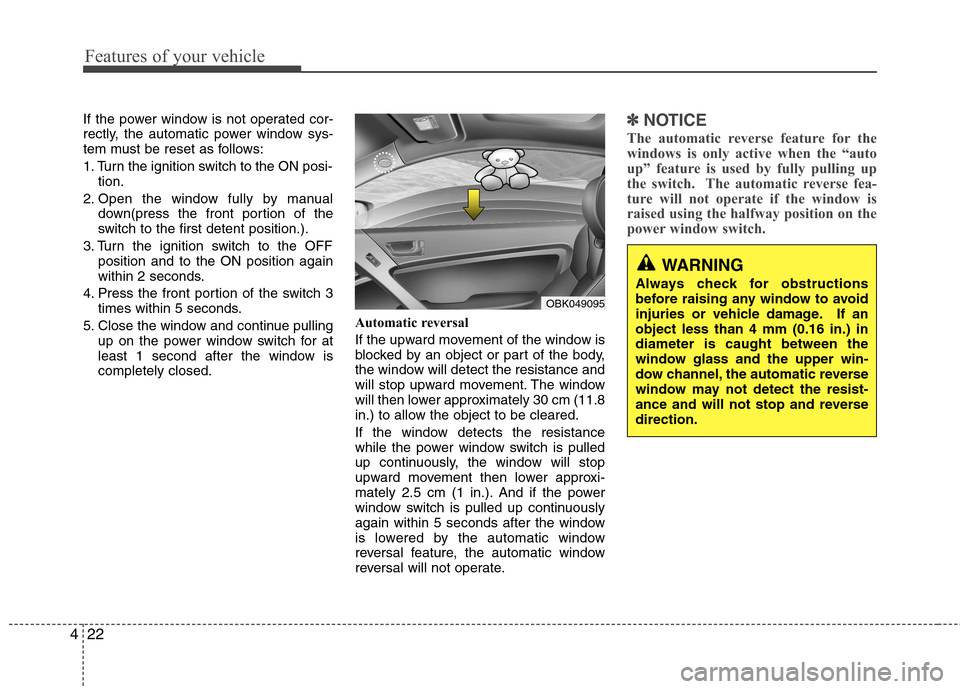

If the power window is not operated cor-
rectly, the automatic power window sys-
tem must be reset as follows:
1. Turn the ignition switch to the ON posi-
tion.
2. Open the window fully by manual down(press the front portion of the
switch to the first detent position.).
3. Turn the ignition switch to the OFF position and to the ON position again
within 2 seconds.
4. Press the front portion of the switch 3 times within 5 seconds.
5. Close the window and continue pulling up on the power window switch for at
least 1 second after the window iscompletely closed. Automatic reversal
If the upward movement of the window is
blocked by an object or part of the body,
the window will detect the resistance and
will stop upward movement. The window
will then lower approximately 30 cm (11.8
in.) to allow the object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower approxi-
mately 2.5 cm (1 in.). And if the power
window switch is pulled up continuously
again within 5 seconds after the window
is lowered by the automatic window
reversal feature, the automatic window
reversal will not operate.✽✽
NOTICE
The automatic reverse feature for the
windows is only active when the “auto
up” feature is used by fully pulling up
the switch. The automatic reverse fea-
ture will not operate if the window is
raised using the halfway position on the
power window switch.
WARNING
Always check for obstructions
before raising any window to avoid
injuries or vehicle damage. If anobject less than 4 mm (0.16 in.) indiameter is caught between the
window glass and the upper win-
dow channel, the automatic reverse
window may not detect the resist-
ance and will not stop and reversedirection.
OBK049095
