Hyundai Genesis Coupe 2015 Owner's Guide

Safety features of your vehicle
10 3

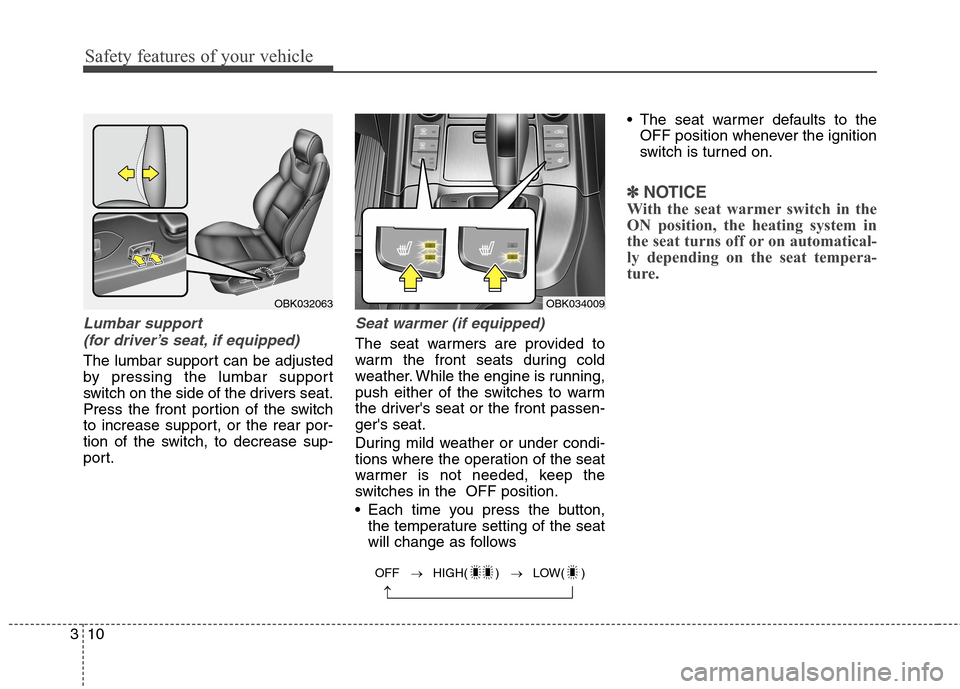

Lumbar support
(for driver’s seat, if equipped)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the drivers seat.
Press the front portion of the switch
to increase support, or the rear por-
tion of the switch, to decrease sup-
port.
Seat warmer (if equipped)
The seat warmers are provided to
warm the front seats during cold
weather. While the engine is running,
push either of the switches to warm
the driver's seat or the front passen-
ger's seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
Each time you press the button,
the temperature setting of the seat
will change as follows The seat warmer defaults to the
OFF position whenever the ignition
switch is turned on.
✽ ✽
NOTICE
With the seat warmer switch in the
ON position, the heating system in
the seat turns off or on automatical-
ly depending on the seat tempera-
ture.
OBK034009
OFF → HIGH( ) → LOW( )
→
OBK032063

311
Safety features of your vehicle

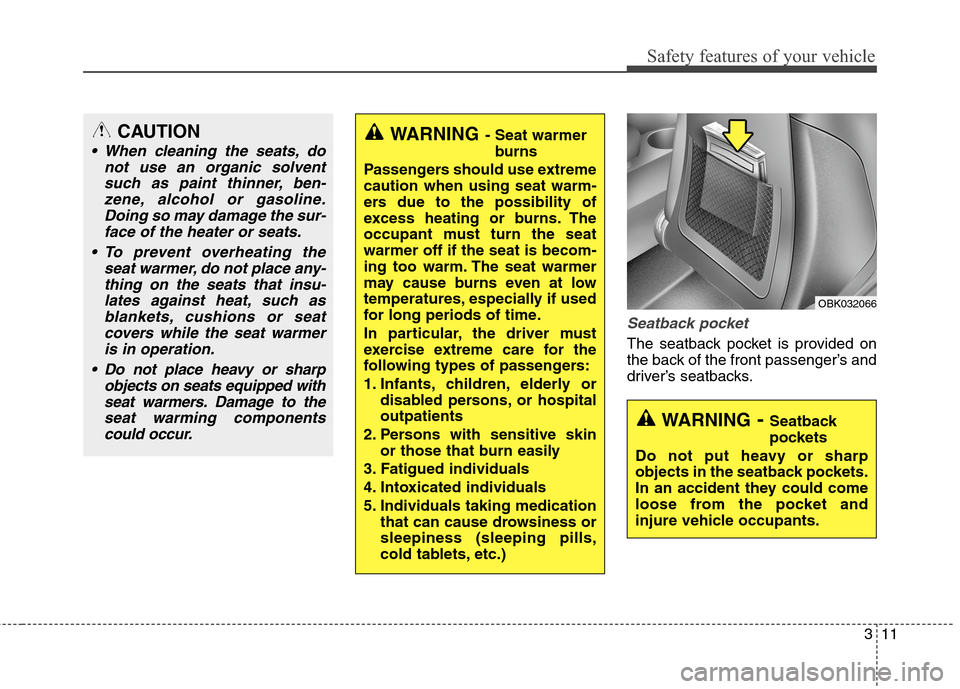

Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
WARNING- Seat warmer
burns
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. The
occupant must turn the seat
warmer off if the seat is becom-
ing too warm. The seat warmer
may cause burns even at low
temperatures, especially if used
for long periods of time.
In particular, the driver must
exercise extreme care for the
following types of passengers:
1. Infants, children, elderly or
disabled persons, or hospital
outpatients
2. Persons with sensitive skin
or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication
that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
OBK032066
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
CAUTION
When cleaning the seats, do
not use an organic solvent
such as paint thinner, ben-
zene, alcohol or gasoline.
Doing so may damage the sur-
face of the heater or seats.
To prevent overheating the
seat warmer, do not place any-
thing on the seats that insu-
lates against heat, such as
blankets, cushions or seat
covers while the seat warmer
is in operation.
Do not place heavy or sharp
objects on seats equipped with
seat warmers. Damage to the
seat warming components
could occur.

Safety features of your vehicle
12 3

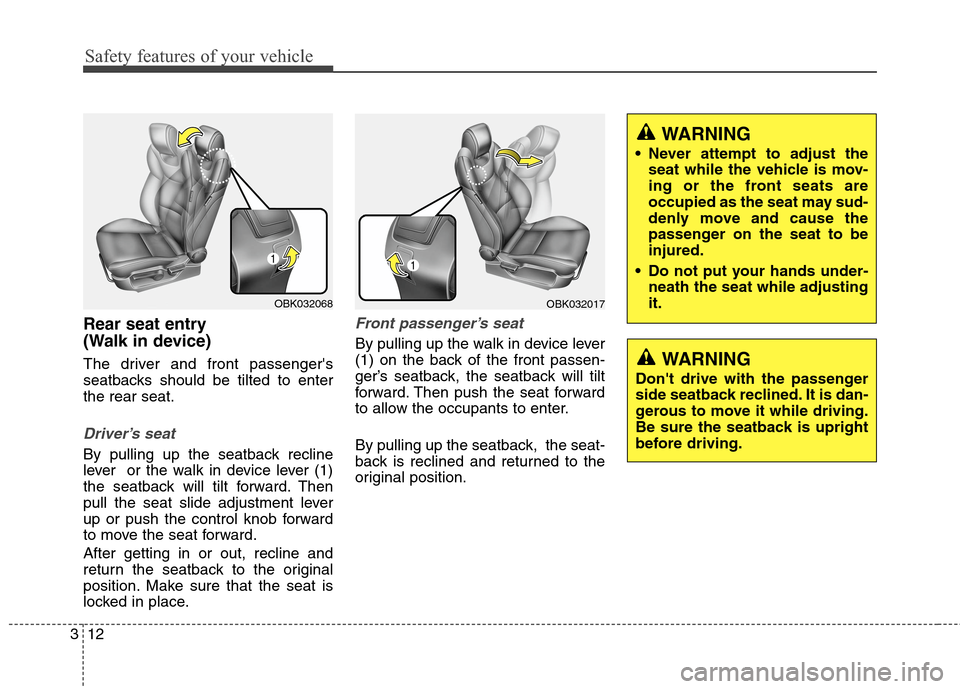

Rear seat entry
(Walk in device)
The driver and front passenger's
seatbacks should be tilted to enter
the rear seat.
Driver’s seat
By pulling up the seatback recline
lever or the walk in device lever (1)
the seatback will tilt forward. Then
pull the seat slide adjustment lever
up or push the control knob forward
to move the seat forward.
After getting in or out, recline and
return the seatback to the original
position. Make sure that the seat is
locked in place.
Front passenger’s seat
By pulling up the walk in device lever
(1) on the back of the front passen-
ger’s seatback, the seatback will tilt
forward. Then push the seat forward
to allow the occupants to enter.
By pulling up the seatback, the seat-
back is reclined and returned to the
original position.
OBK032017
WARNING
Don't drive with the passenger
side seatback reclined. It is dan-
gerous to move it while driving.
Be sure the seatback is upright
before driving.
WARNING
Never attempt to adjust the
seat while the vehicle is mov-
ing or the front seats are
occupied as the seat may sud-
denly move and cause the
passenger on the seat to be
injured.
Do not put your hands under-
neath the seat while adjusting
it.
OBK032068

313
Safety features of your vehicle

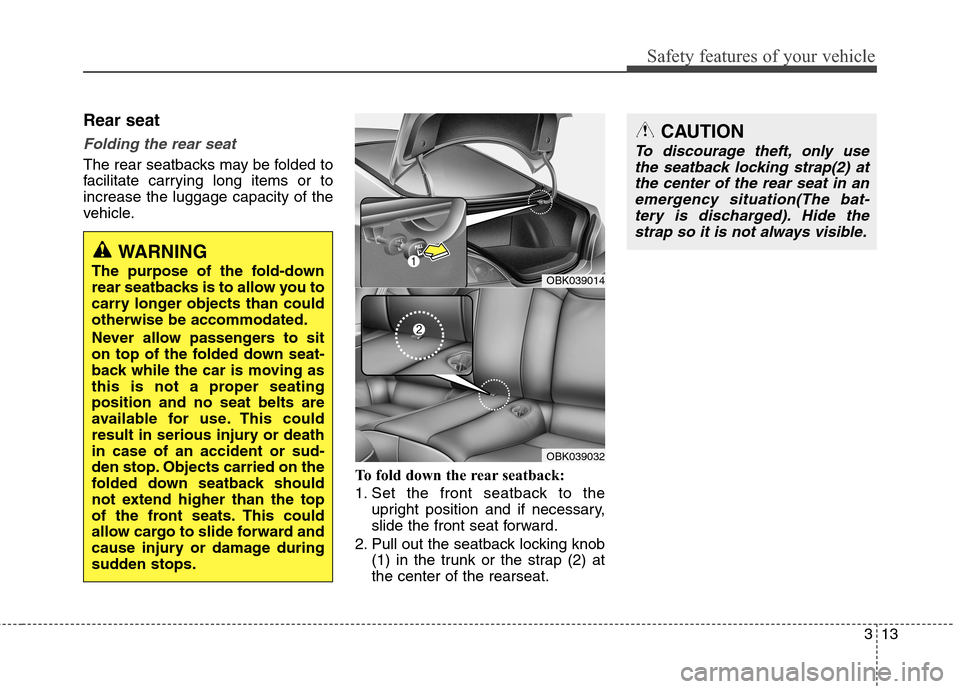

Rear seat
Folding the rear seat
The rear seatbacks may be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
To fold down the rear seatback:
1. Set the front seatback to the
upright position and if necessary,
slide the front seat forward.
2. Pull out the seatback locking knob
(1) in the trunk or the strap (2) at
the center of the rearseat.
WARNING
The purpose of the fold-down
rear seatbacks is to allow you to
carry longer objects than could
otherwise be accommodated.
Never allow passengers to sit
on top of the folded down seat-
back while the car is moving as
this is not a proper seating
position and no seat belts are
available for use. This could
result in serious injury or death
in case of an accident or sud-
den stop. Objects carried on the
folded down seatback should
not extend higher than the top
of the front seats. This could
allow cargo to slide forward and
cause injury or damage during
sudden stops.OBK039014
OBK039032
CAUTION
To discourage theft, only use
the seatback locking strap(2) at
the center of the rear seat in an
emergency situation(The bat-
tery is discharged). Hide the
strap so it is not always visible.

Safety features of your vehicle
14 3

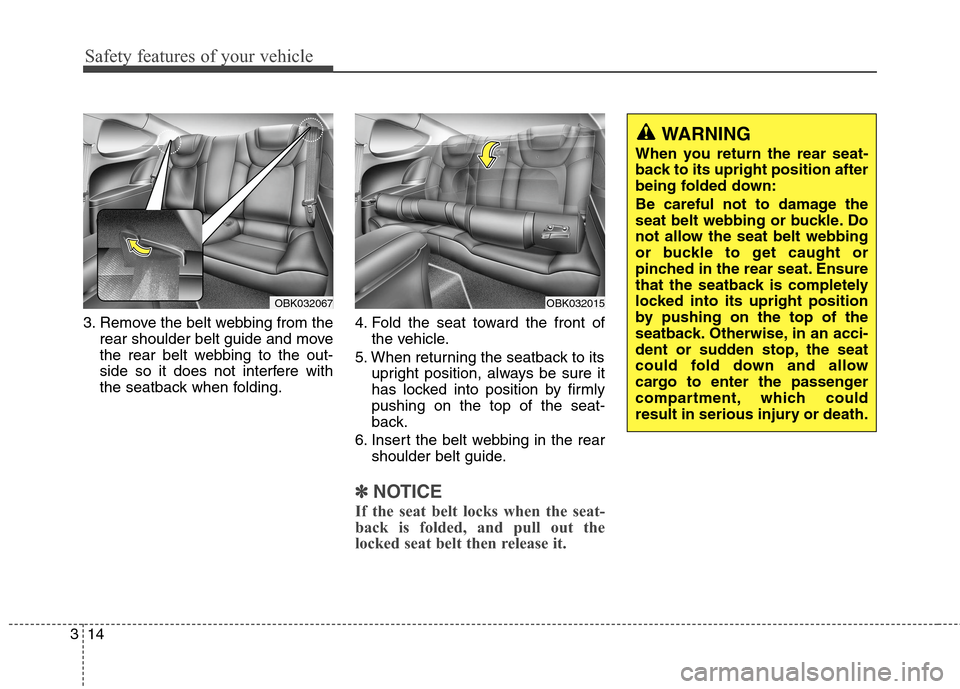

3. Remove the belt webbing from the
rear shoulder belt guide and move
the rear belt webbing to the out-
side so it does not interfere with
the seatback when folding.4. Fold the seat toward the front of
the vehicle.
5. When returning the seatback to its
upright position, always be sure it
has locked into position by firmly
pushing on the top of the seat-
back.
6. Insert the belt webbing in the rear
shoulder belt guide.
✽ ✽
NOTICE
If the seat belt locks when the seat-
back is folded, and pull out the
locked seat belt then release it.
OBK032015OBK032067
WARNING
When you return the rear seat-
back to its upright position after
being folded down:
Be careful not to damage the
seat belt webbing or buckle. Do
not allow the seat belt webbing
or buckle to get caught or
pinched in the rear seat. Ensure
that the seatback is completely
locked into its upright position
by pushing on the top of the
seatback. Otherwise, in an acci-
dent or sudden stop, the seat
could fold down and allow
cargo to enter the passenger
compartment, which could
result in serious injury or death.

315
Safety features of your vehicle

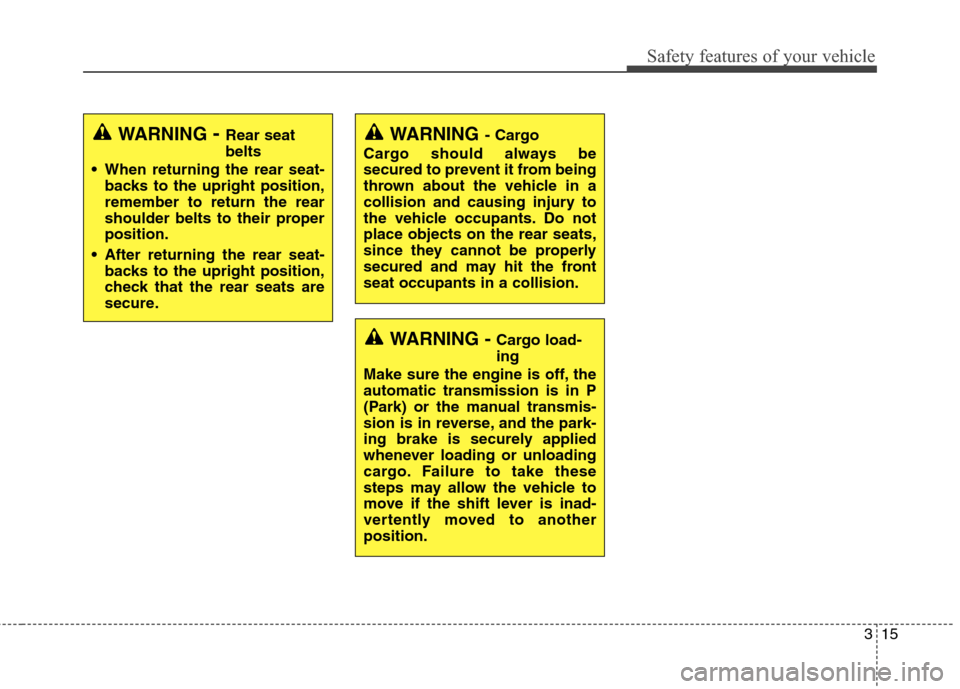

WARNING- Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects on the rear seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.WARNING - Rear seat
belts
When returning the rear seat-
backs to the upright position,
remember to return the rear
shoulder belts to their proper
position.
After returning the rear seat-
backs to the upright position,
check that the rear seats are
secure.
WARNING - Cargo load-
ing
Make sure the engine is off, the
automatic transmission is in P
(Park) or the manual transmis-
sion is in reverse, and the park-
ing brake is securely applied
whenever loading or unloading
cargo. Failure to take these
steps may allow the vehicle to
move if the shift lever is inad-
vertently moved to another
position.

Safety features of your vehicle
16 3

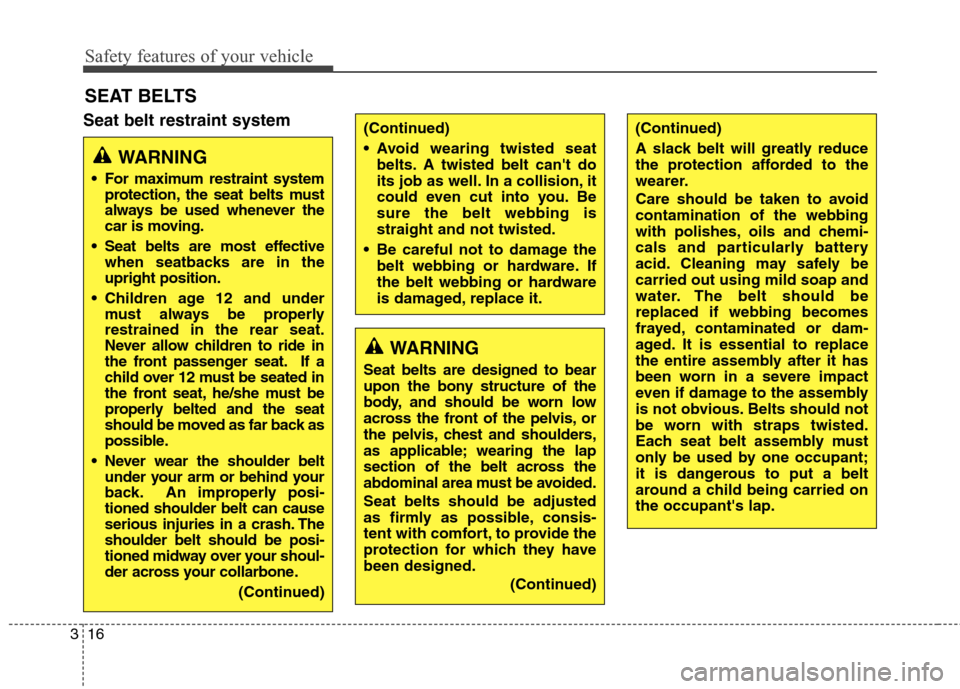

Seat belt restraint system
SEAT BELTS
WARNING
Seat belts are designed to bear
upon the bony structure of the
body, and should be worn low
across the front of the pelvis, or
the pelvis, chest and shoulders,
as applicable; wearing the lap
section of the belt across the
abdominal area must be avoided.
Seat belts should be adjusted
as firmly as possible, consis-
tent with comfort, to provide the
protection for which they have
been designed.
(Continued)
(Continued)
A slack belt will greatly reduce
the protection afforded to the
wearer.
Care should be taken to avoid
contamination of the webbing
with polishes, oils and chemi-
cals and particularly battery
acid. Cleaning may safely be
carried out using mild soap and
water. The belt should be
replaced if webbing becomes
frayed, contaminated or dam-
aged. It is essential to replace
the entire assembly after it has
been worn in a severe impact
even if damage to the assembly
is not obvious. Belts should not
be worn with straps twisted.
Each seat belt assembly must
only be used by one occupant;
it is dangerous to put a belt
around a child being carried on
the occupant's lap.(Continued)
Avoid wearing twisted seat
belts. A twisted belt can't do
its job as well. In a collision, it
could even cut into you. Be
sure the belt webbing is
straight and not twisted.
Be careful not to damage the
belt webbing or hardware. If
the belt webbing or hardware
is damaged, replace it.
WARNING
For maximum restraint system
protection, the seat belts must
always be used whenever the
car is moving.
Seat belts are most effective
when seatbacks are in the
upright position.
Children age 12 and under
must always be properly
restrained in the rear seat.
Never allow children to ride in
the front passenger seat. If a
child over 12 must be seated in
the front seat, he/she must be
properly belted and the seat
should be moved as far back as
possible.
Never wear the shoulder belt
under your arm or behind your
back. An improperly posi-
tioned shoulder belt can cause
serious injuries in a crash. The
shoulder belt should be posi-
tioned midway over your shoul-
der across your collarbone.
(Continued)

317
Safety features of your vehicle

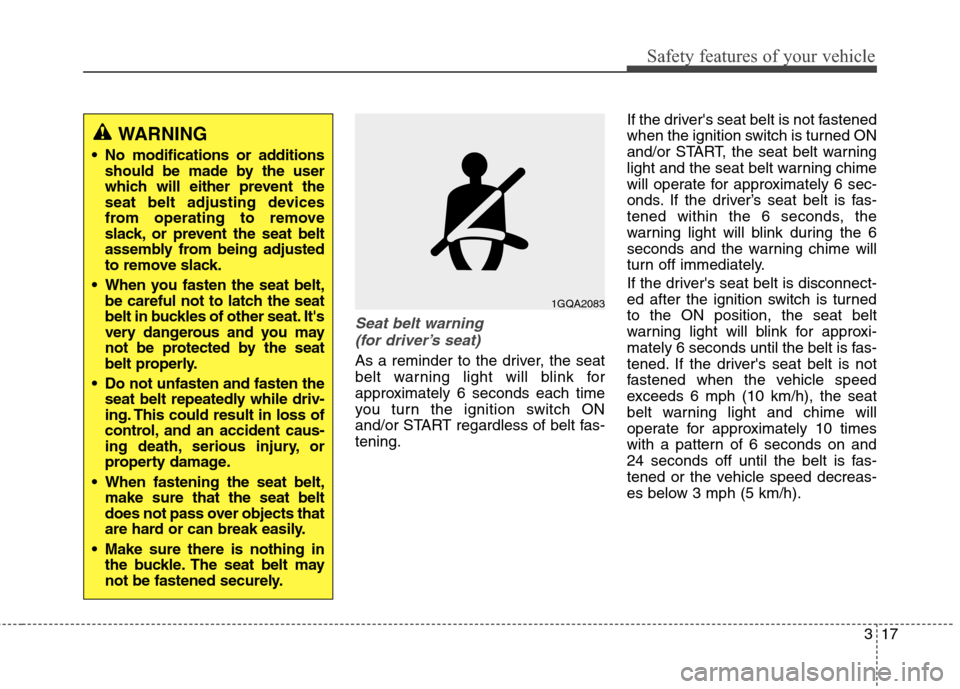

Seat belt warning
(for driver’s seat)
As a reminder to the driver, the seat
belt warning light will blink for
approximately 6 seconds each time
you turn the ignition switch ON
and/or START regardless of belt fas-
tening.If the driver's seat belt is not fastened
when the ignition switch is turned ON
and/or START, the seat belt warning
light and the seat belt warning chime
will operate for approximately 6 sec-
onds. If the driver’s seat belt is fas-
tened within the 6 seconds, the
warning light will blink during the 6
seconds and the warning chime will
turn off immediately.
If the driver's seat belt is disconnect-
ed after the ignition switch is turned
to the ON position, the seat belt
warning light will blink for approxi-
mately 6 seconds until the belt is fas-
tened. If the driver's seat belt is not
fastened when the vehicle speed
exceeds 6 mph (10 km/h), the seat
belt warning light and chime will
operate for approximately 10 times
with a pattern of 6 seconds on and
24 seconds off until the belt is fas-
tened or the vehicle speed decreas-
es below 3 mph (5 km/h).
WARNING
No modifications or additions
should be made by the user
which will either prevent the
seat belt adjusting devices
from operating to remove
slack, or prevent the seat belt
assembly from being adjusted
to remove slack.
When you fasten the seat belt,
be careful not to latch the seat
belt in buckles of other seat. It's
very dangerous and you may
not be protected by the seat
belt properly.
Do not unfasten and fasten the
seat belt repeatedly while driv-
ing. This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
When fastening the seat belt,
make sure that the seat belt
does not pass over objects that
are hard or can break easily.
Make sure there is nothing in
the buckle. The seat belt may
not be fastened securely.
1GQA2083

Safety features of your vehicle
18 3
Seat belt - Driver's 3-point system
with emergency locking retractor
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into the buckle.
The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud-
den stop or impact, however, the belt
will lock into position. It will also lock
if you try to lean forward too quickly.If you are not able to pull out the seat
belt from the retractor, firmly pull the
belt out and release it. Then you will
be able to pull the belt out smoothly.
WARNING
Failure to replace seat belts
after an accident could leave
you with damaged seat belts
that will not provide protection
in the event of another collision
leading to personal injury or
death. Replace your seat belts
as soon as possible after being
in an accident.
B200A02NF
WARNING
You should place the lap belt
portion as low as possible and
snugly across your hips, not on
your waist. If the lap belt is
located too high on your waist,
it may increase the chance of
injury in the event of a collision.
Both arms should not be under
or over the belt. Rather, one
should be over and the other
under, as shown in the illustra-
tion.
Never wear the seat belt under
the arm nearest the door.
B180A01NF-1

319

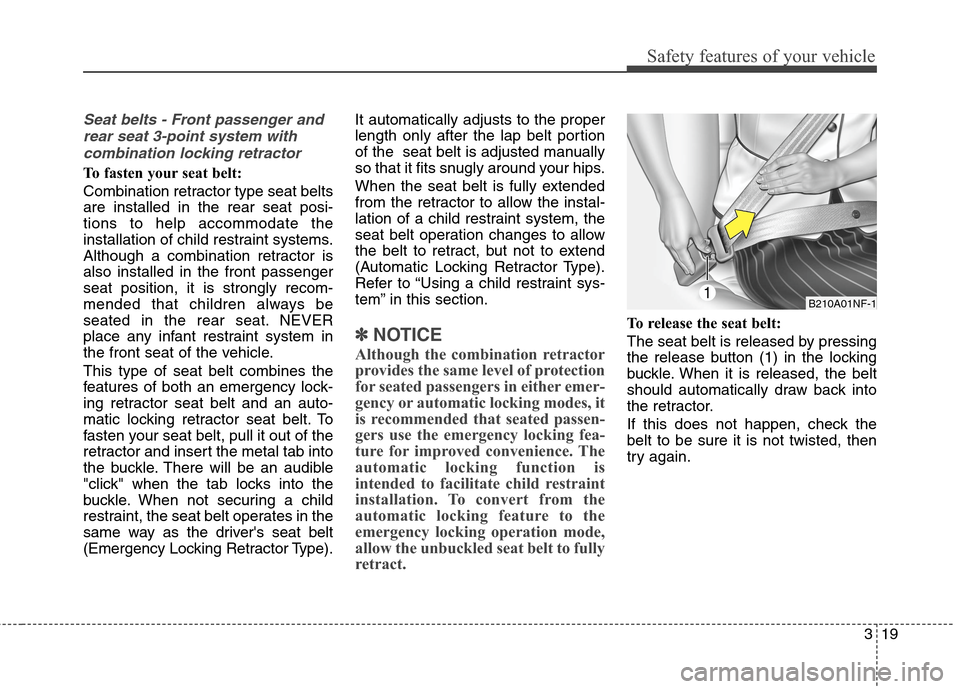

Safety features of your vehicle
Seat belts - Front passenger and
rear seat 3-point system with
combination locking retractor
To fasten your seat belt:
Combination retractor type seat belts
are installed in the rear seat posi-
tions to help accommodate the
installation of child restraint systems.
Although a combination retractor is
also installed in the front passenger
seat position, it is strongly recom-
mended that children always be
seated in the rear seat. NEVER
place any infant restraint system in
the front seat of the vehicle.
This type of seat belt combines the
features of both an emergency lock-
ing retractor seat belt and an auto-
matic locking retractor seat belt. To
fasten your seat belt, pull it out of the
retractor and insert the metal tab into
the buckle. There will be an audible
"click" when the tab locks into the
buckle. When not securing a child
restraint, the seat belt operates in the
same way as the driver's seat belt
(Emergency Locking Retractor Type).It automatically adjusts to the proper
length only after the lap belt portion
of the seat belt is adjusted manually
so that it fits snugly around your hips.
When the seat belt is fully extended
from the retractor to allow the instal-
lation of a child restraint system, the
seat belt operation changes to allow
the belt to retract, but not to extend
(Automatic Locking Retractor Type).
Refer to “Using a child restraint sys-
tem” in this section.
✽ ✽
NOTICE
Although the combination retractor
provides the same level of protection
for seated passengers in either emer-
gency or automatic locking modes, it
is recommended that seated passen-
gers use the emergency locking fea-
ture for improved convenience. The
automatic locking function is
intended to facilitate child restraint
installation. To convert from the
automatic locking feature to the
emergency locking operation mode,
allow the unbuckled seat belt to fully
retract.
To release the seat belt:
The seat belt is released by pressing
the release button (1) in the locking
buckle. When it is released, the belt
should automatically draw back into
the retractor.
If this does not happen, check the
belt to be sure it is not twisted, then
try again.
B210A01NF-1
