Driving your vehicle
50 5
Use high quality ethylene gly-
col coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in section 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in section 7. The level of charge in
your battery can be checked by an
authorized HYUNDAI dealer or a
service station.
Change to "winter weight" oil
if necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
section 8 for recommendations. If
you aren't sure what weight oil you
should use, consult an authorized
HYUNDAI dealer.
Check spark plugs and igni-
tion system
Inspect your spark plugs as
described in section 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
WARNING- Tire chains
The use of chains may
adversely affect vehicle han-
dling.
Do not exceed 20 mph (30
km/h) or the chain manufac-
turer’s recommended speed
limit, whichever is lower.
Drive carefully and avoid
bumps, holes, sharp turns,
and other road hazards, which
may cause the vehicle to
bounce.
Avoid sharp turns or locked-
wheel braking.
CAUTION
Chains that are the wrong size
or improperly installed can
damage your vehicle's brake
lines, suspension, body and
wheels.
Stop driving and retighten the
chains any time you hear them
hitting the vehicle.

Driving your vehicle
56 5

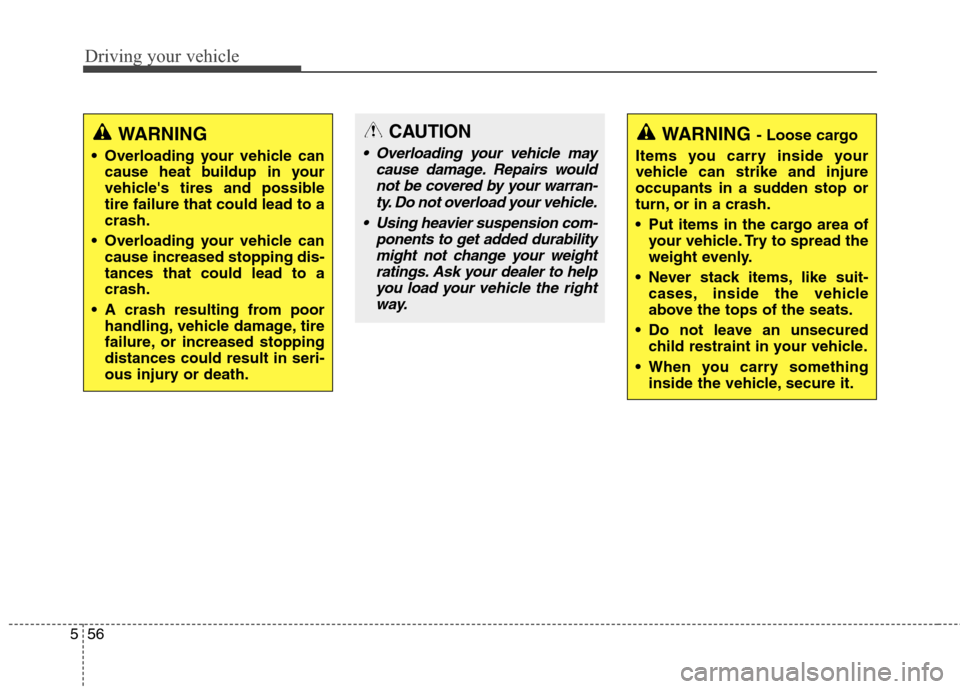

WARNING
Overloading your vehicle can
cause heat buildup in your
vehicle's tires and possible
tire failure that could lead to a
crash.
Overloading your vehicle can
cause increased stopping dis-
tances that could lead to a
crash.
A crash resulting from poor
handling, vehicle damage, tire
failure, or increased stopping
distances could result in seri-
ous injury or death.
WARNING - Loose cargo
Items you carry inside your
vehicle can strike and injure
occupants in a sudden stop or
turn, or in a crash.
Put items in the cargo area of
your vehicle. Try to spread the
weight evenly.
Never stack items, like suit-
cases, inside the vehicle
above the tops of the seats.
Do not leave an unsecured
child restraint in your vehicle.
When you carry something
inside the vehicle, secure it.CAUTION
Overloading your vehicle may
cause damage. Repairs would
not be covered by your warran-
ty. Do not overload your vehicle.
Using heavier suspension com-
ponents to get added durability
might not change your weight
ratings. Ask your dealer to help
you load your vehicle the right
way.

79
Maintenance

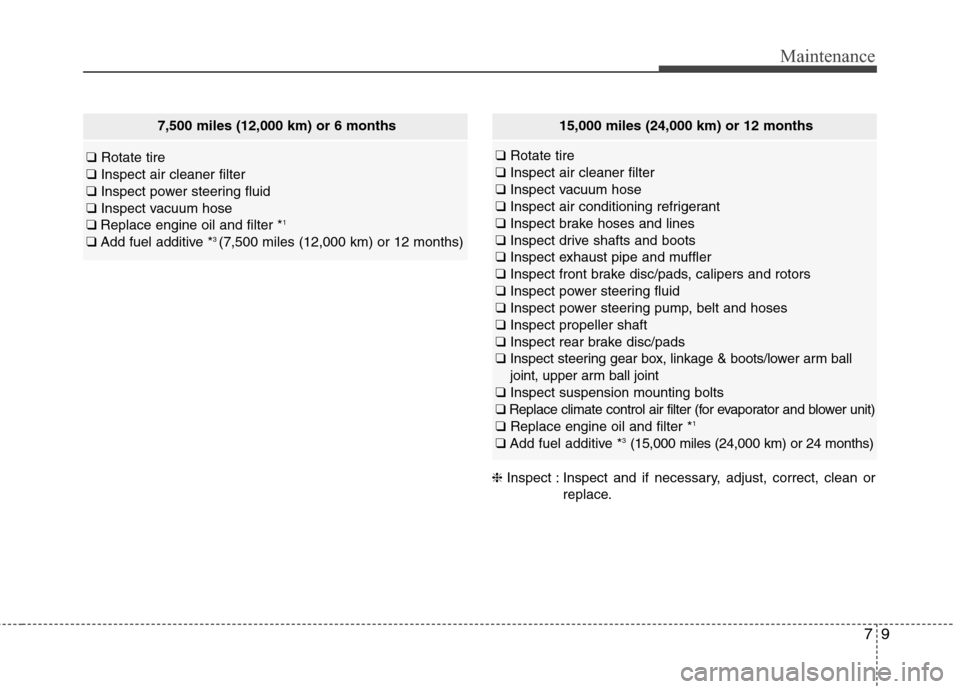

7,500 miles (12,000 km) or 6 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (7,500 miles (12,000 km) or 12 months)
15,000 miles (24,000 km) or 12 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect propeller shaft
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (15,000 miles (24,000 km) or 24 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
10 7

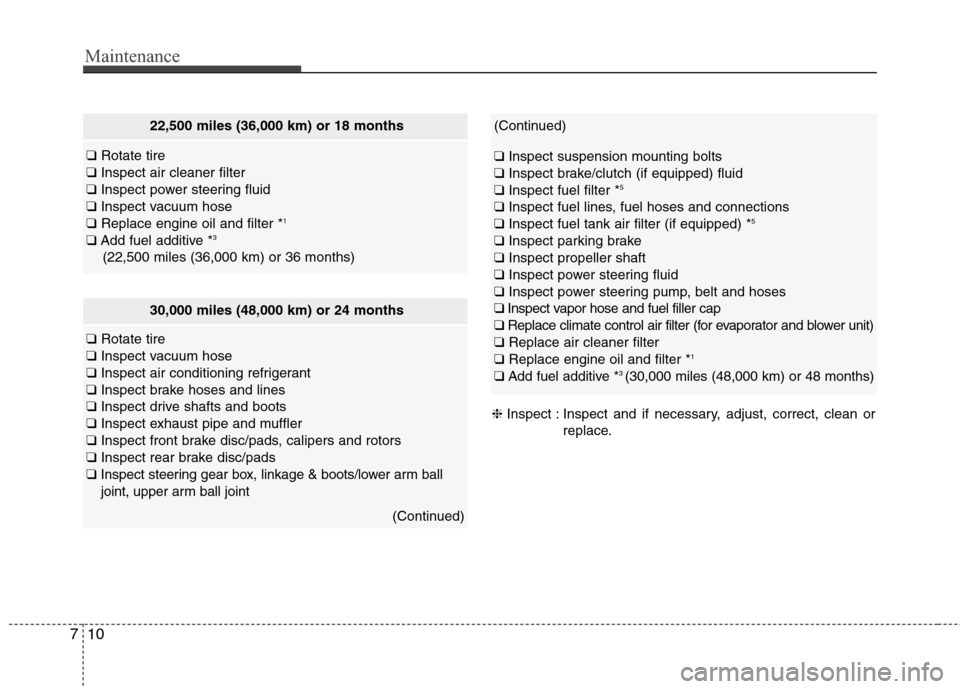

22,500 miles (36,000 km) or 18 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Replace engine oil and filter *
1
❑Add fuel additive *3
(22,500 miles (36,000 km) or 36 months)
30,000 miles (48,000 km) or 24 months
❑Rotate tire
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
(Continued)
(Continued)
❑Inspect suspension mounting bolts
❑Inspect brake/clutch (if equipped) fluid
❑Inspect fuel filter *
5
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *5
❑Inspect parking brake
❑Inspect propeller shaft
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect vapor hose and fuel filler cap
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace air cleaner filter
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (30,000 miles (48,000 km) or 48 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

711

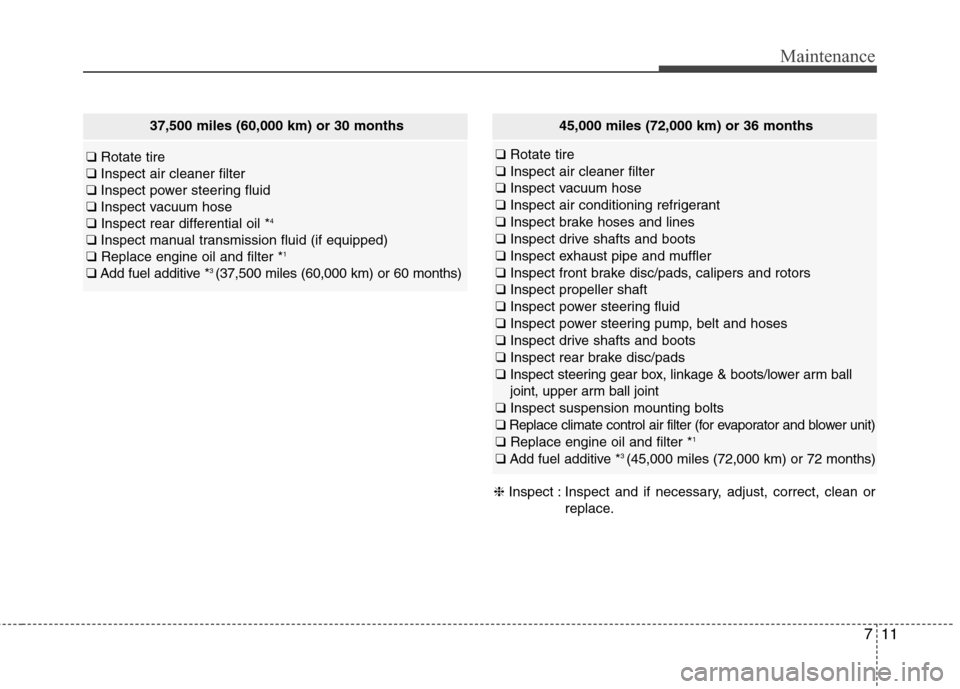

Maintenance
37,500 miles (60,000 km) or 30 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Inspect rear differential oil *
4
❑Inspect manual transmission fluid (if equipped)
❑Replace engine oil and filter *1
❑Add fuel additive *3 (37,500 miles (60,000 km) or 60 months)
45,000 miles (72,000 km) or 36 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect propeller shaft
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect drive shafts and boots
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (45,000 miles (72,000 km) or 72 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
12 7

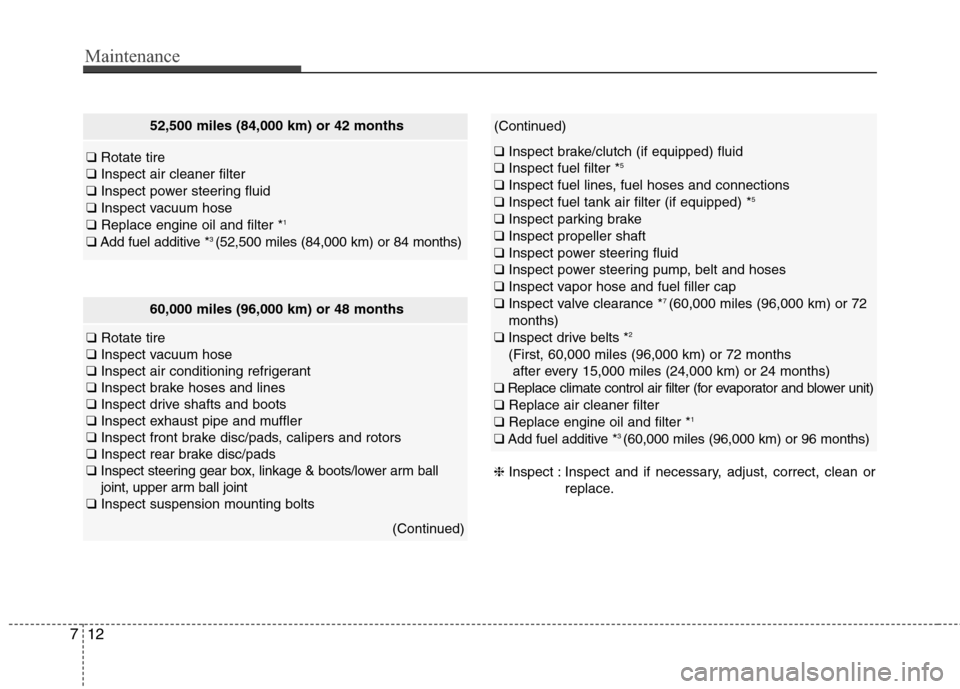

60,000 miles (96,000 km) or 48 months
❑Rotate tire
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
(Continued)
(Continued)
❑Inspect brake/clutch (if equipped) fluid
❑Inspect fuel filter *5
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *5
❑Inspect parking brake
❑Inspect propeller shaft
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect vapor hose and fuel filler cap
❑Inspect valve clearance *
7 (60,000 miles (96,000 km) or 72
months)
❑Inspect drive belts *
2
(First, 60,000 miles (96,000 km) or 72 months
after every 15,000 miles (24,000 km) or 24 months)
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace air cleaner filter
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (60,000 miles (96,000 km) or 96 months)
52,500 miles (84,000 km) or 42 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (52,500 miles (84,000 km) or 84 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

713
Maintenance

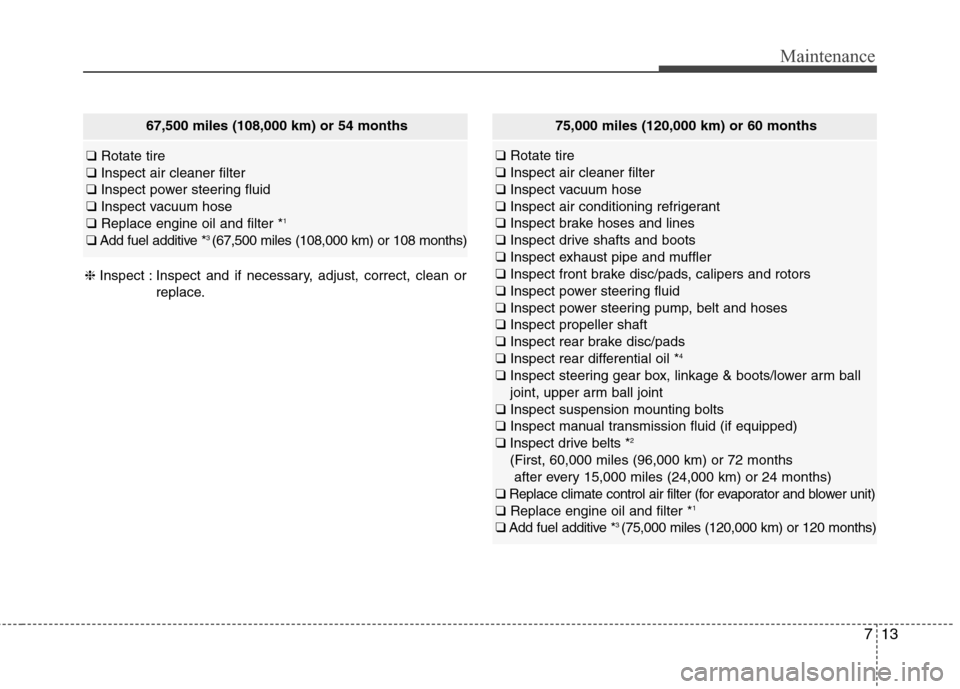

67,500 miles (108,000 km) or 54 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (67,500 miles (108,000 km) or 108 months)
75,000 miles (120,000 km) or 60 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect propeller shaft
❑Inspect rear brake disc/pads
❑Inspect rear differential oil *
4
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑Inspect manual transmission fluid (if equipped)
❑Inspect drive belts *
2
(First, 60,000 miles (96,000 km) or 72 months
after every 15,000 miles (24,000 km) or 24 months)
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (75,000 miles (120,000 km) or 120 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
14 7

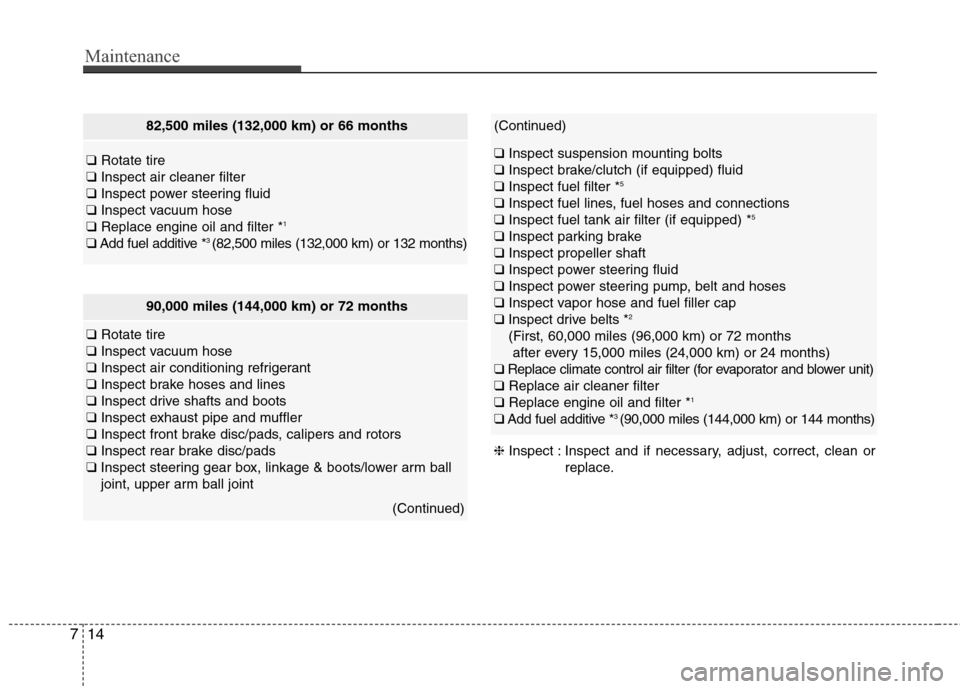

90,000 miles (144,000 km) or 72 months
❑Rotate tire
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
(Continued)
(Continued)
❑Inspect suspension mounting bolts
❑Inspect brake/clutch (if equipped) fluid
❑Inspect fuel filter *
5
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *5
❑Inspect parking brake
❑Inspect propeller shaft
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect vapor hose and fuel filler cap
❑Inspect drive belts *
2
(First, 60,000 miles (96,000 km) or 72 months
after every 15,000 miles (24,000 km) or 24 months)
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace air cleaner filter
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (90,000 miles (144,000 km) or 144 months)
82,500 miles (132,000 km) or 66 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (82,500 miles (132,000 km) or 132 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

715
Maintenance

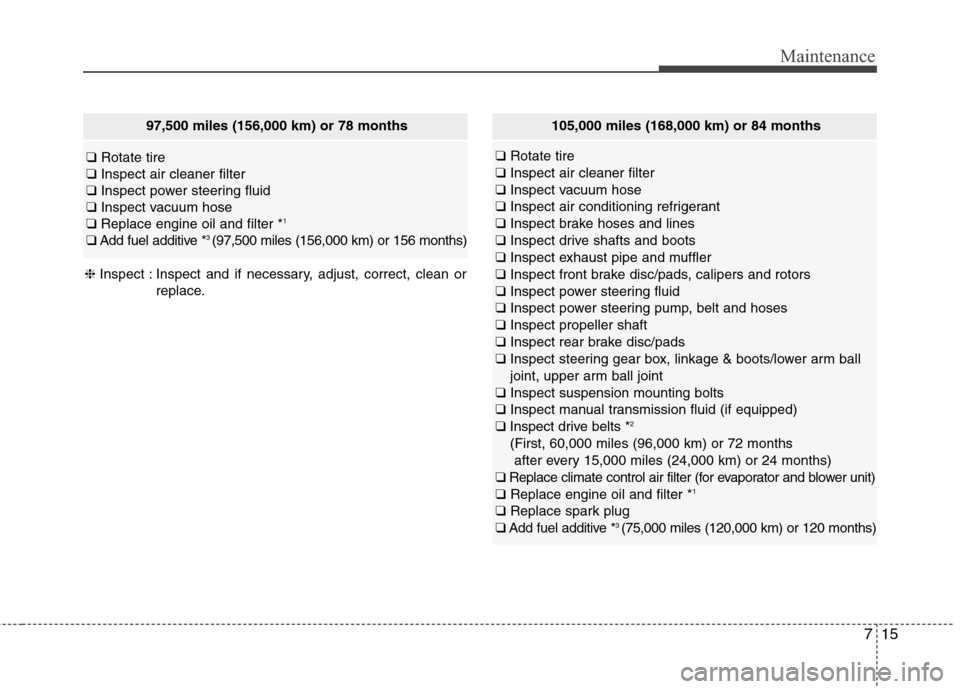

97,500 miles (156,000 km) or 78 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Replace engine oil and filter *
1
❑Add fuel additive *3 (97,500 miles (156,000 km) or 156 months)
105,000 miles (168,000 km) or 84 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect propeller shaft
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑Inspect manual transmission fluid (if equipped)
❑Inspect drive belts *
2
(First, 60,000 miles (96,000 km) or 72 months
after every 15,000 miles (24,000 km) or 24 months)
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace engine oil and filter *
1
❑Replace spark plug
❑Add fuel additive *3 (75,000 miles (120,000 km) or 120 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

Maintenance
16 7

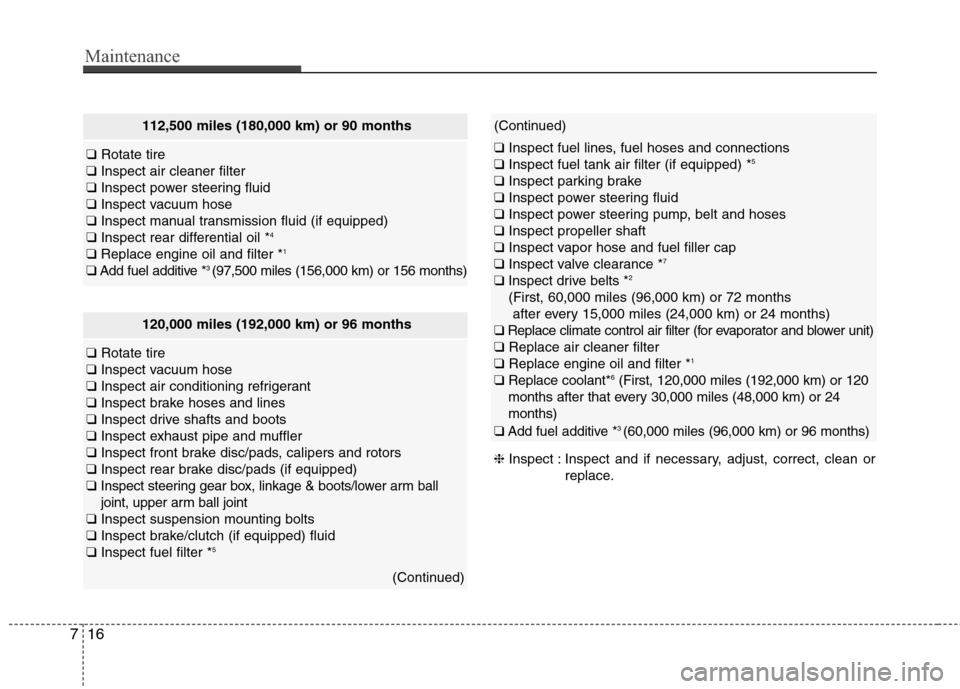

120,000 miles (192,000 km) or 96 months
❑Rotate tire
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect rear brake disc/pads (if equipped)
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑Inspect brake/clutch (if equipped) fluid
❑Inspect fuel filter *
5
(Continued)
112,500 miles (180,000 km) or 90 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect power steering fluid
❑Inspect vacuum hose
❑Inspect manual transmission fluid (if equipped)
❑Inspect rear differential oil *
4
❑Replace engine oil and filter *1
❑Add fuel additive *3 (97,500 miles (156,000 km) or 156 months)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
(Continued)
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *5
❑Inspect parking brake
❑Inspect power steering fluid
❑Inspect power steering pump, belt and hoses
❑Inspect propeller shaft
❑Inspect vapor hose and fuel filler cap
❑Inspect valve clearance *
7
❑Inspect drive belts *2
(First, 60,000 miles (96,000 km) or 72 months
after every 15,000 miles (24,000 km) or 24 months)
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace air cleaner filter
❑Replace engine oil and filter *
1
❑Replace coolant*6(First, 120,000 miles (192,000 km) or 120
months after that every 30,000 miles (48,000 km) or 24
months)
❑Add fuel additive *
3 (60,000 miles (96,000 km) or 96 months)
