HYUNDAI GENESIS G70 2018 Owners Manual

8-8
Specifications, Consumer information and Reporting safety defects

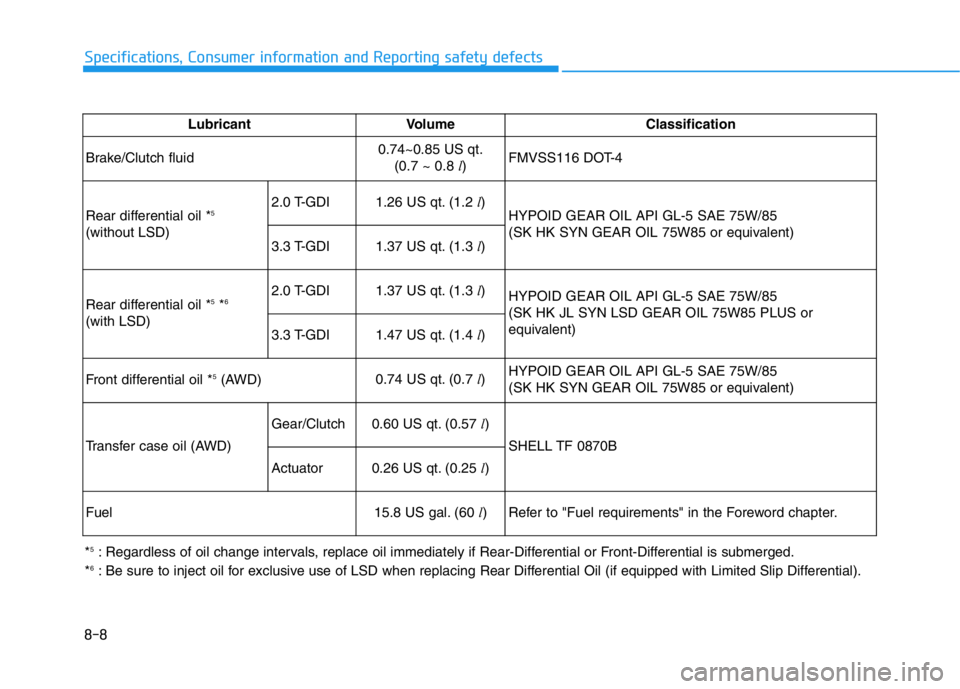

Lubricant Volume Classification
Brake/Clutch fluid0.74~0.85 US qt.
(0.7 ~ 0.8 l)FMVSS116 DOT-4
Rear differential oil *
5
(without LSD)2.0 T-GDI1.26 US qt. (1.2 l)
HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85 or equivalent)
3.3 T-GDI1.37 US qt. (1.3 l)
Rear differential oil *
5*6
(with LSD)2.0 T-GDI1.37 US qt. (1.3 l)
HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK JL SYN LSD GEAR OIL 75W85 PLUS or
equivalent)
3.3 T-GDI1.47 US qt. (1.4 l)
Front differential oil *
5(AWD)0.74 US qt. (0.7 l)HYPOID GEAR OIL API GL-5 SAE 75W/85
(SK HK SYN GEAR OIL 75W85 or equivalent)
Transfer case oil (AWD)Gear/Clutch0.60 US qt. (0.57 l)
SHELL TF 0870B
Actuator0.26 US qt. (0.25 l)
Fuel15.8 US gal. (60 l)
Refer to "Fuel requirements" in the Foreword chapter.
*5: Regardless of oil change intervals, replace oil immediately if Rear-Differential or Front-Differential is submerged.
*6: Be sure to inject oil for exclusive use of LSD when replacing Rear Differential Oil (if equipped with Limited Slip Differential).

8-9
88
Specifications, Consumer information and Reporting safety defects

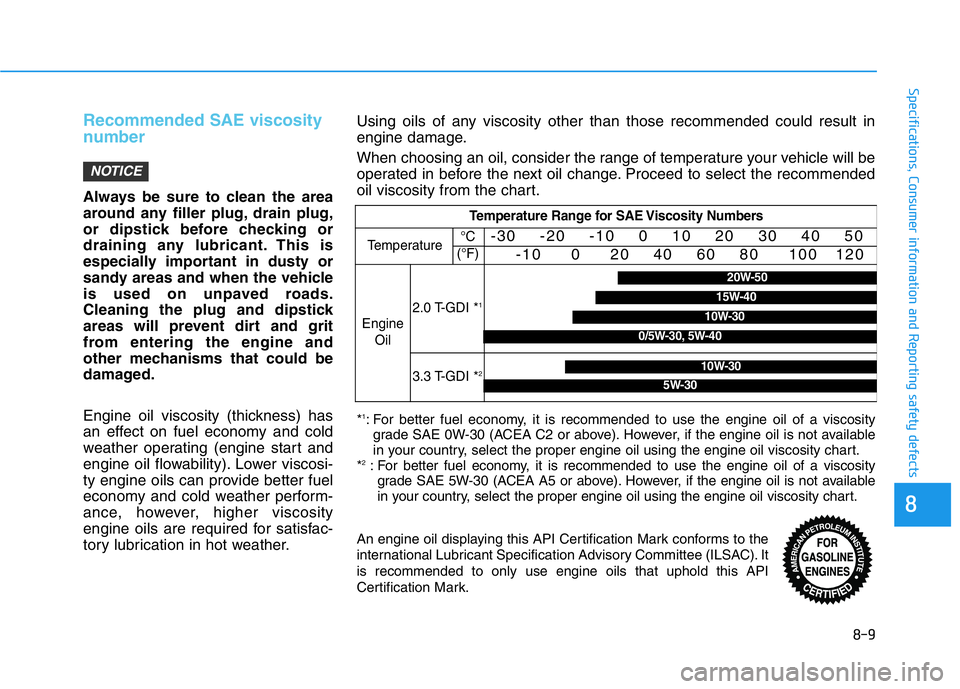

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug,
or dipstick before checking or
draining any lubricant. This is
especially important in dusty or
sandy areas and when the vehicle
is used on unpaved roads.
Cleaning the plug and dipstick
areas will prevent dirt and grit
from entering the engine and
other mechanisms that could be
damaged.
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.
NOTICE
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine
Oil
2.0 T-GDI *1
3.3 T-GDI *2
°C
(°F)
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 0W-30 (ACEA C2 or above). However, if the engine oil is not available
in your country, select the proper engine oil using the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-30 (ACEA A5 or above). However, if the engine oil is not available
in your country, select the proper engine oil using the engine oil viscosity chart.
0/5W-30, 5W-40
10W-30
15W-40
20W-50
10W-30
5W-30
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
An engine oil displaying this API Certification Mark conforms to the
international Lubricant Specification Advisory Committee (ILSAC). It
is recommended to only use engine oils that uphold this API
Certification Mark.

8-10
Specifications, Consumer information and Reporting safety defects

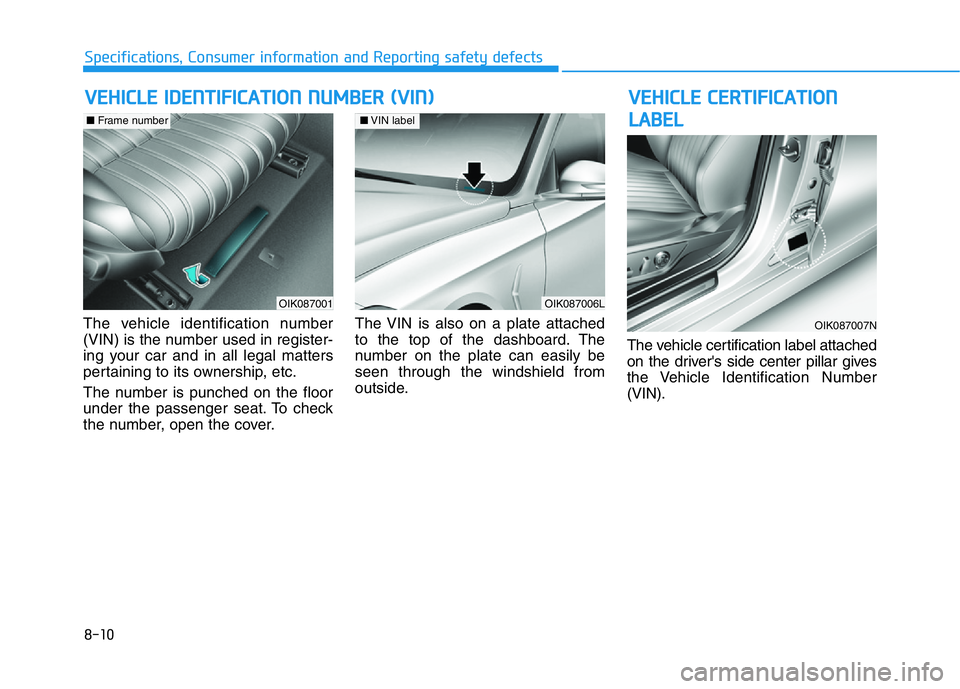

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label attached
on the driver's side center pillar gives
the Vehicle Identification Number
(VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OIK087006L
■VIN label
OIK087001
■Frame number
OIK087007N
VEHICLE CERTIFICATION
LABEL

8-11
88
Specifications, Consumer information and Reporting safety defects

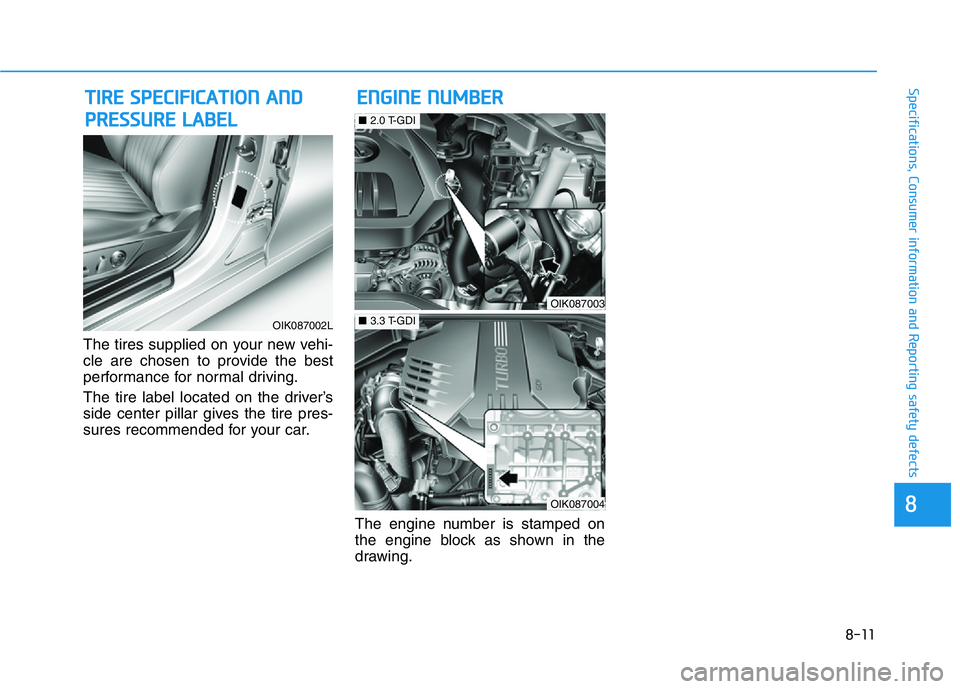

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pres-
sures recommended for your car.
The engine number is stamped on
the engine block as shown in the
drawing.
ENGINE NUMBER TIRE SPECIFICATION AND
PRESSURE LABEL
OIK087002L
OIK087003
■2.0 T-GDI
OIK087004
■3.3 T-GDI

8-12
Specifications, Consumer information and Reporting safety defects
Eastern Region:
Connecticut, Delaware,
Maine, Massachusetts, New
Hampshire, New Jersey, New York,
Pennsylvania, Rhode Island, Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
844-340-9741
Southern Region:
Florida, Georgia, Maryland, North
Carolina, South Carolina, Virginia,
West Virginia.
Southern Region
3025 Chastain Meadows Parkway
Suite 100 Marietta, GA 30066
844-340-9741South Central Region:
Alabama, Arkansas, Louisiana,
Mississippi, New Mexico, Oklahoma,
Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
844-340-9741
Central Region:
Illinois, Indiana, lowa, Kentucky,
Michigan, Minnesota, Nebraska,
North Dakota, South Dakota, Ohio,
Wisconsin, Kansas, Missouri.
Central Region
2 Trans Am Plaza Dr #500 Oakbrook
Terrace, IL 60181
844-340-9741Western Region:
Alaska, Hawaii, Arizona, California,
Colorado, Idaho, Montana, Nevada,
Oregon, Utah, Washington,
Wyoming.
Western Region
10550 Talbert Avenue P.O.Box
20850 Fountain Valley, California
92728-0850
844-340-9741

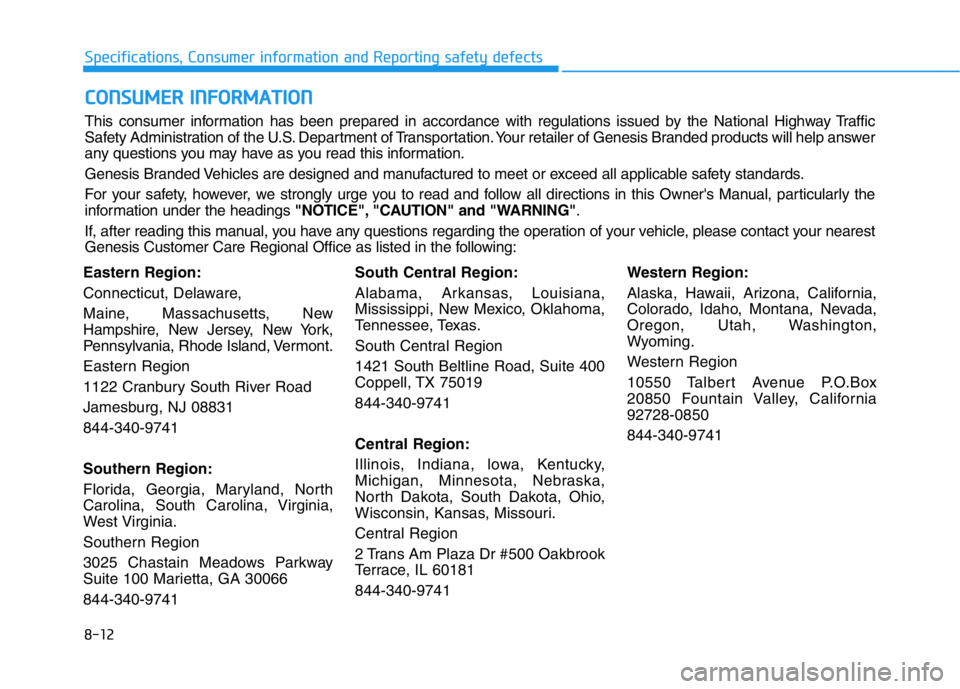

CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic
Safety Administration of the U.S. Department of Transportation. Your retailer of Genesis Branded products will help answer
any questions you may have as you read this information.
Genesis Branded Vehicles are designed and manufactured to meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this Owner's Manual, particularly the
information under the headings "NOTICE", "CAUTION" and "WARNING".
If, after reading this manual, you have any questions regarding the operation of your vehicle, please contact your nearest
Genesis Customer Care Regional Office as listed in the following:

8-13
88
Specifications, Consumer information and Reporting safety defects

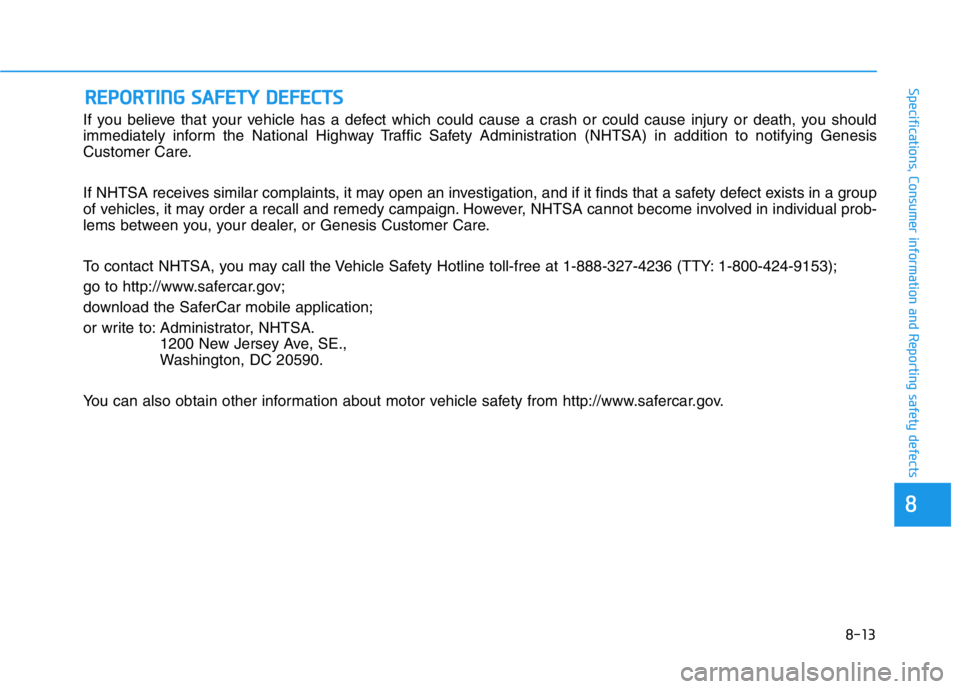

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Genesis
Customer Care.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group
of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual prob-
lems between you, your dealer, or Genesis Customer Care.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA.
1200 New Jersey Ave, SE.,
Washington, DC 20590.
You can also obtain other information about motor vehicle safety from http://www.safercar.gov.
REPORTING SAFETY DEFECTS
