3-46
Convenient features of your vehicle

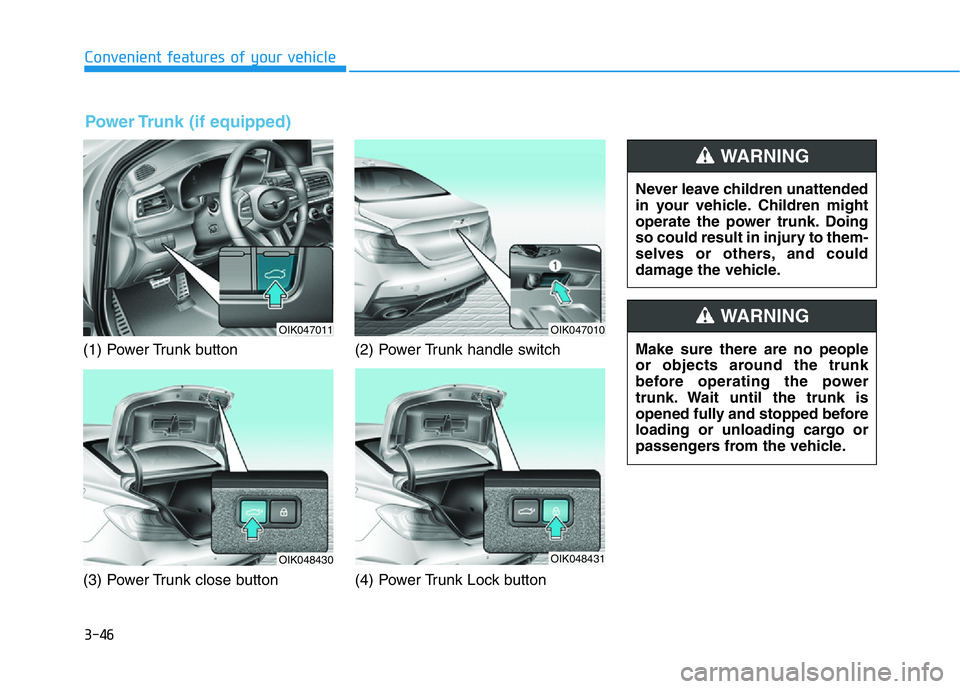

(1) Power Trunk button
(3) Power Trunk close button(2) Power Trunk handle switch
(4) Power Trunk Lock button
OIK047011OIK047010
OIK048431OIK048430
Never leave children unattended
in your vehicle. Children might
operate the power trunk. Doing
so could result in injury to them-
selves or others, and could
damage the vehicle.
WARNING
Make sure there are no people
or objects around the trunk
before operating the power
trunk. Wait until the trunk is
opened fully and stopped before
loading or unloading cargo or
passengers from the vehicle.
WARNING
Power Trunk (if equipped)

3-47
Convenient features of your vehicle
3

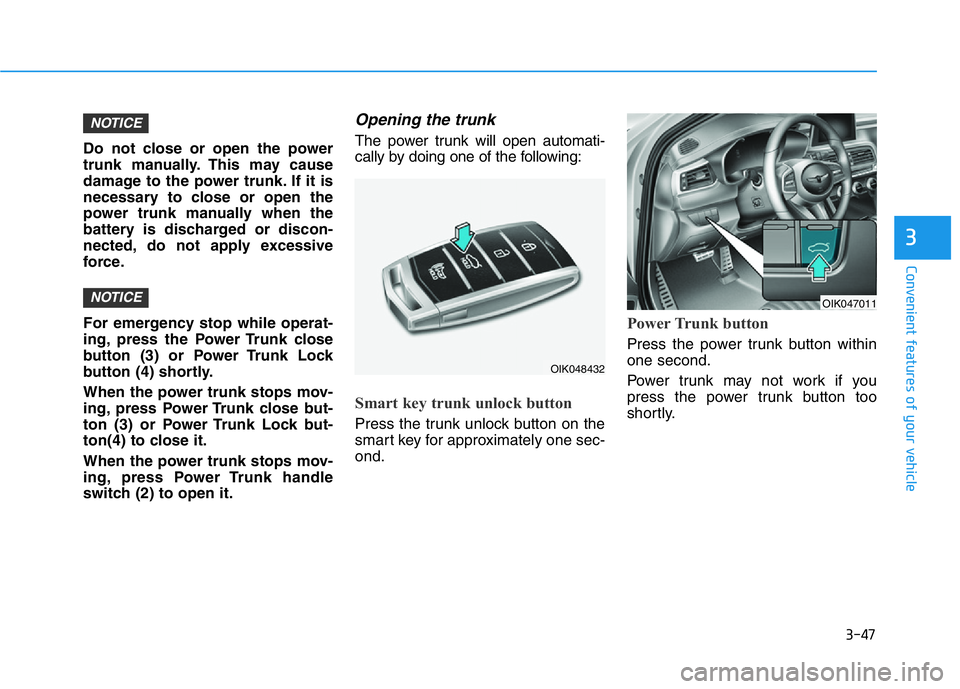

Do not close or open the power
trunk manually. This may cause
damage to the power trunk. If it is
necessary to close or open the
power trunk manually when the
battery is discharged or discon-
nected, do not apply excessive
force.
For emergency stop while operat-
ing, press the Power Trunk close
button (3) or Power Trunk Lock
button (4) shortly.
When the power trunk stops mov-
ing, press Power Trunk close but-
ton (3) or Power Trunk Lock but-
ton(4) to close it.
When the power trunk stops mov-
ing, press Power Trunk handle
switch (2) to open it.
Opening the trunk
The power trunk will open automati-
cally by doing one of the following:
Smart key trunk unlock button
Press the trunk unlock button on the
smart key for approximately one sec-
ond.
Power Trunk button
Press the power trunk button within
one second.
Power trunk may not work if you
press the power trunk button too
shortly.
NOTICE
NOTICE
OIK048432
OIK047011

3-48
Convenient features of your vehicle

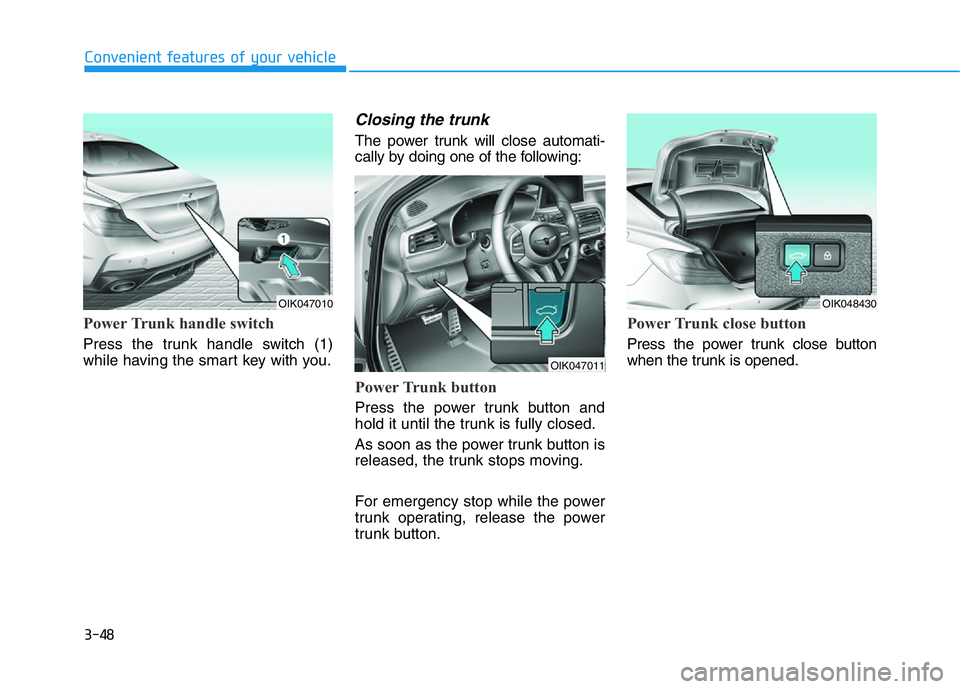

Power Trunk handle switch
Press the trunk handle switch (1)
while having the smart key with you.
Closing the trunk
The power trunk will close automati-
cally by doing one of the following:
Power Trunk button
Press the power trunk button and
hold it until the trunk is fully closed.
As soon as the power trunk button is
released, the trunk stops moving.
For emergency stop while the power
trunk operating, release the power
trunk button.
Power Trunk close button
Press the power trunk close button
when the trunk is opened.
OIK047010
OIK047011
OIK048430

3-49
Convenient features of your vehicle
3

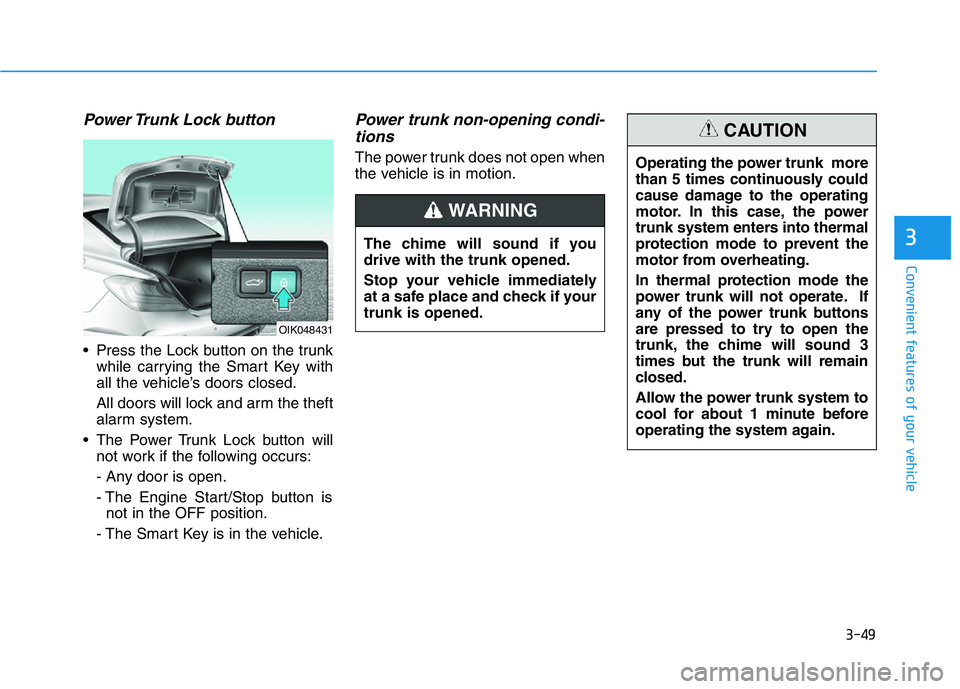

Power Trunk Lock button
• Press the Lock button on the trunk
while carrying the Smart Key with
all the vehicle’s doors closed.
All doors will lock and arm the theft
alarm system.
• The Power Trunk Lock button will
not work if the following occurs:
- Any door is open.
- The Engine Start/Stop button is
not in the OFF position.
- The Smart Key is in the vehicle.
Power trunk non-opening condi-
tions
The power trunk does not open when
the vehicle is in motion.
The chime will sound if you
drive with the trunk opened.
Stop your vehicle immediately
at a safe place and check if your
trunk is opened.
WARNING
Operating the power trunk more
than 5 times continuously could
cause damage to the operating
motor. In this case, the power
trunk system enters into thermal
protection mode to prevent the
motor from overheating.
In thermal protection mode the
power trunk will not operate. If
any of the power trunk buttons
are pressed to try to open the
trunk, the chime will sound 3
times but the trunk will remain
closed.
Allow the power trunk system to
cool for about 1 minute before
operating the system again.
CAUTION
OIK048431

3-50
Convenient features of your vehicle

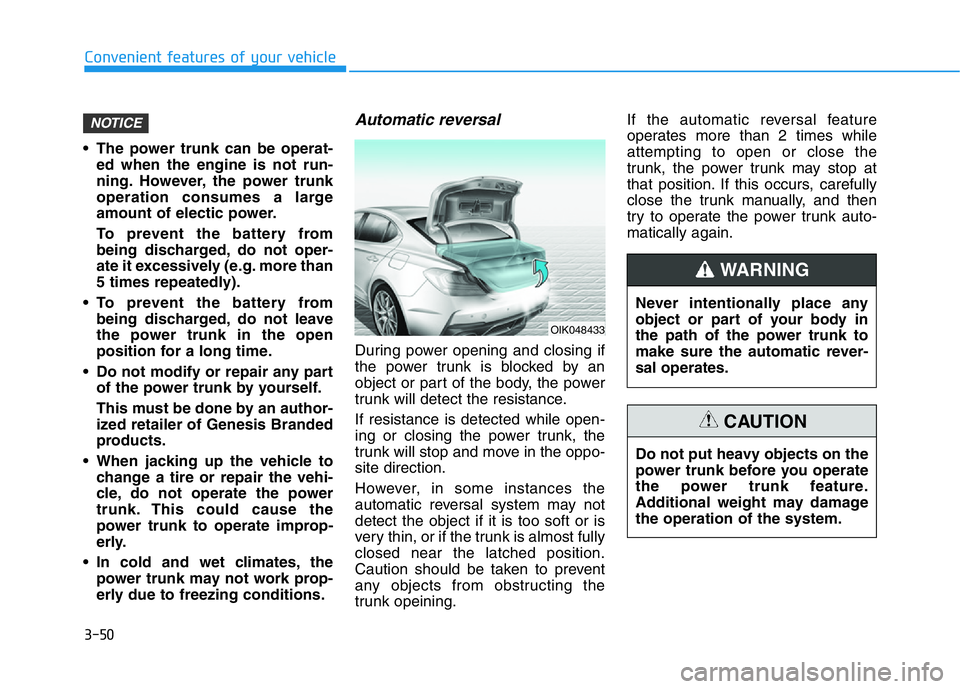

• The power trunk can be operat-
ed when the engine is not run-
ning. However, the power trunk
operation consumes a large
amount of electic power.
To prevent the battery from
being discharged, do not oper-
ate it excessively (e.g. more than
5 times repeatedly).
• To prevent the battery from
being discharged, do not leave
the power trunk in the open
position for a long time.
• Do not modify or repair any part
of the power trunk by yourself.
This must be done by an author-
ized retailer of Genesis Branded
products.
• When jacking up the vehicle to
change a tire or repair the vehi-
cle, do not operate the power
trunk. This could cause the
power trunk to operate improp-
erly.
• In cold and wet climates, the
power trunk may not work prop-
erly due to freezing conditions.
Automatic reversal
During power opening and closing if
the power trunk is blocked by an
object or part of the body, the power
trunk will detect the resistance.
If resistance is detected while open-
ing or closing the power trunk, the
trunk will stop and move in the oppo-
site direction.
However, in some instances the
automatic reversal system may not
detect the object if it is too soft or is
very thin, or if the trunk is almost fully
closed near the latched position.
Caution should be taken to prevent
any objects from obstructing the
trunk opeining.If the automatic reversal feature
operates more than 2 times while
attempting to open or close the
trunk, the power trunk may stop at
that position. If this occurs, carefully
close the trunk manually, and then
try to operate the power trunk auto-
matically again.
NOTICE
OIK048433
Never intentionally place any
object or part of your body in
the path of the power trunk to
make sure the automatic rever-
sal operates.
WARNING
Do not put heavy objects on the
power trunk before you operate
the power trunk feature.
Additional weight may damage
the operation of the system.
CAUTION

3-51
Convenient features of your vehicle
3
How to reset the power trunk
If the battery has been discharged or
disconnected, or if the power trunk
fuse has been replaced or removed,
reset the power trunk by performing
the following procedure:
1. Put the shift lever in P (Park).
2. Press the power trunk inner button
and the power trunk outer handle
button simultaneously for more
than 3 seconds. The chime will
sound.
3. Close the trunk manually.
If the power trunk does not work prop-
erly after the above procedure, have
the system checked by an authorized
retailer of Genesis Branded products.
When operating the power trunk,
the gear shift lever must be in the
(P) park position in order to oper-
ate normally.
Emergency trunk safety release
Your vehicle is equipped with an
Emergency Trunk Safety Release
lever located inside the trunk. When
someone is inadvertently locked in
the trunk, the trunk can be opened by
moving the lever in the direction of the
arrow and pushing the trunk open.
NOTICE
OIK048012
•You and your passengers
must be aware of the location
of the Emergency Trunk
Safety Release lever in this
vehicle and how to open the
trunk in case you are acciden-
tally locked in the trunk.
•NEVER allow anyone to occu-
py the trunk of the vehicle at
any time. If the trunk is par-
tially or totally latched and the
person is unable to get out,
serious injury or death could
occur due to lack of ventila-
tion, exhaust fumes and rapid
heat build-up, or because of
exposure to cold weather con-
ditions. The trunk is also a
highly dangerous location in
the event of a crash because it
is not a protected occupant
space but is a part of the vehi-
cle’s crush zone.
WARNING

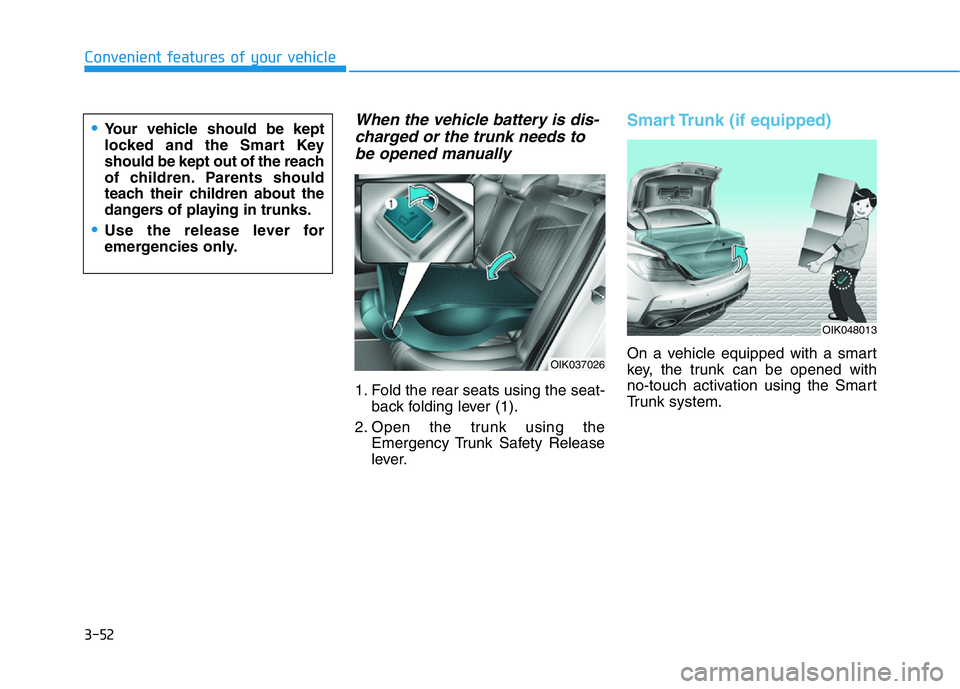

3-52
Convenient features of your vehicle
When the vehicle battery is dis-
charged or the trunk needs to
be opened manually
1. Fold the rear seats using the seat-
back folding lever (1).
2. Open the trunk using the
Emergency Trunk Safety Release
lever.
Smart Trunk (if equipped)
On a vehicle equipped with a smart
key, the trunk can be opened with
no-touch activation using the Smart
Trunk system.
•Your vehicle should be kept
locked and the Smart Key
should be kept out of the reach
of children. Parents should
teach their children about the
dangers of playing in trunks.
•Use the release lever for
emergencies only.
OIK037026
OIK048013

3-53
Convenient features of your vehicle
3

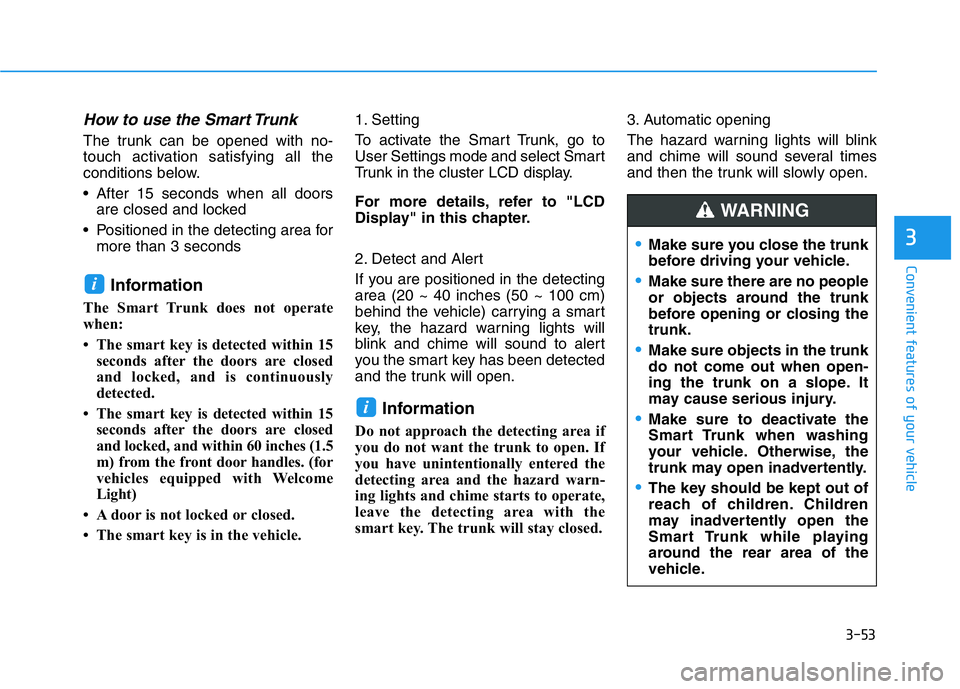

How to use the Smart Trunk
The trunk can be opened with no-
touch activation satisfying all the
conditions below.
• After 15 seconds when all doors
are closed and locked
• Positioned in the detecting area for
more than 3 seconds
Information
The Smart Trunk does not operate
when:
• The smart key is detected within 15
seconds after the doors are closed
and locked, and is continuously
detected.
• The smart key is detected within 15
seconds after the doors are closed
and locked, and within 60 inches (1.5
m) from the front door handles. (for
vehicles equipped with Welcome
Light)
• A door is not locked or closed.
• The smart key is in the vehicle. 1. Setting
To activate the Smart Trunk, go to
User Settings mode and select Smart
Trunk in the cluster LCD display.
For more details, refer to "LCD
Display" in this chapter.
2. Detect and Alert
If you are positioned in the detecting
area (20 ~ 40 inches (50 ~ 100 cm)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and chime will sound to alert
you the smart key has been detected
and the trunk will open.
Information
Do not approach the detecting area if
you do not want the trunk to open. If
you have unintentionally entered the
detecting area and the hazard warn-
ing lights and chime starts to operate,
leave the detecting area with the
smart key. The trunk will stay closed.3. Automatic opening
The hazard warning lights will blink
and chime will sound several times
and then the trunk will slowly open.
i
i
•Make sure you close the trunk
before driving your vehicle.
•Make sure there are no people
or objects around the trunk
before opening or closing the
trunk.
•Make sure objects in the trunk
do not come out when open-
ing the trunk on a slope. It
may cause serious injury.
•Make sure to deactivate the
Smart Trunk when washing
your vehicle. Otherwise, the
trunk may open inadvertently.
•The key should be kept out of
reach of children. Children
may inadvertently open the
Smart Trunk while playing
around the rear area of the
vehicle.
WARNING

3-54
Convenient features of your vehicle

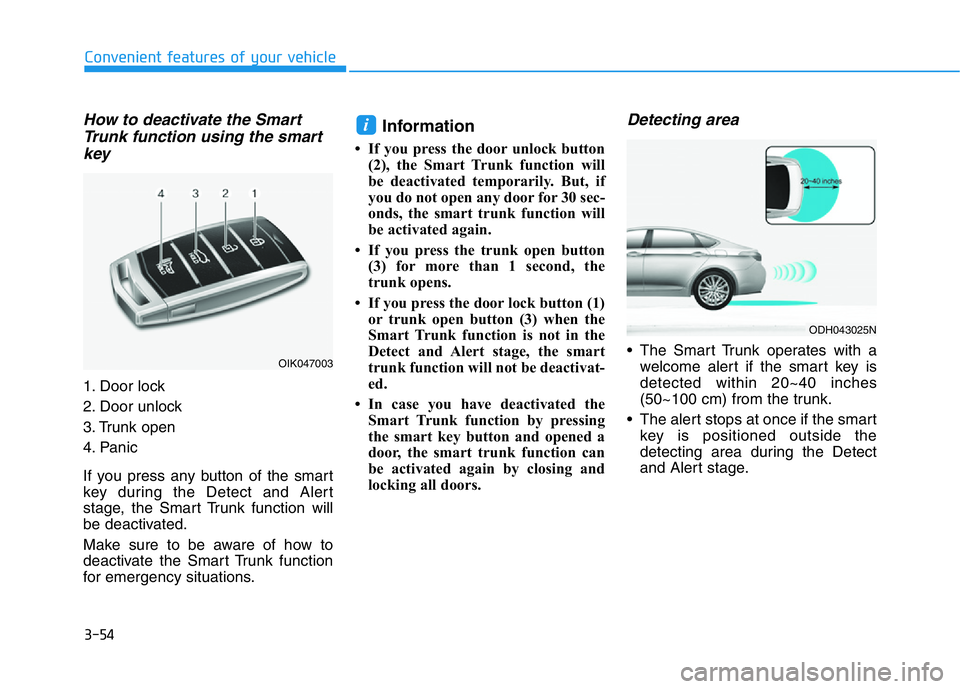

How to deactivate the Smart
Trunk function using the smart
key
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
If you press any button of the smart
key during the Detect and Alert
stage, the Smart Trunk function will
be deactivated.
Make sure to be aware of how to
deactivate the Smart Trunk function
for emergency situations.
Information
• If you press the door unlock button
(2), the Smart Trunk function will
be deactivated temporarily. But, if
you do not open any door for 30 sec-
onds, the smart trunk function will
be activated again.
• If you press the trunk open button
(3) for more than 1 second, the
trunk opens.
• If you press the door lock button (1)
or trunk open button (3) when the
Smart Trunk function is not in the
Detect and Alert stage, the smart
trunk function will not be deactivat-
ed.
• In case you have deactivated the
Smart Trunk function by pressing
the smart key button and opened a
door, the smart trunk function can
be activated again by closing and
locking all doors.
Detecting area
• The Smart Trunk operates with a
welcome alert if the smart key is
detected within 20~40 inches
(50~100 cm) from the trunk.
• The alert stops at once if the smart
key is positioned outside the
detecting area during the Detect
and Alert stage.
i
ODH043025N
OIK047003

3-55

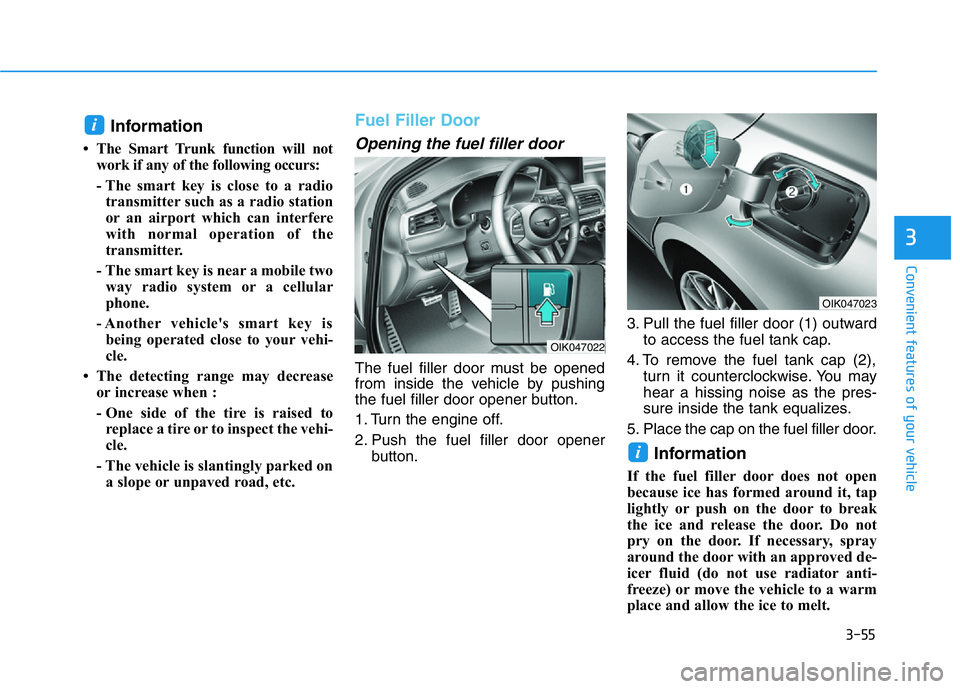

Convenient features of your vehicle
3
Information
• The Smart Trunk function will not
work if any of the following occurs:
- The smart key is close to a radio
transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.
- The smart key is near a mobile two
way radio system or a cellular
phone.
- Another vehicle's smart key is
being operated close to your vehi-
cle.
• The detecting range may decrease
or increase when :
- One side of the tire is raised to
replace a tire or to inspect the vehi-
cle.
- The vehicle is slantingly parked on
a slope or unpaved road, etc.
Fuel Filler Door
Opening the fuel filler door
The fuel filler door must be opened
from inside the vehicle by pushing
the fuel filler door opener button.
1. Turn the engine off.
2. Push the fuel filler door opener
button.3. Pull the fuel filler door (1) outward
to access the fuel tank cap.
4. To remove the fuel tank cap (2),
turn it counterclockwise. You may
hear a hissing noise as the pres-
sure inside the tank equalizes.
5. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break
the ice and release the door. Do not
pry on the door. If necessary, spray
around the door with an approved de-
icer fluid (do not use radiator anti-
freeze) or move the vehicle to a warm
place and allow the ice to melt.
i
i
OIK047023
OIK047022
