Headlamp (High)
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the headlamp bulb cover
by turning it counterclockwise.
4. Disconnect the headlamp bulb
socket-connector.
5. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
6. Install a new headlamp bulb into
the bulb-socket.7. Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
8. Connect the headlamp bulb sock-
et-connector.
9. Install the headlamp bulb cover by
turning it clockwise.
Headlamp (Low)
1. Disconnect the negative battery
cable.
2. Remove the service cover (1)
under the wheel housing by push-
ing out the retainer clip with a slim
tool. If it is difficult to remove the
service cover because of the tire,
steer the tire inward.
OIK077062N
OIK077073N

7-59
7
Maintenance
3. Remove the bulb cover by turning
it counterclockwise.
4. Disconnect the bulb socket-con-
nector.5. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
6. Install a new bulb into the bulb-
socket.
7. Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
8. Install the bulb cover by turning it
clockwise.
Information
The headlamp aiming should be
adjusted after an accident or after the
headlamp assembly is reinstalled at an
authorized retailer of Genesis Branded
products.
Turn signal
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
i
OIK077063LOIK077072N
OIK077071N

7-60
Maintenance
5. Install a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly
and turn the socket clockwise.
Daytime running light (DRL),
parking lamp and side marker
If the LED lamp does not operate,
have the system checked by an
authorized retailer of Genesis
Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps have to
be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
Type B
(1) Headlamp (High/Low)
(2) Headlamp (High)
(3) Daytime running light (DRL) &
Parking lamp
(4) Turn signal lamp
(5) Side marker
Headlamp, parking lamp, turn sig-
nal lamp, daytime running light
and side marker
If the LED lamp does not operate,
have the system be checked by an
authorized retailer of Genesis
Branded products.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may dam-
age related parts of the vehicle.
OIK077038N

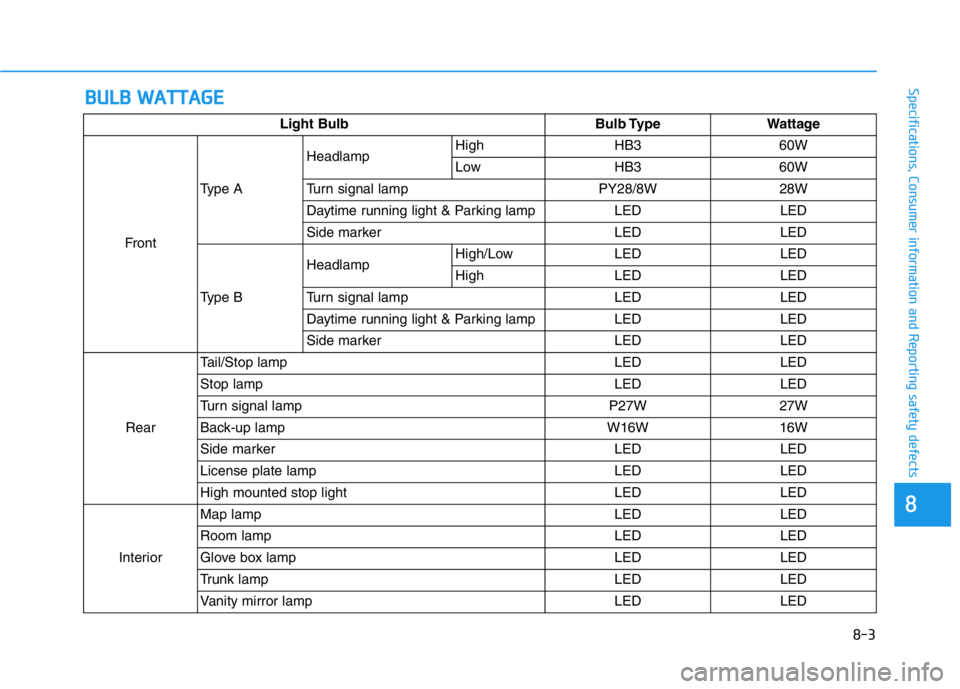

BULB WATTAGE
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontType AHeadlampHigh HB3 60W
Low HB3 60W
Turn signal lamp PY28/8W 28W
Daytime running light & Parking lamp LED LED
Side marker LED LED
Type BHeadlampHigh/Low LED LED
High LED LED
Turn signal lamp LED LED
Daytime running light & Parking lamp LED LED
Side marker LED LED
RearTail/Stop lamp LED LED
Stop lamp LED LED
Turn signal lamp P27W 27W
Back-up lamp W16W 16W
Side marker LED LED
License plate lamp LED LED
High mounted stop light LED LED
InteriorMap lamp LED LED
Room lampLEDLED
Glove box lampLEDLED
Trunk lampLEDLED
Vanity mirror lampLEDLED
