7-77
7
Maintenance

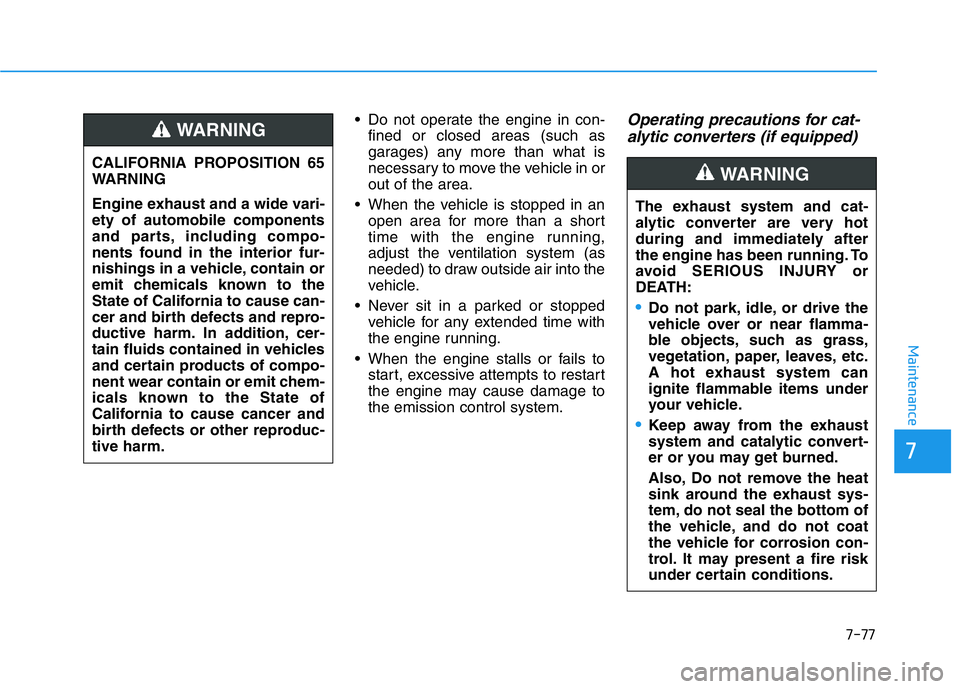

• Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
• When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
• Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
• When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for cat-
alytic converters (if equipped)
The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
•Do not park, idle, or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
•Keep away from the exhaust
system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
WARNING

7-78
Maintenance

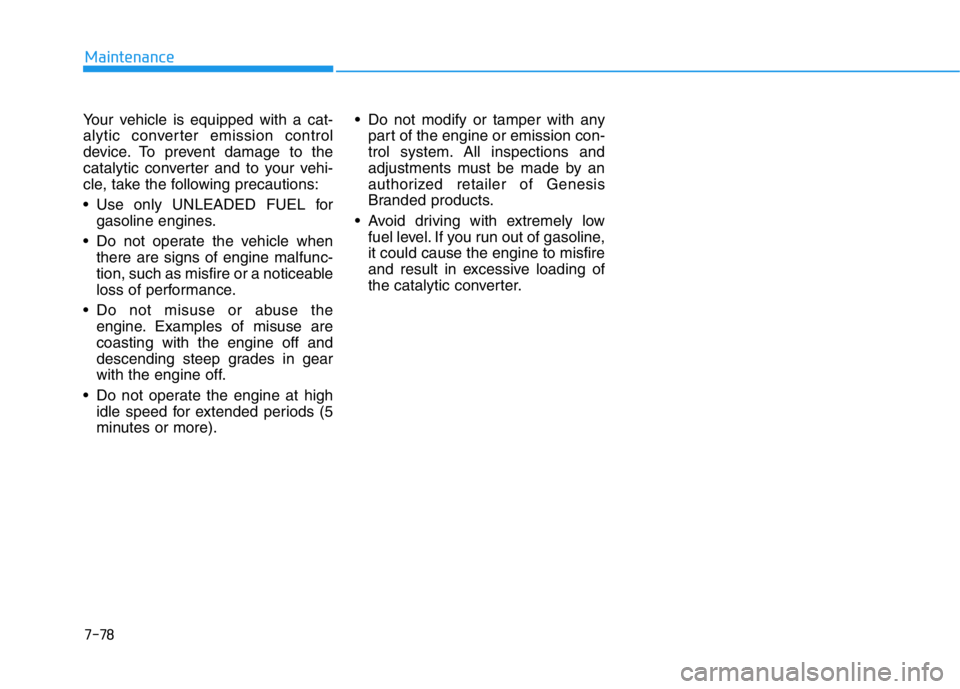

Your vehicle is equipped with a cat-
alytic converter emission control
device. To prevent damage to the
catalytic converter and to your vehi-
cle, take the following precautions:
• Use only UNLEADED FUEL for
gasoline engines.
• Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
• Do not misuse or abuse the
engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).• Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized retailer of Genesis
Branded products.
• Avoid driving with extremely low
fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.

7-79
7
Maintenance

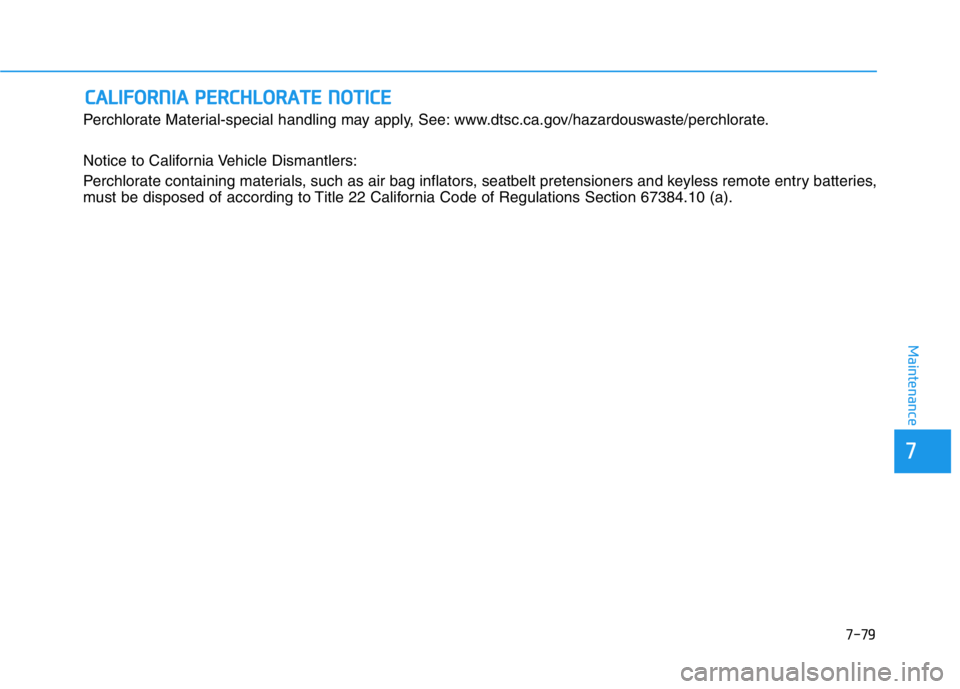

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

888
Specifications & Consumer information
8

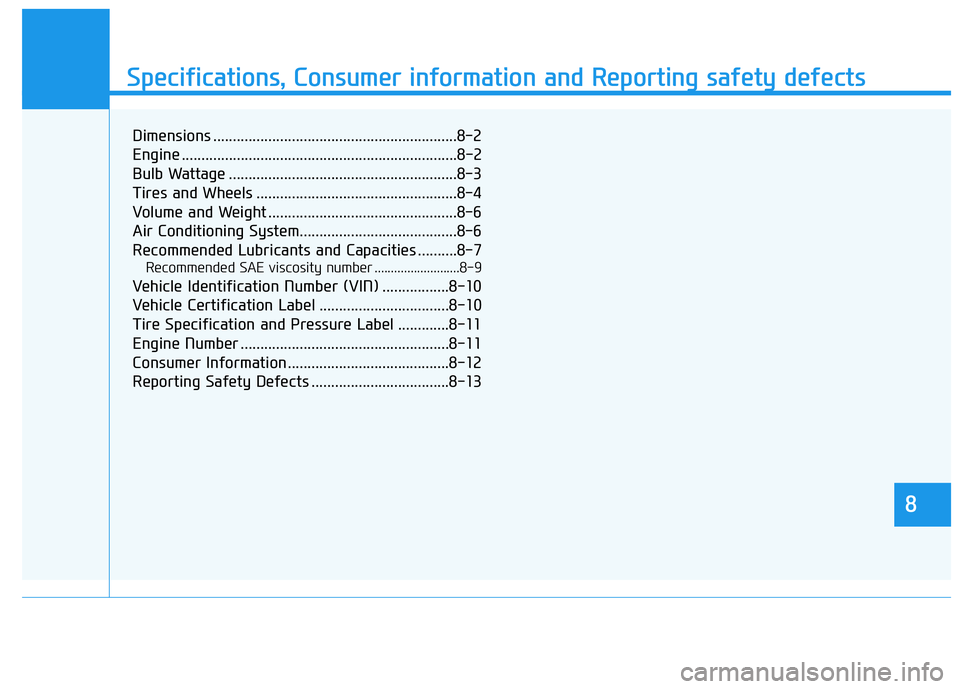

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

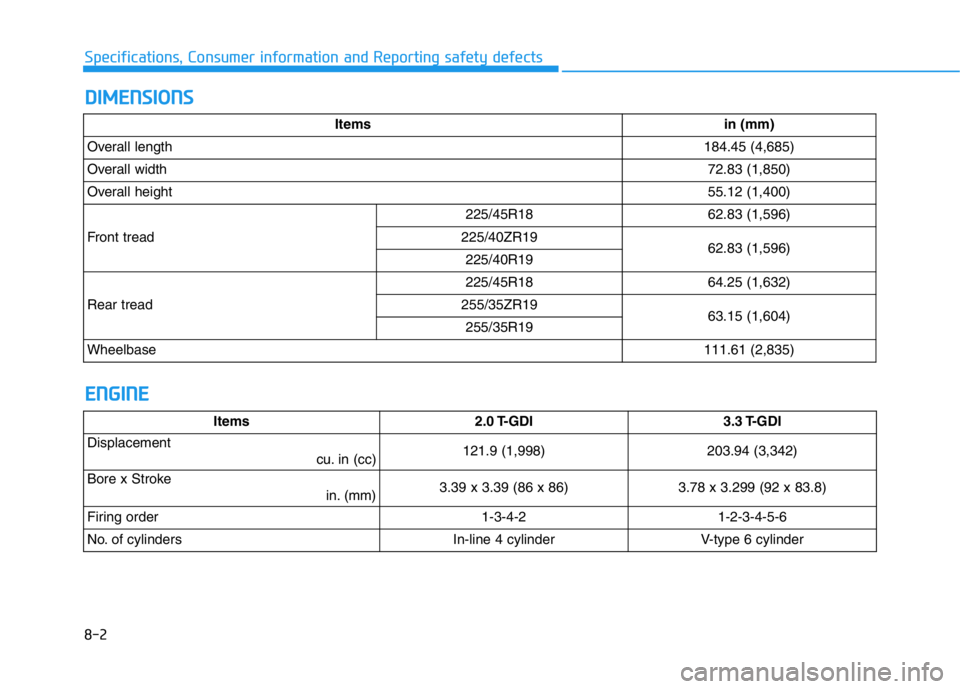

DIMENSIONS
8-2
Specifications, Consumer information and Reporting safety defects
ENGINE
Itemsin (mm)
Overall length184.45 (4,685)
Overall width72.83 (1,850)
Overall height55.12 (1,400)
Front tread
225/45R1862.83 (1,596)
225/40ZR1962.83 (1,596)225/40R19
Rear tread
225/45R1864.25 (1,632)
255/35ZR1963.15 (1,604)255/35R19
Wheelbase111.61 (2,835)
Items 2.0 T-GDI3.3 T-GDI
Displacement
cu. in (cc)121.9 (1,998)203.94 (3,342)
Bore x Stroke
in. (mm)3.39 x 3.39 (86 x 86)3.78 x 3.299 (92 x 83.8)
Firing order1-3-4-21-2-3-4-5-6
No. of cylindersIn-line 4 cylinderV-type 6 cylinder

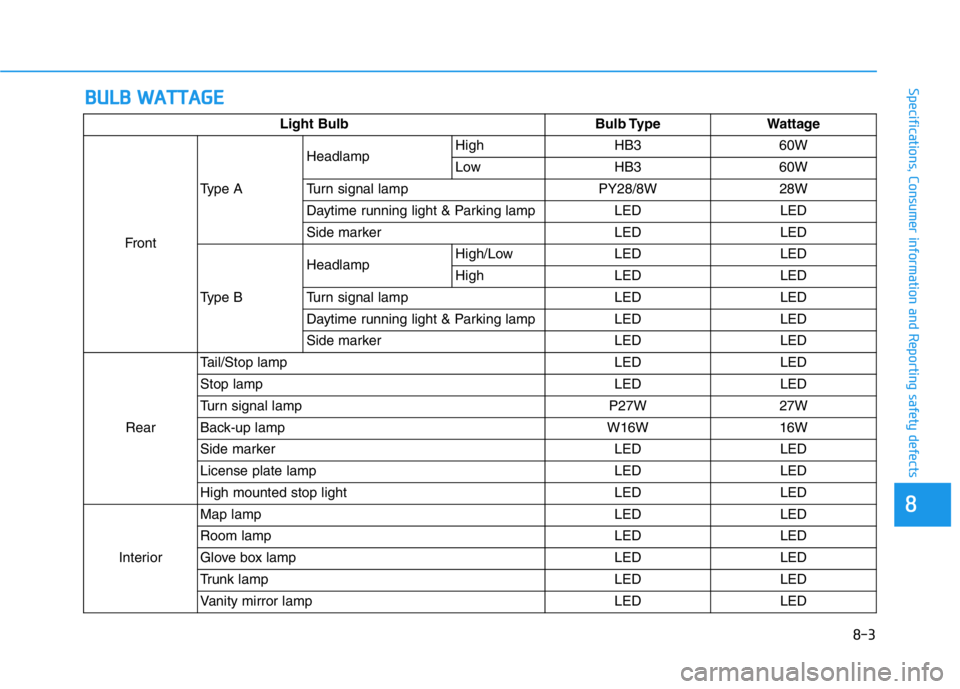

BULB WATTAGE
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontType AHeadlampHigh HB3 60W
Low HB3 60W
Turn signal lamp PY28/8W 28W
Daytime running light & Parking lamp LED LED
Side marker LED LED
Type BHeadlampHigh/Low LED LED
High LED LED
Turn signal lamp LED LED
Daytime running light & Parking lamp LED LED
Side marker LED LED
RearTail/Stop lamp LED LED
Stop lamp LED LED
Turn signal lamp P27W 27W
Back-up lamp W16W 16W
Side marker LED LED
License plate lamp LED LED
High mounted stop light LED LED
InteriorMap lamp LED LED
Room lampLEDLED
Glove box lampLEDLED
Trunk lampLEDLED
Vanity mirror lampLEDLED

8-4
Specifications, Consumer information and Reporting safety defects

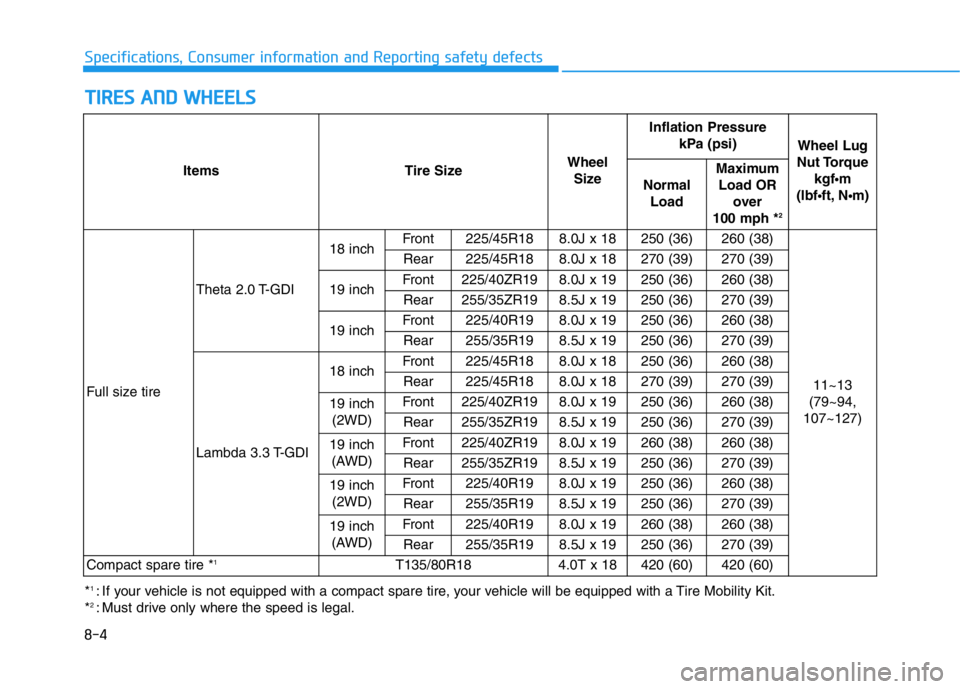

TIRES AND WHEELS
Items Tire SizeWheel
Size
Inflation Pressure
kPa (psi)
Wheel Lug
Nut Torque
kgf
•m
(lbf
•ft, N•m)Normal
Load
Maximum
Load OR
over
100 mph *
2
Full size tire
Theta 2.0 T-GDI
18 inchFront225/45R188.0J x 18250 (36)260 (38)
11~13
(79~94,
107~127)
Rear225/45R188.0J x 18270 (39)270 (39)
19 inchFront225/40ZR198.0J x 19250 (36)260 (38)
Rear255/35ZR198.5J x 19250 (36)270 (39)
19 inchFront225/40R198.0J x 19250 (36)260 (38)
Rear255/35R198.5J x 19250 (36)270 (39)
Lambda 3.3 T-GDI
18 inchFront225/45R188.0J x 18250 (36)260 (38)
Rear225/45R188.0J x 18270 (39)270 (39)
19 inch
(2WD)Front225/40ZR198.0J x 19250 (36)260 (38)
Rear255/35ZR198.5J x 19250 (36)270 (39)
19 inch
(AWD)Front225/40ZR198.0J x 19260 (38)260 (38)
Rear255/35ZR198.5J x 19250 (36)270 (39)
19 inch
(2WD)Front225/40R198.0J x 19250 (36)260 (38)
Rear255/35R198.5J x 19250 (36)270 (39)
19 inch
(AWD)Front225/40R198.0J x 19260 (38)260 (38)
Rear255/35R198.5J x 19250 (36)270 (39)
Compact spare tire *1T135/80R184.0T x 18420 (60)420 (60)
*1 : If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
*2 : Must drive only where the speed is legal.

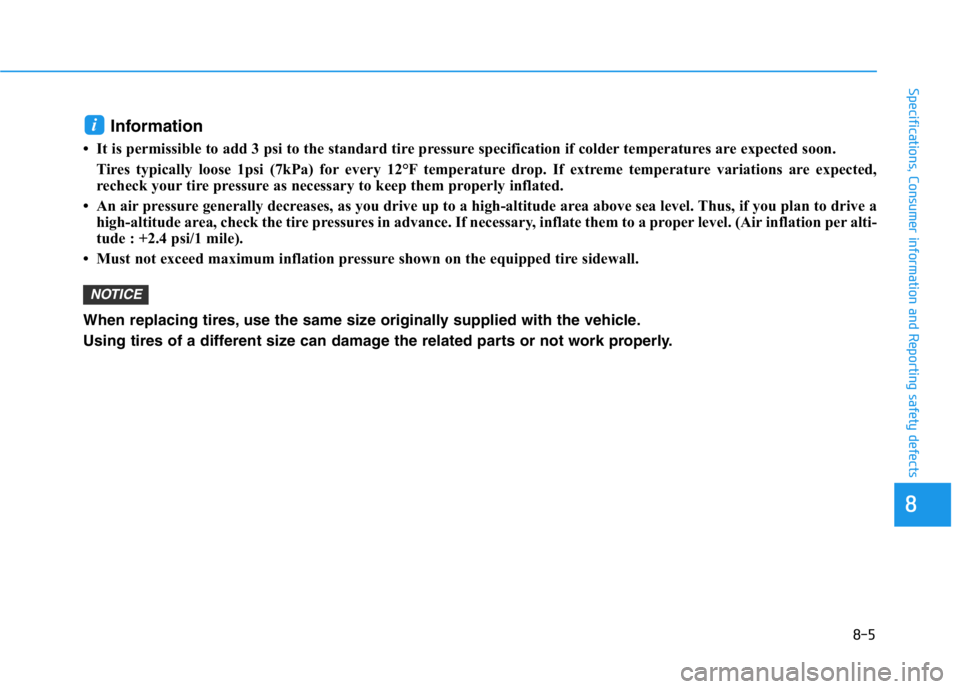

Information
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a
high-altitude area, check the tire pressures in advance. If necessary, inflate them to a proper level. (Air inflation per alti-
tude : +2.4 psi/1 mile).
• Must not exceed maximum inflation pressure shown on the equipped tire sidewall.
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
NOTICE
i
8-5
88
Specifications, Consumer information and Reporting safety defects

8-6
Specifications, Consumer information and Reporting safety defects

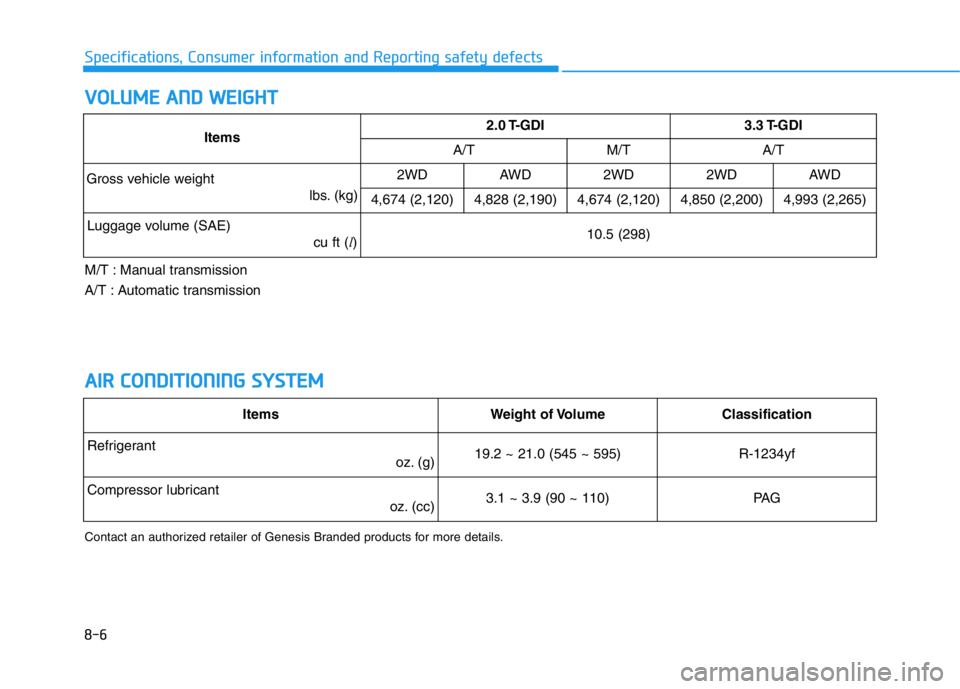

VOLUME AND WEIGHT
AIR CONDITIONING SYSTEM
Contact an authorized retailer of Genesis Branded products for more details.
Items2.0 T-GDI3.3 T-GDI
A/TM/TA/T
Gross vehicle weight
lbs. (kg)2WDAWD2WD2WDAWD
4,674 (2,120)4,828 (2,190)4,674 (2,120)4,850 (2,200)4,993 (2,265)
Luggage volume (SAE)
cu ft (l)10.5 (298)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 19.2 ~ 21.0 (545 ~ 595)R-1234yf
Compressor lubricant
oz. (cc) 3.1 ~ 3.9 (90 ~ 110)PA G
M/T : Manual transmission
A/T : Automatic transmission

8-7
88
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.

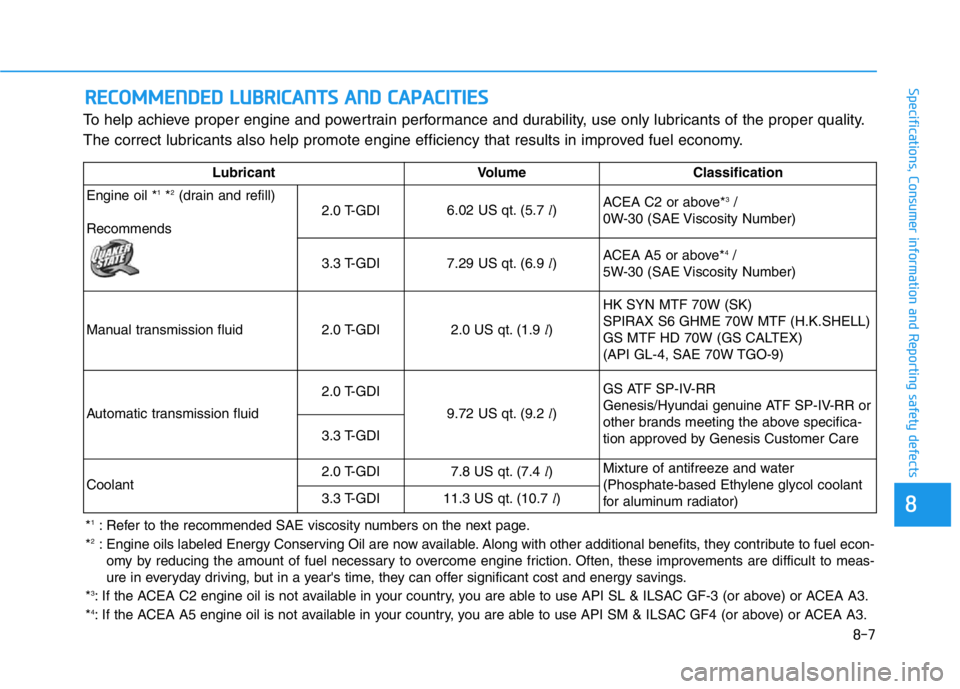

RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
Recommends2.0 T-GDI6.02 US qt. (5.7 l)ACEA C2 or above*3/
0W-30 (SAE Viscosity Number)
3.3 T-GDI7.29 US qt. (6.9 l)ACEA A5 or above*4/
5W-30 (SAE Viscosity Number)
Manual transmission fluid2.0 T-GDI2.0 US qt. (1.9 l)
HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Automatic transmission fluid
2.0 T-GDI
9.72 US qt. (9.2 l)
GS ATF SP-IV-RR
Genesis/Hyundai genuine ATF SP-IV-RR or
other brands meeting the above specifica-
tion approved by Genesis Customer Care
3.3 T-GDI
Coolant2.0 T-GDI7.8 US qt. (7.4 l)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant
for aluminum radiator)
3.3 T-GDI11.3 US qt. (10.7 l)
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to meas-
ure in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the ACEA C2 engine oil is not available in your country, you are able to use API SL & ILSAC GF-3 (or above) or ACEA A3.
*4: If the ACEA A5 engine oil is not available in your country, you are able to use API SM & ILSAC GF4 (or above) or ACEA A3.
