HYUNDAI GENESIS G70 2022 Owners Manual

06
6-33
Indicator lights

v
ESC indicator light (blinks)

v
ESC OFF indicator light (comes on)
When the Engine Start/Stop button is
pressed to the ON position, the ESC
indicator light illuminates, then goes off
if the ESC system is operating normally.
The ESC indicator light blinks whenever
ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates, have the vehicle checked by
an authorized retailer of Genesis Branded
products as soon as possible.
The ESC OFF indicator light comes on
when ESC is turned off.
WARNING
When ESC is blinking, this indicates ESC
is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn ESC off while
the ESC indicator light is blinking or you
may lose control of the vehicle resulting
in an accident.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE
To prevent damage to the transmission:

[Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and Parking Brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.

[When operating the vehicle
on a dynamometer, make sure
ESC is turned off (ESC OFF light
illuminated).
Information
Turning ESC off does not affect ABS or
standard brake system operation.

Driving Your Vehicle
6-34

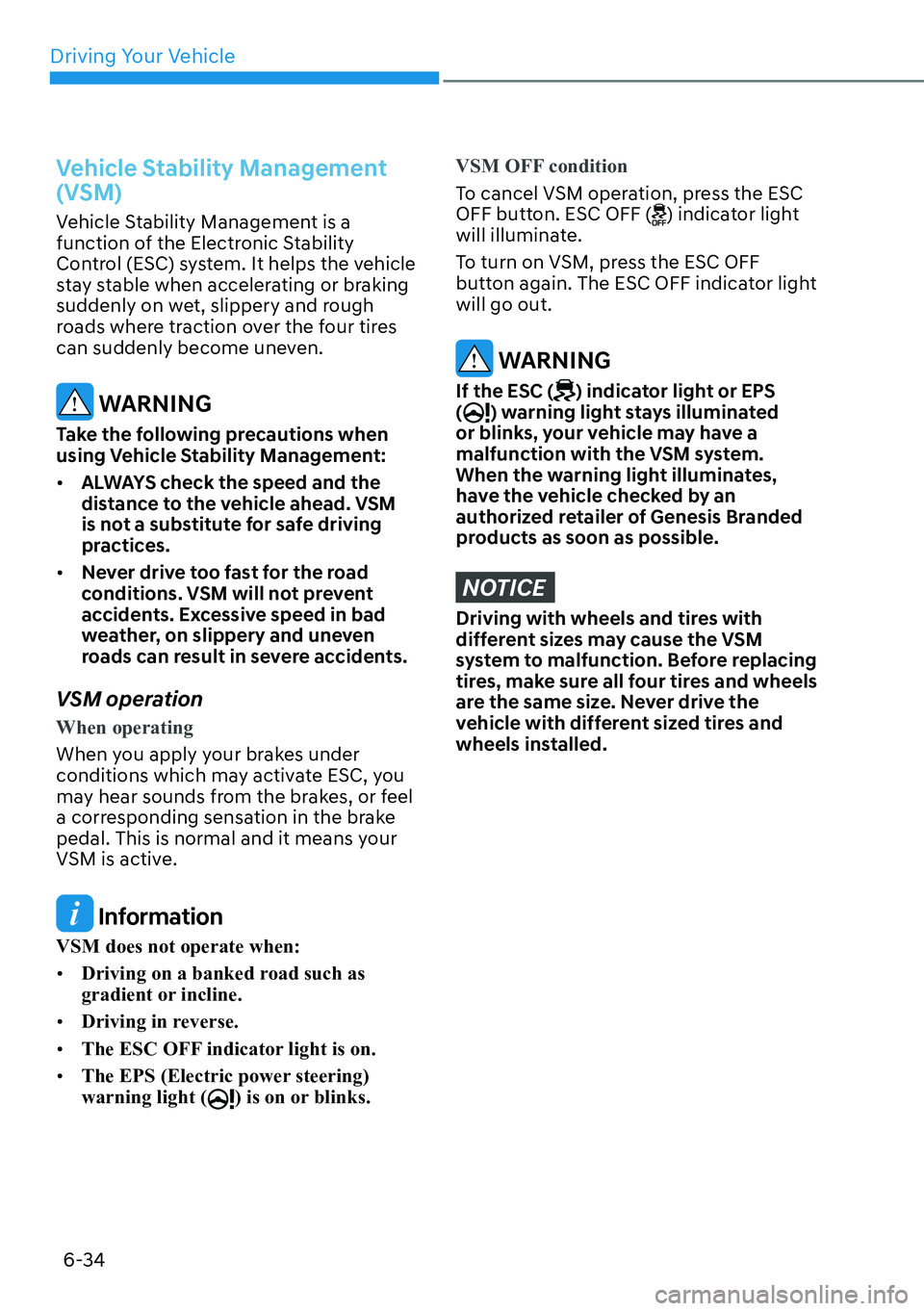

Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when accelerating or braking
suddenly on wet, slippery and rough
roads where traction over the four tires
can suddenly become uneven.
WARNING
Take the following precautions when
using Vehicle Stability Management:

[ALWAYS check the speed and the
distance to the vehicle ahead. VSM
is not a substitute for safe driving
practices.

[Never drive too fast for the road
conditions. VSM will not prevent
accidents. Excessive speed in bad
weather, on slippery and uneven
roads can result in severe accidents.
VSM operation
When operating
When you apply your brakes under
conditions which may activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
VSM does not operate when:

[Driving on a banked road such as
gradient or incline.

[Driving in reverse.

[The ESC OFF indicator light is on.

[The EPS (Electric power steering)
warning light (
) is on or blinks.
VSM OFF condition
To cancel VSM operation, press the ESC
OFF button. ESC OFF () indicator light
will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator light
will go out.
WARNING
If the ESC () indicator light or EPS
() warning light stays illuminated
or blinks, your vehicle may have a
malfunction with the VSM system.
When the warning light illuminates,
have the vehicle checked by an
authorized retailer of Genesis Branded
products as soon as possible.
NOTICE
Driving with wheels and tires with
different sizes may cause the VSM
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized tires and
wheels installed.

06
6-35
Hill-Start Assist Control (HAC)
Hill-Start Assist Control helps prevent
the vehicle from rolling backwards
when starting a vehicle from a stop on
a hill. The system operates the brakes
automatically for approximately 5
seconds and releases the brake after 5
seconds or when the accelerator pedal is
depressed.
WARNING
Always be ready to depress the
accelerator pedal when starting off
an incline. Hill-Start Assist Control
activates only for approximately 5
seconds.
Information

[Hill-Start Assist Control does not
operate when the gear is shifted to P
(Park) or N (Neutral).

[Hill-Start Assist Control activates even
when the ESC (Electronic Stability
Control) is off. However, it does not
activate, when ESC does not operate
normally.
Good Braking Practices
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Shift the vehicle to P (Park), apply
the parking brake, and press the Engine
Start/Stop button to the OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.
Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed. Your vehicle will not stop as
quickly if the brakes are wet. Wet brakes
may cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal. If the braking action does not
return to normal, stop as soon as it is safe
to do so and we recommend that you call
an authorized retailer of Genesis Branded
products for assistance.
DO NOT drive with your foot resting on
the brake pedal. Even light, but constant
pedal pressure can result in the brakes
overheating, brake wear, and possibly
even brake failure.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while you
slow down. When you are moving slowly
enough for it to be safe to do so, pull off
the road and stop in a safe location.
Keep your foot firmly on the brake pedal
when the vehicle is stopped to prevent
the vehicle from rolling forward.

Driving Your Vehicle
6-36
All Wheel Drive (AWD) delivers engine
power to front and rear wheels for
maximum traction. AWD is useful when
extra traction is required, such as when
driving on, muddy, wet, or snow-covered
roads.
WARNING
If the AWD warning light () stays on
the instrument cluster, your vehicle
may have a malfunction with the AWD
system. When the AWD warning light
(
) illuminates we recommend that the
vehicle be checked by an authorized
retailer of Genesis Branded products as
soon as possible.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[Do not drive in conditions that
exceed the vehicles intended
design such as challenging off-road
conditions.

[Avoid high speeds when cornering or
turning.

[Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
NOTICE

[Do not drive in water if the level
is higher than the bottom of the
vehicle.

[Check your brake condition once
you are out of mud or water. Depress
the brake pedal several times as you
move slowly until you feel normal
braking return.

[Shorten your scheduled
maintenance interval if you drive in
off-road conditions such as sand,
mud or water (see "Maintenance
Under Severe Usage Conditions"
section in chapter 9).

[Always wash your vehicle thoroughly
after off road use, especially the
bottom of the vehicle.

[Be sure to equip the vehicle with four
tires of the same size and type.

[Make sure that a full time AWD
vehicle is towed by a flat bed tow
truck.
$//:+((/'5,9(
í$:'
î
í,)(48,33('
î

06
6-37
For Safe AWD Operation
Before driving

[Make sure all passengers are wearing
seat belts.

[Sit upright and closer to the steering
wheel than usual. Adjust the steering
wheel to a position comfortable for
you to drive.
Driving on snow-covered or icy
roads

[Start off slowly by applying the
accelerator pedal gently.

[Use snow tires or tire chains.

[Keep sufficient distance between your
vehicle and the vehicle in front of you.

[Apply engine braking during
deceleration by using the paddle
shifter (manual shift mode) and
manually selecting a lower gear.

[Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent skids.
Driving in sand or mud

[Maintain slow and constant speed.

[Use tire chains driving in mud if
necessary.

[Keep sufficient distance between your
vehicle and the vehicle in front of you.

[Reduce vehicle speed and always
check the road condition.

[Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent getting stuck.
NOTICE
When the vehicle is stuck in snow, sand
or mud, place a nonslip material under
the drive wheels to provide traction
OR slowly spin the wheels in forward
and reverse directions which causes
a rocking motion that may free the
vehicle.
However, avoid running the engine
continuously at high RPM, doing so may
damage the AWD system.
Information

[When using Snow Tires, mount them
on all four wheels.

[When using tire chains, install them on
the rear tires. However, driving speed
must be below 20 mph (30km/h) and
minimize the driving distance. High-
speed or long-term driving with tire
chains installed may malfunction or
damage the AWD system.
If tire chains must be used, use
AutoSock (fabric snow chain) and
install the tire chain after reviewing
the instructions provided with the tire
chains.
For more information on Snow Tires
and Tire Chains, refer to "Winter
Driving" in this chapter.

Driving Your Vehicle
6-38
Driving up or down hills

[Driving uphill
- Before starting off, check if it is
possible to drive uphill.
- Drive as straight as possible.

[Driving downhill
- Do not change gear while driving
downhill. Select gear before driving
downhill.
- Drive slowly using engine braking
while driving downhill.
- Drive straight as possible.
WARNING
Exercise extreme caution driving up or
down steep hills. The vehicle may flip
over depending on the grade, terrain,
water and mud conditions.
WARNING
Do not drive across the contour of steep
hills. A slight change in the wheel angle
can destabilize the vehicle, or a stable
vehicle may lose stability if the vehicle
stops its forward motion. Your vehicle
may roll over and lead to a serious injury
or death.
Emergency Precautions
Tires
When replacing tires, be sure to equip
all four tires with the same size, type,
tread pattern, brand and load-carrying
capacity.
WARNING
Do not use tire and wheel with different
size and type from the one originally
installed on your vehicle. It can affect
the safety and performance of your
vehicle, which could lead to steering
failure or rollover causing serious injury.
In an emergency situation, a compact
spare tire may be used. But, do not use
the compact spare tire continuously.
Repair or replace the original tire as
soon as possible to avoid failure of the
differential or AWD system.

06
6-39
WARNING
OIK060026
Never start or run the engine while a
vehicle is raised on a jack. The vehicle
can slip or roll off of a jack causing
serious injury or death to you or those
nearby.
Towing
AWD vehicles must be towed with
a wheel lift and dollies or flatbed
equipment with all the wheels off the
ground. For more details, refer to
"Towing" section in chapter 8.
Vehicle inspection

[If the vehicle needs to be operated on
a vehicle lift do not attempt to stop
any of the four wheels from turning.
This could damage the AWD system.

[Never engage the parking brake while
running the engine on a car lift. This
may damage the AWD system.
Dynamometer testing
An AWD vehicle must be tested on a
special four wheel chassis dynamometer.
OIK060035L[A] : Roll tester (Speedometer),
[B] : Temporary free roller
An AWD vehicle should not be tested
on a 2WD roll tester. If a 2WD roll tester
must be used, perform the following
procedure:
1. Check the tire pressures
recommended for your vehicle.
2. Place the rear wheels on the roll tester
for a speedometer test as shown in
the illustration.
3. Release the parking brake.
4. Place the front wheels on the
temporary free roller as shown in the
illustration.
WARNING
Keep away from the front of the vehicle
while the vehicle is in gear on the
dynamometer. The vehicle can jump
forward and cause serious injury or
death.

Driving Your Vehicle
6-40
Limited Slip Differential refers to a
feature equipped with a mechanism that
controls the differential functions of the
wheels in the rear differential.
The Limited Slip Differential helps
improve handling performance when
circling at high speed.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Limited Slip Differential.
Information
Be sure to inject oil for exclusive use of
LSD when replacing Rear Differential
(for LSD) Oil. Refer to “Recommended
lubricants and capacities” in chapter 2.
LIMITED SLIP DIFFERENTIAL

í,)(48,33('
î
Electronic Control Suspension controls
the vehicle suspension automatically
using vehicle sensors to maximize
driving comfort by taking into account
the driving conditions such as speed,
surface of the road, cornering, stopping
requirements and acceleration.
System Malfunction
OIK060073L
Check Electronic Suspension
When Electronic Control Suspension
is not working properly, this warning
message will appear on the cluster LCD
display. If this occurs, have the system
inspected by an authorized retailer of
Genesis Branded products.
ELECTRONIC CONTROL
6863(16,21
í,)(48,33('
î

06

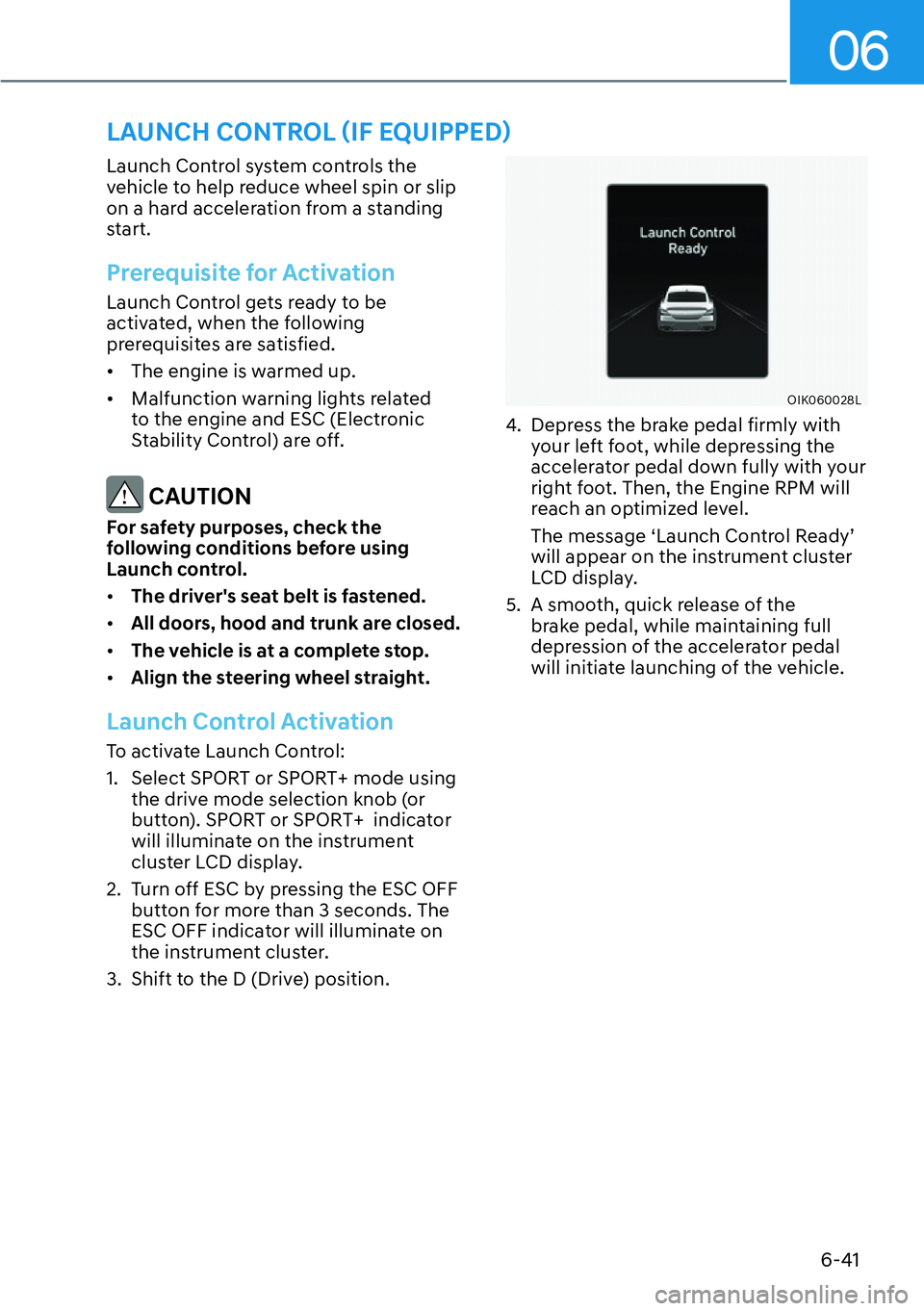

6-41
/$81&+&21752/

Driving Your Vehicle

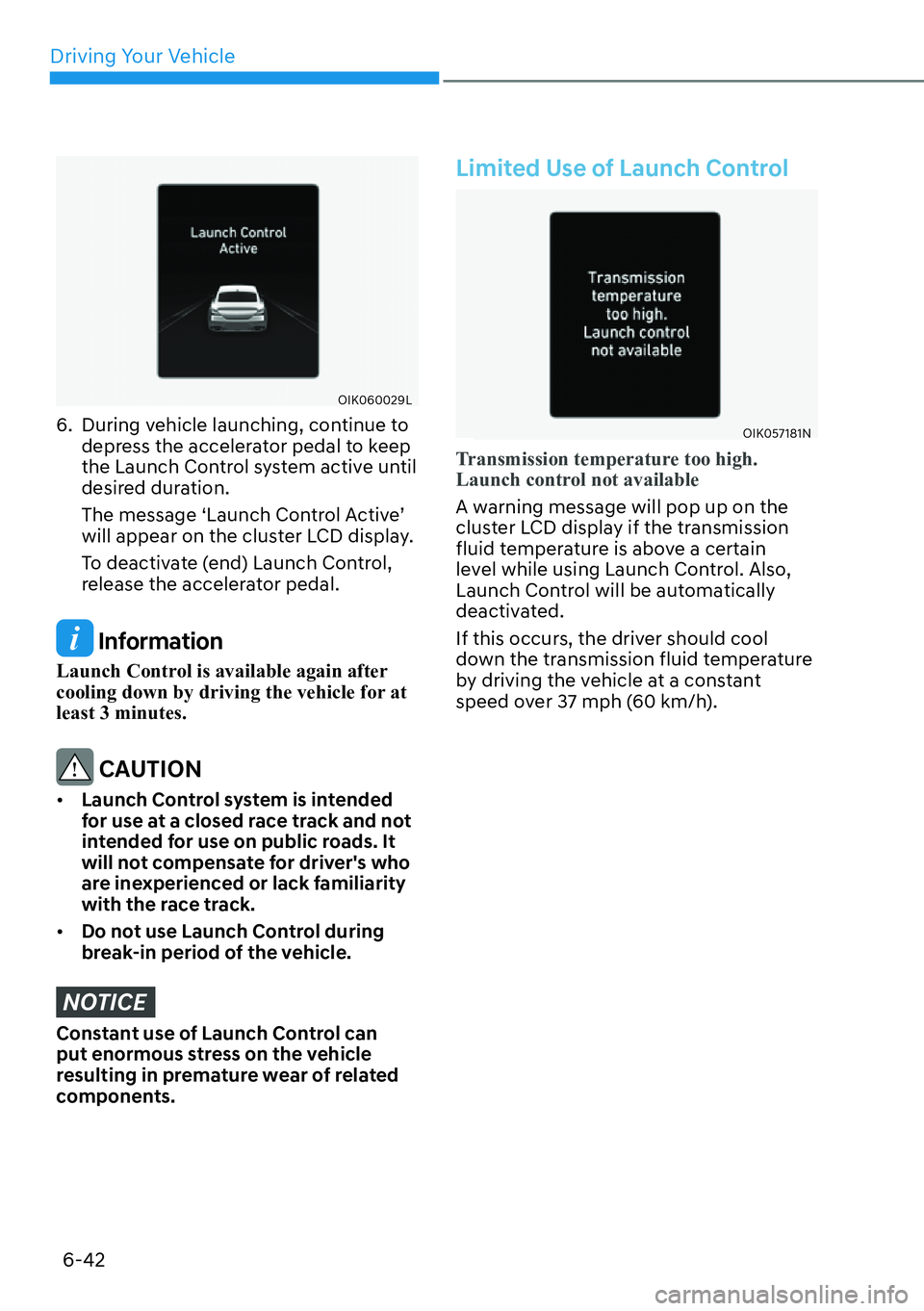

6-42
OIK060029L
6. During vehicle launching, continue to
depress the accelerator pedal to keep
the Launch Control system active until
desired duration.
The message ‘Launch Control Active’
will appear on the cluster LCD display.
To deactivate (end) Launch Control,
release the accelerator pedal.
Information
Launch Control is available again after
cooling down by driving the vehicle for at
least 3 minutes.
CAUTION

[Launch Control system is intended
for use at a closed race track and not
intended for use on public roads. It
will not compensate for driver's who
are inexperienced or lack familiarity
with the race track.

[Do not use Launch Control during
break-in period of the vehicle.
NOTICE
Constant use of Launch Control can
put enormous stress on the vehicle
resulting in premature wear of related
components.
Limited Use of Launch Control
OIK057181N
Transmission temperature too high.
Launch control not available
A warning message will pop up on the
cluster LCD display if the transmission
fluid temperature is above a certain
level while using Launch Control. Also,
Launch Control will be automatically
deactivated.
If this occurs, the driver should cool
down the transmission fluid temperature
by driving the vehicle at a constant
speed over 37 mph (60 km/h).
