2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
, 1 6 7 5 8 0 ( 1 7 3 $ 1 ( / 2 9 ( 5 9 , ( :
Page 22 of 530
2-7
02
„2.0L T-GDI
„3.3L T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OIK077001/ OIK017007
1. Engine coolant reservoir ...................... 9-20
2. Radiator cap ........................................... 9-21
3. Brake fluid reservoir ............................. 9-23
4. Air cleaner ............................................. 9-255. Engine oil dipstick ................................. 9-17
6. Engine oil filler cap ................................9-18
7. Windshield washer fluid reservoir ....... 9-24
8. Fuse box ................................................ 9-45
ENGINE COMPARTMENT
❈ The battery is in the trunk.
Page 23 of 530
Vehicle Information, Consumer Information and Reporting Safety Defects
2-8
Items in (mm)
Overall length 184.45 (4,685)
Overall width 72.83 (1,850)
Overall height 55.12 (1,400)
Front tread225/45R18 62.83 (1,596)
225/40R19
62.83 (1,596)
225/40ZR19
Rear tread225/45R18 64.25 (1,632)
225/35R19
63.15 (1,604)
255/35ZR19
Wheelbase 111.61 (2,835)
ENGINE
Items 2.0 T-GDI 3.3 T-GDI
Displacement
cu. in (cc)121.9 (1,998) 203.94 (3,342)
Bore x Stroke
in. (mm)3.39 x 3.39 (86 x 86) 3.78 x 3.299 (92 x 83.8)
Firing order 1-3-4-2 1-2-3-4-5-6
No. of cylinders In-line 4 cylinder V-type 6 cylinder
DIMENSIONS
Page 24 of 530
02
2-9
Light bulb Bulb type Wattage
FrontHeadlampLow LED LED
High LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Side marker LED LED
Daytime Running Lamp (DRL) LED LED
Puddle lamp LED LED
RearTail lamp LED LED
Stop lamp / Turn signal lamp LED LED
Reverse lamp LED LED
Side marker LED LED
License plate lamp LED LED
High mounted stop lamp LED LED
InteriorMap lamp LED LED
Room lamp LED LED
Vanity mirror lamp LED LED
Glove box lamp LED LED
Foot lamp LED LED
Trunk lamp LED LED
BULB WATTAGE
Page 25 of 530
Vehicle Information, Consumer Information and Reporting Safety Defects
2-10

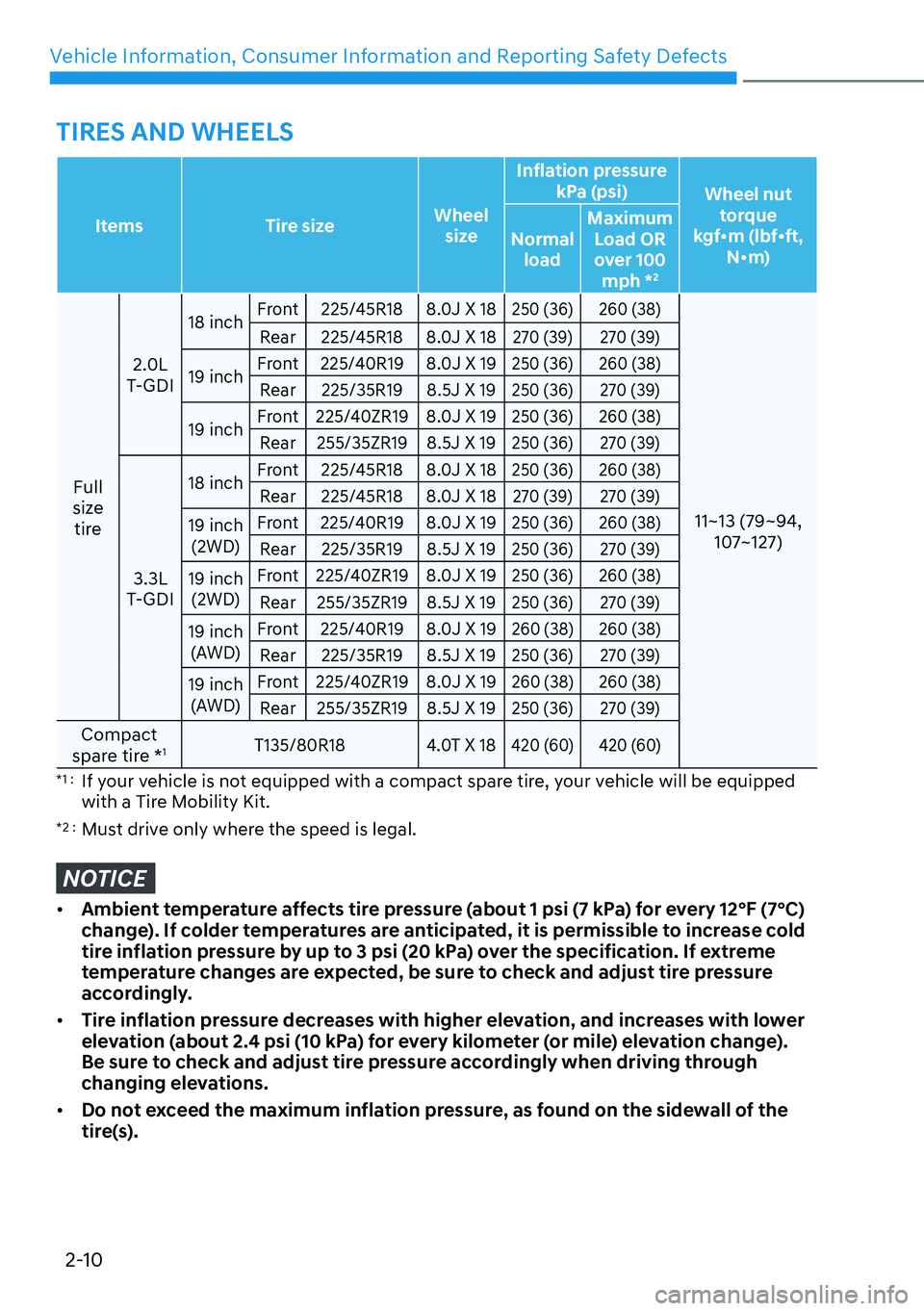

Items Tire sizeWheel
sizeInflation pressure
kPa (psi)
Wheel nut
torque
N J I[ P O E I[ I W
1[ P Normal
loadMaximum
Load OR
over 100
mph *
2
Full
size
tire2.0L
T-GDI
18 inchFront 225/45R18 8.0J X 18250 (36) 260 (38)
11~13 (79~94,
107~127)
Rear 225/45R18 8.0J X 18270 (39) 270 (39)
19 inchFront 225/40R19 8.0J X 19250 (36) 260 (38)
Rear 225/35R19 8.5J X 19250 (36) 270 (39)
19 inchFront 225/40ZR19 8.0J X 19250 (36) 260 (38)
Rear 255/35ZR19 8.5J X 19250 (36) 270 (39)
3.3L
T-GDI
18 inchFront 225/45R18 8.0J X 18250 (36) 260 (38)
Rear 225/45R18 8.0J X 18270 (39) 270 (39)
19 inch
(2WD)Front 225/40R19 8.0J X 19250 (36) 260 (38)
Rear 225/35R19 8.5J X 19250 (36) 270 (39)
19 inch
(2WD)Front 225/40ZR19 8.0J X 19250 (36) 260 (38)
Rear 255/35ZR19 8.5J X 19250 (36) 270 (39)
19 inch
(AWD)Front 225/40R19 8.0J X 19260 (38) 260 (38)
Rear 225/35R19 8.5J X 19250 (36) 270 (39)
19 inch
(AWD)Front 225/40ZR19 8.0J X 19260 (38) 260 (38)
Rear 255/35ZR19 8.5J X 19250 (36) 270 (39)
Compact
spare tire *1T135/80R18 4.0T X 18420 (60) 420 (60)
*1 : If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped
with a Tire Mobility Kit.
*2 : Must drive only where the speed is legal.
NOTICE
[ Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C)
F K D Q J H , I F R O G H U W H P S H U D W X U H V D U H D Q W L F L S D W H G L W L V S H U P L V V L E O H W R L Q F U H D V H F R O G
tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme
W H P S H U D W X U H F K D Q J H V D U H H [ S H F W H G E H V X U H W R F K H F N D Q G D G M X V W W L U H S U H V V X U H
accordingly.
[ 7 L U H L Q I O D W L R Q S U H V V X U H G H F U H D V H V Z L W K K L J K H U H O H Y D W L R Q D Q G L Q F U H D V H V Z L W K O R Z H U
elevation (about 2.4 psi (10 kPa) for every kilometer (or mile) elevation change).
% H V X U H W R F K H F N D Q G D G M X V W W L U H S U H V V X U H D F F R U G L Q J O \ Z K H Q G U L Y L Q J W K U R X J K
changing elevations.
[ ' R Q R W H [ F H H G W K H P D [ L P X P L Q I O D W L R Q S U H V V X U H D V I R X Q G R Q W K H V L G H Z D O O R I W K H
tire(s).
TIRES AND WHEELS
Page 26 of 530
![HYUNDAI GENESIS G70 2022 Owners Manual 02
2-11
CAUTION
[ : K H Q U H S O D F L Q J W L U H V X V H W K H V D P H V L ] H R U L J L Q D O O \ V X S S O L H G Z L W K W K H Y H K L F O H
[ Using tires of a dif](/img/35/56098/w960_56098-25.png "HYUNDAI GENESIS G70 2022 Owners Manual 02
2-11
CAUTION
[ : K H Q U H S O D F L Q J W L U H V X V H W K H V D P H V L ] H R U L J L Q D O O \ V X S S O L H G Z L W K W K H Y H K L F O H
[ Using tires of a dif")
02
2-11
CAUTION
[ : K H Q U H S O D F L Q J W L U H V X V H W K H V D P H V L ] H R U L J L Q D O O \ V X S S O L H G Z L W K W K H Y H K L F O H
[ Using tires of a different size can damage the related parts or not work properly.
[ : K H Q U H S O D F L Q J W L U H V $ / : $ < 6 X V H W K H V D P H V L ] H W \ S H F R Q V W U X F W L R Q D Q G W U H D G
pattern supplied with the vehicle for all tires.
$ , 5 & 2 1 ' , 7 , 2 1 , 1 * 6 < 6 7 ( 0
Item Weight of volume Classification
Refrigerant
oz. (g)19.2 ~ 21.0 (545 ~ 595) R-1234yf
Compressor
lubricant
cu. in (cc)3.1 ~ 3.9 (90 ~ 110) PAG
Contact an authorized retailer of Genesis Branded products for more details.
VOLUME AND WEIGHT
Item2.0L T-GDI 3.3L T-GDI
2WD AWD 2WD AWD
Gross vehicle weight
lbs. (kg)4,674
(2,120)4,828
(2,190)4,850
(2,200)4,993
(2,265)
Luggage volume (SAE)
F X I W b 11.7 (330)
Page 27 of 530
Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)2.0L T-GDI 8 6 T W b API SN PLUS/SP or ILSAC
GF-6 *3
SAE : 0W-30
3.3L T-GDI 8 6 T W b ACEA A5/B5*4
SAE : 5W-30
Automatic transmission fluid2.0L T-GDI
8 6 T W b GS ATF SP-IV-RR
Genesis/Hyundai genuine
ATF SP-IV-RR or other
brands meeting the above
specifica- tion approved by
Genesis Customer Care 3.3L T-GDI
Engine coolant2.0L T-GDI7.68 US qt.
b Mixture of antifreeze and
water (Phosphate-based
Ethylene glycol coolant for
aluminum radiator) 3.3L T-GDI9.84 US qt.
b
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : If the above recommended specification oil is not available, SAE 0W-30 grade synthetic
oil can be used. If mineral oil or semi-synthetic oil is used, it is a severe maintenance
condition in terms of engine oil change.
*3 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*4 : Requires
lower grade engine oil (mineral oil including Semi-synthetic) is used. Then the engine oil
and engine oil filter must be replaced as indicated severe maintenance condition.
RECOMMENDED LUBRICANTS AND CAPACITIES
Page 28 of 530
02
2-13
Lubricant Volume Classification
Brake fluid As required FMVSS116 DOT-4
Rear differential oil *
5
(without LSD)2.0L T-GDI
1.26 US qt. (1.2 b)HYPOID GEAR OIL API
GL-5 SAE 75W/85 (SK HK
SYN GEAR OIL 75W85 or
equivalent) 3.3L T-GDI
1.37 US qt. (1.3b)
Rear differential oil *5 *6
(with LSD)2.0L T-GDI
8 6 T W b HYPOID GEAR OIL API GL-5
SAE 75W85 (SK HK JL SYN
LSD GEAR OIL 75W85 PLUS
OR SK HK SYN GEAR OIL
75W85 FM PLUS) 3.3L T-GDI
8 6 T W b
Front differential oil *
5 (AWD) 8 6 T W b HYPOID GEAR OIL API GL-5
SAE 75W/85
(SK HK SYN GEAR OIL 75W85
or equivalent)
Transfer case oil (AWD)Gear/
Clutch 8 6 T W b
SHELL TF 0870B
Actuator 8 6 T W b
Fuel 8 6 J D O b Refer to “Fuel requirements”
in chapter 1.
*5 : If the front/rear differential is submerged, we recommend that you visit an authorized
retailer of Genesis Branded products to immediately replace the differential oil.
*6 : Be sure to inject oil for exclusive use of LSD when replacing Rear Differential Oil (if
equipped with Limited Slip Differential).
Page 29 of 530
Vehicle Information, Consumer Information and Reporting Safety Defects
2-14
Recommended SAE Viscosity Number
CAUTION
$ O Z D \ V E H V X U H W R F O H D Q W K H D U H D D U R X Q G D Q \ I L O O H U F D S G U D L Q S O X J R U G L S V W L F N E H I R U H
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
2.0L T-GDI *
10W-30
3.3L T-GDI *2
5W-30
10W-30
*1 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*2 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade
SAE 5W-30. However, if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended
to only use engine oils that uphold this API Certification Mark.
Page 30 of 530
02
2-15

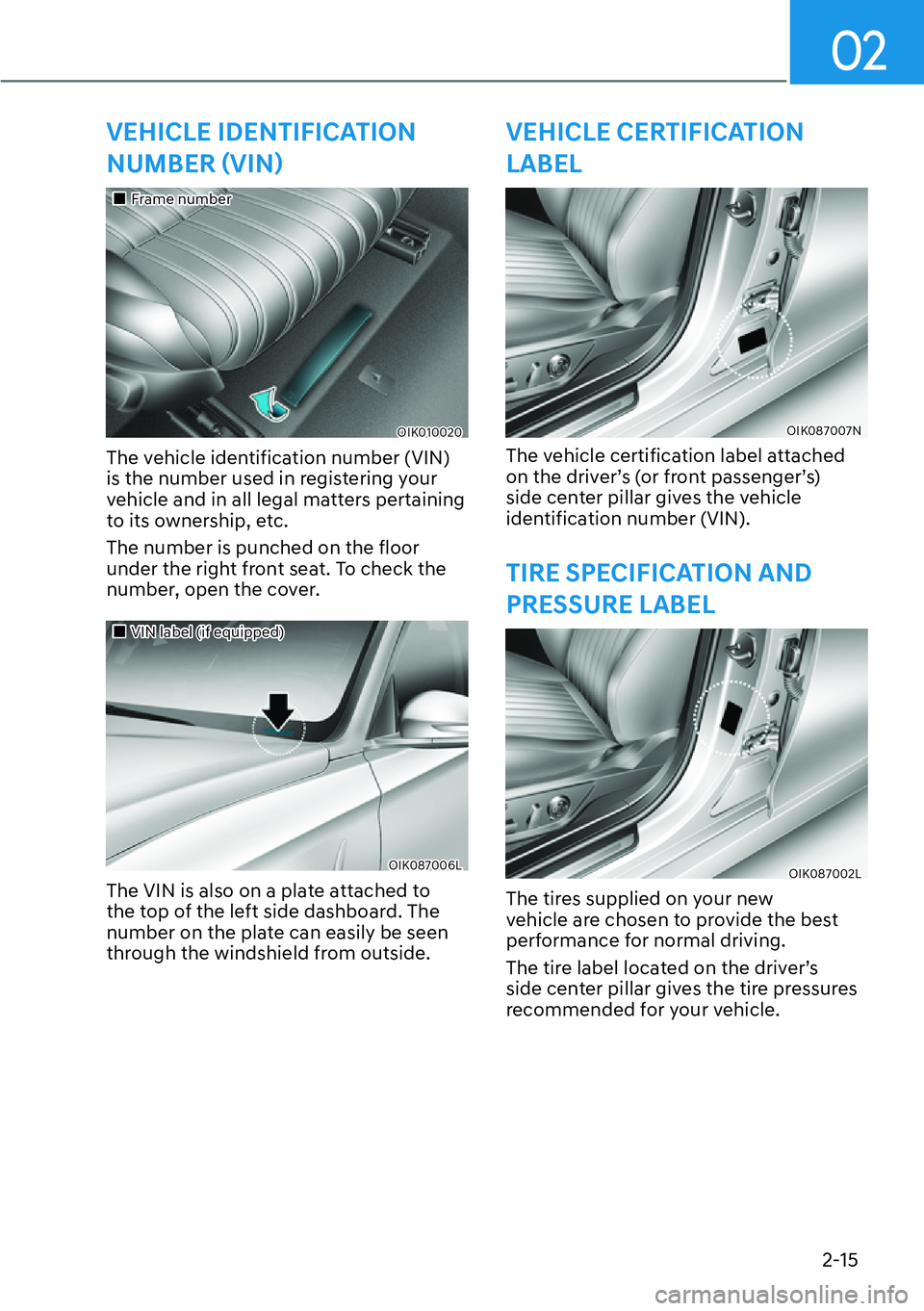

VEHICLE IDENTIFICATION
1 8 0 % ( 5 í 9 , 1î
„Frame number
OIK010020
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the right front seat. To check the
number, open the cover.
„VIN label (if equipped)
OIK087006L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
OIK087007N
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OIK087002L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
