HYUNDAI GENESIS G70 2022 Owners Manual

Maintenance
9-8
Normal Maintenance Schedule
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Engine oil and engine oil filter R R R R R R R R R R R R R R R
Fuel additives
*1
Add every 7,500 miles (1,390 km)
Rotate tires Rotate every 6,000 miles (10,000 km)
Cabin air filter (for evaporator and blower unit) Replace every 16,000 miles (24,000 km)
Air cleaner filterIRIRIRI
Spark plugs Replace every 42,000 miles (70,000 km)
Drive belts
*2
At first, inspect at 60,000 miles (100,000 km) or 72 months,
after that, inspect every 12,000 miles (20,000 km) or 24 months
Valve clearance
*3
Inspect every 60,000 miles (100,000 km) or 72 months
Vacuum hose I I I I I I I I I I I I I I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. *1 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
*2 :
The drive belt should be replaced when cracks occur or tension is reduced.
*3 :
Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized retailer of Genesis
Branded products perform the operation.

09
9-9
Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Engine coolantAt first, replace at 120,000 miles (200,000 km) or 10 years
after that, replace every 24,000 miles (40,000 km) or 24 months
Intercooler, in/out hose, air intake hose I I I I I I I I I I I I I I I
Battery condition I I I I I I I I I I I I I I I
All electrical systems I I I I I I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I I I I I I
Front brake disc/pads, calipers I I I I I I I I I I I I I I I
Rear brake disc/pads I I I I I I I I I I I I I I I
Steering gear rack, linkage and boots / lower arm
ball joint, upper arm ball jointIIIIIIIIIIIIIII
Driveshaft and boots I I I I I I I I I I I I I I I
Suspension mounting bolts I I I I I I I I I I I I I I I
Air conditioner refrigerant I I I I I I I I I I I I I I I
Air conditioner compressor I I I I I I I I I I I I I I I
Propeller shaft I I I I I I I I I I I I I I I
Exhaust pipe and muffler I I I I I I I I I I I I I I I
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

Maintenance
9-10
Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Automatic transmission fluid
*4
No check, No service required
Differential oil (rear) *
5 *6
Without LSD I I
With LSD R R
Differential oil (front) (AWD) *
5
II
Transfer case oil (AWD) No check, No service required
Vapor hose, fuel filler cap and fuel tankIIIIIII
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*4 :
Use only the specified automatic transmission fluid. (Refer to "Recommended lubricants and capacities" in chapter 2 or the
label in the engine compartment.)
*5 :
Front/rear differential oil should be changed anytime, front/rear differential have been submerged in water.
*6 :
When replacing differential oil with LSD (Limited Slip Differential), use only specified LSD oil.

09
9-11

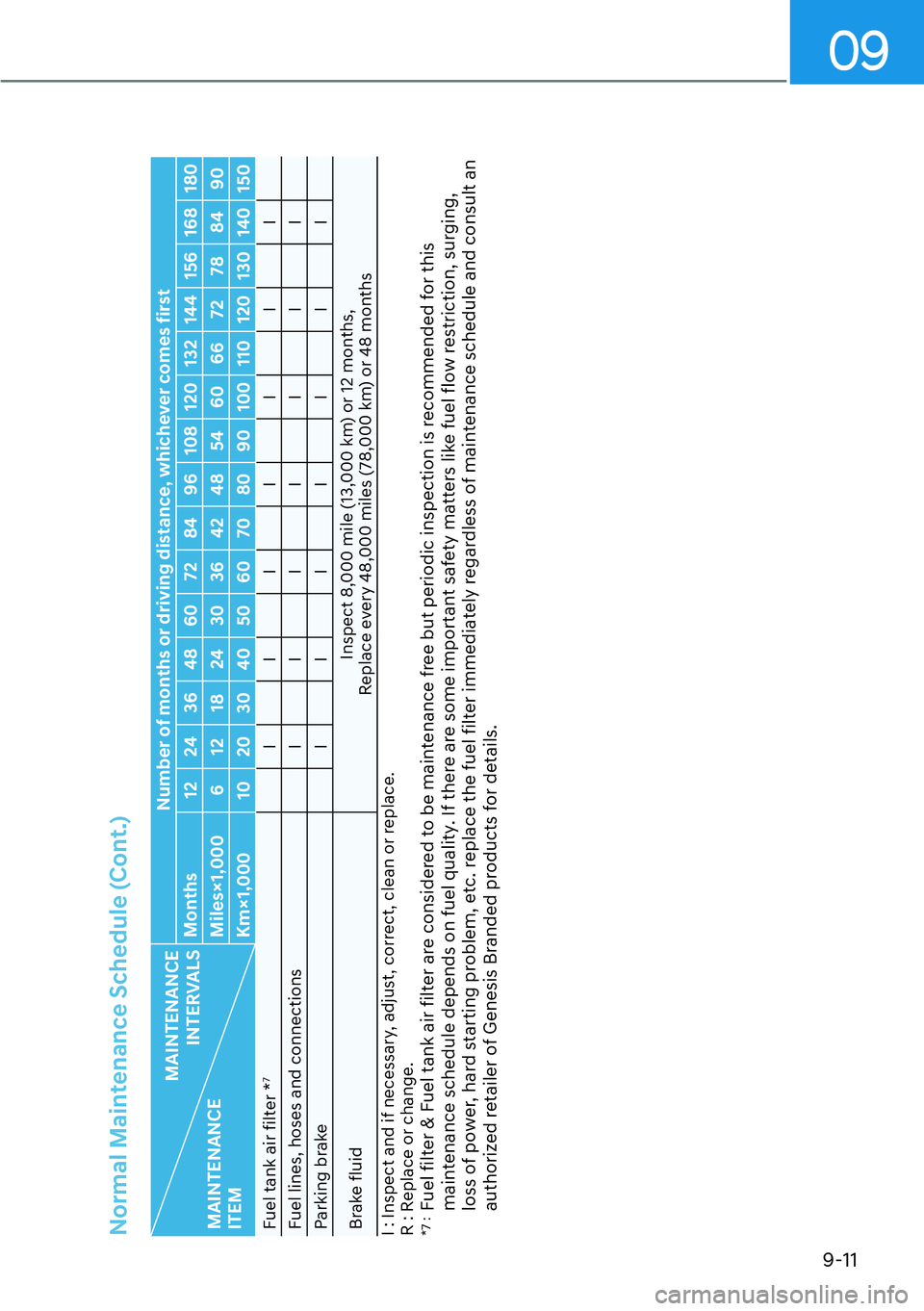

Normal Maintenance Schedule (Cont.)
MAINTENANCE
INTERVALS
MAINTENANCE
ITEMNumber of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
Miles×1,000 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90
Km×1,000 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Fuel tank air filter *
7
IIIIIII
Fuel lines, hoses and connectionsIIIIIII
Parking brakeIIIIIII
Brake fluidInspect 8,000 mile (13,000 km) or 12 months,
Replace every 48,000 miles (78,000 km) or 48 months
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*7 :
Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this
maintenance schedule depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging,
loss of power, hard starting problem, etc. replace the fuel filter immediately regardless of maintenance schedule and consult an
authorized retailer of Genesis Branded products for details.

Maintenance
9-12
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Engine oil and filter REvery 3,000 miles
(5,000 km) or 6 monthsA, B, C, D,
E, F, G, H, I,
J, K, L
Air cleaner filter IInspect more frequently
depending on the
conditionC, E
Spark plugs RReplace more
frequently depending
on the condition A, B, F, G,
H, I, K
Automatic transmission fluid REvery 60,000 miles
(100,000 km)A,C,E,F,G,
H,I,K
Front brake disc/pads, calipers IInspect more frequently
depending on the
conditionC, D, E, G,
H , J, K
Rear brake disc/pads IInspect more frequently
depending on the
conditionC, D, E, G,
H , J, K
Parking brake IInspect more frequently
depending on the
conditionC, D, G, H
Steering gear box, linkage & boots/
Lower arm ball joint, upper arm ball
jointIInspect more frequently
depending on the
conditionC, D, E,
F, G
Drive shafts and boots IEvery 3,000 miles
(5,000 km) or 6 monthsC, D, E, F,
G, H, I, J
Differential oil (front) (AWD) IEvery 72,000 miles
(120,000 km)C, E, G, H,
I, J
Differential oil (rear)Without LSD REvery 72,000 miles
(120,000 km)C, E, G, H,
I, J
With LSD REvery 36,000 miles
(60,000 km)C, E, G, H,
I, J
Cabin air filter
(for evaporator and blower unit)RInspect more frequently
depending on the
conditionC, E, G
Propeller shaft IEvery 3,000 miles
(5,000 km) or 6 monthsC, E

09
9-13
Severe driving conditions
A. Repeatedly driving short distances of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B. Extensive engine idling or low speed driving for long distances
C. Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads
D. Driving in areas using salt or other corrosive materials or in very cold weather
E. Driving in heavy dust conditions
F. Driving in heavy traffic area
G. Driving on uphill, downhill, or mountain road
H. Towing a trailer or using a camper, or driving with loads on the roof
I. Driving as a patrol car, taxi, other commercial use or vehicle towing
J. Frequently driving under high speed or rapid acceleration/deceleration.
K. Frequently driving in stop-and-go conditions
L. Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)

Maintenance
9-14
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive Belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Drive belts should be checked
periodically for proper tension and
adjusted as necessary.
Information
When you are inspecting the belt, turn the
engine off.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
Have an authorized retailer of Genesis
Branded products replace any damaged
or leaking parts immediately.
Fuel Filter
The fuel filter is considered to be
maintenance free but periodic inspection
is recommended for this maintenance
depends on fuel quality. If there are
some important matters like fuel flow
restriction, surging, loss of power, hard
starting problem etc., replace the fuel
filter immediately. We recommend that
you consult an authorized retailer of
Genesis Branded products for details.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
a new vapor hose or fuel filler cap is
correctly replaced.
Vacuum crankcase ventilation
hoses (if equipped)
Inspect the surface of hoses for evidence
of heat and/or mechanical damage.
Hard and brittle rubber, cracking,
tears, cuts, abrasions, and excessive
swelling indicate deterioration. Particular
attention should be paid to examine
those hose surfaces nearest to high heat
sources, such as the exhaust manifold.
Inspect the hose routing to ensure that
the hoses do not come in contact with
any heat source, sharp edges or moving
component which might cause heat
damage or mechanical wear. Inspect
all hose connections, such as clamps
and couplings, to make sure they are
secure, and that no leaks are present.
Hoses should be replaced immediately if
there is any evidence of deterioration or
damage.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS

09
9-15
Air Cleaner Filter
We recommend that the air cleaner filter
be replaced by an authorized retailer of
Genesis Branded products.
Spark Plugs
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe out foreign substances inside
and outside of the boot bottom of the
ignition coil and the insulator of the
spark plug with a soft cloth to prevent
contamination of the spark plug
insulator.
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Engine Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Automatic Transmission Fluid
Automatic transmission fluid should
not be checked under normal usage
conditions, the Automatic transmission
fluid should be changed by an authorized
retailer of Genesis Branded products
according to the maintenance schedule.
Information
Automatic transmission fluid color is red
when new.
As the vehicle is driven, the automatic
transmission fluid will begin to look
darker.
This is a normal condition. It does not
need to be replaced based on the color
change.
NOTICE
The use of a non-specified fluid could
result in transmission malfunction and
failure.
Use only specified automatic
transmission fluid. (Refer to
“Recommended Lubricants and
Capacities” section in chapter 2.)

Maintenance
9-16
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT
4 specification.
Parking Brake
Inspect the parking brake system
including the parking brake pedal and
cables.
Brake Discs, Pads, Calipers and
Rotors
Check the pads for excessive wear, discs
for run out and wear, and calipers for
fluid leakage.
Exhaust Pipe and Muffler
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration, or damage. Start
the engine and listen carefully for
any exhaust gas leakage. Tighten
connections or replace parts as
necessary.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the engine
off, check for excessive free-play in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks,
or damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.

09
9-17
ENGINE OIL
Checking the Engine Oil Level
NOTICE
Engine oil is used for lubricating,
cooling, and operating various
hydraulic components in the engine.
Engine oil consumption while driving
is normal, and it is necessary to check
and refill the engine oil regularly. Also,
check and refill the oil level within
the recommended maintenance
schedule to prevent deterioration of oil
performance.
Check the engine oil following the
below procedure.
1. Follow all of the oil manufacturer’s
precautions.
2. Be sure the vehicle is on the level
ground in P (Park) with the parking
brake set and the wheels blocked.
3. Turn the engine on and warm
the engine up until the coolant
temperature reaches a constant
normal temperature.
4. Turn the engine off, remove the oil
filler cap and pull the dipstick out.
Wait for 15 minutes for the oil to return
to the oil pan.
5. Wipe the dipstick clean and re-insert
it fully.
„2.0L T-GDI
OIK090001
„3.3L T-GDI
OIK090003
6. Pull the dipstick out again and check
the level. The level should be between
F (Full) and L (Low).
