5
Accessing Your Vehicle ..................................................................................... 5-4Smart Key ......................................................................................................................5-4
Immobilizer System ....................................................................................................5-12
Genesis Digital Key ......................................................................................... 5-13Digital Key (Smart Phone) ...........................................................................................5-13
Digital Key (Card Key) ................................................................................................. 5-19
Personalized Profile and Vehicle Settings ................................................................ 5-22
Used Vehicle/Digital Key Maintenance .................................................................... 5-25
Limitations of the System .......................................................................................... 5-25
Door Lock ........................................................................................................ 5-26Operating Door Locks from Outside the Vehicle ..................................................... 5-26
Operating Door Locks from Inside the Vehicle ........................................................ 5-27
Automatic Door Lock and Unlock Features ..............................................................5-30
Child-Protector Rear Door Locks ..............................................................................5-30
Theft-Alarm System ......................................................................................... 5-31
Integrated Memory System............................................................................ 5-32
Storing Memory Positions ......................................................................................... 5-32
Recalling Memory Positions ...................................................................................... 5-33
Resetting the System ................................................................................................. 5-33
Seat Easy Access ........................................................................................................ 5-34
Steering Wheel ................................................................................................ 5-35
Electric Power Steering (EPS) .................................................................................... 5-35
Tilt/Telescopic Steering .............................................................................................5-36
Horn............................................................................................................................. 5-37
Heated Steering Wheel ..............................................................................................5-38
Mirrors ............................................................................................................. 5-39Inside Rearview Mirror ...............................................................................................5-39
Side View Mirrors ...................................................................................................... 5-49
Reverse Parking Aid ................................................................................................... 5-51
Windows .......................................................................................................... 5-53Power Windows ..........................................................................................................5-54
Remote Window Opening Function ......................................................................... 5-57
Wide sunroof ................................................................................................... 5-58Power sunblind ...........................................................................................................5-59
Tilt open/close ............................................................................................................5-59
Slide open/close ........................................................................................................ 5-60
Sunroof Open Warning ..............................................................................................5-62
5. Convenient Features

05
5-7
Information

[The side view mirror will unfold if
‘Enable on Door Unlock’ is selected
from the Settings menu in the
infotainment system screen. Select:
-6HWXS
:9HKLFOH6HWWLQJV
:
&RQYHQLHQFH
::HOFRPH0LUURU
/LJKW
:(QDEOHRQ'RRU8QORFN

[The door handle touch sensor will only
operate when the smart key is within
28~40 in. (0.7 ~1 m) from the outside
door handle

[The doors may lock or unlock if the
touch sensor of the outer door handle is
recognized while washing your car or
due to heavy rain.

[To prevent unintentional door lock or
unlock:
You may prevent the doors from
locking or unlocking unintentionally.
Press the lock button on the smart
key and immediately press the unlock
button along with the lock button
for more than 4 seconds. The hazard
warning lights will blink four times.
At this time, the doors will not lock or
unlock even though the touch sensor is
touched on the outside door handle.
To deactivate the function, press the
door lock or unlock button on the
smart key.

[The doors may not lock or unlock in
the following situations.
-If the touch sensor is touched with
gloves on
-If the door is suddenly approached
Opening the trunk
OIK050001
To open the trunk:
1. Make sure you have the smart key in
your possession.
2. Press either the trunk open button
on the vehicle or press and hold the
Trunk Unlock button (3) on the smart
key for more than one second. The
hazard warning lights will blink two
times and the trunk will open.
Information
The trunk open button will only operate
when the smart key is within
28 in. (0.7 m) from the trunk.
Panic button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.

05
5-31
This system helps to protect your vehicle
and valuables. The horn will sound and
the hazard warning lights will blink
continuously if any of the following
occur:
- A door is opened without using the
smart key.
- The trunk is opened without using the
smart key.
- The engine hood is opened.
The alarm continues for 30 seconds, then
the system resets. To turn off the alarm,
unlock the doors with the smart key.
The Theft Alarm System automatically
sets 30 seconds after you lock the doors
and the trunk. For the system to activate,
you must lock the doors and the trunk
from outside the vehicle with the smart
key or by touching the touch sensor on
the outside of the door handle with the
smart key in your possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the trunk, or the hood without
using the smart key will cause the alarm
to activate.
The Theft Alarm System will not set if the
hood, the trunk, or any door is not fully
closed. If the system will not set, check
the hood, the trunk, or the doors are fully
closed.
Do not attempt to alter this system or
add other devices to it. Information

[Do not lock the doors until all
passengers have left the vehicle. If the
remaining passenger leaves the vehicle
when the system is armed, the alarm
will be activated.

[If the vehicle is not disarmed with the
smart key, open the doors by using the
mechanical key and start the engine by
GLUHFWO\SUHVVLQJWKH(QJLQH6WDUW6WRS
button with the smart key.

[If the system is disarmed by unlocking
the vehicle, but neither a door or the
trunk is opened within 30 seconds, the
doors will relock and the system will
rearm automatically.
7+()7

05

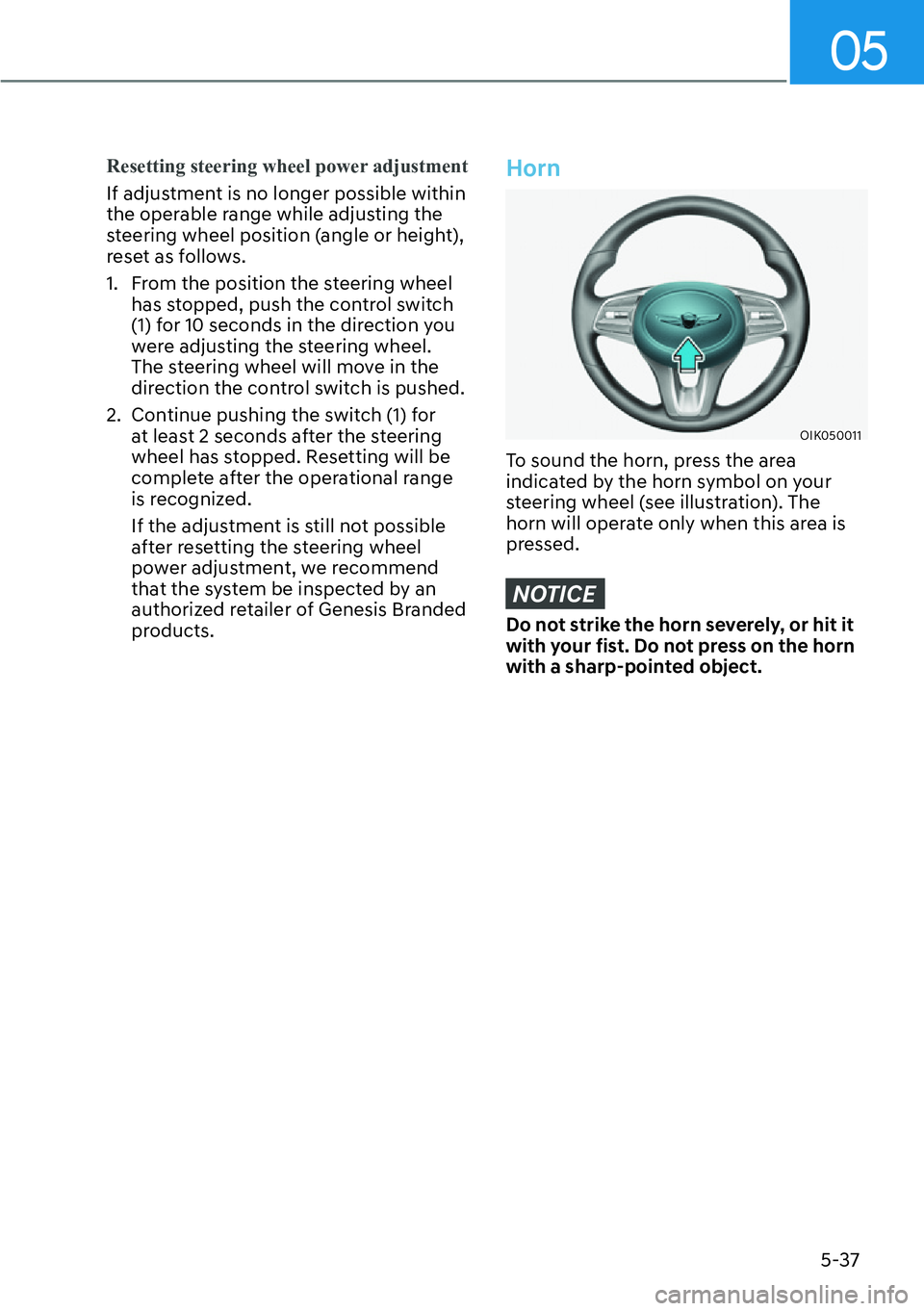

5-37
Resetting steering wheel power adjustment
If adjustment is no longer possible within
the operable range while adjusting the
steering wheel position (angle or height),
reset as follows.
1. From the position the steering wheel
has stopped, push the control switch
(1) for 10 seconds in the direction you
were adjusting the steering wheel.
The steering wheel will move in the
direction the control switch is pushed.
2. Continue pushing the switch (1) for
at least 2 seconds after the steering
wheel has stopped. Resetting will be
complete after the operational range
is recognized.
If the adjustment is still not possible
after resetting the steering wheel
power adjustment, we recommend
that the system be inspected by an
authorized retailer of Genesis Branded
products.
Horn
OIK050011
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely, or hit it
with your fist. Do not press on the horn
with a sharp-pointed object.

09
9-55
Engine compartment fuse panel
Fuse NameFuse Rating Circuit Protected
ESC310A ESP Control Module
ECU310A ECM
ECU215A ECM
HORN20A Horn Relay
WIPER130A Wiper Power Relay
TCU215A P/N Relay, TCM
SENSOR410AElectronic Oil Pump Module, Brake Vacuum Switch, E/R
Junction Block (RLY.1 (Brake Vacuum Relay))
TCU120A TCM
WIPER210A IBU, ECM
SENSOR115ARear Sub Junction Block (Fuel Pump Relay),
[D4HB] Rail Pressure Regulating Valve, DieseL Junction
Block (RLY.1 (Fuel Filter Heater Relay))
SENSOR520A[G4KL] Ignition Coil #1/#2/#3/#4
[G6DP] Ignition Coil #1/#2/#3/#4/#5/#6
[D4HB] Electronic Water Pump
MODULE10A Active Air Flap LH
ACTIVE HOOD10A Active Hood Lift Control Module
SENSOR110A[D4HB] Glow Relay Unit, Fuel Heater & Water Separator
Sensor
ECU120A ECM
SENSOR315A[G4KL] Oxygen Sensor (Up/Down)
[G6DP] Oxygen Sensor #1/#2/#3/#4
[D4HB] Lambda Sensor #1/#2, Electronic VGT Actuator,
Fuel Metering Unit, EGR Cooing Bypass Solenoid
Vlave, PTC Heater, Mid Nox Sensor, PM Sensor,
Rear Nox Sensor

Maintenance
9-56
Fuse NameFuse Rating Circuit Protected
SENSOR210AE/R Junction Block (RLY. 9 - Cooling Fan Relay),
[G4KL] Electronic Thermostat, Oil Control Valve, Purge
Control Solenoid Valve, Recirculation Control
Solenoid Valve
[G6DP] Electronic Thermostat, Oil Pressure Solenoid
Valve, Oil Control Valve #1/#2/#3/#4 (Intake/
Exhaust), Recirculation Control Solenoid Valve,
Purge Control Solenoid Valve, Variable Exhaust
Flap Actuator LH/RH
[D4HB] Oil Pump Solenoid Valve, Air Flow Sensor,
Crankshaft Position Sensor, Front Nox Sensor, Oil
Level Sensor, Stop Lamp Switch
B/ALARM10A E/R Junction Block (RLY. 2 - Burglar Alarm Horn Relay)
Relay
Type Relay No.Relay Name
MICRO RLY. 1 Vacuum OIK090033
MICRO RLY. 2 Burglar Alarm Horn Relay
MICRO RLY. 6 Blower Relay
MICRO RLY. 7 Start Relay
MICRO RLY. 8 E-CVVT Relay (G4KL)
MINI RLY. 9 Cooling Fan Relay
