Emergency Situations
8-14
WARNING
Do not touch luggage room
metal surface while the
engine is operating or hot.
Doing so could result in serious
personal injury.
Turn the engine off and wait until it
cools down or wear gloves to remove
the spare tire from the luggage room.
Changing Tires
WARNING
A vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby. Take the following safety
precautions:

[Do not get under a vehicle that is
supported by a jack.

[NEVER attempt to change a tire in
the lane of traffic. ALWAYS move the
vehicle completely off the road on
level, firm ground away from traffic
before trying to change a tire. If you
cannot find a level, firm place off
the road, call a towing service for
assistance.

[Be sure to use the jack provided with
the vehicle.

[ALWAYS place the jack on the
designated jacking positions on the
vehicle and NEVER on the bumpers
or any other part of the vehicle for
jacking support.

[Do not start or run the engine while
the vehicle is on the jack.

[Do not allow anyone to remain in the
vehicle while it is on the jack.

[Keep children away from the road
and the vehicle.Follow these steps to change your
vehicle’s tire:
1. Park on a level, firm surface.
2. Shift the vehicle to P (Park), apply the
parking brake, and press the Engine
Start/Stop button to the OFF position.
3. Press the hazard warning flasher
button.
4. Remove the wheel lug wrench, jack,
jack handle, and spare tire from the
vehicle.
OIK080025L
[A] : Block
5. Block both the front and rear of the
tire diagonally opposite of the tire you
are changing.

08

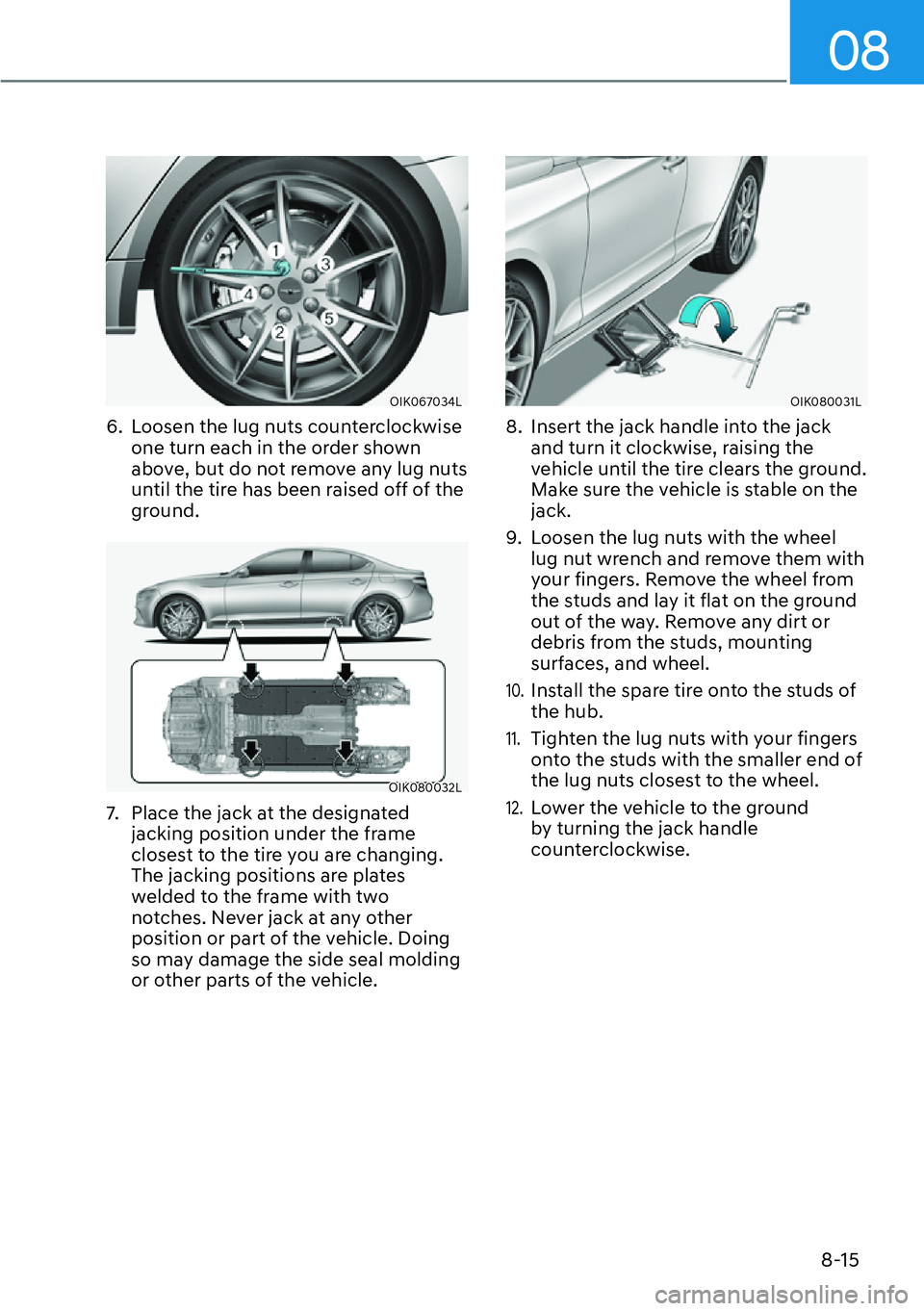

8-15
OIK067034L
6. Loosen the lug nuts counterclockwise
one turn each in the order shown
above, but do not remove any lug nuts
until the tire has been raised off of the
ground.
OIK080032L
7. Place the jack at the designated
jacking position under the frame
closest to the tire you are changing.
The jacking positions are plates
welded to the frame with two
notches. Never jack at any other
position or part of the vehicle. Doing
so may damage the side seal molding
or other parts of the vehicle.
OIK080031L
8. Insert the jack handle into the jack
and turn it clockwise, raising the
vehicle until the tire clears the ground.
Make sure the vehicle is stable on the
jack.
9. Loosen the lug nuts with the wheel
lug nut wrench and remove them with
your fingers. Remove the wheel from
the studs and lay it flat on the ground
out of the way. Remove any dirt or
debris from the studs, mounting
surfaces, and wheel.
10. Install the spare tire onto the studs of
the hub.
11. Tighten the lug nuts with your fingers
onto the studs with the smaller end of
the lug nuts closest to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle
counterclockwise.
