Your vehicle at a glance
2
2

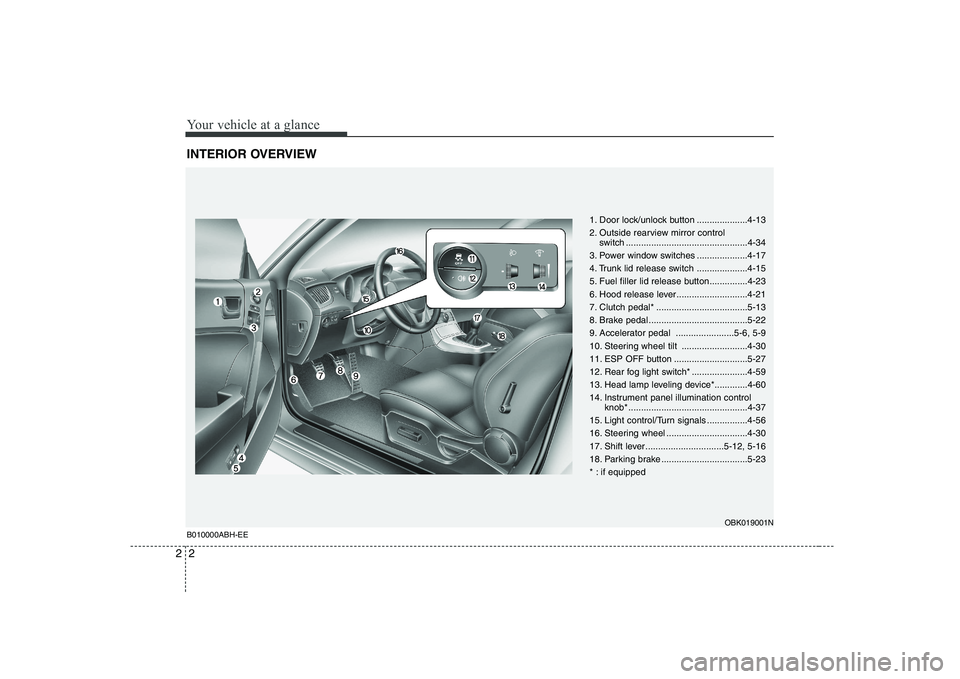

INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-13
2. Outside rearview mirror control
switch ................................................4-34
3. Power window switches ....................4-17
4. Trunk lid release switch ....................4-15
5. Fuel filler lid release button...............4-23
6. Hood release lever ............................4-21
7. Clutch pedal* ....................................5-13
8. Brake pedal .......................................5-22
9. Accelerator pedal .......................5-6, 5-9
10. Steering wheel tilt ..........................4-30
11. ESP OFF button .............................5-27
12. Rear fog light switch* ......................4-59
13. Head lamp leveling device*.............4-60
14. Instrument panel illumination control knob* ...............................................4-37
15. Light control/Turn signals ................4-56
16. Steering wheel ................................4-30
17. Shift lever ...............................5-12, 5-16
18. Parking brake ..................................5-23
* : if equipped
OBK019001N
B010000ABH-EE

421
Features of your vehicle

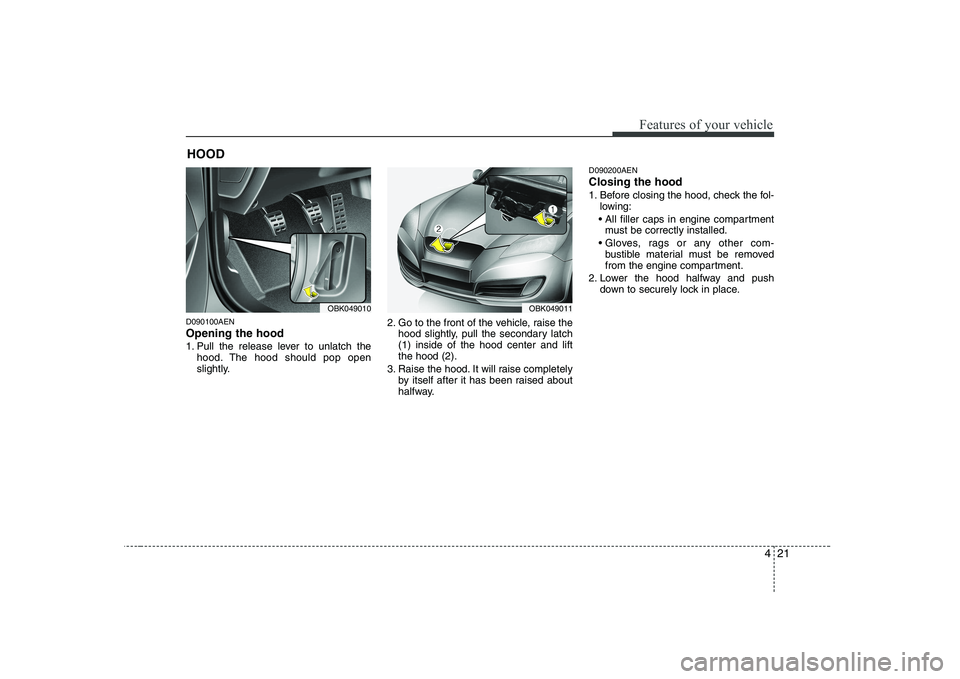

D090100AEN Opening the hood
1. Pull the release lever to unlatch thehood. The hood should pop open
slightly. 2. Go to the front of the vehicle, raise the
hood slightly, pull the secondary latch(1) inside of the hood center and liftthe hood (2).
3. Raise the hood. It will raise completely by itself after it has been raised about
halfway. D090200AEN Closing the hood
1. Before closing the hood, check the fol-
lowing:
must be correctly installed.
bustible material must be removed
from the engine compartment.
2. Lower the hood halfway and push down to securely lock in place.
HOOD
OBK049010OBK049011
