trunk release button HYUNDAI GENESIS G80 2015 Owners Manual

Your vehicle at a glance
2 2
INTERIOR OVERVIEW
B010000ABH-EUOBH012001E
1. Door lock/unlock button ....................4-17
2. Power window switches ....................4-23
3. Outside rearview mirror control
switch ................................................4-46
4. Trunk lid release switch .....................4-20
5. Fuel filler lid release button...............4-28
6. Hood release lever ............................4-27
7. Foot parking brake* ..........................5-19
8. Electric parking brake* ......................5-21
9. Auto hold control button* ..................5-25
10. Brake pedal .....................................5-18
11. Accelerator pedal .....................5-6, 5-9
12. Parking assist button* .....................4-72
13. Lane departure warning system
switch*.............................................5-51
14. ESC OFF button .............................5-30
15. Instrument panel illumination control
knob ................................................4-48
16. Light control/Turn signals ................4-77
17. Steering wheel manual tilt or Power tilt/
telescope control* ...........................4-37
18. Steering wheel ................................4-37
* : if equipped
❈ The actual vehicle may differ from the illustration.

Features of your vehicle
4 4
Restrictions in handling keys
The trunk lid control button located in the
vehicle glove box is used to prevent
unauthorized access to the trunk.
To activate the trunk lock system so that
the trunk can only be opened with the
master key, perform the following:
1. Open the glove box by pushing the
button (1).
2. Set the trunk lid control button to OFF
position (not depressed).
3. Close the glove box and lock the glove
box with the master key.When leaving the key with a parking lot
attendant or valet, perform steps 1 to 3
above and leave the sub key with the
attendent. The sub key can start the
engine and operate door locks only.
Lock release
To release the trunk lock feature, open
the glove box with the master key and set
the trunk lid control button to ON position
(depressed). In this position the trunk will
open with the trunk lid release lever or
transmitter. The trunk can never be
opened with the sub key.Type B
Used to start the engine.
Used to lock and unlock the doors.
Used to lock and unlock the glove box.
To remove the mechanical key, press and
hold the release button (1) and remove
the mechanical key (2).
To reinstall the mechanical key, put the
key into the hole and push it until a click
sound is heard.
OBH049016OTG040002

45

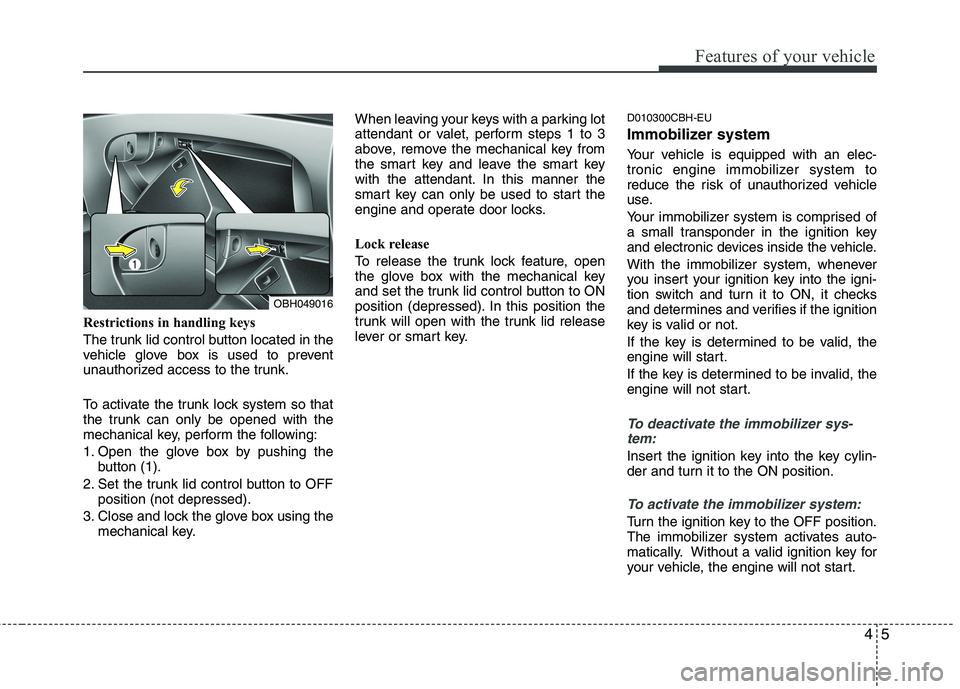

Features of your vehicle
Restrictions in handling keys
The trunk lid control button located in the
vehicle glove box is used to prevent
unauthorized access to the trunk.
To activate the trunk lock system so that
the trunk can only be opened with the
mechanical key, perform the following:
1. Open the glove box by pushing the
button (1).
2. Set the trunk lid control button to OFF
position (not depressed).
3. Close and lock the glove box using the
mechanical key.When leaving your keys with a parking lot
attendant or valet, perform steps 1 to 3
above, remove the mechanical key from
the smart key and leave the smart key
with the attendant. In this manner the
smart key can only be used to start the
engine and operate door locks.
Lock release
To release the trunk lock feature, open
the glove box with the mechanical key
and set the trunk lid control button to ON
position (depressed). In this position the
trunk will open with the trunk lid release
lever or smart key.
D010300CBH-EU
Immobilizer system
Your vehicle is equipped with an elec-
tronic engine immobilizer system to
reduce the risk of unauthorized vehicle
use.
Your immobilizer system is comprised of
a small transponder in the ignition key
and electronic devices inside the vehicle.
With the immobilizer system, whenever
you insert your ignition key into the igni-
tion switch and turn it to ON, it checks
and determines and verifies if the ignition
key is valid or not.
If the key is determined to be valid, the
engine will start.
If the key is determined to be invalid, the
engine will not start.
To deactivate the immobilizer sys-
tem:
Insert the ignition key into the key cylin-
der and turn it to the ON position.
To activate the immobilizer system:
Turn the ignition key to the OFF position.
The immobilizer system activates auto-
matically. Without a valid ignition key for
your vehicle, the engine will not start.
OBH049016

Features of your vehicle
20 4
D070100ABH-EE
Opening the trunk
The trunk is locked or unlocked when
all doors are locked or unlocked with
the key, transmitter (or smart key) or
central door lock switch.
To open the trunk only while all doors
are locked, press the trunk unlock but-
ton for more than 1 second on the
transmitter (or smart key), press the
button on the trunk handle with the
smart key in your possession, or insert
the master key (or mechanical key of
the smart key) into the lock and turn it
clockwise.
Once the trunk is opened and then
closed, the trunk is locked automatically.
If the trunk is unlocked, it can be
opened by pulling the handle up. To open the trunk from inside the vehi-
cle pull the trunk lid release lever.
✽ ✽
NOTICE
In cold and wet climates, trunk locks
and trunk mechanisms may not work
properly due to freezing conditions.
TRUNK
OBH048012LOBH048013
Type A
Type B
CAUTION
Make certain that you close the
trunk before driving your vehicle.
Possible damage may occur to the
trunk lift cylinders and attached
hardware if the trunk is not closed
prior to driving.
WARNING
Make sure no objects or people are
near the rear of the vehicle when
opening the trunk.

Features of your vehicle
22 4
D070403ABH-EU
Trunk lid control button
The trunk lid control button located in the
vehicle glove box is used to prevent
unauthorized access to the trunk.
When the trunk lid control button is ON
(depressed), the trunk can be unlocked
with the trunk lid release lever and the
transmitter (or smart key).
When the trunk lid control button is
OFF (not depressed), the trunk can be
unlocked with the master key (or the
mechanical key of the smart key) only.
✽ ✽
NOTICE
Close the trunk, and keep the trunk lid
control button in the OFF (not
depressed) position before washing the
vehicle in an automatic car wash.
OBH048021

Index
6I
Storage compartments ··············································· 4-104
Center console storage ············································ 4-104
Glove box ································································ 4-104
Sunglass holder ······················································· 4-105
Sunroof ········································································ 4-31
Theft-alarm system ······················································ 4-14
Tire pressure monitoring system (TPMS) ····················· 6-7
Changing a tire with TPMS ······································ 6-10
Low tire pressure position telltale ······························· 6-8
Low tire pressure telltale ············································· 6-8
TPMS (Tire pressure monitoring system)
malfunction indicator ················································ 6-9
Tire specification and pressure label ····························· 8-8
Tires and wheels ··················································· 7-34, 8-3
All season tires ·························································· 7-46
Checking tire inflation pressure ································ 7-35
Compact spare tire replacement ································ 7-39
Low aspect ratio tire ····················································7-44
Radial-ply tires ·························································· 7-47
Recommended cold tire inflation pressures ·············· 7-34
Snow tires ·································································· 7-47
Summer tires ····························································· 7-46
Tire care ····································································· 7-34
Tire chains ································································· 7-47
Tire maintenance ······················································· 7-39
Tire replacement ························································ 7-38Tire rotation ······························································· 7-36
Tire sidewall labeling ················································ 7-40
Tire terminology and definitions ······························· 7-44
Tire traction ······························································· 7-39
Wheel alignment and tire balance ····························· 7-37
Wheel replacement ···················································· 7-39
Towing ········································································· 6-21
Emergency towing ····················································· 6-23
Removable towing hook ············································· 6-22
Trailer towing·································································5-70
Trunk ············································································ 4-20
Emergency trunk safety release ································ 4-21
Trunk lid control button ············································ 4-22
Vehicle break-in process ················································ 1-5
Vehicle certification label ·············································· 8-7
Vehicle data collection and event data recorders ·········· 1-6
Vehicle identification number (VIN) ····························· 8-6
Vehicle load limit ························································· 5-64
Cargo capacity ··························································· 5-65
Certification label ······················································ 5-67
Seating capacity ························································· 5-64
Tire and loading information label ···························· 5-64
Towing capacity···························································5-65
Vehicle capacity weight ············································· 5-64
Vehicle weight ····························································· 5-69
Base curb weight ······················································· 5-69
V
T
