HYUNDAI GENESIS G90 2019 User Guide

F11
Introduction
By following a few simple precautions for the first 600 miles (1,000 km) you
may add to the performance, economy and life of your vehicle.
• Do not race the engine.
• While driving, keep your engine speed (rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
• Do not maintain a single speed for long periods of time, either fast or slow.
Varying engine speed is needed to properly break-in the engine.
• Avoid hard stops, except in emergencies, to allow the brakes to seat prop-
erly.
VEHICLE BREAK-IN PROCESS
CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to
the State of California to cause cancer and birth defects or reproduc-
tive harm. These include:
• Gasoline and its vapors
• Engine exhaust
• Used engine oil
• Interior passenger compartment components and materials
• Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain
lead, lead compounds and other chemicals known to the State of
California to cause cancer and reproductive harm.
WARNING

Introduction
F12
This vehicle is equipped with an event data recorder (EDR). The main
purpose of an EDR is to record, in certain crash or near crash-like situ-
ations, such as an air bag deployment or hitting a road obstacle, data
that will assist in understanding how a vehicle’s systems performed. The
EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less. The EDR
in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/
fastened;
• How far (if at all) the driver was depressing the accelerator and/or
brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circum-
stances in which crashes and injuries occur. NOTE: EDR data are
recorded by your vehicle only if a non-trivial crash situation occurs; no
data are recorded by the EDR under normal driving conditions and no
personal data (e.g., name, gender, age, and crash location) are record-
ed. However, other parties, such as law enforcement, could combine the
EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and
access to the vehicle or the EDR is needed. In addition to the vehicle
manufacturer, other parties, such as law enforcement, that have the spe-
cial equipment, can read the information if they have access to the vehi-
cle or the EDR.
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

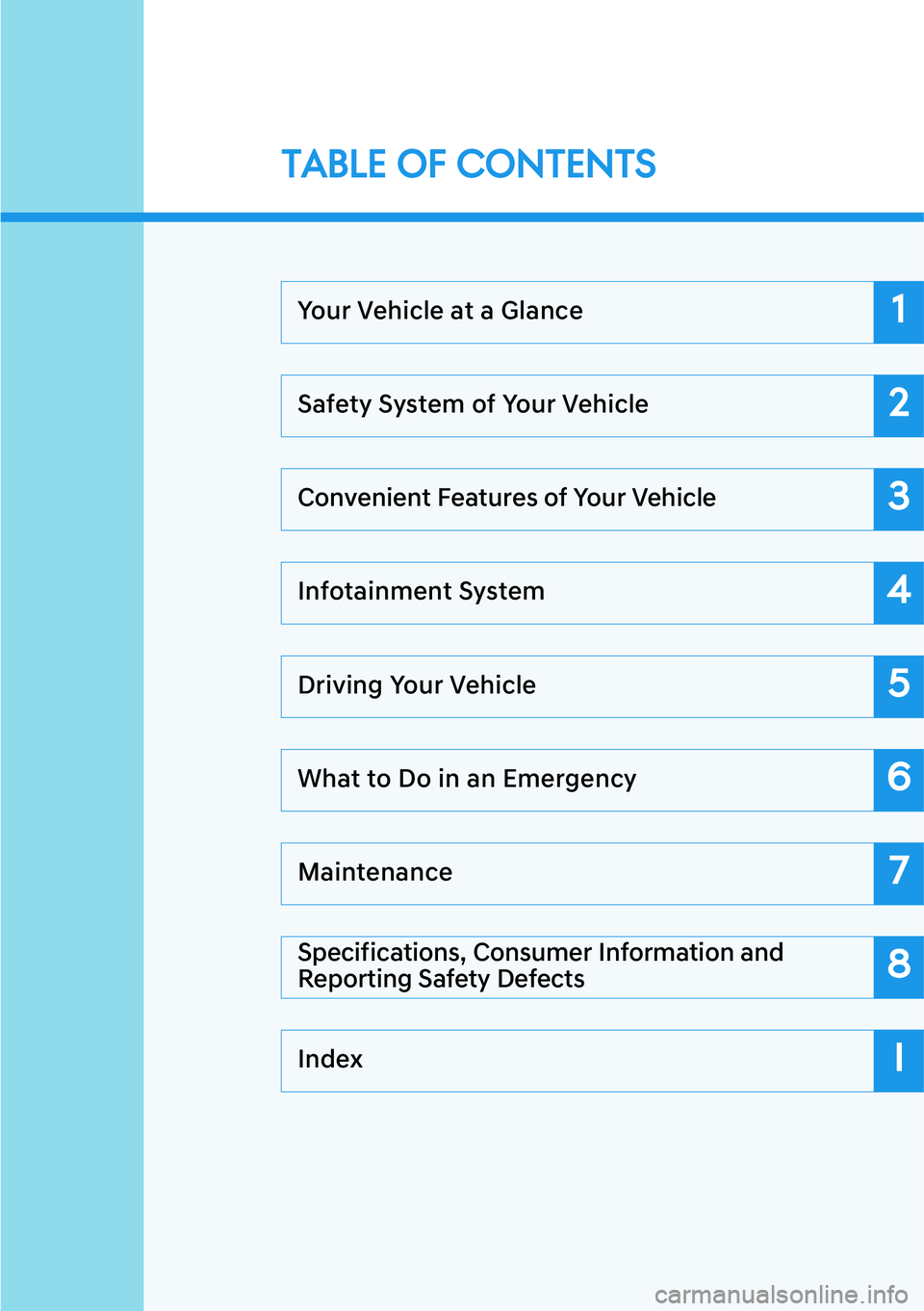

Your Vehicle at a Glance
Safety System of Your Vehicle
Convenient Features of Your Vehicle
Infotainment System
Driving Your Vehicle
What to Do in an Emergency
Maintenance
Specifications, Consumer Information and
Reporting Safety Defects
Index
1
2
3
4
5
6
7
8
I
1
TABLE OF CONTENTS

1

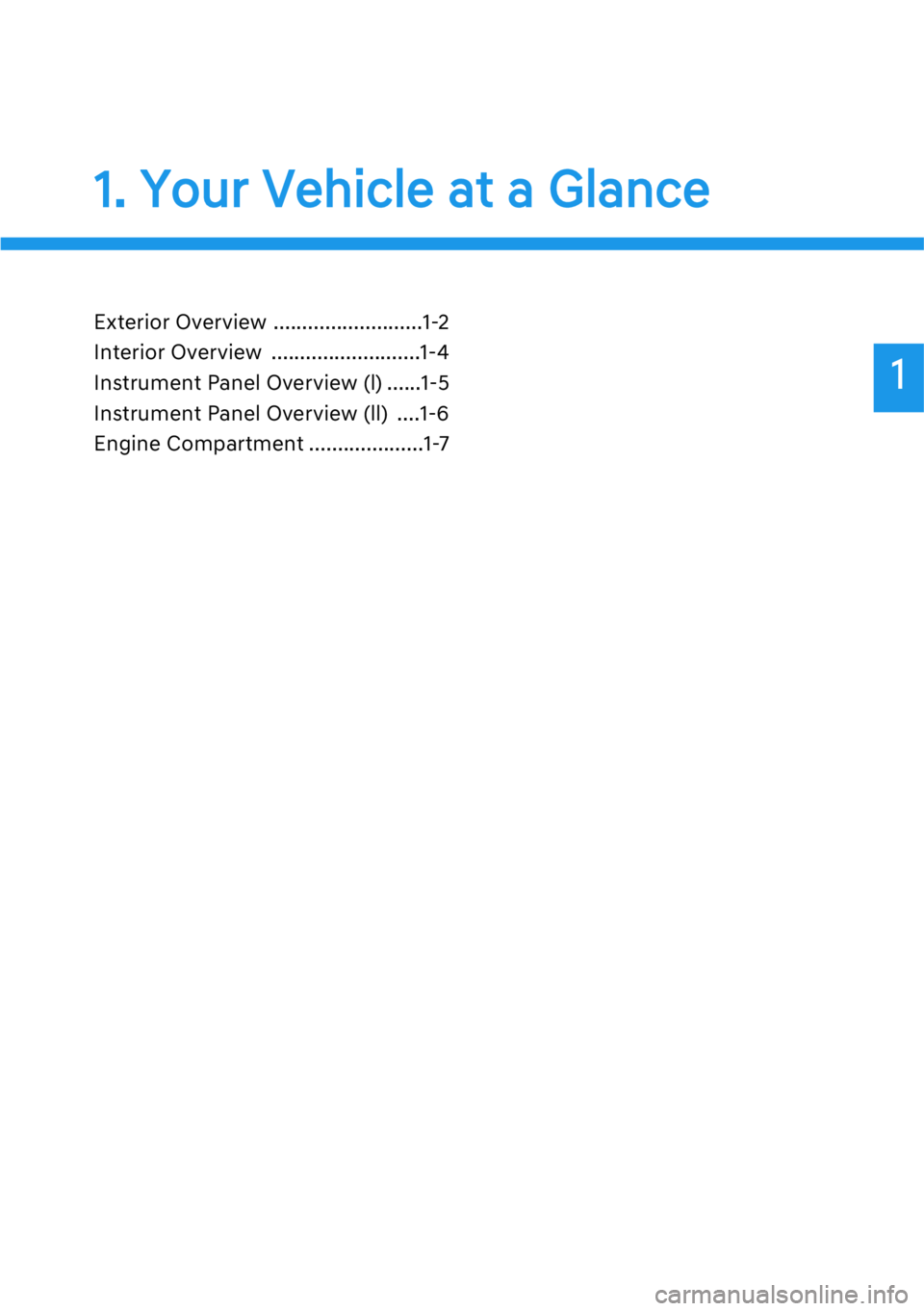

1. Your Vehicle at a Glance
Exterior Overview ..........................1-2
Interior Overview ..........................1-4
Instrument Panel Overview (l) ......1-5
Instrument Panel Overview (ll) ....1-6
Engine Compartment ....................1-7

1. Hood.....................................................3-41
2. Headlamp .............................................7-70
3. Tires and wheels...........................7-37, 8-4
4. Outer side view mirror ..........................3-305. Sunroof.................................................3-37
6. Front windshield wiper blades..............7-31
7. Windows ...............................................3-33
8. Side repeater lamp...............................7-70
EXTERIOR OVERVIEW
1-2
Your vehicle at a glance
OHI019001N
■Front view
The actual shape may differ from the illustration.

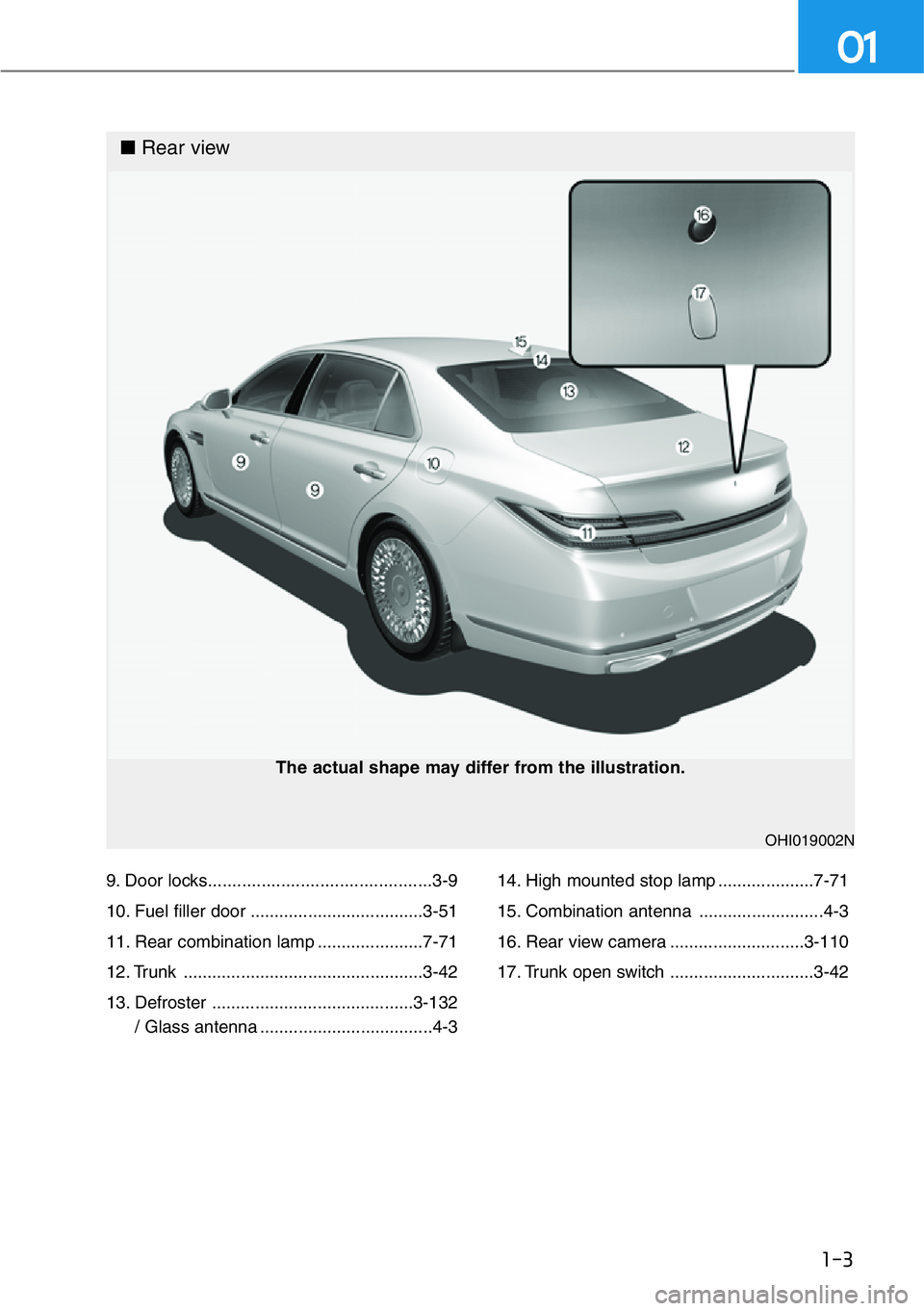

9. Door locks..............................................3-9
10. Fuel filler door ....................................3-51
11. Rear combination lamp ......................7-71
12. Trunk ..................................................3-42
13. Defroster ..........................................3-132
/ Glass antenna ....................................4-314. High mounted stop lamp ....................7-71
15. Combination antenna ..........................4-3
16. Rear view camera ............................3-110
17. Trunk open switch ..............................3-42
1-3
01
OHI019002N
The actual shape may differ from the illustration.
■Rear view

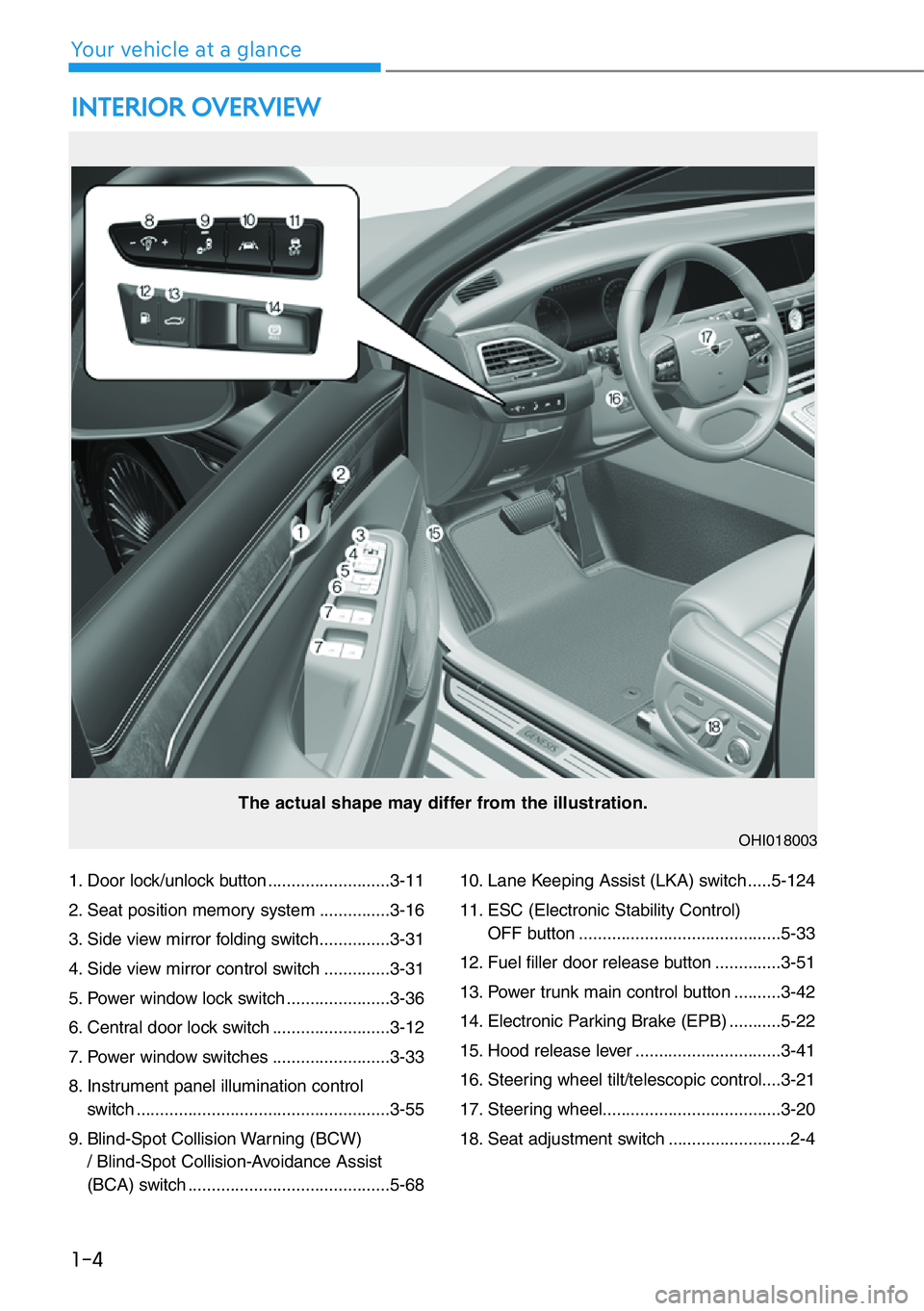

1. Door lock/unlock button ..........................3-11
2. Seat position memory system ...............3-16
3. Side view mirror folding switch ...............3-31
4. Side view mirror control switch ..............3-31
5. Power window lock switch ......................3-36
6. Central door lock switch .........................3-12
7. Power window switches .........................3-33
8. Instrument panel illumination control
switch ......................................................3-55
9. Blind-Spot Collision Warning (BCW)
/ Blind-Spot Collision-Avoidance Assist
(BCA) switch ...........................................5-6810. Lane Keeping Assist (LKA) switch .....5-124
11. ESC (Electronic Stability Control)
OFF button ...........................................5-33
12. Fuel filler door release button ..............3-51
13. Power trunk main control button ..........3-42
14. Electronic Parking Brake (EPB) ...........5-22
15. Hood release lever ...............................3-41
16. Steering wheel tilt/telescopic control....3-21
17. Steering wheel......................................3-20
18. Seat adjustment switch ..........................2-4
INTERIOR OVERVIEW
1-4
Your vehicle at a glance
The actual shape may differ from the illustration.
OHI018003

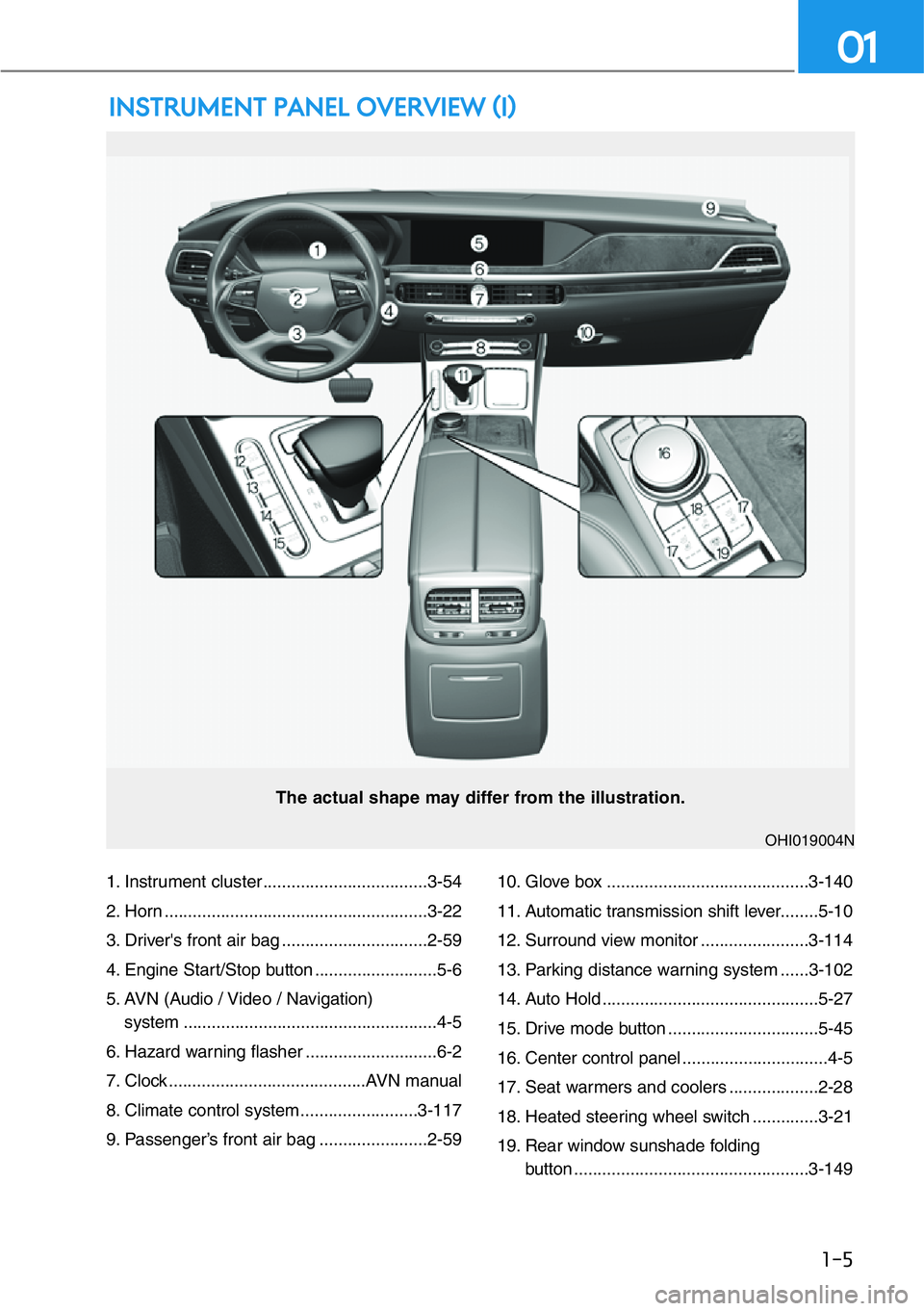

1. Instrument cluster ...................................3-54
2. Horn ........................................................3-22
3. Driver's front air bag ...............................2-59
4. Engine Start/Stop button ..........................5-6
5. AVN (Audio / Video / Navigation)
system ......................................................4-5
6. Hazard warning flasher ............................6-2
7. Clock ..........................................AVN manual
8. Climate control system.........................3-117
9. Passenger’s front air bag .......................2-5910. Glove box ...........................................3-140
11. Automatic transmission shift lever........5-10
12. Surround view monitor .......................3-114
13. Parking distance warning system ......3-102
14. Auto Hold ..............................................5-27
15. Drive mode button ................................5-45
16. Center control panel ...............................4-5
17. Seat warmers and coolers ...................2-28
18. Heated steering wheel switch ..............3-21
19. Rear window sunshade folding
button ..................................................3-149
INSTRUMENT PANEL OVERVIEW (I)
1-5
01
The actual shape may differ from the illustration.
OHI019004N

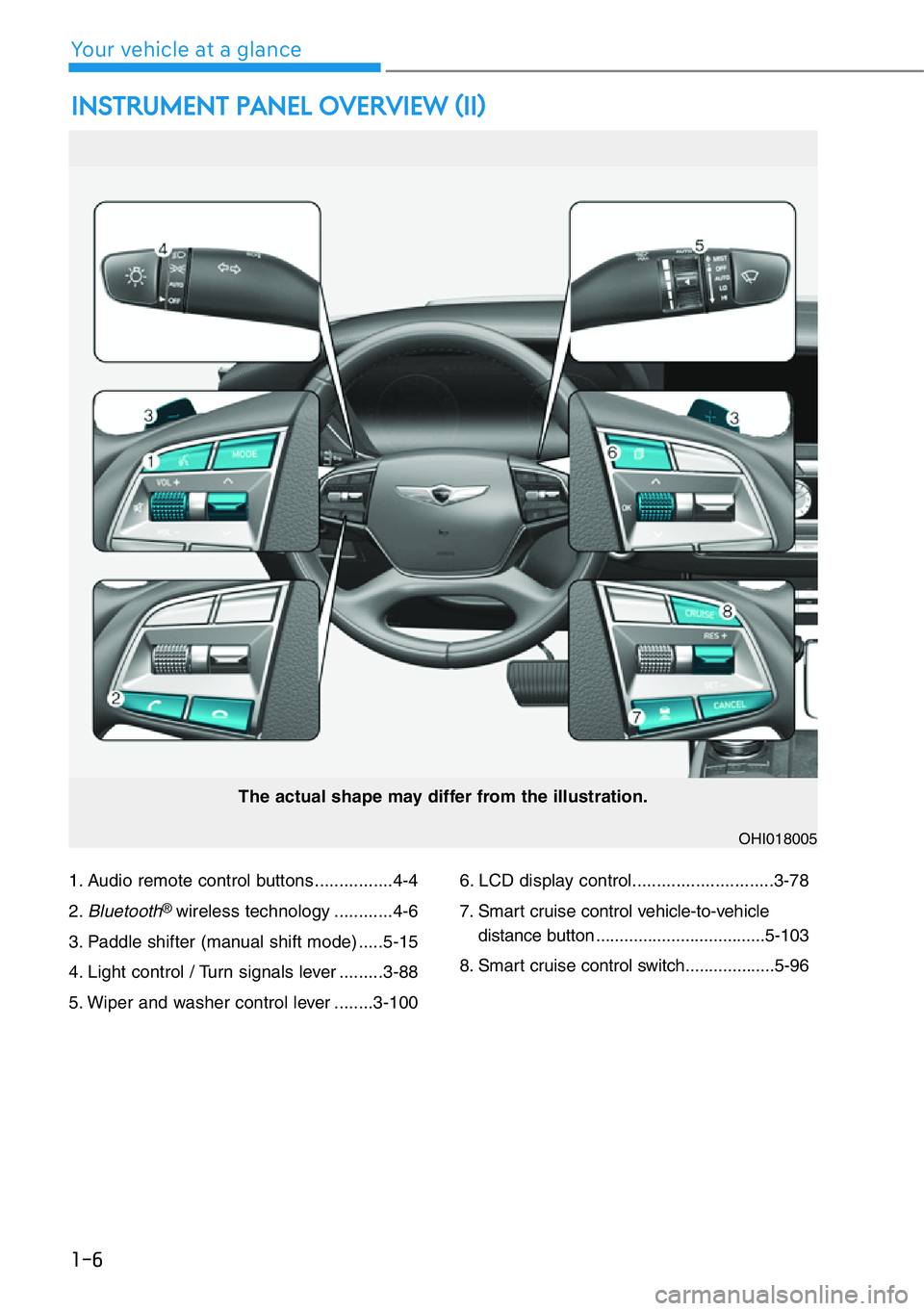

1-6
Your vehicle at a glance
1. Audio remote control buttons ................4-4
2.
Bluetooth® wireless technology ............4-6
3. Paddle shifter (manual shift mode) .....5-15
4. Light control / Turn signals lever .........3-88
5. Wiper and washer control lever ........3-1006. LCD display control.............................3-78
7. Smart cruise control vehicle-to-vehicle
distance button ....................................5-103
8. Smart cruise control switch...................5-96
INSTRUMENT PANEL OVERVIEW (II)
The actual shape may differ from the illustration.
OHI018005

ENGINE COMPARTMENT
OHI078001/OHI078003
The actual engine compartment in the vehicle may differ from the illustration.
1-7
01
1. Engine coolant reservoir .....................7-24
2. Radiator cap .......................................7-25
3. Brake fluid reservoir ............................7-27
4. Air cleaner...........................................7-29
5. Engine oil dipstick ...............................7-226. Engine oil filler cap .............................7-22
7. Windshield washer fluid reservoir .......7-28
8. Fuse box .............................................7-54
9. Jumper terminal ....................................6-5
■3.3 T-GDI
■5.0 GDI
