01
1 -7
VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and emissions regulations.
• In addition, damage or performance problems resulting from any modification may not be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, do not use unauthorized electronic devices.
NOTICE
All warning sounds (including welcome/good-bye sound, virtual engine sound, etc.) are generated from the interior speakers or amplifiers. If necessary, we recommend you to purchase Genesis Part to replace an interior speaker or amplifier. Any unauthorized product may cause a malfunction of the interior speakers or amplifiers.
VEHICLE BREAK-IN PROCESS
• Do not race the engine.
• While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 RPM and 4,000 RPM.
• Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.
• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.
• Fuel economy and engine performance may vary depending on vehicle break-in process and be stabilized after 4,000 miles (6,000 km). New engines may consume more oil during the vehicle break-in period.
• Do not tow a trailer during the first 1,200 miles (2,000 km) of operation.
NOTICE
CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of California to cause cancer and birth defects or reproductive harm. These include:
• Gasoline and its vapors
• Engine exhaust
• Used engine oil
• Interior passenger compartment components and materials
• Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain lead, lead compounds and other chemicals known to the State of California to cause cancer and reproductive harm.

Introduction
1-8
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

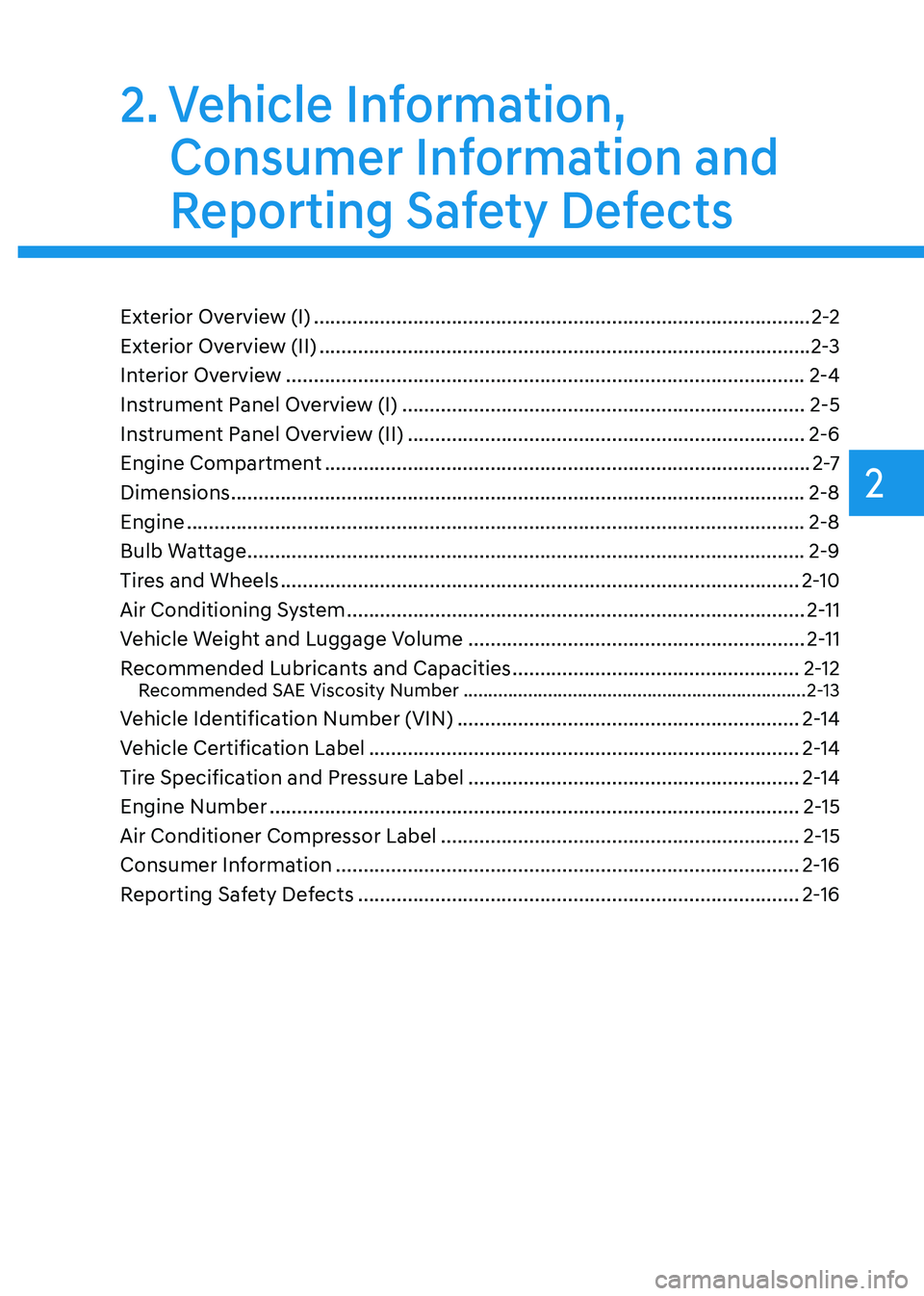

2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ........................................................................\
..................2-2
Exterior Overview (II) ........................................................................\
.................2-3
Interior Overview ........................................................................\
......................2-4
Instrument Panel Overview (I) ........................................................................\
.2-5
Instrument Panel Overview (II) ........................................................................\
2-6
Engine Compartment ........................................................................\
................2-7
Dimensions ........................................................................\
................................2-8
Engine ........................................................................\
........................................2-8
Bulb Wattage ........................................................................\
.............................2-9
Tires and Wheels ........................................................................\
......................2-10
Air Conditioning System ........................................................................\
...........2-11
Vehicle Weight and Luggage Volume .............................................................2-11
Recommended Lubricants and Capacities ....................................................2-12Recommended SAE Viscosity Number .....................................................................2-13
Vehicle Identification Number (VIN) ..............................................................2-14
Vehicle Certification Label ........................................................................\
......2-14
Tire Specification and Pressure Label ............................................................2-14
Engine Number ........................................................................\
........................2-15
Air Conditioner Compressor Label .................................................................2-15
Consumer Information ........................................................................\
............2-16
Reporting Safety Defects ........................................................................\
........2-16
Vehicle Information, Consumer Information and Reporting Safety Defects
2

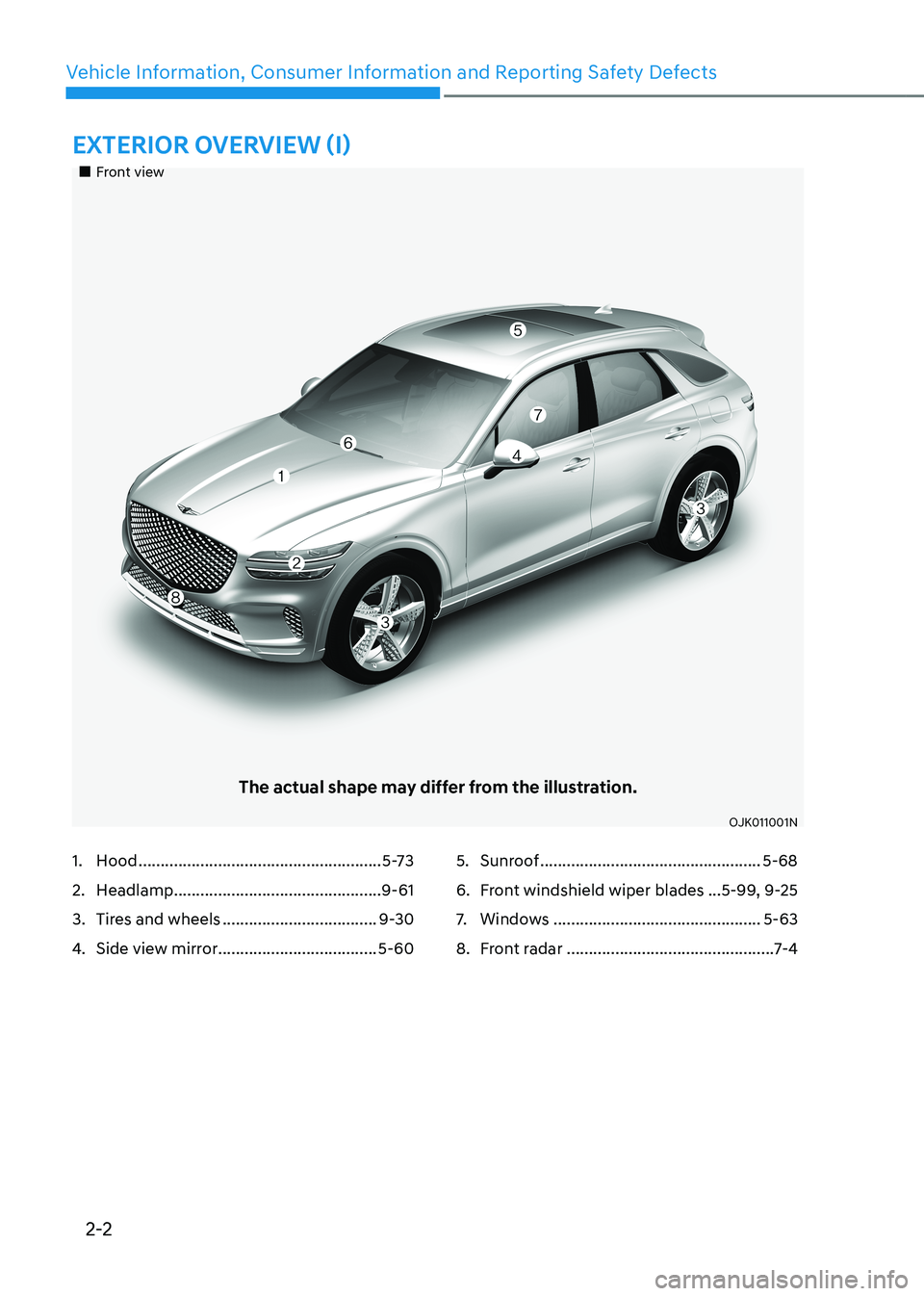

2-2
Vehicle Information, Consumer Information and Reporting Safety Defects
EXTERIOR OVERVIEW (I)

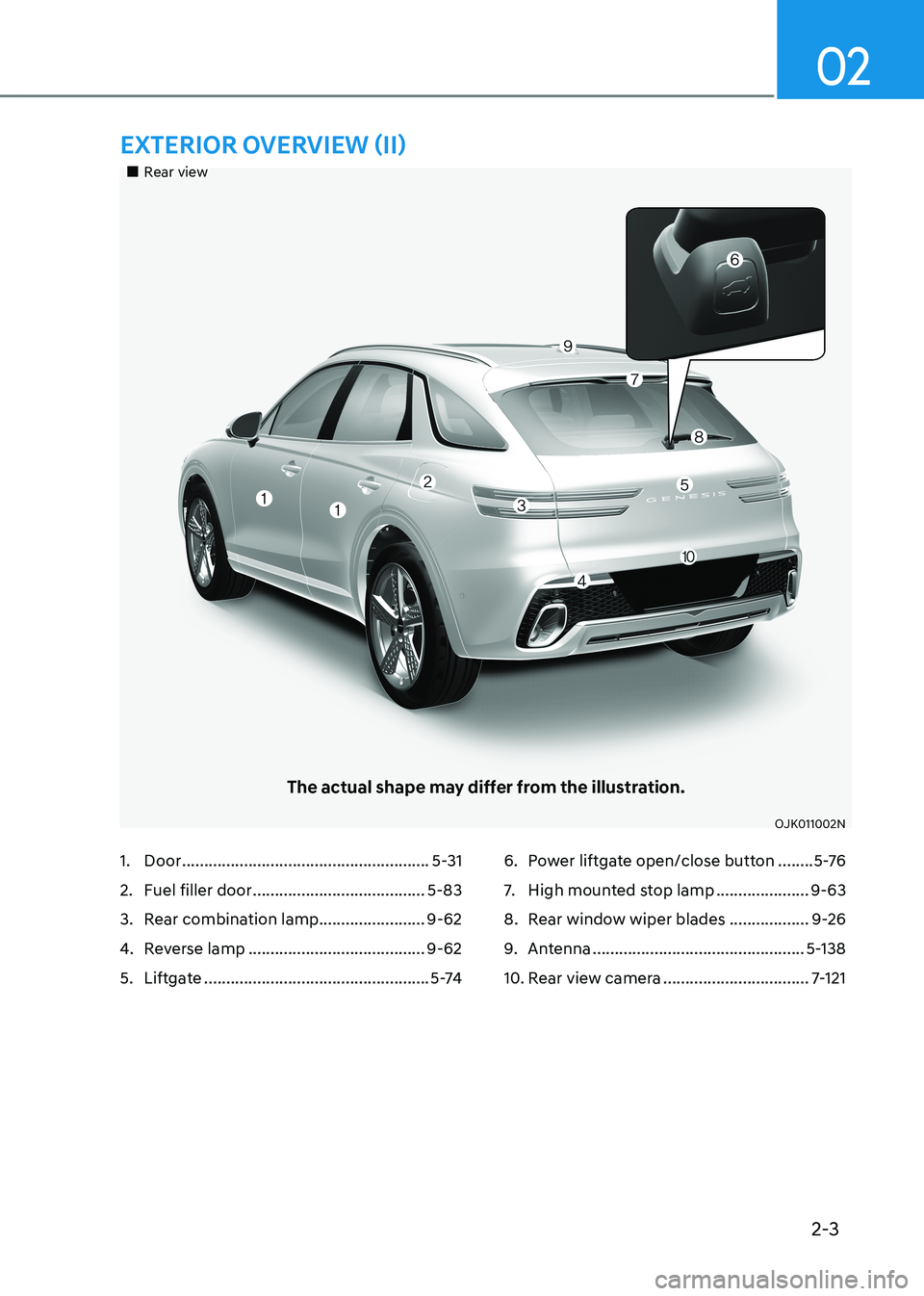

2-3
02

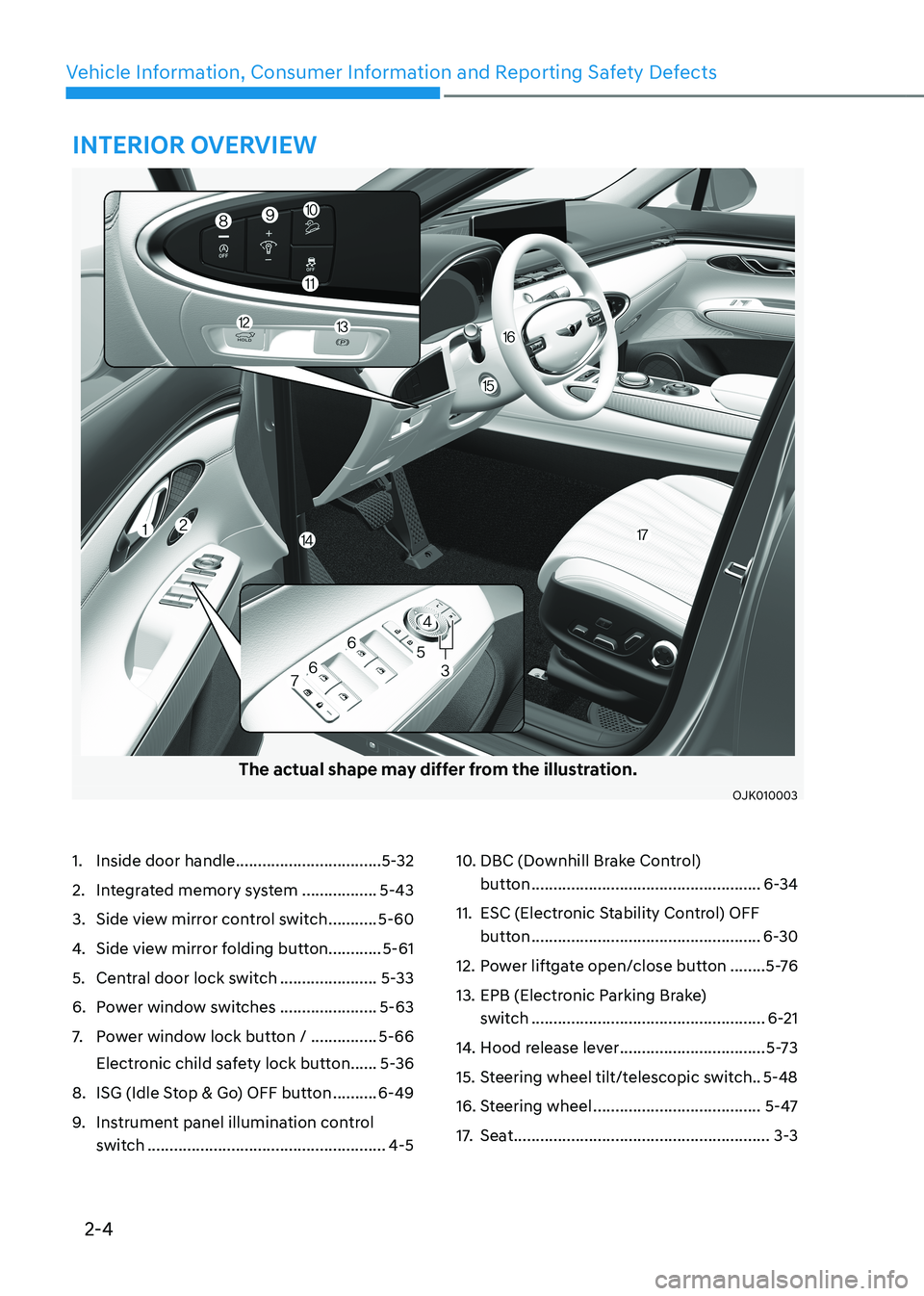

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OJK010003OJK010003
1. Inside door handle .................................5-32
2. Integrated memory system .................5-43
3. Side view mirror control switch ...........5-60
4. Side view mirror folding button............5-61
5. Central door lock switch ......................5-33
6. Power window switches ......................5-63
7. Power window lock button / ...............5-66
Electronic child safety lock button ......5-36
8. ISG (Idle Stop & Go) OFF button ..........6-49
9. Instrument panel illumination control
switch ......................................................4-5
10. DBC (Downhill Brake Control)
button ....................................................6-34
11. ESC (Electronic Stability Control) OFF
button ....................................................6-30
12. Power liftgate open/close button ........5 -76
13. EPB (Electronic Parking Brake)
switch .....................................................6-21
14. Hood release lever .................................5-73
15. Steering wheel tilt/telescopic switch..5-48
16. Steering wheel ......................................5-47
17. Seat ..........................................................3-3
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster ..................................4-4
2. Horn .......................................................5-49
3. Driver’s front air bag .............................3-48
4. Engine Start/Stop button .......................6-5
5. Infotainment system ...........................5-139
6. Automatic climate control system .....5-103
7. Hazard warning flasher button ..............8-2
8. Passenger’s front air bag .....................3-48
9. Glove box .............................................5-124
10. Wireless charging system indicator ...5-130
11. USB port ...............................................5-138
12. USB charger .........................................5-128
13. Wireless charging system pad ............5-130
14. Cup holder ...........................................5-126
15. Rotary shifter
(Rotary gear shift dial) ............................6-11
16. Auto Hold button ..................................6-25
17. Drive mode button ...............................6-53
18. Parking/View button ............................7-122
19. Parking Safety button ..........................7-146
20. Rear seat climate control ....................5-107
21. Rear seat USB charger ........................5-128
22. AC inverter ...........................................5-129
The actual shape may differ from the illustration.
OJK010004OJK010004
INSTRUMENT PANEL OVERVIEW (I)

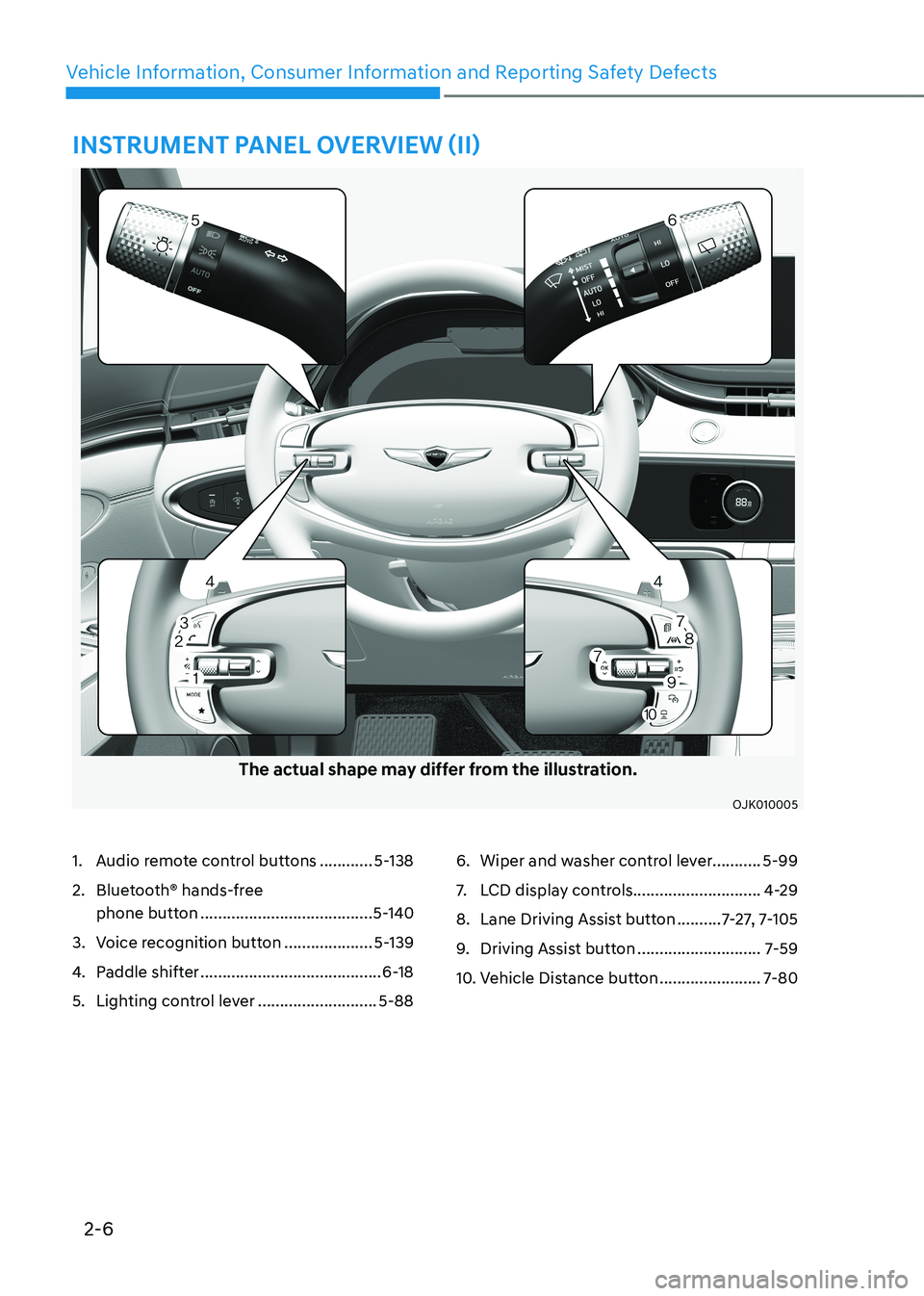

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
INSTRUMENT PANEL OVERVIEW (II)
The actual shape may differ from the illustration.
OJK010005OJK010005
1. Audio remote control buttons ............5-138
2. Bluetooth® hands-free
phone button .......................................5-140
3. Voice recognition button ....................5-139
4. Paddle shifter .........................................6-18
5. Lighting control lever ...........................5-88
6. Wiper and washer control lever...........5-99
7. LCD display controls.............................4-29
8. Lane Driving Assist button ..........7-27, 7-105
9. Driving Assist button ............................7-59
10. Vehicle Distance button .......................7-80

2-7
02

Vehicle Information, Consumer Information and Reporting Safety Defects

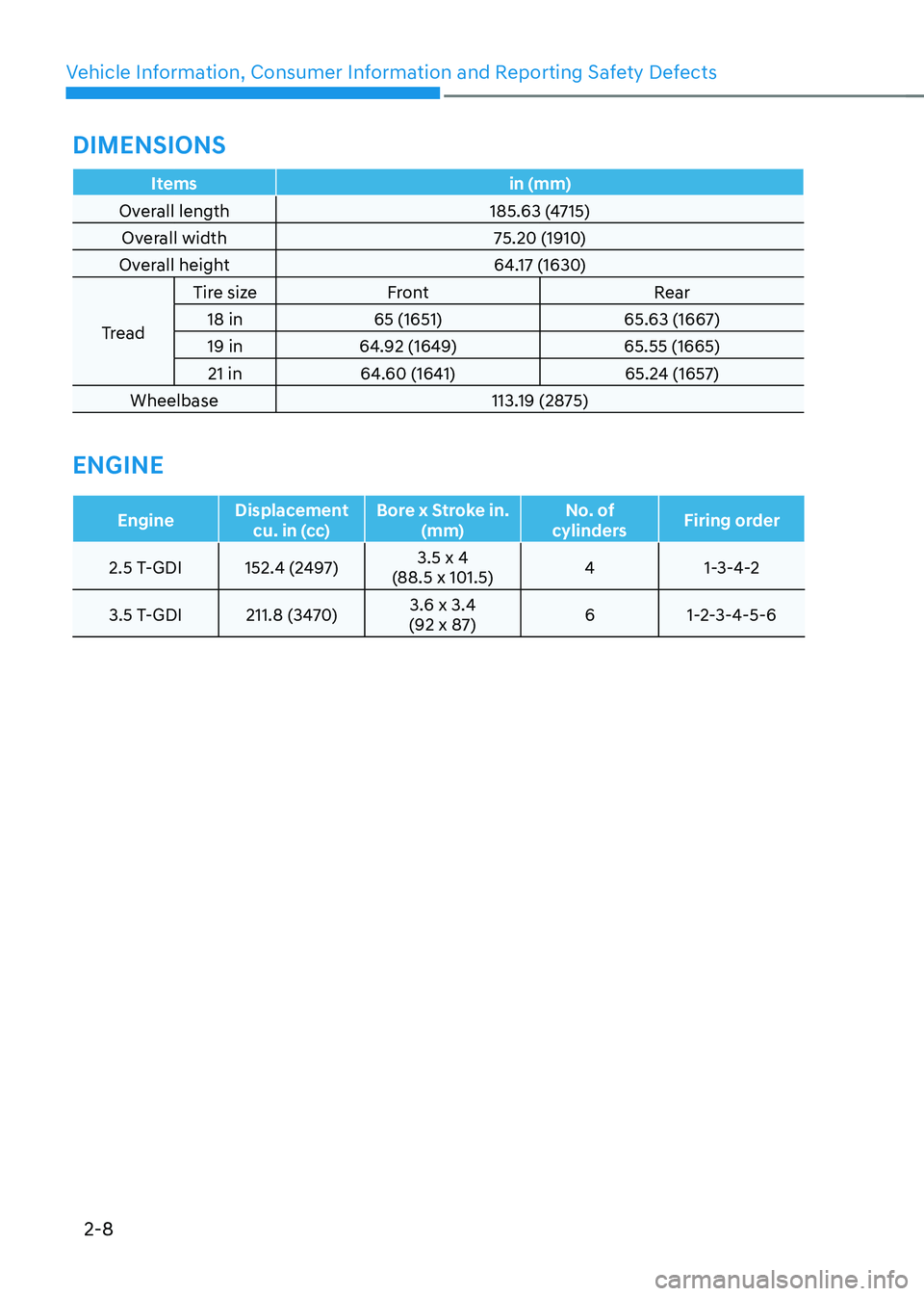

2-8
Itemsin (mm)
Overall length185.63 (4715)
Overall width75.20 (1910)
Overall height64.17 (1630)
Tread
Tire sizeFront Rear
18 in65 (1651)65.63 (1667)
19 in64.92 (1649)65.55 (1665)
21 in64.60 (1641)65.24 (1657)
Wheelbase113.19 (2875)
ENGINE
EngineDisplacement cu. in (cc)Bore x Stroke in. (mm)No. of cylindersFiring order
2.5 T-GDI152.4 (2497)3.5 x 4 (88.5 x 101.5)41-3-4-2
3.5 T-GDI211.8 (3470)3.6 x 3.4 (92 x 87)61-2-3-4-5-6
DIMENSIONS
