09
9-57

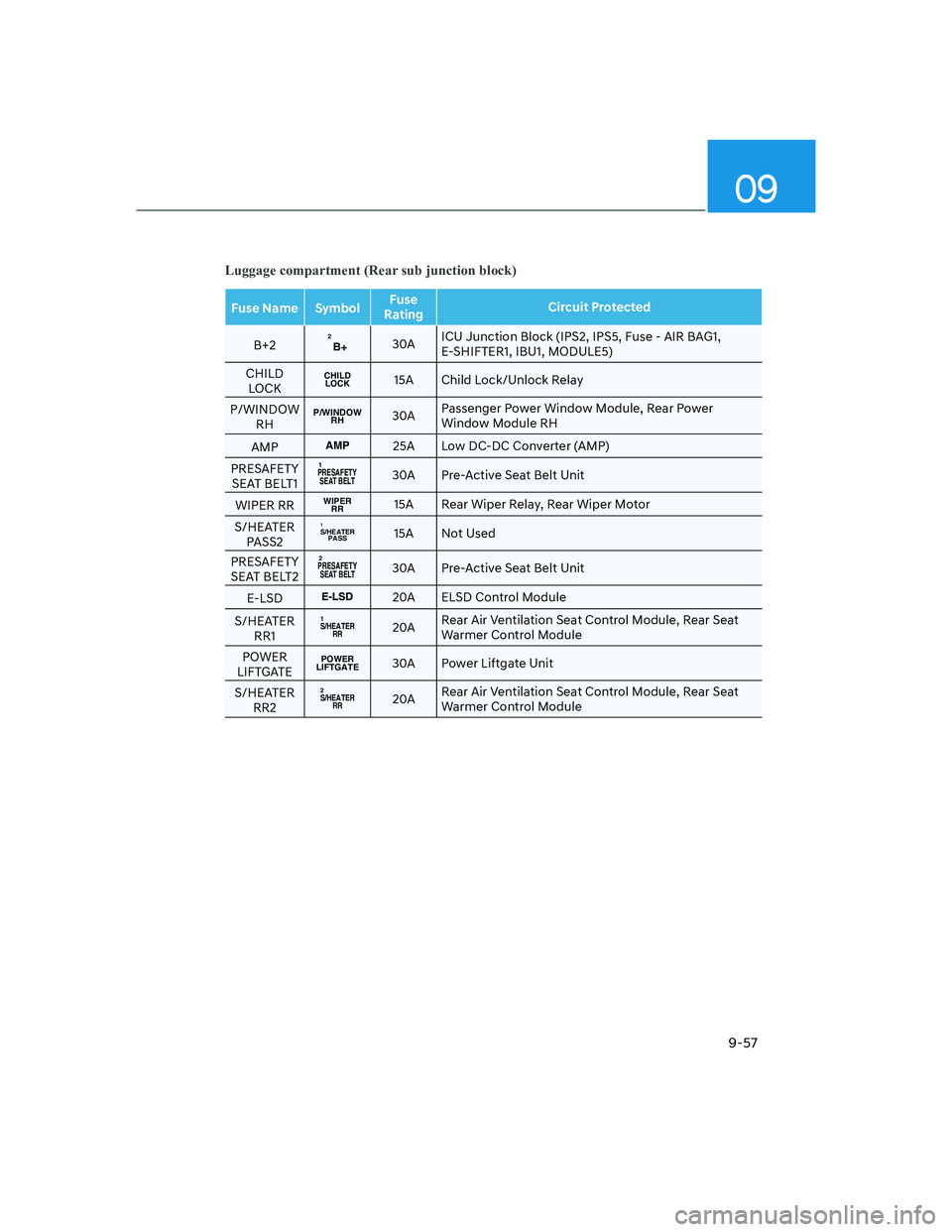

Luggage compartment (Rear sub junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
B+2B+230AICU Junction Block (IPS2, IPS5, Fuse - AIR BAG1,
E-SHIFTER1, IBU1, MODULE5)
CHILD
LOCK
CHILD
LOCK15A Child Lock/Unlock Relay
P/WINDOW
RH
P/WINDOW
RH30APassenger Power Window Module, Rear Power
Window Module RH
AMP
AMP25A Low DC-DC Converter (AMP)
PRESAFETY
SEAT BELT1
1PRESAFETY
SEAT BELT30A Pre-Active Seat Belt Unit
WIPER RR
WIPER
RR15A Rear Wiper Relay, Rear Wiper Motor
S/HEATER
PASS2
S/HEATER
PASS115A Not Used
PRESAFETY
SEAT BELT2
2PRESAFETY
SEAT BELT30A Pre-Active Seat Belt Unit
E-LSD
20A ELSD Control Module
S/HEATER
RR1
S/HEATER
RR120ARear Air Ventilation Seat Control Module, Rear Seat
Warmer Control Module
POWER
LIFTGATE
POWER
LIFTGATE30A Power Liftgate Unit
S/HEATER
RR2
2S/HEATER
RR20ARear Air Ventilation Seat Control Module, Rear Seat
Warmer Control Module

Maintenance

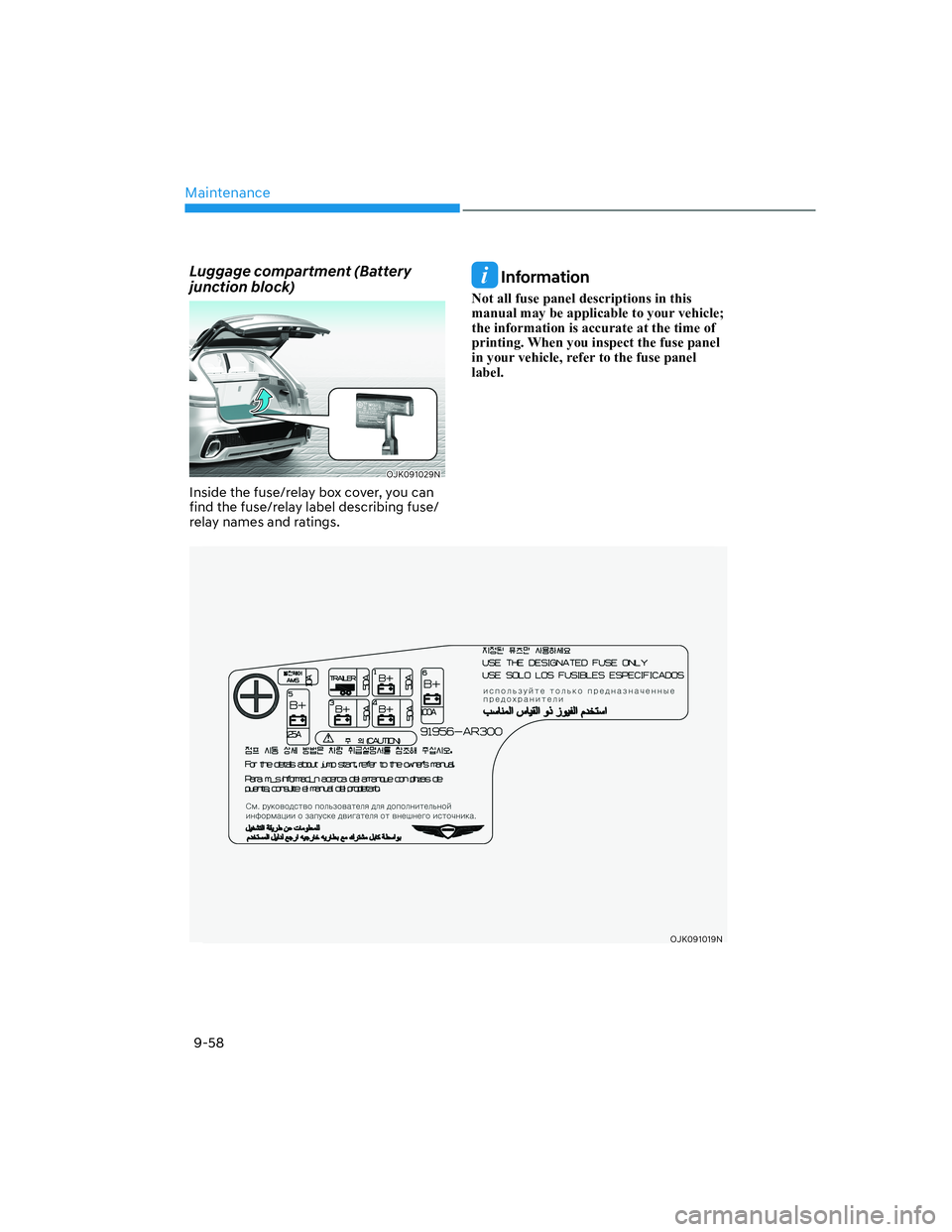

9-58
Luggage compartment (Battery
junction block)
OJK091029NOJK091029N
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJK091019NOJK091019N

09
9-59

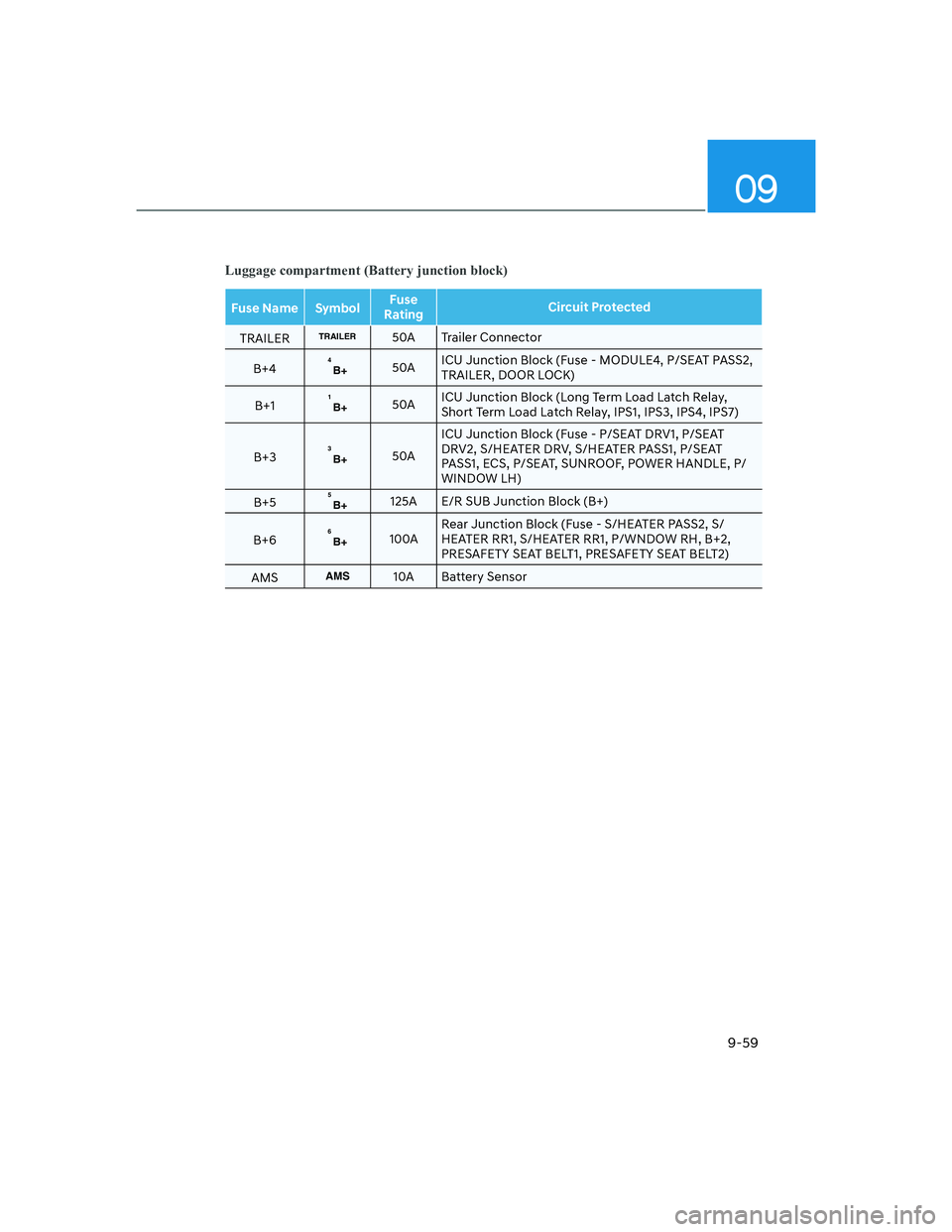

Luggage compartment (Battery junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
TRAILERTRAILER50A Trailer Connector
B+4
B+450AICU Junction Block (Fuse - MODULE4, P/SEAT PASS2,
TRAILER, DOOR LOCK)
B+1
1B+50AICU Junction Block (Long Term Load Latch Relay,
Short Term Load Latch Relay, IPS1, IPS3, IPS4, IPS7)
B+3
B+350AICU Junction Block (Fuse - P/SEAT DRV1, P/SEAT
DRV2, S/HEATER DRV, S/HEATER PASS1, P/SEAT
PASS1, ECS, P/SEAT, SUNROOF, POWER HANDLE, P/
WINDOW LH)
B+5
B+5125A E/R SUB Junction Block (B+)
B+6
B+6100ARear Junction Block (Fuse - S/HEATER PASS2, S/
HEATER RR1, S/HEATER RR1, P/WNDOW RH, B+2,
PRESAFETY SEAT BELT1, PRESAFETY SEAT BELT2)
AMS
AMS10A Battery Sensor

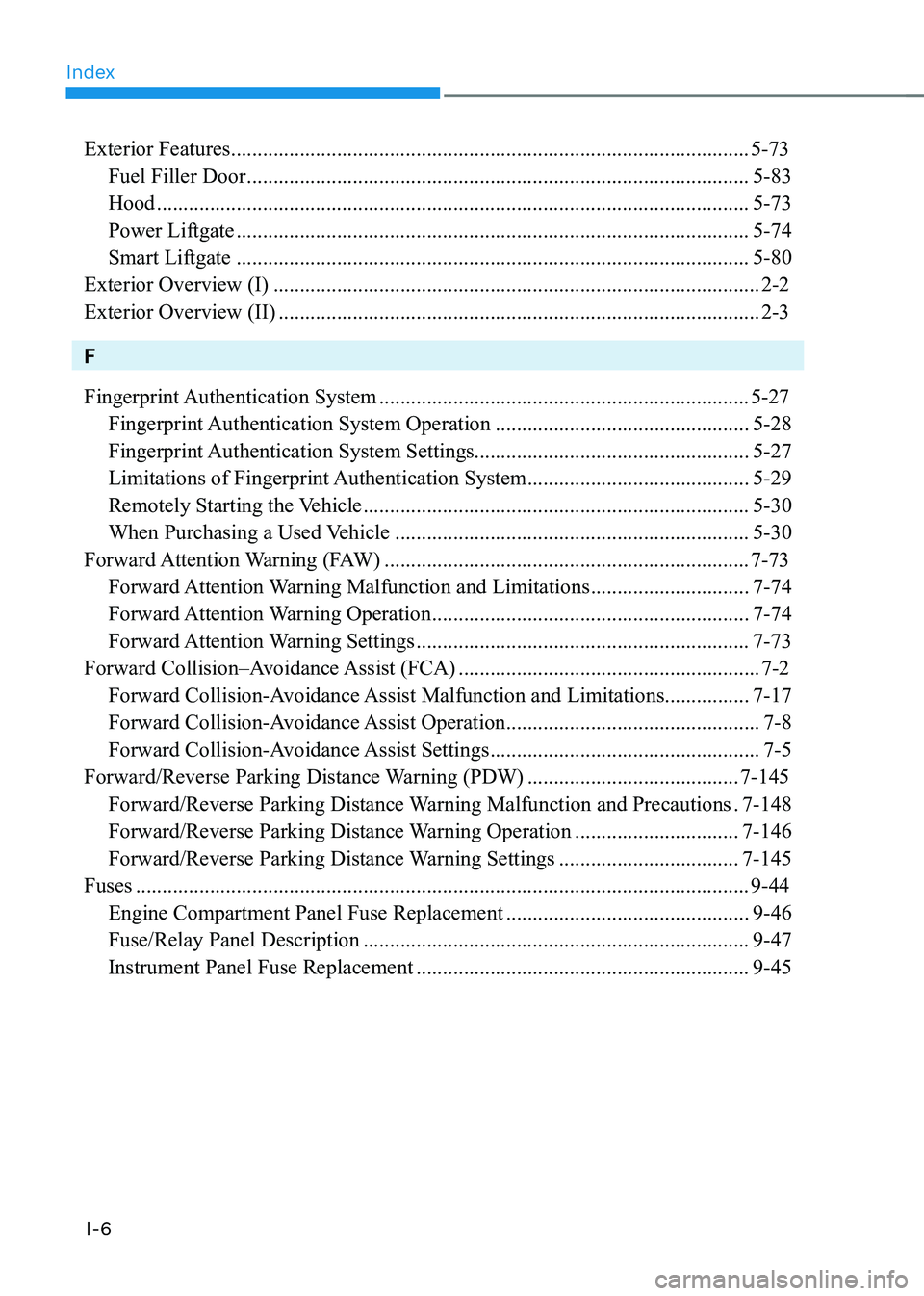

Index
I-6
Exterior Features ........................................................................\
..........................5-73
Fuel Filler Door ........................................................................\
.......................5-83
Hood ........................................................................\
........................................5-73
Power Liftgate ........................................................................\
.........................5-74
Smart Liftgate ........................................................................\
.........................5-80
Exterior Overview (I) ........................................................................\
....................2-2
Exterior Overview (II) ........................................................................\
...................2-3
F
Fingerprint Authentication System ......................................................................5-27
Fingerprint Authentication System Operation ................................................5-28
Fingerprint Authentication System Settings....................................................5-27
Limitations of Fingerprint Authentication System ..........................................5-29
Remotely Starting the Vehicle ........................................................................\
.5-30
When Purchasing a Used Vehicle ...................................................................5-30
Forward Attention Warning (FAW) .....................................................................7-73
Forward Attention Warning Malfunction and Limitations ..............................7-74
Forward Attention Warning Operation ............................................................7-74
Forward Attention Warning Settings ...............................................................7-73
Forward Collision–Avoidance Assist (FCA) .........................................................7-2
Forward Collision-Avoidance Assist Malfunction and Limitations ................7-17
Forward Collision-Avoidance Assist Operation ................................................7-8
Forward Collision-Avoidance Assist Settings ...................................................7-5
Forward/Reverse Parking Distance Warning (PDW) ........................................7-145
Forward/Reverse Parking Distance Warning Malfunction and Precautions .7-148
Forward/Reverse Parking Distance Warning Operation ...............................7-146
Forward/Reverse Parking Distance Warning Settings ..................................7-145
Fuses ........................................................................\
............................................9-44
Engine Compartment Panel Fuse Replacement ..............................................9-46
Fuse/Relay Panel Description ........................................................................\
.9-47
Instrument Panel Fuse Replacement ...............................................................9-45
