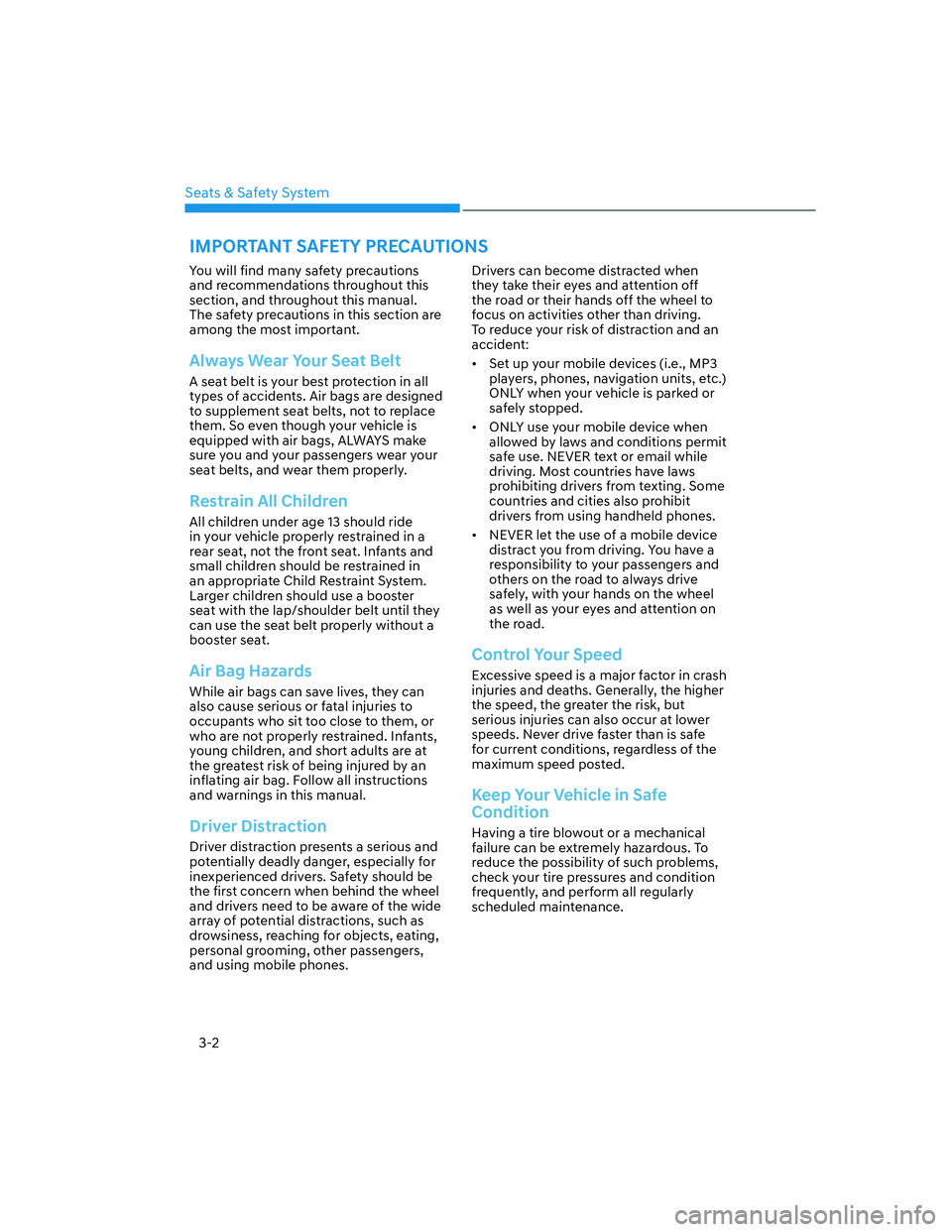

Page 30 of 647
Seats & Safety System
3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:
• Set up your mobile devices (i.e., MP3
players, phones, navigation units, etc.)
ONLY when your vehicle is parked or
safely stopped.
• ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

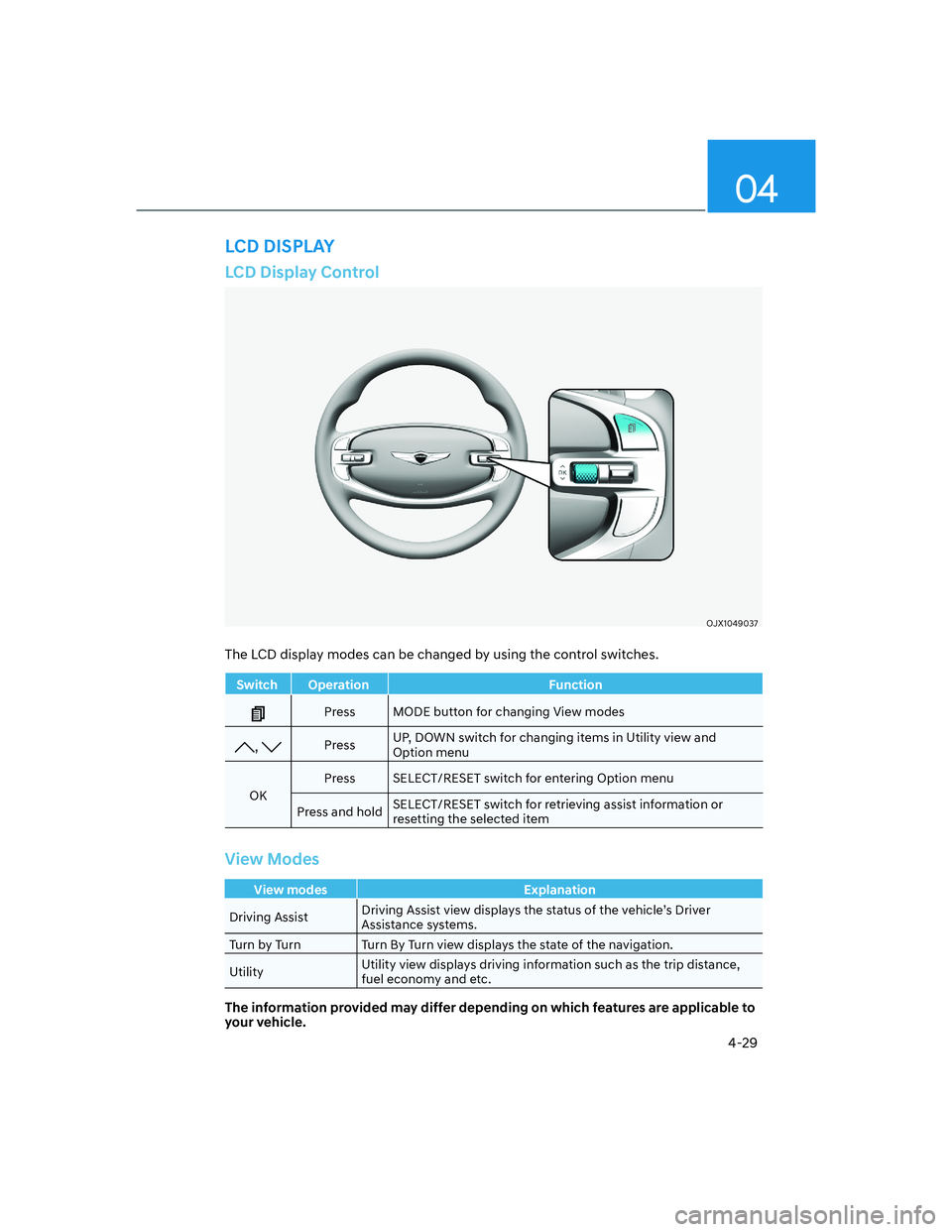

Page 125 of 647
04
4-29
LCD Display Control
OJX1049037OJX1049037
The LCD display modes can be changed by using the control switches.
Switch Operation Function
Press MODE button for changing View modes
, PressUP, DOWN switch for changing items in Utility view and
Option menu
OKPress SELECT/RESET switch for entering Option menu
Press and holdSELECT/RESET switch for retrieving assist information or
resetting the selected item
View Modes
View modes Explanation
Driving AssistDriving Assist view displays the status of the vehicle’s Driver
Assistance systems.
Turn by Turn Turn By Turn view displays the state of the navigation.
UtilityUtility view displays driving information such as the trip distance,
fuel economy and etc.
The information provided may differ depending on which features are applicable to
your vehicle.
LCD DISPLAY

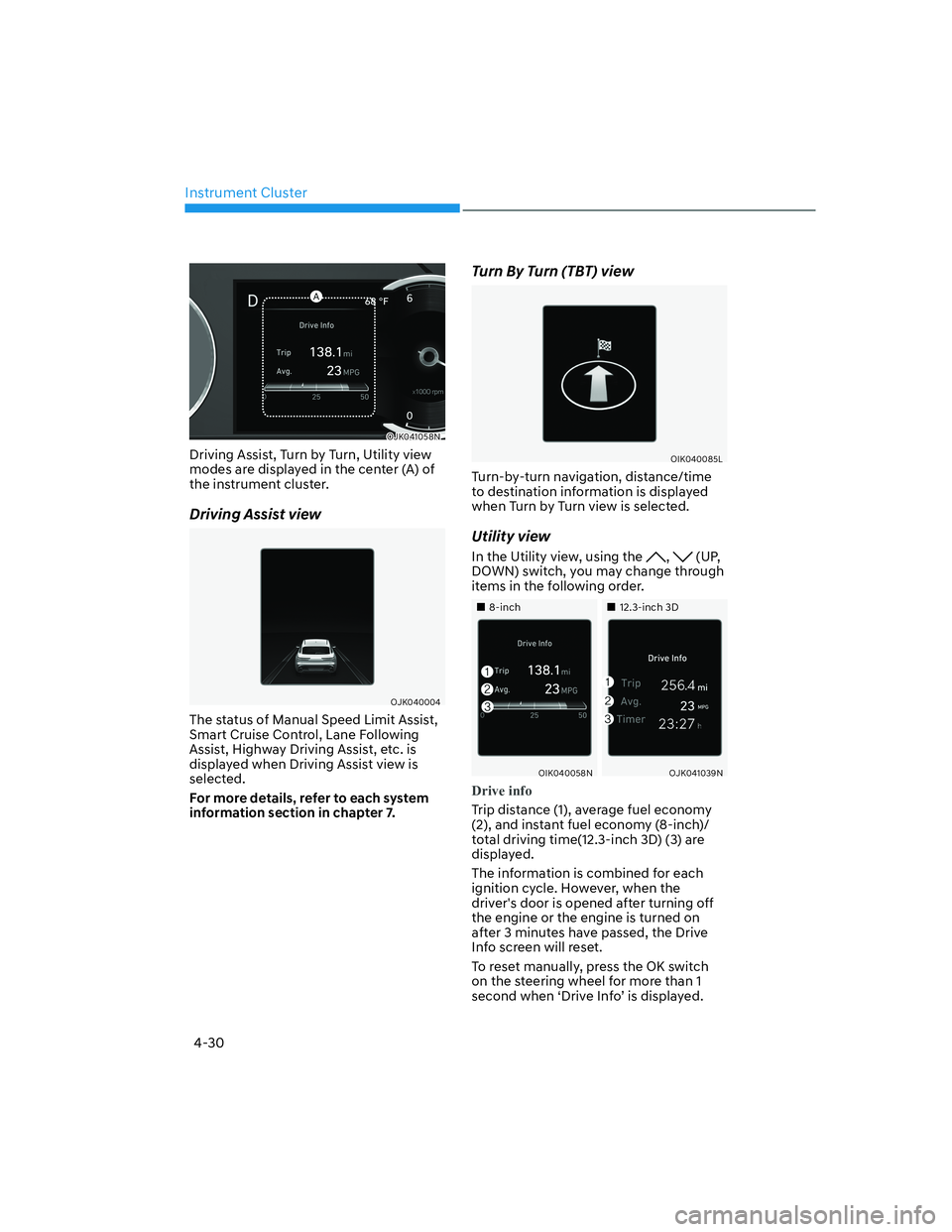

Page 126 of 647
Instrument Cluster
4-30
OJK041058NOJK041058N
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center (A) of
the instrument cluster.
Driving Assist view
OJK040004OJK040004
The status of Manual Speed Limit Assist,
Smart Cruise Control, Lane Following
Assist, Highway Driving Assist, etc. is
displayed when Driving Assist view is
selected.
For more details, refer to each system
information section in chapter 7.
Turn By Turn (TBT) view
OIK040085LOIK040085L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.
„ „8-inch8-inch „ „12.3-inch 3D12.3-inch 3D
OIK040058NOIK040058NOJK041039NOJK041039N
Drive info
Trip distance (1), average fuel economy
(2), and instant fuel economy (8-inch)/
total driving time(12.3-inch 3D) (3) are
displayed.
The information is combined for each
ignition cycle. However, when the
driver's door is opened after turning off
the engine or the engine is turned on
after 3 minutes have passed, the Drive
Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.

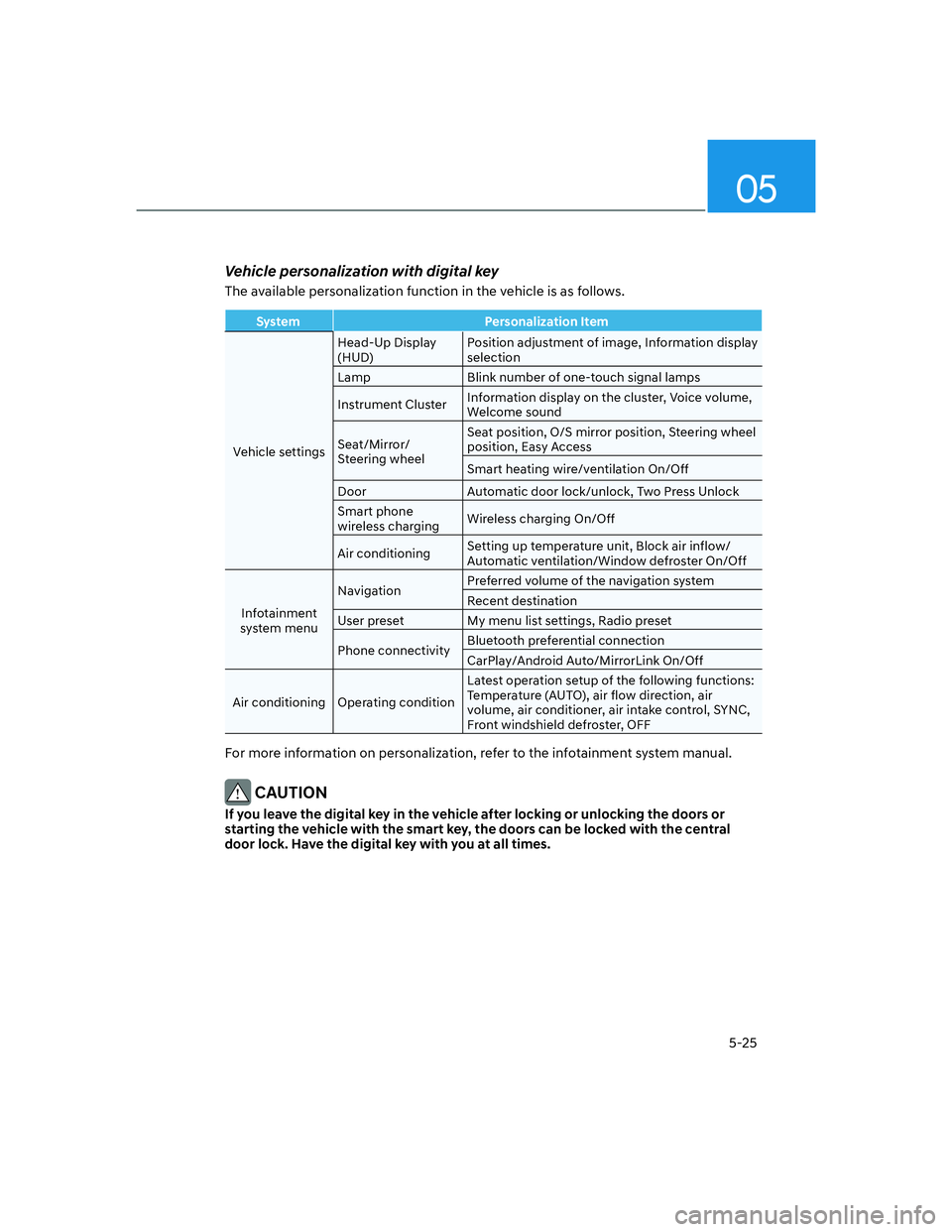

Page 159 of 647
05
5-25
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
Vehicle settingsHead-Up Display
(HUD)Position adjustment of image, Information display
selection
Lamp Blink number of one-touch signal lamps
Instrument ClusterInformation display on the cluster, Voice volume,
Welcome sound
Seat/Mirror/
Steering wheelSeat position, O/S mirror position, Steering wheel
position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone
wireless chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/Off
Infotainment
system menuNavigationPreferred volume of the navigation system
Recent destination
User preset My menu list settings, Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto/MirrorLink On/Off
Air conditioning Operating conditionLatest operation setup of the following functions:
Temperature (AUTO), air flow direction, air
volume, air conditioner, air intake control, SYNC,
Front windshield defroster, OFF
For more information on personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

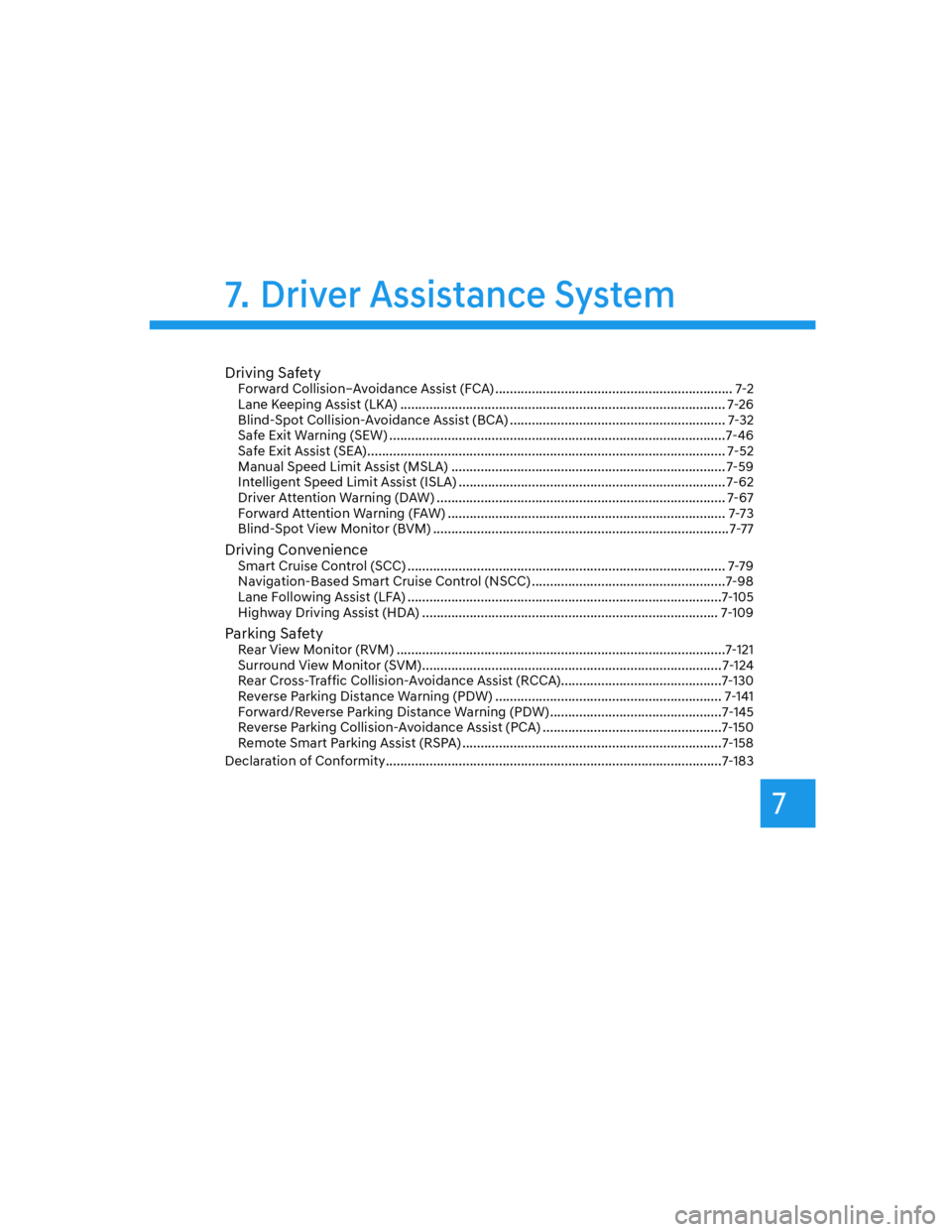

Page 350 of 647
7
Driving SafetyForward Collision–Avoidance Assist (FCA) ................................................................. 7-2
Lane Keeping Assist (LKA) ......................................................................................... 7-26
Blind-Spot Collision-Avoidance Assist (BCA) ........................................................... 7-32
Safe Exit Warning (SEW) ............................................................................................ 7-46
Safe Exit Assist (SEA) .................................................................................................. 7-52
Manual Speed Limit Assist (MSLA) ........................................................................... 7-59
Intelligent Speed Limit Assist (ISLA) ......................................................................... 7-62
Driver Attention Warning (DAW) ............................................................................... 7-67
Forward Attention Warning (FAW) ............................................................................ 7-73
Blind-Spot View Monitor (BVM) .................................................................................7-77
Driving ConvenienceSmart Cruise Control (SCC) ....................................................................................... 7-79
Navigation-Based Smart Cruise Control (NSCC) .....................................................7-98
Lane Following Assist (LFA) ......................................................................................7-105
Highway Driving Assist (HDA) ................................................................................. 7-109
Parking SafetyRear View Monitor (RVM) ..........................................................................................7-121
Surround View Monitor (SVM) .................................................................................. 7-124
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)............................................7-130
Reverse Parking Distance Warning (PDW) .............................................................. 7-141
Forward/Reverse Parking Distance Warning (PDW) ...............................................7-145
Reverse Parking Collision-Avoidance Assist (PCA) .................................................7-150
Remote Smart Parking Assist (RSPA) .......................................................................7-158
Declaration of Conformity ............................................................................................7-183
7. Driver Assistance System

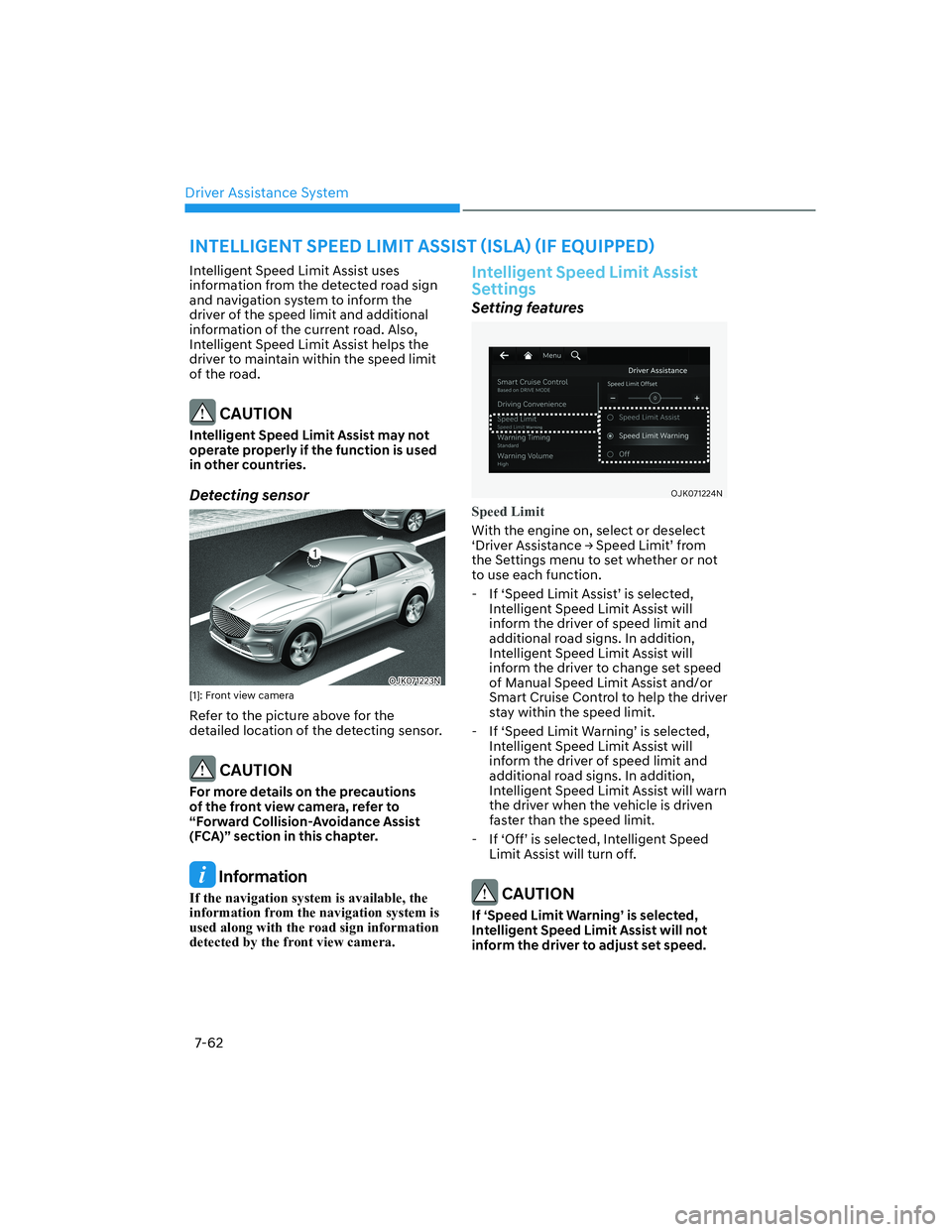

Page 411 of 647
Driver Assistance System
7-62
Intelligent Speed Limit Assist uses
information from the detected road sign
and navigation system to inform the
driver of the speed limit and additional
information of the current road. Also,
Intelligent Speed Limit Assist helps the
driver to maintain within the speed limit
of the road.
& $ 8 7 , 2 1
, Q W H O O L J H Q W 6 S H H G / L P L W $ V V L V W P D \ Q R W
R S H U D W H S U R S H U O \ L I W K H I X Q F W L R Q L V X V H G
L Q R W K H U F R X Q W U L H V
Detecting sensor
OJK071223N OJK071223N [1]: Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
& $ 8 7 , 2 1
For more details on the precautions
R I W K H I U R Q W Y L H Z F D P H U D U H I H U W R
U ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
) & $ V V H F W L R Q L Q W K L V F K D S W H U
Information
If the navigation system is available, the
information from the navigation system is
used along with the road sign information
detected by the front view camera.
Intelligent Speed Limit Assist
Settings
Setting features
OJK071224NOJK071224N
Speed Limit
With the engine on, select or deselect
S ' U L Y H U $ V V L V W D Q F H
Page 415 of 647
Driver Assistance System
7-66
Limitations of Intelligent Speed
Limit Assist
Intelligent Speed Limit Assist may not
operate properly, or it may operate
unexpectedly under the following
circumstances:
• The road sign is contaminated or
indistinguishable
- The road sign is difficult to see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or
damaged
- The road sign is partially obscured
by surrounding objects or shadow
- A road sign near the road you are
driving is detected
• The road signs do not conform to the
standard
- The text or picture on the road sign
is different from the standard
- The road sign is installed between
the main line and the exit road or
between diverging roads
- There is no conditional road signs
on the road sign located on the exit
road
- A sign is attached to another vehicle
• The distance between the vehicle and
the road signs is too far
• The vehicle encounters illuminant
road signs
• Intelligent Speed Limit Assist
incorrectly recognizes numbers in the
street signals or other signs as the
speed limit
• The minimum speed limit sign is on
the road
• The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge• Headlamps are not used or the
brightness of the headlamps are weak
at night or in the tunnel
• Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles
• The navigation information or GPS
information contain errors.
• The driver does not follow the guide
of the navigation.
• The driver is driving on a new road
that is not in the navigation system
yet.
• The field of view of the front view
camera is obstructed by sun glare
• Driving on a road that is sharply
curved or continuously curved
• Driving through speed bumps, or
driving up and down or left to right on
steep inclines
• The vehicle is shaking heavily
• Driving on a newly opened road
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.
: $ 5 1 , 1 *
• Intelligent Speed Limit Assist is a
supplemental function that helps the
G U L Y H U W R F R P S O \ Z L W K W K H V S H H G O L P L W
R Q W K H U R D G D Q G P D \ Q R W G L V S O D \ W K H
correct speed limit or control the
G U L Y L Q J V S H H G S U R S H U O \
• $ O Z D \ V V H W W K H Y H K L F O H V S H H G W R W K H
V S H H G O L P L W L Q \ R X U F R X Q W U \
Page 447 of 647

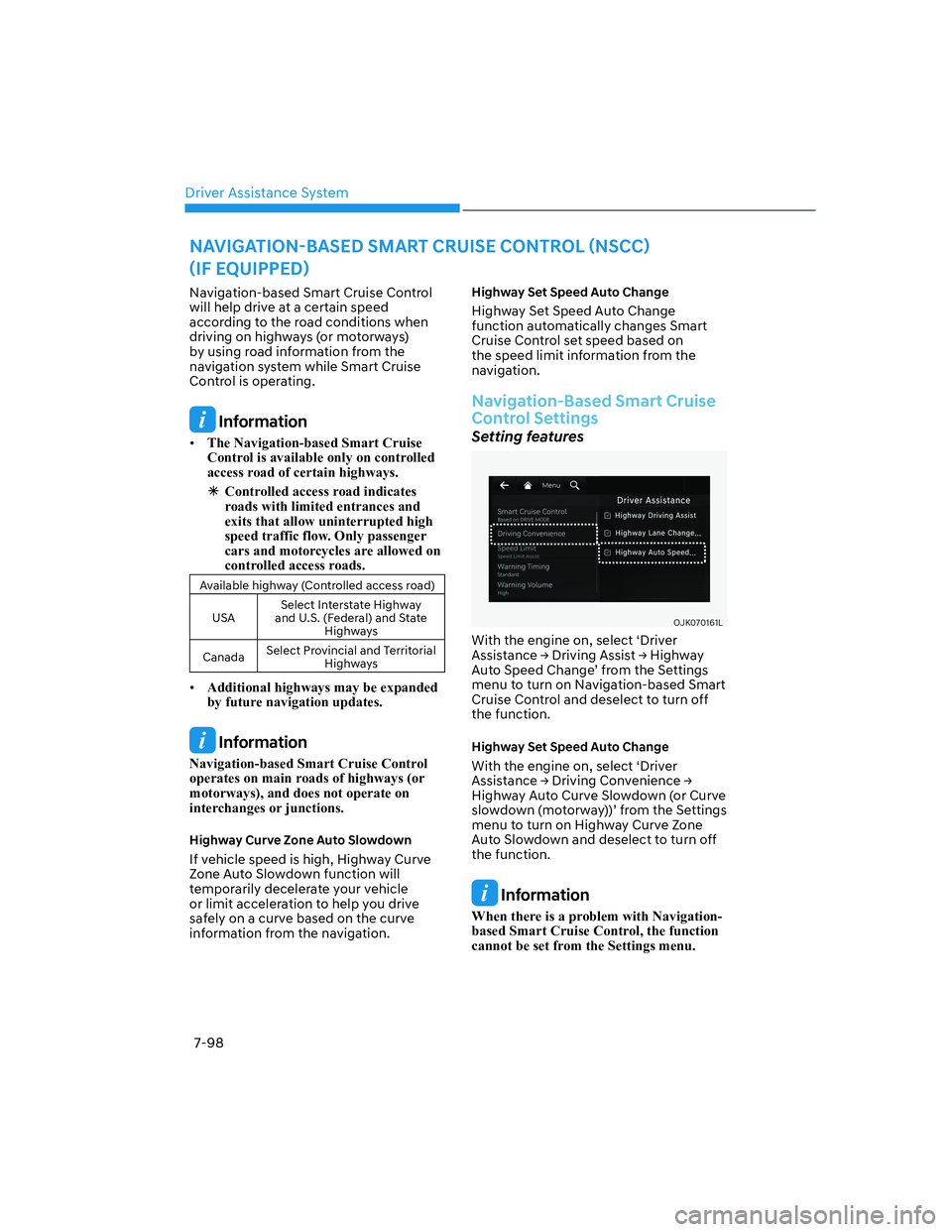

Driver Assistance System
7-98
Navigation-based Smart Cruise Control
will help drive at a certain speed
according to the road conditions when
driving on highways (or motorways)
by using road information from the
navigation system while Smart Cruise
Control is operating.
Information
• The Navigation-based Smart Cruise
Control is available only on controlled
access road of certain highways.
ÃControlled access road indicates
roads with limited entrances and
exits that allow uninterrupted high
speed traffic flow. Only passenger
cars and motorcycles are allowed on
controlled access roads.
Available highway (Controlled access road)
USASelect Interstate Highway
and U.S. (Federal) and State
Highways
CanadaSelect Provincial and Territorial
Highways
• Additional highways may be expanded
by future navigation updates.
Information
Navigation-based Smart Cruise Control
operates on main roads of highways (or
motorways), and does not operate on
interchanges or junctions.
+ L J K Z D \ & X U Y H = R Q H $ X W R 6 O R Z G R Z Q
If vehicle speed is high, Highway Curve
Zone Auto Slowdown function will
temporarily decelerate your vehicle
or limit acceleration to help you drive
safely on a curve based on the curve
information from the navigation.
+ L J K Z D \ 6 H W 6 S H H G $ X W R & K D Q J H
Highway Set Speed Auto Change
function automatically changes Smart
Cruise Control set speed based on
the speed limit information from the
navigation.
1 D Y L J D W L R Q % D V H G 6 P D U W & U X L V H
Control Settings
Setting features
OJK070161LOJK070161L
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 448 of 647
07
7-99

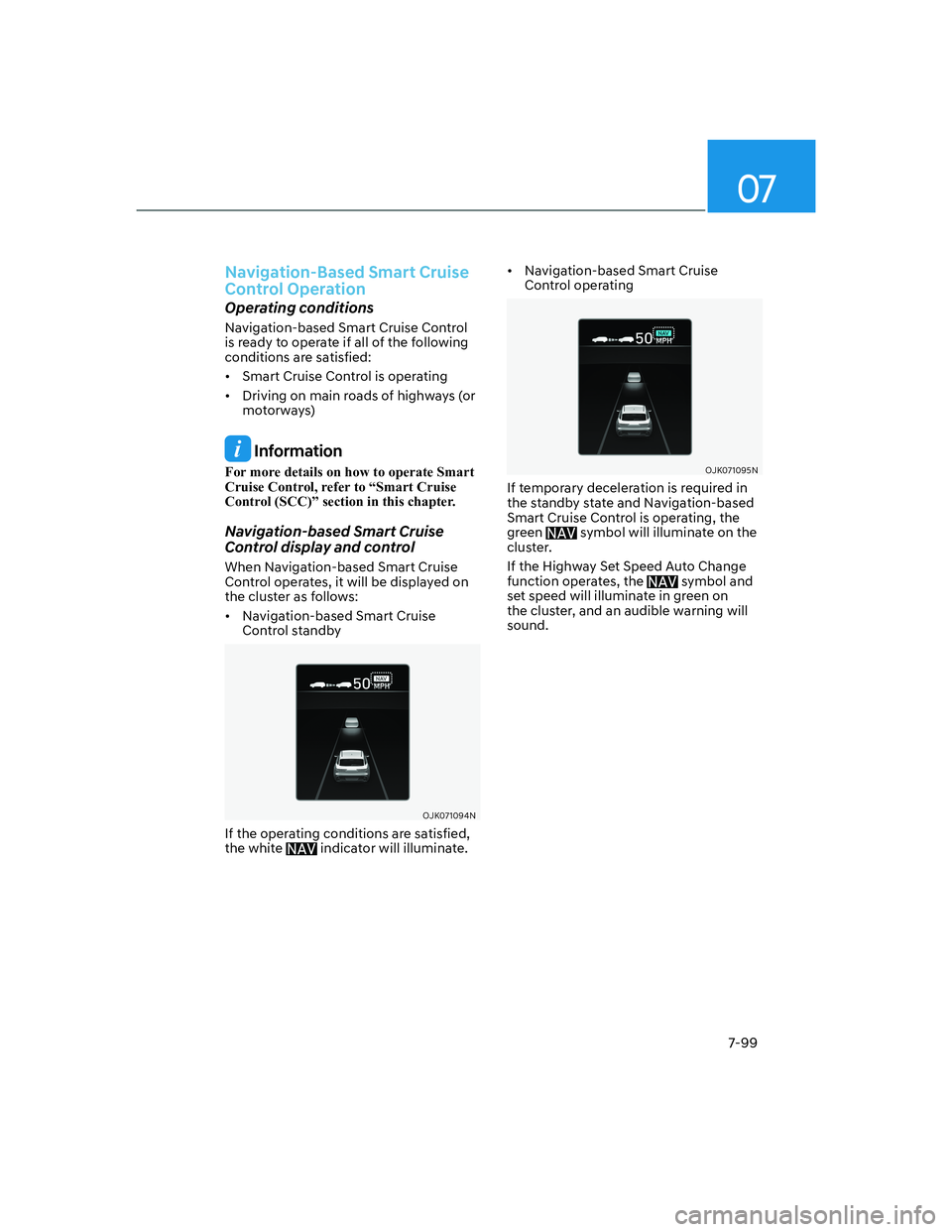

1 D Y L J D W L R Q % D V H G 6 P D U W & U X L V H
Control Operation
Operating conditions
Navigation-based Smart Cruise Control
is ready to operate if all of the following
conditions are satisfied:
• Smart Cruise Control is operating
• Driving on main roads of highways (or
motorways)
Information
For more details on how to operate Smart
Cruise Control, refer to “Smart Cruise
Control (SCC)” section in this chapter.
Navigation-based Smart Cruise
Control display and control
When Navigation-based Smart Cruise
Control operates, it will be displayed on
the cluster as follows:
• Navigation-based Smart Cruise
Control standby
OJK071094NOJK071094N
If the operating conditions are satisfied,
the white indicator will illuminate.• Navigation-based Smart Cruise
Control operating
OJK071095NOJK071095N
If temporary deceleration is required in
the standby state and Navigation-based
Smart Cruise Control is operating, the
green
symbol will illuminate on the
cluster.
If the Highway Set Speed Auto Change
function operates, the
symbol and
set speed will illuminate in green on
the cluster, and an audible warning will
sound.
Page 450 of 647
07
7-101

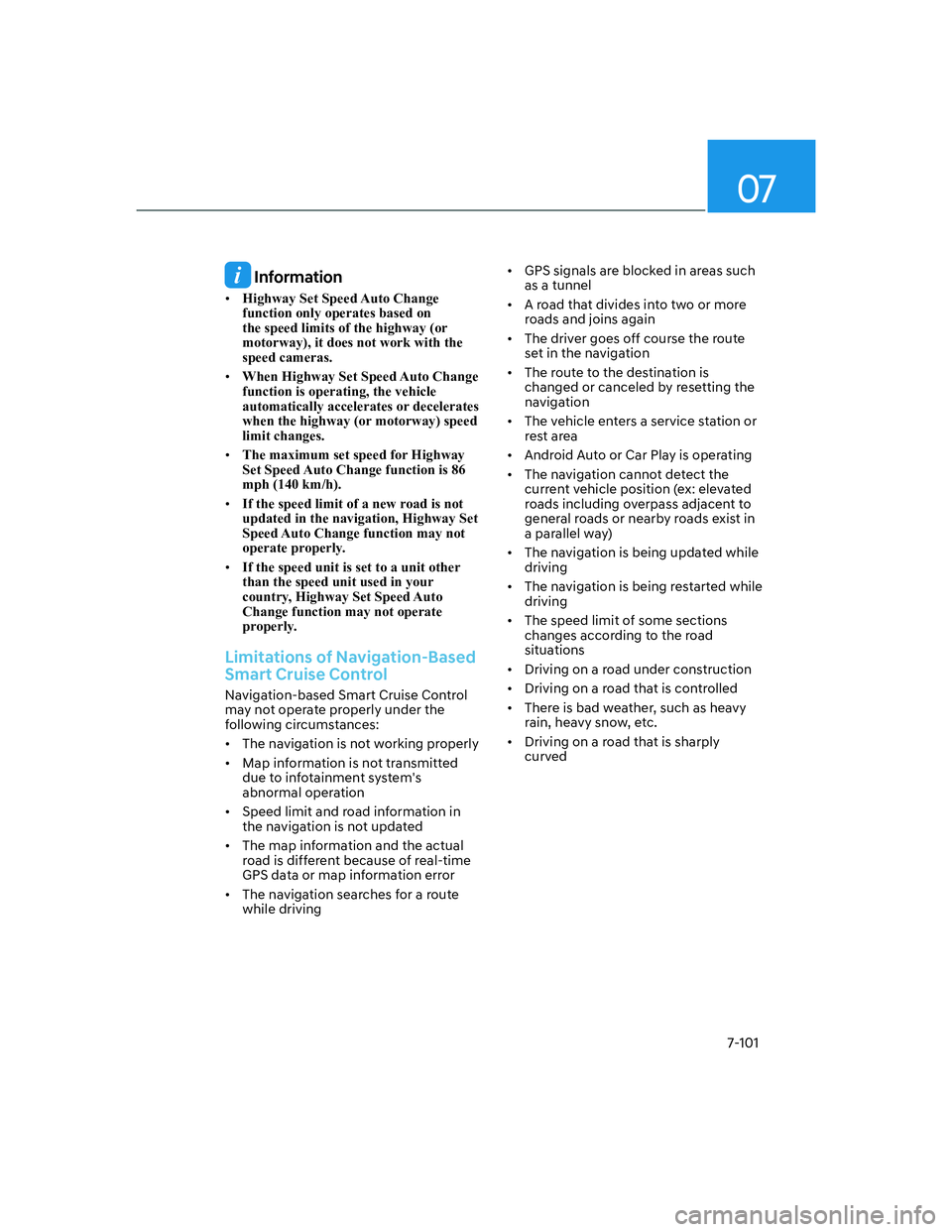

Information
• Highway Set Speed Auto Change
function only operates based on
the speed limits of the highway (or
motorway), it does not work with the
speed cameras.
• When Highway Set Speed Auto Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway (or motorway) speed
limit changes.
• The maximum set speed for Highway
Set Speed Auto Change function is 86
mph (140 km/h).
• If the speed limit of a new road is not
updated in the navigation, Highway Set
Speed Auto Change function may not
operate properly.
• If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Set Speed Auto
Change function may not operate
properly.
/ L P L W D W L R Q V R I 1 D Y L J D W L R Q % D V H G
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:
• The navigation is not working properly
• Map information is not transmitted
due to infotainment system's
abnormal operation
• Speed limit and road information in
the navigation is not updated
• The map information and the actual
road is different because of real-time
GPS data or map information error
• The navigation searches for a route
while driving• GPS signals are blocked in areas such
as a tunnel
• A road that divides into two or more
roads and joins again
• The driver goes off course the route
set in the navigation
• The route to the destination is
changed or canceled by resetting the
navigation
• The vehicle enters a service station or
rest area
• Android Auto or Car Play is operating
• The navigation cannot detect the
current vehicle position (ex: elevated
roads including overpass adjacent to
general roads or nearby roads exist in
a parallel way)
• The navigation is being updated while
driving
• The navigation is being restarted while
driving
• The speed limit of some sections
changes according to the road
situations
• Driving on a road under construction
• Driving on a road that is controlled
• There is bad weather, such as heavy
rain, heavy snow, etc.
• Driving on a road that is sharply
curved
