07
7-169

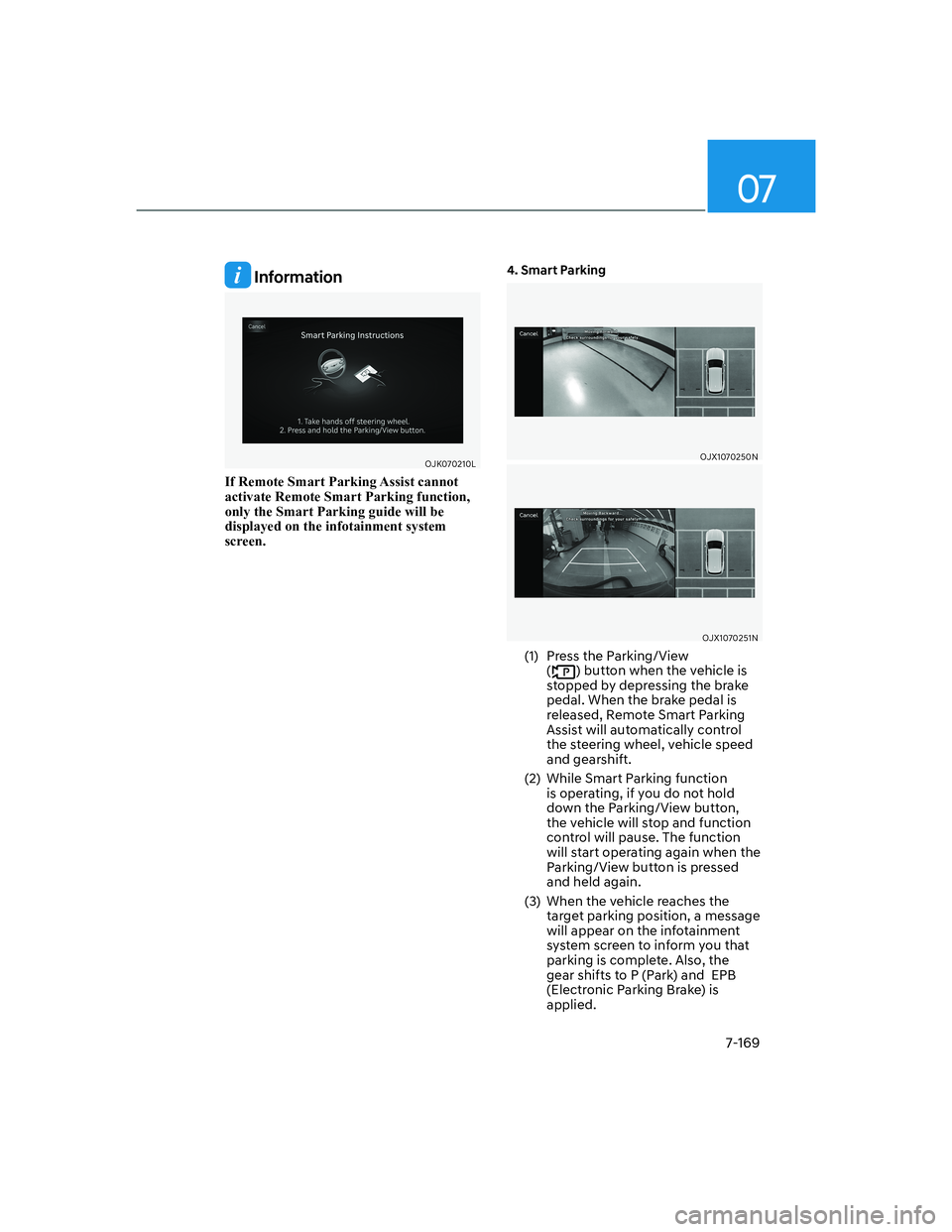

Information
OJK070210L OJK070210L
If Remote Smart Parking Assist cannot
activate Remote Smart Parking function,
only the Smart Parking guide will be
displayed on the infotainment system
screen.
6PDUW3DUNLQJ
OJX1070250NOJX1070250N
OJX1070251NOJX1070251N
(1) Press the Parking/View
() button when the vehicle is
stopped by depressing the brake
pedal. When the brake pedal is
released, Remote Smart Parking
Assist will automatically control
the steering wheel, vehicle speed
and gearshift.
(2) While Smart Parking function
is operating, if you do not hold
down the Parking/View button,
the vehicle will stop and function
control will pause. The function
will start operating again when the
Parking/View button is pressed
and held again.
(3) When the vehicle reaches the
target parking position, a message
will appear on the infotainment
system screen to inform you that
parking is complete. Also, the
gear shifts to P (Park) and EPB
(Electronic Parking Brake) is
applied.

Driver Assistance System
7-170

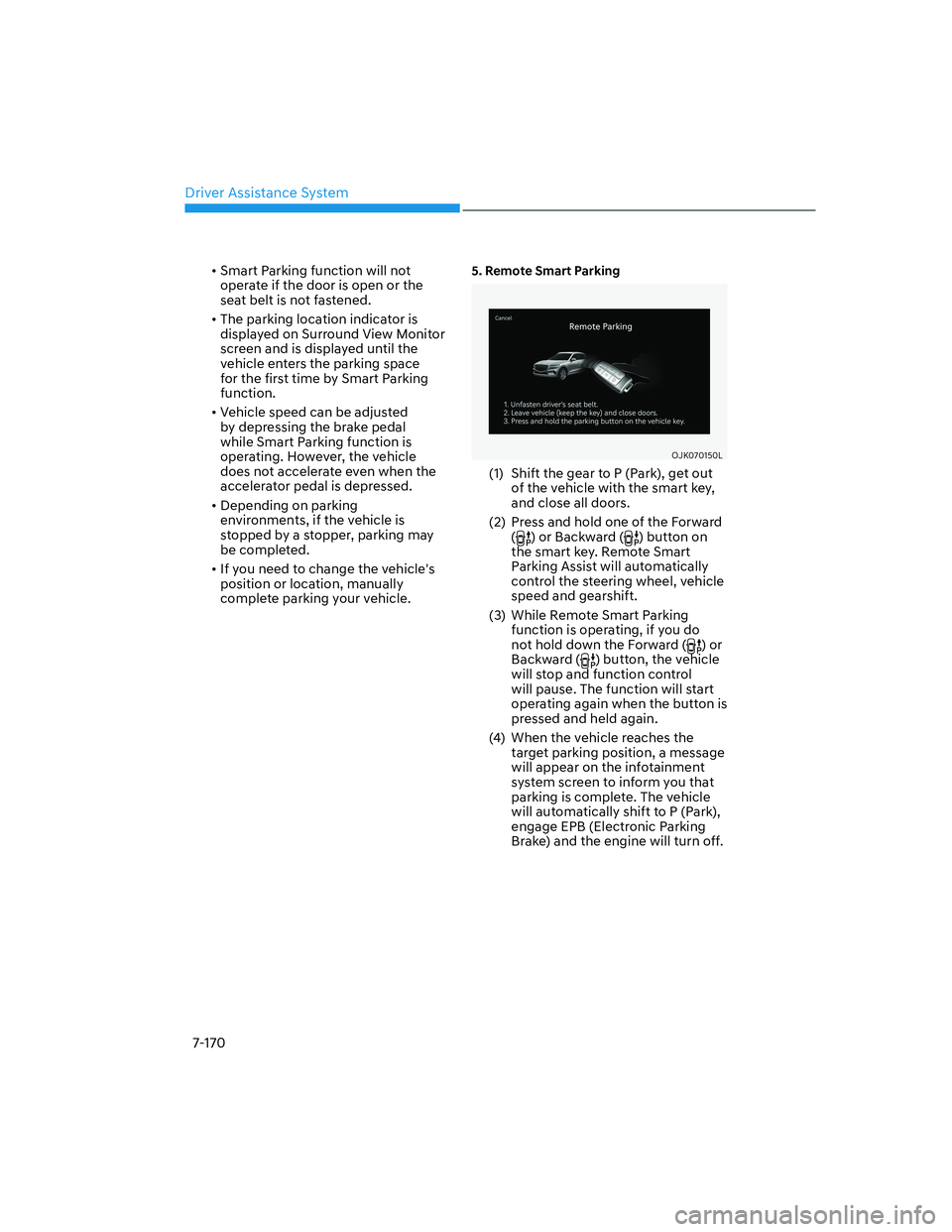

• Smart Parking function will not
operate if the door is open or the
seat belt is not fastened.
• The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Smart Parking
function.
• Vehicle speed can be adjusted
by depressing the brake pedal
while Smart Parking function is
operating. However, the vehicle
does not accelerate even when the
accelerator pedal is depressed.
• Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.
• If you need to change the vehicle's
position or location, manually
complete parking your vehicle.5HPRWH6PDUW3DUNLQJ
OJK070150LOJK070150L
(1) Shift the gear to P (Park), get out
of the vehicle with the smart key,
and close all doors.
(2) Press and hold one of the Forward
(
) or Backward () button on
the smart key. Remote Smart
Parking Assist will automatically
control the steering wheel, vehicle
speed and gearshift.
(3) While Remote Smart Parking
function is operating, if you do
not hold down the Forward (
) or
Backward () button, the vehicle
will stop and function control
will pause. The function will start
operating again when the button is
pressed and held again.
(4) When the vehicle reaches the
target parking position, a message
will appear on the infotainment
system screen to inform you that
parking is complete. The vehicle
will automatically shift to P (Park),
engage EPB (Electronic Parking
Brake) and the engine will turn off.

07
7-171
• When operating Remote Smart
Parking function, make sure all
smart keys are outside of the
vehicle.
• Remote Smart Parking function will
operate only when the smart key is
within 13 ft. (4 m) from the vehicle.
If there is no vehicle movement
even when the Remote Forward or
Backward button is pressed on the
smart key, check the distance to the
vehicle and press the button again.
• The detecting range of the smart
key may vary depending on the
surroundings that are affected by
radio waves such as transmission
tower, broadcast station, etc.
• The parking location indicator is
displayed on Surround View Monitor
screen and is displayed until the
vehicle enters the parking space
for the first time by Remote Smart
Parking function.
• Depending on parking
environments, if the vehicle is
stopped by a stopper, parking may
be completed.
• If you need to change the vehicle's
position or location, manually
complete parking your vehicle.
&$87,21
• :KHQXVLQJ5HPRWH6PDUW3DUNLQJ
IXQFWLRQPDNHVXUHWKDWDOO
SDVVHQJHUVKDYHJRWWHQRXWRIWKH
YHKLFOH
• After ending or turning off Remote
6PDUW3DUNLQJIXQFWLRQEHIRUH
OHDYLQJWKHYHKLFOHFORVHZLQGRZV
DQGVXQURRIVDQGPDNHVXUHWKH
HQJLQHLVRIIEHIRUHORFNLQJWKH
GRRUV
• :KHQXVLQJ5HPRWH6PDUW3DUNLQJ
IXQFWLRQZLWKWKHGLJLWDONH\WKH
VPDUWNH\VKRXOGEHZLWKLQIW
PIURPWKHYHKLFOH
How to turn off Parking function while
operating
• Press the Parking/View () button
in the following stage:
- Searching for parking space
- Select parking type
• Shift the gear to R (Reverse) in the
following stage:
- Searching for parking space
- Select parking type
- Select operating mode
• Press the Parking Safety (
) button
or select ‘Cancel’ on the infotainment
system screen to turn off Parking
function.
• While Smart Parking function is
operating:
- If the vehicle is stopped by
depressing the brake pedal, and the
gear is shifted, Parking function will
turn off. At this time, EPB (Electronic
Parking Brake) will not be engaged.
• While Remote Smart Parking function
is operating:
- Press the Remote Start (
) button
on the smart key. Parking function
will turn off.
- Get on the vehicle with the smart
key. Parking function will turn off. At
this time, the engine will remain on.

07
7-173

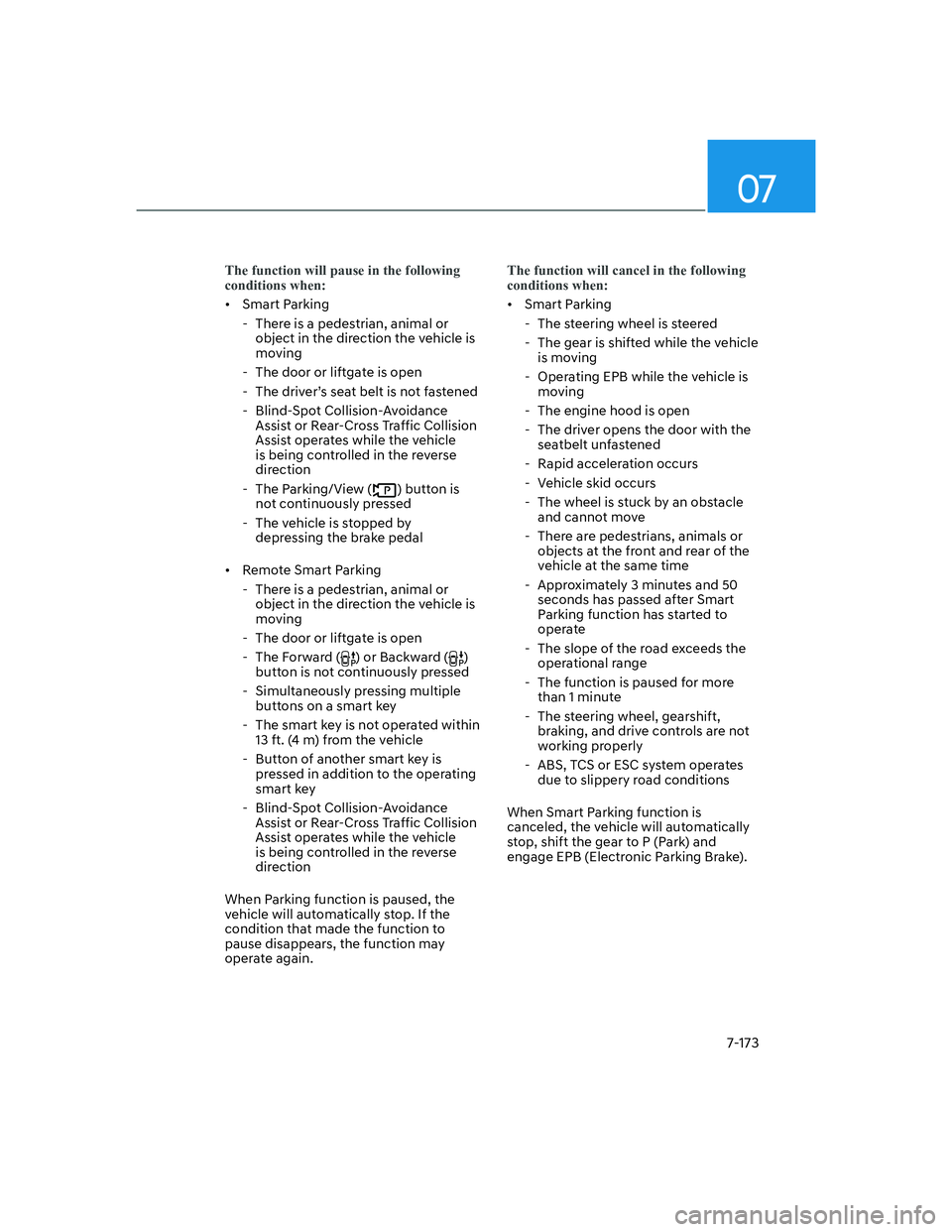

The function will pause in the following
conditions when:
• Smart Parking
- There is a pedestrian, animal or
object in the direction the vehicle is
moving
- The door or liftgate is open
- The driver’s seat belt is not fastened
- Blind-Spot Collision-Avoidance
Assist or Rear-Cross Traffic Collision
Assist operates while the vehicle
is being controlled in the reverse
direction
- The Parking/View (
) button is
not continuously pressed
- The vehicle is stopped by
depressing the brake pedal
• Remote Smart Parking
- There is a pedestrian, animal or
object in the direction the vehicle is
moving
- The door or liftgate is open
- The Forward (
) or Backward ()
button is not continuously pressed
- Simultaneously pressing multiple
buttons on a smart key
- The smart key is not operated within
13 ft. (4 m) from the vehicle
- Button of another smart key is
pressed in addition to the operating
smart key
- Blind-Spot Collision-Avoidance
Assist or Rear-Cross Traffic Collision
Assist operates while the vehicle
is being controlled in the reverse
direction
When Parking function is paused, the
vehicle will automatically stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the following
conditions when:
• Smart Parking
- The steering wheel is steered
- The gear is shifted while the vehicle
is moving
- Operating EPB while the vehicle is
moving
- The engine hood is open
- The driver opens the door with the
seatbelt unfastened
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are pedestrians, animals or
objects at the front and rear of the
vehicle at the same time
- Approximately 3 minutes and 50
seconds has passed after Smart
Parking function has started to
operate
- The slope of the road exceeds the
operational range
- The function is paused for more
than 1 minute
- The steering wheel, gearshift,
braking, and drive controls are not
working properly
- ABS, TCS or ESC system operates
due to slippery road conditions
When Smart Parking function is
canceled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake).

Driver Assistance System
7-174
• Remote Smart Parking
- The steering wheel is steered
- The gear is shifted
- Operating EPB while the vehicle is
moving
- The engine hood is open
- The brake pedal or accelerator
pedal is depressed when all the
doors are closed
- The smart key is outside the vehicle
when the brake pedal is depressed
while the driver's door is open.
- Rapid acceleration occurs
- Vehicle skid occurs
- The wheel is stuck by an obstacle
and cannot move
- There are pedestrians, animals or
objects at the front and rear of the
vehicle at the same time
- Approximately 3 minutes and 50
seconds has passed after Remote
Smart Parking function has started
to operate
- The slope of the road exceeds the
operational range
- The function is paused for more
than 1 minute
- The steering wheel, gearshift,
braking, and drive controls are not
working properly
- There is a problem with the smart
key or the smart key battery is low
- ABS, TCS or ESC system operates
due to slippery road conditions
- The alarm of the Theft Alarm System
sounds
When Remote Smart Parking function is
canceled, the vehicle will automatically
stop, shift the gear to P (Park) and
engage EPB (Electronic Parking Brake). Smart Exit
Operating order
Smart Exit function operates in the
following order:
1. Getting ready for exit
2. Checking space
3. Select exit direction
4. Smart Exit
*HWWLQJUHDG\IRUH[LW
OJK070163LOJK070163L
(1) With the engine turned on,
depress the brake pedal and shift
the gear to P (Park) or N (Neutral).
(2) Press and hold the Parking/View
(
) button to turn on Remote
Smart Parking Assist.
• 'Agree' must be selected on the
infotainment system screen and the
infotainment system has to operate
properly to use Smart Smart Exit
function.
• Drive below 3 mph (5 km/h) with
the engine on and shift the gear to
N (Neutral), Smart Exit function can
be used.
• If the function is turned on again
after parallel parking is completed
by Remote Smart Parking Assist,
Smart Exit function can be used.

Driver Assistance System
7-176

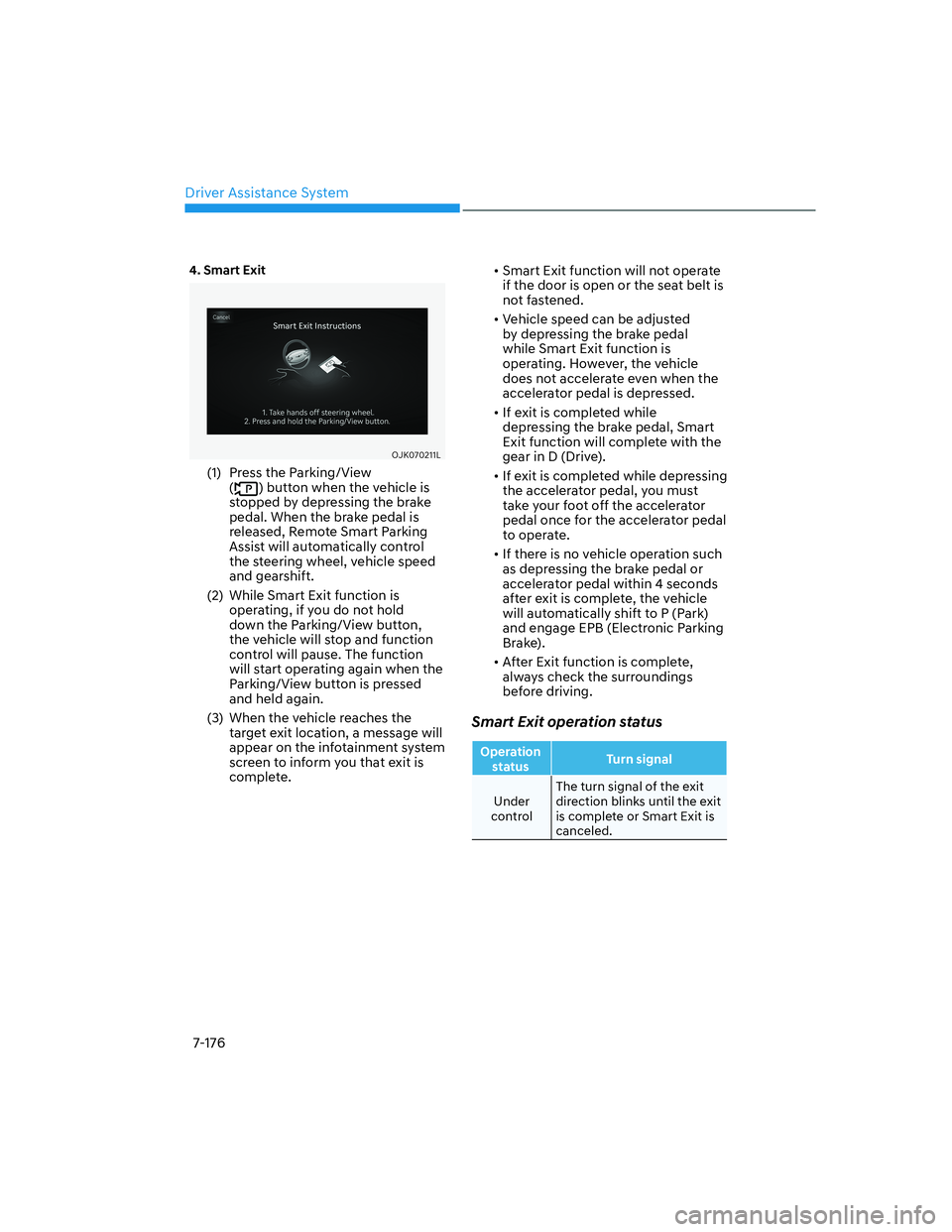

6PDUW([LW
OJK070211LOJK070211L
(1) Press the Parking/View
() button when the vehicle is
stopped by depressing the brake
pedal. When the brake pedal is
released, Remote Smart Parking
Assist will automatically control
the steering wheel, vehicle speed
and gearshift.
(2) While Smart Exit function is
operating, if you do not hold
down the Parking/View button,
the vehicle will stop and function
control will pause. The function
will start operating again when the
Parking/View button is pressed
and held again.
(3) When the vehicle reaches the
target exit location, a message will
appear on the infotainment system
screen to inform you that exit is
complete.• Smart Exit function will not operate
if the door is open or the seat belt is
not fastened.
• Vehicle speed can be adjusted
by depressing the brake pedal
while Smart Exit function is
operating. However, the vehicle
does not accelerate even when the
accelerator pedal is depressed.
• If exit is completed while
depressing the brake pedal, Smart
Exit function will complete with the
gear in D (Drive).
• If exit is completed while depressing
the accelerator pedal, you must
take your foot off the accelerator
pedal once for the accelerator pedal
to operate.
• If there is no vehicle operation such
as depressing the brake pedal or
accelerator pedal within 4 seconds
after exit is complete, the vehicle
will automatically shift to P (Park)
and engage EPB (Electronic Parking
Brake).
• After Exit function is complete,
always check the surroundings
before driving.
Smart Exit operation status
Operation
statusTurn signal
Under
controlThe turn signal of the exit
direction blinks until the exit
is complete or Smart Exit is
canceled.

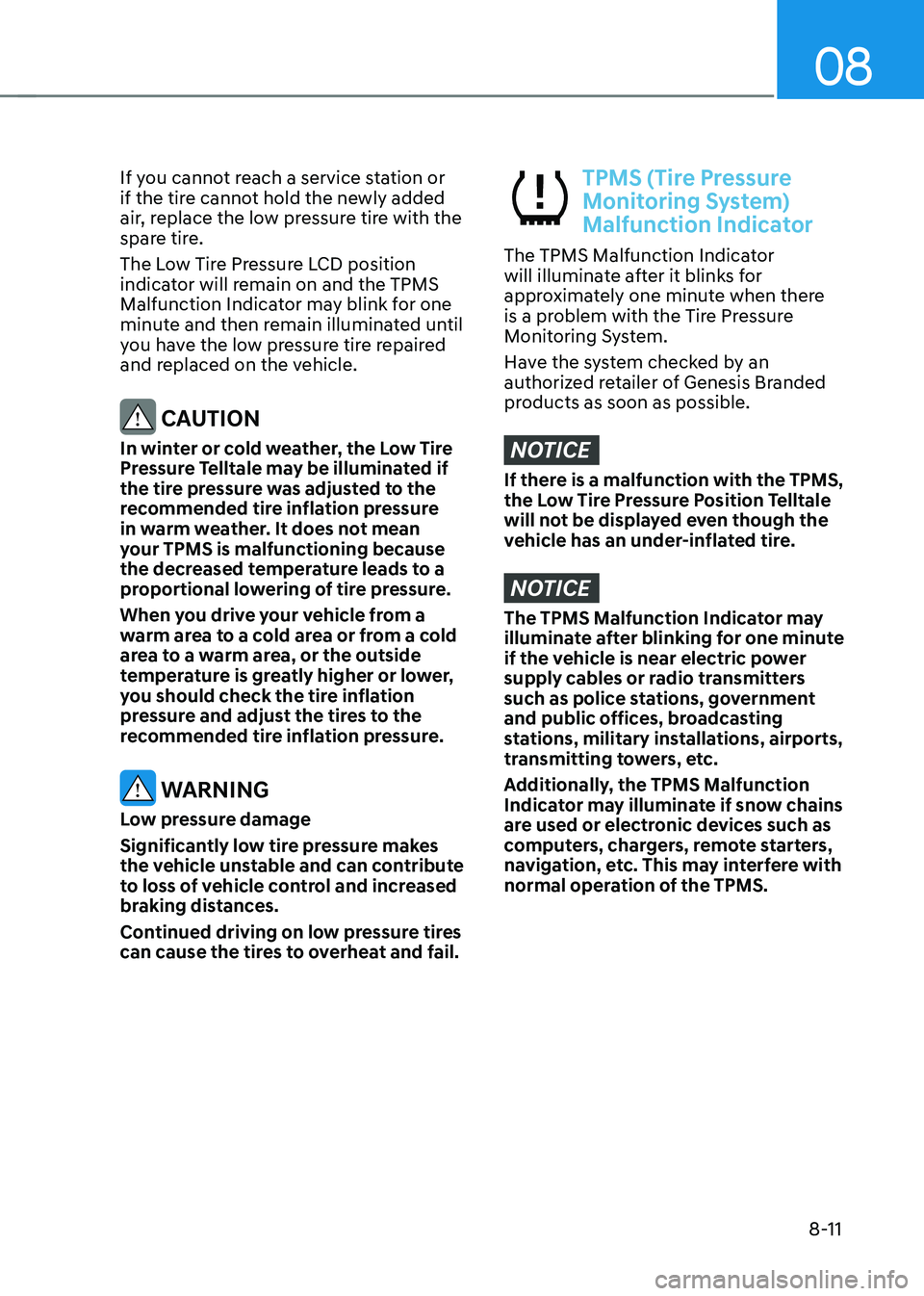

08
8-11
If you cannot reach a service station or if the tire cannot hold the newly added air, replace the low pressure tire with the spare tire.
The Low Tire Pressure LCD position indicator will remain on and the TPMS Malfunction Indicator may blink for one minute and then remain illuminated until you have the low pressure tire repaired and replaced on the vehicle.
CAUTION
In winter or cold weather, the Low Tire Pressure Telltale may be illuminated if the tire pressure was adjusted to the recommended tire inflation pressure in warm weather. It does not mean your TPMS is malfunctioning because the decreased temperature leads to a proportional lowering of tire pressure.
When you drive your vehicle from a warm area to a cold area or from a cold area to a warm area, or the outside temperature is greatly higher or lower, you should check the tire inflation pressure and adjust the tires to the recommended tire inflation pressure.
WARNING
Low pressure damage
Significantly low tire pressure makes the vehicle unstable and can contribute to loss of vehicle control and increased braking distances.
Continued driving on low pressure tires can cause the tires to overheat and fail.
TPMS (Tire Pressure
Monitoring System)
Malfunction Indicator
The TPMS Malfunction Indicator will illuminate after it blinks for approximately one minute when there is a problem with the Tire Pressure Monitoring System.
Have the system checked by an authorized retailer of Genesis Branded products as soon as possible.
NOTICE
If there is a malfunction with the TPMS, the Low Tire Pressure Position Telltale will not be displayed even though the vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may illuminate after blinking for one minute if the vehicle is near electric power supply cables or radio transmitters such as police stations, government and public offices, broadcasting stations, military installations, airports, transmitting towers, etc.
Additionally, the TPMS Malfunction Indicator may illuminate if snow chains are used or electronic devices such as computers, chargers, remote starters, navigation, etc. This may interfere with normal operation of the TPMS.

I
I-5
E
Electronically Controlled Suspension with Road Preview ..................................6-43
Limitations of the System ........................................................................\
.......6-44
System Malfunction ........................................................................\
................6-44
Electronic Control Suspension ........................................................................\
....6-43
System Malfunction ........................................................................\
................6-43
Electronic Limited Slip Differential ....................................................................6-42
Drive Mode Selection ........................................................................\
.............6-42
Warning Messages........................................................................\
...................6-42
Emission Control System ........................................................................\
............9-73
Crankcase Emission Control System ..............................................................9-73
Evaporative Emission Control System including Onboard Refueling Vapor Recovery (ORVR) ........................................................................\
...................9-73
Exhaust Emission Control System ..................................................................9-74
Engine ........................................................................\
............................................2-8
Engine Compartment ........................................................................\
.....................9-3
Engine Compartment ........................................................................\
.....................2-7
Engine Coolant/Liquid-Cooled Intercooler Coolant ...........................................9-18
Changing Coolant........................................................................\
....................9-20
Checking the Coolant Level ........................................................................\
....9-18
Engine Number ........................................................................\
............................2-15
Engine Oil ........................................................................\
....................................9-15
Checking the Engine Oil and Filter .................................................................9-17
Checking the Engine Oil Level .......................................................................9-15
Engine Start/Stop Button ........................................................................\
...............6-5
Engine Stop/Start Button Positions ...................................................................6-6
Remote Start ........................................................................\
..............................6-9
Starting the Engine ........................................................................\
....................6-7
Turning Off the Engine ........................................................................\
.............6-8
Explanation of Scheduled Maintenance Items ....................................................9-13
Exterior Features ........................................................................\
........................5-137
Roof Side Rails ........................................................................\
.....................5-137

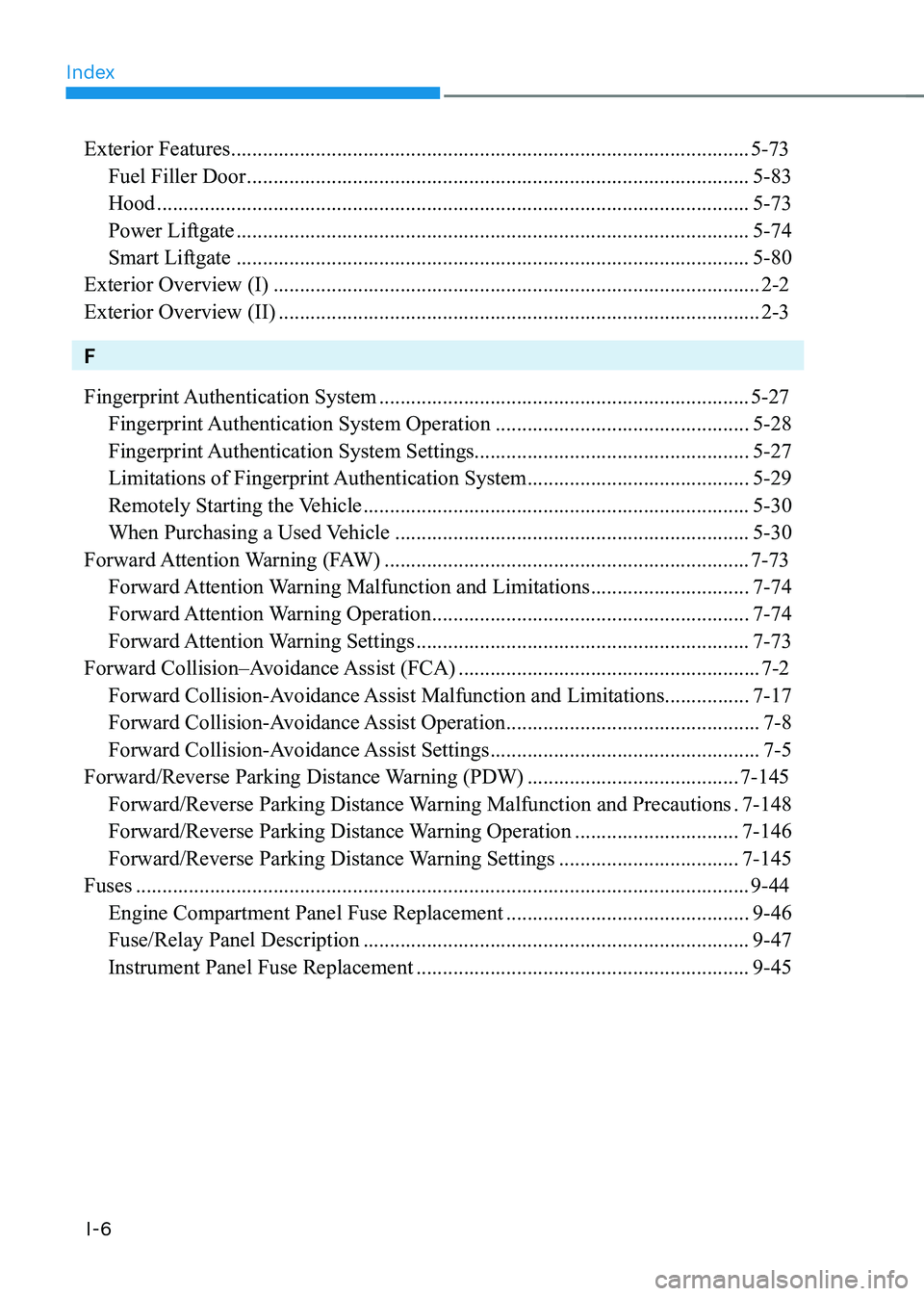

Index
I-6
Exterior Features ........................................................................\
..........................5-73
Fuel Filler Door ........................................................................\
.......................5-83
Hood ........................................................................\
........................................5-73
Power Liftgate ........................................................................\
.........................5-74
Smart Liftgate ........................................................................\
.........................5-80
Exterior Overview (I) ........................................................................\
....................2-2
Exterior Overview (II) ........................................................................\
...................2-3
F
Fingerprint Authentication System ......................................................................5-27
Fingerprint Authentication System Operation ................................................5-28
Fingerprint Authentication System Settings....................................................5-27
Limitations of Fingerprint Authentication System ..........................................5-29
Remotely Starting the Vehicle ........................................................................\
.5-30
When Purchasing a Used Vehicle ...................................................................5-30
Forward Attention Warning (FAW) .....................................................................7-73
Forward Attention Warning Malfunction and Limitations ..............................7-74
Forward Attention Warning Operation ............................................................7-74
Forward Attention Warning Settings ...............................................................7-73
Forward Collision–Avoidance Assist (FCA) .........................................................7-2
Forward Collision-Avoidance Assist Malfunction and Limitations ................7-17
Forward Collision-Avoidance Assist Operation ................................................7-8
Forward Collision-Avoidance Assist Settings ...................................................7-5
Forward/Reverse Parking Distance Warning (PDW) ........................................7-145
Forward/Reverse Parking Distance Warning Malfunction and Precautions .7-148
Forward/Reverse Parking Distance Warning Operation ...............................7-146
Forward/Reverse Parking Distance Warning Settings ..................................7-145
Fuses ........................................................................\
............................................9-44
Engine Compartment Panel Fuse Replacement ..............................................9-46
Fuse/Relay Panel Description ........................................................................\
.9-47
Instrument Panel Fuse Replacement ...............................................................9-45
