Instrument Cluster
4-18

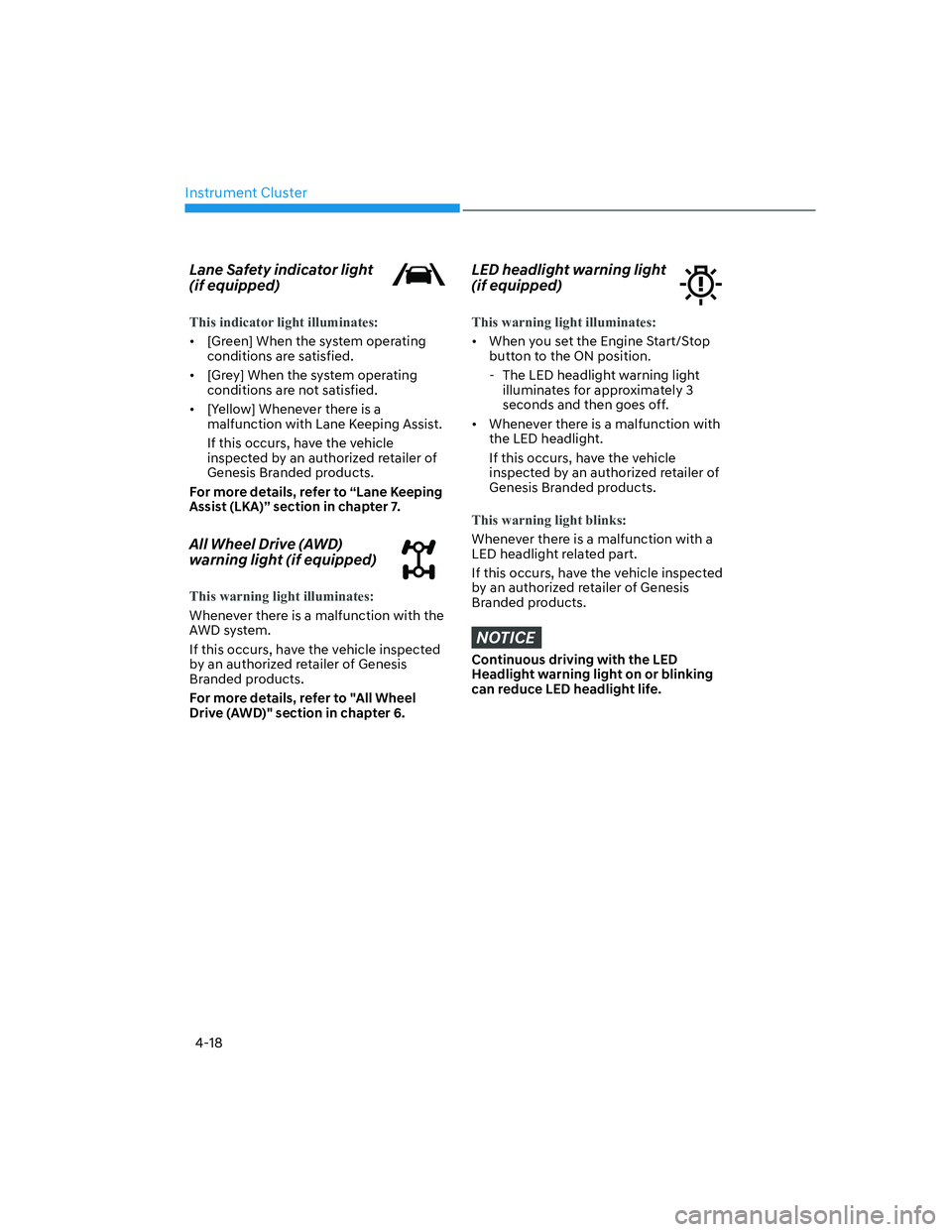

Lane Safety indicator light
(if equipped)
This indicator light illuminates:
• [Green] When the system operating
conditions are satisfied.
• [Grey] When the system operating
conditions are not satisfied.
• [Yellow] Whenever there is a
malfunction with Lane Keeping Assist.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Lane Keeping
Assist (LKA)” section in chapter 7.
All Wheel Drive (AWD)
warning light (if equipped)
This warning light illuminates:
Whenever there is a malfunction with the
AWD system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
For more details, refer to "All Wheel
Drive (AWD)" section in chapter 6.
LED headlight warning light
(if equipped)
This warning light illuminates:
• When you set the Engine Start/Stop
button to the ON position.
- The LED headlight warning light
illuminates for approximately 3
seconds and then goes off.
• Whenever there is a malfunction with
the LED headlight.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
This warning light blinks:
Whenever there is a malfunction with a
LED headlight related part.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
NOTICE
Continuous driving with the LED
Headlight warning light on or blinking
can reduce LED headlight life.

Instrument Cluster
4-20

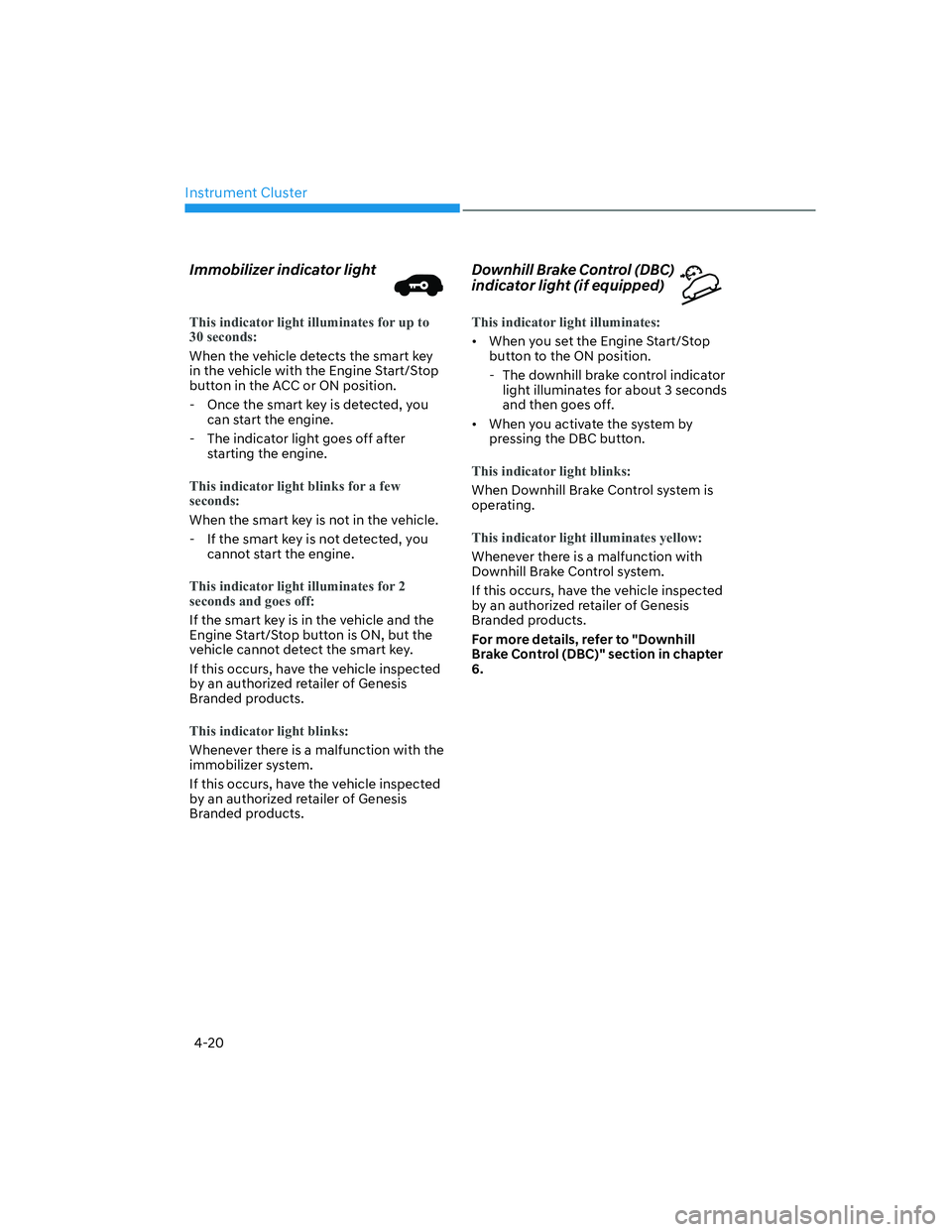

Immobilizer indicator light
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the vehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you
can start the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you
cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
Engine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
This indicator light blinks:
Whenever there is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
Downhill Brake Control (DBC)
indicator light (if equipped)
This indicator light illuminates:
• When you set the Engine Start/Stop
button to the ON position.
- The downhill brake control indicator
light illuminates for about 3 seconds
and then goes off.
• When you activate the system by
pressing the DBC button.
This indicator light blinks:
When Downhill Brake Control system is
operating.
This indicator light illuminates yellow:
Whenever there is a malfunction with
Downhill Brake Control system.
If this occurs, have the vehicle inspected
by an authorized retailer of Genesis
Branded products.
For more details, refer to "Downhill
Brake Control (DBC)" section in chapter
6.

Instrument Cluster
4-22

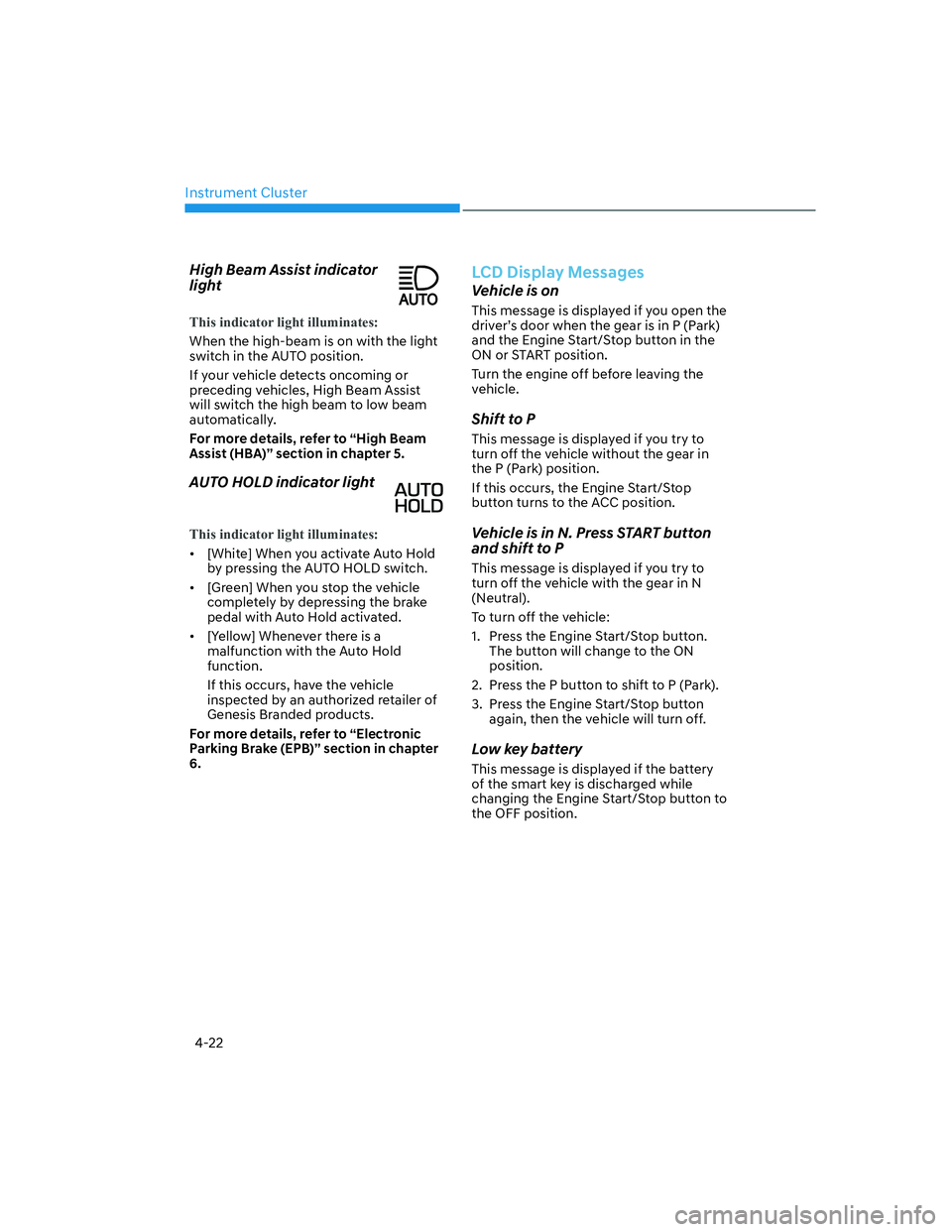

High Beam Assist indicator
light
This indicator light illuminates:
When the high-beam is on with the light
switch in the AUTO position.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
AUTO HOLD indicator light
This indicator light illuminates:
• [White] When you activate Auto Hold
by pressing the AUTO HOLD switch.
• [Green] When you stop the vehicle
completely by depressing the brake
pedal with Auto Hold activated.
• [Yellow] Whenever there is a
malfunction with the Auto Hold
function.
If this occurs, have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more details, refer to “Electronic
Parking Brake (EPB)” section in chapter
6.
LCD Display Messages
Vehicle is on
This message is displayed if you open the
driver’s door when the gear is in P (Park)
and the Engine Start/Stop button in the
ON or START position.
Turn the engine off before leaving the
vehicle.
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the Engine Start/Stop
button turns to the ACC position.
Vehicle is in N. Press START button
and shift to P
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Engine Start/Stop button.
The button will change to the ON
position.
2. Press the P button to shift to P (Park).
3. Press the Engine Start/Stop button
again, then the vehicle will turn off.
Low key battery
This message is displayed if the battery
of the smart key is discharged while
changing the Engine Start/Stop button to
the OFF position.

04
4-23
Press brake pedal to start engine
This message is displayed if the Engine
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Engine Start/Stop
button in the ON or Start position.
Always turn off the engine before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Engine Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/ Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Press START button with key
This message is displayed if you press
the Engine Start/Stop button while the
warning message “Key not detected” is
displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Shift to P or N to start engine
This message is displayed if you try to
start the engine in any other position
except P (Park) or N (Neutral).
Information
You can start the engine with the gear
in N (Neutral). But, for your safety, we
recommend that you start the engine with
the gear shifted to P (Park).

Instrument Cluster
4-24
Battery discharging due to external
electrical devices
This message is displayed if the 12V
battery voltage is weak due to any
non-factory electrical accessories (ex.
dashboard camera) while parking. Be
careful that the battery is not discharged.
If the message appears after removing
the non-factory electrical accessories,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Authenticated. The vehicle can now
be started
This message is displayed for 4 seconds
when you place your finger on the
fingerprint sensor, and it is verified while
the engine is off.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button. However, the
engine starts when the Engine Start/
Stop button is pressed within 30 seconds
after your fingerprint is verified and the
immobilizer indicator light (
) is
illuminated. If the immobilizer indicator
light is off, your fingerprint must be
verified again.
Fingerprint authentication is locked
out. Try again in XX min.
This message is displayed for 4 seconds
when fingerprint authentication has
failed more than five times while the
engine is off. While the message is
displayed, fingerprint authentication
does not work even if you place your
finger on the fingerprint sensor, and the
engine does not start even if the Engine
Start/Stop button is pressed.
Try again after the time indicated in the
message has passed. However, you may
start the engine with the smart key or
digital key.
If fingerprint authentication still does not
work, refer to “Limitations of Fingerprint
Authentication System” of “Fingerprint
Authentication System” section in
chapter 5.
Place digital key on the wireless
charger to keep the vehicle running
If the vehicle is remotely started and
‘Start Vehicle’ is deselected from the
Settings menu in the infotainment
system screen for Driver 1 and Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key.
To drive your vehicle, place the
registered digital key on the wireless
charger, when this message appears.
Scan an authorized fingerprint to
keep the vehicle running
If the vehicle is remotely started and
‘Start Vehicle’ is selected from the
Settings menu in the infotainment
system screen for Driver 1 or Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key or
the Genesis Connected Services app.
To drive your vehicle, have an authorized
fingerprint verified on the fingerprint
sensor when this message appears.

04
4-25
Place digital key on the wireless
charger or scan an authorized
fingerprint
If the vehicle is remotely started and
‘Start Vehicle’ is selected from the
Settings menu in the infotainment
system screen for Driver 1 or Driver 2,
this message will be displayed for up to
30 seconds when a door is opened after
unlocking the doors with a digital key or
the Genesis Connected Services app.
To drive your vehicle, place the
registered digital key on the wireless
charger, or have your fingerprint verified
on the fingerprint sensor when this
message appears.
Vehicle is On (started by digital key)
This message is displayed for up to 10
seconds if the driver's door is opened
without the driver's seat belt fastened
after turning on the engine with a digital
key. After the message is displayed, a
warning sounds when the door is closed.
Information
Since the engine was started with a digital
key, if the engine is turned off, and there is
no smart key or digital key in the vehicle,
it may be difficult to start the engine
again.
Vehicle is On (started by fingerprint)
This message is displayed for up
to 10 seconds if the driver's door is
opened without the driver's seat belt
fastened after turning on the engine
with a fingerprint. After the message is
displayed, a warning sounds when the
door is closed.
Information
Since the engine was started with a
fingerprint, if the engine is turned off,
and there is no smart key, digital key or a
registered fingerprint in the vehicle, it may
be difficult to start the engine again.
Place saved digital key on wireless
charger, then press the START
button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or the digital key is not placed on the
wireless charger when you press the
Engine Start/Stop button. To start the
vehicle, place a registered digital key on
the wireless charger, and then press the
Engine Start/Stop button.
Scan an authorized fingerprint, then
press the START button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after the
message “Press START button with key”
is displayed for 4 seconds if the smart
key is not in the vehicle or not detected,
or your fingerprint is not verified when
you press the Engine Start/Stop button.
To start the vehicle, have an authorized
fingerprint verified on the fingerprint
sensor, and then press the Engine Start/
Stop button.
Verify digital key or a fingerprint,
then press the START button
This message is displayed for 6 seconds
and the immobilizer indicator light
(
) will blink for 10 seconds after
the message “Press START button with
key” is displayed for 4 seconds if the
smart key is not in the vehicle or not
detected, the digital key is not placed on
the wireless charger, or your fingerprint
is not verified when you press the Engine
Start/Stop button. To start the vehicle,
place a registered digital key on the
wireless charger or have an authorized
fingerprint verified on the fingerprint
sensor, and then press the Engine Start/
Stop button.

Instrument Cluster
4-26
Digital key(s) active
This message is displayed for 4 seconds
when a smartphone key or NFC card
key is registered, and vehicle doors are
locked and unlocked after more than
10 minutes and the Engine Start/Stop
button is placed to the ON position. The
message is not displayed again until
more than 10 minutes have passed after
the doors are relocked.
Biometric authentication active
This message is displayed for 4 seconds
when the Engine Start/Stop button is
placed to the ON or START position with
the fingerprint registered, and ‘Start
Vehicle’ selected from the Settings menu
in the infotainment system screen.
Digital key/ Biometric
authentication active
This message is displayed for 4 seconds
when the Engine Start/Stop button is
placed to the ON or START position with
the digital key and fingerprint registered,
and ‘Start Vehicle’ selected from the
Settings menu in the infotainment
system screen.
Check user authentication system
This message is displayed if there
is a problem with the Digital Key or
Fingerprint Authentication System. Have
the system inspected by an authorized
retailer of Genesis Branded products.
Door, Hood, Liftgate open indicator
OJK040001OJK040001
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate is
fully closed.
Sunroof open indicator (if equipped)
OJK040002OJK040002
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.

04
4-35

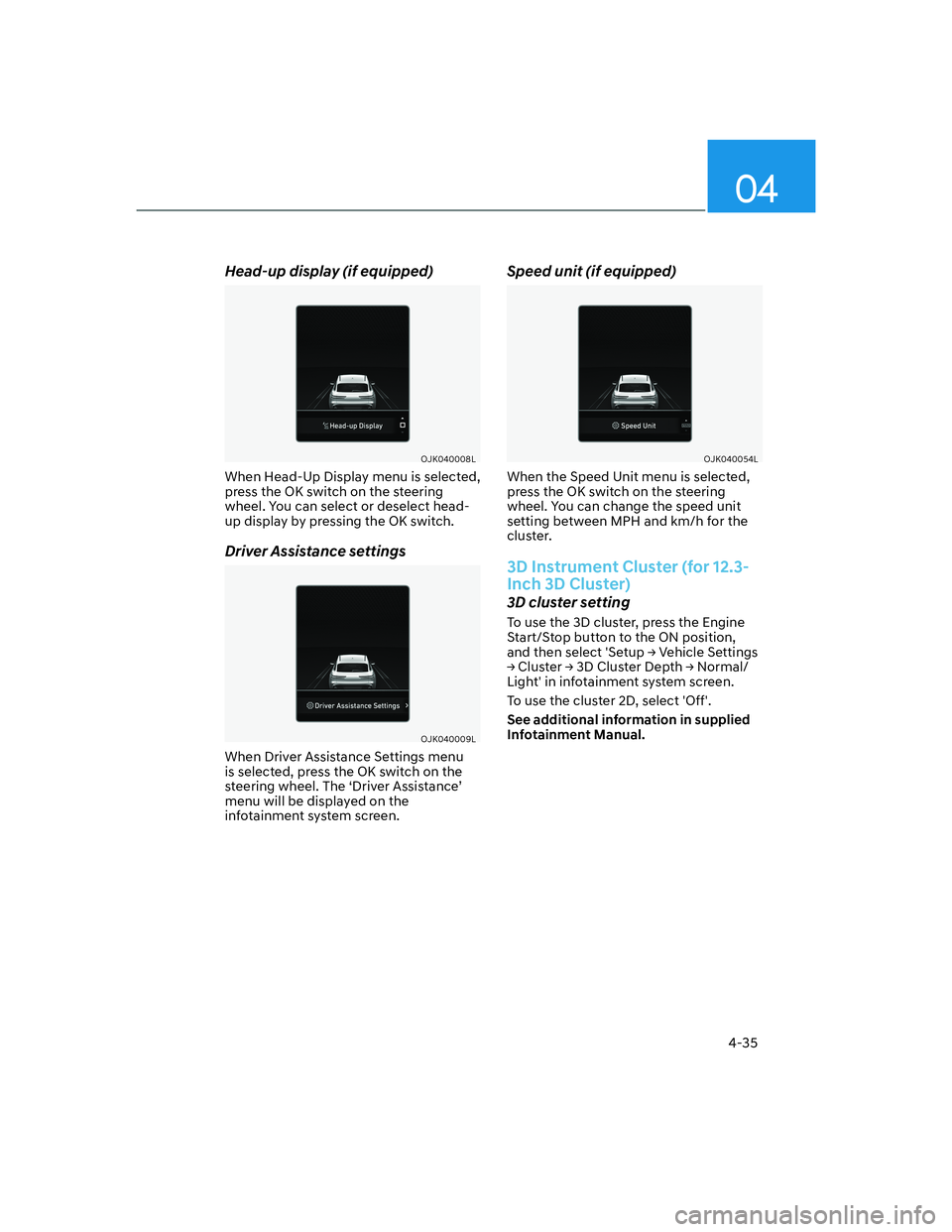

Head-up display (if equipped)
OJK040008LOJK040008L
When Head-Up Display menu is selected,
press the OK switch on the steering
wheel. You can select or deselect head-
up display by pressing the OK switch.
Driver Assistance settings
OJK040009LOJK040009L
When Driver Assistance Settings menu
is selected, press the OK switch on the
steering wheel. The ‘Driver Assistance’
menu will be displayed on the
infotainment system screen.
Speed unit (if equipped)
OJK040054LOJK040054L
When the Speed Unit menu is selected,
press the OK switch on the steering
wheel. You can change the speed unit
setting between MPH and km/h for the
cluster.
3D Instrument Cluster (for 12.3-
Inch 3D Cluster)
3D cluster setting
To use the 3D cluster, press the Engine
Start/Stop button to the ON position,
DQGWKHQVHOHFW
6HWXS

Convenience Features
5-6
Note that you cannot lock your vehicle
using the door handle touch sensor if any
of the following occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is from
ACC or ON position.
• Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/Stop button and may lock
the doors, operate power windows or
other controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle (When the
Two Press Unlock feature is off)
OJX1059002OJX1059002
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.2. Press the Door Unlock button (2) on
the Smart Key or simply grab the door
handle inside portion to activate the
unlock door touch sensor. All doors
will unlock and the hazard warning
lights will blink two times.
3. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Unlocking your vehicle (When the
Two Press Unlock feature is on)
To unlock your vehicle using the door
handle touch sensor or the Smart Key:
1. Make sure you have the smart key in
your possession.
2. Press the Door Unlock button (2) on
the Smart Key or simply grab the door
handle inside portion to activate the
unlock door touch sensor.
3. The driver’s door will unlock.
4. If you touch the door unlock sensor
inside of the front door handle to
unlock the doors within 4 seconds,
all of the doors will unlock. When the
doors unlock, the hazard warning
lights will blink two times and the
chime will sound.
5. After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.

05
5-9
Turning on the lamps
If the lamp button (6) is pressed, the
headlamps and tail lamps will turn
on. However, it works only when the
following conditions are satisfied:
• The vehicle is turned off
• The doors are locked
• The light control switch is in the AUTO
headlamp position (Headlamps and
tail lamps will turn on when it is dark)
or in the Headlamp position
Remote Smart Parking Assist feature
(if equipped)
With the Smart Key, the vehicle can be
moved forward or backward remotely to
enter or exit a parking space.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.
Start-up
You can start the vehicle without
inserting the key.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:
• Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.
• Avoid dropping or throwing the
smart key.
• Protect the smart key from extreme
temperatures.
