Page 507 of 647
Driver Assistance System
7-158
Remote Smart Parking Assist uses
vehicle sensors to help the driver park
and exit parking spaces remotely from
outside the vehicle by controlling the
steering wheel, vehicle speed and
gearshifts.
Function Description
Remote
OperationRemotely moving forward
or backward
OJX1079037OJX1079037
Smart
Parking or
Remote
Smart
ParkingPerpendicular reverse
parking
OJX1079034OJX1079034
Parallel reverse parking
OJX1079035OJX1079035
Smart ExitParallel forward exit
OJX1079036OJX1079036
• Remote Smart Parking and Remote
Operation function may be operated
from outside the vehicle using the
smart key.
• Smart Parking and Remote Smart
Parking function may be operated
from inside the vehicle.
• Smart Parking and Remote Smart
Parking function helps the driver with
perpendicular reverse parking and
parallel reverse parking.
• Smart Exit function helps the driver
with parallel forward exit.
• When Remote Smart Parking Assist
operates, Parking Distance Warning
and Surround View Monitor will also
operate. For more details, refer to
“Parking Distance Warning (PDW)”
and “Surround View Monitor (SVM)”
sections in this chapter.
5 ( 0 2 7 ( 6 0 $ 5 7 3 $ 5 . , 1 * $ 6 6 , 6 7
Page 508 of 647

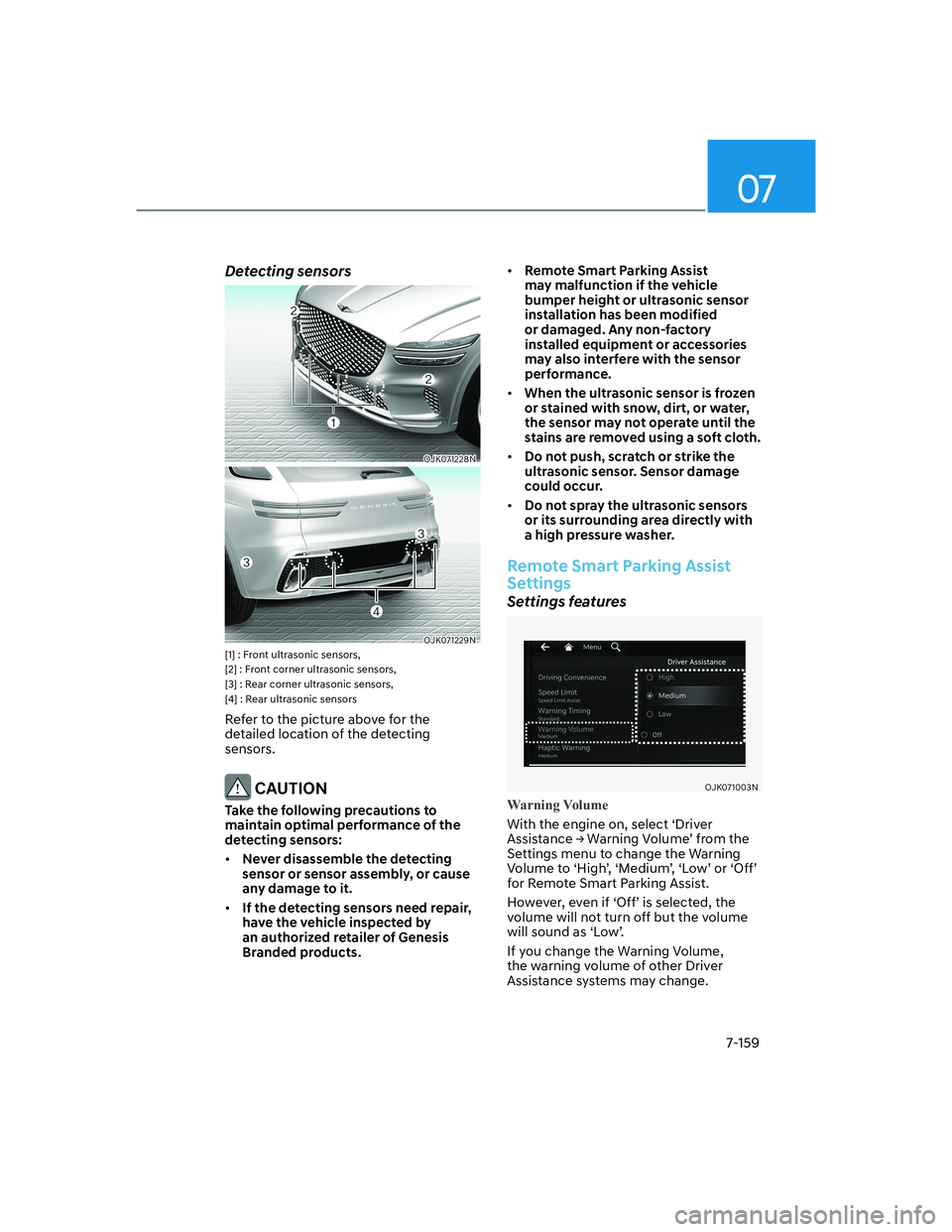

![HYUNDAI GENESIS GV70 2022 Manual PDF 07
7-159
Detecting sensors
OJK071228NOJK071228N
OJK071229NOJK071229N[1] : Front ultrasonic sensors,
[2] : Front corner ultrasonic sensors,
[3] : Rear corner ultrasonic sensors,
[4] : Rear ultrasonic s](/img/35/56125/w960_56125-507.png "HYUNDAI GENESIS GV70 2022 Manual PDF 07
7-159
Detecting sensors
OJK071228NOJK071228N
OJK071229NOJK071229N[1] : Front ultrasonic sensors,
[2] : Front corner ultrasonic sensors,
[3] : Rear corner ultrasonic sensors,
[4] : Rear ultrasonic s")
07
7-159
Detecting sensors
OJK071228NOJK071228N
OJK071229NOJK071229N[1] : Front ultrasonic sensors,
[2] : Front corner ultrasonic sensors,
[3] : Rear corner ultrasonic sensors,
[4] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
& $ 8 7 , 2 1
Take the following precautions to
maintain optimal performance of the
detecting sensors:
• 1 H Y H U G L V D V V H P E O H W K H G H W H F W L Q J
V H Q V R U R U V H Q V R U D V V H P E O \ R U F D X V H
D Q \ G D P D J H W R L W
• , I W K H G H W H F W L Q J V H Q V R U V Q H H G U H S D L U
K D Y H W K H Y H K L F O H L Q V S H F W H G E \
D Q D X W K R U L ] H G U H W D L O H U R I * H Q H V L V
% U D Q G H G S U R G X F W V • 5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W
P D \ P D O I X Q F W L R Q L I W K H Y H K L F O H
E X P S H U K H L J K W R U X O W U D V R Q L F V H Q V R U
L Q V W D O O D W L R Q K D V E H H Q P R G L I L H G
R U G D P D J H G $ Q \ Q R Q I D F W R U \
installed equipment or accessories
P D \ D O V R L Q W H U I H U H Z L W K W K H V H Q V R U
S H U I R U P D Q F H
• : K H Q W K H X O W U D V R Q L F V H Q V R U L V I U R ] H Q
R U V W D L Q H G Z L W K V Q R Z G L U W R U Z D W H U
W K H V H Q V R U P D \ Q R W R S H U D W H X Q W L O W K H
V W D L Q V D U H U H P R Y H G X V L Q J D V R I W F O R W K
• ' R Q R W S X V K V F U D W F K R U V W U L N H W K H
X O W U D V R Q L F V H Q V R U 6 H Q V R U G D P D J H
F R X O G R F F X U
• ' R Q R W V S U D \ W K H X O W U D V R Q L F V H Q V R U V
R U L W V V X U U R X Q G L Q J D U H D G L U H F W O \ Z L W K
D K L J K S U H V V X U H Z D V K H U
5 H P R W H 6 P D U W 3 D U N L Q J $ V V L V W
Settings
Settings features
OJK071003N OJK071003N
Warning Volume
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 516 of 647
07
7-167
• Remote Smart Parking Assist
searches for parking spaces that are
next to parked vehicles, or parking
spaces with parked vehicles in front
or rear.
• While searching for a parking space,
when vehicle speed is above 12 mph
(20 km/h), a message will appear
on the infotainment system screen
informing you to slow down. When
vehicle speed is above 18 mph (30
km/h), Parking function will turn off.
• Searching for a parking space will
be completed when there is enough
space to move the vehicle in
addition to the parking space.
• Even if an audible sound is heard
to notify that searching for a
parking space is complete, search
completion can be canceled
immediately depending on
surroundings. Information
OJX1070232NOJX1070232N[A] : Searching for parking space
• If the distance is below 1.5 ft. (50 cm)
or over 5 ft. (150 cm), Remote Smart
Parking Assist may not be able to
search for a parking space.
• If you do not maintain a certain
distance from the parked vehicle, the
performance to search for a parking
space may reduce.
• Even if a diagonal parking space is
searched as a parking space, parking is
not assisted properly.
• Due to abnormal performance of the
ultrasonic sensor or the influence of
the surroundings, Parking function
may not be able to search for a parking
space even if there is a parking space,
or may search for a space that is not
suitable for parking.
Page 524 of 647
07
7-175
& K H F N L Q J V S D F H
OJK070151L OJK070151L
(1) When the vehicle is stopped by
depressing the brake pedal, the
vehicle sensors will detect the
distance from nearby objects and
check for space to exit.
(2) When checking for space is
complete, a message will appear
on the infotainment system screen
with an audible sound to notify the
search is complete.
: $ 5 1 , 1 *
• : K L O H F K H F N L Q J I R U V S D F H L I W K H U H L V
D U L V N R I F R O O L V L R Q Z L W K S H G H V W U L D Q
D Q L P D O R U R E M H F W L Q W K H G L U H F W L R Q R I
Y H K L F O H H [ L W I R U \ R X U V D I H W \ 6 P D U W
( [ L W I X Q F W L R Q F D Q E H W X U Q H G R I I
• ( Y H Q L I F K H F N L Q J I R U V S D F H L V
F R P S O H W H G R E M H F W V L Q W K H E O L Q G V S R W
D U H D F D Q Q R W E H G H W H F W H G E \ W K H
V H Q V R U V 7 K H G U L Y H U P X V W G L U H F W O \
F K H F N W K H E O L Q G V S R W D U H D D Q G
F R Q W L Q X H X V L Q J W K H I X Q F W L R Q
Information
Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not
be able to search for a parking space even
if there is a parking space, or may search
for a space that is not suitable for parking.
6 H O H F W H [ L W G L U H F W L R Q
OJK070152LOJK070152L
(1) With the vehicle stopped by
depressing the brake pedal, the
infotainment system screen
displays the possible directions for
parallel exit.
(2) Touch the infotainment system
screen or use the central controller
to select the desired exit direction.
& $ 8 7 , 2 1
• % H I R U H V H O H F W L Q J W K H ( [ L W ' L U H F W L R Q
W K H G U L Y H U V K R X O G F K H F N Z K H W K H U W K H
V S D F H I R U H [ L W L V V X L W D E O H
• , I W K H V H D U F K H G H [ L W V S D F H E \ 5 H P R W H
6 P D U W 3 D U N L Q J $ V V L V W L V Q D U U R Z R U
X Q V X L W D E O H V X U U R X Q G L Q J Y H K L F O H V D U H
S D U N H G Y H U W L F D O O \ H W F G R Q R W X V H
W K H 6 P D U W ( [ L W I X Q F W L R Q
Page 528 of 647
07
7-179
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.
• An object is attached to the steering
wheel
• The vehicle is installed with a snow
chain, spare tire or different size
wheel
• Tire pressure is lower or higher than
the standard tire pressure
• Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle
• There is a problem with the wheel
alignment
• Your vehicle is leaned severely to one
side
• Your vehicle is equipped with a trailer
hitch
• The license plate is installed
differently from the original location
• There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated
• The parking space is curved or
diagonal
• There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar etc.) near the parking space • There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc. near the
parking space
• The road surface is bumpy (curbstone,
speed bump, etc.)
• The road is slippery
• The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.
• The parking space is Inclined
• There is heavy wind
• Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.
• The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather
• The ultrasonic sensor is covered with
snow or water
• An object that generates ultrasonic
waves is nearby
• A wireless device with a transmission
function operates near the ultrasonic
sensors
• Your vehicle is affected by another
vehicle’s Parking Distance Warning
• The sensor is mounted or positioned
incorrectly by an impact to the
bumper
• When the ultrasonic sensor cannot
detect the following objects:
- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 40 in. (100 cm)
in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb
sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of
a square pillar
- Person, animal or object near the
ultrasonic sensor
Page 529 of 647
Driver Assistance System
7-180
Remote Smart Parking Assist may not
operate properly under the following
circumstances:
• Parking on inclines
OJK071070NOJK071070N
Park manually when parking on
inclines.
• Parking in snow
OJK071074NOJK071074N
Snow may interfere with sensor
operation, or Remote Smart Parking
Assist may cancel if the road is
slippery while parking.• Parking on uneven road
OJK071071NOJK071071N
Remote Smart Parking Assist may
cancel when the vehicle slips, or
the vehicle cannot move due to
road conditions such as pebbles or
fragmented stones.
• Parking behind a truck
OJK071072NOJK071072N
Do not use Remote Smart Parking
Assist around vehicles with higher
ground clearance, such as a bus,
truck, etc. It may lead to an accident.
Page 545 of 647
Emergency Situations
8-12
Changing a Tire with TPMS
If you have a flat tire, the Low Tire Pressure and Position telltales will come on. Have the flat tire repaired by an authorized retailer of Genesis Branded products as soon as possible or replace the flat tire with the spare tire.
NOTICE
It is recommended that you do not use a puncture-repairing agent not approved by an authorized retailer of Genesis Branded products to repair and/or inflate a low pressure tire. Tire sealant not approved by an authorized retailer of Genesis Branded products may damage the tire pressure sensor.
The spare tire does not come with a tire pressure monitoring sensor. When the low pressure tire or the flat tire is replaced with the spare tire, the Low Tire Pressure LCD position indicator will remain on. Also, the TPMS Malfunction Indicator will illuminate after blinking for one minute if the vehicle is driven at speed above 15.5 mph (25 km/h) for approximately 20 minutes.
Once the original wheel equipped with a tire pressure monitoring sensor is reinflated to the recommended pressure and reinstalled on the vehicle, the Low Tire Pressure Telltale and TPMS Malfunction Indicator will go off within a few minutes of driving.
If the indicators do not extinguish after a few minutes, please visit an authorized retailer of Genesis Branded products.
Each wheel is equipped with a tire pressure sensor mounted inside the tire behind the valve stem (except for the spare tire). You must use TPMS specific wheels. It is recommended that you always have your tires serviced by an authorized retailer of Genesis Branded products.
You may not be able to identify a tire with low pressure by simply looking at it. Always use a good quality tire pressure gauge to measure. Please note that a tire that is hot (from being driven) will have a higher pressure measurement than a tire that is cold.
A cold tire means the vehicle has been sitting for 3 hours and driven for less than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring the inflation pressure. Always be sure the tire is cold before inflating to the recommended pressure.
WARNING
• The TPMS cannot alert you to severe and sudden tire damage caused by external factors such as nails or road debris.
• If you feel any vehicle instability, immediately take your foot off the accelerator, apply the brakes gradually with light force, and slowly move to a safe position off the road.
Page 605 of 647
Maintenance
9-48
Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
MODULE9MODULE910AOverhead Console Lamp, AMP, Driver Power Seat
Module, Low DC-DC Converter, Electro Chromic
Mirror, Data Link Connector, Passenger Power Seat
Module, Front A/C Controller, Smart Phone Wireless
Charger, Rear A/C Controller, A/V & Navigation Head
Unit, A/C Control Module, Fingerprint Recognition
Device, Rear Seat Warmer Control Module, Rear Air
Ventilation Seat Control Module
TRAILER
TRAILER30A Electronic Brake Controller
MODULE11
MODULE1110AHead Lamp LH/RH, Multifunction Switch, AC Inverter,
ADAS Unit (Parking),AC Inverter Outlet, Rear Junction
Block (Rear Wiper Relay)
MODULE12
MODULE1210A IBU, IAU
A/C3
A/C310AE/R SUB Junction Block(PTC Heater 2/3 Relay), A/C
Control Module, Incar Temperature Sensor, Rear A/C
Controller, Front A/C Controller
A/BAG IND
A/BAG
IND10A Instrument Cluster, Overhead Console Lamp
E-SHIFTER2
E-SHIFTER210A Electronic ATM Shift Lever Dial
MODULE10
MODULE1010A ICU Junction Block (ESU)
MODULE7
MODULE710ADriver Door Module, IBU, IAU, Multifunction Switch,
Stop Lamp Switch
MULTI
MEDIA
MULTI
MEDIA25A Low DC-DC Converter
MODULE13
MODULE1310AICU Junction Block (ESU), Head-Up Display, Security
Indicator, A/C Control Module, Front/Rear A/C
Controller, Crash Pad Switch, Driver Power Seat
Switch, A/V & Navigation Keyboard, Front Console
Switch, Fingerprint Recognition Device, Carnish Mood
Lamp RH, Mood Lamp Unit, Console Mood Lamp
CLUSTER
CLUSTER10A Instrument Cluster, Head-Up Display
IBU2
IBU210A IBU
Page 606 of 647
09
9-49
Instrument panel fuse panel
Fuse Name SymbolFuse
RatingCircuit Protected
AIR BAG2AIR
BAG215ASRS Control Module, Passenger Occupant Detection
Sensor
PRESAFETY
SEAT BELT3
3PRESAFETY
SEAT BELT10A Pre-Active Seat Belt Unit
MODULE8
MODULE810ARear Corner Radar LH/RH, ECS Unit, ELSD Control
Module, ADAS Driving ECU, ADAS Parking ECU,
Front View Camera, Crash Pad Switch, Steering Tilt &
Telescopic Unit
MODULE5
MODULE510A Rain Sensor
MODULE3
MODULE310AClock Spring, Steering Tilt & Telescopic Unit, Active
Air Flap Module, Multifunction Switch, Rear Occupant
Alert (ROA) Sensor
P/WINDOW
LH
P/WINDOW
LH30ADriver Power Window Module, Rear Power Window
Module LH
P/SEAT
P/SEAT10A Driver Lumbar Support Unit
P/SEAT
PASS2
P/SEAT
PASS225APassenger Power Seat Module, Passenger Power Seat
Switch
AIR BAG1
AIR
BAG115A SRS Control Module
E-SHIFTER1
E-SHIFTER110A Electronic ATM Shift Lever Dial
MODULE4
MODULE410AData Link Connector, Passenger Power Seat Switch,
Power Liftgate Unit, Driver Power Seat Module, Driver
Mood Lamp, Driver Power Seat Switch, Driver Lumbar
Support Unit, Passenger Power Seat Module
Page 610 of 647
09
9-53
Engine compartment fuse panel (Engine room junction block)
Fuse Name SymbolFuse
RatingCircuit Protected
IG1IG130A IG1 Relay
ECU3
ECU330A Engine Control Realy
IG2
IG230A IG2 Relay
ACC
ACC30A ACC Relay
ECU2
ECU210A ECM
EWP
EWP20A Electronic Water Pump
MODULE
MODULE10ASmart Cruise Control Radar, Front Corner Radar LH/
RH, AWD ECU
MDPS2
MDPS210A MDPS Unit
IEB4
IEB410A IEB Unit
TCU2
TCU215A P/N Relay, TCM, Electronic Oil Pump
SENSOR3
SENSOR310A[G4KR] Oxygen Sensor (Up/Down), E/R Sub Junction
Block (PTC Heater1 Relay)
SENSOR2
SENSOR210A[G4KR] E/R Junction Block (A/C Relay), Oil Control
Valve (Exhaust), Oil Pump Solenoid Valve, Purge
Control Solenoid Valve, RCV Control Solenoid Valve,
Canister Close Valve
[G6DS] E/R Junction Block (A/C Relay), RCV Control
Solenoid Valve #1/#2, Purge Control Solenoid Valve,
Oil Pump Solenoid Valve, Oxygen Sensor #1~#4, Oil
Control Valve #1~#4, Canister Close Valve
SENSOR1
1SENSOR10A[G4KR] Injector #1~#4, E/R Junction Block (Fuel Pump
Relay)
[G6DS] Injector #1~#6 (MPI), E/R Junction Block (Fuel
Pump Relay)
IGN COIL
IGN COIL15A[G4KR] Ignition Coil #1~#4
[G6DS] Ignition Coil #1~#6
SENSOR4
SENSOR415A Cooling Fan Motor
ECU4
ECU420A ECM
WASHER
WASHER15A Washer Relay, E/R Junction Block (Washer RR Relay)
