USB port HYUNDAI GENESIS GV70 2022 Owners Manual

2-5
02
1. Instrument cluster ..................................4-4
2. Horn .......................................................5-49
3. Driver’s front air bag .............................3-48
4. Engine Start/Stop button .......................6-5
5. Infotainment system ...........................5-139
6. Automatic climate control system .....5-103
7. Hazard warning flasher button ..............8-2
8. Passenger’s front air bag .....................3-48
9. Glove box .............................................5-124
10. Wireless charging system indicator ...5-130
11. USB port ...............................................5-138
12. USB charger .........................................5-128
13. Wireless charging system pad ............5-130
14. Cup holder ...........................................5-126
15. Rotary shifter
(Rotary gear shift dial) ............................6-11
16. Auto Hold button ..................................6-25
17. Drive mode button ...............................6-53
18. Parking/View button ............................7-122
19. Parking Safety button ..........................7-146
20. Rear seat climate control ....................5-107
21. Rear seat USB charger ........................5-128
22. AC inverter ...........................................5-129
The actual shape may differ from the illustration.
OJK010004OJK010004

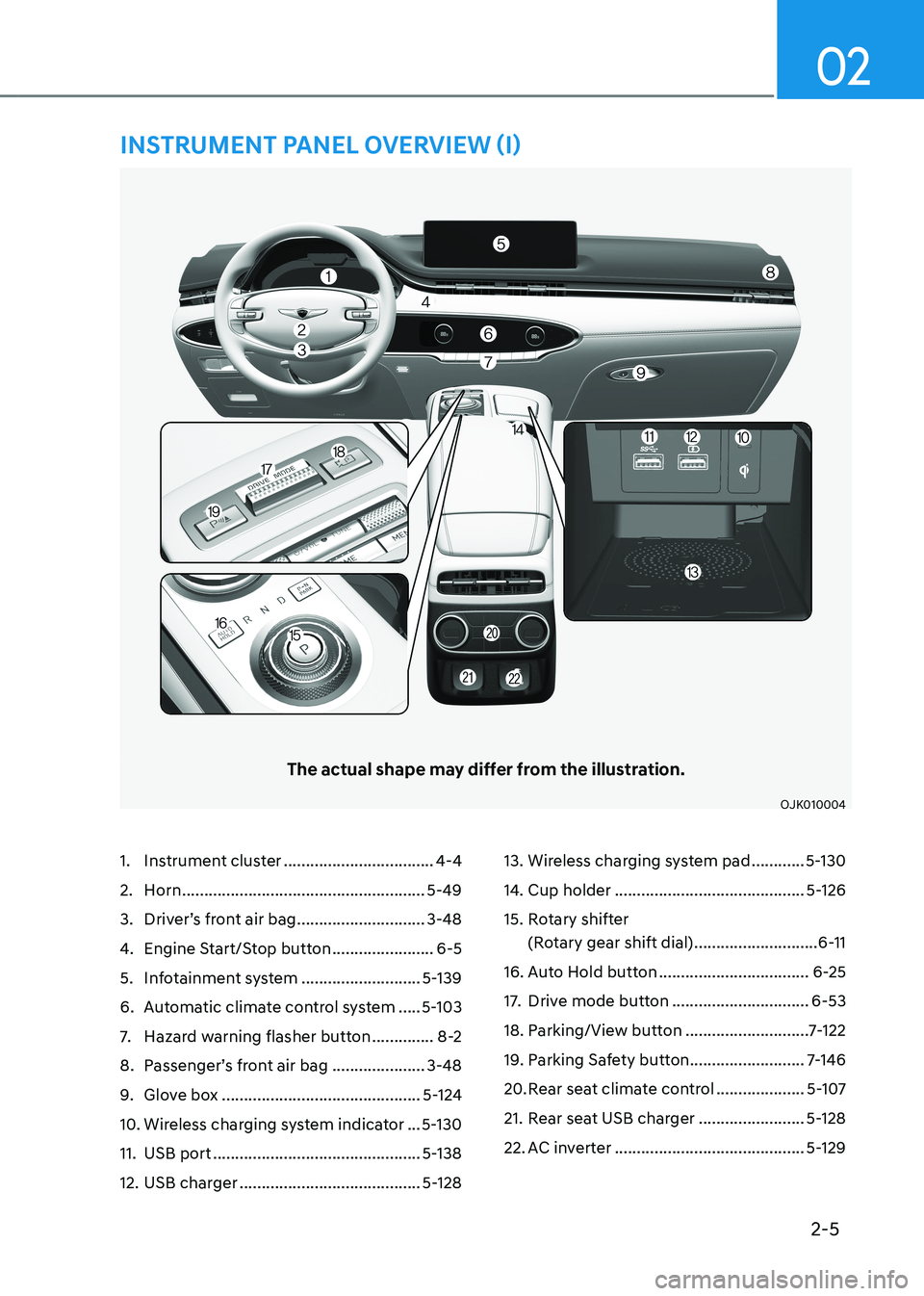

INSTRUMENT PANEL OVERVIEW (I)

5
Storage Compartment ................................................................................... 5-124Center Console Storage ........................................................................................... 5-124
Glove Box .................................................................................................................. 5-124
Sunglass Holder ........................................................................................................5-125
Mobile Phone Holder ................................................................................................5-125
Interior Features ............................................................................................. 5-126Cup Holder ................................................................................................................ 5-126
Sunvisor ..................................................................................................................... 5-127
Power Outlet .............................................................................................................. 5-127
USB Charger ............................................................................................................. 5-128
AC Inverter ................................................................................................................ 5-129
Wireless Smart Phone Charging System ................................................................ 5-130
Clock ..........................................................................................................................5-132
Coat Hook ..................................................................................................................5-132
Floor Mat Anchor(s) .................................................................................................. 5-133
Rear Side Window Sunshades ................................................................................. 5-134
Cargo Net Holder ..................................................................................................... 5-134
Cargo Security Screen ..............................................................................................5-135
Exterior Features ............................................................................................ 5-137
Roof Side Rails ...........................................................................................................5-137
Infotainment System ..................................................................................... 5-138USB Port .................................................................................................................... 5-138
Antenna ..................................................................................................................... 5-138
Steering Wheel Remote Controls ........................................................................... 5-138
Infotainment System ................................................................................................ 5-139
Voice Recognition .................................................................................................... 5-139
Bluetooth® Wireless Technology ............................................................................. 5-140
Lexicon Premium Sound System ............................................................................ 5-140

Convenience Features

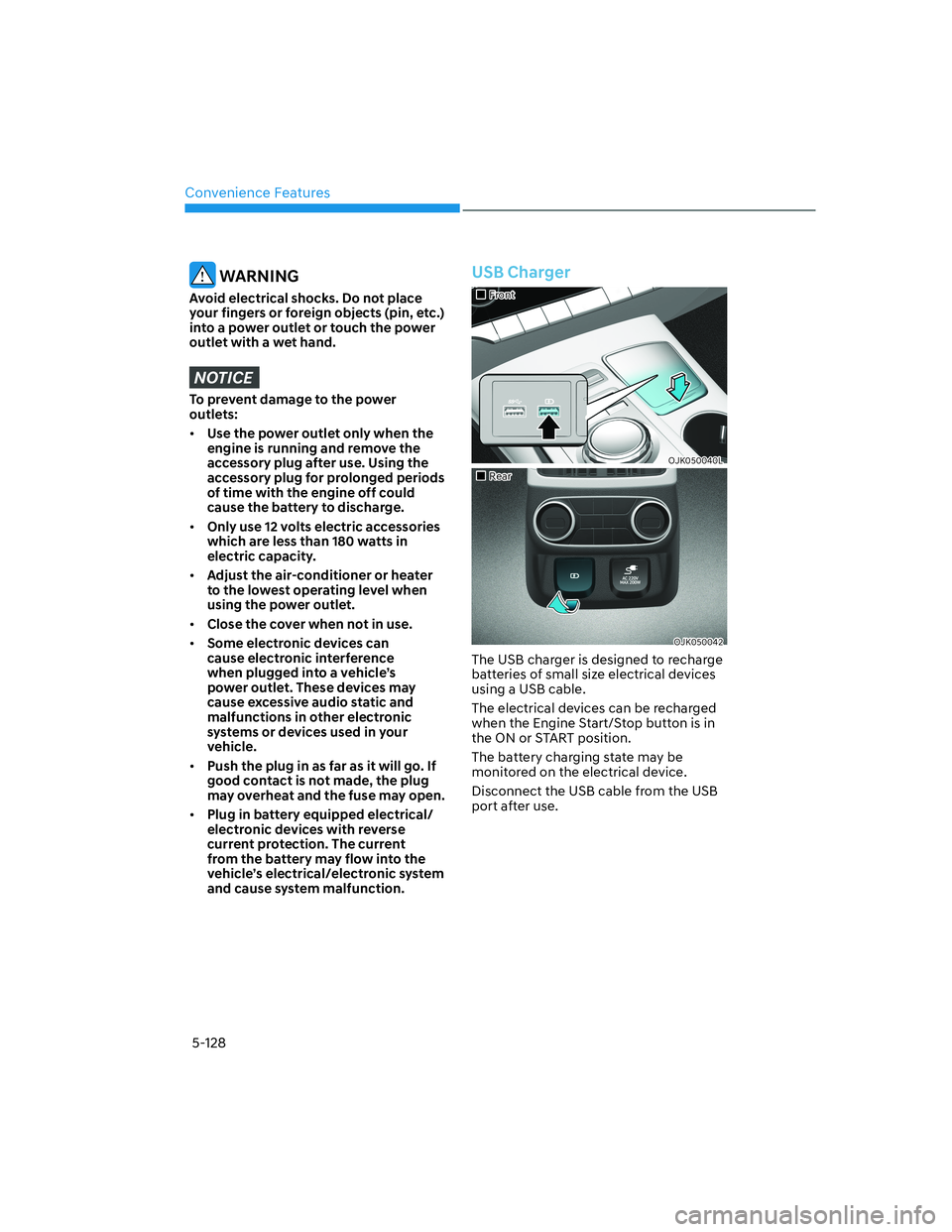

5-128
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
NOTICE
To prevent damage to the power
outlets:
• Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
• Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.
• Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.
• Close the cover when not in use.
• Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.
• Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.
• Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
USB Charger
„„FrontFront
OJK050040LOJK050040L
„„RearRear
OJK050042OJK050042
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the Engine Start/Stop button is in
the ON or START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.

Convenience Features

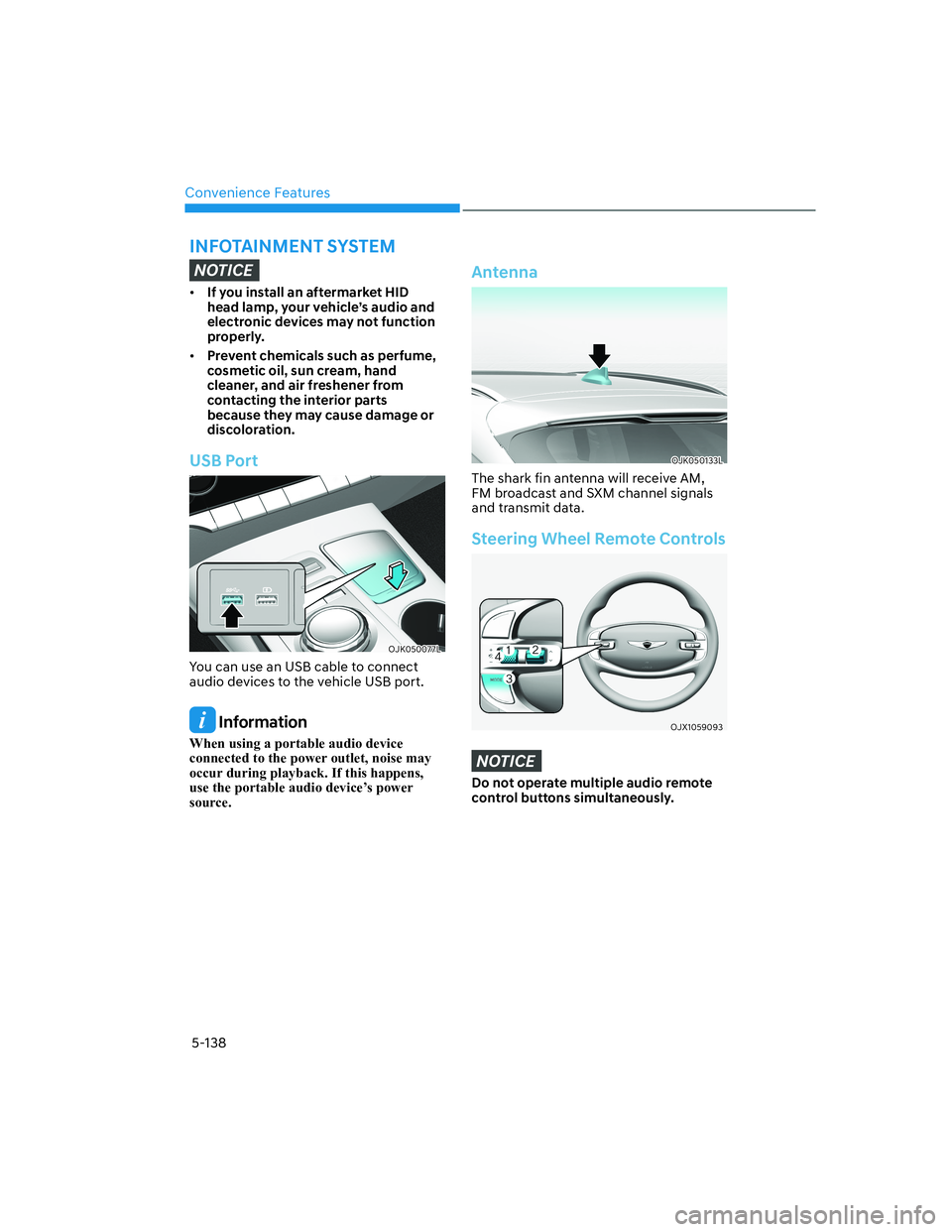

5-138
NOTICE
• If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.
• Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
OJK050077LOJK050077L
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
:KHQXVLQJDSRUWDEOHDXGLRGHYLFH
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.
Antenna
OJK050133LOJK050133L
The shark fin antenna will receive AM,
FM broadcast and SXM channel signals
and transmit data.
Steering Wheel Remote Controls
OJX1059093OJX1059093
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
INFOTAINMENT SYSTEM

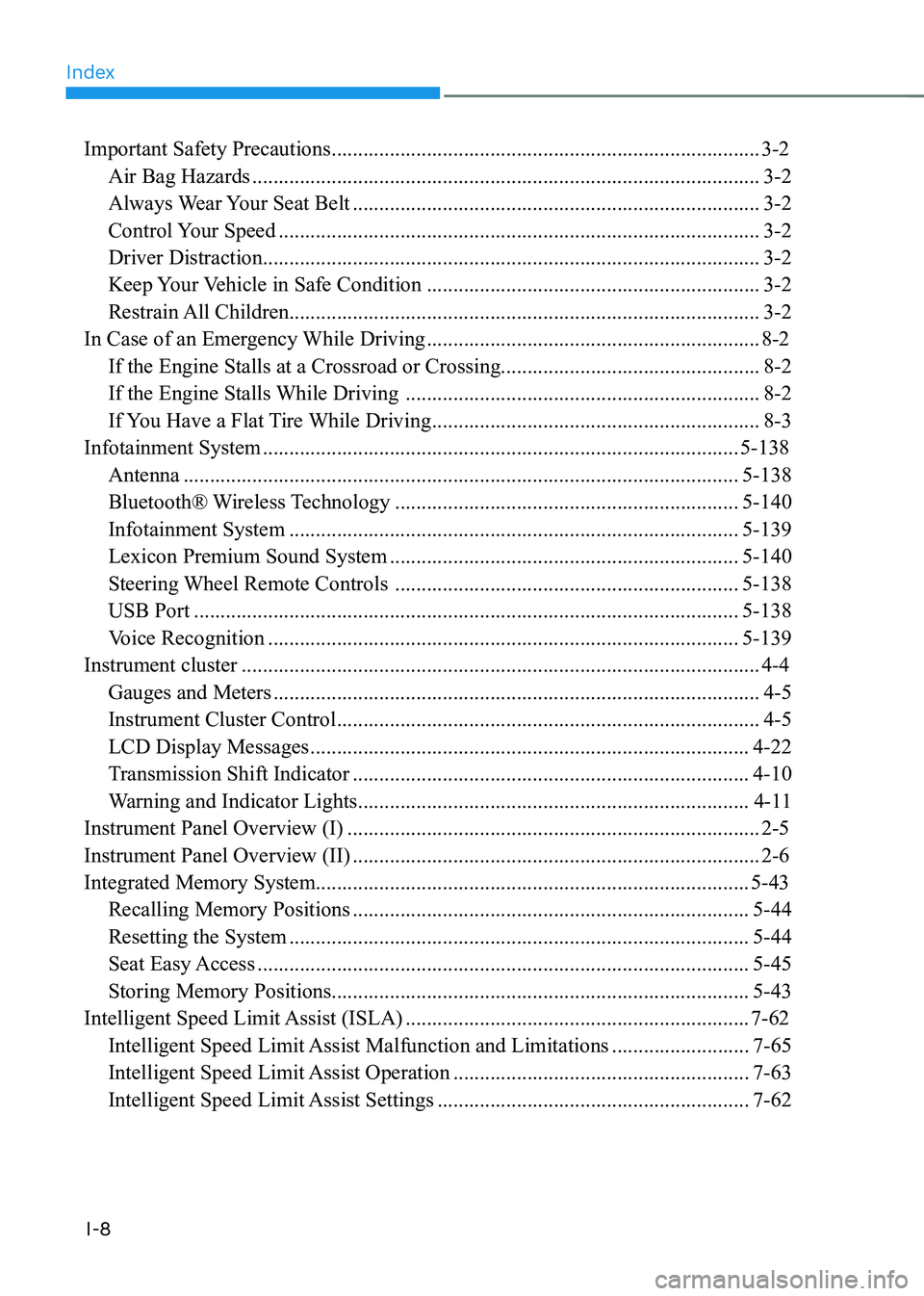

Index
I-8
Important Safety Precautions ........................................................................\
.........3-2
Air Bag Hazards ........................................................................\
........................3-2
Always Wear Your Seat Belt ........................................................................\
.....3-2
Control Your Speed ........................................................................\
...................3-2
Driver Distraction........................................................................\
......................3-2
Keep Your Vehicle in Safe Condition ...............................................................3-2
Restrain All Children........................................................................\
.................3-2
In Case of an Emergency While Driving ...............................................................8-2
If the Engine Stalls at a Crossroad or Crossing.................................................8-2
If the Engine Stalls While Driving ...................................................................8-2
If You Have a Flat Tire While Driving ..............................................................8-3
Infotainment System ........................................................................\
..................5-138
Antenna ........................................................................\
.................................5-138
Bluetooth® Wireless Technology .................................................................5-140
Infotainment System ........................................................................\
.............5-139
Lexicon Premium Sound System ..................................................................5-140
Steering Wheel Remote Controls .................................................................5-138
USB Port ........................................................................\
...............................5-138
Voice Recognition ........................................................................\
.................5-139
Instrument cluster ........................................................................\
..........................4-4
Gauges and Meters ........................................................................\
....................4-5
Instrument Cluster Control ........................................................................\
........4-5
LCD Display Messages ........................................................................\
...........4-22
Transmission Shift Indicator ........................................................................\
...4-10
Warning and Indicator Lights ........................................................................\
..4-11
Instrument Panel Overview (I) ........................................................................\
......2-5
Instrument Panel Overview (II) ........................................................................\
.....2-6
Integrated Memory System........................................................................\
..........5-43
Recalling Memory Positions ........................................................................\
...5-44
Resetting the System ........................................................................\
...............5-44
Seat Easy Access ........................................................................\
.....................5-45
Storing Memory Positions........................................................................\
.......5-43
Intelligent Speed Limit Assist (ISLA) .................................................................7-62
Intelligent Speed Limit Assist Malfunction and Limitations ..........................7-65
Intelligent Speed Limit Assist Operation ........................................................7-63
Intelligent Speed Limit Assist Settings ...........................................................7-62
