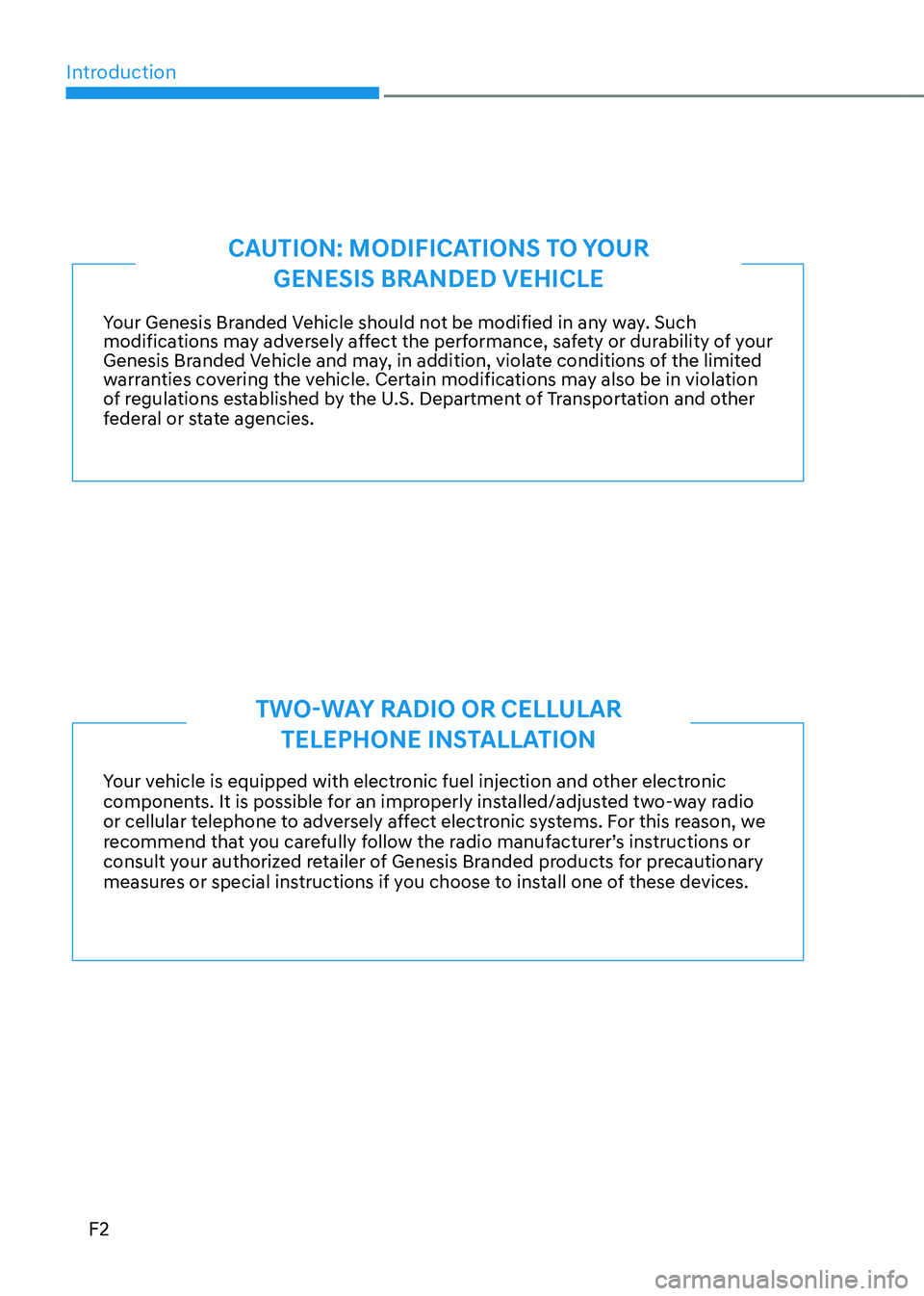

Page 2 of 647
Introduction
F2
Your Genesis Branded Vehicle should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Genesis Branded Vehicle and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies.
Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer’s instructions or consult your authorized retailer of Genesis Branded products for precautionary measures or special instructions if you choose to install one of these devices.
CAUTION: MODIFICATIONS TO YOUR
GENESIS BRANDED VEHICLE
TWO-WAY RADIO OR CELLULAR
TELEPHONE INSTALLATION

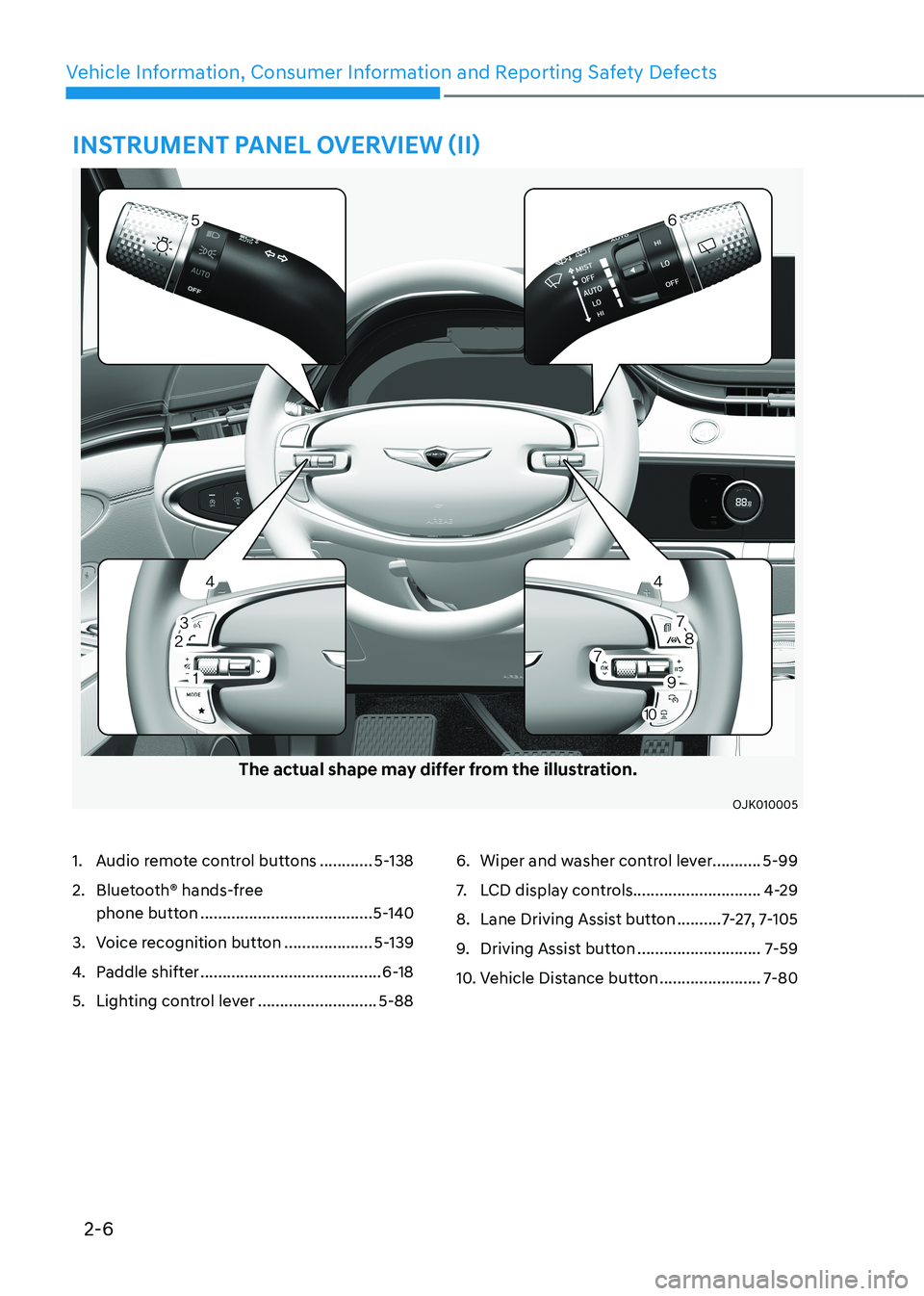

Page 18 of 647
2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
INSTRUMENT PANEL OVERVIEW (II)
The actual shape may differ from the illustration.
OJK010005OJK010005
1. Audio remote control buttons ............5-138
2. Bluetooth® hands-free
phone button .......................................5-140
3. Voice recognition button ....................5-139
4. Paddle shifter .........................................6-18
5. Lighting control lever ...........................5-88
6. Wiper and washer control lever...........5-99
7. LCD display controls.............................4-29
8. Lane Driving Assist button ..........7-27, 7-105
9. Driving Assist button ............................7-59
10. Vehicle Distance button .......................7-80

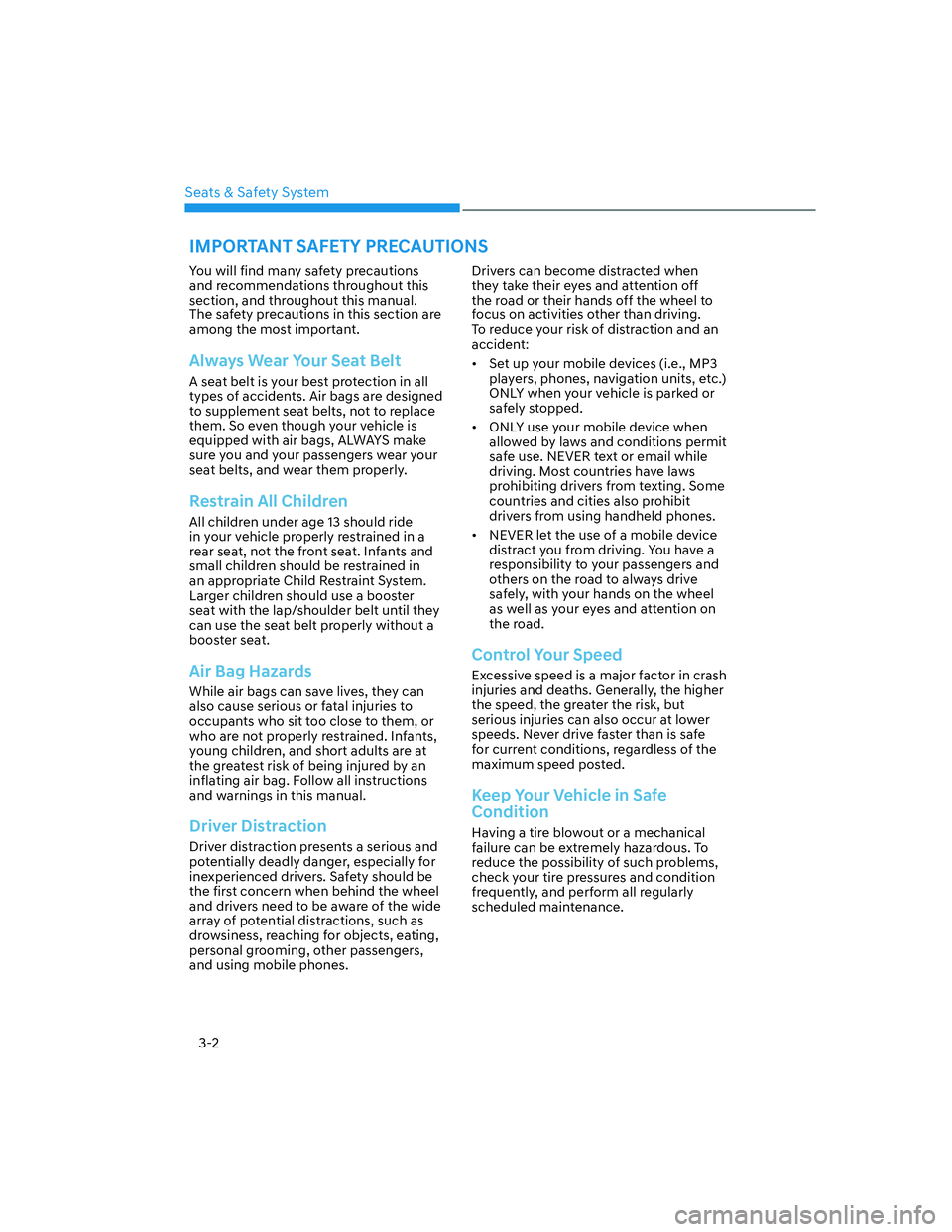

Page 30 of 647
Seats & Safety System
3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:
• Set up your mobile devices (i.e., MP3
players, phones, navigation units, etc.)
ONLY when your vehicle is parked or
safely stopped.
• ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS
Page 77 of 647
03
3-49
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:
• Seat belts must be worn at all times
to help keep occupants positioned
properly.
• Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.
• Never lean against the door or center
console.
• Do not allow the front passenger
to place their feet or legs on the
dashboard.
• No objects (such as crash pad
cover, mobile phone holder, cup
holder, perfume or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.
• Do not attach any objects on the
front windshield and inside mirror.
Side air bags and front center air
bag
„ „Side air bagSide air bag
OJX1039073OJX1039073
„ „Front center air bag (Driver’s seat)Front center air bag (Driver’s seat)
OJX1039074OJX1039074
OJK030034OJK030034
Your vehicle is equipped with a side air
bag in each front seat. Additionally, a
front center air bag is provided in the
inboard side of the driver seatback. The
purpose of the air bag is to provide the
vehicle’s additional protection than that
offered by the seat belt alone.
Page 122 of 647
Instrument Cluster
4-26
Digital key(s) active
This message is displayed for 4 seconds
when a smartphone key or NFC card
key is registered, and vehicle doors are
locked and unlocked after more than
10 minutes and the Engine Start/Stop
button is placed to the ON position. The
message is not displayed again until
more than 10 minutes have passed after
the doors are relocked.
Biometric authentication active
This message is displayed for 4 seconds
when the Engine Start/Stop button is
placed to the ON or START position with
the fingerprint registered, and ‘Start
Vehicle’ selected from the Settings menu
in the infotainment system screen.
Digital key/ Biometric
authentication active
This message is displayed for 4 seconds
when the Engine Start/Stop button is
placed to the ON or START position with
the digital key and fingerprint registered,
and ‘Start Vehicle’ selected from the
Settings menu in the infotainment
system screen.
Check user authentication system
This message is displayed if there
is a problem with the Digital Key or
Fingerprint Authentication System. Have
the system inspected by an authorized
retailer of Genesis Branded products.
Door, Hood, Liftgate open indicator
OJK040001OJK040001
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate is
fully closed.
Sunroof open indicator (if equipped)
OJK040002OJK040002
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.

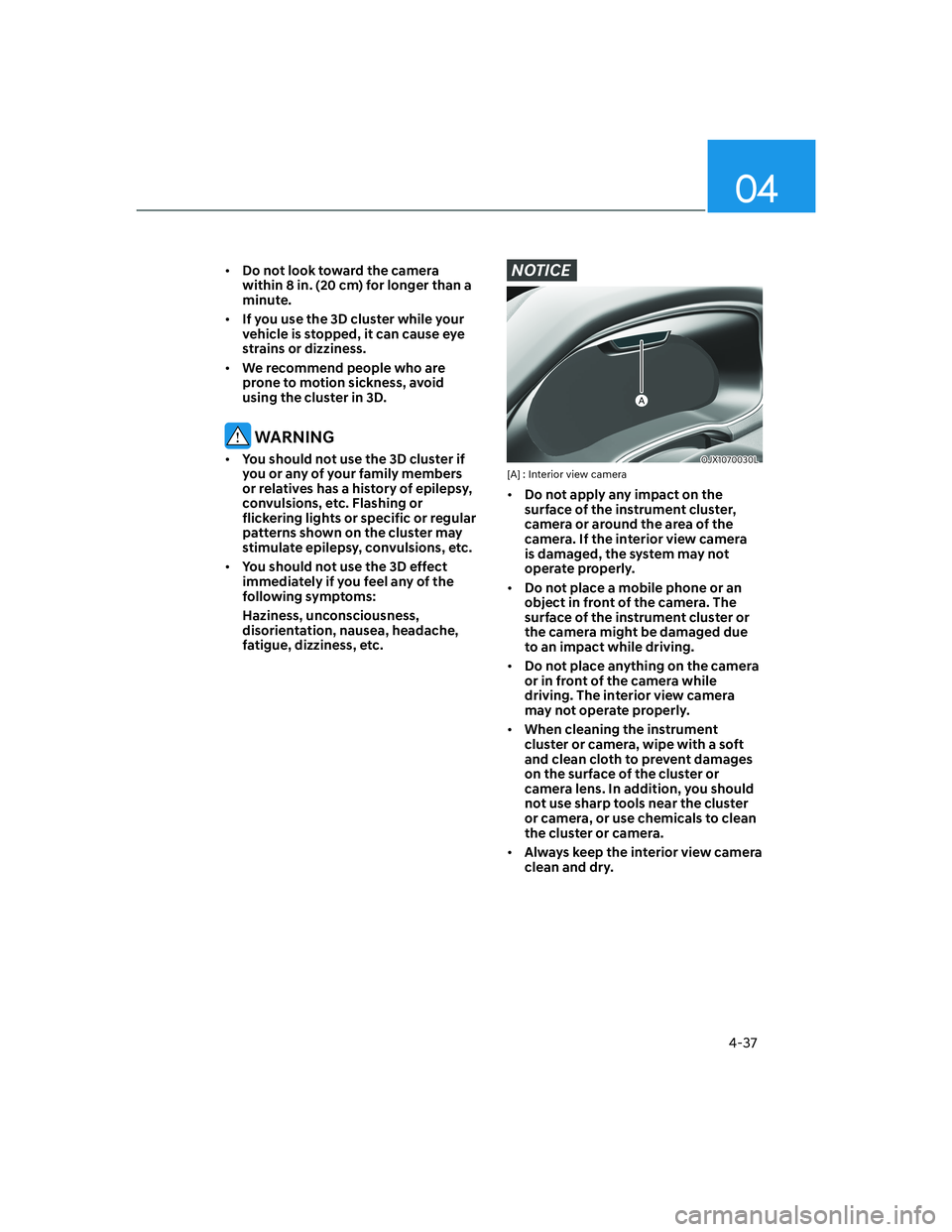

Page 133 of 647
04
4-37
• Do not look toward the camera
within 8 in. (20 cm) for longer than a
minute.
• If you use the 3D cluster while your
vehicle is stopped, it can cause eye
strains or dizziness.
• We recommend people who are
prone to motion sickness, avoid
using the cluster in 3D.
WARNING
• You should not use the 3D cluster if
you or any of your family members
or relatives has a history of epilepsy,
convulsions, etc. Flashing or
flickering lights or specific or regular
patterns shown on the cluster may
stimulate epilepsy, convulsions, etc.
• You should not use the 3D effect
immediately if you feel any of the
following symptoms:
Haziness, unconsciousness,
disorientation, nausea, headache,
fatigue, dizziness, etc.
NOTICE
OJX1070030LOJX1070030L[A] : Interior view camera
• Do not apply any impact on the
surface of the instrument cluster,
camera or around the area of the
camera. If the interior view camera
is damaged, the system may not
operate properly.
• Do not place a mobile phone or an
object in front of the camera. The
surface of the instrument cluster or
the camera might be damaged due
to an impact while driving.
• Do not place anything on the camera
or in front of the camera while
driving. The interior view camera
may not operate properly.
• When cleaning the instrument
cluster or camera, wipe with a soft
and clean cloth to prevent damages
on the surface of the cluster or
camera lens. In addition, you should
not use sharp tools near the cluster
or camera, or use chemicals to clean
the cluster or camera.
• Always keep the interior view camera
clean and dry.

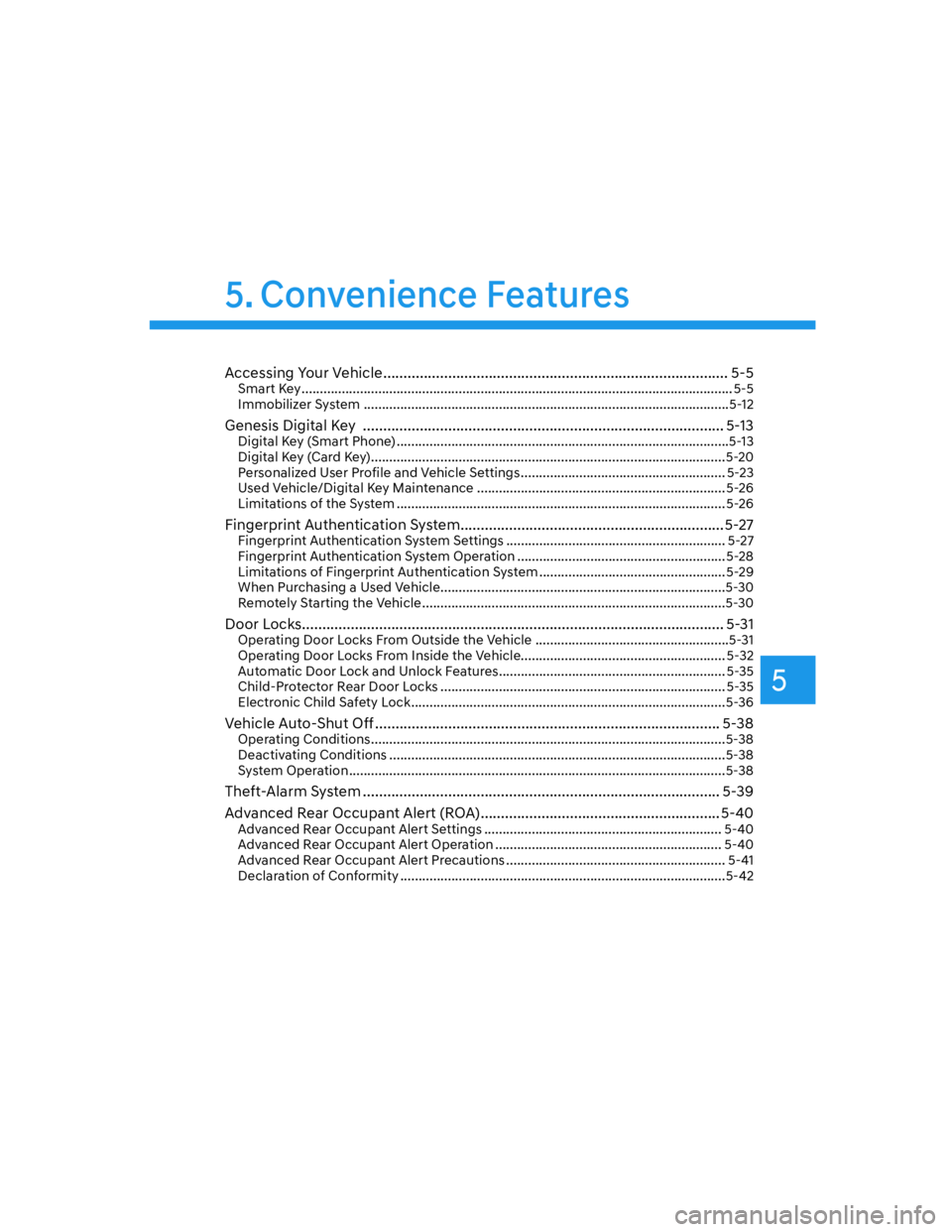

Page 135 of 647
5
Accessing Your Vehicle ..................................................................................... 5-5Smart Key ...................................................................................................................... 5-5
Immobilizer System ....................................................................................................5-12
Genesis Digital Key ......................................................................................... 5-13
Digital Key (Smart Phone) ...........................................................................................5-13
Digital Key (Card Key) .................................................................................................5-20
Personalized User Profile and Vehicle Settings ........................................................ 5-23
Used Vehicle/Digital Key Maintenance .................................................................... 5-26
Limitations of the System .......................................................................................... 5-26
Fingerprint Authentication System .................................................................5-27Fingerprint Authentication System Settings ............................................................ 5-27
Fingerprint Authentication System Operation ......................................................... 5-28
Limitations of Fingerprint Authentication System ................................................... 5-29
When Purchasing a Used Vehicle ..............................................................................5-30
Remotely Starting the Vehicle ...................................................................................5-30
Door Locks ........................................................................................................ 5-31Operating Door Locks From Outside the Vehicle .....................................................5-31
Operating Door Locks From Inside the Vehicle........................................................ 5-32
Automatic Door Lock and Unlock Features .............................................................. 5-35
Child-Protector Rear Door Locks .............................................................................. 5-35
Electronic Child Safety Lock ......................................................................................5-36
Vehicle Auto-Shut Off ..................................................................................... 5-38Operating Conditions .................................................................................................5-38
Deactivating Conditions ............................................................................................5-38
System Operation .......................................................................................................5-38
Theft-Alarm System ........................................................................................ 5-39
Advanced Rear Occupant Alert (ROA) ........................................................... 5-40
Advanced Rear Occupant Alert Settings ................................................................. 5-40
Advanced Rear Occupant Alert Operation .............................................................. 5-40
Advanced Rear Occupant Alert Precautions ............................................................ 5-41
Declaration of Conformity .........................................................................................5-42
5. Convenience Features

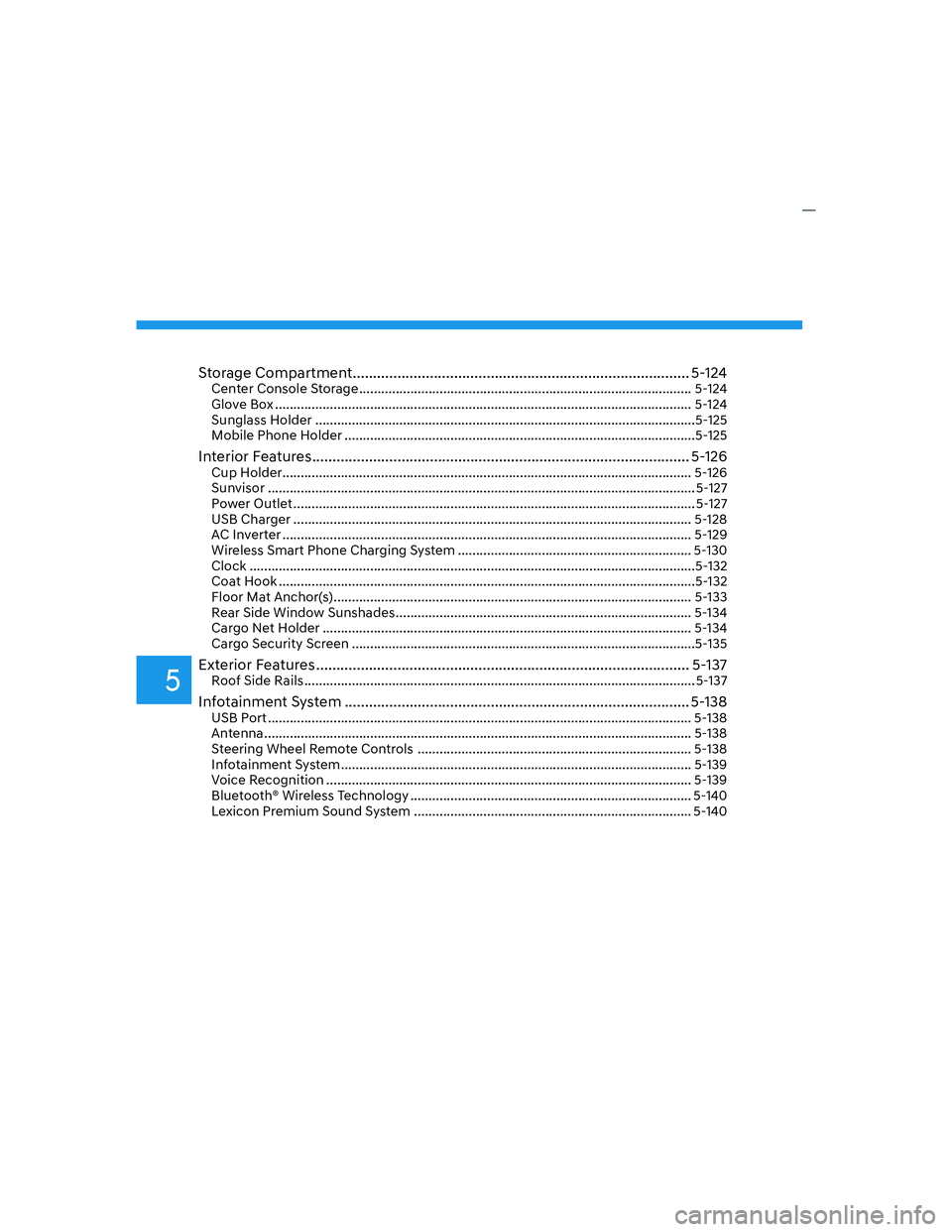

Page 138 of 647
5
Storage Compartment ................................................................................... 5-124Center Console Storage ........................................................................................... 5-124
Glove Box .................................................................................................................. 5-124
Sunglass Holder ........................................................................................................5-125
Mobile Phone Holder ................................................................................................5-125
Interior Features ............................................................................................. 5-126Cup Holder ................................................................................................................ 5-126
Sunvisor ..................................................................................................................... 5-127
Power Outlet .............................................................................................................. 5-127
USB Charger ............................................................................................................. 5-128
AC Inverter ................................................................................................................ 5-129
Wireless Smart Phone Charging System ................................................................ 5-130
Clock ..........................................................................................................................5-132
Coat Hook ..................................................................................................................5-132
Floor Mat Anchor(s) .................................................................................................. 5-133
Rear Side Window Sunshades ................................................................................. 5-134
Cargo Net Holder ..................................................................................................... 5-134
Cargo Security Screen ..............................................................................................5-135
Exterior Features ............................................................................................ 5-137
Roof Side Rails ...........................................................................................................5-137
Infotainment System ..................................................................................... 5-138USB Port .................................................................................................................... 5-138
Antenna ..................................................................................................................... 5-138
Steering Wheel Remote Controls ........................................................................... 5-138
Infotainment System ................................................................................................ 5-139
Voice Recognition .................................................................................................... 5-139
Bluetooth® Wireless Technology ............................................................................. 5-140
Lexicon Premium Sound System ............................................................................ 5-140

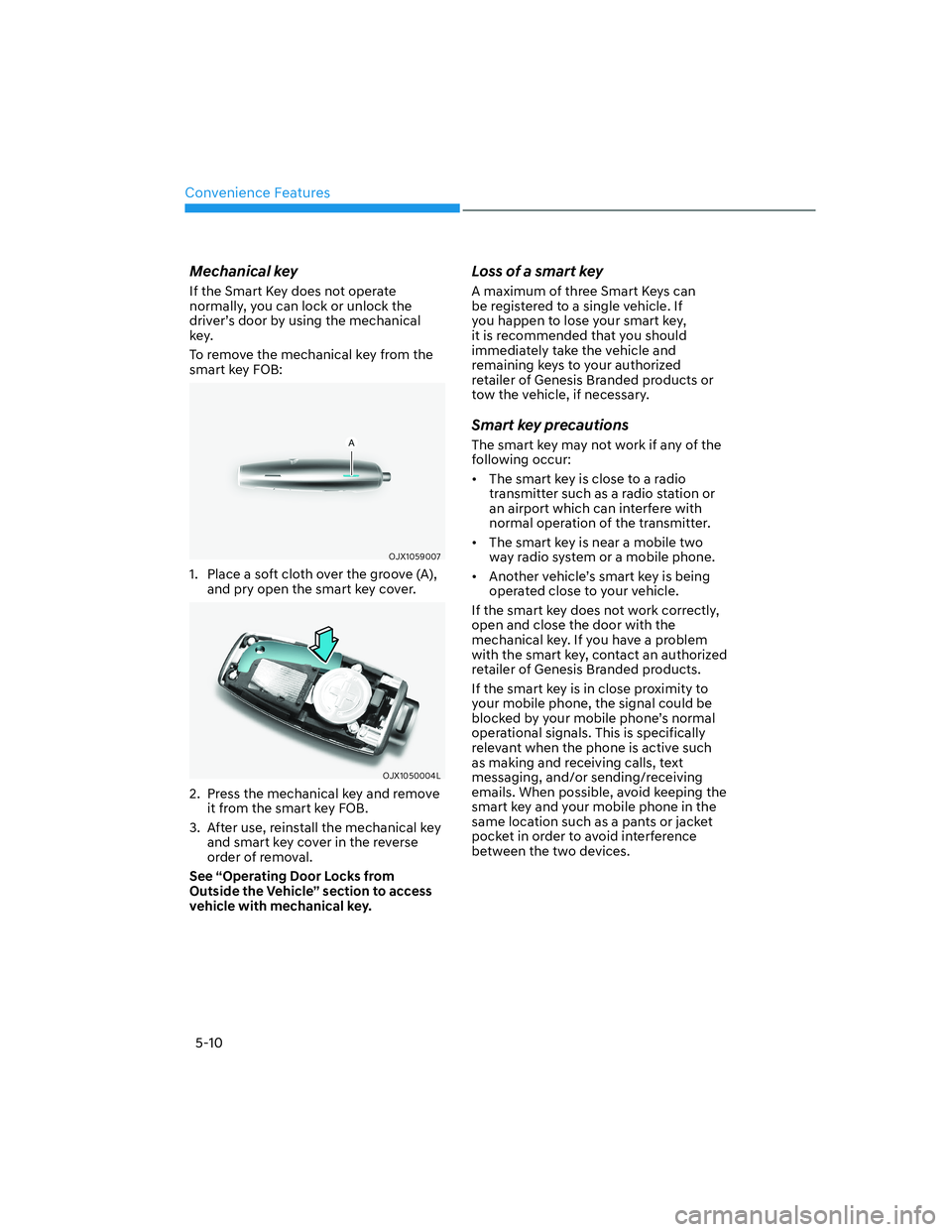

Page 144 of 647
Convenience Features
5-10
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To remove the mechanical key from the
smart key FOB:
OJX1059007OJX1059007
1. Place a soft cloth over the groove (A),
and pry open the smart key cover.
OJX1050004LOJX1050004L
2. Press the mechanical key and remove
it from the smart key FOB.
3. After use, reinstall the mechanical key
and smart key cover in the reverse
order of removal.
See “Operating Door Locks from
Outside the Vehicle” section to access
vehicle with mechanical key.
Loss of a smart key
A maximum of three Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key,
it is recommended that you should
immediately take the vehicle and
remaining keys to your authorized
retailer of Genesis Branded products or
tow the vehicle, if necessary.
Smart key precautions
The smart key may not work if any of the
following occur:
• The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
• The smart key is near a mobile two
way radio system or a mobile phone.
• Another vehicle’s smart key is being
operated close to your vehicle.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, contact an authorized
retailer of Genesis Branded products.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the
same location such as a pants or jacket
pocket in order to avoid interference
between the two devices.

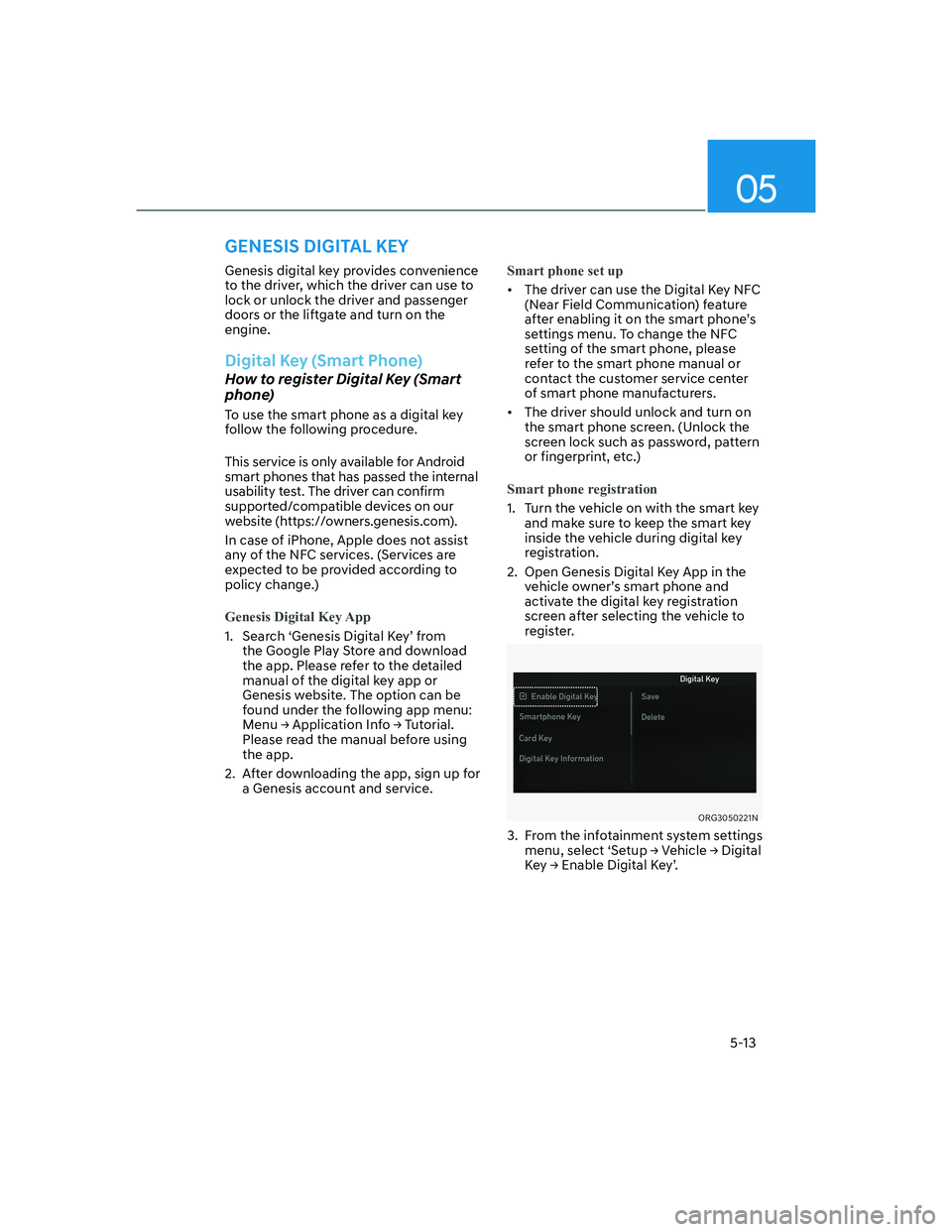

Page 147 of 647
05
5-13
GENESIS DIGITAL KEY
Genesis digital key provides convenience
to the driver, which the driver can use to
lock or unlock the driver and passenger
doors or the liftgate and turn on the
engine.
Digital Key (Smart Phone)
How to register Digital Key (Smart
phone)
To use the smart phone as a digital key
follow the following procedure.
This service is only available for Android
smart phones that has passed the internal
usability test. The driver can confirm
supported/compatible devices on our
website (https://owners.genesis.com).
In case of iPhone, Apple does not assist
any of the NFC services. (Services are
expected to be provided according to
policy change.)
Genesis Digital Key App
1. Search ‘Genesis Digital Key’ from
the Google Play Store and download
the app. Please refer to the detailed
manual of the digital key app or
Genesis website. The option can be
found under the following app menu:
0 H Q X
