Page 99 of 647
4
4. Instrument Cluster
Check user authentication system .........................................................................4-26
Door, Hood, Liftgate open indicator .......................................................................4-26
Sunroof open indicator ............................................................................................4-26
Low tire pressure ..................................................................................................... 4-27
Lights ........................................................................................................................4-27
Wiper ........................................................................................................................ 4-27
Low washer fluid ......................................................................................................4-28
Low fuel ....................................................................................................................4-28
Low engine oil ..........................................................................................................4-28
Engine overheated ...................................................................................................4-28
Check haptic steering wheel system .....................................................................4-28
Check headlight .......................................................................................................4-28
Check turn signal .....................................................................................................4-28
Check headlamp LED ..............................................................................................4-28
LCD display ...................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Turn By Turn (TBT) view .......................................................................................... 4-30
Utility view ............................................................................................................... 4-30
Additional information display ................................................................................4-33
Option Menu ...............................................................................................................4-34
Service messages ....................................................................................................4-34
3D cluster (for 12.3-inch 3D cluster) .......................................................................4-34
Head-up display ....................................................................................................... 4-35
Driver Assistance settings ....................................................................................... 4-35
Speed unit ............................................................................................................... 4-35
3D Instrument Cluster (for 12.3- Inch 3D Cluster) .................................................... 4-35
3D cluster setting ..................................................................................................... 4-35
Recommendations to optimize the 3D effect .......................................................4-36
Vehicle Settings (infotainment system) ........................................................ 4-38Setting Your Vehicle ...................................................................................................4-38
Page 124 of 647
Instrument Cluster
4-28
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Low fuel
This message is displayed if the fuel tank
is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended Lubricants and
Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
Information
After adding engine oil, if you travel
approximately 31~62 miles (50~100 km)
after the engine warms up, the warning
message should disappear.
If the warning message remains on, have
the vehicle inspected by an authorized
retailer of Genesis Branded products as
soon as possible.
Engine overheated
This message is displayed when the
engine coolant temperature is above
approximately 248°F (120°C). This means
that the engine is overheated and may
be damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check turn signal
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same wattage
rating.
Check headlamp LED (if equipped)
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Page 137 of 647
5
Head-Up Display (HUD).................................................................................. 5-86Head-Up Display Settings ........................................................................................ 5-86
Head-Up Display Information .................................................................................. 5-86
Precautions While Using the Head-Up Display ........................................................ 5-87
Lighting ............................................................................................................ 5-88Exterior Lights ........................................................................................................... 5-88
Interior Lights .............................................................................................................5-92
Welcome System ........................................................................................................5-95
High Beam Assist (HBA) ................................................................................. 5-96
High Beam Assist Settings ........................................................................................ 5-96
High Beam Assist Operation ...................................................................................... 5-97
High Beam Assist Malfunction and Limitations ....................................................... 5-97
Wipers and Washers ....................................................................................... 5-99
Front Windshield Wipers .......................................................................................... 5-99
Front Windshield Washers ....................................................................................... 5-100
Rear Window Wiper and Washer ............................................................................ 5-102
Automatic Climate Control System ..............................................................5-103Automatic Temperature Control Mode ................................................................... 5-105
Manual Temperature Control Mode ........................................................................ 5-106
System Operation ...................................................................................................... 5-114
System Maintenance ................................................................................................ 5-116
Windshield Defrosting and Defogging ......................................................... 5-118To Defog Inside Windshield ...................................................................................... 5-118
To Defrost Outside Windshield ................................................................................. 5-119
Defogging Logic ........................................................................................................ 5-119
Rear Window Defroster............................................................................................ 5-120
Climate Control Additional Features ............................................................. 5-121
Auto Defogging System ............................................................................................ 5-121
Auto Dehumidify .......................................................................................................5-122
Recirculating Air When Washer Fluid Is Used .........................................................5-123
Sunroof Inside Air Recirculation ...............................................................................5-123
Scheduled Ventilation Control .................................................................................5-123
5. Convenient Features
Page 234 of 647
Convenience Features
5-100
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:
• Do not touch the upper end of the
windshield glass facing the rain
sensor.
• Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.
• Do not put pressure on the
windshield glass.
NOTICE
• When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.
• Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.
• Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
Front Windshield Washers
OJX1059067OJX1059067
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
Page 235 of 647
05
5-101
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending
on the outside temperature. If you
select fresh mode while the function is
operating, the function will resume after
a certain amount of time. It may not work
in some conditions such as cold weather
or engine OFF.
For more details, refer to “Climate
Control Additional Features” section in
this chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
• To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
• To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
Page 236 of 647
Convenience Features
5-102
Rear Window Wiper and Washer
OJX1059270LOJX1059270L
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI – High wiper speed
LO – Low wiper speed
OFF – Off
OJX1059068OJX1059068
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
Auto rear wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function from the
Settings menu in the infotainment
system screen. Select:
- 6 H W X S

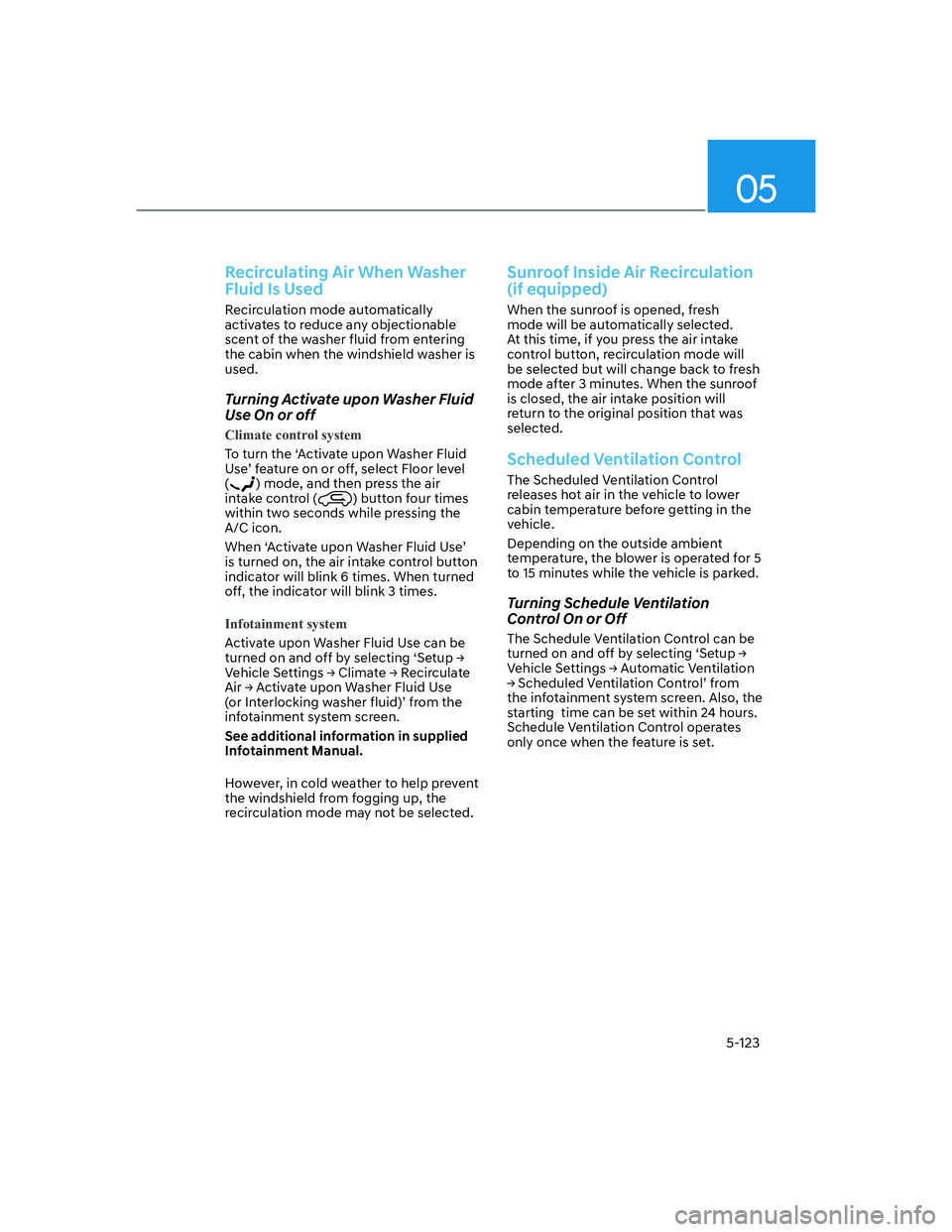

Page 257 of 647
05
5-123
Recirculating Air When Washer
Fluid Is Used
Recirculation mode automatically
activates to reduce any objectionable
scent of the washer fluid from entering
the cabin when the windshield washer is
used.
Turning Activate upon Washer Fluid
Use On or off
Climate control system
To turn the ‘Activate upon Washer Fluid
Use’ feature on or off, select Floor level
(
) mode, and then press the air
intake control () button four times
within two seconds while pressing the
A/C icon.
When ‘Activate upon Washer Fluid Use’
is turned on, the air intake control button
indicator will blink 6 times. When turned
off, the indicator will blink 3 times.
Infotainment system
Activate upon Washer Fluid Use can be
W X U Q H G R Q D Q G R I I E \ V H O H F W L Q J S 6 H W X S
Page 336 of 647
Driving Your Vehicle
6-62
Winter Precautions
Use high quality ethylene glycol coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because it
helps prevent corrosion in the cooling
system, lubricates the water pump and
prevents freezing. Be sure to replace or
replenish your coolant in accordance
with the maintenance schedule in
chapter 9. Before winter, have your
coolant tested to assure that its freezing
point is sufficient for the temperatures
anticipated during the winter.
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be checked by
an authorized retailer of Genesis Branded
products or in a service station.
Change to “winter weight” oil if
necessary
In some regions during winter, it is
recommended to use the “winter
weight” oil with lower viscosity In
addition, replace the engine oil and filter
if it is close to the next maintenance
interval. Fresh engine oil ensures
optimum engine operation during the
winter months. For further information,
refer to chapter 2. When you are not sure
about a type of winter weight oil, consult
an authorized retailer of Genesis Branded
products.Check spark plugs and ignition system
Inspect the spark plugs, as specified in
chapter 9. If necessary, replace them.
Also check all ignition wirings and
components for any cracks, wear-out,
and damage.
To prevent locks from freezing
To prevent the locks from being frozen,
spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes,
try to thaw it with a heated key. Carefully
use the heated key to avoid an injury.
Use approved window washer anti-
freeze solution in system
To prevent the window washer from
being frozen, add authorized window
washer anti-freeze solution, as specified
on the window washer container.
Window washer anti-freeze solution is
available from an authorized retailer of
Genesis Branded products, and most
vehicle accessory outlets. Do not use
engine coolant or other types of anti-
freeze solution, to prevent any damage
to the vehicle paint.
Page 367 of 647
Driver Assistance System
7-18
Forward Collision-Avoidance Assist
disabled
OJX1079005LOJX1079005LOJX1079212LOJX1079212L
When the front windshield where the
front view camera is located, front radar
cover, bumper or sensor is covered with
foreign material, such as snow or rain, it
can reduce the detecting performance
and temporarily limit or disable Forward
Collision-Avoidance Assist.
If this occurs the ‘Forward Safety system
disabled. Camera obscured’ or the
‘Forward Safety system disabled. Radar
blocked’ warning message, and the
and warning lights will illuminate on
the cluster.
Forward Collision-Avoidance Assist will
operate properly when snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed (including trailer,
carrier, etc. from the rear bumper), have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
: $ 5 1 , 1 *
• ( Y H Q W K R X J K W K H Z D U Q L Q J P H V V D J H R U
warning light does not appear on the
F O X V W H U ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D \ Q R W S U R S H U O \ R S H U D W H
• ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
P D \ Q R W S U R S H U O \ R S H U D W H L Q D Q D U H D
H J R S H Q W H U U D L Q Z K H U H D Q \ R E M H F W V
are not detected after turning ON the
H Q J L Q H
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
• The detecting sensor or the
surroundings are contaminated or
damaged
• The temperature around the front
view camera is high or low due to
surrounding environment
• The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
• Moisture is not removed or frozen on
the windshield
• Washer fluid is continuously sprayed,
or the wiper is on
• Driving in heavy rain or snow, or thick
fog
• The field of view of the front view
camera is obstructed by sun glare
• Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
• An object is placed on the dashboard
Page 441 of 647
Driver Assistance System
7-92
Smart Cruise Control disabled
OTM070115N OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
disabled. Radar blocked’ warning
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate properly
when snow, rain or foreign material is
removed.
: $ 5 1 , 1 *
( Y H Q W K R X J K W K H Z D U Q L Q J P H V V D J H G R H V
Q R W D S S H D U R Q W K H F O X V W H U 6 P D U W & U X L V H
& R Q W U R O P D \ Q R W S U R S H U O \ R S H U D W H
& $ 8 7 , 2 1
6 P D U W & U X L V H & R Q W U R O P D \ Q R W S U R S H U O \
R S H U D W H L Q D Q D U H D H J R S H Q W H U U D L Q
where there is nothing to detect after
W X U Q L Q J 2 1 W K H H Q J L Q H
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
properly, or it may operate unexpectedly
under the following circumstances:
• The detecting sensor or the
surroundings are contaminated or
damaged
• Washer fluid is continuously sprayed,
or the wiper is on
• The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
• Moisture is not removed or frozen on
the windshield
• The field of view of the front view
camera is obstructed by sun glare
• Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
• The temperature around the front
view camera is high or low
• An object is placed on the dashboard
• The surrounding is very bright
• The surrounding is very dark, such as
in a tunnel, etc.
• The brightness changes suddenly, for
example when entering or exiting a
tunnel
• The brightness outside is low, and the
headlamps are not on or are not bright
• Driving in heavy rain or snow, or thick
fog
• Driving through steam, smoke or
shadow
