wipers HYUNDAI GENESIS GV70 2022 Owners Manual

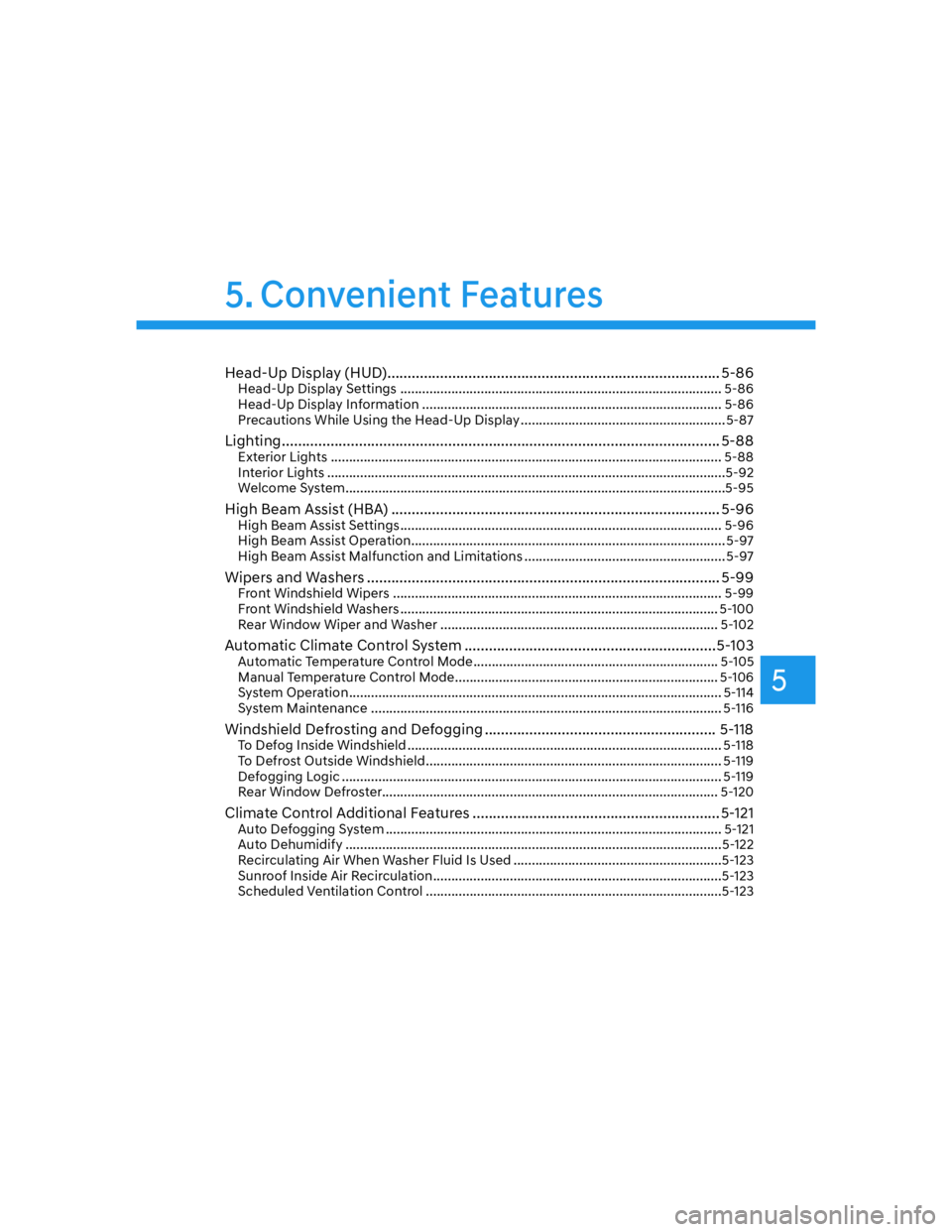

5
Head-Up Display (HUD).................................................................................. 5-86Head-Up Display Settings ........................................................................................ 5-86
Head-Up Display Information .................................................................................. 5-86
Precautions While Using the Head-Up Display ........................................................ 5-87
Lighting ............................................................................................................ 5-88Exterior Lights ........................................................................................................... 5-88
Interior Lights .............................................................................................................5-92
Welcome System ........................................................................................................5-95
High Beam Assist (HBA) ................................................................................. 5-96
High Beam Assist Settings ........................................................................................ 5-96
High Beam Assist Operation ...................................................................................... 5-97
High Beam Assist Malfunction and Limitations ....................................................... 5-97
Wipers and Washers ....................................................................................... 5-99
Front Windshield Wipers .......................................................................................... 5-99
Front Windshield Washers ....................................................................................... 5-100
Rear Window Wiper and Washer ............................................................................ 5-102
Automatic Climate Control System ..............................................................5-103Automatic Temperature Control Mode ................................................................... 5-105
Manual Temperature Control Mode ........................................................................ 5-106
System Operation ...................................................................................................... 5-114
System Maintenance ................................................................................................ 5-116
Windshield Defrosting and Defogging ......................................................... 5-118To Defog Inside Windshield ...................................................................................... 5-118
To Defrost Outside Windshield ................................................................................. 5-119
Defogging Logic ........................................................................................................ 5-119
Rear Window Defroster............................................................................................ 5-120
Climate Control Additional Features ............................................................. 5-121
Auto Defogging System ............................................................................................ 5-121
Auto Dehumidify .......................................................................................................5-122
Recirculating Air When Washer Fluid Is Used .........................................................5-123
Sunroof Inside Air Recirculation ...............................................................................5-123
Scheduled Ventilation Control .................................................................................5-123
5. Convenient Features

05
5-99
OJX1059066OJX1059066
Front Windshield Wipers
Operates as follows when the Engine
Start/Stop button is in the ON position.
MIST : For a single wiping cycle, push
the lever upward and release. The
wipers will operate continuously if
the lever is held in this position.
OFF : Wiper is not in operation.
AUTO : The rain sensor located on the
upper end of the windshield glass
senses the amount of rainfall and
controls the wiping cycle for the
proper interval. The more it rains,
the faster the wiper operates.
When the rain stops, the wiper
stops. To vary the speed setting,
turn the speed control knob.
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
WKHVQRZDQGRULFHLVUHPRYHGEHIRUH
using the windshield wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO wiper control
OJK050074OJK050074
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the Engine Start/Stop button is in
the ON position, the wiper will operate
once to perform a self-check of the
system. Set the wiper to the OFF position
when the wiper is not in use.
WIPERS AND WASHERS

Convenience Features
5-100
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:
• Do not touch the upper end of the
windshield glass facing the rain
sensor.
• Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.
• Do not put pressure on the
windshield glass.
NOTICE
• When washing the vehicle, set the
wiper switch in the OFF position to
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.
• Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.
• Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
Front Windshield Washers
OJX1059067OJX1059067
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.

05
5-101
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending
on the outside temperature. If you
select fresh mode while the function is
operating, the function will resume after
a certain amount of time. It may not work
in some conditions such as cold weather
or engine OFF.
For more details, refer to “Climate
Control Additional Features” section in
this chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
• To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
• To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

Convenience Features
5-102

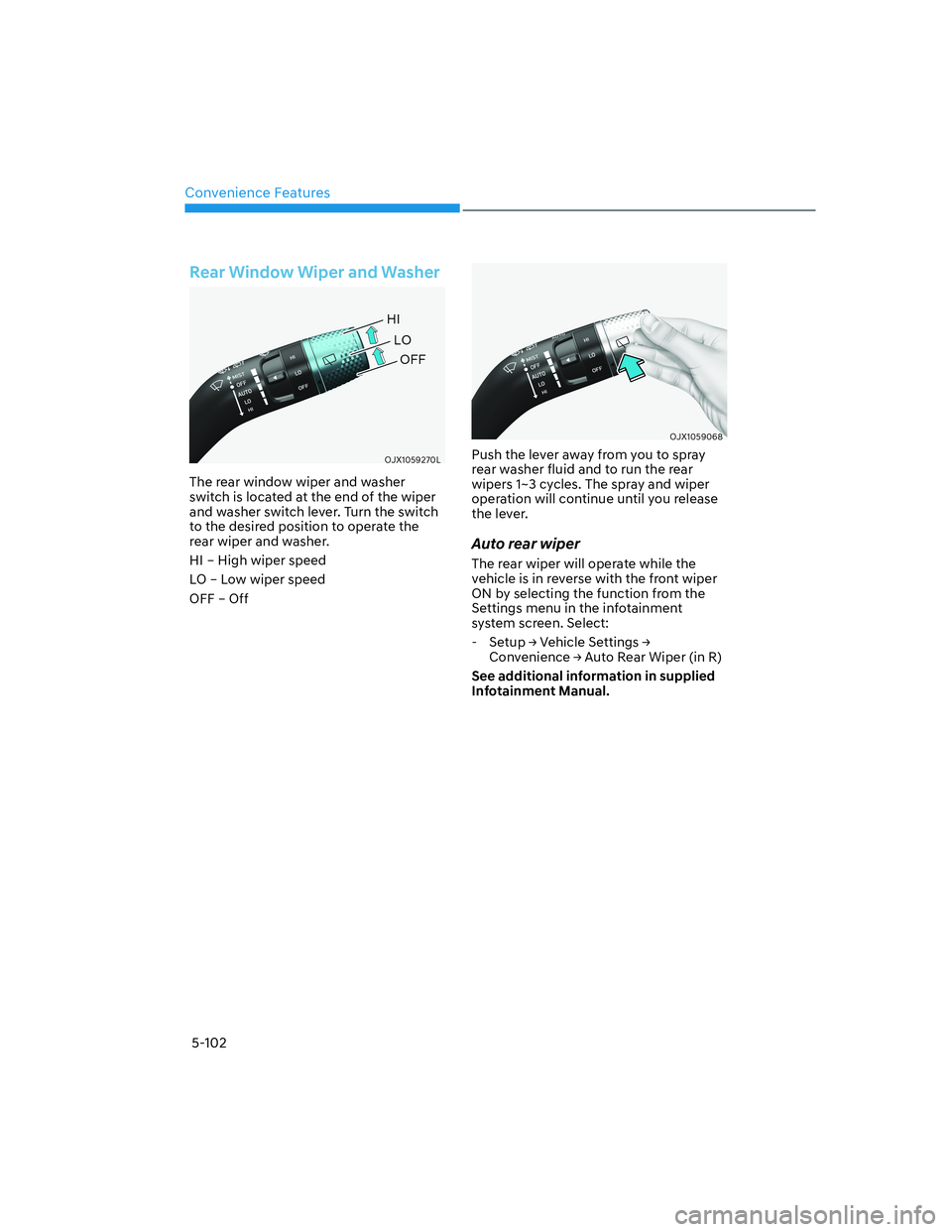

Rear Window Wiper and Washer
OJX1059270LOJX1059270L
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI – High wiper speed
LO – Low wiper speed
OFF – Off
OJX1059068OJX1059068
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
Auto rear wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function from the
Settings menu in the infotainment
system screen. Select:
-6HWXS

09
9-25

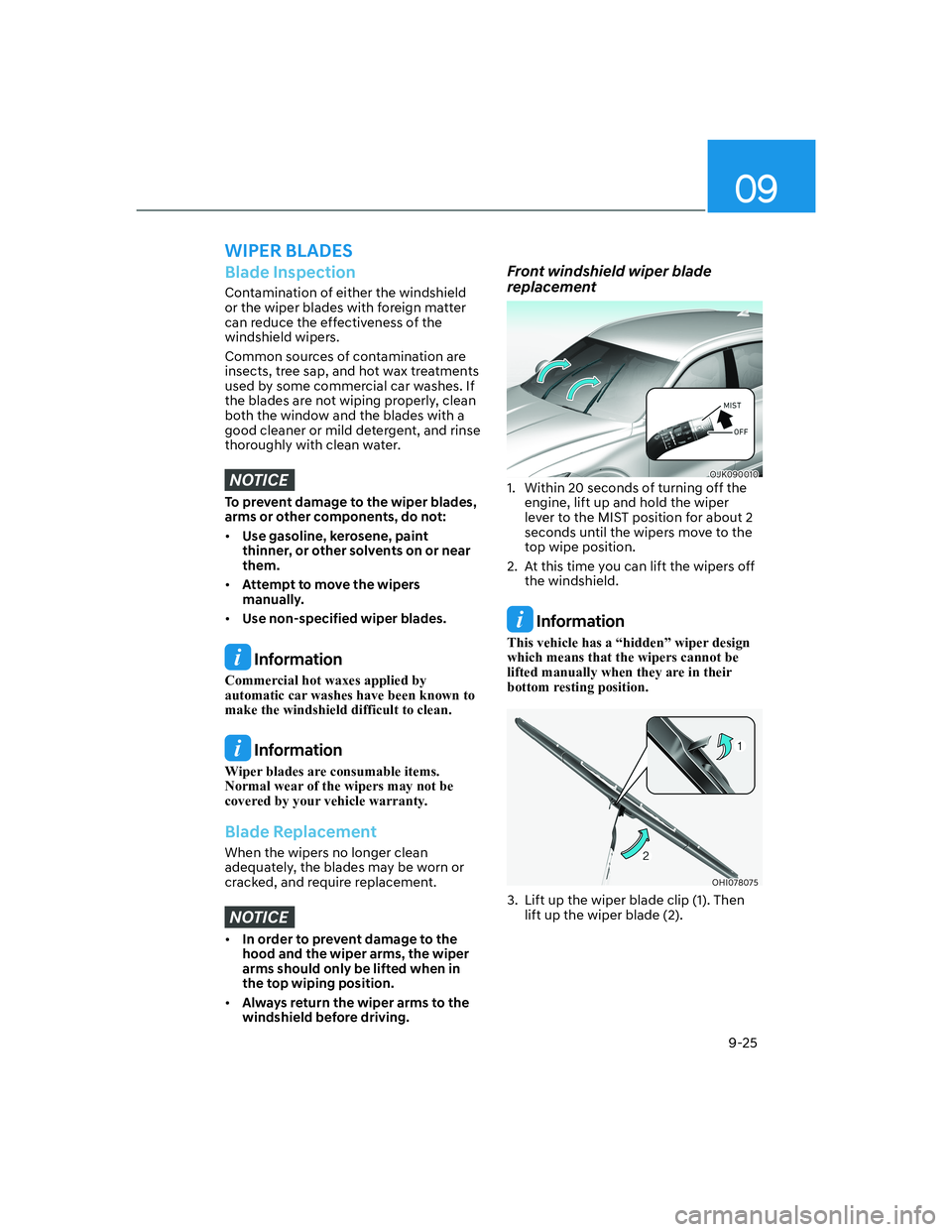

Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wipers.
Common sources of contamination are
insects, tree sap, and hot wax treatments
used by some commercial car washes. If
the blades are not wiping properly, clean
both the window and the blades with a
good cleaner or mild detergent, and rinse
thoroughly with clean water.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:
• Use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
• Attempt to move the wipers
manually.
• Use non-specified wiper blades.
Information
Commercial hot waxes applied by
automatic car washes have been known to
make the windshield difficult to clean.
Information
Wiper blades are consumable items.
Normal wear of the wipers may not be
covered by your vehicle warranty.
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn or
cracked, and require replacement.
NOTICE
• In order to prevent damage to the
hood and the wiper arms, the wiper
arms should only be lifted when in
the top wiping position.
• Always return the wiper arms to the
windshield before driving.
Front windshield wiper blade
replacement
OJK090010OJK0900101. Within 20 seconds of turning off the
engine, lift up and hold the wiper
lever to the MIST position for about 2
seconds until the wipers move to the
top wipe position.
2. At this time you can lift the wipers off
the windshield.
Information
This vehicle has a “hidden” wiper design
which means that the wipers cannot be
lifted manually when they are in their
bottom resting position.
OHI078075OHI078075
3. Lift up the wiper blade clip (1). Then
lift up the wiper blade (2).
WIPER BLADES

Maintenance
9-26

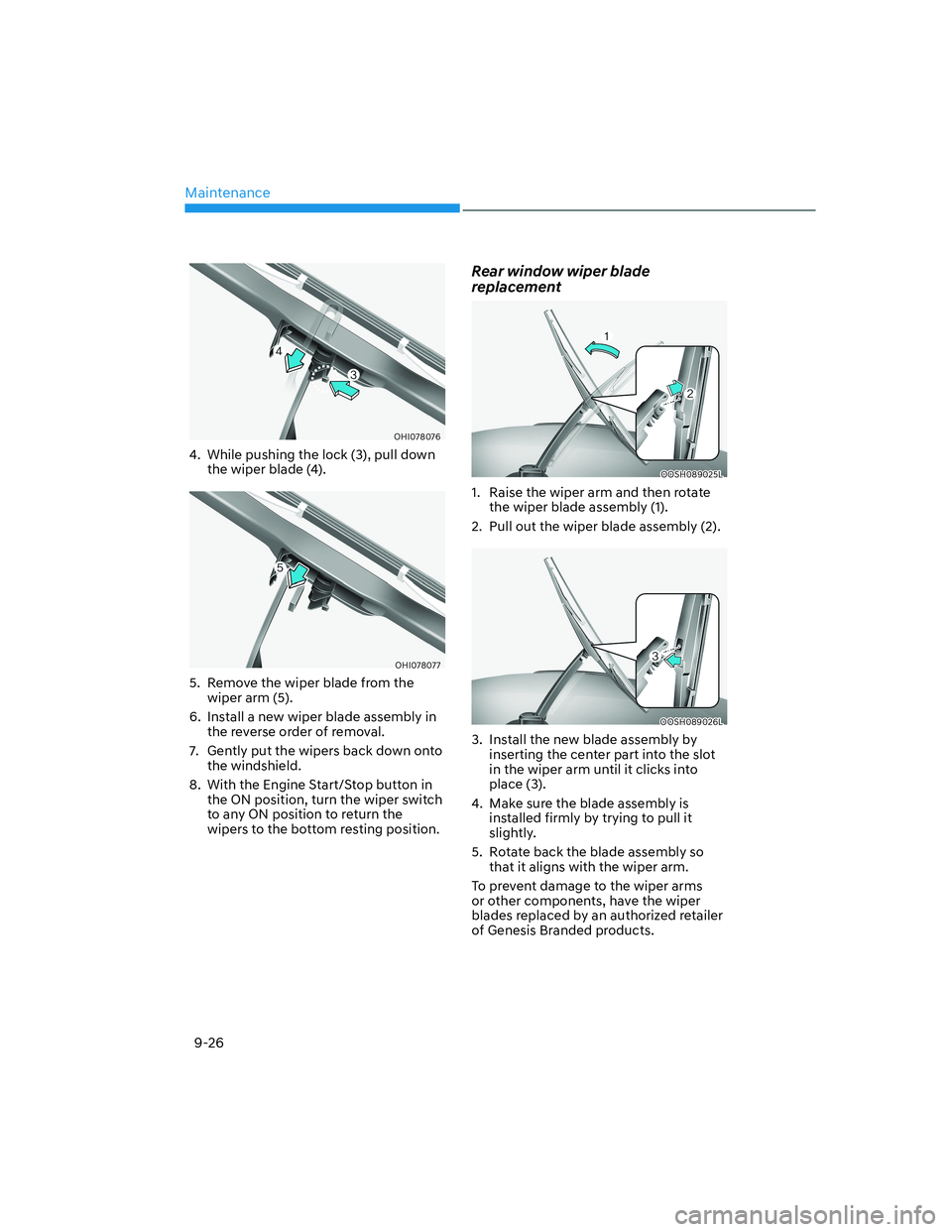

OHI078076OHI078076
4. While pushing the lock (3), pull down
the wiper blade (4).
OHI078077OHI078077
5. Remove the wiper blade from the
wiper arm (5).
6. Install a new wiper blade assembly in
the reverse order of removal.
7. Gently put the wipers back down onto
the windshield.
8. With the Engine Start/Stop button in
the ON position, turn the wiper switch
to any ON position to return the
wipers to the bottom resting position.
Rear window wiper blade
replacement
OOSH089025LOOSH089025L
1. Raise the wiper arm and then rotate
the wiper blade assembly (1).
2. Pull out the wiper blade assembly (2).
OOSH089026LOOSH089026L
3. Install the new blade assembly by
inserting the center part into the slot
in the wiper arm until it clicks into
place (3).
4. Make sure the blade assembly is
installed firmly by trying to pull it
slightly.
5. Rotate back the blade assembly so
that it aligns with the wiper arm.
To prevent damage to the wiper arms
or other components, have the wiper
blades replaced by an authorized retailer
of Genesis Branded products.

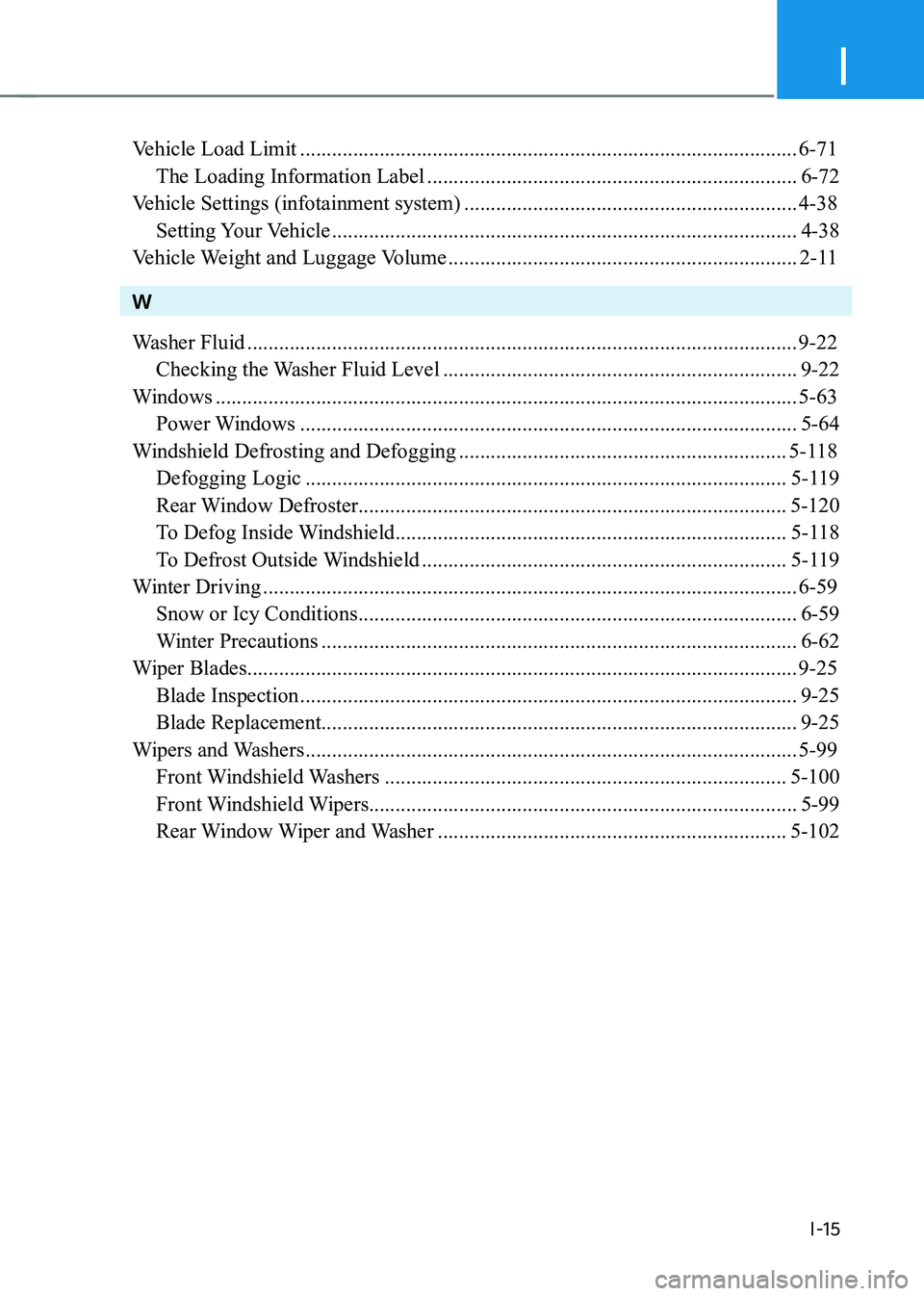

I
I-15
Vehicle Load Limit ........................................................................\
......................6-71
The Loading Information Label ......................................................................6-72
Vehicle Settings (infotainment system) ...............................................................4-38
Setting Your Vehicle ........................................................................\
................4-38
Vehicle Weight and Luggage Volume ..................................................................2-11
W
Washer Fluid ........................................................................\
................................9-22
Checking the Washer Fluid Level ...................................................................9-22
Windows ........................................................................\
......................................5-63
Power Windows ........................................................................\
......................5-64
Windshield Defrosting and Defogging ..............................................................5-118
Defogging Logic ........................................................................\
...................5-119
Rear Window Defroster........................................................................\
.........5-120
To Defog Inside Windshield ........................................................................\
..5-118
To Defrost Outside Windshield .....................................................................5-119
Winter Driving ........................................................................\
.............................6-59
Snow or Icy Conditions ........................................................................\
...........6-59
Winter Precautions ........................................................................\
..................6-62
Wiper Blades ........................................................................\
................................9-25
Blade Inspection ........................................................................\
......................9-25
Blade Replacement........................................................................\
..................9-25
Wipers and Washers ........................................................................\
.....................5-99
Front Windshield Washers ........................................................................\
....5-100
Front Windshield Wipers ........................................................................\
.........5-99
Rear Window Wiper and Washer ..................................................................5-102
