Hyundai Getz 2003 Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 11
!
HTB026-D
HTB024-D

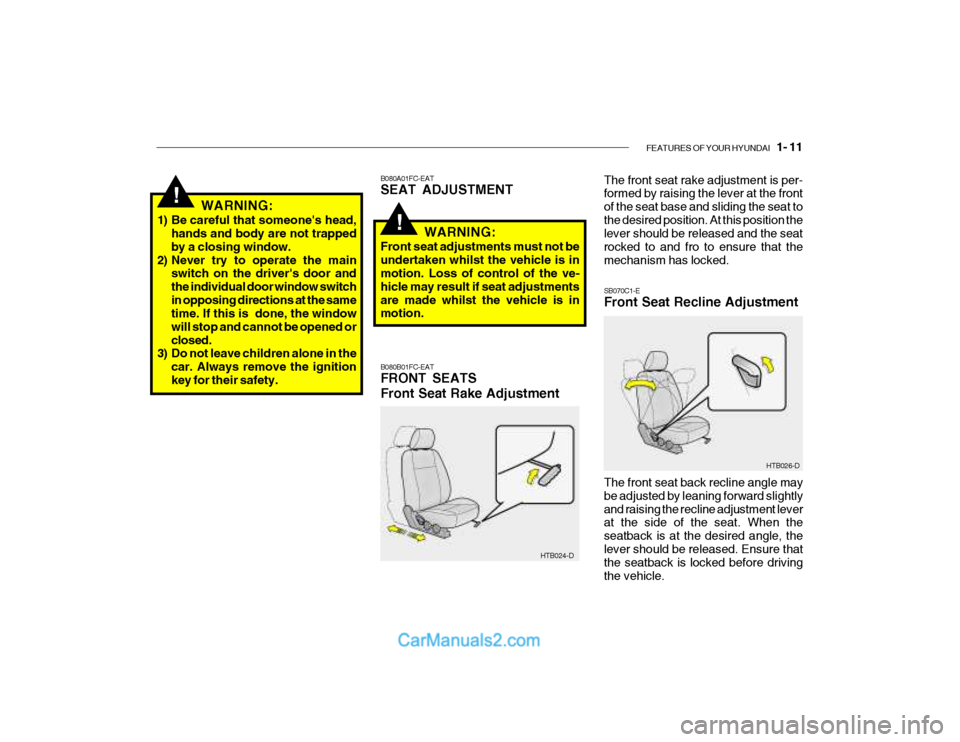

B080A01FC-EAT SEAT ADJUSTMENT B080B01FC-EAT FRONT SEATS Front Seat Rake Adjustment
The front seat rake adjustment is per- formed by raising the lever at the front of the seat base and sliding the seat tothe desired position. At this position the lever should be released and the seat rocked to and fro to ensure that themechanism has locked.
WARNING:
Front seat adjustments must not beundertaken whilst the vehicle is in motion. Loss of control of the ve- hicle may result if seat adjustmentsare made whilst the vehicle is in motion. SB070C1-E Front Seat Recline Adjustment
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switchin opposing directions at the same time. If this is done, the window will stop and cannot be opened orclosed.
3) Do not leave children alone in the
car. Always remove the ignitionkey for their safety.
The front seat back recline angle maybe adjusted by leaning forward slightlyand raising the recline adjustment lever at the side of the seat. When the seatback is at the desired angle, thelever should be released. Ensure that the seatback is locked before driving the vehicle.
!

1- 12 FEATURES OF YOUR HYUNDAI
!
HTB025-D
SB070F1-F Seat Cushion Height Adjustment (Not all models) (Driver's seat only) To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward.To raise or lower the rear part of the seat cushion, turn the rear knob forward or rearward.
HTB027-D
SB070E1-E Lumbar Support Adjustment (Not all models) (Driver's seat only)
HFC2028
Lock knob
SB070D2-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down while pressing the lock knob. For maximum effectivenessin the event of an accident, the restraint must be adjusted so that the restraint is approximately at the level of the seatoccupant's ears. The restraint must never be so adjusted that it is centred about the level of the seat occupant'sneck. WARNING:
Do not operate the vehicle with the restraints removed. The restraints provide protection against neck in-jury when installed and correctly adjusted. Some models are fitted with adjustabledriver seat lumbar support which may be used to increase the amount oflumbar support offered by the seat back. Adjustment is performed by moving the handle at the side of the backrest in aforward direction to increase the sup- port.

FEATURES OF YOUR HYUNDAI 1- 13
!

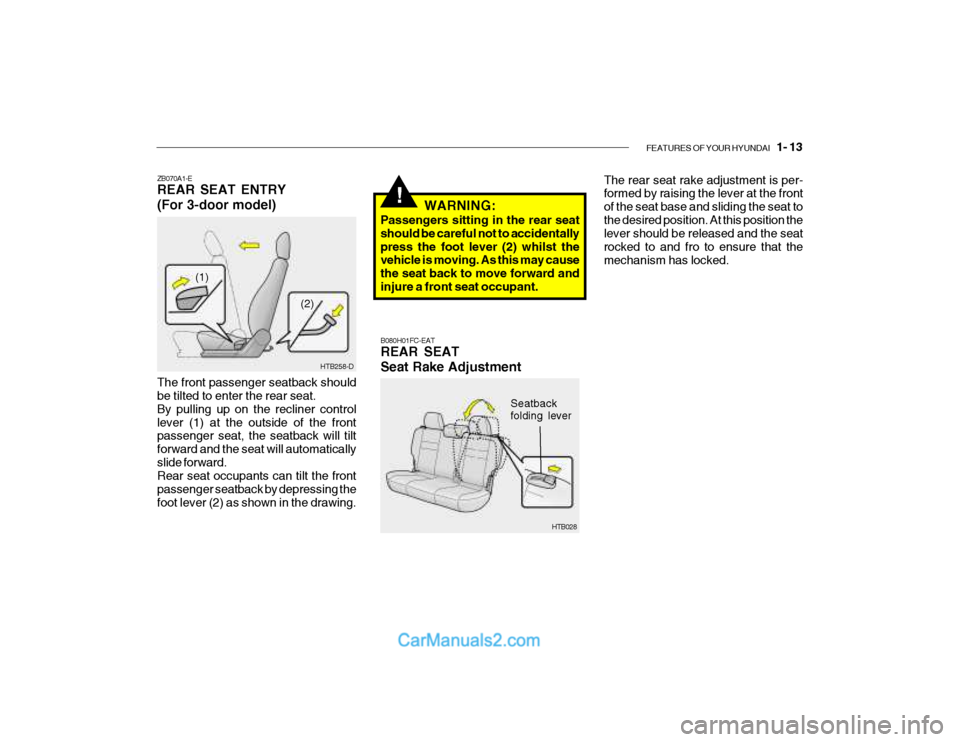

ZB070A1-E REAR SEAT ENTRY (For 3-door model) The front passenger seatback should be tilted to enter the rear seat. By pulling up on the recliner controllever (1) at the outside of the front passenger seat, the seatback will tilt forward and the seat will automaticallyslide forward. Rear seat occupants can tilt the front passenger seatback by depressing thefoot lever (2) as shown in the drawing. WARNING:
Passengers sitting in the rear seatshould be careful not to accidentallypress the foot lever (2) whilst the vehicle is moving. As this may cause the seat back to move forward andinjure a front seat occupant.
HTB028
Seatback folding lever
B080H01FC-EAT REAR SEAT Seat Rake Adjustment
HTB258-D
(1)
(2) The rear seat rake adjustment is per- formed by raising the lever at the front of the seat base and sliding the seat tothe desired position. At this position the lever should be released and the seat rocked to and fro to ensure that themechanism has locked.

1- 14 FEATURES OF YOUR HYUNDAI
!
HTB294

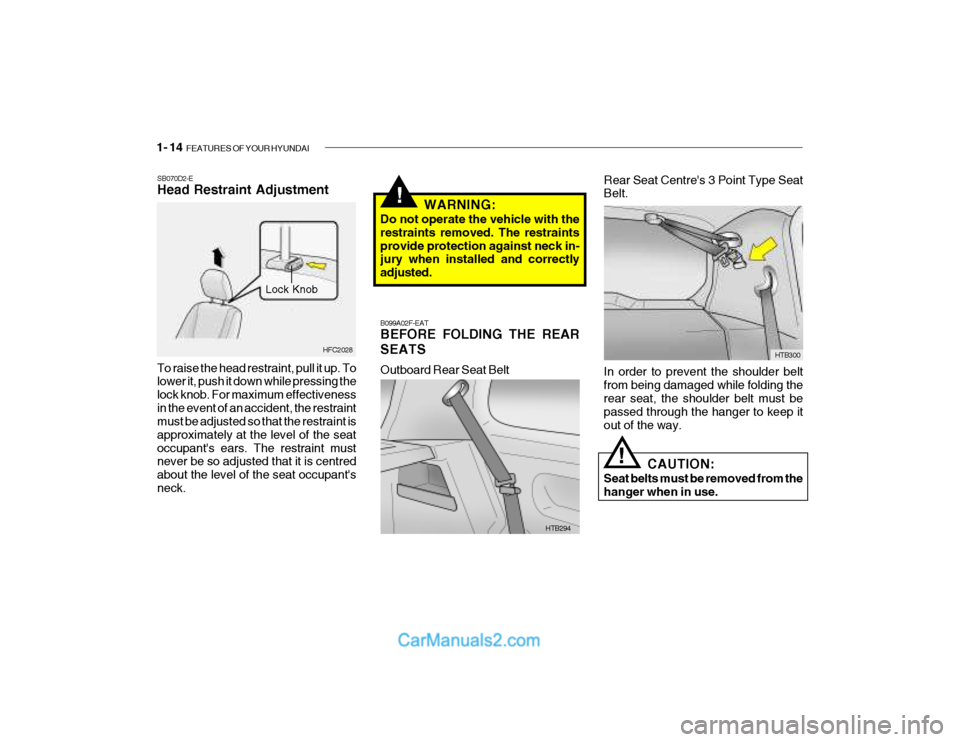

B099A02F-EAT BEFORE FOLDING THE REAR SEATS Outboard Rear Seat Belt
HTB300
!
Rear Seat Centre's 3 Point Type Seat Belt.
Lock Knob
SB070D2-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down while pressing the lock knob. For maximum effectivenessin the event of an accident, the restraint must be adjusted so that the restraint is approximately at the level of the seatoccupant's ears. The restraint must never be so adjusted that it is centred about the level of the seat occupant'sneck.
HFC2028WARNING:
Do not operate the vehicle with therestraints removed. The restraintsprovide protection against neck in- jury when installed and correctly adjusted.
In order to prevent the shoulder beltfrom being damaged while folding therear seat, the shoulder belt must be passed through the hanger to keep it out of the way.CAUTION:
Seat belts must be removed from thehanger when in use.

FEATURES OF YOUR HYUNDAI 1- 15
!WARNING:
o When you return the folded down seatback to its upright position, make sure the seat belts are in position to be accessible and to function properly.
o When you return the folded down seatback to its upright position,be careful not to get your fingersor legs caught in the mechanism.
o The purpose of the fold down
rear seatback and the fold for-ward rear seat cushion is to in- crease cargo space. Do not allow passengers to sit in the cargoarea while the car is moving. This is not a proper seating position
3. Pull the seat cushion release handle
rear ward, then lift up a desired seatcushion.
4. To secure the seat, hook the secur-ing strap under the seat back to the headrest stay of front driver andpassenger seat.
5. To return the seatback and seat
cushion to its normal position, re-verse the above procedure.
o When you return the seatback to its
upright position, always be sure it islocked into position by pulling and pushing on the top of seatback.
HTB030A
Seat cushion release handle
HTB031Securing strap
Securing Strap
HTB029Seatback folding lever
B090B01TB-EAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may be folded down and up.
1. Push the headrest down to the low- est position.
2. To fold down the seatback , push and hold the seatback folding lever toward the headrest, then push down the seatback.

1- 16 FEATURES OF YOUR HYUNDAI
HTB195
B140A01B-GAT REAR SEAT WARNING For the safety of all passengers, lug- gage or other cargo should not be piled higher than the top of the seatback.
and no seat belts are available for use when the seatback is folded down. Passengers who are notproperly seated and wearing seat belts could sustain serious inju- ries or death in case of an accidentor a sudden stop.
o Objects should not extend higher
than the top of the front seatbacks.This could allow cargo to slide forward and cause injury or dam- age during sudden stops.
o When you return the folded down seatback to its upright position,always be sure to install the head- rests in their proper positions. Headrests are important to thesafety of occupants in a rear colli- sion. If the headrests are not installed in their proper position,serious injury or death could re- sult if a rear end collision occurs. SB090A1-E SEAT BELT PRECAUTIONS Seat belts should be worn at all times by all occupants front and rear. Thepossibility of injury or the severity of injuries suffered in the event of an accident will be greatly reduced by thewearing of seat belts. In addition the following recommenda- tions should be observed. SB090B1-E Babies/Small Children Babies and small children must be restrained using a restraint system spe-cifically designed for this purpose. Un- der no circumstances should a child be carried in the vehicle without the use ofa suitable restraint which meets the regulations in force in the country where the vehicle is in operation.

FEATURES OF YOUR HYUNDAI 1- 17

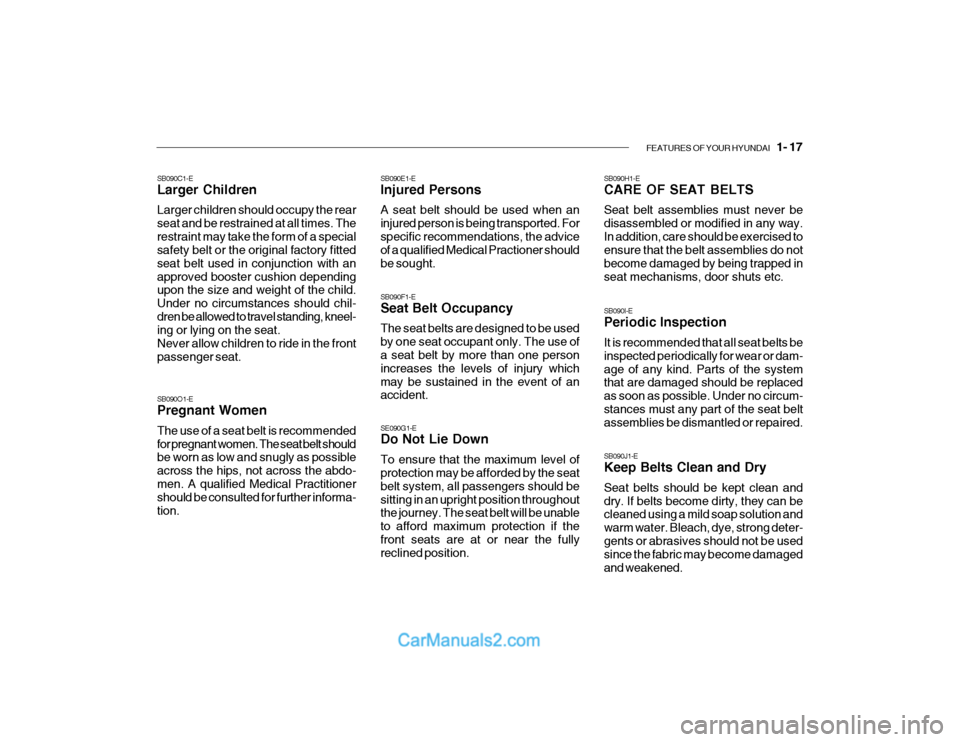

SB090C1-E Larger Children Larger children should occupy the rear seat and be restrained at all times. Therestraint may take the form of a special safety belt or the original factory fitted seat belt used in conjunction with anapproved booster cushion depending upon the size and weight of the child. Under no circumstances should chil-dren be allowed to travel standing, kneel- ing or lying on the seat. Never allow children to ride in the frontpassenger seat. SB090O1-E Pregnant Women The use of a seat belt is recommended for pregnant women. The seat belt should be worn as low and snugly as possible across the hips, not across the abdo-men. A qualified Medical Practitioner should be consulted for further informa- tion. SB090E1-E Injured Persons A seat belt should be used when an injured person is being transported. Forspecific recommendations, the advice of a qualified Medical Practioner should be sought. SB090F1-E Seat Belt Occupancy The seat belts are designed to be used by one seat occupant only. The use ofa seat belt by more than one person increases the levels of injury which may be sustained in the event of an accident. SE090G1-E Do Not Lie Down To ensure that the maximum level of protection may be afforded by the seat belt system, all passengers should besitting in an upright position throughout the journey. The seat belt will be unable to afford maximum protection if thefront seats are at or near the fully reclined position.SB090H1-E CARE OF SEAT BELTS Seat belt assemblies must never be disassembled or modified in any way.In addition, care should be exercised to ensure that the belt assemblies do not become damaged by being trapped inseat mechanisms, door shuts etc. SB090I-E Periodic Inspection It is recommended that all seat belts be inspected periodically for wear or dam-age of any kind. Parts of the system that are damaged should be replaced as soon as possible. Under no circum-stances must any part of the seat belt assemblies be dismantled or repaired. SB090J1-E Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned using a mild soap solution and warm water. Bleach, dye, strong deter-gents or abrasives should not be used since the fabric may become damaged and weakened.

1- 18 FEATURES OF YOUR HYUNDAI
!

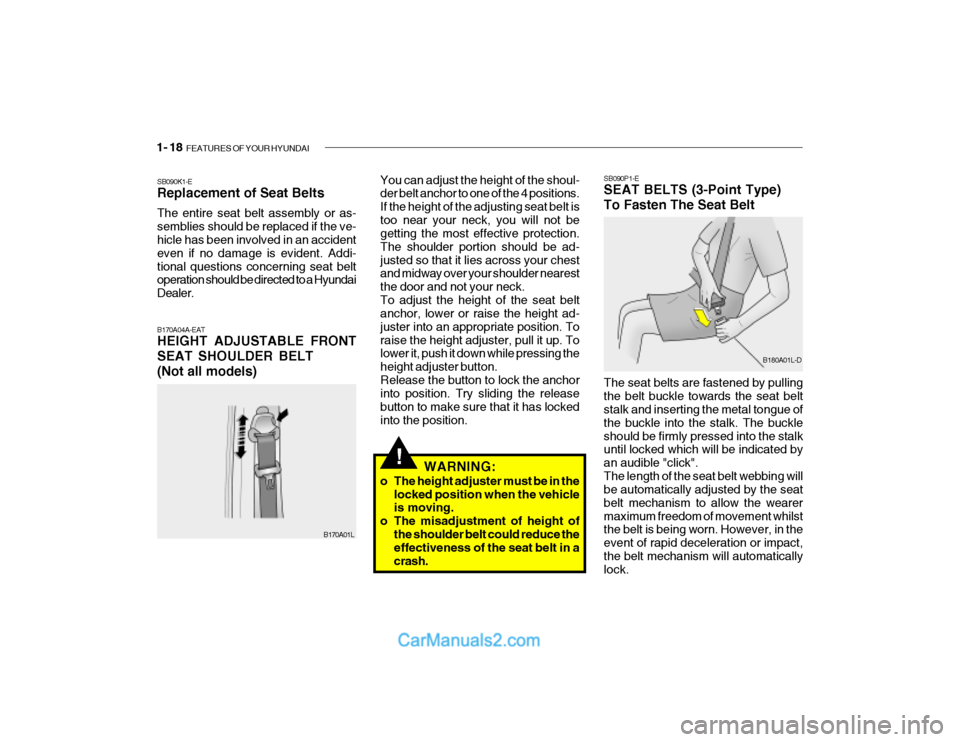

SB090P1-E SEAT BELTS (3-Point Type) To Fasten The Seat Belt
B180A01L-D
The seat belts are fastened by pulling the belt buckle towards the seat belt stalk and inserting the metal tongue of the buckle into the stalk. The buckleshould be firmly pressed into the stalk until locked which will be indicated by an audible "click".The length of the seat belt webbing will be automatically adjusted by the seat belt mechanism to allow the wearermaximum freedom of movement whilst the belt is being worn. However, in the event of rapid deceleration or impact,the belt mechanism will automatically lock.
B170A01L
SB090K1-E Replacement of Seat Belts The entire seat belt assembly or as- semblies should be replaced if the ve- hicle has been involved in an accident even if no damage is evident. Addi-tional questions concerning seat belt operation should be directed to a Hyundai Dealer. B170A04A-EAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT(Not all models)
You can adjust the height of the shoul- der belt anchor to one of the 4 positions. If the height of the adjusting seat belt istoo near your neck, you will not be getting the most effective protection. The shoulder portion should be ad-justed so that it lies across your chest and midway over your shoulder nearest the door and not your neck.To adjust the height of the seat belt anchor, lower or raise the height ad- juster into an appropriate position. Toraise the height adjuster, pull it up. To lower it, push it down while pressing the height adjuster button.Release the button to lock the anchor into position. Try sliding the release button to make sure that it has lockedinto the position.
WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of the shoulder belt could reduce theeffectiveness of the seat belt in a crash.

FEATURES OF YOUR HYUNDAI 1- 19

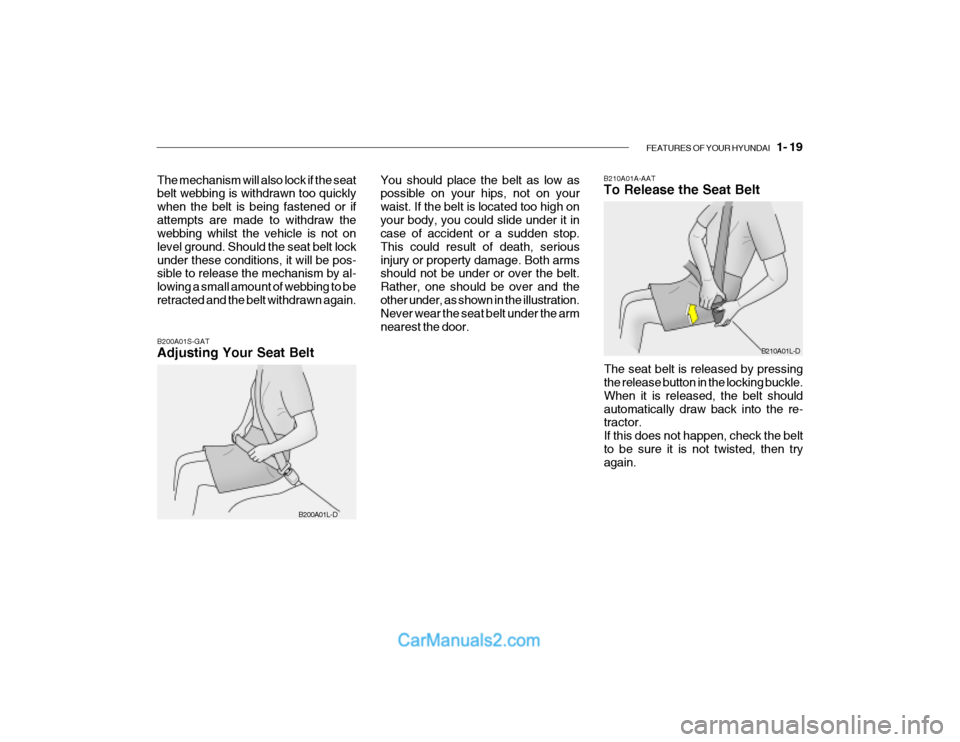

B200A01S-GAT Adjusting Your Seat Belt B210A01A-AATTo Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt shouldautomatically draw back into the re- tractor. If this does not happen, check the beltto be sure it is not twisted, then try again.
B200A01L-D You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high onyour body, you could slide under it in case of accident or a sudden stop. This could result of death, seriousinjury or property damage. Both arms should not be under or over the belt. Rather, one should be over and theother under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.
B210A01L-D
The mechanism will also lock if the seat belt webbing is withdrawn too quickly when the belt is being fastened or ifattempts are made to withdraw the webbing whilst the vehicle is not on level ground. Should the seat belt lockunder these conditions, it will be pos- sible to release the mechanism by al- lowing a small amount of webbing to beretracted and the belt withdrawn again.

1- 20 FEATURES OF YOUR HYUNDAI
!

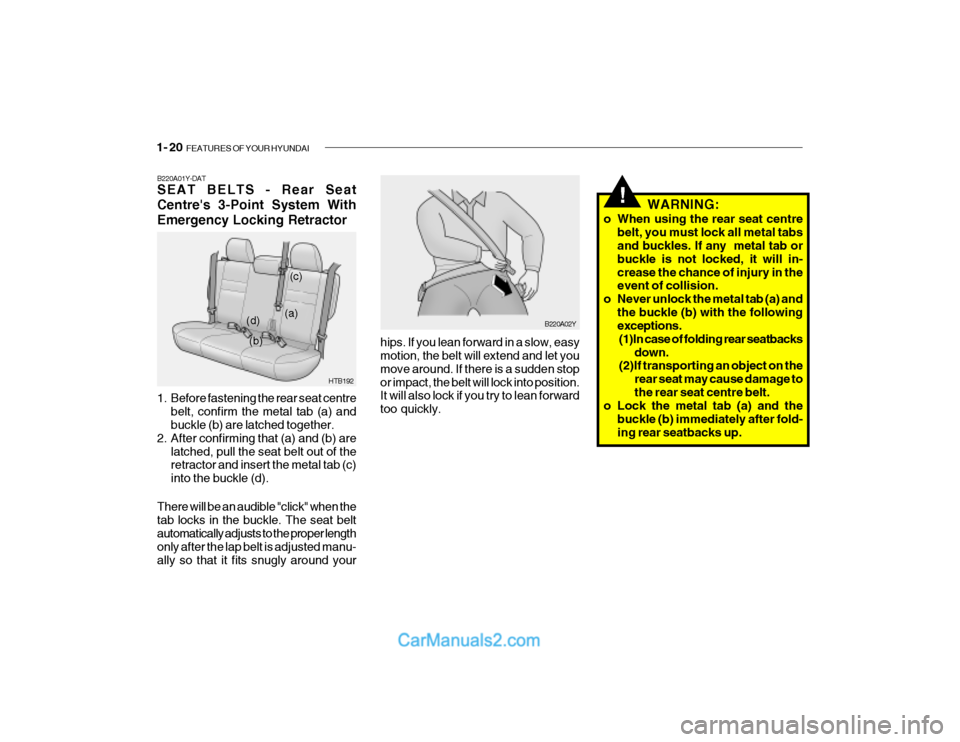

B220A01Y-DAT SEAT BELTS - Rear Seat Centre's 3-Point System WithEmergency Locking Retractor
1. Before fastening the rear seat centre
belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c) into the buckle (d).
There will be an audible "click" when thetab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manu-ally so that it fits snugly around your HTB192
hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stopor impact, the belt will lock into position. It will also lock if you try to lean forward too quickly. WARNING:
o When using the rear seat centre belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a) and
the buckle (b) with the followingexceptions.(1)In case of folding rear seatbacks down.
(2)If transporting an object on the
rear seat may cause damage to the rear seat centre belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.
(a)
(b) (c)
(d) B220A02Y
