8- 2 CONSUMER INFORMATION
I030A01TB EADA010C

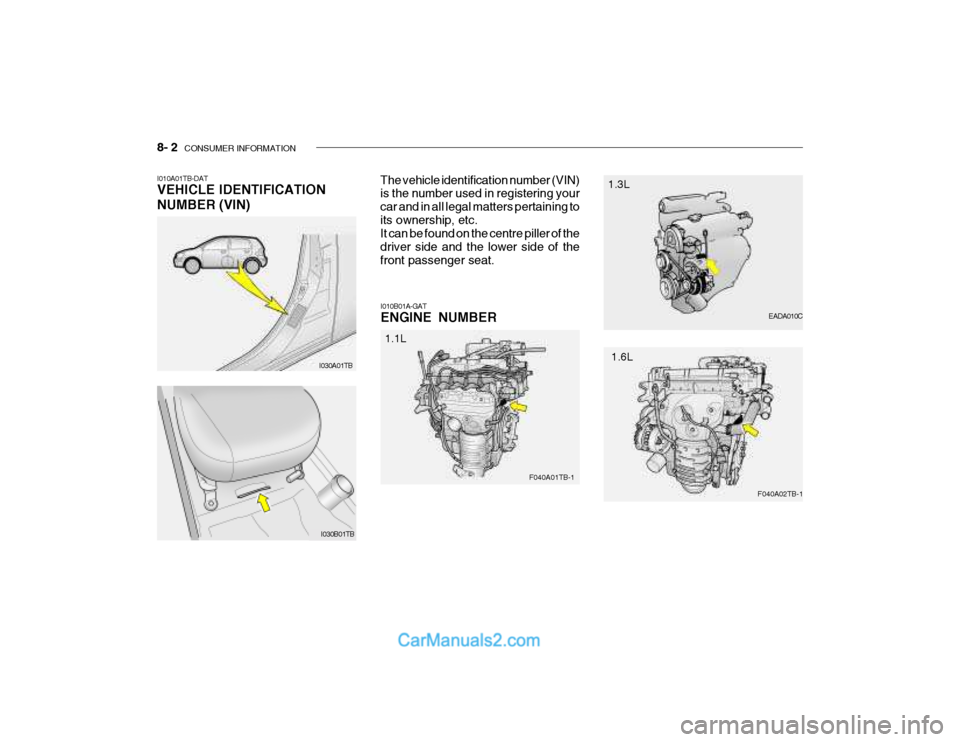

I010A01TB-DAT VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining toits ownership, etc. It can be found on the centre piller of the driver side and the lower side of thefront passenger seat.
I010B01A-GAT ENGINE NUMBER
F040A01TB-1 F040A02TB-1
1.1L
1.3L
1.6L
I030B01TB

CONSUMER INFORMATION 8- 3
4.5Jx13 5.0Jx13 5.0Jx14 5.5Jx145.5Jx15
4.0Tx14 TYRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
165/65R14
175/65R14 185/55R15
T105/70D14 REAR
210(30) 420(60) FRONT
230(33) 420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
230(33)420(60)
FRONT 210(30) 420(60)
The engine number is stamped on the engine block as shown in the drawing. I030A02TB-EAT TYRE PRESSURES In modern high-speed motoring, correct tyre pressures are vitally important.
I010B01B
HTB263
Diesel EngineIncorrect tyre pressures can affect ve- hicle safety by causing reduced adhe- sion, steering response and tyre failurethrough overheating. The tyre pressure must only be checked when the tyres are cold. The correct tyre pressures areindicated on the label affixed in the glove box and below. Tyre pressures should be increased by 3 psi when the vehicle is driven fully laden or under conditions of sustained high speed motoring.

8- 4 CONSUMER INFORMATION
!

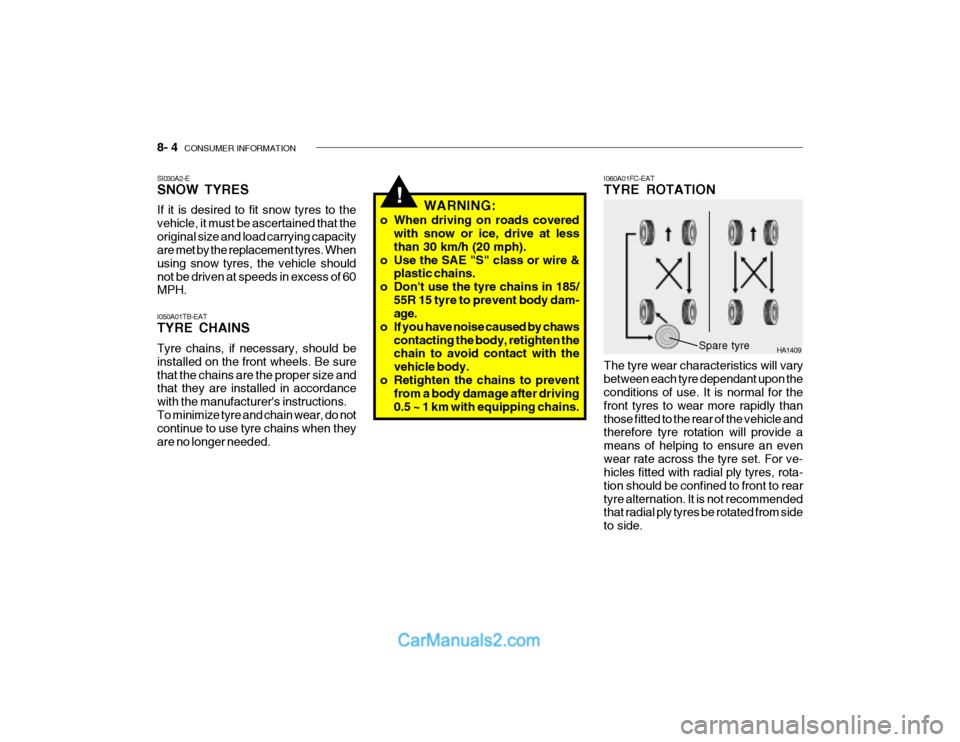

I050A01TB-EAT TYRE CHAINS Tyre chains, if necessary, should be installed on the front wheels. Be surethat the chains are the proper size and that they are installed in accordance with the manufacturer's instructions.To minimize tyre and chain wear, do not continue to use tyre chains when they are no longer needed.
SI030A2-E SNOW TYRES If it is desired to fit snow tyres to the vehicle, it must be ascertained that theoriginal size and load carrying capacity are met by the replacement tyres. When using snow tyres, the vehicle shouldnot be driven at speeds in excess of 60 MPH.
I060A01FC-EAT TYRE ROTATION The tyre wear characteristics will vary between each tyre dependant upon the conditions of use. It is normal for the front tyres to wear more rapidly thanthose fitted to the rear of the vehicle and therefore tyre rotation will provide a means of helping to ensure an evenwear rate across the tyre set. For ve- hicles fitted with radial ply tyres, rota- tion should be confined to front to reartyre alternation. It is not recommended that radial ply tyres be rotated from side to side.
WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 30 km/h (20 mph).
o Use the SAE "S" class or wire & plastic chains.
o Don't use the tyre chains in 185/ 55R 15 tyre to prevent body dam- age.
o If you have noise caused by chaws contacting the body, retighten thechain to avoid contact with the vehicle body.
o Retighten the chains to prevent from a body damage after driving0.5 ~ 1 km with equipping chains.
HA1409Spare tyre

CONSUMER INFORMATION 8- 5
!

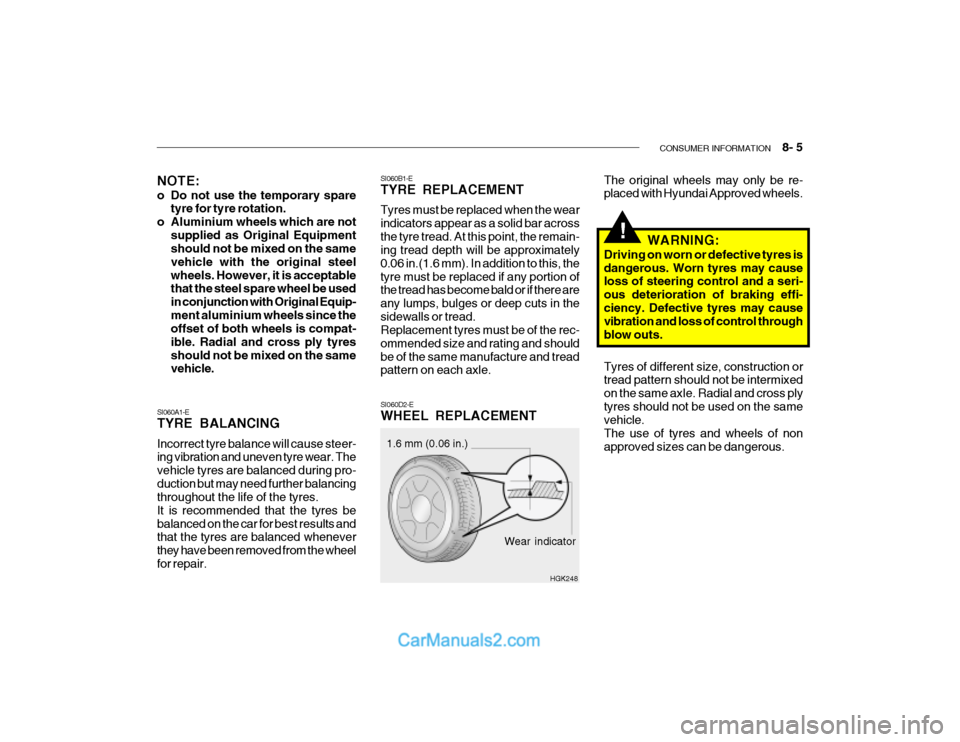

SI060B1-E TYRE REPLACEMENT Tyres must be replaced when the wear indicators appear as a solid bar acrossthe tyre tread. At this point, the remain- ing tread depth will be approximately 0.06 in.(1.6 mm). In addition to this, thetyre must be replaced if any portion of the tread has become bald or if there are any lumps, bulges or deep cuts in thesidewalls or tread. Replacement tyres must be of the rec- ommended size and rating and shouldbe of the same manufacture and tread pattern on each axle. SI060D2-E WHEEL REPLACEMENT
Wear indicator
1.6 mm (0.06 in.)
HGK248
NOTE:
o Do not use the temporary spare
tyre for tyre rotation.
o Aluminium wheels which are not
supplied as Original Equipment should not be mixed on the same vehicle with the original steelwheels. However, it is acceptable that the steel spare wheel be used in conjunction with Original Equip-ment aluminium wheels since the offset of both wheels is compat- ible. Radial and cross ply tyresshould not be mixed on the same vehicle.
SI060A1-E TYRE BALANCING Incorrect tyre balance will cause steer- ing vibration and uneven tyre wear. The vehicle tyres are balanced during pro-duction but may need further balancing throughout the life of the tyres. It is recommended that the tyres bebalanced on the car for best results and that the tyres are balanced whenever they have been removed from the wheelfor repair. The original wheels may only be re- placed with Hyundai Approved wheels.
WARNING:
Driving on worn or defective tyres is dangerous. Worn tyres may cause loss of steering control and a seri- ous deterioration of braking effi-ciency. Defective tyres may cause vibration and loss of control through blow outs. Tyres of different size, construction or tread pattern should not be intermixed on the same axle. Radial and cross plytyres should not be used on the same vehicle. The use of tyres and wheels of nonapproved sizes can be dangerous.

8- 6 CONSUMER INFORMATION

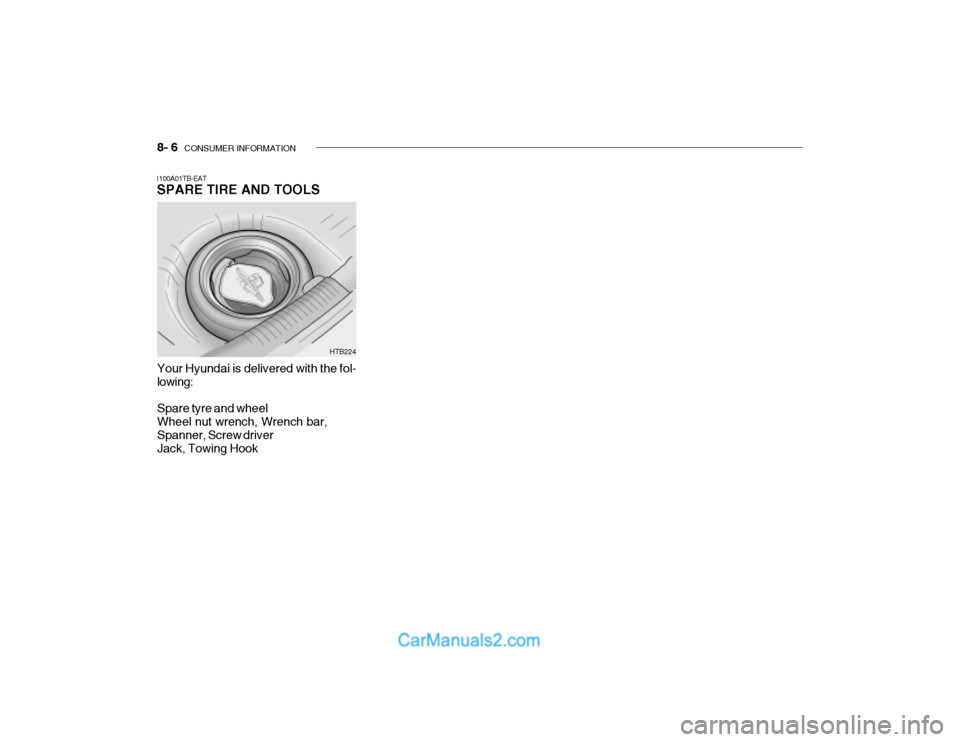

I100A01TB-EAT SPARE TIRE AND TOOLS
Your Hyundai is delivered with the fol- lowing: Spare tyre and wheel Wheel nut wrench, Wrench bar, Spanner, Screw driver Jack, Towing Hook HTB224

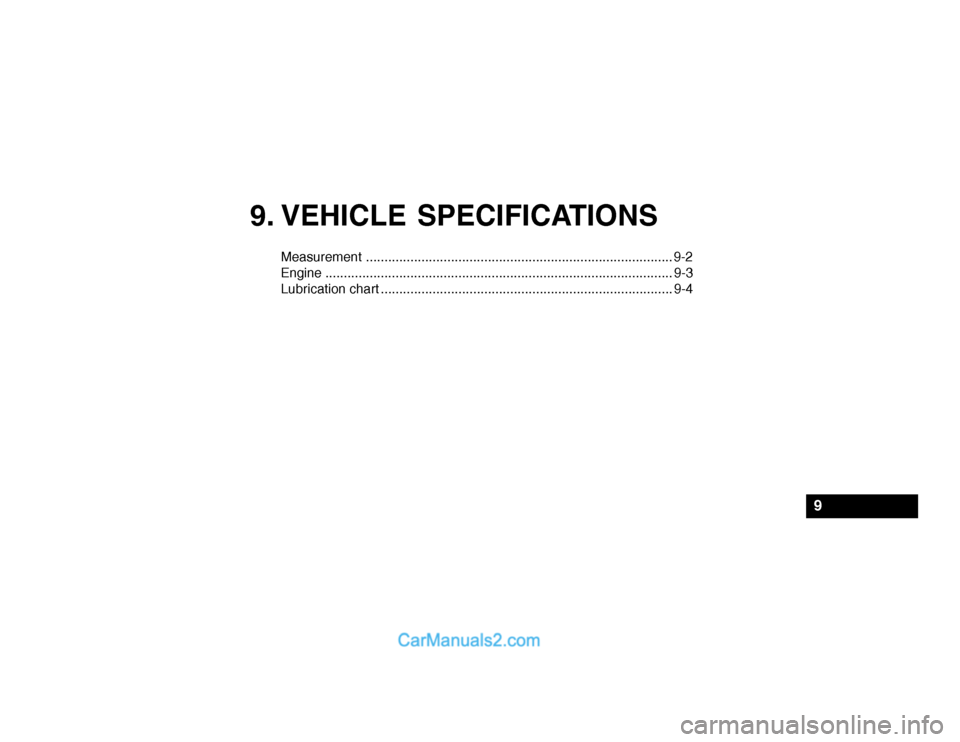

9. VEHICLE SPECIFICATIONS
Measurement ................................................................................... 9-2
Engine .............................................................................................. 9-3
Lubrication chart ............................................................................... 9-4
9

9- 2 VEHICLE SPECIFICATIONS
1.3 L
1.6 L
Type Wheel free playRack stroke Oil pump type 150 (3,810) 65.6(1,665) 58.7(1,490) 96.7(2,455)57.1(1,450) 56.7(1,440)
Overall length Overall width Overall height (unladen) Wheel baseWheel tread J030A02TB-EAT TYRE1.1 L
13.5V,70A
Dual hydraulic with brake booster Ventilated disc DrumCable
J010A01TB-EAT MEASUREMENT
J060A01TB-DAT FUEL SYSTEM
Rack and pinion 0 ~ 1.18 in. (0 ~ 30 mm) 5.20 in. (132 mm) 5.5 in. (140 mm) Vane type
165/65R14 175/65R14, 185/55R15
StandardOption
Front Rear
in. (mm)
J020A01TB-EAT POWER STEERING
Fuel tank Capacity Litre
45 Imp.gal
9.9
J040A02TB-EAT ELECTRICAL
Item Battery Alternator
J050A01FC-GAT BRAKE Type Front brake typeRear brake type Parking brake
J035A03TB-EAT SPARE TYRE
Temporary (space-saver) (T 150/70 D14) Full size
1.1L 1.3/1.5/1.6L
DIESEL
1.5 L
60AH
12V, 90APETROL
Manual Power 13.5V, 90A
45AH

VEHICLE SPECIFICATIONS 9- 3
PETROL
1-3-4-2
BKR5ES-11 RC10YC4
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm) 1.3 L
71.5 x 83.5 1,341
- -
700 ± 100
BTDC 5° ± 5°
1.1 L
67 x 77 1,086
0.13 mm0.17 mm
850 ± 100
BTDC 6° ± 5° 1.6 L
76.5 x 87 1,599
- -

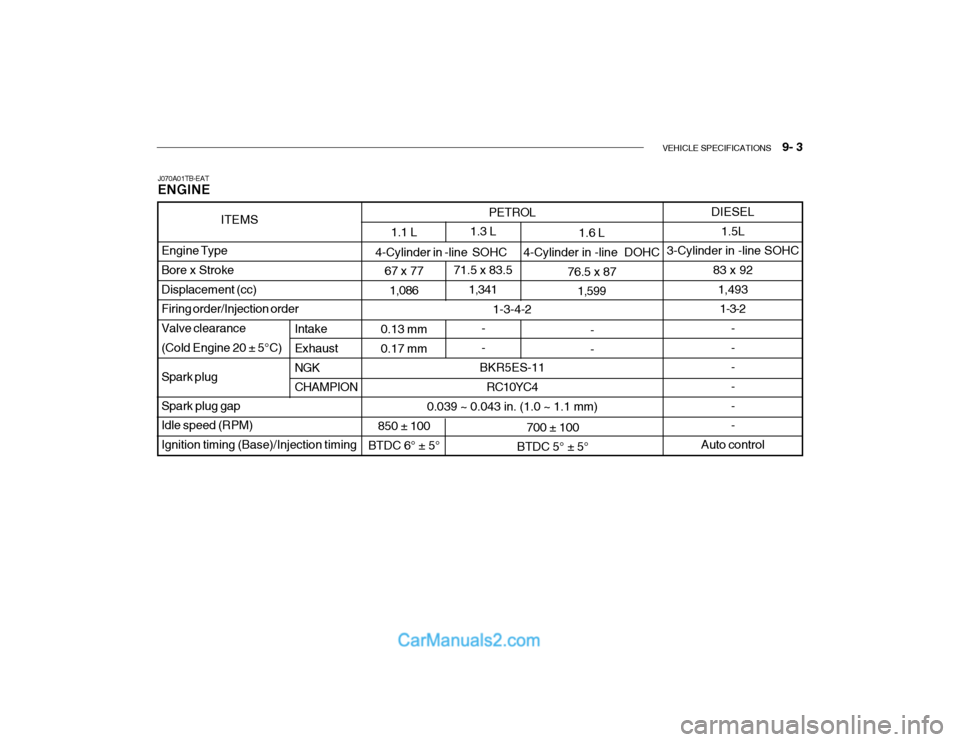

Engine TypeBore x Stroke Displacement (cc) Firing order/Injection orderValve clearance (Cold Engine 20 ± 5°C) Spark plugSpark plug gap Idle speed (RPM)Ignition timing (Base)/Injection timing IntakeExhaust NGK CHAMPION
J070A01TB-EAT ENGINEDIESEL
1.5L
3-Cylinder in -line SOHC
83 x 921,493
1-3-2
- -- - --
Auto control
ITEMS
4-Cylinder in -line SOHC 4-Cylinder in -line DOHC

9- 4 VEHICLE SPECIFICATIONS
Oil & Grease Standard
API SG or SAE 20W-40, 20W-50 (ABOVE -10°C) ABOVE SAE 15W-40, 15W-50 (ABOVE -15°C)SAE 10W-30 (-25°C ~ 40°C) SAE 10W-40, 10W-50 (ABOVE -25°C) SAE 5W-20 (BELOW -10°C) *1, *2SAE 5W-30 (BELOW 10°C) *1 SAE 5W-40 (BELOW 20°C) *1
API CF-4 SAE 30 (0°C ~ 40°C)
or ABOVE, SAE 20W-40 (ABOVE -10°C)
ACEA B4 SAE 15W-40 (ABOVE -15°C)
or ABOVE SAE 10W-30 (-20°C ~ 40°C) SAE 5W-30 (-25°C ~ 10°C)SAE 0W-30 (BELOW 10°C) *1, *2
*1. Restricted to driving condition and vehicle destination*2. Not recommended for sustained high speed vehicle operationNormal driving condition Severe driving condition HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4)DIAMOND ATF SP-III, SK ATF SP-III Dextron 2 DOT 3, DOT 4 or equivalent Ethylene glycol base for aluminium radiator
Item
Engine Oil Petrol Diesel
Engine Oil Consumption
Transaxle Manual Auto
Power Steering
Brake Fluid Coolant

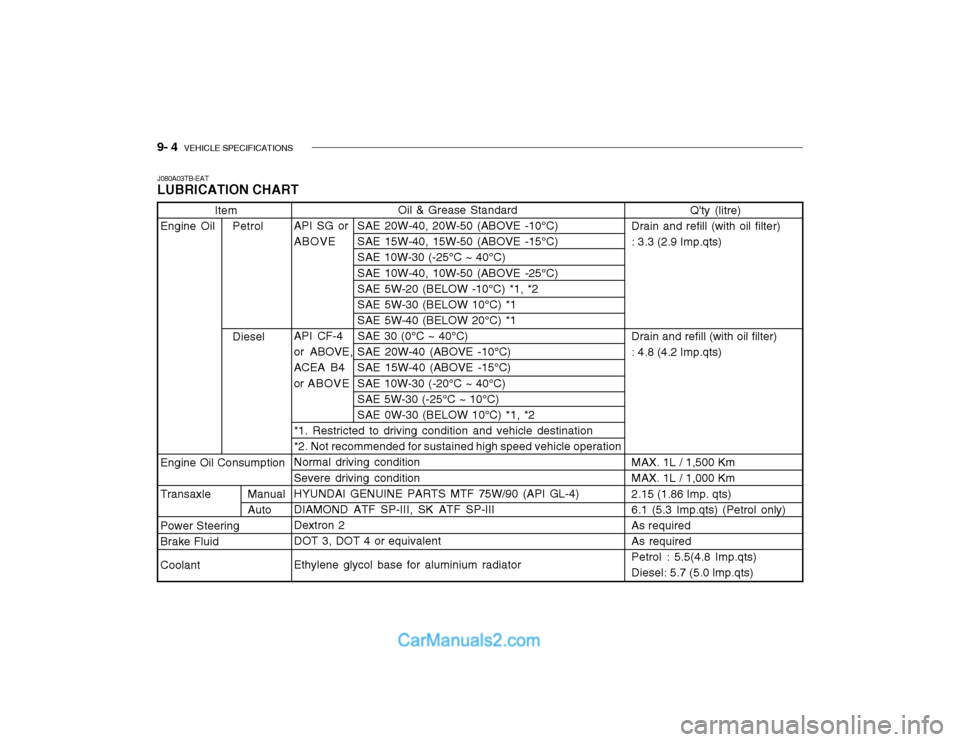

J080A03TB-EAT LUBRICATION CHARTQ'ty (litre)
Drain and refill (with oil filter) : 3.3 (2.9 Imp.qts) Drain and refill (with oil filter) : 4.8 (4.2 Imp.qts) MAX. 1L / 1,500 Km MAX. 1L / 1,000 Km 2.15 (1.86 Imp. qts) 6.1 (5.3 Imp.qts) (Petrol only)As required As required Petrol : 5.5(4.8 Imp.qts)Diesel: 5.7 (5.0 lmp.qts)

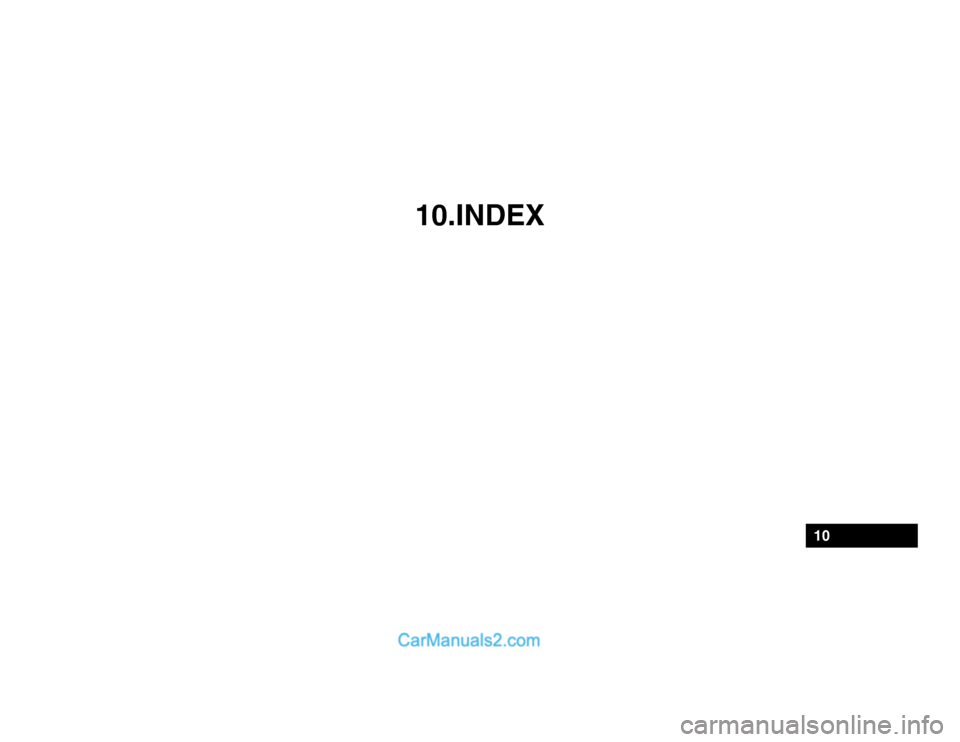

10.INDEX
