lumbar support Hyundai Getz 2003 Owner's Manual

1- 14 FEATURES OF YOUR HYUNDAI
HTB027
B080E01O-AAT Lumbar Support Control
(Driver's Seat Only) (If Installed)
HFC2028
Lock knob
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at theoutside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback intoposition, release the recliner control lever. B080D02A-AAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob.
WARNING:
To minimize risk of severe injury inthe event of a collision or a sudden stop, both the driver and passen- ger seatbacks should always be in an upright position while the ve-hicle is in motion. The protection provided by the seat belts and airbags may be reduced significant-ly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under theseat belt which may result in seri- ous injury if a crash occurs when the seatbacks are reclined. The seatbelt cannot provide full protection to an occupant if the seat back is reclined.
!
o Do not operate the vehicle with the headrests removed as severe injury to an occupant may occur in the event of an accident. Head- rests may provide protectionagainst severe neck injuries when properly adjusted.
!WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top ofthe headrest is at the same height as the top of the occupant's ears. The use of a cushion that holdsthe body away from the seatback is not recommended.
To adjust the lumbar support, turn the handle on the outboard or left side ofthe seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever towardthe rear.

INDEX 10- 3
D
Defrosting / Defogging .............................................. 1-80 Door
Door locks ................................................................ 1-7
Locking, unlocking front doors with a key ............... 1-7
Drink Holder .............................................................. 1-59
Drive Belts ................................................................ 6-25 Driving
Economical driving ................................................. 2-14
Smooth cornering ................................................... 2-15
Winter driving ......................................................... 2-15
E
Emission Control System ........................................... 7-2 Engine Before starting the engine ....................................... 2-3
Compartment ........................................................... 6-2
Coolant ................................................................... 6-13
Coolant temperature gauge ................................... 1-49
If the engine overheats ............................................ 3-4
Number .................................................................... 8-2
Oil ............................................................................. 6-7
Starting ..................................................................... 2-3
Engine Exhaust Can Be Dangerous ........................... 2-2 F Fog Light
Front ....................................................................... 1-57
Rear ....................................................................... 1-57
Front Seats Adjustable front seats ............................................ 1-13
Adjustable headrests .............................................. 1-14
Adjusting seat forward and rearward ..................... 1-13
Adjusting seatback angle ....................................... 1-13
Lumbar support control .......................................... 1-14
Seat cushion height adjustment ............................ 1-15
Seat warmer ........................................................... 1-19
Fuel Capacity ................................................................... 9-2
Gauge .................................................................... 1-48
recommendations ..................................................... 1-2
Fuel Filler Lid Remote release ...................................................... 1-68
Fuses ........................................................................ 6-26
Fuse Panel description ............................................. 6-38 G
General Checks .......................................................... 6-6
Glove Box ................................................................. 1-63

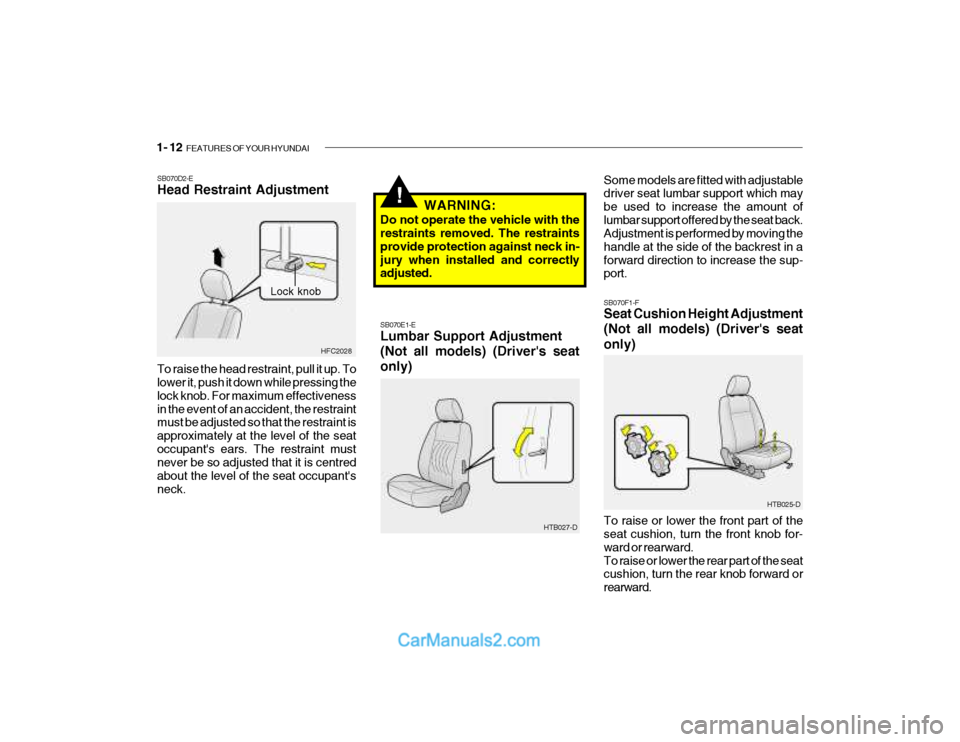

1- 12 FEATURES OF YOUR HYUNDAI
!
HTB025-D
SB070F1-F Seat Cushion Height Adjustment (Not all models) (Driver's seat only) To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward.To raise or lower the rear part of the seat cushion, turn the rear knob forward or rearward.
HTB027-D
SB070E1-E Lumbar Support Adjustment (Not all models) (Driver's seat only)
HFC2028
Lock knob
SB070D2-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down while pressing the lock knob. For maximum effectivenessin the event of an accident, the restraint must be adjusted so that the restraint is approximately at the level of the seatoccupant's ears. The restraint must never be so adjusted that it is centred about the level of the seat occupant'sneck. WARNING:
Do not operate the vehicle with the restraints removed. The restraints provide protection against neck in-jury when installed and correctly adjusted. Some models are fitted with adjustabledriver seat lumbar support which may be used to increase the amount oflumbar support offered by the seat back. Adjustment is performed by moving the handle at the side of the backrest in aforward direction to increase the sup- port.

INDEX 10- 3
ENGINE OIL REPLENISHMENT ................................ 6-8
ENGINE OI L ............................................................... 6-6
F FRONT ASHTRAY .................................................... 1-52
FRONT SEAT ........................................................... 1-11
FRONT FOG LIGHT SWITCH .................................. 1-50
FUEL ECONOMY ....................................................... 2-7
FUEL GAUGE ........................................................... 1-41
FUEL RECOMMENDATIONS ..................................... 1-1
FUSE PANEL DESCRIPTION ..................................6-34
FUSIBLE LINKS ........................................................ 6-24
GGLOVE BOX ............................................................. 1-57
HHAZARD WARNI NG SYSTEM................................. 1-49
HEADLIGHT AIMING ADJUSTEM ENT ....................6-27
HEADLIGHT BULB ................................................... 6-28
HEADLIGHT LEVELING DEVICE SYSTEM .............1-53
HEAD RESTRAINT ADJ USTMENT .......................... 1-12
HEATED REAR WINDOW .............. .......................... 1-50
HEATING AND COOLING CONTROL .....................1-68
HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT ................................................ 1-18
HORN ........................................................................ 1-67
HOW TO USE LUGGAGE ROOM ............................1-63I
IF THE ENGINE CANNOT BE CRANKED
................. 3-2
IF THE ENGINE OVERHEATS ................................... 3-4
IF THE ENGINE WILL NOT START ........................... 3-2
IF THE EVENT OF A PUNCTURE ............................. 3-6
IMMOBILISER SYSTEM ............................................. 1-4
INDIVIDUAL CIRCUIT FUSES .................................6-24
INSTRUMENT CLUSTER AND INDICATORS.........1-35
INTERIOR LIGHT ..................................................... 1-56
INTERIOR REAR VIEW MIRROR ............................ 1-59
JJUMP STARTING ....................................................... 3-3
KKEY POSITI ONS ........................................................ 2-3
LLIGHTING SW ITCH .................................................. 1-47
LUGGAGE BOARD ................................................... 1-65
LUGGAGE NET ........................................................ 1-65
LUGGAGE ROOM .................................................... 1-63
LUGGAGE UNDER TRAY .... .................................... 1-64
LUMBAR SUPPORT ADJUSTMENT ........................1-12
