6- 2 DO-IT-YOURSELF MAINTENANCE
HTB160A
1. Windshield washer fluid reservoir cap
2. Auto fuel cut switch
3. Engine oil filler cap 4. Brake fluid and clutch fluid
reservoir
5. Air filter element
6. Relay box
7. Power steering fluid reservoir 8. Engine oil level dipstick
9. Radiator cap
10.Engine coolant reservoir
11.Battery
G010A01TB-EAT
ENGINE COMPARTMENT (1.1 SOHC)
12 3
456
78 9 10 1 1
tbuk-6.p65 3/23/04, 4:26 PM
2

DO-IT-YOURSELF MAINTENANCE 6- 3
G010B01TB-EAT
ENGINE COMPARTMENT (1.3 SOHC)
1. Windshield washer fluid reservoir
cap
2. Auto fuel cut switch
3. Engine oil filler cap
4. Brake fluid and clutch fluid reservoir 5. Air filter element
6. Relay box
7. Power steering fluid reservoir
(Not all models)
8. Engine oil level dipstick 9. Radiator cap
10. Engine coolant reservoir
11. Automatic transaxle fluid level dip-
stick (Not all models)
12. Battery HTB086A
123
456
78 91 011
12
tbuk-6.p65 3/23/04, 4:26 PM
3

6- 4 DO-IT-YOURSELF MAINTENANCE
G010B01TB-EAT
ENGINE COMPARTMENT (1.6L DOHC)
HTB088A
1. Windshield washer fluid reservoir cap
2. Auto fuel cut switch
3. Engine oil filler cap
4. Brake fluid and clutch fluid reservoir 5. Air filter element
6. Relay box
7. Power steering fluid reservoir
(Not all models)
8. Engine oil level dipstick 9. Radiator cap
10.Engine coolant reservoir
11.Automatic transaxle fluid level dip-
stick (Not all models)
12.Battery
1 2 34
56
789 10 11 12 CAUTION:
When inspecting or
servicing the engine,
you should handle
tools and other heavy
objects carefully so
that the plastic rocker
cover of the engine is
not damaged.
!
tbuk-6.p65 3/23/04, 4:26 PM
4

DO-IT-YOURSELF MAINTENANCE 6- 5
G010C01TB-EAT

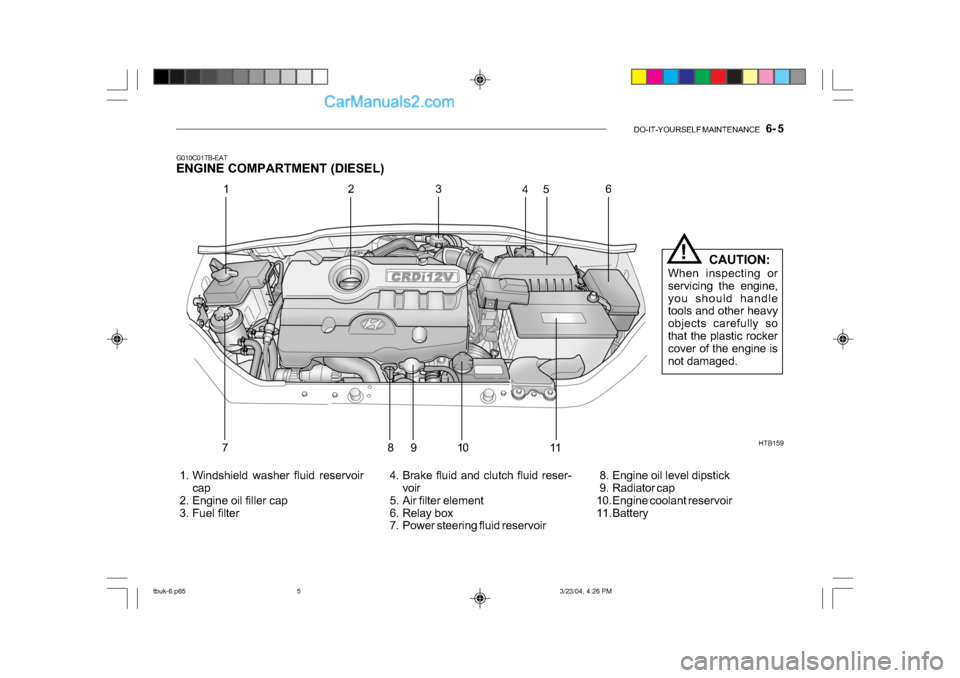

ENGINE COMPARTMENT (DIESEL)
HTB159
1. Windshield washer fluid reservoir cap
2. Engine oil filler cap
3. Fuel filter 4. Brake fluid and clutch fluid reser-
voir
5. Air filter element
6. Relay box
7. Power steering fluid reservoir 8. Engine oil level dipstick
9. Radiator cap
10. Engine coolant reservoir
11. Battery
12
3
45 6
78 910
11 CAUTION:
When inspecting or
servicing the engine,
you should handle
tools and other heavy
objects carefully so
that the plastic rocker
cover of the engine is
not damaged.
!
tbuk-6.p65 3/23/04, 4:26 PM
5

6- 6 DO-IT-YOURSELF MAINTENANCE
SG020B1-E
DAILY OPERATING CHECKS
The following items should be checked
on a daily basis or whenever the vehicle
is refuelled, whichever occurs sooner.
o Engine oil level.
o Engine coolant level.
o Power steering fluid level.
o Brake fluid level.
o Windscreen washer fluid level.
o Battery condition.
o Tyre condition and pressures.
o Operation and cleanliness of all light-
ing equipment.
o Windscreen wiper and washer opera- tion.
o Horn operation.
o Warning light operation.
o Adjustment and cleanliness of mir- rors.
o Seat and seat belt adjustment and operation.
o Fluid leakage.
The vehicle must not be driven if the
daily operating checks indicate that
any item of equipment related to the
safety or roadworthiness of the vehicle
is not functioning correctly. G030B02A-EAT
Recommended Oil
1. Petrol engine
A multi grade oil having a specification
which meets A.P.I. specification of SG
or above is recommended. The oil vis-
cosity should be selected according to
the operating environment of the engine
by means of the table shown in the
illustration. The engine oil recommen-
dations are complete in themselves
and the use of additives is neither
required nor recommended. The use of
engine oil additives may result in invali-
dation of the vehicle warranty.
G030A01FC-EAT
ENGINE OIL
The correct engine oil level is of para-
mount importance. An excessively high
or low oil level may result in irreparable
damage being sustained by the engine.
The engine oil level must be checked
on a daily basis, whenever the vehicle
is refuelled or before starting a long trip,
whichever occurs sooner.
In addition, it is imperative that only an
approved grade and specification of oil
is used to avoid the possibility of seri-
ous engine damage and premature wear.
The use of "budget price" oil is a false
economy that must be avoided if the
maximum reliability and useful life is to
be obtained from the vehicle.
G030B01L
tbuk-6.p65
3/23/04, 4:26 PM
6

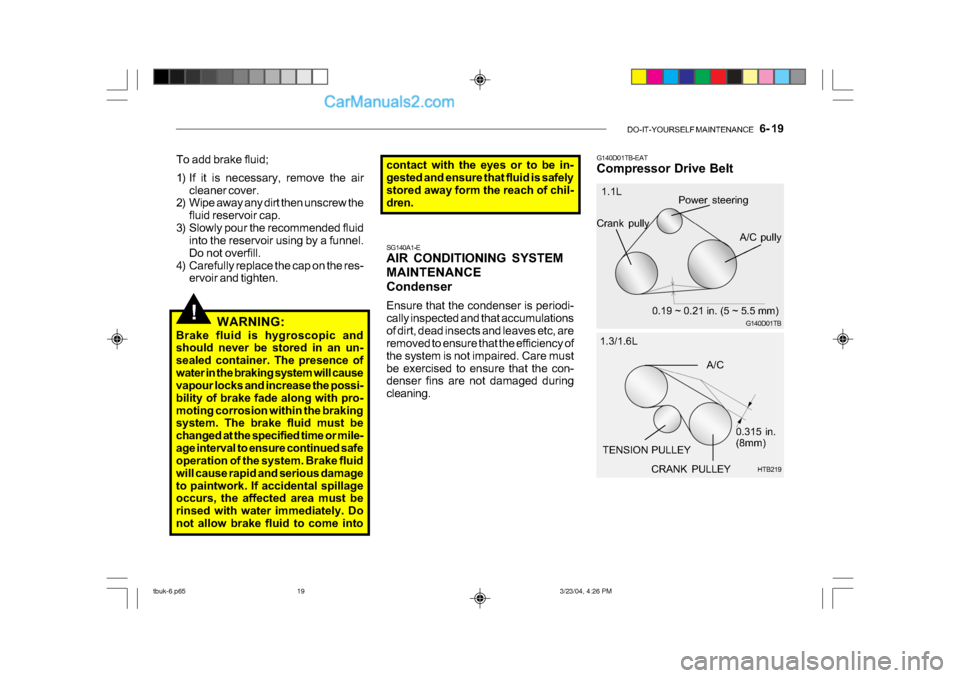

DO-IT-YOURSELF MAINTENANCE 6- 19
!WARNING:
Brake fluid is hygroscopic and
should never be stored in an un-
sealed container. The presence of
water in the braking system will cause
vapour locks and increase the possi-
bility of brake fade along with pro-
moting corrosion within the braking
system. The brake fluid must be
changed at the specified time or mile-
age interval to ensure continued safe
operation of the system. Brake fluid
will cause rapid and serious damage
to paintwork. If accidental spillage
occurs, the affected area must be
rinsed with water immediately. Do
not allow brake fluid to come into SG140A1-E
AIR CONDITIONING SYSTEM
MAINTENANCE
Condenser
Ensure that the condenser is periodi-
cally inspected and that accumulations
of dirt, dead insects and leaves etc, are
removed to ensure that the efficiency of
the system is not impaired. Care must
be exercised to ensure that the con-
denser fins are not damaged during
cleaning.
G140D01TB-EAT
Compressor Drive BeltG140D01TB
Power steering
Crank pully
A/C pully
0.19 ~ 0.21 in. (5 ~ 5.5 mm)
1.1L
To add brake fluid;
1) If it is necessary, remove the air
cleaner cover.
2) Wipe away any dirt then unscrew the
fluid reservoir cap.
3) Slowly pour the recommended fluid into the reservoir using by a funnel.
Do not overfill.
4) Carefully replace the cap on the res- ervoir and tighten. contact with the eyes or to be in-
gested and ensure that fluid is safely
stored away form the reach of chil-
dren.
CRANK PULLEY
HTB219
A/C
TENSION PULLEY 0.315 in.
(8mm)
1.3/1.6L
tbuk-6.p65
3/23/04, 4:26 PM
19

6- 26 DO-IT-YOURSELF MAINTENANCE
HTB287
SG230B1-E
POWER STEERING HOSES
Power steering hoses should be
checked for damage, deterioration and
leakage at each service.
steering fluid level is between the "MAX"
and "MIN" level markings on the fluid
reservoir.
NOTE:
Grinding noise from power steering
pump may be heard immediately
after the engine is started in extremely
cold condition (below -4

9- 4 VEHICLE SPECIFICATIONS
Oil & Grease Standard
API SG or SAE 20W-40, 20W-50 (ABOVE -10°C) ABOVE SAE 15W-40, 15W-50 (ABOVE -15°C)SAE 10W-30 (-25°C ~ 40°C) SAE 10W-40, 10W-50 (ABOVE -25°C) SAE 5W-20 (BELOW -10°C) *1, *2SAE 5W-30 (BELOW 10°C) *1 SAE 5W-40 (BELOW 20°C) *1
API CF-4 SAE 30 (0°C ~ 40°C)
or ABOVE, SAE 20W-40 (ABOVE -10°C)
ACEA B4 SAE 15W-40 (ABOVE -15°C)
or ABOVE SAE 10W-30 (-20°C ~ 40°C) SAE 5W-30 (-25°C ~ 10°C)SAE 0W-30 (BELOW 10°C) *1, *2
*1. Restricted to driving condition and vehicle destination*2. Not recommended for sustained high speed vehicle operationNormal driving condition Severe driving condition HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4)DIAMOND ATF SP-III, SK ATF SP-III Dextron 2 DOT 3, DOT 4 or equivalent Ethylene glycol base for aluminium radiator
Item
Engine Oil Petrol Diesel
Engine Oil Consumption
Transaxle Manual Auto
Power Steering
Brake Fluid Coolant

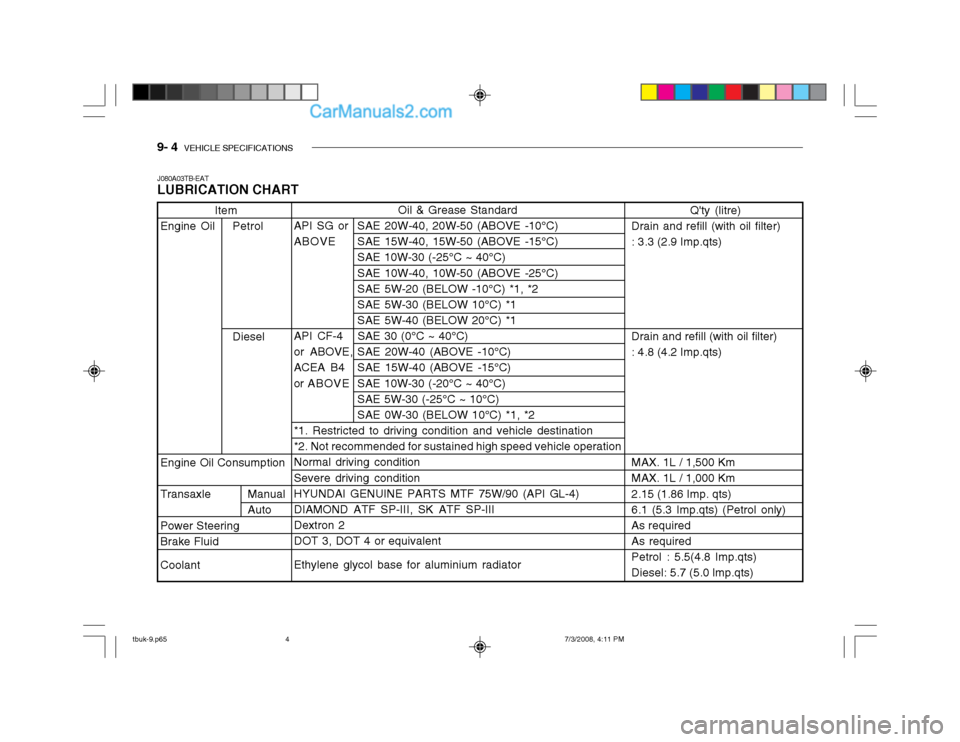

J080A03TB-EAT LUBRICATION CHARTQ'ty (litre)
Drain and refill (with oil filter) : 3.3 (2.9 Imp.qts) Drain and refill (with oil filter) : 4.8 (4.2 Imp.qts) MAX. 1L / 1,500 Km MAX. 1L / 1,000 Km 2.15 (1.86 Imp. qts) 6.1 (5.3 Imp.qts) (Petrol only)As required As required Petrol : 5.5(4.8 Imp.qts)Diesel: 5.7 (5.0 lmp.qts)
tbuk-9.p65 7/3/2008, 4:11 PM
4

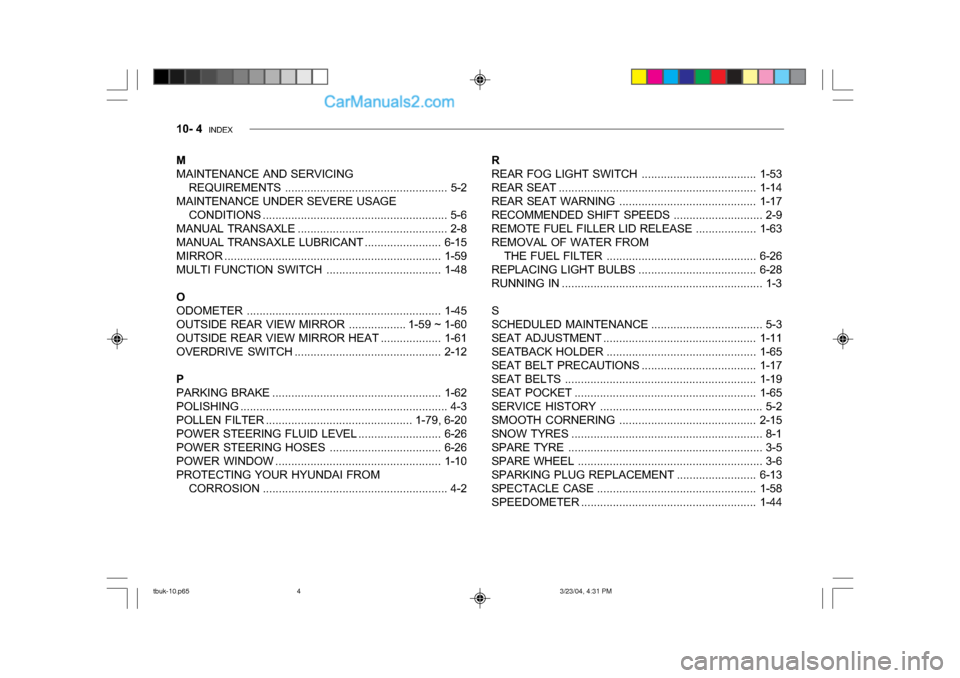

10- 4 INDEX
M
MAINTENANCE AND SERVICING
REQUIREMENTS ................................................... 5-2
MAINTENANCE UNDER SEVERE USAGE CONDITIONS ......................................... ................. 5-6
MANUAL TRANSAXLE ............................................... 2-8
MANUAL TRANSAXLE L UBRICANT........................ 6-15
MIRROR ................................................... .................1-59
MULTI FUNCTION SWITCH.................................... 1-48
O
ODOMETER ........................................... ..................1-45
OUTSIDE REAR VIEW MIRROR .................. 1-59 ~ 1-60
OUTSIDE REAR VIEW MIRROR HEAT ...................1-61
OVERDRIVE SWITCH .............................................. 2-12
P
PARKING BRAKE ................................................... ..1-62
POLISHING .......................................... ....................... 4-3
POLLEN FILTER .............................................. 1-79, 6-20
POWER STEERING FLUID LEVEL ..........................6-26
POWER STEERI NG HOSES................................... 6-26
POWER WINDOW ....................................... .............1-10
PROTECTING YOUR HYUNDAI FROM CORROSION .......................................... ................ 4-2R
REAR FOG LIGHT
SWITCH.................................... 1-53
REAR SEAT ................................................... ...........1-14
REAR SEAT WARNING ........................................... 1-17
RECOMMENDED SHIFT SPEEDS ............................ 2-9
REMOTE FUEL FILLER LID RELEASE................... 1-63
REMOVAL OF WATER FROM THE FUEL FILTER ............................................... 6-26
REPLACING LIGHT BULBS .....................................6-28
RUNNING IN ................................................... ............ 1-3
S
SCHEDULED MAINTENANCE ................................... 5-3
SEAT ADJUSTMENT ................................................ 1-11
SEATBACK HOLDER ............................................... 1-65
SEAT BELT PRECAUTIONS ....................................1-17
SEAT BE LTS................................................... .........1-19
SEAT POCKET ................................................... ......1-65
SERVICE HISTORY ................................................... 5-2
SMOOTH COR NERING........................................... 2-15
SNOW TYRES ................................................... ......... 8-1
SPARE TYRE ................................................... .......... 3-5
SPARE WHEEL ................................................... ....... 3-6
SPARKING PLUG REPLACEM ENT .........................6-13
SPECTACLE CASE .................................................. 1-58
SPEEDOMETER .............. ......................................... 1-44
