Page 13 of 445
YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-44
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator
Page 49 of 445
1- 36 FEATURES OF YOUR HYUNDAI
The SRS consists of the following com- ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontalimpact is severe enough to require airbag deployment.
B240B01FC-GAT SRS Components and Functions
B240B01L
B240B02L
The SRS service reminder indicator (SRI) on the instrument panel will blink for about 6 seconds after the ignitionkey is turned to the "ON" position or after the engine is started, after which the SRI should go out. The airbag modules are located both in the center of the steering wheel and in the front passenger's panel above theglove box. When the SRSCM detects a considerable impact to the front of the vehicle, it will automatically deploy theairbags.
B240B03L
Page 57 of 445
1- 44 FEATURES OF YOUR HYUNDAI
B260B01S-GAT
SRS (Airbag) Service Reminder Indicator (SRI)(If Installed)
The SRS service reminder indicator (SRI) comes on and flashes for about 6 seconds after the ignition key isturned to the "ON" position or after the engine is started, after which it will go out. This light also comes on when the SRS is not working properly. If the SRI doesnot come on, or continuously remains on after flashing for about 6 seconds when you turned the ignition key to the"ON" position or started the engine, or if it comes on while driving, have the SRS inspected by an authorizedHyundai Dealer. B260P02Y-GAT
ABS Service Reminder Indicator (SRI)(If Installed)
When the key is turned to the "ON" position, the Anti-Lock Brake System will come on and then go off in a fewseconds. If the ABS SRI remains on, comes on while driving, or does not come on when the key is turned to the"ON" position, this indicates that there may be a problem with the ABS. If this occurs, have your vehiclechecked by your Hyundai dealer as soon as possible. The normal braking system will still be operational, butwithout the assistance of the anti-lock brake system. B260C01A-AAT
O/D OFF Indicator (Automatic transaxleonly) (If Installed)
When the overdrive switch is turned on, the overdrive off indicator will go out. This amber indicator will be illumi-nated when the overdrive switch is turned off. B260D01A-AAT Turn Signal Indicator Lights
The blinking green arrows on the in- strument panel show the direction indi-cated by the turn signals. If the arrow comes on but does not blink, blinks more rapidly than normal, or does notilluminate at all, a malfunction in the turn signal system is indicated. Your dealer should be consulted for repairs.
! CAUTION:
If both ABS SRI and Parking Brake/ Brake fluid level warning lights re-main "ON" or come on while driv- ing, there may be a problem with E.B.D (Electronic Brake Force Dis-tribution). If this occurs, avoid sudden stops and have your vehicle checked byyour Hyundai dealer as soon as possible.
Page 58 of 445
FEATURES OF YOUR HYUNDAI 1- 45
B260F01A-AAT
High Beam Indicator Light
The high beam indicator light comes on whenever the headlights are switched to the high beam or flashposition.
B260H03A-AATParking Brake/Brake
Fluid Level WarningLight
B260G01A-AATOil Pressure Warning Light
!CAUTION:
If the oil pressure warning light stays on while the engine is run- ning, serious engine damage may result. The oil pressure warninglight comes on whenever there is insufficient oil pressure. In normal operation, it should come on whenthe ignition switch is turned on, then go out when the engine is started. If the oil pressure warninglight stays on while the engine is running, there may be a serious malfunction. If this happens, stop the car assoon as it is safe to do so, turn off the engine and check the oil level. If the oil level is low, fill the engine oilto the proper level and start the engine again. If the light stays on with the engine running, turn theengine off immediately. In any in- stance where the oil light stays on when the engine is running, theengine should be checked by an authorized Hyundai dealer before the car is driven again.
Warning Light Operation The parking brake/brake fluid level warning light should come on when theparking brake is applied and the igni- tion switch is turned to "ON" or "START". After the engine is started,the light should go out when the park- ing brake is released. If the parking brake is not applied, thewarning light should come on when the ignition switch is turned to "ON" or "START", then go out when the enginestarts. If the light comes on at any other time, you should slow the vehicle and bring it to a complete stop in a safelocation off the roadway. The brake warning light indicates that the brake fluid level in the brake mas-ter cylinder is low and hydraulic brake fluid conforming to DOT 3 or DOT 4 specifications should be added. Afteradding fluid, if no other trouble is found, the car should be immediately and carefully driven to a Hyundai dealer forinspection. If further trouble is experi- enced, the vehicle should not be driven at all but taken to a dealer by aprofessional towing service or some other safe method.
WARNING:
If you suspect brake trouble, have your brakes checked by a Hyundai dealer as soon as possible. Driving your car with a problem in either thebrake electrical system or brake hydraulic system is dangerous, and could result in a serious injury ordeath.
!

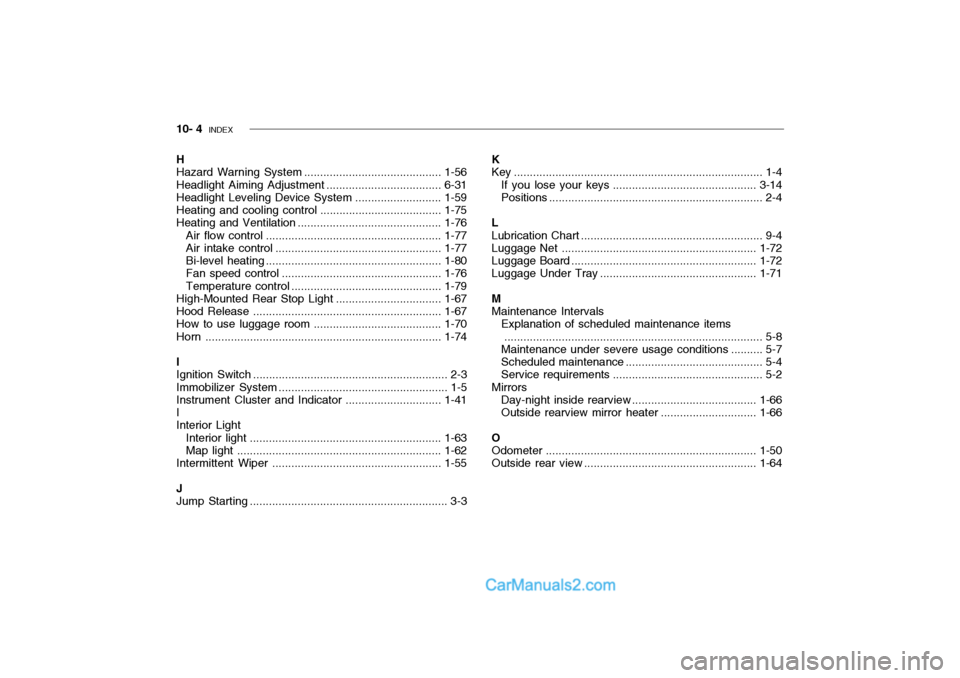

Page 245 of 445
10- 4 INDEX
H Hazard Warning Syst em ........................................... 1-56
Headlight Aiming Adjustment ....................................6-31
Headlight Leveling Device Syst em ...........................1-59
Heating and cooling control ...................................... 1-75
Heating and Ventilation ............................................. 1-76
Air flow control ....................................................... 1-77
Air intake control .................................................... 1-77
Bi-level heating ....................................................... 1-80
Fan speed control .................................................. 1-76
Temperature control ............................................... 1-79
High-Mounted Rear Stop Light................................. 1-67
Hood Release ........................................................... 1-67
How to use luggage room .. ......................................1-70
Horn .......................................................................... 1-74
IIgnition Sw itch ............................................................. 2-3
Immobilizer S ystem ..................................................... 1-5
Instrument Cluster and Indicator ..............................1-41
IInterior Light Interior light ............................................................ 1-63
Map light ................................................................ 1-62
Intermittent Wiper ..................................................... 1-55
JJump Starting .............................................................. 3-3 K
Key .............................................................................. 1-4
If you lose your keys ............................................. 3-14
Positions ................................................................... 2-4
L Lubrication Chart ......................................................... 9-4
Luggage Net ............................................................. 1-72
Luggage Board .......................................................... 1-72
Luggage Under Tray ................................................. 1-71
MMaintenance Intervals Explanation of scheduled maintenance items
................................................................................. 5-8
Maintenance under severe usage conditions .......... 5-7Scheduled maintenance ........................................... 5-4
Service requ irements............................................... 5-2
Mirrors Day-night inside rearview ....................................... 1-66
Outside rearview mirror heater .............................. 1-66
O Odometer .................................................................. 1-50
Outside rear view...................................................... 1-64
Page 258 of 445
YOUR VEHICLE AT A GLANCE
B255A01TB-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * A detail explanations of these items will be found on page 1-37
SRS (Airbag) Service Reminder Indicator ABS Service Reminder Indicator Turn Signal Indicator Lights High Beam Indicator Light Oil Pressure Warning Light Parking Brake/Brake Level Warning Light Charging System Warning Light Tail Gate Open Warning LightDoor Ajar Warning Light and Chime
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
O/D OFF Indicator (Automatic transaxle only)
Electric Power Steering System (EPS)Warning Light
Diesel Pre-heat Indicator Light (Diesel only)
Fuel Filter Warning Light (Diesel only)
Immobilizer Indicator
tbuk-0.p65
3/23/04, 4:21 PM
12

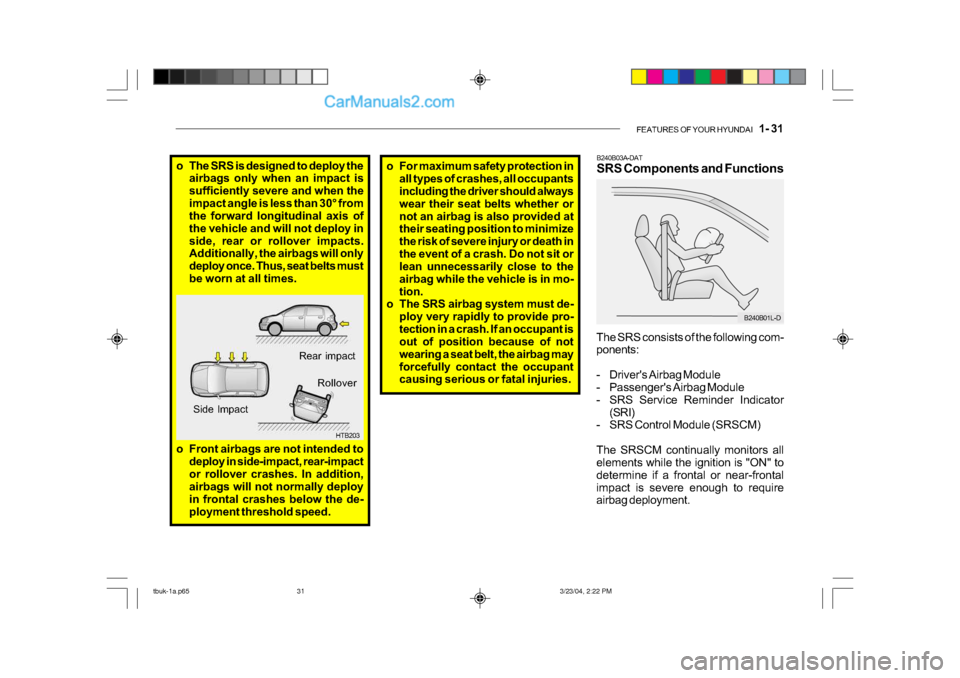

Page 289 of 445
FEATURES OF YOUR HYUNDAI 1- 31
o For maximum safety protection in
all types of crashes, all occupants
including the driver should always
wear their seat belts whether or
not an airbag is also provided at
their seating position to minimize
the risk of severe injury or death in
the event of a crash. Do not sit or
lean unnecessarily close to the
airbag while the vehicle is in mo-
tion.
o The SRS airbag system must de-
ploy very rapidly to provide pro-
tection in a crash. If an occupant is
out of position because of not
wearing a seat belt, the airbag may
forcefully contact the occupant
causing serious or fatal injuries.
The SRS consists of the following com-
ponents:
- Driver's Airbag Module
- Passenger's Airbag Module
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors all
elements while the ignition is "ON" to
determine if a frontal or near-frontal
impact is severe enough to require
airbag deployment. B240B03A-DAT
SRS Components and Functions
B240B01L-D
HTB203
Rear impact
Side Impact Rollover
o The SRS is designed to deploy the
airbags only when an impact is
sufficiently severe and when the
impact angle is less than 30

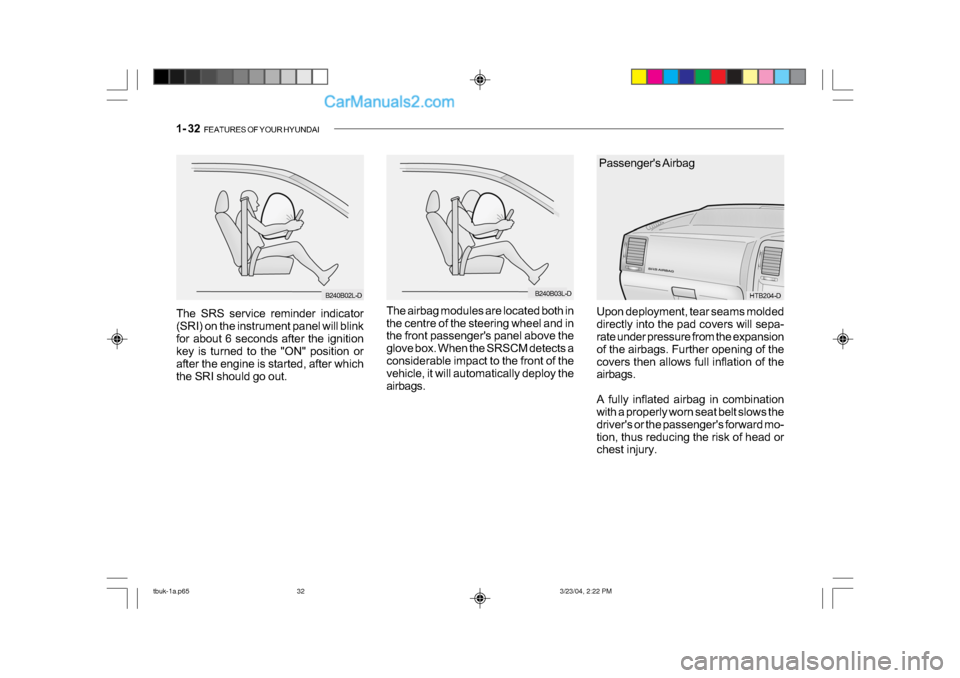

Page 290 of 445
1- 32 FEATURES OF YOUR HYUNDAI
B240B03L-D
The airbag modules are located both in
the centre of the steering wheel and in
the front passenger's panel above the
glove box. When the SRSCM detects a
considerable impact to the front of the
vehicle, it will automatically deploy the
airbags.
Passenger's Airbag
HTB204-D
Upon deployment, tear seams molded
directly into the pad covers will sepa-
rate under pressure from the expansion
of the airbags. Further opening of the
covers then allows full inflation of the
airbags.
A fully inflated airbag in combination
with a properly worn seat belt slows the
driver's or the passenger's forward mo-
tion, thus reducing the risk of head or
chest injury.
The SRS service reminder indicator
(SRI) on the instrument panel will blink
for about 6 seconds after the ignition
key is turned to the "ON" position or
after the engine is started, after which
the SRI should go out.
B240B02L-D
tbuk-1a.p65
3/23/04, 2:22 PM
32
Page 297 of 445
FEATURES OF YOUR HYUNDAI 1- 39
SB210C1-F
SRS (Airbag) SERVICE
REMINDER INDICATOR
The SRS service reminder indicator
(SRI) comes on and flashes for about 6
seconds after the ignition key is turned
to the "ON" position or after the engine
is started, after which it will go out.
This light also comes on when the SRS
is not working properly.
If the SRI does not come on, or continu-
ously remains on after flashing for about
6 seconds when you turned the ignition
key to the "ON" position or started the
engine, or if it comes on while driving,
have the SRS inspected by an autho-
rized Hyundai Dealer. B260P02Y-EAT
ABS SERVICE
REMINDER INDICATOR
(SRI) (Not all models)
When the key is turned to the "ON"
position, the Anti-Lock Brake System
SRI will come on and then go off in a few
seconds. If the ABS SRI remains on,
comes on while driving, or does not
come on when the key is turned to the
"ON" position, this indicates that there
may be a problem with the ABS.
If this occurs, have your vehicle
checked by your Hyundai dealer as
soon as possible. The normal braking
system will still be operational, but
without the assistance of the anti-lock
brake system. SB210E1-E
OVERDRIVE OFF INDI
CATORLIGHT
(Not all models)
When the overdrive (4th gear) switch is
turned off and the operation of overdrive
(4th gear) is cancelled, the overdrive
warning light (O/D OFF) will be illumi-
nated. When the switch is at the on
position, the gearbox will operate in the
normal fully automatic mode and the
warning light will be extinguished.
SB210G1-E TURN SIGNAL
INDICATOR LIGHT
Operation of a turn signal is indicated
by the warning light located in the in-
strument cluster. If the light fails to
illuminate or does not flash, a malfunc-
tion within the turn signal system is
indicated.
! WARNING:
If the both ABS SRI and Parking
Brake/Brake fluid level warning lights
remain "ON" or come on while driv-
ing, there may be a problem with
E.B.D (Electronic brake force distri-
bution).
If this occurs, avoid sudden stops
and have your vehicle checked by
your Hyundai dealer as soon as pos-
sible.
tbuk-1a.p65 3/23/04, 2:22 PM
39
