Hyundai Getz 2005 Owner's Guide

1- 20 FEATURES OF YOUR HYUNDAI
B200A01S-GAT Adjusting Your Seat Belt
B200A01L-D You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high onyour body, you could slide under it in case of accident or a sudden stop. This could result of death, seriousinjury or property damage. Both arms should not be under or over the belt. Rather, one should be over and theother under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.
The mechanism will also lock if the seat belt webbing is withdrawn too quickly when the belt is being fastened or ifattempts are made to withdraw the webbing whilst the vehicle is not on level ground. Should the seat belt lockunder these conditions, it will be pos- sible to release the mechanism by al- lowing a small amount of webbing to beretracted and the belt withdrawn again.
SB090P1-E SEAT BELTS (3-Point Type) To Fasten The Seat Belt
B180A01L-D
The seat belts are fastened by pulling the belt buckle towards the seat belt stalk and inserting the metal tongue of the buckle into the stalk. The buckleshould be firmly pressed into the stalk until locked which will be indicated by an audible "click".The length of the seat belt webbing will be automatically adjusted by the seat belt mechanism to allow the wearermaximum freedom of movement whilst the belt is being worn. However, in the event of rapid deceleration or impact,the belt mechanism will automatically lock.

FEATURES OF YOUR HYUNDAI 1- 21
B220A01Y-DAT SEAT BELTS - Rear Seat Centre's 3-Point System WithEmergency Locking Retractor
1. Before fastening the rear seat centre
belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c) into the buckle (d).
There will be an audible "click" when thetab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manu-ally so that it fits snugly around your HTB192
hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stopor impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.
(a)
(b) (c)
(d) B220A02YB210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt shouldautomatically draw back into the re- tractor. If this does not happen, check the beltto be sure it is not twisted, then try again. B210A01L-D

1- 22 FEATURES OF YOUR HYUNDAI
!
B220C01Y-DAT To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle. HTB191
WARNING:
The centre belt latching mechanismis different from those for the rear seat shoulder belts. When fastening the rear seat shoulder belts or therear seat centre belt, make sure they are inserted into the correct buckles to obtain maximum protection fromthe seat belt system and assure proper operation. B230A03A-EAT CHILD RESTRAINT SYSTEM Children riding in the car should sit in the rear seat and must always be prop-erly restrained to minimize the risk of injury in an accident, sudden stop or sudden manoeuvre. According to acci-dent statistics, children are safer when properly restrained in the rear seats than in the front seat. Larger childrenshould use one of the seat belts pro- vided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies,a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car andseat belts, and fits your child. Follow all the instructions provided by the manu- facturer when installing the child re-straint system.
!WARNING:
o When using the rear seat centre belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a) and
the buckle (b) with the followingexceptions.(1)In case of folding rear seatbacks down.
(2)If transporting an object on the
rear seat may cause damage to the rear seat centre belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.

FEATURES OF YOUR HYUNDAI 1- 23
Never allow children to ride in the front passenger seat.
o Always make sure that the shoul-
der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, never across the neck or behind theback. Moving the child closer to the centre of the vehicle may help provide a good shoulder belt fit.The lap belt portion of the lap/ shoulder belt or the centre seat lap belt must always be positioned aslow as possible on the child's hips and as snug as possible.
o If the seat belt will not properly fit the child, Hyundai recommendsthe use of an approved booster seat in the rear seat in order toraise the child's seating height so that the seat belt will properly fit the child.
o Never allow a child to stand up or kneel on the seat. o Never use an infant carrier or child
safety seat that "hooks" over a seatback; it may not provide ad- equate security in an accident.
o Never allow a child to be held in a person's arms while they are in amoving vehicle, as this could re-sult in serious injury to the child in the event of an accident or a sudden stop. Holding a child in amoving vehicle does not provide the child with any means of pro- tection during an accident, even ifthe person holding the child is wearing a seat belt.
o If the child restraint seat is not
anchored properly, the risk of achild being seriously injured or killed in a collision greatly in-creases.
WARNING:
o A child restraint system must be placed in the rear seat. Never in- stall a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger side airbag to deploy, it could severely injureor kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rearseat of your vehicle.
o Since a safety belt or child re-
straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing a childthere.
o When the child restraint system is
not in use, store it in the trunk orfasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an acci-dent.
o Children who are too large to be in
a child restraint should sit in therear seat and be restrained with the available lap/shoulder belts.!

1- 24 FEATURES OF YOUR HYUNDAI
!WARNING:
Do not install any child restraint sys- tem in the front passenger seat. Should an accident occur and cause the passenger side airbag to deploy,it could severely injure or kill an infant or child seated in an infant or child seat. Therefore, only use a childrestraint system in the rear seat of your vehicle.
If you need to tighten the belt, pull morewebbing toward the retractor. When you unbuckle the seat belt and allow it toretract, the retractor will automatically revert back to its normal seated pas- senger emergency locking usage con-dition. NOTE:
o Before installing the child restraint
system, read the instructions sup- plied by the child restraint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourHyundai authorised repairer.
B230B01TB
B230B02A-GAT Using a Child Restraint System with "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is stronglyrecommended. This child seat or infant seat should be of appropriate size for the child and should be installed inaccordance with the manufacturer's in- structions. It is further recommended that the seat be placed in the vehicle'srear seat since this can make an impor- tant contribution to safety. Your vehicle is provided with three child restrainthook holders for installing the child seat or infant seat. Spacer (10mm), Child Restraint Hook Holder
Holder Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
Retainer Washer
To install a child restraint system in the outboard rear seats, extend the shoul- der/lap belt from its retractor. Install thechild restraint system, buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap por-tion of the belt is tight around the child restraint system and the shoulder por- tion of the belt is positioned so that itcannot interfere with the child's head or neck. After installation of the child re- straint system, try to move it in alldirections to be sure the child restraint system is securely installed.B230G01A-GAT Installation on Outboard Rear Seats
B230G01L

FEATURES OF YOUR HYUNDAI 1- 25
!
B230E01TB
Back panel
Front of Vehicle
Attaching clip
Covering shelf
2. Remove the load space cover.
3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat. WARNING:
To install the Child Restraint Seat, for safety reasons the Seat should be positioned rearmost with the seatback in a vertical position, notreclined.
B230E02FC-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the vertical back panel. (behind rear bumper bar)
1. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rests, route the tether strap under the headrest and between the head-rest posts, otherwise route the tether strap over the top of the seatback.

1- 26 FEATURES OF YOUR HYUNDAI

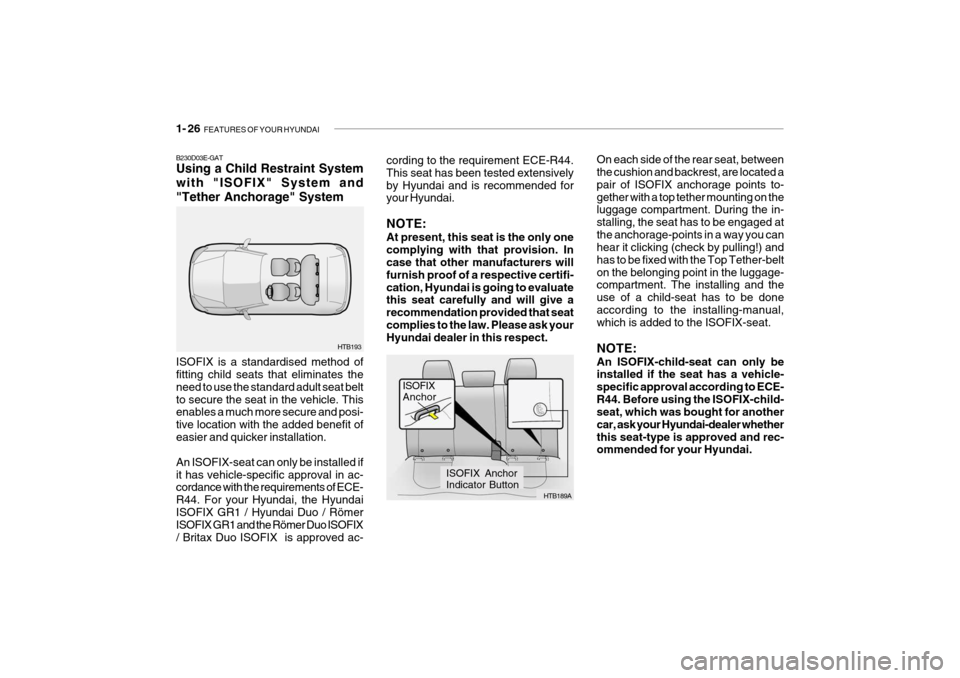

On each side of the rear seat, between the cushion and backrest, are located a pair of ISOFIX anchorage points to-gether with a top tether mounting on the luggage compartment. During the in- stalling, the seat has to be engaged atthe anchorage-points in a way you can hear it clicking (check by pulling!) and has to be fixed with the Top Tether-belton the belonging point in the luggage- compartment. The installing and the use of a child-seat has to be doneaccording to the installing-manual, which is added to the ISOFIX-seat. NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealer whetherthis seat-type is approved and rec- ommended for your Hyundai.
cording to the requirement ECE-R44. This seat has been tested extensivelyby Hyundai and is recommended for your Hyundai. NOTE: At present, this seat is the only one complying with that provision. In case that other manufacturers will furnish proof of a respective certifi-cation, Hyundai is going to evaluate this seat carefully and will give a recommendation provided that seatcomplies to the law. Please ask your Hyundai dealer in this respect.
HTB189A
ISOFIX Anchor
ISOFIX Anchor Indicator Button
B230D03E-GAT Using a Child Restraint System with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardised method of fitting child seats that eliminates the need to use the standard adult seat beltto secure the seat in the vehicle. This enables a much more secure and posi- tive location with the added benefit ofeasier and quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in ac- cordance with the requirements of ECE- R44. For your Hyundai, the HyundaiISOFIX GR1 / Hyundai Duo / Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved ac-
HTB193

FEATURES OF YOUR HYUNDAI 1- 27
!
B230H01TB-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety seats, refer to the following table.
Rear
Centre
Age Group Seating Position
UX
X UX
Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4years)II & III : 15kg to36kg (4 ~ 12 years) X
X U, L1 X XU
FX
WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right outboard rearseating positions. Do not misuse the ISOFIX anchors by attempting to attach a child restraint seat inthe middle of the rear seat to the ISOFIX anchors. In a crash, the child restraint seat ISOFIX attach-ments may not be strong enough to secure the child restraint seat properly in the center of the rear seat and may break, causing seri- ous injury or death.
o Do not mount more than one child restraint to a child restraint loweranchorage point. The improperincreased load may cause the an- chorage points or tether anchor to break, causing serious injury ordeath.
o Attach the ISOFIX or ISOFIX-com-
patible child restraint seat only tothe appropriate locations shown in the illustration.
B230D01TB
1. To engage the child restraint seat to the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the audible "click"sound.
2. Connect the tether strap hook to the
child restraint hook holder and tightento secure the seat. Refer to "Secur- ing a Child Restraint System with the Tether Anchorage System" on page1-25.
To secure the child restraint seat
o Always follow the installation and
use instructions provided by the manufacturer of the child restraint.

1- 28 FEATURES OF YOUR HYUNDAI
B180B01A-EAT Pre-Tensioner Seat Belt
B180B01S-D
Your Hyundai vehicle is equipped with driver's and front passenger's pre- tensioner seat belts. The purpose of thepre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal colli-sions. The pre-tensioner seat belts can be activated with the airbags. The pre-tensioner seat belt operates in the same way as an Emergency Lock- ing Retractor (ELR) type of seat belt.When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lockinto position. However, in certain frontal
collisions, the pre-tensioner will acti- vate and pull the seat belt into tighter contact against the occupant's body. The seat belt pre-tensioner system consists mainly of the following compo- nents. Their locations are shown in theillustration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module HTB198-D
Driver's airbag1
2
3Passenger's airbag
U : Suitable for "universal" category
restraints approved for use in this mass group
UF: Suitable for forward-facing "univer- sal" category restraints approvedfor use in this mass group
L1 : Suitable for "Römer ISOFIX GR1" approved for use in this mass group(Approval No: E1 R44-03301133)
X : Seat position not suitable for chil- dren in this mass group

FEATURES OF YOUR HYUNDAI 1- 29
!
o Although it is harmless, the fine
dust may cause skin irritation and should not be breathed for pro-longed periods. Wash your hands and face thoroughly after an acci- dent in which the pre-tensionerseat belts were activated. it illuminates whilst the vehicle is being driven, please have a Hyundai authorised repairer in-spect the pre-tensioner seat belt or SRS airbag system as soon as possible.
CAUTION:
o Because the sensor that activates the SRS airbag is connected with the pre-tensioner seat belt, the SRS airbag warning light on theinstrument panel will blink for approximately 6 seconds after the ignition key has been turned to the "ON" position and then it should turn off.
o If the pre-tensioner seat belt is not working properly, this warninglight will illuminate even if there isno function of the SRS airbag sys- tem. If the SRS airbag warning lightdoes not illuminate when the igni- tion key is turned to "ON", or if it remains illuminated after blinkingfor approximately 6 seconds, or if WARNING:
o Pre-tensioners are designed to op- erate only one time. After activa-tion, pre-tensioner seat belts mustbe replaced. All seat belts, of any type, should always be replaced after they have been worn during acollision.
o The pre-tensioner seat belt assem-
bly mechanisms become hot dur-ing activation. Do not touch the pre-tensioner seat belt assemblies for several minutes after they havebeen activated.
o Do not attempt to inspect or re-
place the pre-tensioner seat beltsyourself. This must be done by a Hyundai authorised repairer.
o Do not strike the pre-tensioner seat
belt assemblies.
!
!WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position.
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated with the airbags. The pre-tensioners will be activated under these conditions even if the seat belts are not being worn at thetime of the collision.
o When the pre-tensioner seat belts
are activated, a loud noise may beheard and fine dust, which may appear to be smoke, may be vis- ible in the passenger compart-ment. These are normal operating conditions and are not hazard- ous.
