FEATURES OF YOUR HYUNDAI 1- 59
B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCHTurn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car to blink. Pushing upwards on the lever causes the turn signals on the rightside of the car to blink. As the turn is completed, the lever will automatically return to the center position and turnoff the turn signals at the same time. If either turn signal indicator light blinks more rapidly than usual, goes on butdoes not blink, or does not go on at all, there is a malfunction in the system. Check for a burned-out fuse or bulb orsee your Hyundai dealer.
OTB048095
B340B01A-AAT Lane Change Signal
To indicate a lane change, move the lever up or down to a point where it begins flashing.The lever will automatically return to the center position when released.OTB048090
B340C04FC-GAT Headlight Switch To operate the headlights, turn the bar- rel on the end of the multi-function switch. The first position turns on theparking lights, sidelights, tail lights and instrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights.
Parking light auto cut (If installed)
o The purpose of this feature is to
prevent the battery from being dis- charged.

1- 60 FEATURES OF YOUR HYUNDAI
OTB048094

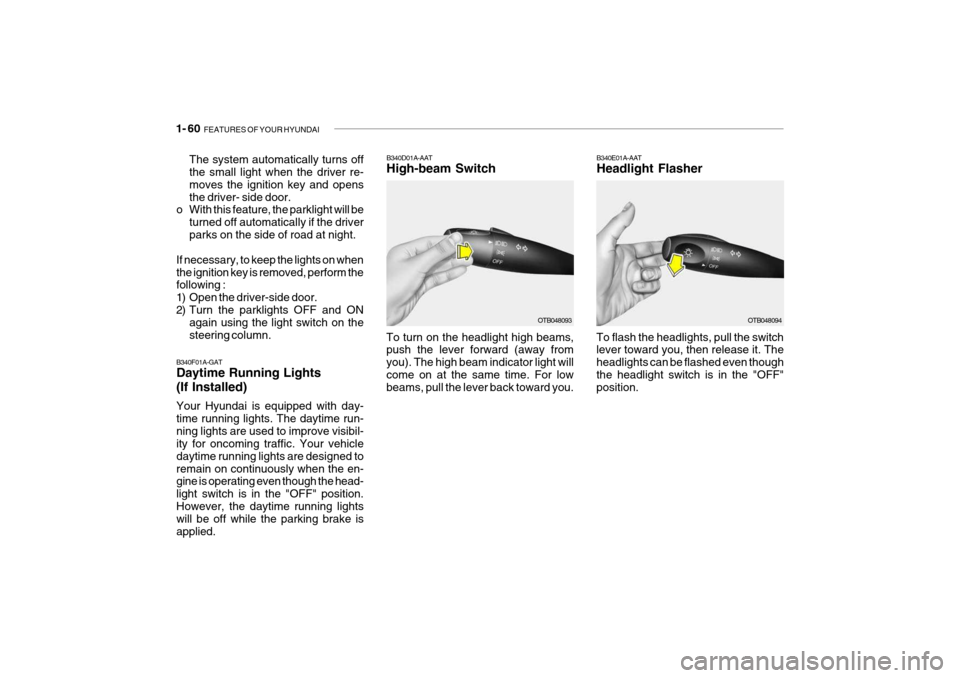

B340E01A-AAT Headlight Flasher
To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even thoughthe headlight switch is in the "OFF" position.
B340D01A-AAT High-beam Switch
B340F01A-GATDaytime Running Lights (If Installed) Your Hyundai is equipped with day- time running lights. The daytime run-ning lights are used to improve visibil- ity for oncoming traffic. Your vehicle daytime running lights are designed toremain on continuously when the en- gine is operating even though the head- light switch is in the "OFF" position.However, the daytime running lights will be off while the parking brake is applied. The system automatically turns off the small light when the driver re- moves the ignition key and opensthe driver- side door.
o With this feature, the parklight will be
turned off automatically if the driverparks on the side of road at night.
If necessary, to keep the lights on whenthe ignition key is removed, perform the following :
1) Open the driver-side door.
2) Turn the parklights OFF and ON again using the light switch on thesteering column. To turn on the headlight high beams, push the lever forward (away from you). The high beam indicator light willcome on at the same time. For low beams, pull the lever back toward you.OTB048093

FEATURES OF YOUR HYUNDAI 1- 61

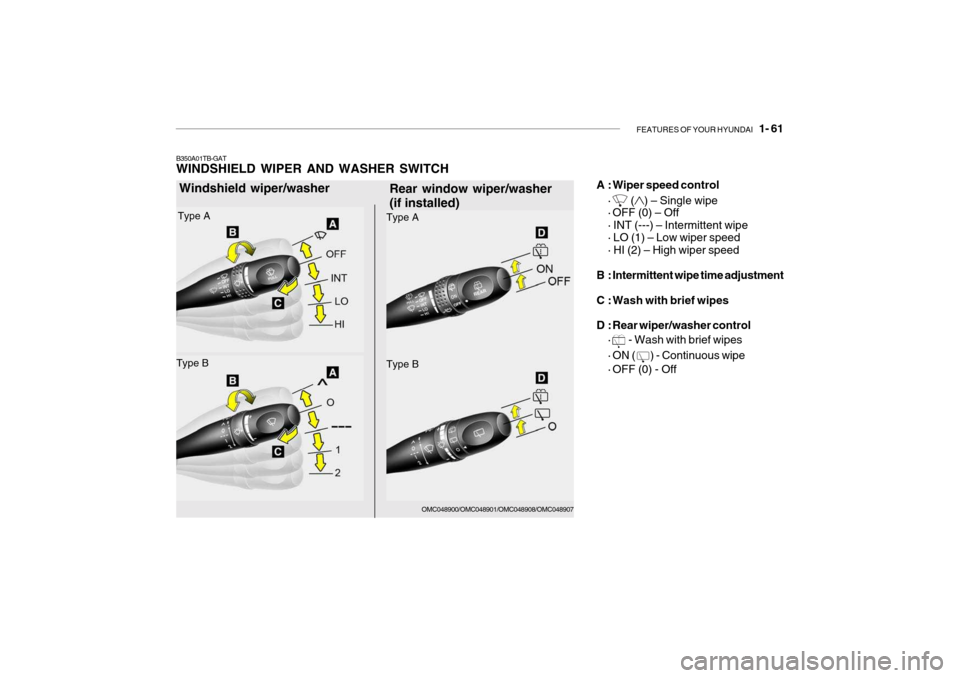

OMC048900/OMC048901/OMC048908/OMC048907
Rear window wiper/washer (if installed) A : Wiper speed control
·
() – Single wipe
· OFF (0) – Off · INT (---) – Intermittent wipe · LO (1) – Low wiper speed · HI (2) – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control ·
- Wash with brief wipes
· ON (
) - Continuous wipe
· OFF (0) - Off
Windshield wiper/washer
B350A01TB-GAT WINDSHIELD WIPER AND WASHER SWITCH
Type A
Type B
Type A
Type B

1- 62 FEATURES OF YOUR HYUNDAI

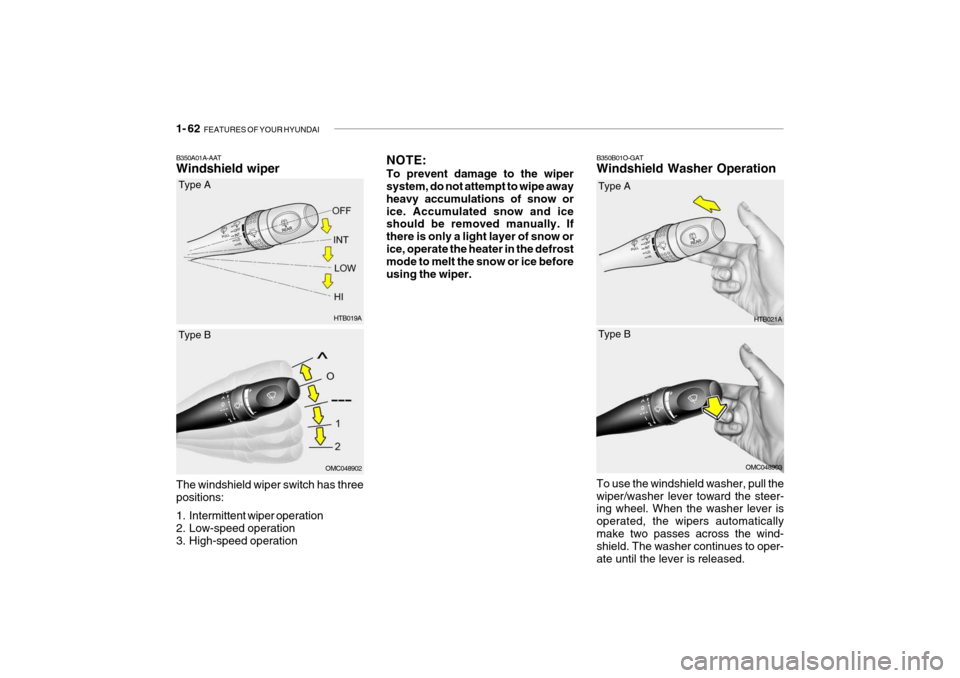

The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation HTB019ATo use the windshield washer, pull the wiper/washer lever toward the steer- ing wheel. When the washer lever is operated, the wipers automaticallymake two passes across the wind- shield. The washer continues to oper- ate until the lever is released.
B350B01O-GAT Windshield Washer Operation
NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow orice. Accumulated snow and ice should be removed manually. If there is only a light layer of snow orice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
HTB021A
Type A
OMC048902
Type B Type AOMC048903
Type B
B350A01A-AAT Windshield wiper

FEATURES OF YOUR HYUNDAI 1- 63

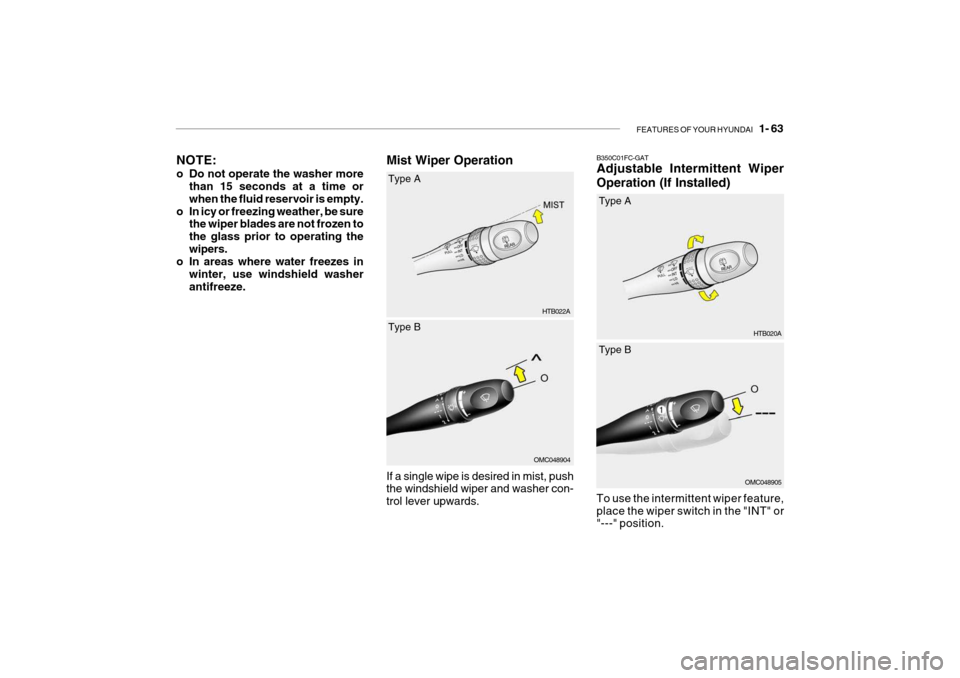

Mist Wiper Operation
NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen tothe glass prior to operating thewipers.
o In areas where water freezes in
winter, use windshield washerantifreeze.
If a single wipe is desired in mist, push the windshield wiper and washer con- trol lever upwards.HTB022A
Type A
OMC048904
Type B
B350C01FC-GAT Adjustable Intermittent Wiper Operation (If Installed)
HTB020A
Type A
To use the intermittent wiper feature, place the wiper switch in the "INT" or "---" position.
OMC048905
Type B

1- 64 FEATURES OF YOUR HYUNDAI

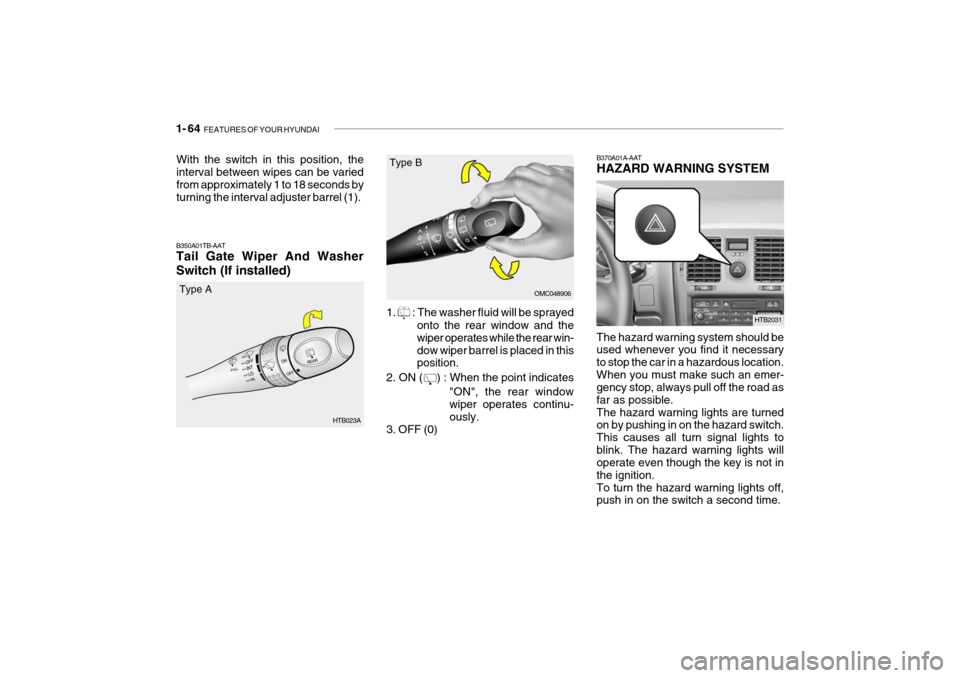

B370A01A-AAT HAZARD WARNING SYSTEM The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location.When you must make such an emer- gency stop, always pull off the road as far as possible.The hazard warning lights are turned on by pushing in on the hazard switch. This causes all turn signal lights toblink. The hazard warning lights will operate even though the key is not in the ignition.To turn the hazard warning lights off, push in on the switch a second time.
HTB2031
B350A01TB-AAT Tail Gate Wiper And Washer Switch (If installed)
HTB023A1.
: The washer fluid will be sprayed
onto the rear window and the wiper operates while the rear win-dow wiper barrel is placed in this position.
2. ON (
) : When the point indicates "ON", the rear window wiper operates continu- ously.
3. OFF (0)
With the switch in this position, theinterval between wipes can be varied from approximately 1 to 18 seconds byturning the interval adjuster barrel (1).
Type A
OMC048906
Type B

FEATURES OF YOUR HYUNDAI 1- 65

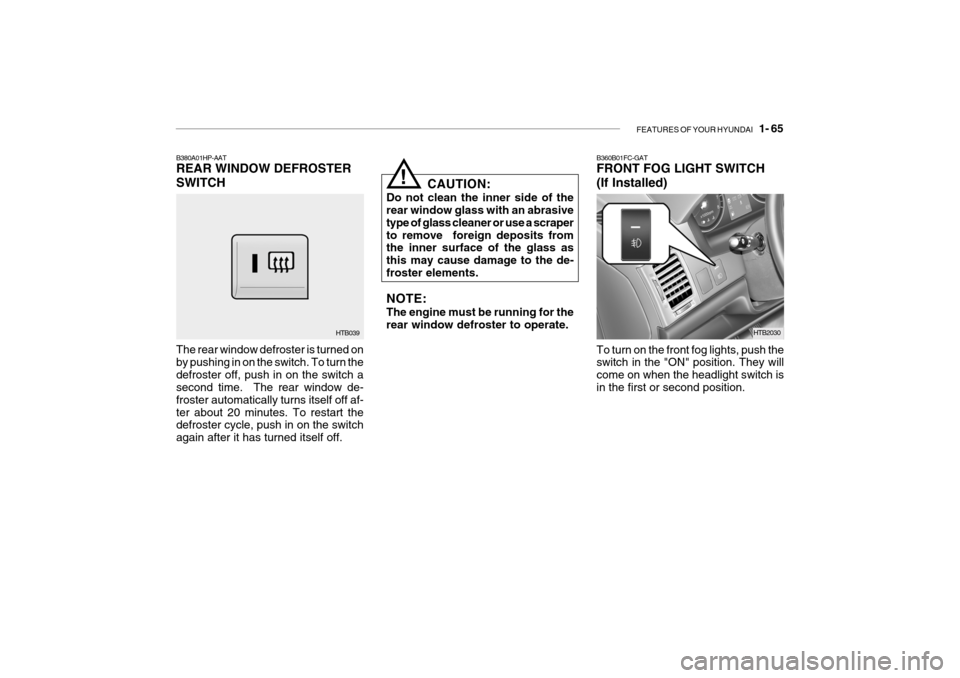

B380A01HP-AAT REAR WINDOW DEFROSTER SWITCH The rear window defroster is turned on by pushing in on the switch. To turn thedefroster off, push in on the switch a second time. The rear window de- froster automatically turns itself off af-ter about 20 minutes. To restart the defroster cycle, push in on the switch again after it has turned itself off. HTB039CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraperto remove foreign deposits from the inner surface of the glass as this may cause damage to the de-froster elements. NOTE: The engine must be running for the rear window defroster to operate.
!
HTB2030
B360B01FC-GAT FRONT FOG LIGHT SWITCH (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch isin the first or second position.

1- 66 FEATURES OF YOUR HYUNDAI

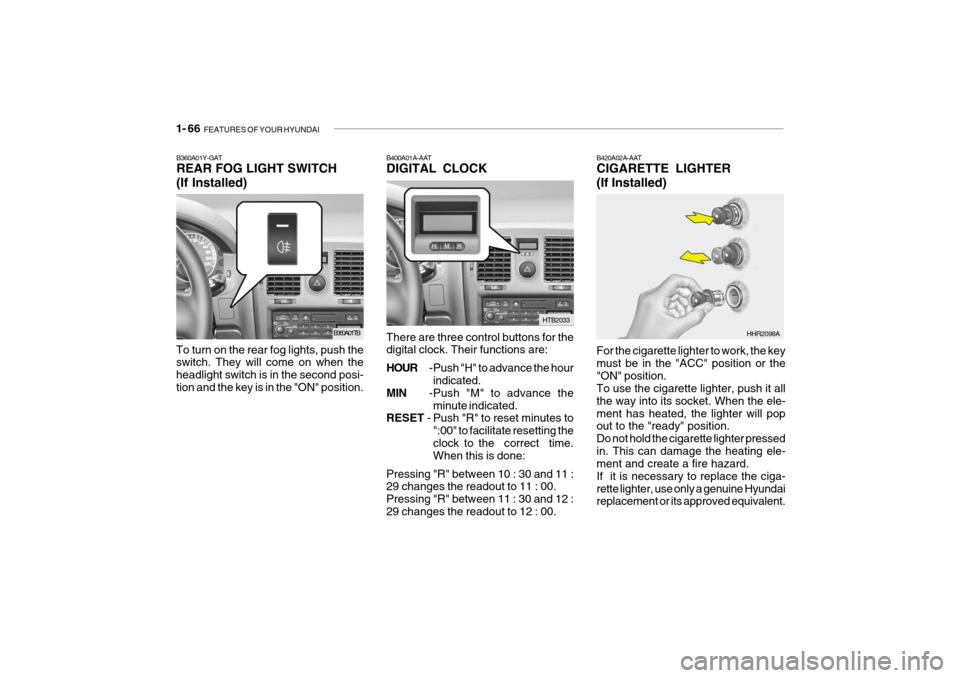

B420A02A-AAT CIGARETTE LIGHTER (If Installed) For the cigarette lighter to work, the key must be in the "ACC" position or the"ON" position. To use the cigarette lighter, push it all the way into its socket. When the ele-ment has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. If it is necessary to replace the ciga-rette lighter, use only a genuine Hyundai replacement or its approved equivalent. HHR2098AB400A01A-AAT DIGITAL CLOCK
HTB2033
There are three control buttons for the digital clock. Their functions are: HOUR -Push "H" to advance the hour
indicated.
MIN -Push "M" to advance the
minute indicated.
RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done:
Pressing "R" between 10 : 30 and 11 :29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 :29 changes the readout to 12 : 00.
B360A01Y-GAT REAR FOG LIGHT SWITCH (If Installed)
To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position. B360A01TB

FEATURES OF YOUR HYUNDAI 1- 67
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.!

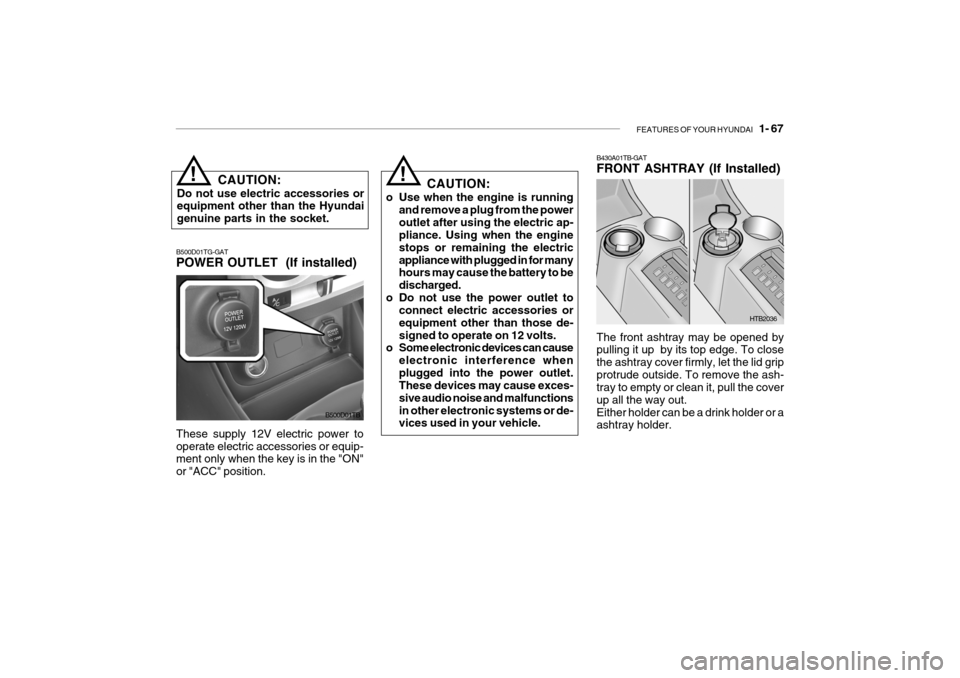

B500D01TG-GAT POWER OUTLET (If installed)
B500D01TB
These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON" or "ACC" position.
! CAUTION:
o Use when the engine is running and remove a plug from the power outlet after using the electric ap- pliance. Using when the engine stops or remaining the electricappliance with plugged in for many hours may cause the battery to be discharged.
o Do not use the power outlet to connect electric accessories orequipment other than those de-signed to operate on 12 volts.
o Some electronic devices can cause
electronic interference whenplugged into the power outlet. These devices may cause exces- sive audio noise and malfunctionsin other electronic systems or de- vices used in your vehicle. The front ashtray may be opened bypulling it up by its top edge. To close the ashtray cover firmly, let the lid gripprotrude outside. To remove the ash- tray to empty or clean it, pull the cover up all the way out.Either holder can be a drink holder or a ashtray holder.
B430A01TB-GAT FRONT ASHTRAY (If Installed)
HTB2036

1- 68 FEATURES OF YOUR HYUNDAI

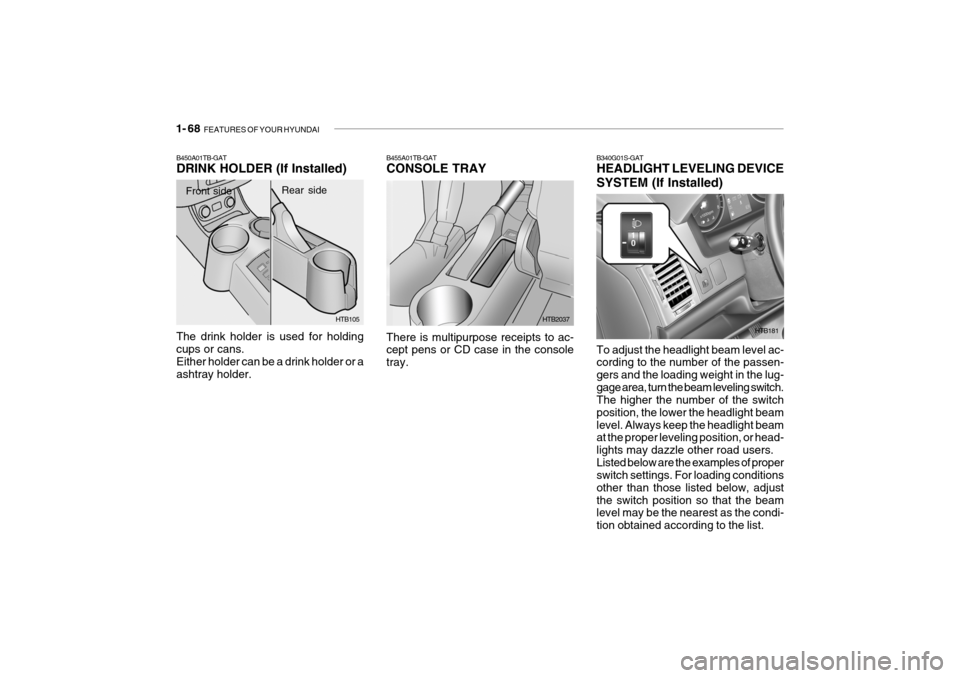

B340G01S-GAT HEADLIGHT LEVELING DEVICE SYSTEM (If Installed) To adjust the headlight beam level ac- cording to the number of the passen- gers and the loading weight in the lug-gage area, turn the beam leveling switch. The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beam at the proper leveling position, or head- lights may dazzle other road users.Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjustthe switch position so that the beam level may be the nearest as the condi- tion obtained according to the list. HTB181
Front side
B450A01TB-GAT DRINK HOLDER (If Installed) The drink holder is used for holding cups or cans. Either holder can be a drink holder or aashtray holder. HTB105Rear side
B455A01TB-GAT CONSOLE TRAY There is multipurpose receipts to ac- cept pens or CD case in the console tray. HTB2037
