Driving your vehicle
32
5

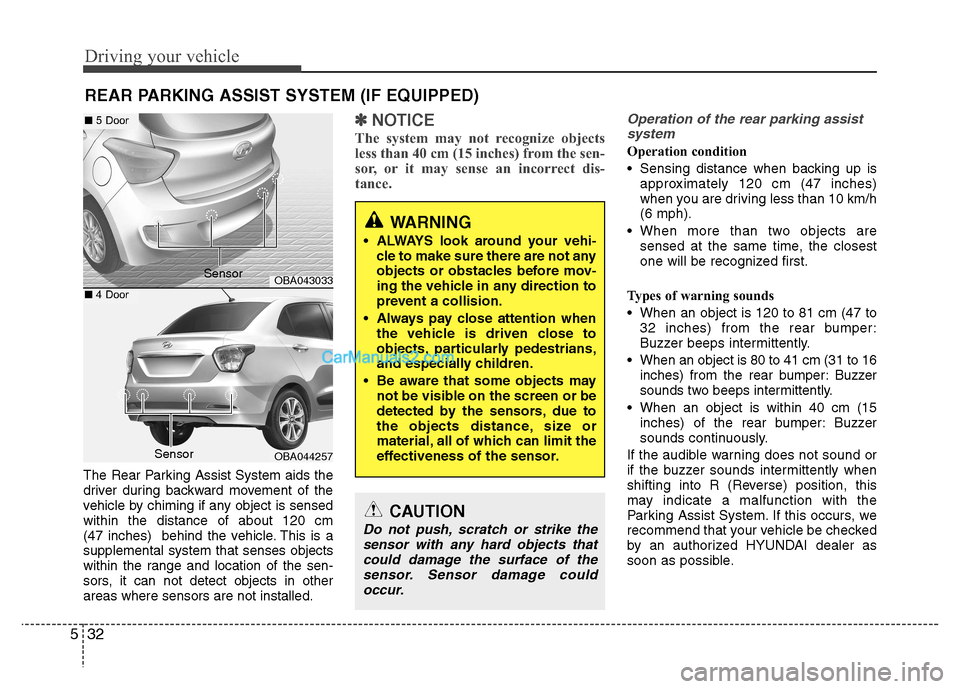

REAR PARKING ASSIST SYSTEM (IF EQUIPPED)
The Rear Parking Assist System aids the
driver during backward movement of the
vehicle by chiming if any object is sensedwithin the distance of about 120 cm
(47 inches) behind the vehicle. This is asupplemental system that senses objects
within the range and location of the sen-
sors, it can not detect objects in otherareas where sensors are not installed.
✽✽ NOTICE
The system may not recognize objects
less than 40 cm (15 inches) from the sen-
sor, or it may sense an incorrect dis-
tance.Operation of the rear parking assist system
Operation condition
Sensing distance when backing up is approximately 120 cm (47 inches)
when you are driving less than 10 km/h(6 mph).
When more than two objects are sensed at the same time, the closest
one will be recognized first.
Types of warning sounds
When an object is 120 to 81 cm (47 to 32 inches) from the rear bumper:
Buzzer beeps intermittently.
When an object is 80 to 41 cm (31 to 16 inches) from the rear bumper: Buzzer
sounds two beeps intermittently.
When an object is within 40 cm (15 inches) of the rear bumper: Buzzer
sounds continuously.
If the audible warning does not sound or
if the buzzer sounds intermittently when
shifting into R (Reverse) position, this
may indicate a malfunction with the
Parking Assist System. If this occurs, we
recommend that your vehicle be checked
by an authorized HYUNDAI dealer as
soon as possible.
OBA043033
OBA044257
WARNING
ALWAYS look around your vehi- cle to make sure there are not any
objects or obstacles before mov-
ing the vehicle in any direction to
prevent a collision.
Always pay close attention when the vehicle is driven close to
objects, particularly pedestrians,
and especially children.
Be aware that some objects may not be visible on the screen or be
detected by the sensors, due to
the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.
CAUTION
Do not push, scratch or strike the
sensor with any hard objects that
could damage the surface of thesensor. Sensor damage could occur.
■ 5 Door
■4 Door
Sensor
Sensor
