Page 7 of 343
Your vehicle at a glance
2
2
INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-17
2. Outside rearview mirror folding
button* ..............................................4-39
3. Outside rearview mirror control switch* ..............................................4-38
4. Power window lock button* ................4-28
5. Power window switches* ..................4-26
6. Central door lock switch* ..................4-18
7. Headlight leveling device* ................4-64
8. Rear parking assist system OFF button* ..............................................5-33
9. ESC OFF button* ..............................5-26
10. Steering wheel tilt lever* ..................4-35
11. Fuse box ..........................................7-49
12. Hood release lever ..........................4-30
13. Clutch pedal* ..................................5-11
14. Brake pedal ....................................5-20
15. Fuel filler lid opener ........................4-32
16. Seats ................................................3-2
17. Key ignition switch/ Engine start/stop button ..............5-4/5-6
* : if equipped
OBA013003L
■Left-hand drive
Page 8 of 343
23
Your vehicle at a glance
1. Door lock/unlock button ....................4-17
2. Outside rearview mirror folding button* ..............................................4-39
3. Outside rearview mirror control switch* ..............................................4-38
4. Power window lock button* ................4-28
5. Power window switches* ..................4-26
6. Central door lock switch* ..................4-18
7. Headlight leveling device* ................4-64
8. Rear parking assist system OFF button* ..............................................5-33
9. ESC OFF button* ..............................5-26
10. Steering wheel tilt lever* ..................4-35
11. Fuse box ..........................................7-49
12. Hood release lever ..........................4-30
13. Clutch pedal* ..................................5-11
14. Brake pedal ....................................5-20
15. Fuel filler lid opener ........................4-32
16. Seats ................................................3-2
17. Key ignition switch/ Engine start/stop button ..............5-4/5-6
* : if equipped
OBA013003R
■Right-hand drive
Page 63 of 343
47
Features of your vehicle
Remote keyless entry system operations
Remote key
To unfold the key, press the releasebutton then the key will unfold auto-
matically.
To fold the key, fold the key manually while pressing the release button.
Smart key
To remove the mechanical key, pressand hold the release button (1) and
remove the mechanical key(2).
To reinstall the mechanical key, put the key into the hole and push it until a
click sound is heard.
Lock (1)
1. Close all doors.
2. Press the lock button.
3. The hazard warning light will blink onceto indicate that all doors are locked (the
engine hood and tailgate/trunk must beclosed).
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OBA043029
■
Smart key OHG040001L
■
Remote key
CAUTION
Do not fold the key without press-
ing the release button. This may
damage the key.
OBA043222IN
■
Smart key OHG040006L
■
Remote key
Page 86 of 343
Features of your vehicle
30
4

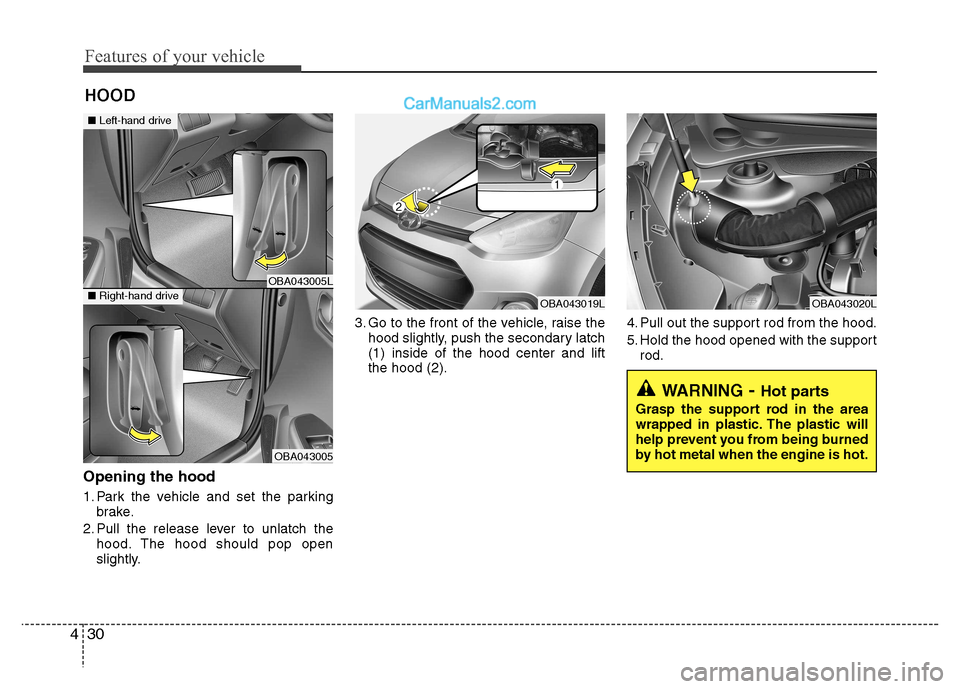

Opening the hood
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly. 3. Go to the front of the vehicle, raise the
hood slightly, push the secondary latch(1) inside of the hood center and liftthe hood (2). 4. Pull out the support rod from the hood.
5. Hold the hood opened with the support
rod.
HOOD
OBA043019LOBA043020L
WARNING
- Hot parts
Grasp the support rod in the area
wrapped in plastic. The plastic will
help prevent you from being burned
by hot metal when the engine is hot.
OBA043005L
OBA043005
■ Left-hand drive
■Right-hand drive
