Safety features of your vehicle
6
3
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a collision. Adjusting the height up and down
(if equipped)
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower theheadrest to the desired position (3).
OPA039052
WARNING
To reduce the risk of serious injury
or death in an accident, take the fol-
lowing precautions when adjusting
your headrests:
Always properly adjust the head- rests for all passengers BEFORE
starting the vehicle.
NEVER let anyone ride in a seat with the headrest removed.
Adjust the headrests so the mid- dle of the headrests is at thesame height as the height of the
top of the eyes (see diagram).
NEVER adjust the headrest posi- tion of the driver's seat when the
vehicle is in motion.
Adjust the headrest as close to the passenger's head as possi-
ble. Do not use a seat cushion
that holds the body away from
the seatback.
OBA033005

39
Safety features of your vehicle
Removal/Reinstall (if equipped)
To remove the headrest, slightly fold the
rear seatback, raise the headrest as far
as it can go then press the release button
(1) while pulling upward (2).
To reinstall the headrest, put the head- rest poles (3) into the holes while press-
ing the release button (1). Then adjust it
to the appropriate height.
Folding the rear seat
The rear seatbacks (or cushions) may be
folded to facilitate carrying long items orto increase the luggage capacity of the
vehicle.
1. Set the front seatback to the uprightposition and if necessary, slide the
front seat forward.
2. Lower the rear headrests to the lowest position (if equipped with adjustable headrests). 3. Insert the rear lap/shoulder belt plate
into the holder on the side trim. It will
prevent the lap/shoulder belt from
interfering with the seatback when fold-ing.
WARNING
Never allow passengers to sit on top of the folded down seatback
while the vehicle is moving as
this is not a proper seating posi-
tion and no seat belts are avail-
able for use. This could result in
serious injury or death in case of
an accident or sudden stop.
Objects carried on the folded down seatback should not extend
higher than the top of the front
seats. This could allow cargo to
slide forward and cause injury or
damage during sudden stops.
OBA033026OBA033027
WARNING
Always make sure the headrest
locks into position after reinstalling
and adjusting it properly.

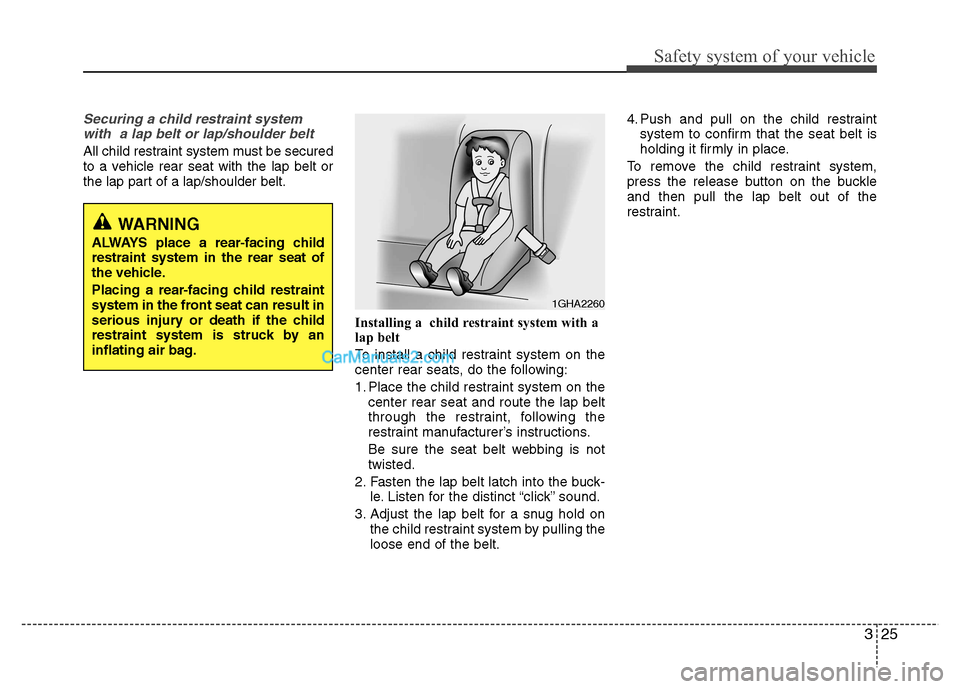

325
Safety system of your vehicle
Securing a child restraint systemwith a lap belt or lap/shoulder belt
All child restraint system must be secured
to a vehicle rear seat with the lap belt or
the lap part of a lap/shoulder belt.
Installing a child restraint system with a
lap belt
To install a child restraint system on the
center rear seats, do the following:
1. Place the child restraint system on thecenter rear seat and route the lap belt
through the restraint, following the
restraint manufacturer’s instructions.
Be sure the seat belt webbing is not twisted.
2. Fasten the lap belt latch into the buck- le. Listen for the distinct “click” sound.
3. Adjust the lap belt for a snug hold on the child restraint system by pulling theloose end of the belt. 4. Push and pull on the child restraint
system to confirm that the seat belt is
holding it firmly in place.
To remove the child restraint system,
press the release button on the buckleand then pull the lap belt out of the
restraint.
WARNING
ALWAYS place a rear-facing child restraint system in the rear seat of
the vehicle.
Placing a rear-facing child restraint
system in the front seat can result in
serious injury or death if the child
restraint system is struck by an
inflating air bag.
1GHA2260

Safety system of your vehicle
26
3
Installing a child restraint system with a
lap/shoulder belt
To install a child restraint system on the
rear seats, do the following:
1. Place the child restraint system on a
rear seat and route the lap/shoulder
belt around or through the restraint, fol-
lowing the restraint manufacturer’s
instructions.
Be sure the seat belt webbing is not twisted. 2. Fasten the lap/shoulder belt latch into
the buckle. Listen for the distinct “click”sound.
✽✽ NOTICE
Position the release button so that it is
easy to access in case of an emergency.
3. Remove as much slack from the belt as possible by pushing down on the
child restraint system while feeding the
shoulder belt back into the retractor.
4. Push and pull on the child restraint system to confirm that the seat belt is
holding it firmly in place.
To remove the child restraint system,
press the release button on the buckleand then pull the lap/shoulder belt out of
the restraint and allow the seat belt to
retract fully.
OEN036104E2MS103005OEN036101
