DO-IT-YOURSELF MAINTENANCE
31

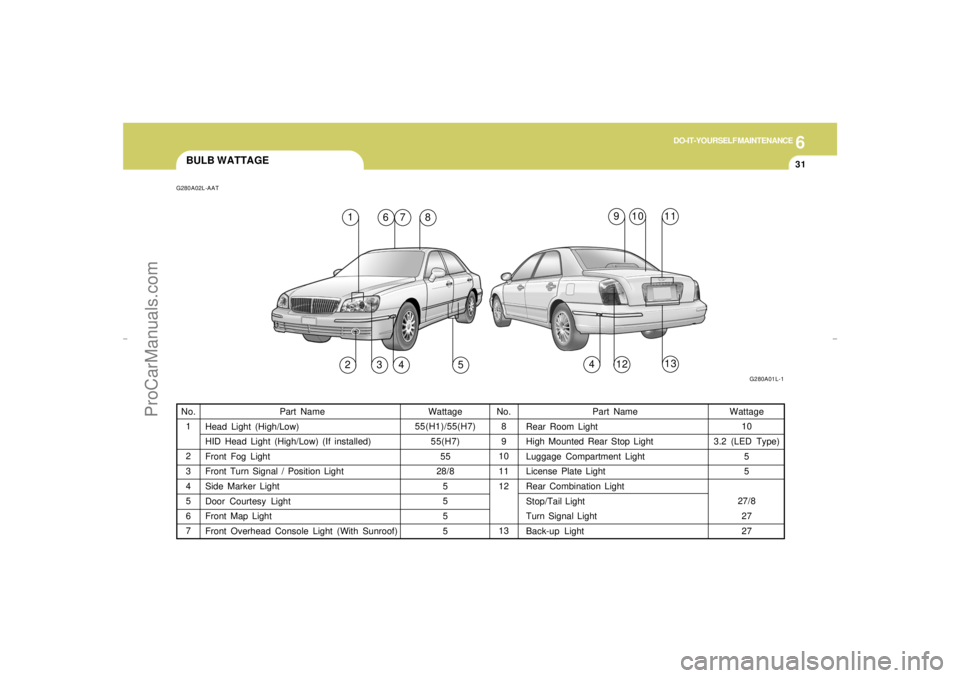

BULB WATTAGE
Part Name
Head Light (High/Low)
HID Head Light (High/Low) (If installed)
Front Fog Light
Front Turn Signal / Position Light
Side Marker Light
Door Courtesy Light
Front Map Light
Front Overhead Console Light (With Sunroof)Wattage
55(H1)/55(H7)
55(H7)
55
28/8
5
5
5
5
G280A02L-AAT
Wattage
10
3.2 (LED Type)
5
5
27/8
27
27 No.
1
2
3
4
5
6
7No.
8
9
10
11
12
13Part Name
Rear Room Light
High Mounted Rear Stop Light
Luggage Compartment Light
License Plate Light
Rear Combination Light
Stop/Tail Light
Turn Signal Light
Back-up Light
G280A01L-1
1
8
2
3
5
129
10
1113 7 6
4
4
xgflhma-6.p656/16/04, 2:59 PM 31
ProCarManuals.com

6
DO-IT-YOURSELF MAINTENANCE
32
G200C01L-GATJUNCTION BOX DESCRIPTION
Under Hood Junction Box
G200C01L
NOTE:Not all junction box description in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect
the junction box on your vehicle, refer to the junction box label.
G200C01L-1
xgflhma-6.p656/16/04, 2:59 PM 32
ProCarManuals.com

6
DO-IT-YOURSELF MAINTENANCE
33
DESCRIPTION
FUEL PUMP
HEAD LIGHT(Lo-LH)
ABS
INJECTOR
A/C COMPRESSOR
A/T
MAIN
IGNITION COIL
OXYGEN SENSOR
EGR
HORN
HEAD LIGHT(HI)
HEAD LIGHT(Lo-RH)
DRL
FOG LIGHT
DIODE 1FUSERATING
20A
15A
10A
10A
10A
20A
30A
20A
15A
15A
15A
15A
15A
15A
15AFuel pump relay
Head light relay (Low-LH)
ABS controls, Cruise control module, ETS control module
Limp home valve, ETS controls, Injector
A/C relay
A/T control relay, TCM, Engine control relay
MFI controls
Ignition coil, A/T pulse generator, ECM, Ignition failure sensor, E/TCM
ETS relay, MFI controls
A/C relay, MFI controls, EGR solenoid
Horn relay
Head light relay (High)
HID head light relay
DRL control module, Siren
Fog light relay
-
PROTECTED COMPONENTS
xgflhma-6.p656/16/04, 2:59 PM 33
ProCarManuals.com

6
DO-IT-YOURSELF MAINTENANCE
34
DESCRIPTION
SPARE
SPARE
SPARE
SPARE
DIODE 2
BLOWER
POWER FUSE 2
POWER AMP
SUNROOF
TAIL LIGHT
POWER FUSE 1
ECU
REAR DEFOGGER
CONDENSER
POWER WINDOW
IGNITION1/2
ABS 1/2
RADIATORFUSERATING
30A
20A
15A
10A
30A
30A
20A
15A
20A
30A
10A
30A
20A
40A
30A/30A
30A/30A
30A-
-
-
-
-
Blower relay
Fuse 4, 20, 24, 25
Audio amp module
Data link connector, Sunroof relay, Home link connector
Tail light relay
Fuse 1, 7, 17, 18, 19
ETS control module, ECM, E/TCM, Generator
Rear window defogger relay
A/C fan relay #1
Power window relay, IMS controls
Ignition switch
ABS controls
Radiator fan relay
PROTECTED COMPONENTS
xgflhma-6.p656/16/04, 2:59 PM 34
ProCarManuals.com

6
DO-IT-YOURSELF MAINTENANCE
35
G200D01L-GATInstrument Panel Junction Box
G200D01L
FUSERATING
25A
20A
10A
15A
10A
10A
10A
15A
10A
10A
20A
10A
10A
10A
20A
10A
15A
10A
20APROTECTED COMPONENTS
Power seat
Seat warmer
EPS controls
ETS relay
(HID) Head lights, DRL controls, AQS sensor
Blower & A/C controls
Turn & Hazard controls
Not used
Cruise switch, Instrument cluster
Head light leveling switch, Rain sensor, IMS controls
Rain sensor relay, Wiper & Washer controls
Home link connector, Left (Right) vanity lights, Sunroof,
Blower & A/C controls, Electronic chrome mirror
Not used
Audio
Front (Rear) cigarette lighter, Accessory socket
IMS controls, Driver door module, Rheostat
Not used
Rear for light relay
Stop lights, Left (Right) personal lights,Left (Right) rear door lights
DESCRIPTION
P/SEAT
S/HTR
EPS
ETS
H/LP
A/CON SW
HAZARD
SPARE
CRUISE
IMS
WIPER
ETACS
SPARE
AUDIO
C/LIGHTER
MIRROR
SPARE
RR FOG
STOP LP
xgflhma-6.p656/16/04, 2:59 PM 35
ProCarManuals.com

6
DO-IT-YOURSELF MAINTENANCE
36
FUSERATING
10A
10A
15A
10A
20A
10A
10A
10A
10A
10A
10A
10A
10APROTECTED COMPONENTS
Door warning & Ignition key illumination, Courtesy lights
Instrument cluster
SRS controls
Automatic transaxle controls, Back-up light switch,
Vehicle speed sensor
Fuel filler door & Trunk lid opener, Driver (Assister) door module
Multipurpose check connector, Audio, lmmobiilizer controls,
Trip computers, Digital clock, Blower & A/C controls, Instrument cluster
Left (Right) inside lights, (HID) Head lights, Fog light relay,
Right HID turn signal light, Right rear combination light
Stop light failure relay
Immobilizer controls, TCS switch, Trip computers, Instrument cluster
ETACM, Hazard switch, Auto light sensor
Antenna, Blower & A/C controls,
Left (Right) outside mirror motor & Folding motor
(HID) Head lights, Front (Rear) cigarette lighters,
Left (Right) license lights, Left HID Turn signal light,
Left rear combination light
Burglar alarm relay, Transaxle range switch, Start relay, ETS controls DESCRIPTION
ROOM LP
A/BAG IND
A/BAG
B/UP
T/LID
D/CLOCK
RH TAIL
SPARE
CLUSTER
T/SIG
RR HTD IND
LH TAIL
START
xgflhma-6.p656/16/04, 2:59 PM 36
ProCarManuals.com

EMISSION CONTROL SYSTEMS
7
Emission Control System ............................................. 7-2
EGR System ................................................................. 7-2
Catalytic Converter ....................................................... 7-3
7
xgflhma-7.p656/16/04, 2:57 PM 1
ProCarManuals.com

7
EMISSION CONTROL SYSTEMS2
EMISSION CONTROL SYSTEMH010A02L-AATYour Hyundai is equipped with an emission
control system to meet all requirements of the
U.S. Environmental Protection Agency or Cali-
fornia Air Resources Board.
There are three emission control systems which
are as follows.
(1) Crankcase emission control system
(2) Evaporative emission control system
(3) Exhaust emission control system
In order to assure the proper function of the
emission control systems, it is recommended
that you have your car inspected and main-
tained by an authorized Hyundai dealer in ac-
cordance with the maintenance schedule in this
manual.
Caution for the Inspection and Maintenance
Test (3.5 V6 Vehicle with Traction Control
System)
After dynamometer testing is completed,
erase the ABS/TCS DTC(Diagnotic Trouble
Code) with a GST (Generic Scan Tool) or Hi-
Scan Pro.
H010B01A-AAT1. Crankcase Emission Control
SystemThe positive crankcase ventilation system is
employed to prevent air pollution caused by
blow-by gases being emitted from the crank-
case. This system supplies filtered air to the
crankcase through the air intake hose. Inside
the crankcase, the fresh air mixes with blow-by
gases, which then pass through the PCV valve
and into the induction system.
H010C01S-AAT2. Evaporative Emission Control (Includ-
ing ORVR: Onboard Refueling Vapor
Recovery) SystemThe Evaporative Emission Control System is
designed to prevent fuel vapors from escaping
into the atmosphere.
(The ORVR system is designed to allow the
vapors from the fuel tank to be loaded into
a canister while refueling at the gas station,
preventing the escape of fuel vapors into
the atmosphere.)CanisterFuel vapors generated inside the fuel tank are
absorbed and stored in the onboard canister.
When the engine is running, the fuel vapors
absorbed in the canister are drawn into the
induction system through the purge control
solenoid valve.Purge Control Solenoid Valve (PCSV)The purge control solenoid valve is controlled
by the Engine Control Module (ECM); when the
engine coolant temperature is low during idling,
the PCSV closes so that evaporated fuel is not
taken into the engine. After the engine warms-
up during ordinary driving, the PCSV opens to
introduce evaporated fuel to the engine.
xgflhma-7.p656/16/04, 2:57 PM 2
ProCarManuals.com

7
EMISSION CONTROL SYSTEMS
3

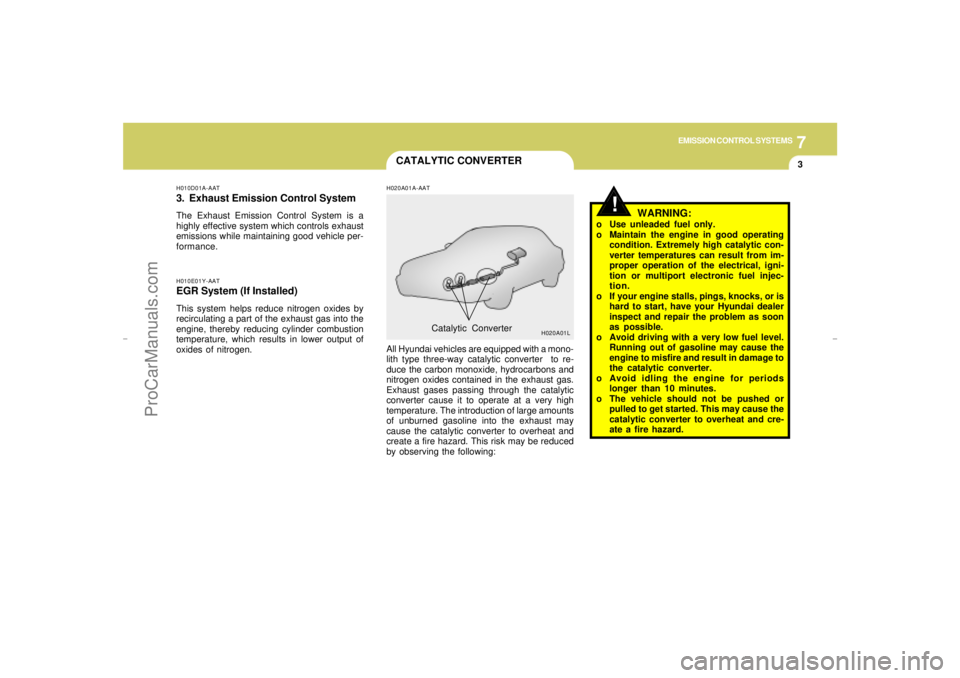

CATALYTIC CONVERTER
!
WARNING:
o Use unleaded fuel only.
o Maintain the engine in good operating
condition. Extremely high catalytic con-
verter temperatures can result from im-
proper operation of the electrical, igni-
tion or multiport electronic fuel injec-
tion.
o If your engine stalls, pings, knocks, or is
hard to start, have your Hyundai dealer
inspect and repair the problem as soon
as possible.
o Avoid driving with a very low fuel level.
Running out of gasoline may cause the
engine to misfire and result in damage to
the catalytic converter.
o Avoid idling the engine for periods
longer than 10 minutes.
o The vehicle should not be pushed or
pulled to get started. This may cause the
catalytic converter to overheat and cre-
ate a fire hazard.
H020A01A-AATAll Hyundai vehicles are equipped with a mono-
lith type three-way catalytic converter to re-
duce the carbon monoxide, hydrocarbons and
nitrogen oxides contained in the exhaust gas.
Exhaust gases passing through the catalytic
converter cause it to operate at a very high
temperature. The introduction of large amounts
of unburned gasoline into the exhaust may
cause the catalytic converter to overheat and
create a fire hazard. This risk may be reduced
by observing the following:Catalytic Converter
H020A01L
H010E01Y-AATEGR System (If Installed)This system helps reduce nitrogen oxides by
recirculating a part of the exhaust gas into the
engine, thereby reducing cylinder combustion
temperature, which results in lower output of
oxides of nitrogen.H010D01A-AAT3. Exhaust Emission Control SystemThe Exhaust Emission Control System is a
highly effective system which controls exhaust
emissions while maintaining good vehicle per-
formance.
xgflhma-7.p656/16/04, 2:57 PM 3
ProCarManuals.com

7
EMISSION CONTROL SYSTEMS4
!
WARNING:
o Do not touch the catalytic converter or
any other part of the exhaust system
while the catalytic converter is hot. Shut
off the engine, wait for at least one hour
before touching the catalytic converter
or any other part of the exhaust system.
o Remember that your Hyundai dealer is
your best source of assistance.
o Do not stop your Hyundai over any com-
bustible material such as grass, paper,
leaves or rags. These materials might
contact the hot catalytic converter and a
fire might result.
xgflhma-7.p656/16/04, 2:57 PM 4
ProCarManuals.com
