lumbar support Hyundai H-1 (Grand Starex) 2004 Owner's Manual

1BEFORE DRIVING YOUR VEHICLE
30
!WARNING:

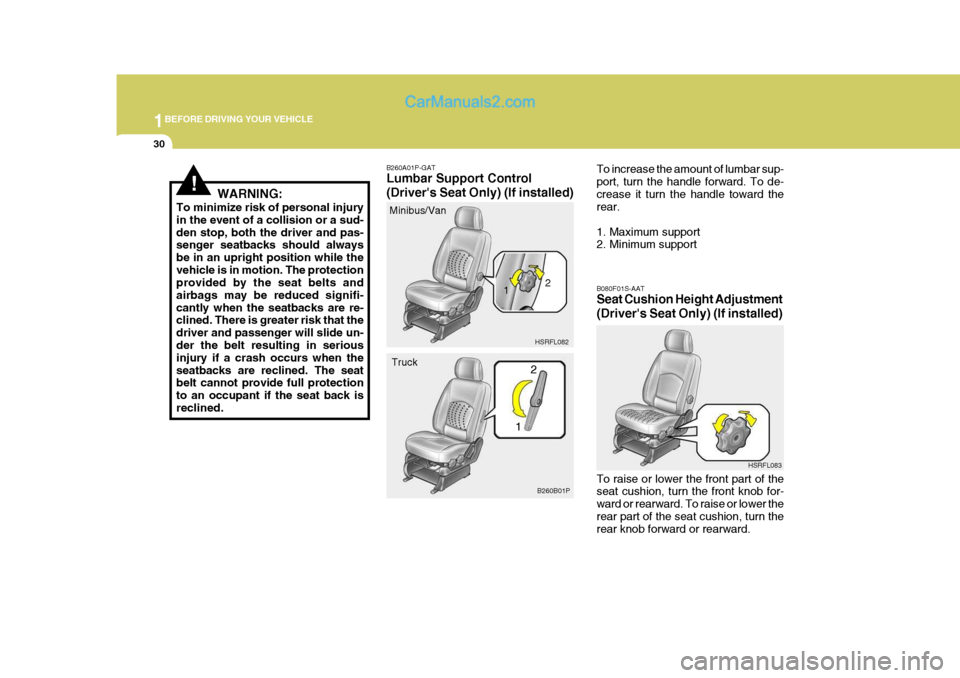

To minimize risk of personal injury in the event of a collision or a sud-den stop, both the driver and pas- senger seatbacks should always be in an upright position while thevehicle is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is greater risk that the driver and passenger will slide un- der the belt resulting in serious injury if a crash occurs when theseatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seat back isreclined. B260A01P-GAT Lumbar Support Control (Driver's Seat Only) (If installed)
Minibus/Van
1HSRFL082 B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If installed) To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward.
Truck To increase the amount of lumbar sup- port, turn the handle forward. To de-crease it turn the handle toward the rear.
1. Maximum support
2. Minimum support
B260B01P HSRFL083
2
1 2
