Emission Control System ............................................ 7-2
Catalytic Converter ...................................................... 7-2
EGR System ................................................................ 7-3
7
EMISSION CONTROL SYSTEM
7

7EMISSION CONTROL SYSTEMS
2
H020D03HR-GAT
(If Installed)
EMISSION CONTROL SYSTEM
H010A01HR-GAT
(If Installed)
Your Hyundai is equipped with an
emission control system to meet all requirements of the Emission prohibi- tion rules of your province.
In order to assure the proper function
of the emission control systems, it is recommended that you have your car inspected and maintained by an au-thorized Hyundai dealer in accordance with the maintenance schedule in this manual. H010D01A-AAT
Exhaust Emission Control System
The exhaust emission control system is a highly effective system which controls exhaust emission while main- taining good vehicle performance. CATALYTIC CONVERTER
Hyundai vehicle is equipped with oxi-

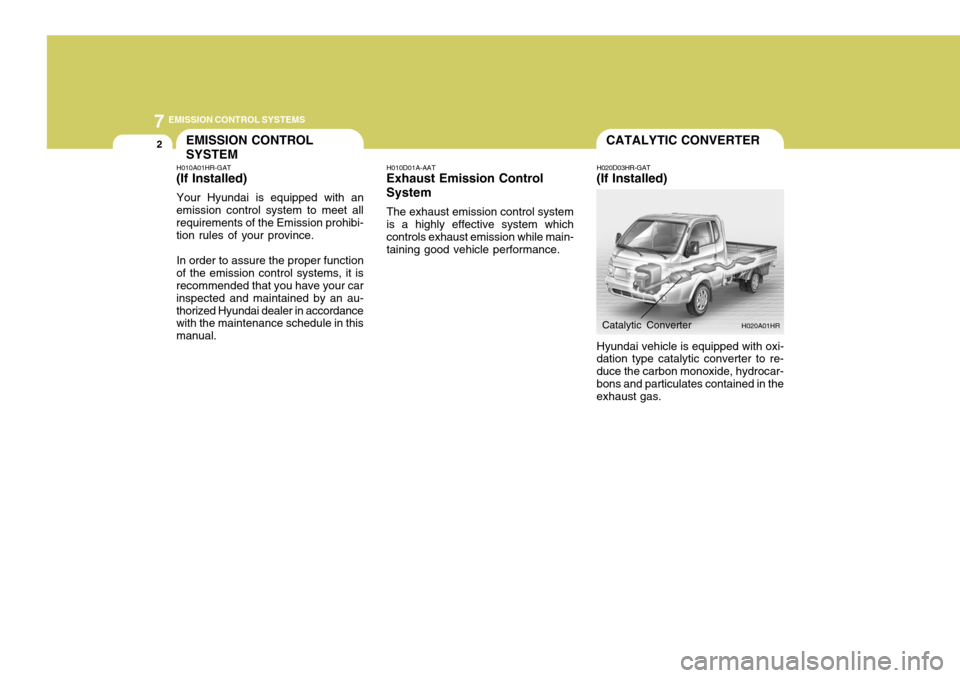

dation type catalytic converter to re-duce the carbon monoxide, hydrocar-bons and particulates contained in the exhaust gas. H020A01HR
Catalytic Converter

7
EMISSION CONTROL SYSTEMS
3EGR SYSTEM
!
H020C01HR-GAT (If Installed) This system helps control oxides of nitrogen by recirculating a part of the exhaust gas into the engine, there by reducing cylinder combustion tem-perature.The EGR system helps reduce Nox(Oxides of Nitrogen) emission gas- ses.
WARNING:
o Use diesel only.
o Maintain the engine in good operating condition. Extremely high catalytic converter tempera-tures can result from improper operation of the electrical, igni- tion or electronic fuel injection.
o If your engine stalls, pings, or is hard to start, have your Hyundaidealer inspect and repair theproblem as soon as possible.
o Avoid driving with a very low
fuel level. Running out of diesel may cause the engine to stop and result in damage to the cata-lytic converter.
o Avoid idling the engine for peri- ods longer than 10 minutes.
o The vehicle should not be pushed or pulled to get started.This may cause the catalytic converter to overheat and cre- ate a fire hazard. o Do not touch the catalytic con-
verter or any other part of theexhaust system while the cata- lytic converter is hot. Shut off the engine, wait for at least onehour before touching the cata- lytic converter or any other part of the exhaust system.
o Remember that your Hyundai dealer is your best source ofassistance.
o Do not park, idle or drive your
vehicle over any combustible ma- terial such as grass, paper, leaves or rags. These materials mightcontact the hot catalytic converter and a fire might result.

Vehicle Identification Number (VIN) .............................. 8-2
Engine Number ............................................................. 8-2
Recommended Inflation Pressures .............................. 8-3
Snow Tires ................................................................... 8-4
Tire Chains ................................................................... 8-4
Tire Rotation ................................................................. 8-4
Tire Balancing ............................................................... 8-5
Tire Traction ................................................................. 8-5
When to Replace Tires ................................................. 8-5
Spare Tire and Tools .................................................... 8-6
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION
2VEHICLE IDENTIFICATION NUMBER (VIN)ENGINE NUMBER
I010A01HR I010B01HR

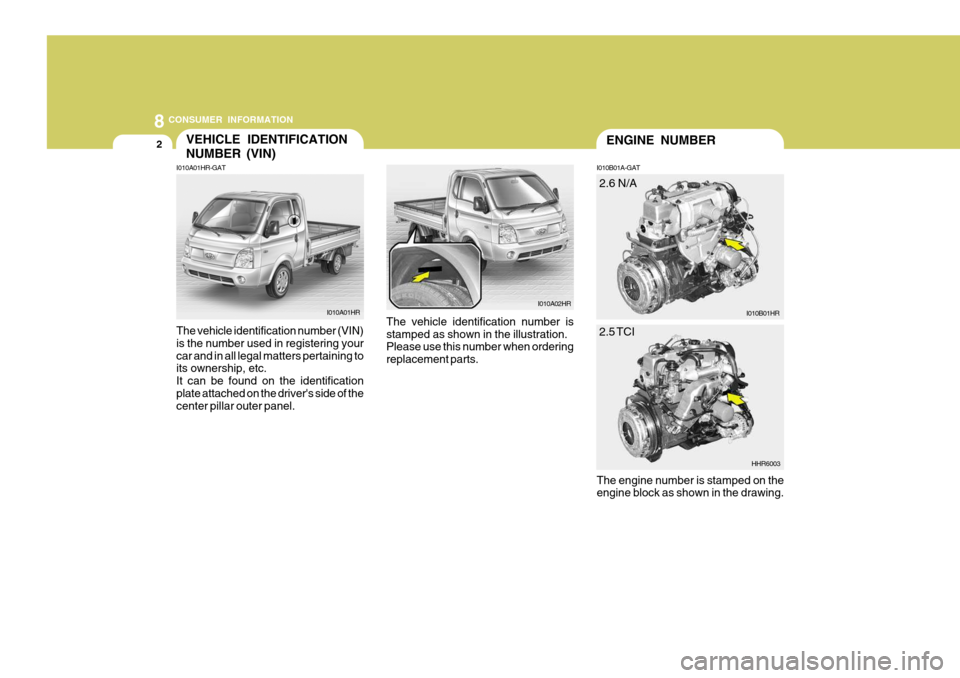

I010A01HR-GAT The vehicle identification number (VIN) is the number used in registering yourcar and in all legal matters pertaining to its ownership, etc. It can be found on the identificationplate attached on the driver's side of the center pillar outer panel. I010B01A-GAT The engine number is stamped on the engine block as shown in the drawing.2.6 N/A
HHR6003
I010A02HR
The vehicle identification number is stamped as shown in the illustration. Please use this number when ordering replacement parts. 2.5 TCI

8
CONSUMER INFORMATION
3TIRE
I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best perfor-mance for normal driving. I030A01HR-GAT RECOMMENDED INFLATION PRESSURES The tire label located on the driver's side of the center pillar outer panel gives the tire pressures recommendedfor your car. These pressures were chosen to pro-vide the most satisfactory combination of ride comfort, tire wear and stability under normal conditions. Tire pres- sures should be checked at least monthly. Proper tire inflation pressuresshould be maintained for these rea- sons:
o Lower-than-recommended tire pres-
sures cause uneven tread wear and poor handling.
o Higher-than-recommended tire pressures increase the chance ofdamage from impacts and causeuneven tread wear.
I030A01HR CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least threehours and hasn't been driven more than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pres-sure of other tires.
!
195/70R15C-6PR 155R12C-8PR 195/70R15C-8PR FRONT
290kPa (42PSI)
- --TIRE SIZE TIRE INFLATION
PRESSURE REAR
-
340kPa
(50PSI) 440kPa
(64PSI) 440kPa
(64PSI)
Low Deck (STD)Low Deck(DBL) High Deck

8CONSUMER INFORMATION
4
HHR5019!

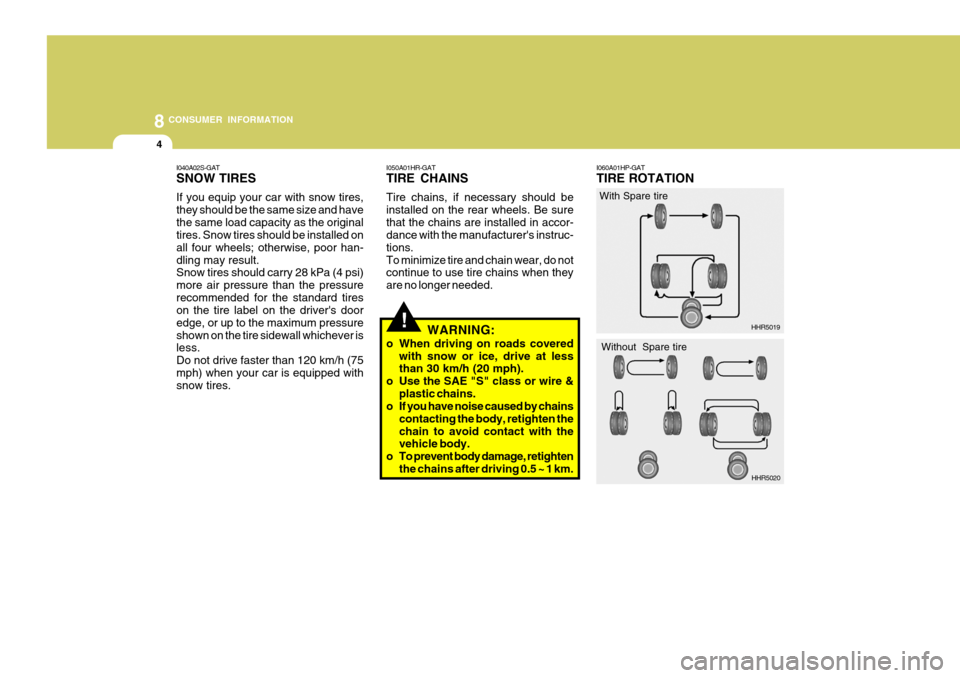

I050A01HR-GAT TIRE CHAINS Tire chains, if necessary should be installed on the rear wheels. Be surethat the chains are installed in accor- dance with the manufacturer's instruc- tions.To minimize tire and chain wear, do not continue to use tire chains when they are no longer needed.
I040A02S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and havethe same load capacity as the original tires. Snow tires should be installed on all four wheels; otherwise, poor han-dling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pressurerecommended for the standard tires on the tire label on the driver's door edge, or up to the maximum pressureshown on the tire sidewall whichever is less. Do not drive faster than 120 km/h (75mph) when your car is equipped with snow tires. I060A01HP-GAT TIRE ROTATION
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire & plastic chains.
o If you have noise caused by chains
contacting the body, retighten the chain to avoid contact with the vehicle body.
o To prevent body damage, retighten the chains after driving 0.5 ~ 1 km. HHR5020
With Spare tire
Without Spare tire

8
CONSUMER INFORMATION
5
!
!
I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car. Whenever a tire is dismounted forrepair, it should be rebalanced before
being reinstalled on the car. I080A01A-AAT TIRE TRACTION Tire traction can be reduced if you drive on worn tires, tires that are im-properly inflated or on slippery road surfaces. Tires should be replaced when tread wear indicators appear. Toreduce the possibility of losing control, slow down whenever there is rain, snow or ice on the road. I090A01S-GAT WHEN TO REPLACE TIRES
Tires should be rotated every 5,000 km (3,000 miles). If you notice that tires arewearing unevenly between rotations, have the car checked by a Hyundai dealer so the cause may be corrected.After rotating, adjust the tire pressures and be sure to check wheel nut torque.
WARNING:
Do not mix bias-ply and radial-ply tires under any circumstances. Thismay cause dangerous handling char- acteristics.
Wear indicator
1.6 mm (0.06 in.)
OHR048101 WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effectiveness,steering control and traction.
When replacing tires, never mix radial and bias-ply tires on thesame car. If you replace radial tires with bias-ply tires, they must be installed in sets of four.
o Using tires and wheels of other than the recommended sizes maycause unusual handling charac-teristics that may cause death, serious injury or property dam- age.

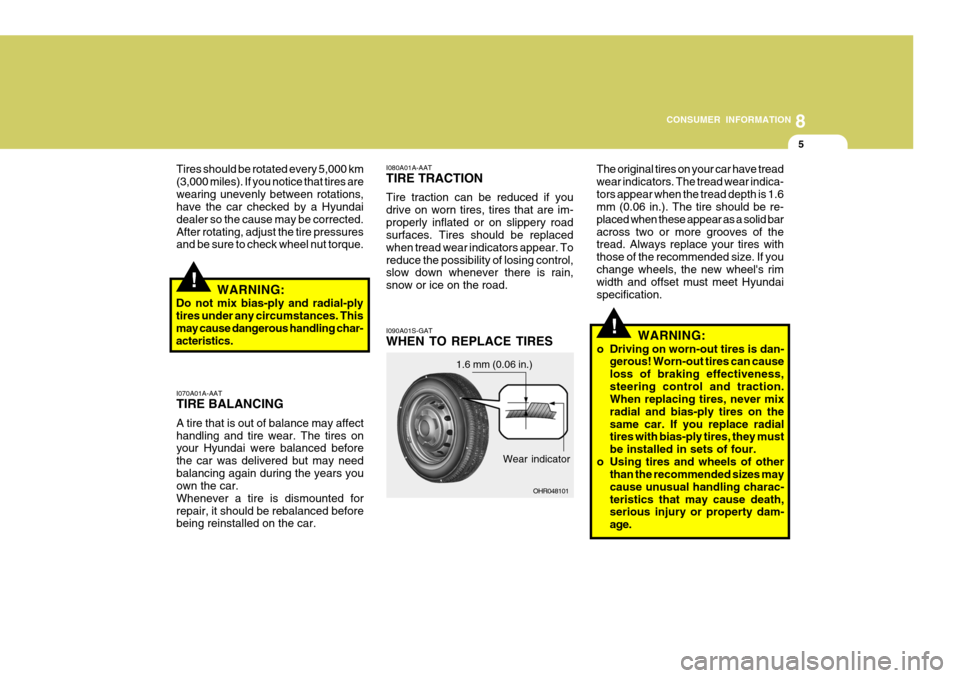

The original tires on your car have treadwear indicators. The tread wear indica-tors appear when the tread depth is 1.6 mm (0.06 in.). The tire should be re- placed when these appear as a solid baracross two or more grooves of the tread. Always replace your tires with those of the recommended size. If youchange wheels, the new wheel's rim width and offset must meet Hyundai specification.

8CONSUMER INFORMATION
6

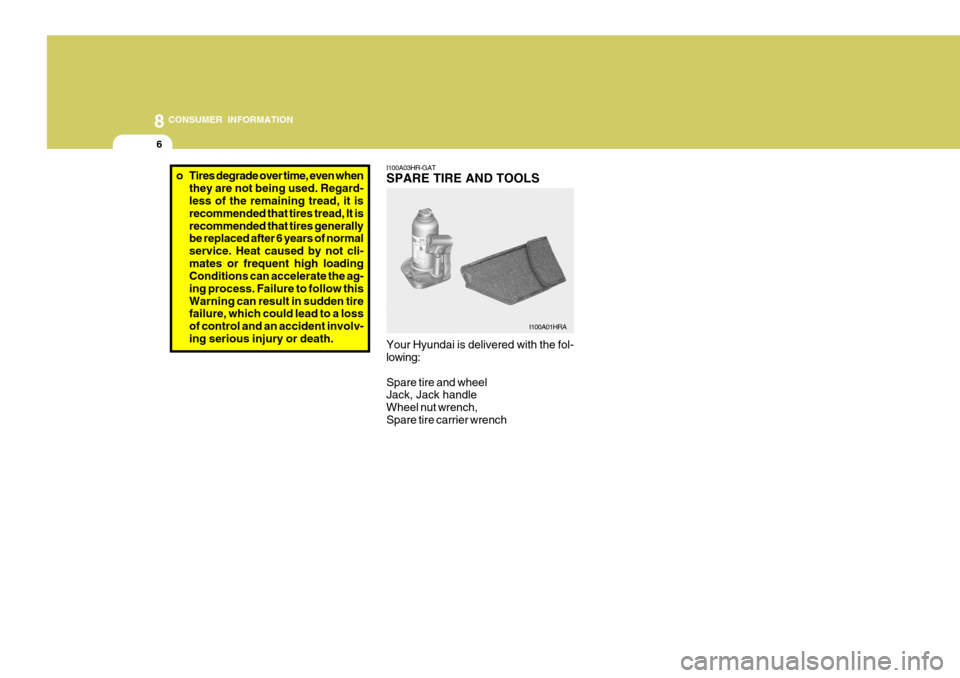

I100A03HR-GAT SPARE TIRE AND TOOLS Your Hyundai is delivered with the fol- lowing: Spare tire and wheel Jack, Jack handle Wheel nut wrench,Spare tire carrier wrench
I100A01HRA
o Tires degrade over time, even when
they are not being used. Regard- less of the remaining tread, it is recommended that tires tread, It isrecommended that tires generally be replaced after 6 years of normal service. Heat caused by not cli-mates or frequent high loading Conditions can accelerate the ag- ing process. Failure to follow thisWarning can result in sudden tire failure, which could lead to a loss of control and an accident involv-ing serious injury or death.
