Hyundai H-100 Truck 2012 User Guide
Manufacturer: HYUNDAI, Model Year: 2012, Model line: H-100 Truck, Model: Hyundai H-100 Truck 2012Pages: 217, PDF Size: 9.37 MB

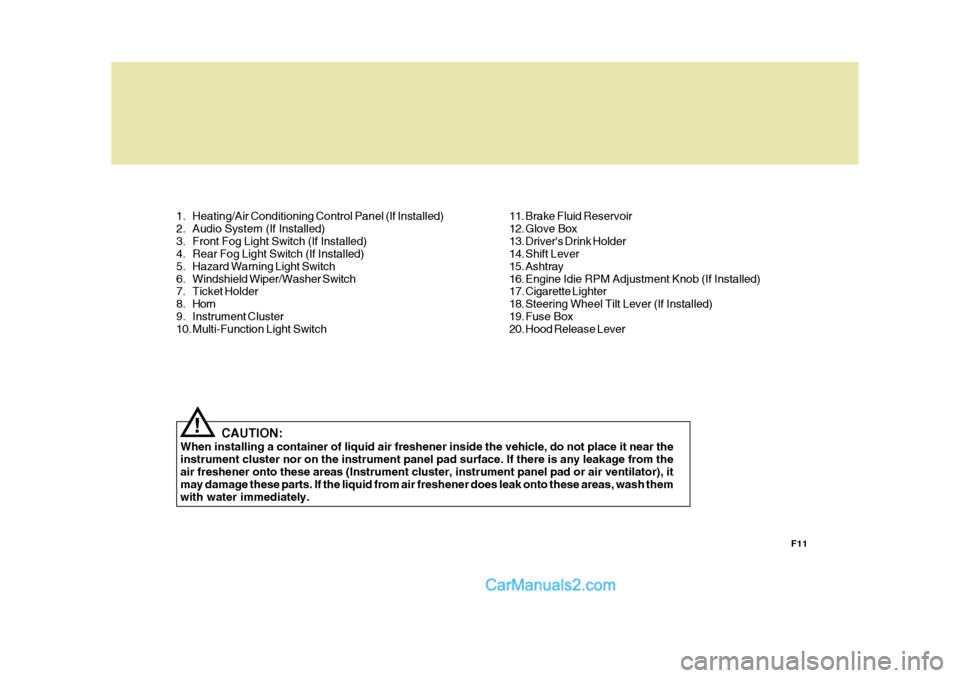

Page 11 of 217
F11
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash themwith water immediately.
!
1. Heating/Air Conditioning Control Panel (If Installed)
2. Audio System (If Installed)
3. Front Fog Light Switch (If Installed)
4. Rear Fog Light Switch (If Installed)
5. Hazard Warning Light Switch
6. Windshield Wiper/Washer Switch
7. Ticket Holder
8. Horn
9. Instrument Cluster
10. Multi-Function Light Switch
11. Brake Fluid Reservoir
12. Glove Box
13. Driver's Drink Holder
14. Shift Lever
15. Ashtray
16. Engine Idie RPM Adjustment Knob (If Installed)
17. Cigarette Lighter
18. Steering Wheel Tilt Lever (If Installed)
19. Fuse Box
20. Hood Release Lever
Page 12 of 217
YOUR VEHICLE AT A GLANCE
F12B255A01HR-GAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER * More detailed explanations of these items will be found begining on page 1-26.
Turn Signal Indicator Lights High Beam Indicator Light
Low Oil Pressure Warning Light
Door Ajar Warning Light
Parking Brake/Low Brake Fluid Level Warning Light
Charging System Warning Light Seat Belt Warning Light (If Installed) Fuel Filter Warning Light
Low Fuel Level Warning Light Diesel Pre-heat Indicator Light
Malfunction Indicator Light (If Installed)

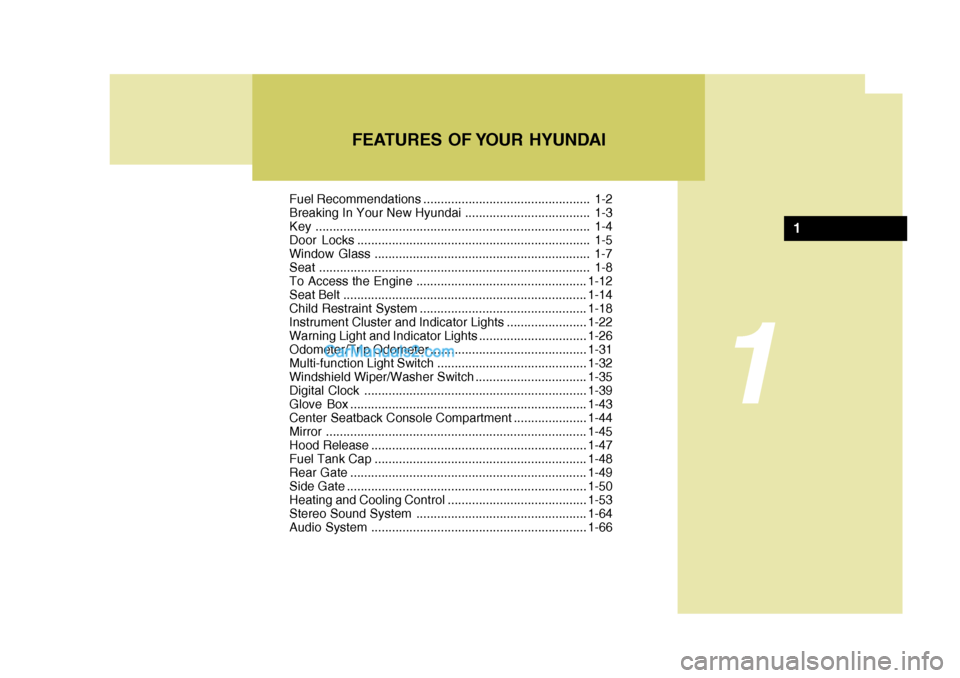

Page 13 of 217
Fuel Recommendations ................................................ 1-2
Breaking In Your New Hyundai .................................... 1-3
Key ............................................................................... 1-4
Door Locks ................................................................... 1-5
Window Glass .............................................................. 1-7
Seat ..............................................................................1-8
To Access the Engine ................................................. 1-12
Seat Belt ...................................................................... 1-14
Child Restraint System ................................................ 1-18
Instrument Cluster and Indicator Lights .......................1-22
Warning Light and Indicator Lights ...............................1-26
Odometer/Trip O dometer............................................. 1-31
Multi-function Light Switch ........................................... 1-32
Windshield Wiper/Washer Switch ................................1-35
Digital Clock ................................................................ 1-39
Glove Box .................................................................... 1-43
Center Seatback Console Compart ment .....................1-44
Mirror ........................................................................... 1-45
Hood R elease .............................................................. 1-47
Fuel Tank Ca p ............................................................. 1-48
Rear Gat e .................................................................... 1-49
Side Gate ..................................................................... 1-50
Heating and Cooling Control .......... ..............................1-53
Stereo Sound System ................................................. 1-64
Audio System .............................................................. 1-66
FEATURES OF YOUR HYUNDAI
1
1

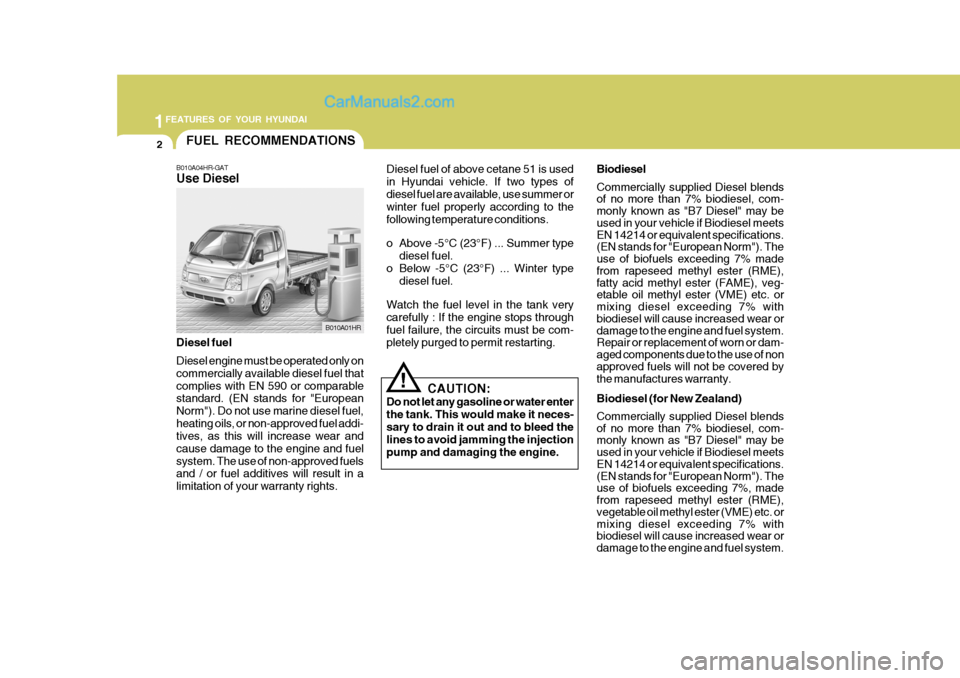

Page 14 of 217
1FEATURES OF YOUR HYUNDAI
2
!
FUEL RECOMMENDATIONS
B010A04HR-GAT Use Diesel
CAUTION:
Do not let any gasoline or water enter the tank. This would make it neces-sary to drain it out and to bleed the lines to avoid jamming the injection pump and damaging the engine.
Diesel fuel Diesel engine must be operated only on commercially available diesel fuel thatcomplies with EN 590 or comparable standard. (EN stands for "European Norm"). Do not use marine diesel fuel,heating oils, or non-approved fuel addi- tives, as this will increase wear and cause damage to the engine and fuelsystem. The use of non-approved fuels and / or fuel additives will result in a limitation of your warranty rights. B010A01HR
Diesel fuel of above cetane 51 is usedin Hyundai vehicle. If two types ofdiesel fuel are available, use summer or winter fuel properly according to the following temperature conditions.
o Above -5°C (23°F) ... Summer type
diesel fuel.
o Below -5°C (23°F) ... Winter type
diesel fuel.
Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, the circuits must be com- pletely purged to permit restarting. Biodiesel Commercially supplied Diesel blends of no more than 7% biodiesel, com- monly known as "B7 Diesel" may be used in your vehicle if Biodiesel meets EN 14214 or equivalent specifications. (EN stands for "European Norm"). The use of biofuels exceeding 7% made from rapeseed methyl ester (RME), fatty acid methyl ester (FAME), veg- etable oil methyl ester (VME) etc. or mixing diesel exceeding 7% with biodiesel will cause increased wear or damage to the engine and fuel system. Repair or replacement of worn or dam- aged components due to the use of non approved fuels will not be covered by the manufactures warranty.
Biodiesel (for New Zealand) Commercially supplied Diesel blends of no more than 7% biodiesel, com- monly known as "B7 Diesel" may be used in your vehicle if Biodiesel meets EN 14214 or equivalent specifications. (EN stands for "European Norm"). The use of biofuels exceeding 7%, made from rapeseed methyl ester (RME), vegetable oil methyl ester (VME) etc. or mixing diesel exceeding 7% with biodiesel will cause increased wear or damage to the engine and fuel system.

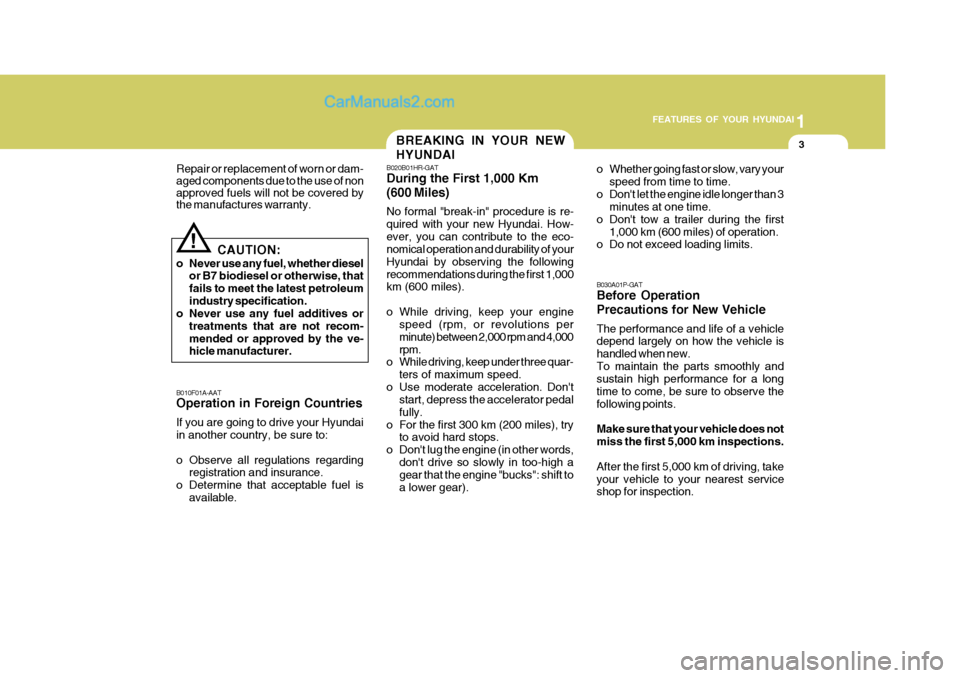

Page 15 of 217
1
FEATURES OF YOUR HYUNDAI
3BREAKING IN YOUR NEW HYUNDAI
B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding registration and insurance.
o Determine that acceptable fuel is available. B020B01HR-GAT During the First 1,000 Km (600 Miles) No formal "break-in" procedure is re- quired with your new Hyundai. How-ever, you can contribute to the eco- nomical operation and durability of your Hyundai by observing the followingrecommendations during the first 1,000 km (600 miles).
o While driving, keep your engine
speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000rpm.
o While driving, keep under three quar-
ters of maximum speed.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too-high a gear that the engine "bucks": shift to a lower gear).
CAUTION:
o Never use any fuel, whether diesel or B7 biodiesel or otherwise, thatfails to meet the latest petroleumindustry specification.
o Never use any fuel additives or
treatments that are not recom-mended or approved by the ve- hicle manufacturer.
! o Whether going fast or slow, vary your
speed from time to time.
o Don't let the engine idle longer than 3 minutes at one time.
o Don't tow a trailer during the first
1,000 km (600 miles) of operation.
o Do not exceed loading limits. B030A01P-GAT Before Operation Precautions for New Vehicle The performance and life of a vehicle depend largely on how the vehicle is handled when new.To maintain the parts smoothly and sustain high performance for a long time to come, be sure to observe thefollowing points. Make sure that your vehicle does not miss the first 5,000 km inspections. After the first 5,000 km of driving, take your vehicle to your nearest service shop for inspection.
Repair or replacement of worn or dam- aged components due to the use of non approved fuels will not be covered by the manufactures warranty.

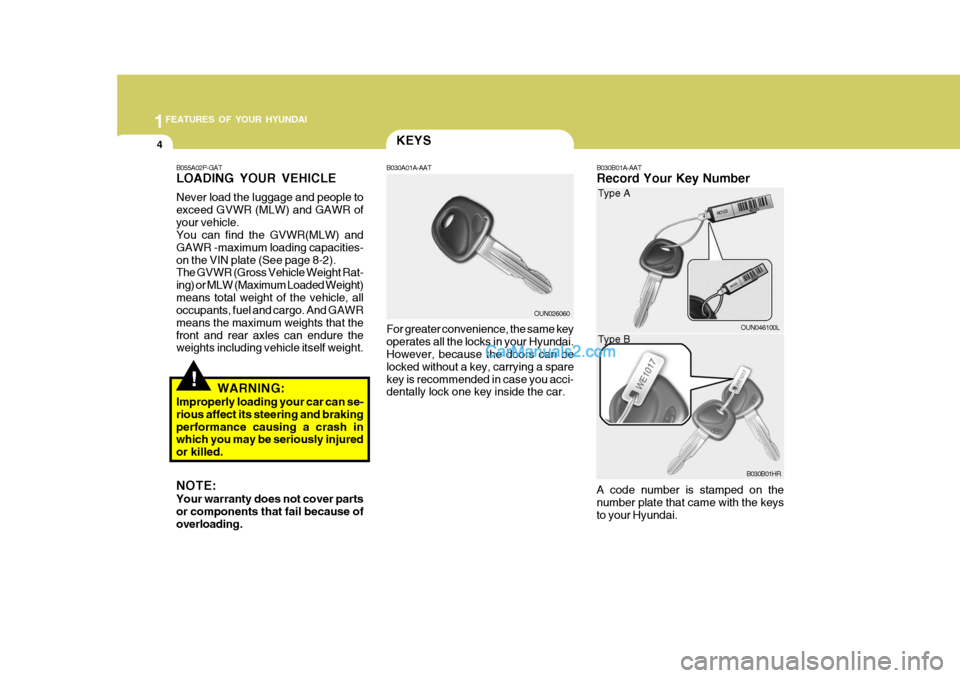

Page 16 of 217
1FEATURES OF YOUR HYUNDAI
4
B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keysto your Hyundai.KEYS
B030A01A-AAT
For greater convenience, the same key operates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a sparekey is recommended in case you acci- dentally lock one key inside the car.
!
B055A02P-GAT LOADING YOUR VEHICLE Never load the luggage and people to exceed GVWR (MLW) and GAWR ofyour vehicle. You can find the GVWR(MLW) and GAWR -maximum loading capacities-on the VIN plate (See page 8-2). The GVWR (Gross Vehicle Weight Rat- ing) or MLW (Maximum Loaded Weight)means total weight of the vehicle, all occupants, fuel and cargo. And GAWR means the maximum weights that thefront and rear axles can endure the weights including vehicle itself weight. WARNING:
Improperly loading your car can se- rious affect its steering and brakingperformance causing a crash in which you may be seriously injured or killed. NOTE: Your warranty does not cover parts or components that fail because ofoverloading.
OUN026060
Type A
B030B01HR
OUN046100L
Type B

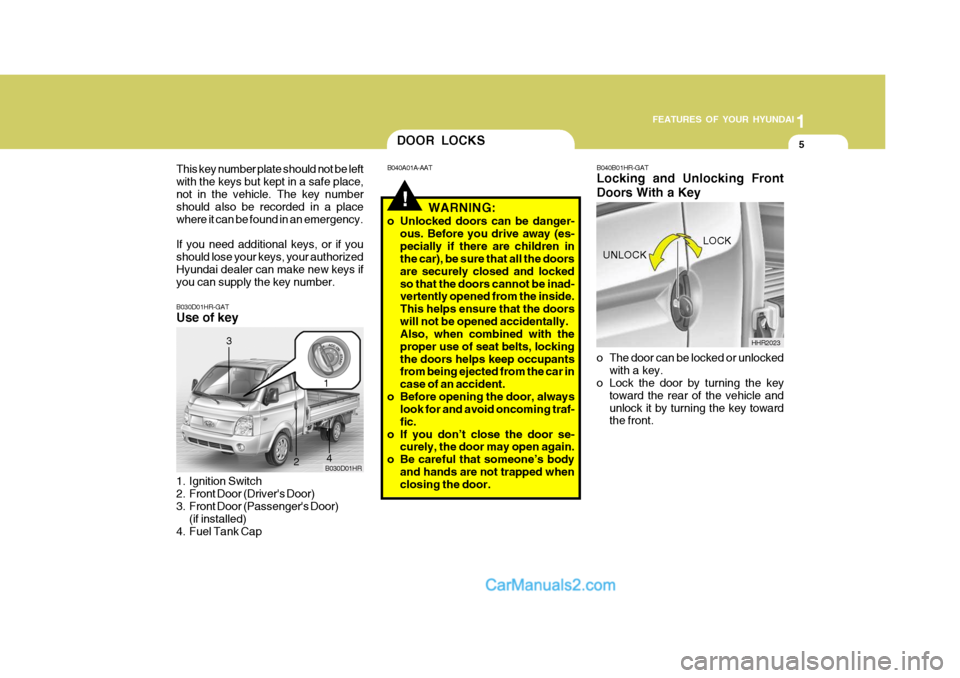

Page 17 of 217
1
FEATURES OF YOUR HYUNDAI
5
B030D01HR-GAT Use of key
1. Ignition Switch
2. Front Door (Driver's Door)
3. Front Door (Passenger's Door)
(if installed)
4. Fuel Tank Cap B030D01HR
1
2
3
4
!
DOOR LOCKS
B040A01A-AAT
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doors are securely closed and lockedso that the doors cannot be inad- vertently opened from the inside. This helps ensure that the doorswill not be opened accidentally. Also, when combined with the proper use of seat belts, lockingthe doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic.
o If you don’t close the door se- curely, the door may open again.
o Be careful that someone’s body and hands are not trapped when closing the door.
UNLOCK
HHR2023
LOCK
B040B01HR-GAT Locking and Unlocking Front Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the rear of the vehicle and unlock it by turning the key toward the front.
This key number plate should not be left with the keys but kept in a safe place,not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number.

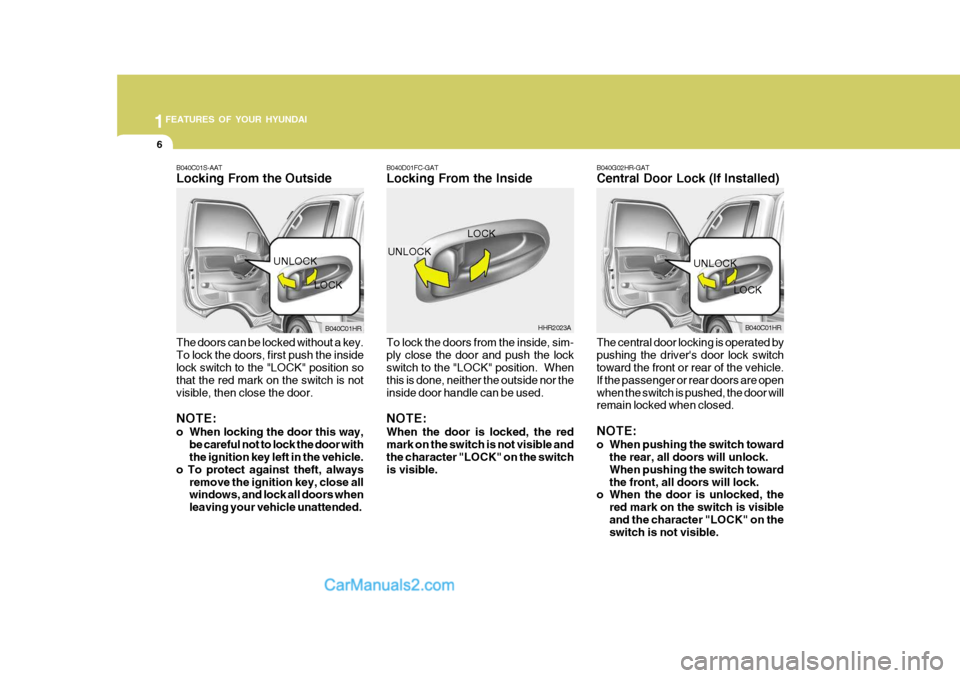

Page 18 of 217
1FEATURES OF YOUR HYUNDAI
6
B040G02HR-GAT Central Door Lock (If Installed)
B040D01FC-GATLocking From the Inside To lock the doors from the inside, sim- ply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor theinside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible and the character "LOCK" on the switch is visible.
HHR2023A
UNLOCK
B040C01HR
The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle. If the passenger or rear doors are openwhen the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward the rear, all doors will unlock. When pushing the switch towardthe front, all doors will lock.
o When the door is unlocked, the
red mark on the switch is visibleand the character "LOCK" on the switch is not visible. UNLOCK
LOCK
LOCK
UNLOCK
B040C01S-AAT Locking From the Outside The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is notvisible, then close the door. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in the vehicle.
o To protect against theft, always
remove the ignition key, close allwindows, and lock all doors when leaving your vehicle unattended. B040C01HR
LOCK

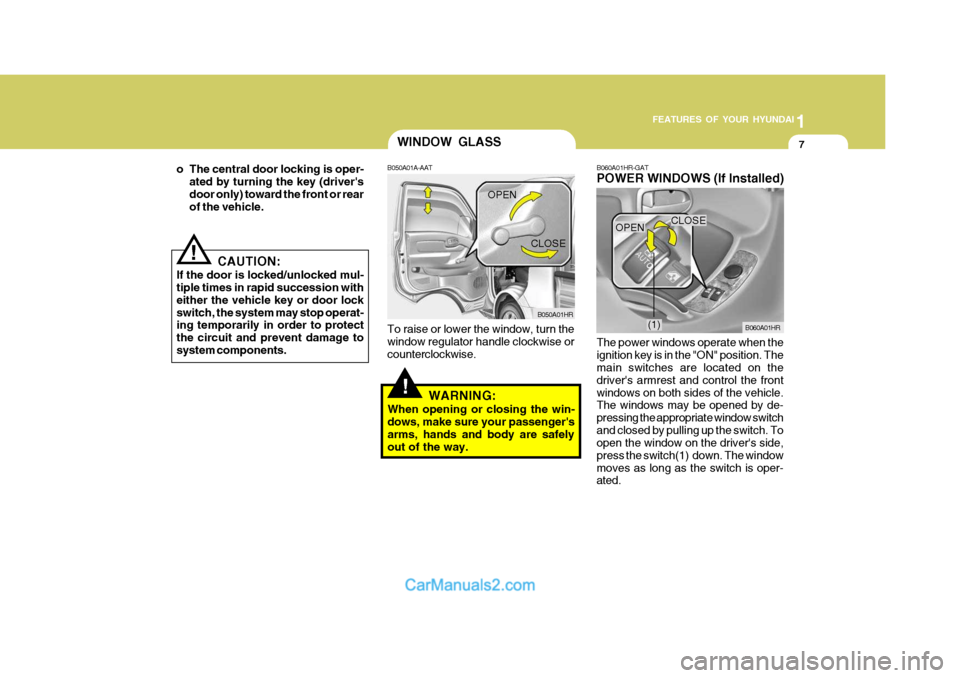

Page 19 of 217
1
FEATURES OF YOUR HYUNDAI
7
o The central door locking is oper- ated by turning the key (driver's door only) toward the front or rear of the vehicle.
CAUTION:
If the door is locked/unlocked mul-tiple times in rapid succession with either the vehicle key or door lockswitch, the system may stop operat- ing temporarily in order to protect the circuit and prevent damage tosystem components.
!
!
WINDOW GLASS
B050A01A-AAT To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.
WARNING:
When opening or closing the win- dows, make sure your passenger'sarms, hands and body are safely out of the way. B050A01HR
OPEN
CLOSE
B060A01HR-GAT POWER WINDOWS (If Installed) The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the frontwindows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switchand closed by pulling up the switch. To open the window on the driver's side, press the switch(1) down. The windowmoves as long as the switch is oper- ated. B060A01HR
(1)
OPEN
CLOSE

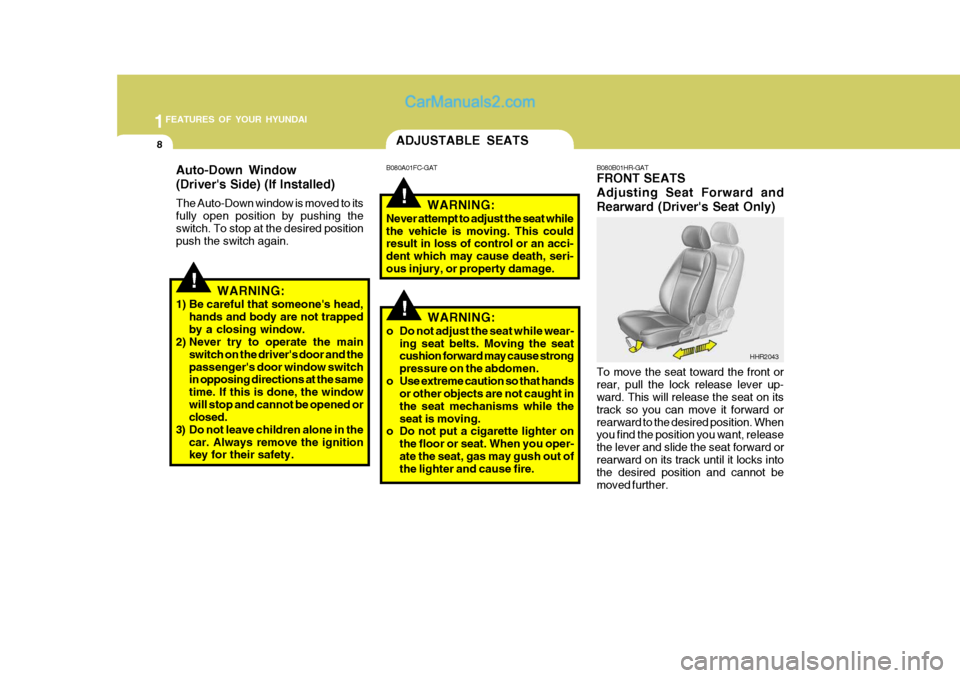

Page 20 of 217
1FEATURES OF YOUR HYUNDAI
8
!
ADJUSTABLE SEATS
To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on its track so you can move it forward orrearward to the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.
B080A01FC-GAT
B080B01HR-GAT
FRONT SEATS Adjusting Seat Forward andRearward (Driver's Seat Only)
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an acci- dent which may cause death, seri-ous injury, or property damage.
HHR2043
!
Auto-Down Window (Driver's Side) (If Installed) The Auto-Down window is moved to its fully open position by pushing theswitch. To stop at the desired position push the switch again.WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door and thepassenger's door window switch in opposing directions at the same time. If this is done, the windowwill stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
!WARNING:
o Do not adjust the seat while wear- ing seat belts. Moving the seat cushion forward may cause strong pressure on the abdomen.
o Use extreme caution so that hands or other objects are not caught inthe seat mechanisms while theseat is moving.
o Do not put a cigarette lighter on
the floor or seat. When you oper-ate the seat, gas may gush out of the lighter and cause fire.
