FEATURES OF YOUR HYUNDAI
69

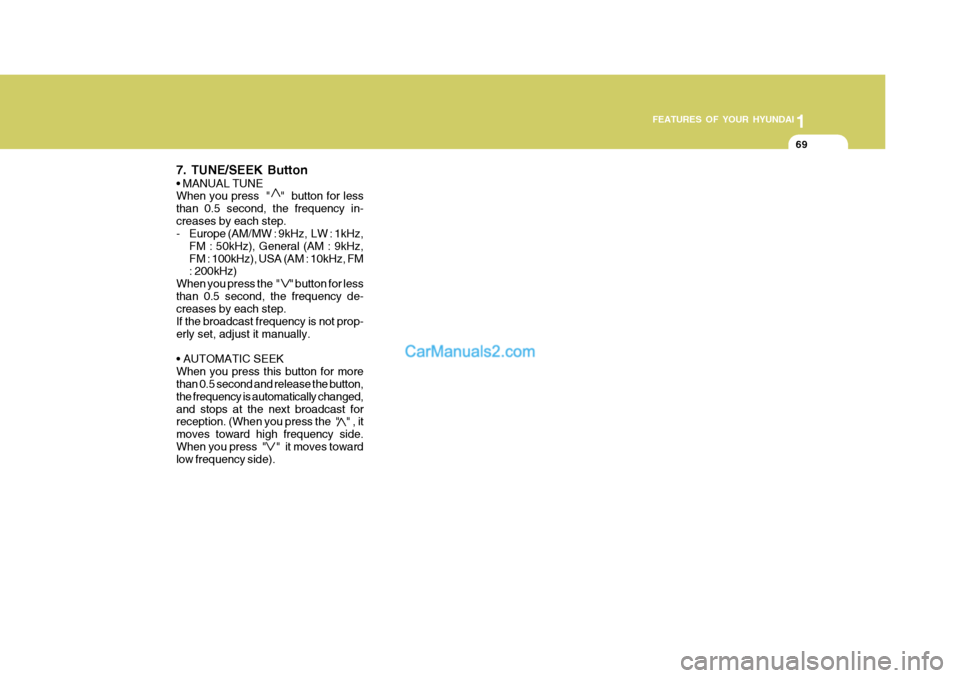

7. TUNE/SEEK Button When you press " " button for less than 0.5 second, the frequency in-creases by each step.
- Europe (AM/MW : 9kHz, LW : 1kHz, FM : 50kHz), General (AM : 9kHz, FM : 100kHz), USA (AM : 10kHz, FM : 200kHz)
When you press the " " button for less than 0.5 second, the frequency de- creases by each step. If the broadcast frequency is not prop-erly set, adjust it manually. When you press this button for more than 0.5 second and release the button, the frequency is automatically changed,and stops at the next broadcast for reception. (When you press the " " , it moves toward high frequency side.When you press " " it moves toward low frequency side).

1FEATURES OF YOUR HYUNDAI
70

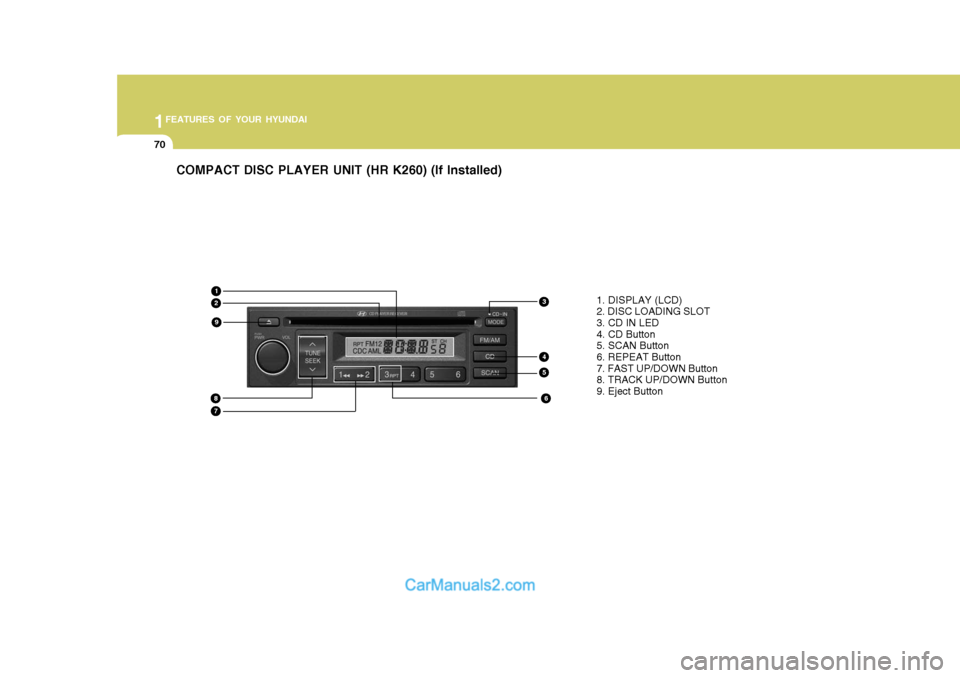

COMPACT DISC PLAYER UNIT (HR K260) (If Installed)
13
4
6
5
8
1. DISPLAY (LCD) 2. DISC LOADING SLOT 3. CD IN LED 4. CD Button5. SCAN Button 6. REPEAT Button 7. FAST UP/DOWN Button8. TRACK UP/DOWN Button 9. Eject Button2
9
7

1
FEATURES OF YOUR HYUNDAI
71

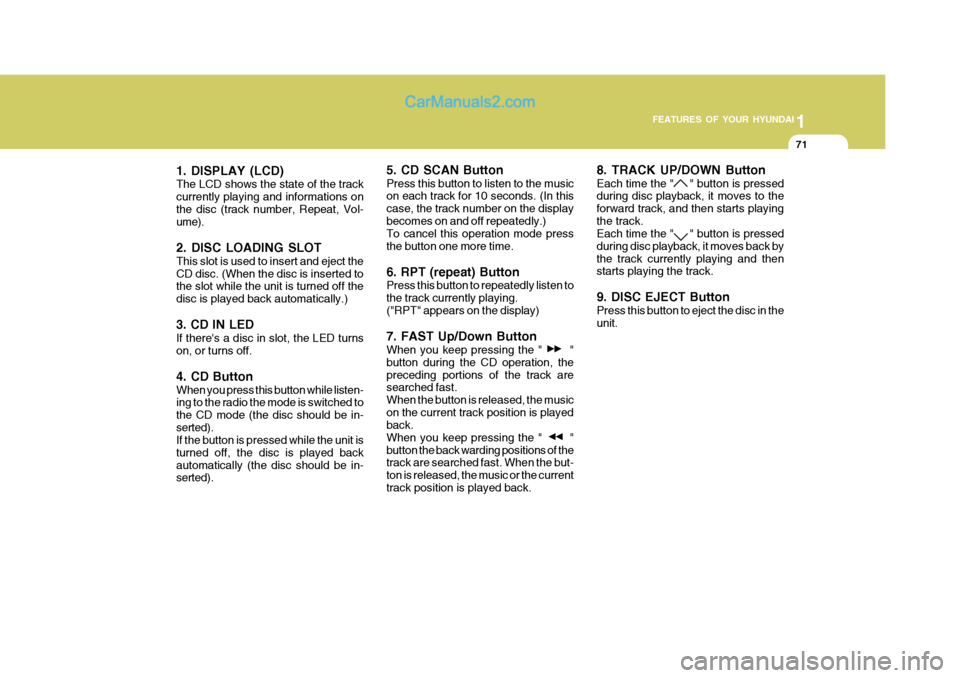

1. DISPLAY (LCD) The LCD shows the state of the track currently playing and informations onthe disc (track number, Repeat, Vol- ume). 2. DISC LOADING SLOT This slot is used to insert and eject the CD disc. (When the disc is inserted to the slot while the unit is turned off the disc is played back automatically.) 3. CD IN LED If there's a disc in slot, the LED turns on, or turns off. 4. CD Button When you press this button while listen- ing to the radio the mode is switched to the CD mode (the disc should be in-serted). If the button is pressed while the unit is turned off, the disc is played backautomatically (the disc should be in- serted). 5. CD SCAN Button Press this button to listen to the music on each track for 10 seconds. (In this case, the track number on the displaybecomes on and off repeatedly.) To cancel this operation mode press the button one more time. 6. RPT (repeat) Button Press this button to repeatedly listen to the track currently playing.("RPT" appears on the display) 7. FAST Up/Down Button When you keep pressing the " " button during the CD operation, thepreceding portions of the track are searched fast. When the button is released, the musicon the current track position is played back. When you keep pressing the " "button the back warding positions of the track are searched fast. When the but- ton is released, the music or the currenttrack position is played back.8. TRACK UP/DOWN Button Each time the " " button is pressed during disc playback, it moves to the forward track, and then starts playingthe track. Each time the " " button is pressed during disc playback, it moves back bythe track currently playing and then starts playing the track. 9. DISC EJECT Button Press this button to eject the disc in the unit.

1FEATURES OF YOUR HYUNDAI
72

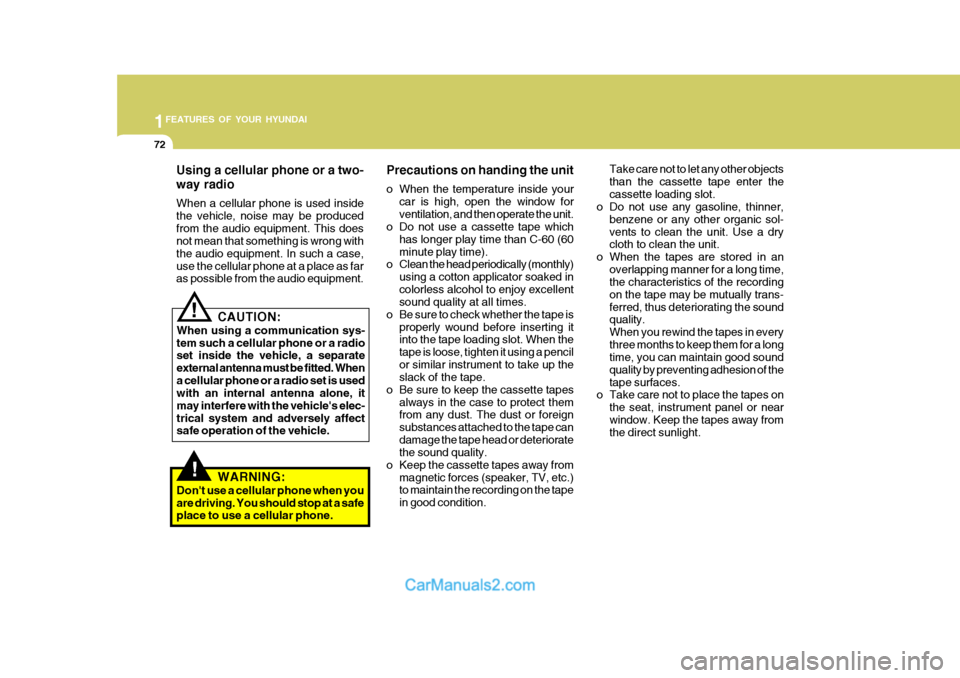

Using a cellular phone or a two- way radio When a cellular phone is used inside the vehicle, noise may be producedfrom the audio equipment. This does not mean that something is wrong with the audio equipment. In such a case,use the cellular phone at a place as far as possible from the audio equipment. Precautions on handing the unit
o When the temperature inside your
car is high, open the window for ventilation, and then operate the unit.
o Do not use a cassette tape which
has longer play time than C-60 (60minute play time).
o Clean the head periodically (monthly)
using a cotton applicator soaked incolorless alcohol to enjoy excellent sound quality at all times.
o Be sure to check whether the tape is properly wound before inserting itinto the tape loading slot. When the tape is loose, tighten it using a pencilor similar instrument to take up the slack of the tape.
o Be sure to keep the cassette tapes always in the case to protect themfrom any dust. The dust or foreign substances attached to the tape candamage the tape head or deteriorate the sound quality.
o Keep the cassette tapes away from magnetic forces (speaker, TV, etc.)to maintain the recording on the tape in good condition. Take care not to let any other objectsthan the cassette tape enter thecassette loading slot.
o Do not use any gasoline, thinner,
benzene or any other organic sol-vents to clean the unit. Use a dry cloth to clean the unit.
o When the tapes are stored in an overlapping manner for a long time,the characteristics of the recording on the tape may be mutually trans-ferred, thus deteriorating the sound quality. When you rewind the tapes in everythree months to keep them for a long time, you can maintain good sound quality by preventing adhesion of thetape surfaces.
o Take care not to place the tapes on
the seat, instrument panel or nearwindow. Keep the tapes away from the direct sunlight.
!
! CAUTION:
When using a communication sys- tem such a cellular phone or a radio set inside the vehicle, a separate external antenna must be fitted. Whena cellular phone or a radio set is used with an internal antenna alone, it may interfere with the vehicle's elec-trical system and adversely affect safe operation of the vehicle.
WARNING:
Don't use a cellular phone when you are driving. You should stop at a safe place to use a cellular phone.

1
FEATURES OF YOUR HYUNDAI
73

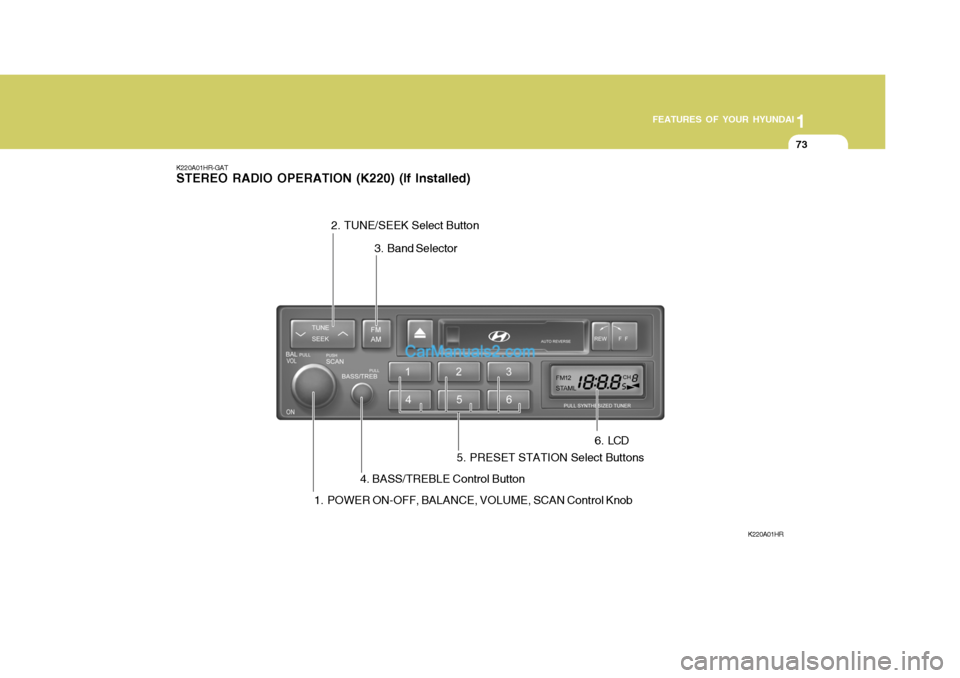

K220A01HR-GAT STEREO RADIO OPERATION (K220) (If Installed)
K220A01HR
1. POWER ON-OFF, BALANCE, VOLUME, SCAN Control Knob 3. Band Selector
4. BASS/TREBLE Control Button
2. TUNE/SEEK Select Button
5. PRESET STATION Select Buttons 6 . LCD

1FEATURES OF YOUR HYUNDAI
74
K220B01HR-GAT

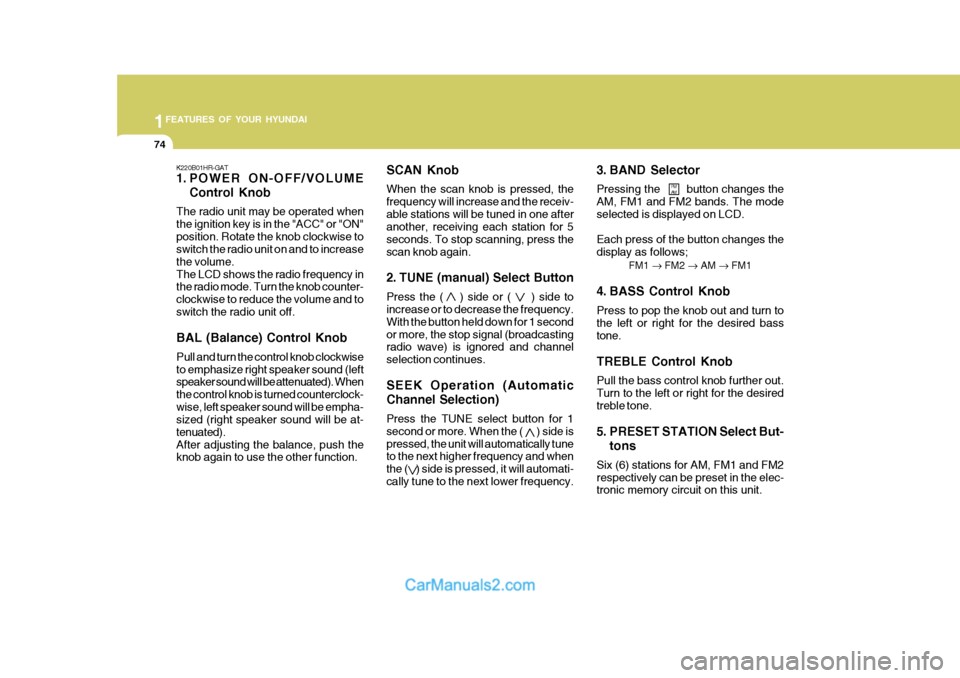

1. POWER ON-OFF/VOLUMEControl Knob
The radio unit may be operated when the ignition key is in the "ACC" or "ON"position. Rotate the knob clockwise to switch the radio unit on and to increase the volume.The LCD shows the radio frequency in the radio mode. Turn the knob counter- clockwise to reduce the volume and toswitch the radio unit off. BAL (Balance) Control Knob Pull and turn the control knob clockwise to emphasize right speaker sound (left speaker sound will be attenuated). When the control knob is turned counterclock-wise, left speaker sound will be empha- sized (right speaker sound will be at- tenuated).After adjusting the balance, push the knob again to use the other function. SCAN Knob When the scan knob is pressed, the frequency will increase and the receiv-able stations will be tuned in one after another, receiving each station for 5 seconds. To stop scanning, press thescan knob again.
2. TUNE (manual) Select Button Press the ( ) side or ( ) side to increase or to decrease the frequency. With the button held down for 1 secondor more, the stop signal (broadcasting radio wave) is ignored and channel selection continues. SEEK Operation (Automatic Channel Selection) Press the TUNE select button for 1 second or more. When the ( ) side ispressed, the unit will automatically tune to the next higher frequency and when the ( ) side is pressed, it will automati-cally tune to the next lower frequency. 3. BAND Selector Pressing the button changes the AM, FM1 and FM2 bands. The modeselected is displayed on LCD. Each press of the button changes the display as follows;
FM1 FM2 AM FM1
4. BASS Control Knob Press to pop the knob out and turn to the left or right for the desired bass tone. TREBLE Control Knob Pull the bass control knob further out. Turn to the left or right for the desiredtreble tone.
5. PRESET STATION Select But- tons
Six (6) stations for AM, FM1 and FM2 respectively can be preset in the elec- tronic memory circuit on this unit.
FM AM

1
FEATURES OF YOUR HYUNDAI
75

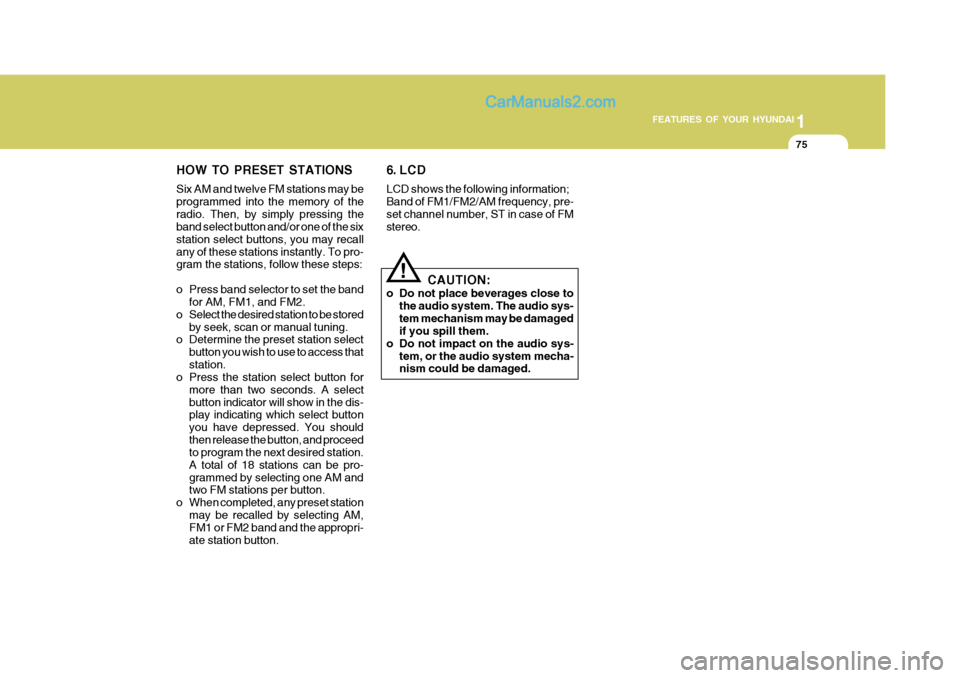

HOW TO PRESET STATIONS Six AM and twelve FM stations may be programmed into the memory of theradio. Then, by simply pressing the band select button and/or one of the six station select buttons, you may recallany of these stations instantly. To pro- gram the stations, follow these steps:
o Press band selector to set the band for AM, FM1, and FM2.
o Select the desired station to be stored by seek, scan or manual tuning.
o Determine the preset station select
button you wish to use to access that station.
o Press the station select button for
more than two seconds. A selectbutton indicator will show in the dis- play indicating which select button you have depressed. You shouldthen release the button, and proceed to program the next desired station. A total of 18 stations can be pro-grammed by selecting one AM and two FM stations per button.
o When completed, any preset station may be recalled by selecting AM,FM1 or FM2 band and the appropri- ate station button.
!
6. LCD LCD shows the following information; Band of FM1/FM2/AM frequency, pre-set channel number, ST in case of FM stereo.
CAUTION:
o Do not place beverages close to the audio system. The audio sys- tem mechanism may be damaged if you spill them.
o Do not impact on the audio sys- tem, or the audio system mecha-nism could be damaged.

1FEATURES OF YOUR HYUNDAI
76

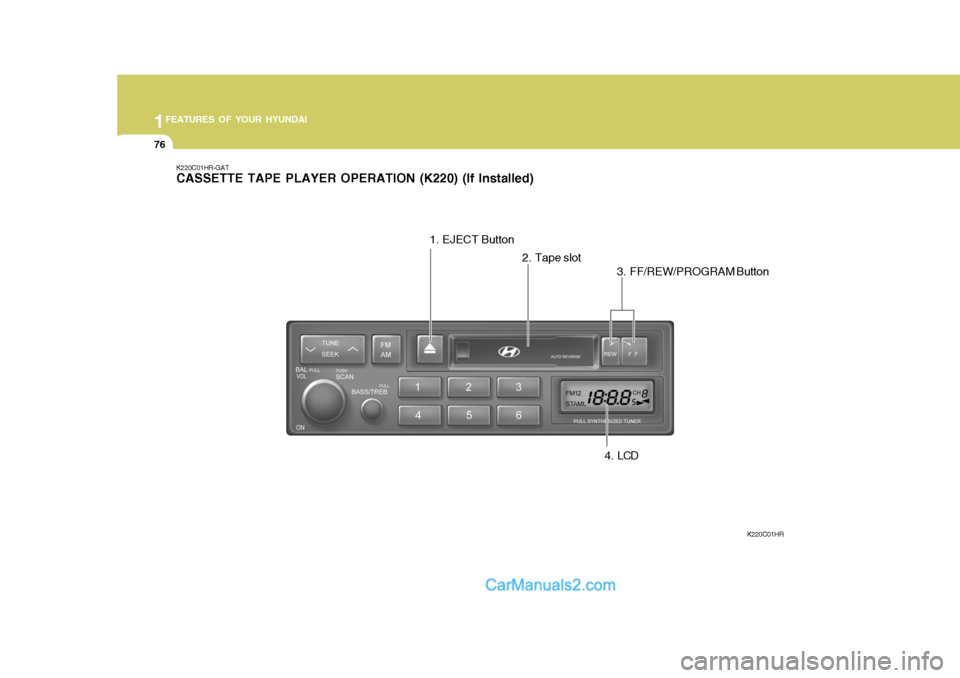

K220C01HR-GAT CASSETTE TAPE PLAYER OPERATION (K220) (If Installed)
2. Tape slot
K220C01HR
3. FF/REW/PROGRAM Button
1. EJECT Button
4 . LCD

1
FEATURES OF YOUR HYUNDAI
77
K220D01HR-GAT

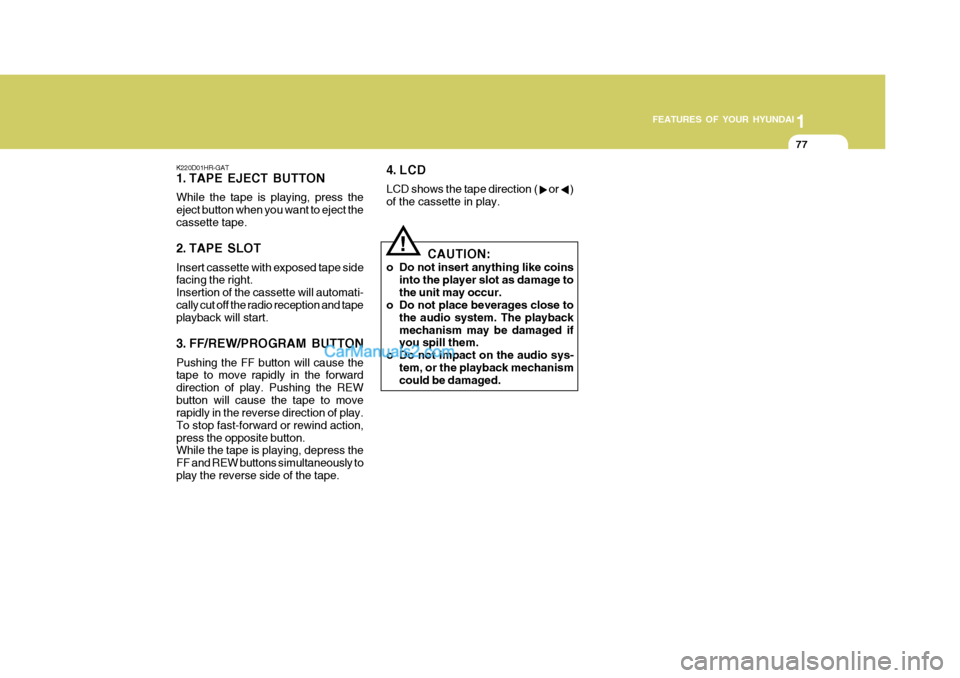

1. TAPE EJECT BUTTON While the tape is playing, press the eject button when you want to eject thecassette tape.
2. TAPE SLOT Insert cassette with exposed tape side facing the right. Insertion of the cassette will automati-cally cut off the radio reception and tape playback will start.
3. FF/REW/PROGRAM BUTTON Pushing the FF button will cause the tape to move rapidly in the forward direction of play. Pushing the REWbutton will cause the tape to move rapidly in the reverse direction of play. To stop fast-forward or rewind action,press the opposite button. While the tape is playing, depress the FF and REW buttons simultaneously toplay the reverse side of the tape.
!
4. LCD LCD shows the tape direction ( or ) of the cassette in play.CAUTION:
o Do not insert anything like coins into the player slot as damage to the unit may occur.
o Do not place beverages close to
the audio system. The playbackmechanism may be damaged if you spill them.
o Do not impact on the audio sys-
tem, or the playback mechanismcould be damaged.

1FEATURES OF YOUR HYUNDAI
78
3 . LCD

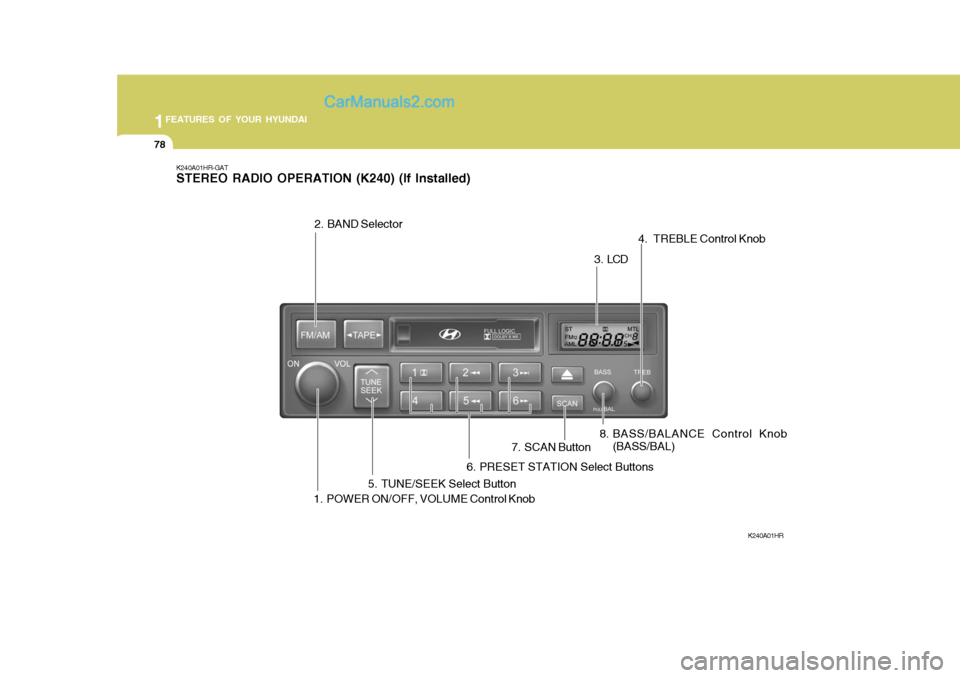

K240A01HR-GAT STEREO RADIO OPERATION (K240) (If Installed)
K240A01HR
1. POWER ON/OFF, VOLUME Control Knob 8. BASS/BALANCE Control Knob
(BASS/BAL) 4. TREBLE Control Knob
5. TUNE/SEEK Select Button
2. BAND Selector
6. PRESET STATION Select Buttons7. SCAN Button
