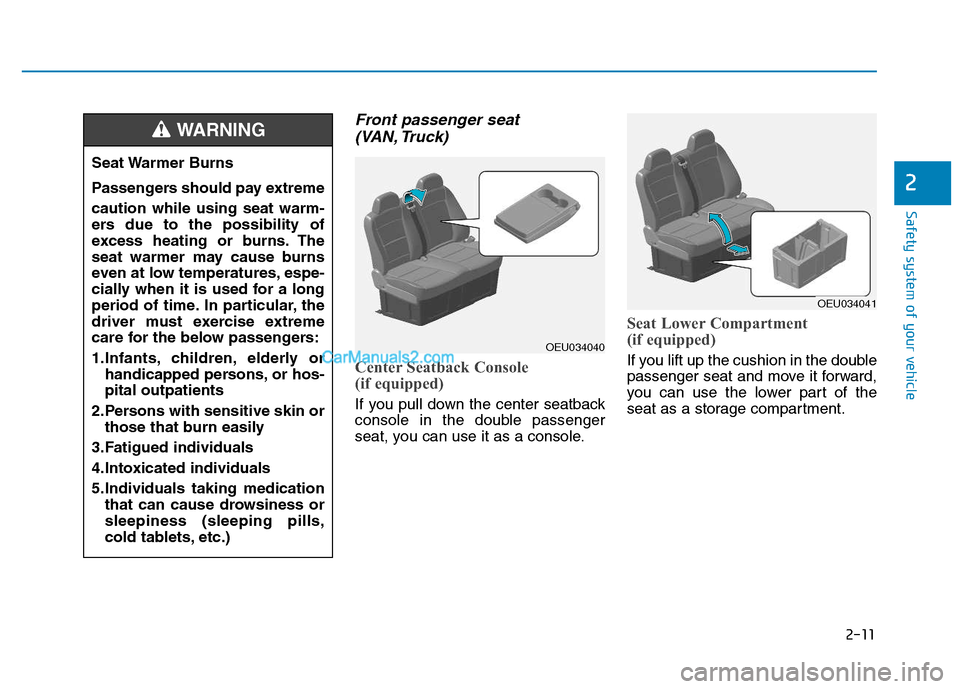

Hyundai H350 2015 Owner's Guide

2-11
Safety system of your vehicle
Front passenger seat (VAN, Truck)
Center Seatback Console
(if equipped)
If you pull down the center seatback
console in the double passenger
seat, you can use it as a console.
Seat Lower Compartment
(if equipped)
If you lift up the cushion in the double
passenger seat and move it forward,
you can use the lower part of the
seat as a storage compartment.
2
Seat Warmer Burns
Passengers should pay extreme caution while using seat warm-
ers due to the possibility of
excess heating or burns. The
seat warmer may cause burns
even at low temperatures, espe-
cially when it is used for a long
period of time. In particular, the
driver must exercise extreme
care for the below passengers:
1.Infants, children, elderly or handicapped persons, or hos- pital outpatients
2.Persons with sensitive skin or those that burn easily
3.Fatigued individuals
4.Intoxicated individuals
5.Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills,
cold tablets, etc.)
WARNING
OEU034040
OEU034041

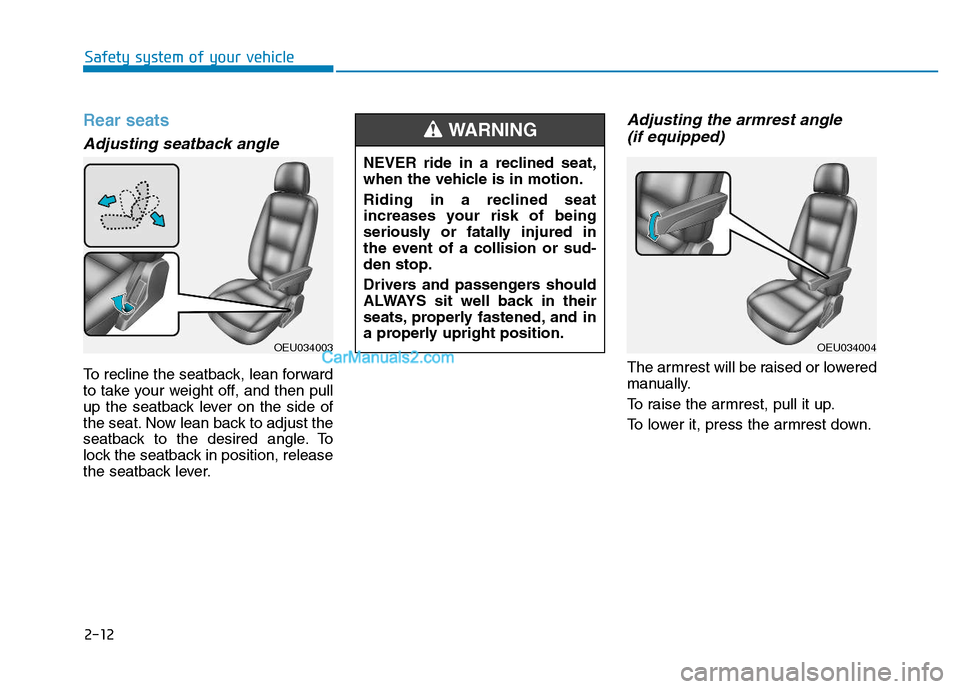

2-12
Safety system of your vehicle
Rear seats
Adjusting seatback angle
To recline the seatback, lean forward
to take your weight off, and then pull
up the seatback lever on the side of
the seat. Now lean back to adjust the
seatback to the desired angle. To
lock the seatback in position, release
the seatback lever.
Adjusting the armrest angle (if equipped)
The armrest will be raised or lowered
manually.
To raise the armrest, pull it up.
To lower it, press the armrest down.
OEU034003 NEVER ride in a reclined seat,
when the vehicle is in motion.
Riding in a reclined seat
increases your risk of being
seriously or fatally injured in
the event of a collision or sud-den stop.
Drivers and passengers should
ALWAYS sit well back in their
seats, properly fastened, and in
a properly upright position.
WARNING
OEU034004

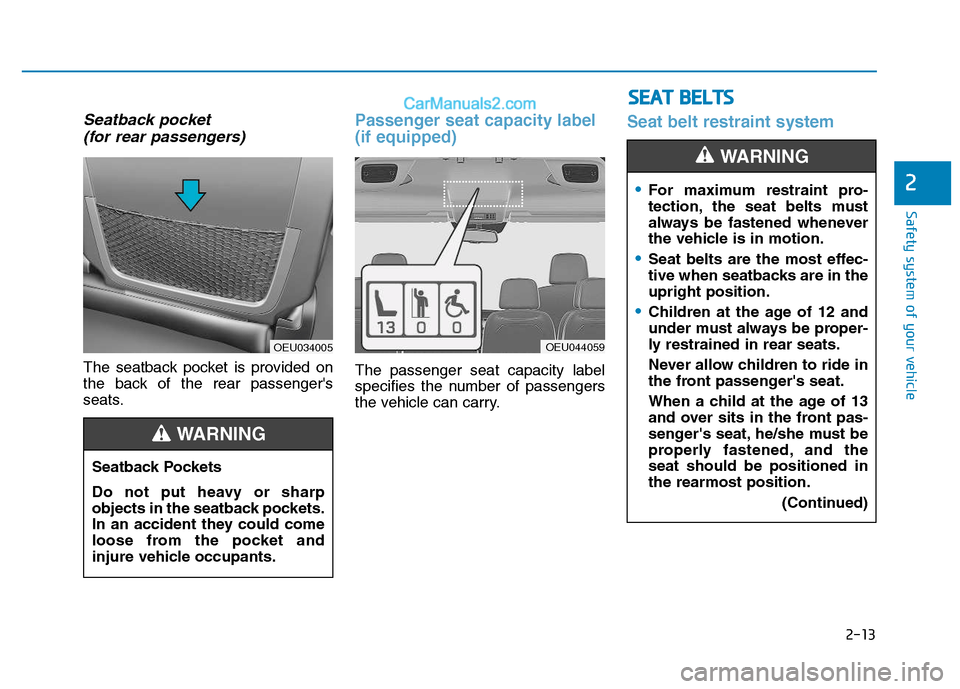

2-13
Safety system of your vehicle
2
Seatback pocket (for rear passengers)
The seatback pocket is provided on
the back of the rear passenger's
seats.
Passenger seat capacity label (if equipped)
The passenger seat capacity label
specifies the number of passengers
the vehicle can carry.
Seat belt restraint system
OEU034005
Seatback Pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
WARNING
OEU044059
SS EE AA TT BB EELLTT SS

For maximum restraint pro-
tection, the seat belts must
always be fastened whenever
the vehicle is in motion.
Seat belts are the most effec-
tive when seatbacks are in theupright position.
Children at the age of 12 and
under must always be proper-
ly restrained in rear seats.
Never allow children to ride in
the front passenger's seat.
When a child at the age of 13
and over sits in the front pas-
senger's seat, he/she must be
properly fastened, and theseat should be positioned inthe rearmost position. (Continued)
WARNING

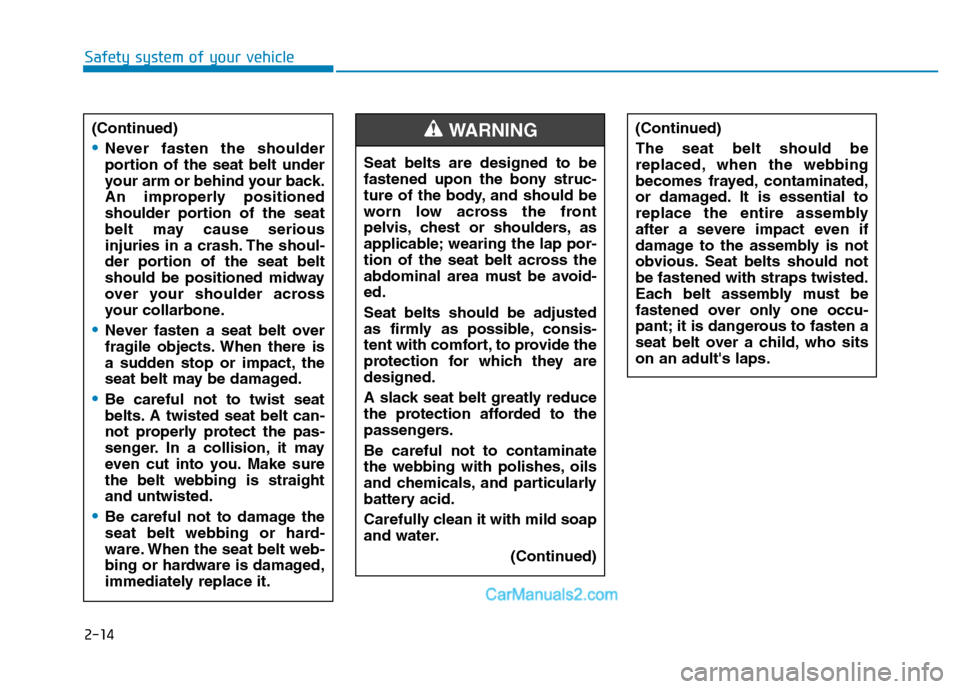

2-14
Safety system of your vehicle
(Continued)
Never fasten the shoulder
portion of the seat belt under
your arm or behind your back.
An improperly positioned
shoulder portion of the seat
belt may cause serious
injuries in a crash. The shoul-
der portion of the seat belt
should be positioned midway
over your shoulder across
your collarbone.
Never fasten a seat belt over
fragile objects. When there is
a sudden stop or impact, the
seat belt may be damaged.
Be careful not to twist seat
belts. A twisted seat belt can-
not properly protect the pas-
senger. In a collision, it may
even cut into you. Make surethe belt webbing is straightand untwisted.
Be careful not to damage the
seat belt webbing or hard-
ware. When the seat belt web-
bing or hardware is damaged,
immediately replace it.
Seat belts are designed to be
fastened upon the bony struc-
ture of the body, and should be
worn low across the front
pelvis, chest or shoulders, as
applicable; wearing the lap por-
tion of the seat belt across the
abdominal area must be avoid-ed. Seat belts should be adjusted
as firmly as possible, consis-
tent with comfort, to provide the
protection for which they aredesigned.
A slack seat belt greatly reduce
the protection afforded to the
passengers. Be careful not to contaminate
the webbing with polishes, oils
and chemicals, and particularly
battery acid.
Carefully clean it with mild soap
and water.(Continued)
WARNING (Continued) The seat belt should be
replaced, when the webbing
becomes frayed, contaminated,
or damaged. It is essential to
replace the entire assembly
after a severe impact even if
damage to the assembly is not
obvious. Seat belts should notbe fastened with straps twisted.
Each belt assembly must be
fastened over only one occu-
pant; it is dangerous to fasten a
seat belt over a child, who sitson an adult's laps.

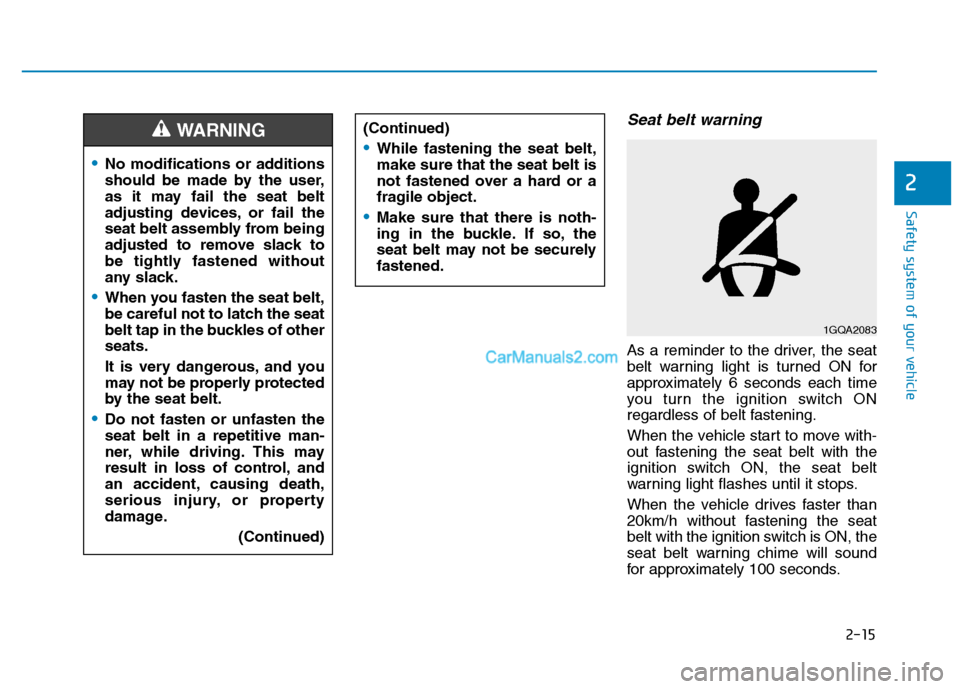

2-15
Safety system of your vehicle
2
Seat belt warning
As a reminder to the driver, the seat
belt warning light is turned ON for
approximately 6 seconds each time
you turn the ignition switch ON
regardless of belt fastening.
When the vehicle start to move with-
out fastening the seat belt with the
ignition switch ON, the seat belt
warning light flashes until it stops.
When the vehicle drives faster than
20km/h without fastening the seat
belt with the ignition switch is ON, the
seat belt warning chime will sound
for approximately 100 seconds.
No modifications or additions
should be made by the user,
as it may fail the seat belt
adjusting devices, or fail the
seat belt assembly from being
adjusted to remove slack to
be tightly fastened without
any slack.
When you fasten the seat belt,
be careful not to latch the seat
belt tap in the buckles of otherseats.
It is very dangerous, and you
may not be properly protected
by the seat belt.
Do not fasten or unfasten the seat belt in a repetitive man-
ner, while driving. This may
result in loss of control, and
an accident, causing death,
serious injury, or property
damage.(Continued)
WARNING (Continued)
While fastening the seat belt, make sure that the seat belt is
not fastened over a hard or a
fragile object.
Make sure that there is noth-
ing in the buckle. If so, the
seat belt may not be securelyfastened.
1GQA2083

2-16
Safety system of your vehicle
However, this chime will stop, when
the seat belt is fastened. (if equipped)Lap/shoulder belt
(for front passenger)
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert its metal tab
(1) into the buckle (2). There will be a
"clicking" sound, when the metal tab
is locked into the buckle.
The shoulder portion will be auto-
matically retracted to the proper
length, when the lap portion is man-
ually adjusted to fit snugly around
your hips. When you slowly lean for-
ward, the seat belt will extend in
accordance with your movement.However, in a sudden stop or impact,
the seat belt will lock in position. It
will also lock in position, when you
try to lean forward too quickly.
Information
When the seat belt is not pulled out
from the retractor, firmly pull out the
seat belt and release it. Then, it will be
smoothly pulled out.
i
ODH033055

2-17
Safety system of your vehicle
2

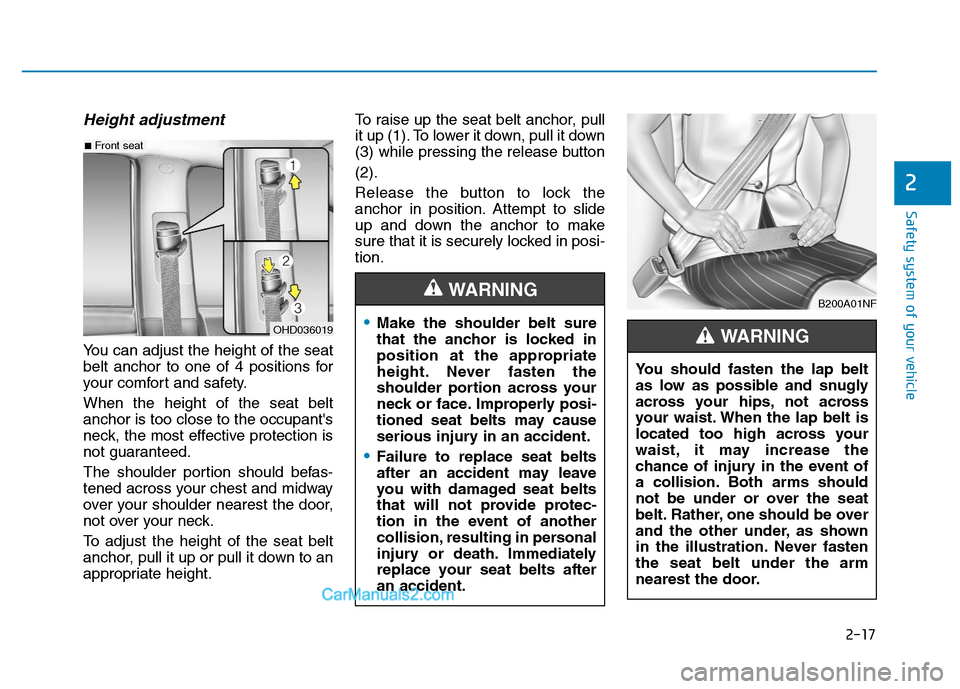

Height adjustment
You can adjust the height of the seat
belt anchor to one of 4 positions for
your comfort and safety. When the height of the seat belt anchor is too close to the occupant's
neck, the most effective protection is
not guaranteed.
The shoulder portion should befas-
tened across your chest and midway
over your shoulder nearest the door,
not over your neck.
To adjust the height of the seat belt
anchor, pull it up or pull it down to an
appropriate height.To raise up the seat belt anchor, pull
it up (1). To lower it down, pull it down
(3) while pressing the release button (2).
Release the button to lock the
anchor in position. Attempt to slide
up and down the anchor to make
sure that it is securely locked in posi-tion.
OHD036019
■
Front seat
Make the shoulder belt sure
that the anchor is locked in
position at the appropriate
height. Never fasten the
shoulder portion across your
neck or face. Improperly posi-
tioned seat belts may cause
serious injury in an accident.
Failure to replace seat belts
after an accident may leave
you with damaged seat belts
that will not provide protec-
tion in the event of another
collision, resulting in personal
injury or death. Immediately
replace your seat belts afteran accident.
WARNING B200A01NF
You should fasten the lap belt
as low as possible and snugly
across your hips, not across
your waist. When the lap belt is
located too high across your
waist, it may increase the
chance of injury in the event of
a collision. Both arms should
not be under or over the seat
belt. Rather, one should be over
and the other under, as shown
in the illustration. Never fastenthe seat belt under the arm
nearest the door.
WARNING

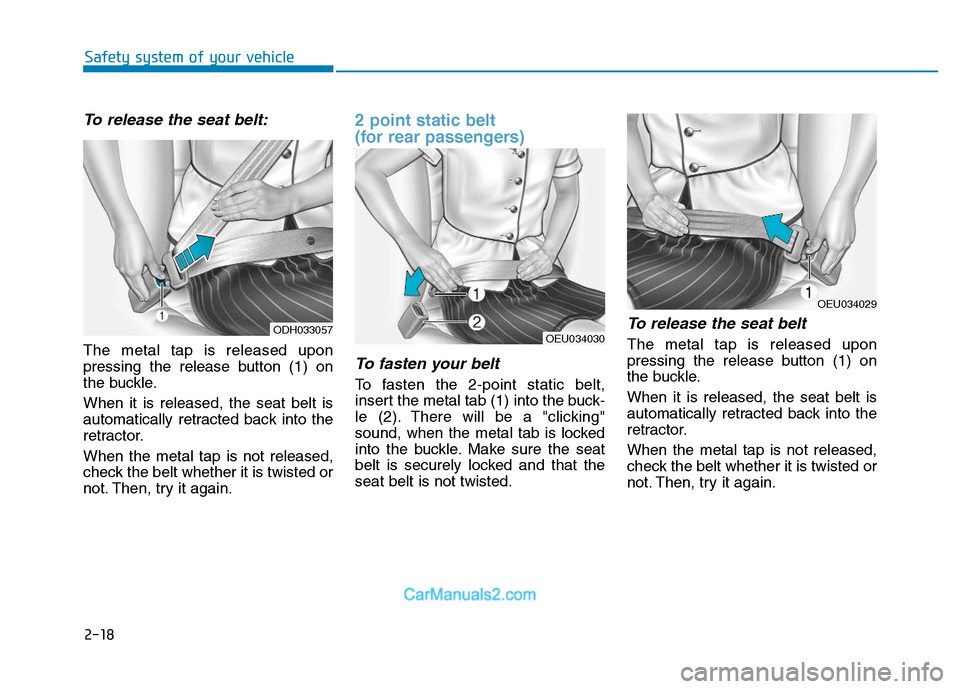

2-18
Safety system of your vehicle
To release the seat belt:
The metal tap is released upon
pressing the release button (1) on
the buckle. When it is released, the seat belt is
automatically retracted back into the
retractor. When the metal tap is not released,
check the belt whether it is twisted or
not. Then, try it again.
2 point static belt
(for rear passengers)
To fasten your belt
To fasten the 2-point static belt,
insert the metal tab (1) into the buck-
le (2). There will be a "clicking"
sound, when the metal tab is locked
into the buckle. Make sure the seat
belt is securely locked and that theseat belt is not twisted.
To release the seat belt
The metal tap is released upon
pressing the release button (1) on
the buckle. When it is released, the seat belt is
automatically retracted back into the
retractor. When the metal tap is not released,
check the belt whether it is twisted or
not. Then, try it again.
ODH033057OEU034030
OEU034029

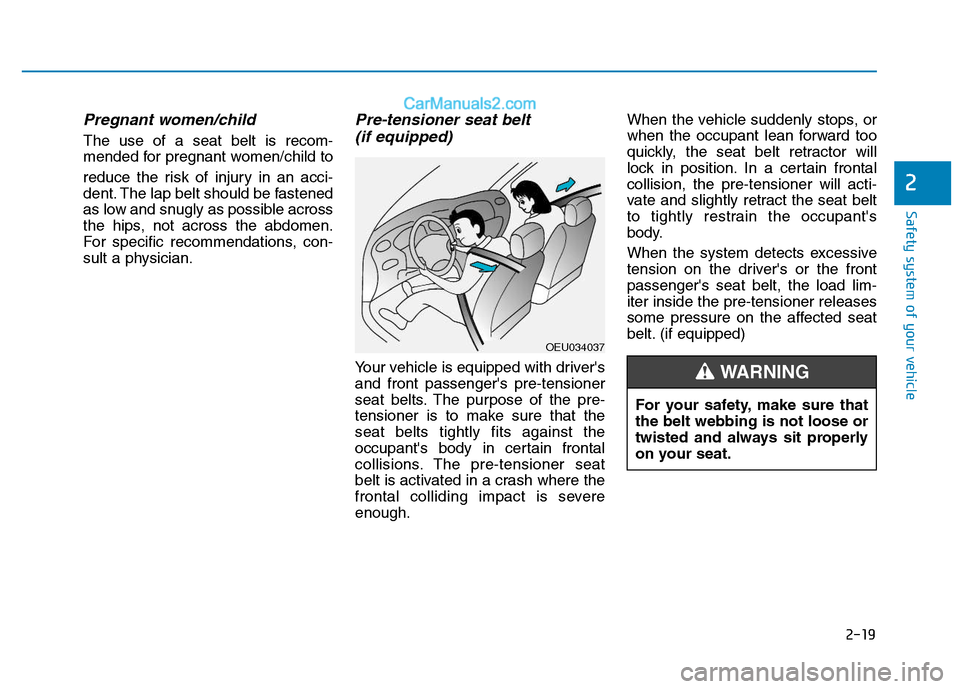

2-19
Safety system of your vehicle
2
Pregnant women/child
The use of a seat belt is recom-
mended for pregnant women/child to
reduce the risk of injury in an acci-
dent. The lap belt should be fastened
as low and snugly as possible across
the hips, not across the abdomen.
For specific recommendations, con-
sult a physician.
Pre-tensioner seat belt (if equipped)
Your vehicle is equipped with driver'sand front passenger's pre-tensioner
seat belts. The purpose of the pre-
tensioner is to make sure that theseat belts tightly fits against the
occupant's body in certain frontal
collisions. The pre-tensioner seat
belt is activated in a crash where the
frontal colliding impact is severeenough. When the vehicle suddenly stops, or
when the occupant lean forward too
quickly, the seat belt retractor will
lock in position. In a certain frontalcollision, the pre-tensioner will acti-
vate and slightly retract the seat belt
to tightly restrain the occupant's
body.
When the system detects excessive
tension on the driver's or the frontpassenger's seat belt, the load lim-iter inside the pre-tensioner releases
some pressure on the affected seat
belt. (if equipped)
OEU034037
For your safety, make sure that the belt webbing is not loose or
twisted and always sit properly
on your seat.
WARNING

2-20
Safety system of your vehicle
When the pre-tensioner seat beltis activated, there will be a loud
noise and fine dusts. These may
appear to be smoke, and be vis-
ible in the passenger compart-
ment. These are normal operat-
ing conditions, and does not
indicate a problem.
Although they are harmless sub- stances, the fine dusts may
cause skin irritation. These
should not be inhaled for a pro-
longed period of time.
Thoroughly wash all the
exposed skin areas after an
accident, when the pre-tension-
er seat belt was activated.
Because the sensor that acti- vates the SRS air bag is con-nected with the pre-tensioner
seat belt, the SRS air bag warn-
ing light on the instrument clus-
ter will illuminate for approxi-
mately 6 seconds after turning
ON the ignition switch, and then
it goes OFF.
NOTICE
To obtain maximum benefit
from a pre-tensioner seat belt:
1.The seat belt must be proper-ly fastened and adjusted.
Please read and follow all of
the important safety informa-tion and precautions about
your vehicle's occupant safe-
ty features - including seat
belts and air bags - that are
provided in this manual.
2.Make sure you and your pas- sengers always and properlyfasten the seat belts.
WARNING
When the pre-tensioner seat
belt does not properly operate,
the SRS air bag warning light
illuminates even without a mal-
function of the SRS air bag.
When the SRS air bag warninglight does not illuminate after
turning ON the ignition switch,
when it remains ON longer than
6 seconds, or when it remains
ON while driving the vehicle, werecommend that the system be
inspected by an authorized
HYUNDAI dealer.
CAUTION
