HYUNDAI I10 2007 Owners Manual

Features of your vehicle
92
4
Using CD Player
1. Button
If there is a CD in the CD DECK it switch-
es to CD mode.
If there is no CD, then the message “NO
DISC” will become displayed on the LCD
for 3 seconds and returns to the previous
mode.
2. CD eject Button
Push button to eject the CD. This but-
ton is enabled when ignition switch is off.
3. Button
Plays first 10 sec of each song in the
DISC.
To cancel the mode, press the key once again. 4. CD slot
Please face printed side upward and
gently push in. When the ignition switch
is on ACC or ON and power is off, power
is automatically turned on if the CD is
loaded. This CDP support only 12 cm
CD. But if VCD, Data CD loaded,"Reading Error" message will appearand CD will be ejected.
5. CD-IN Indicator
When car ignition switch is ACC or ON and if the CD is loaded, this indicator is
lighted. If the CD is ejected the light is
turned off.
6. Button
Displays the information of the current
CD TRACK in the order of DISC TITLE
➟
DISC ARTIST ➟ TRACK TITLE ➟
TRACK ARTIST ➟ TOTAL TRACK ➟Play
Screen ➟ DISC TITLE ➟ ···.(not dis-
played if the information is not available
on the DISC.)
INFO
SCAN
CD
PA_PA710PAE
PA_PA710PAG
PA_PA710PAE
PA_PA710PAE

493
Features of your vehicle

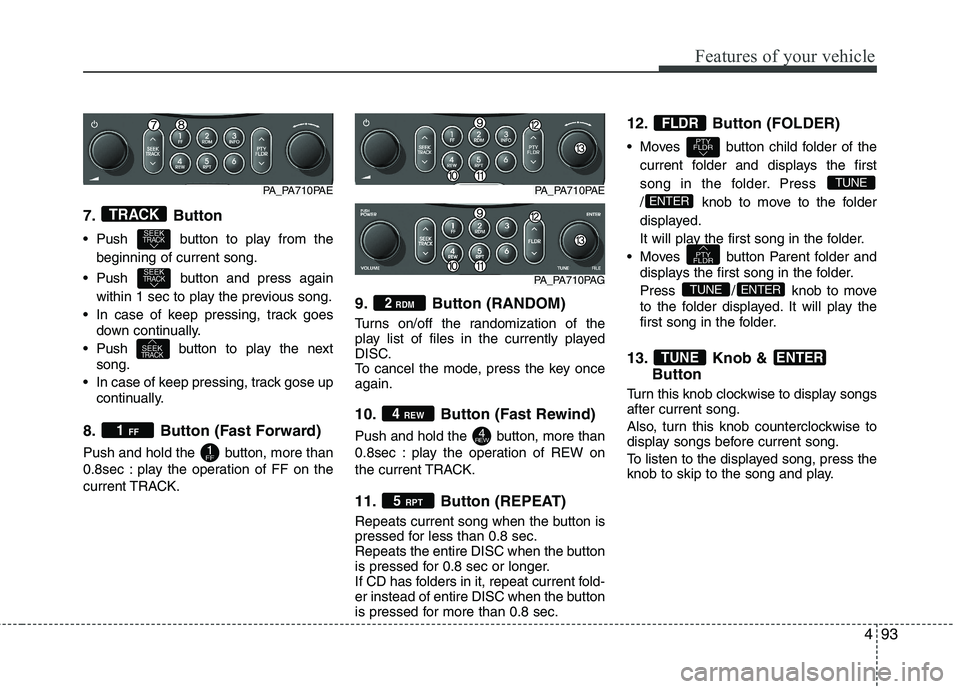

7. Button
Push button to play from thebeginning of current song.
Push button and press again within 1 sec to play the previous song.
In case of keep pressing, track goes down continually.
Push button to play the next song.
In case of keep pressing, track gose up continually.
8. Button (Fast Forward)
Push and hold the button, more than
0.8sec : play the operation of FF on the
current TRACK. 9. Button (RANDOM)
Turns on/off the randomization of the
play list of files in the currently played
DISC.
To cancel the mode, press the key onceagain.
10. Button (Fast Rewind)
Push and hold the button, more than
0.8sec : play the operation of REW on
the current TRACK.
11. Button (REPEAT)
Repeats current song when the button is
pressed for less than 0.8 sec.
Repeats the entire DISC when the button
is pressed for 0.8 sec or longer.
If CD has folders in it, repeat current fold-
er instead of entire DISC when the button
is pressed for more than 0.8 sec.12. Button (FOLDER)
Moves button child folder of the
current folder and displays the first
song in the folder. Press
/ knob to move to the folder
displayed.
It will play the first song in the folder.
Moves button Parent folder and displays the first song in the folder.
Press / knob to move
to the folder displayed. It will play the
first song in the folder.
13. Knob & Button
Turn this knob clockwise to display songs after current song.
Also, turn this knob counterclockwise to
display songs before current song.
To listen to the displayed song, press the
knob to skip to the song and play.
ENTERTUNE
ENTERTUNE
PTY
FLDR
ENTER
TUNE
PTY
FLDR
FLDR
5 RPT
4REW
4 REW
2
RDM
1FF
1 FF
SEEKTRACK
SEEKTRACK
SEEKTRACK
TRACK
PA_PA710PAE
PA_PA710PAG
PA_PA710PAE

Features of your vehicle
94
4

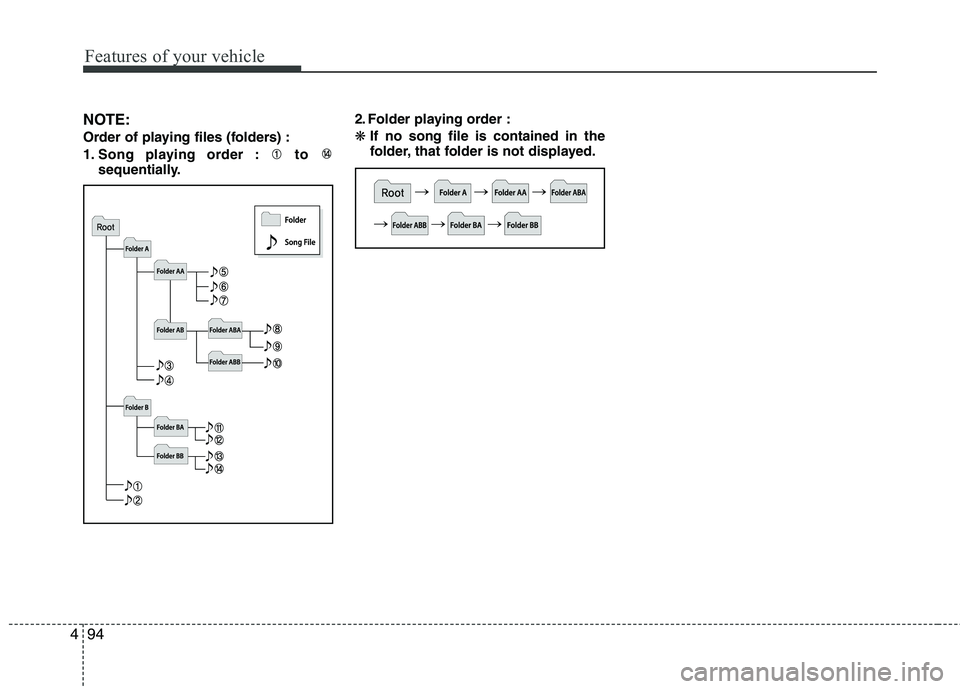

NOTE:
Order of playing files (folders) :
1. Song playing order : to
sequentially. 2. Folder playing order :❋
If no song file is contained in the
folder, that folder is not displayed.

495
Features of your vehicle
CAUTION IN USING
USB DEVICE
To use an external USB device, make sure the device is not con-nected when starting up the vehi-cle. Connect the device afterstarting up.
If you start the engine when the USB device is connected, it maydamage the USB device. (USBflashdrives are very sensitive to
electric shock.)
If the engine is started up or turned off while the external USBdevice is connected, the externalUSB device may not work.
It may not play inauthentic MP3 or WMA files.
1) It can only play MP3 files with the compression rate between8Kbps~320Kbps.
2) It can only play WMA music files with the compression ratebetween 8Kbps~320Kbps.
Take precautions for static elec- tricity when connecting or dis-connecting the external USB
device.
(Continued)
(Continued) An encrypted MP3 PLAYER is not recognizable.
Depending on the condition of the external USB device, the con-
nected external USB device can be unrecognizable.
When the formatted byte/sector setting of External USB device isnot either 512BYTE or 2048BYTE,
then the device will not be recog- nized.
Use only a USB device formatted to FAT 12/16/32.
USB devices without USB I/F authentication may not be recog-nizable.
Make sure the USB connection terminal does not come in con-tact with the human body or other
objects.
If you repeatedly connect or dis- connect the USB device in a shortperiod of time, it may break thedevice.
You may hear a strange noise when connecting or disconnect-ing a USB device.
(Continued)(Continued) If you disconnect the external USB device during playback inUSB mode, the external USBdevice can be damaged or may
malfunction. Therefore, discon-nect the external USB device when the audio is turned off or in
another mode. (e.g, Radio or CD)
Depending on the type and capacity of the external USBdevice or the type of the filesstored in the device, there is a dif-
ference in the time taken forrecognition of the device.
Do not use the USB device for purposes other than playingmusic files.
Use of USB accessories such as rechargers or heaters using USBI/F may lower performance orcause trouble.
If you use devices such as a USB hub purchased separately, thevehicle’s audio system may not recognize the USB device. In thatcase, connect the USB device
directly to the multimedia termi- nal of the vehicle.
(Continued)

Features of your vehicle
96
4
(Continued)
If the USB device is divided by logical drives, only the music fileson the highest-priority drive arerecognized by car audio.
Devices such as MP3 Player/ Cellular phone/Digital camera canbe unrecognizable by standardUSB I/F can be unrecognizable.
Some non-standard USB devices (METAL COVER TYPE USB) canbe unrecognizable.
Some USB flash memory readers (such as CF, SD, microSD, etc.) orexternal-HDD type devices can be
unrecognizable.
Music files protected by DRM (DIGITAL RIGHTS MANAGE-MENT) are not recognizable.
The data in the USB memory may be lost while using this audio.Always back up important data ona personal storage device.
(Continued)(Continued) Please avoid using USB memory products which can be used askey chains or cellular phoneaccessories as they could cause
damage to the USB jack. Pleasemake certain only to use plug type connector products as
shown below.

497
Features of your vehicle
Using USB device
1. Button (USB or AUX)
If the auxiliary device is connected, it
switches to AUX or USB mode to play the
sound from the auxiliary player.
If there is no auxiliary device, then the
message “No Media” will become dis-
played on the LCD for 3 seconds and
returns to previous mode.
2. Button
Plays each song in the USB device for 10
seconds. To cancel SCAN Play, press
this button again.3. Button
Displays the information of the file cur-
rently played in the order of FILE NAME
➟ TITLE ➟ ARTIST ➟
ALBUM ➟ FOLDER ➟ TOTAL FILE ➟
NORMAL DISPLAY ➟ FILE NAME…
(Displays no information if the file has no
song information.) 4. Button
Press the button for less than
0.8 seconds to play from the beginning of the current song.
Press the button for less than 0.8 sec onds and press it again within 1 sec-
ond to move to and play the previoussong.
Press the button for less than 0.8 seconds to move to the next song.
Press the button for 0.8 seconds or
longer to play the song in forward
direction in fast speed.
SEEKTRACK
SEEKTRACK
TRACK
INFO
SCAN
AUX
PA_PA710PAE
PA_PA710PAG
PA_PA710PAEPA_PA710PAE
PA_PA710PAG

Features of your vehicle
98
4

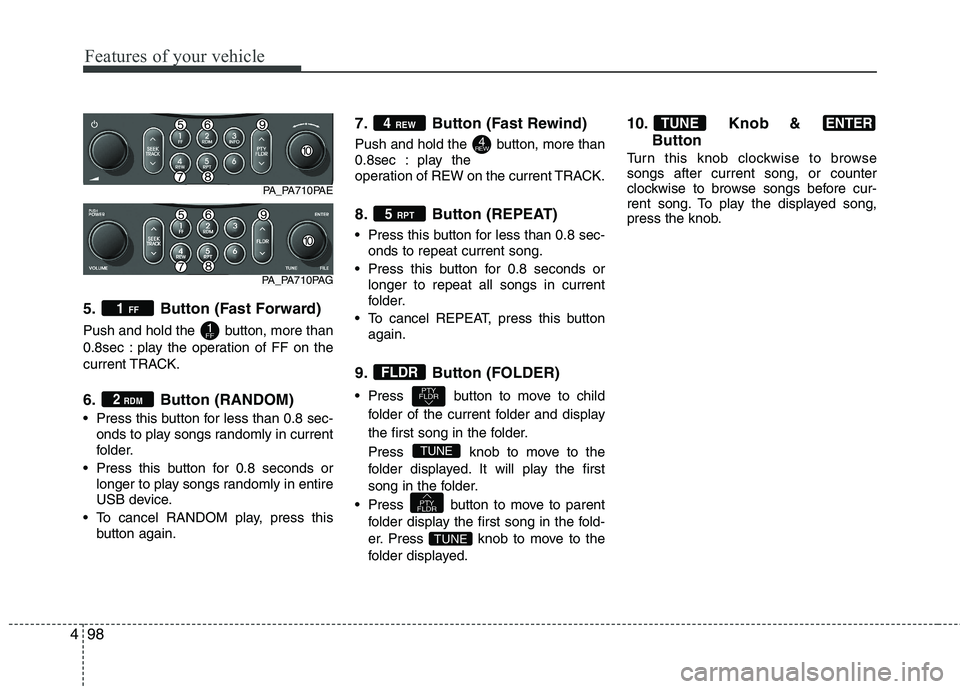

5. Button (Fast Forward)
Push and hold the button, more than
0.8sec : play the operation of FF on the
current TRACK.
6. Button (RANDOM)
Press this button for less than 0.8 sec-
onds to play songs randomly in current
folder.
Press this button for 0.8 seconds or longer to play songs randomly in entire
USB device.
To cancel RANDOM play, press this button again. 7. Button (Fast Rewind)
Push and hold the button, more than
0.8sec : play the
operation of REW on the current TRACK.
8. Button (REPEAT)
Press this button for less than 0.8 sec-
onds to repeat current song.
Press this button for 0.8 seconds or longer to repeat all songs in current
folder.
To cancel REPEAT, press this button again.
9. Button (FOLDER)
Press button to move to child folder of the current folder and display
the first song in the folder.
Press knobto move to the
folder displayed. It will play the first
song in the folder.
Press button to move to parent folder display the first song in the fold-
er.
Press knobto move to the
folder displayed. 10. Knob &
Button
Turn this knob clockwise to browse songs after current song, or counter
clockwise to browse songs before cur-
rent song. To play the displayed song,
press the knob.
ENTERTUNE
TUNE
PTY
FLDR
TUNE
PTY
FLDR
FLDR
5 RPT
4REW
4 REW
2
RDM
1FF
1 FF
PA_PA710PAE
PA_PA710PAG

499
Features of your vehicle

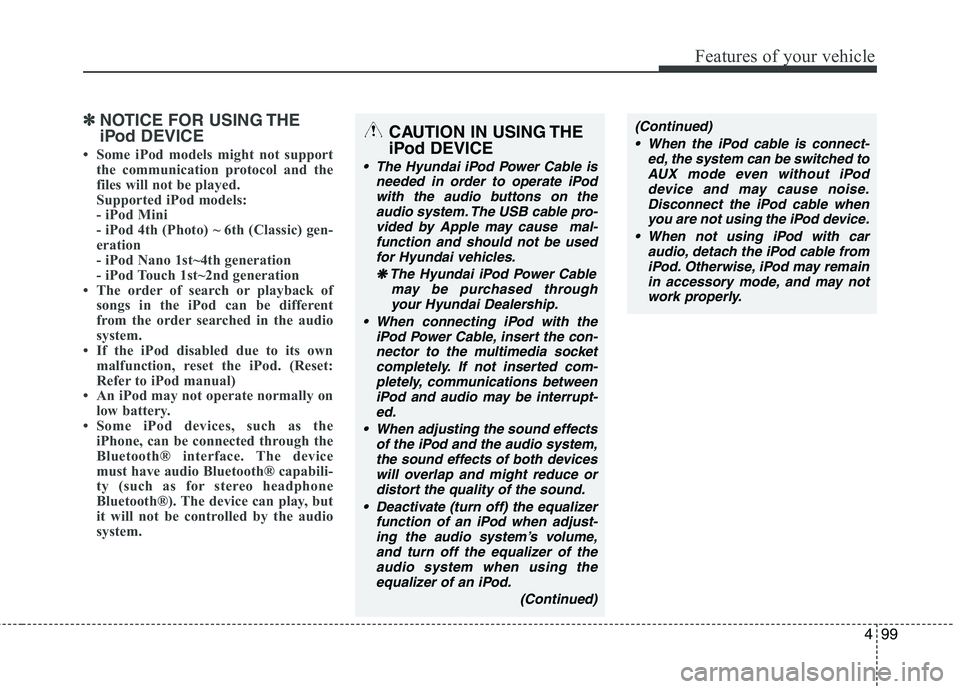

✽✽NOTICE FOR USING THE
iPodDEVICE
 Some iPod models might not support the communication protocol and the
files will not be played.
Supported iPod models:
- iPod Mini
- iPod 4th (Photo) ~ 6th (Classic) gen-
eration
- iPod Nano 1st~4th generation
- iPod Touch 1st~2nd generation
 The order of search or playback of songs in the iPod can be different
from the order searched in the audio
system.
 If the iPod disabled due to its own malfunction, reset the iPod. (Reset:
Refer to iPod manual)
 An iPod may not operate normally on
low battery.
 Some iPod devices, such as the
iPhone, can be connected through the
Bluetooth® interface. The device
must have audio Bluetooth® capabili-
ty (such as for stereo headphone
Bluetooth®). The device can play, but
it will not be controlled by the audio
system.(Continued)
When the iPod cable is connect- ed, the system can be switched toAUX mode even without iPoddevice and may cause noise.
Disconnect the iPod cable whenyou are not using the iPod device.
When not using iPod with car audio, detach the iPod cable from
iPod. Otherwise, iPod may remainin accessory mode, and may notwork properly.CAUTION IN USING THE
iPod DEVICE
The Hyundai iPod Power Cable is needed in order to operate iPod
with the audio buttons on theaudio system. The USB cable pro-vided by Apple may cause mal- function and should not be used
for Hyundai vehicles.
❋
❋ The Hyundai iPod Power Cable
may be purchased throughyour Hyundai Dealership.
When connecting iPod with the iPod Power Cable, insert the con-nector to the multimedia socketcompletely. If not inserted com- pletely, communications between
iPod and audio may be interrupt-ed.
When adjusting the sound effects of the iPod and the audio system,the sound effects of both devices
will overlap and might reduce or distort the quality of the sound.
Deactivate (turn off) the equalizer function of an iPod when adjust-
ing the audio system’s volume,and turn off the equalizer of theaudio system when using theequalizer of an iPod.
(Continued)

Features of your vehicle
100
4

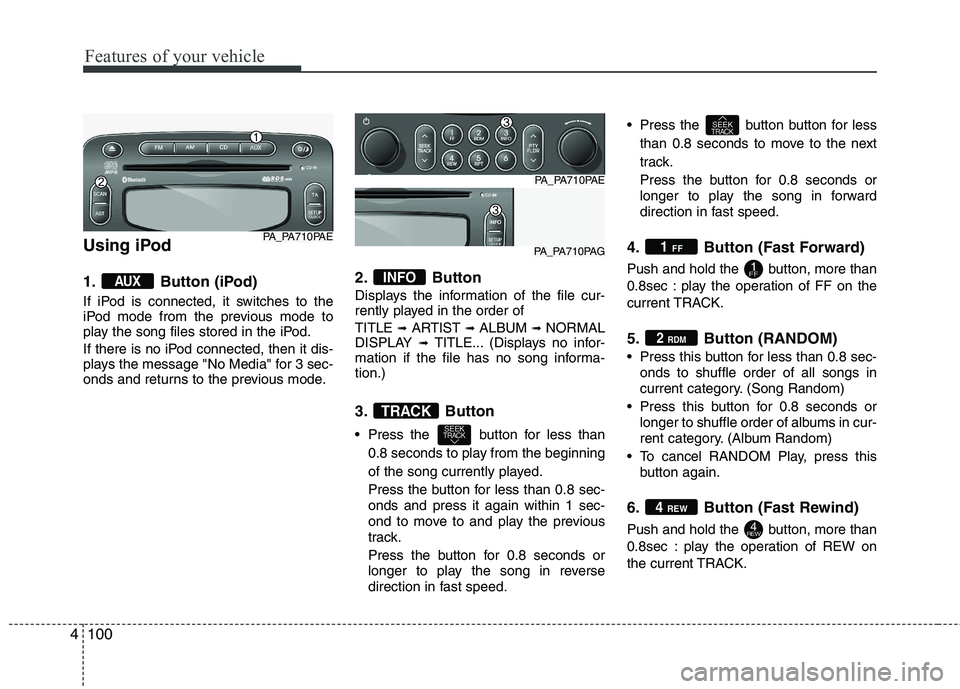

Using iPod
1. Button (iPod)
If iPod is connected, it switches to the
iPod mode from the previous mode to
play the song files stored in the iPod.
If there is no iPod connected, then it dis-
plays the message "No Media" for 3 sec-
onds and returns to the previous mode. 2. Button
Displays the information of the file cur-
rently played in the order of TITLE
➟ARTIST ➟ALBUM ➟NORMAL
DISPLAY ➟TITLE... (Displays no infor-
mation if the file has no song informa- tion.)
3. Button
Press the button for less than
0.8 seconds to play from the beginning
of the song currently played.
Press the button for less than 0.8 sec- onds and press it again within 1 sec-
ond to move to and play the previous
track.
Press the button for 0.8 seconds or
longer to play the song in reverse
direction in fast speed. Press the button button for less
than 0.8 seconds to move to the next
track.
Press the button for 0.8 seconds or
longer to play the song in forward
direction in fast speed.
4. Button (Fast Forward)
Push and hold the button, more than
0.8sec : play the operation of FF on the
current TRACK.
5. Button (RANDOM)
Press this button for less than 0.8 sec- onds to shuffle order of all songs in
current category. (Song Random)
Press this button for 0.8 seconds or longer to shuffle order of albums in cur-
rent category. (Album Random)
To cancel RANDOM Play, press this button again.
6. Button (Fast Rewind)
Push and hold the button, more than
0.8sec : play the operation of REW on
the current TRACK.
4REW
4 REW
2
RDM
1FF
1 FF
SEEKTRACK
SEEKTRACK
TRACK
INFOAUX
PA_PA710PAEPA_PA710PAG
PA_PA710PAE

4101
Features of your vehicle

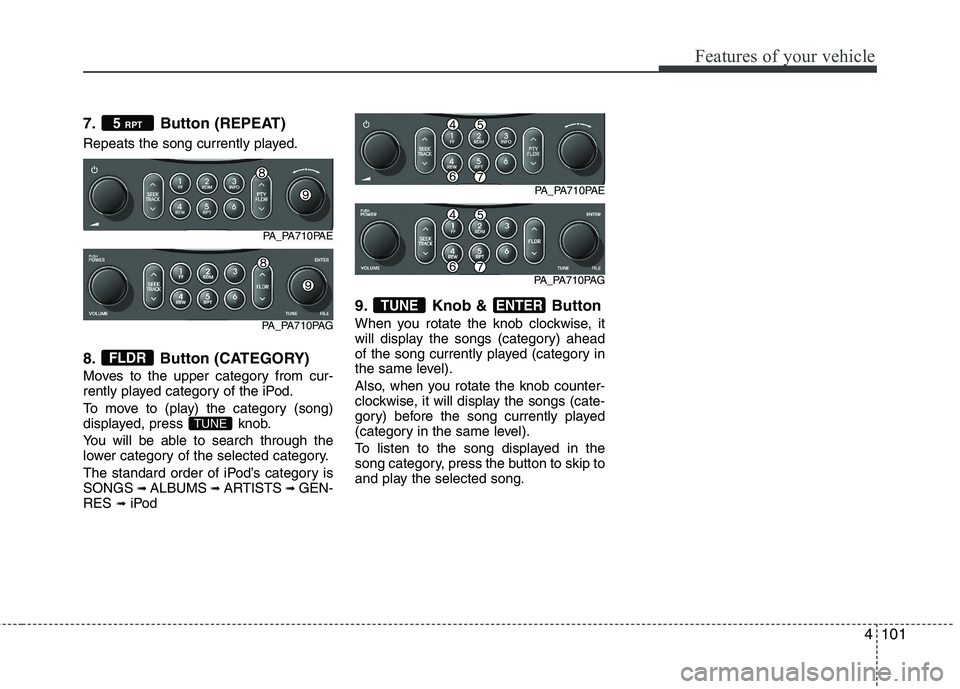

7. Button (REPEAT)
Repeats the song currently played.
8. Button (CATEGORY)
Moves to the upper category from cur-
rently played category of the iPod.
To move to (play) the category (song)
displayed, press knob.
You will be able to search through the
lower category of the selected category.
The standard order of iPod’s category is SONGS ➟
ALBUMS ➟ARTISTS ➟GEN-
RES ➟iPod 9. Knob & Button
When you rotate the knob clockwise, it
will display the songs (category) ahead
of the song currently played (category in
the same level).
Also, when you rotate the knob counter-
clockwise, it will display the songs (cate-
gory) before the song currently played
(category in the same level).
To listen to the song displayed in the
song category, press the button to skip to
and play the selected song.
ENTERTUNE
TUNE
FLDR
5
RPT
PA_PA710PAE
PA_PA710PAG
PA_PA710PAE
PA_PA710PAG
