Maintenance
Engine compartment main fuse panel (for 1.1L and 1.2L)Symbol Fuse rating Protected component
80A EPS Control Module
100A Alternator
50A I/P Fuse & Relay Box (FUSE : F7/F8)
40A I/P Fuse & Relay Box (Power Window Relay)
40A ABS Control Module, ESP Control Module, Multipurpose Check Connector
40A ABS Control Module, ESP Control Module
40A RLY.6 (Blower Relay)
50A Ignition Switch
40A Ignition Switch
50AE/R Fuse & Relay Box (FUSE : F18, RLY : 7), I/P Fuse & Relay Box (POWER CONNECTOR : F1/F2, FUSE : F29/F30/F31/F32 )
30A E/R Fuse & Relay Box (FUSE : F15, RLY : R1)
40A E/R Fuse & Relay Box (RLY : R8)
15A E/R Fuse & Relay Box (RLY : R2)
10A Heater ControL Module, A/C Switch
10A PCM

Maintenance
60
7
Symbol Fuse rating Protected component
15AE/R Fuse & Relay Box (RLY : R2/R8) G4HG : Injector #1~#4, Idle Speed Actuator, ECM, PCM, G4LA : ECM,
PCM, Oil Control Valve#1/#2, Idle Speed Actuator, Injector #1~#4, Canister Purge Control Solenoid Valve
10AG4HG : ECM, PCM, Immobilizer Control Module, Oxygen Sensor (Up/Down), Camshaft Position Sensor,
Canister Purge Control Solenoid Valve, Crankshaft Position Sensor, G4LA : ECM, PCM, Camshaft Position
Sensor #1/#2, Immobilizer Control Module, Oxygen Sensor (Up/Down)
10A E/R Fuse & Relay Box (RLY : R5)
10A Head Lamp LH
10A Head Lamp RH
30A E/R Fuse & Relay Box (FUSE : F13/F15/F20)

761
Maintenance
Engine compartment main fuse panel (for 1.0L)Symbol Fuse rating Protected component
80A EPS Control Module
100A Alternator
50A I/P Fuse & Relay Box (FUSE : F7/F8)
40A I/P Fuse & Relay Box (Power Window Relay)
40A ABS Control Module, ESP Control Module, Multipurpose Check Connector
40A ABS Control Module, ESP Control Module
40A RLY.6 (Blower Relay)
50A Ignition Switch
40A Ignition Switch
50AE/R Fuse & Relay Box (FUSE : F18, RLY : 7), I/P Fuse & Relay Box (POWER CONNECTOR : F1/F2,
FUSE : F29/F30/F31/F32 )
30A E/R Fuse & Relay Box (FUSE : F15, RLY : R1)
40A E/R Fuse & Relay Box (RLY : R8)

Maintenance
62
7
Symbol Fuse rating Protected component
15A E/R Fuse & Relay Box (RLY : R2)
15A ECM, Oil Control Valve#1/#2, Idle Speed Actuator, Injector #1~#3, Canister Purge Control Solenoid Valve
10AE/R Fuse & Relay Box (RLY : R7), ECM, Camshaft Position Sensor #1/#2, Immobilizer Control Module,
Oxygen Sensor (Up/Down)
10A E/R Fuse & Relay Box (RLY : R5)
10A Head Lamp LH
10A Head Lamp RH
30A E/R Fuse & Relay Box (FUSE : F13/F15/F20)

763
Maintenance

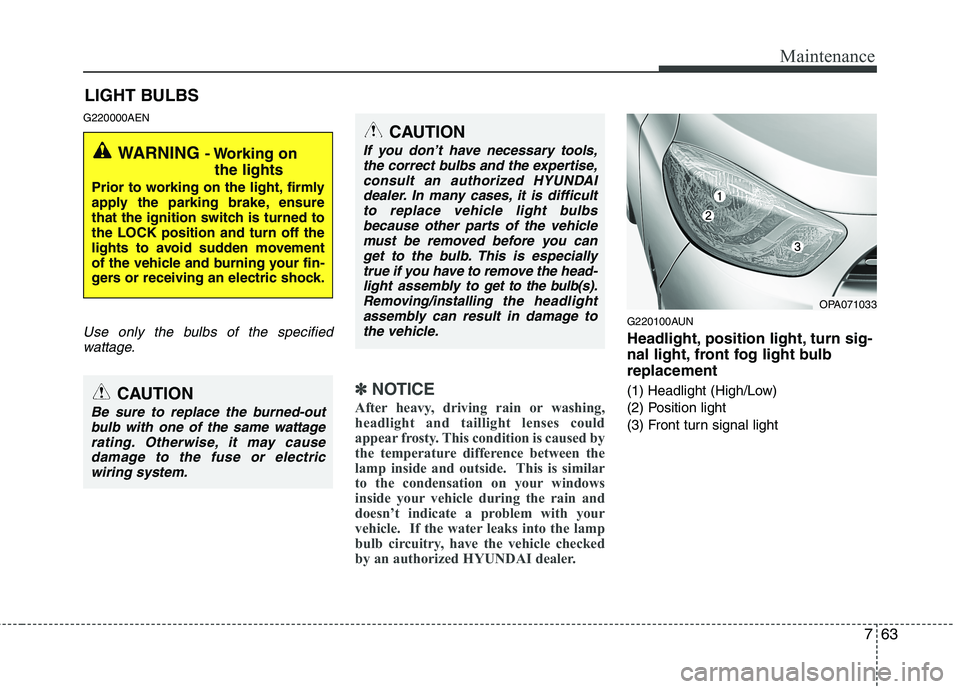

LIGHT BULBS
G220000AEN
Use only the bulbs of the specified wattage.
✽✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
G220100AUN
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High/Low)
(2) Position light
(3) Front turn signal light
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage
rating. Otherwise, it may cause damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized HYUNDAIdealer. In many cases, it is difficultto replace vehicle light bulbs because other parts of the vehicle
must be removed before you canget to the bulb. This is especiallytrue if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OPA071033

Maintenance
64
7

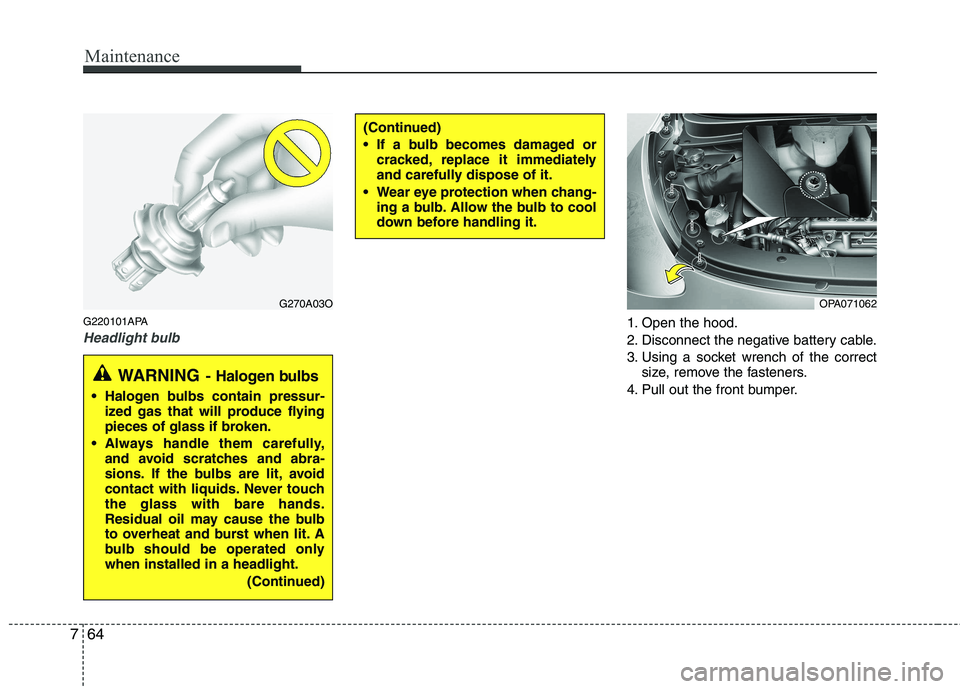

G220101APA
Headlight bulb1. Open the hood.
2. Disconnect the negative battery cable.
3. Using a socket wrench of the correct
size, remove the fasteners.
4. Pull out the front bumper.
(Continued)
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
G270A03O
WARNING - Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
(Continued)
OPA071062

765
Maintenance

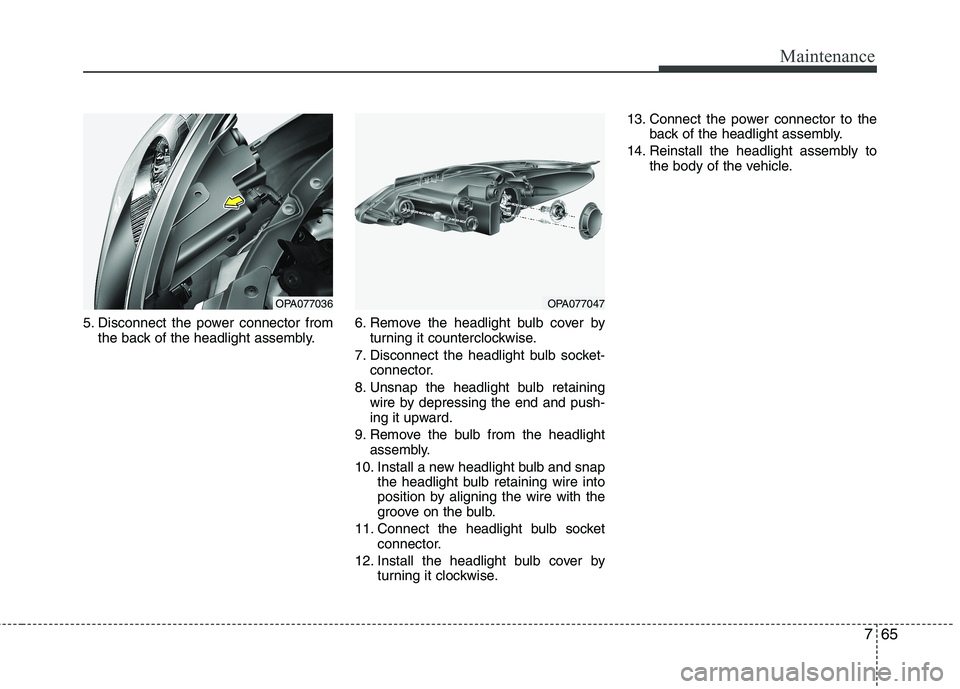

5. Disconnect the power connector fromthe back of the headlight assembly. 6. Remove the headlight bulb cover by
turning it counterclockwise.
7. Disconnect the headlight bulb socket- connector.
8. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
9. Remove the bulb from the headlight assembly.
10. Install a new headlight bulb and snap the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
11. Connect the headlight bulb socket connector.
12. Install the headlight bulb cover by turning it clockwise. 13. Connect the power connector to the
back of the headlight assembly.
14. Reinstall the headlight assembly to the body of the vehicle.
OPA077036OPA077047

Maintenance
66
7

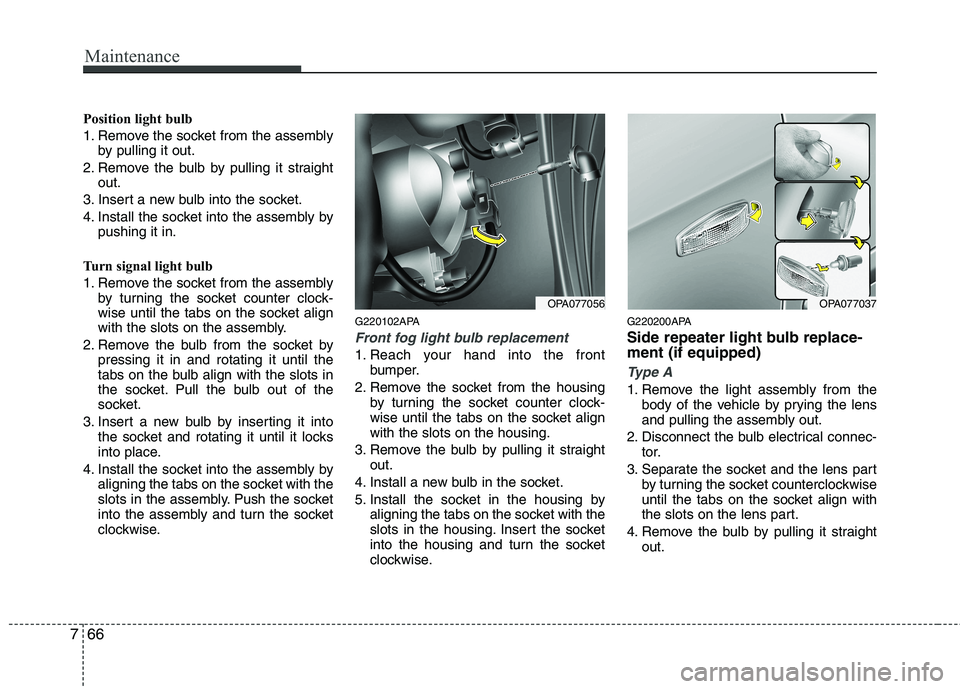

Position light bulb
1. Remove the socket from the assembly
by pulling it out.
2. Remove the bulb by pulling it straight out.
3. Insert a new bulb into the socket.
4. Install the socket into the assembly by pushing it in.
Turn signal light bulb
1. Remove the socket from the assembly by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it until the
tabs on the bulb align with the slots in
the socket. Pull the bulb out of the
socket.
3. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
4. Install the socket into the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise. G220102APA
Front fog light bulb replacement
1. Reach your hand into the front
bumper.
2. Remove the socket from the housing by turning the socket counter clock-
wise until the tabs on the socket alignwith the slots on the housing.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb in the socket.
5. Install the socket in the housing by aligning the tabs on the socket with the
slots in the housing. Insert the socket
into the housing and turn the socket
clockwise. G220200APA
Side repeater light bulb replace- ment (if equipped)
Type A
1. Remove the light assembly from the
body of the vehicle by prying the lens
and pulling the assembly out.
2. Disconnect the bulb electrical connec- tor.
3. Separate the socket and the lens part by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the lens part.
4. Remove the bulb by pulling it straight out.
OPA077037OPA077056

767
Maintenance
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lenspart.
7. Connect the bulb electrical connector.
8. Reinstall the light assembly to the body of the vehicle.

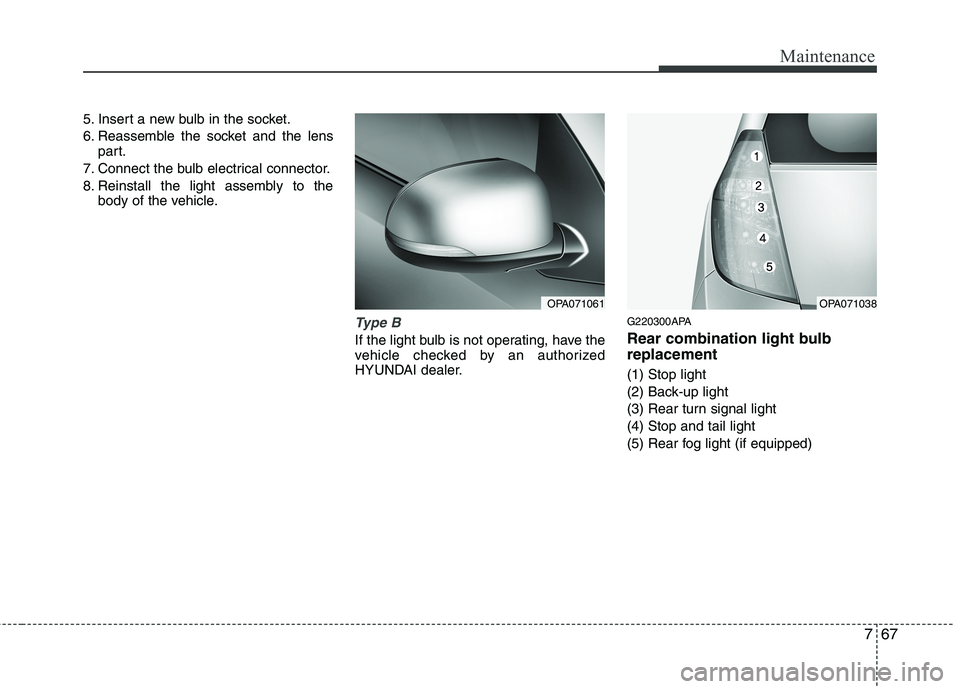

Type B
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer. G220300APA
Rear combination light bulb replacement (1) Stop light
(2) Back-up light
(3) Rear turn signal light(4) Stop and tail light
(5) Rear fog light (if equipped)
OPA071038OPA071061

Maintenance
68
7

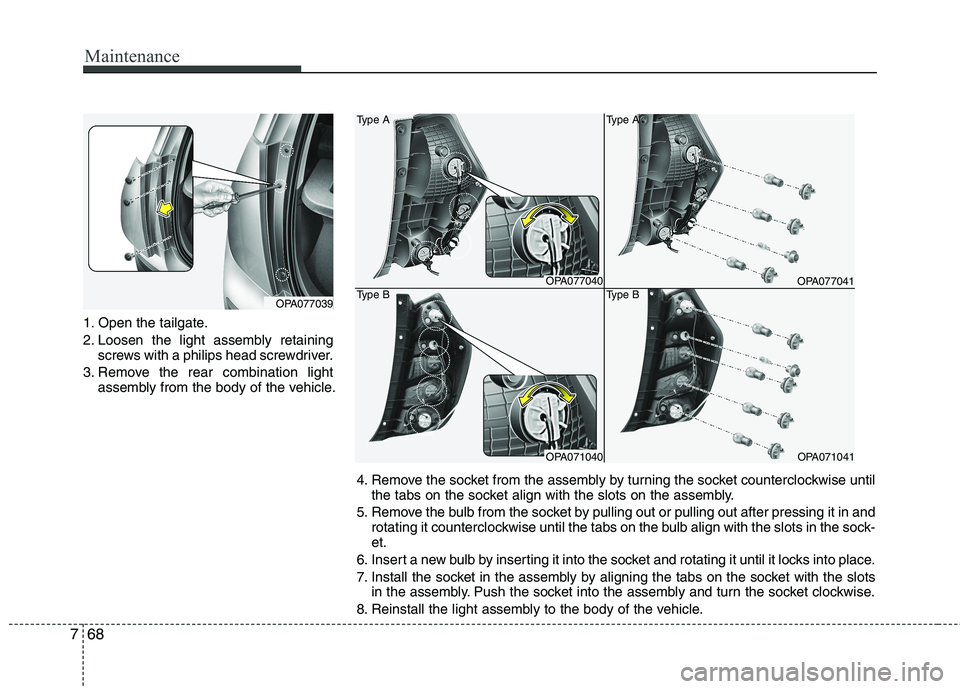

1. Open the tailgate.
2. Loosen the light assembly retaining
screws with a philips head screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle.
OPA077039
OPA077040
OPA071040
Type A
Type B
OPA077041
OPA071041
Type A
Type B
4. Remove the socket from the assembly by turning the socket counterclockwise until
the tabs on the socket align with the slots on the assembly.
5. Remove the bulb from the socket by pulling out or pulling out after pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the sock- et.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
8. Reinstall the light assembly to the body of the vehicle.
