Page 11 of 354

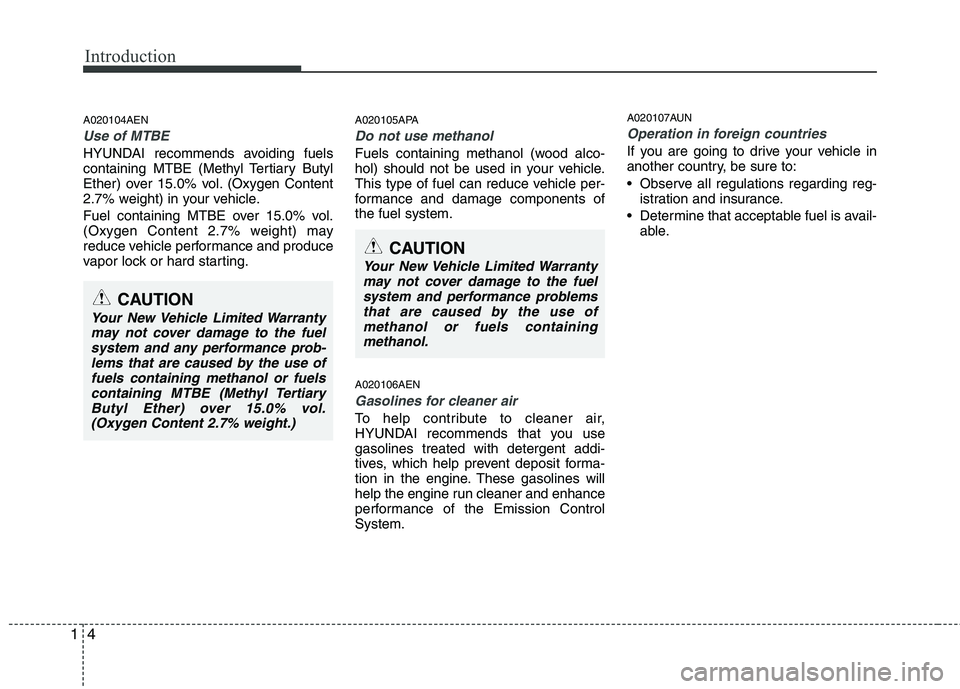

Introduction
4
1
A020104AEN
Use of MTBE
HYUNDAI recommends avoiding fuels
containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content
2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapor lock or hard starting. A020105APA
Do not use methanol
Fuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components ofthe fuel system. A020106AEN
Gasolines for cleaner air
To help contribute to cleaner air,
HYUNDAI recommends that you usegasolines treated with detergent addi-
tives, which help prevent deposit forma-
tion in the engine. These gasolines will
help the engine run cleaner and enhance
performance of the Emission ControlSystem.A020107AUN
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
Observe all regulations regarding reg-
istration and insurance.
Determine that acceptable fuel is avail- able.
CAUTION
Your New Vehicle Limited Warranty
may not cover damage to the fuelsystem and any performance prob-
lems that are caused by the use offuels containing methanol or fuelscontaining MTBE (Methyl TertiaryButyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
CAUTION
Your New Vehicle Limited Warrantymay not cover damage to the fuelsystem and performance problems that are caused by the use of
methanol or fuels containingmethanol.
Page 12 of 354
15
Introduction

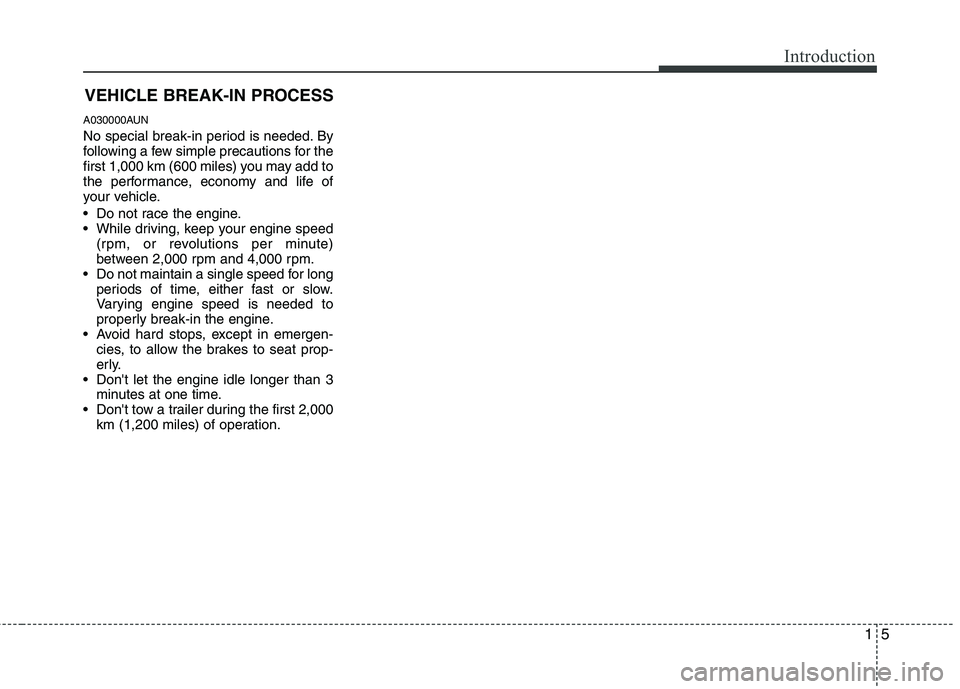

VEHICLE BREAK-IN PROCESS
A030000AUN
No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
Do not race the engine.
While driving, keep your engine speed(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop-
erly.
Don't let the engine idle longer than 3 minutes at one time.
Don't tow a trailer during the first 2,000
km (1,200 miles) of operation.
Page 13 of 354
Introduction
6
1

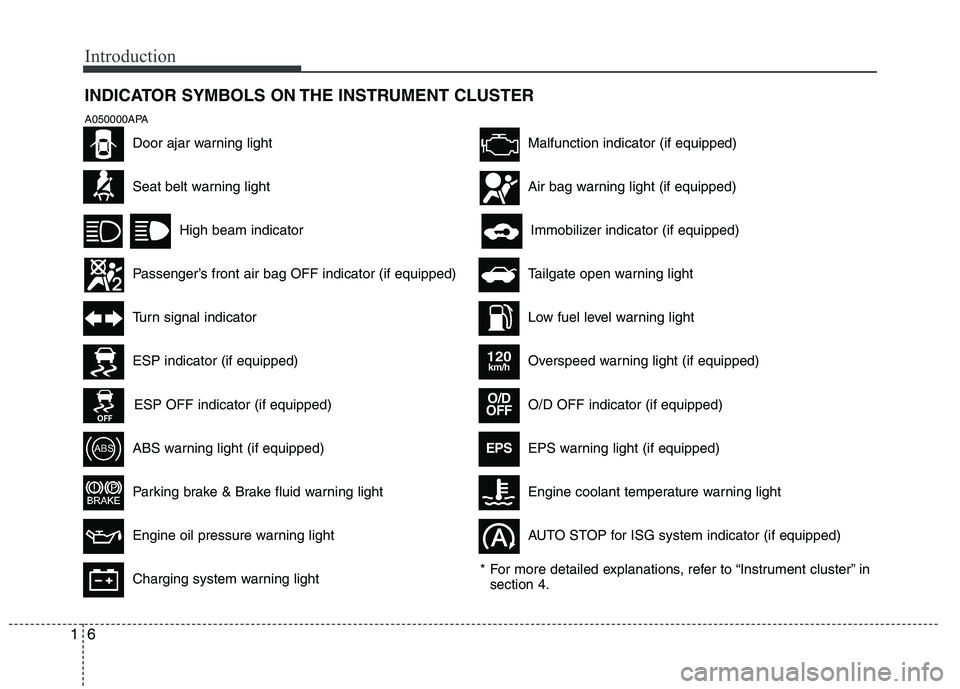

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
High beam indicator
Passenger’s front air bag OFF indicator (if equipped)
Turn signal indicator
ABS warning light (if equipped)
Parking brake & Brake fluid warning light
Engine oil pressure warning light
ESP indicator (if equipped)
ESP OFF indicator (if equipped)
Malfunction indicator (if equipped)
Air bag warning light (if equipped)
Immobilizer indicator (if equipped)
Low fuel level warning light
* For more detailed explanations, refer to “Instrument cluster” in section 4.
Charging system warning light
A050000APA
Door ajar warning light
Overspeed warning light (if equipped)
120km/h
Tailgate open warning light O/D OFF indicator (if equipped)
O/D
OFF
EPS warning light (if equipped) EPS
Engine coolant temperature warning light
AUTO STOP for ISG system indicator (if equipped)
Page 14 of 354
2

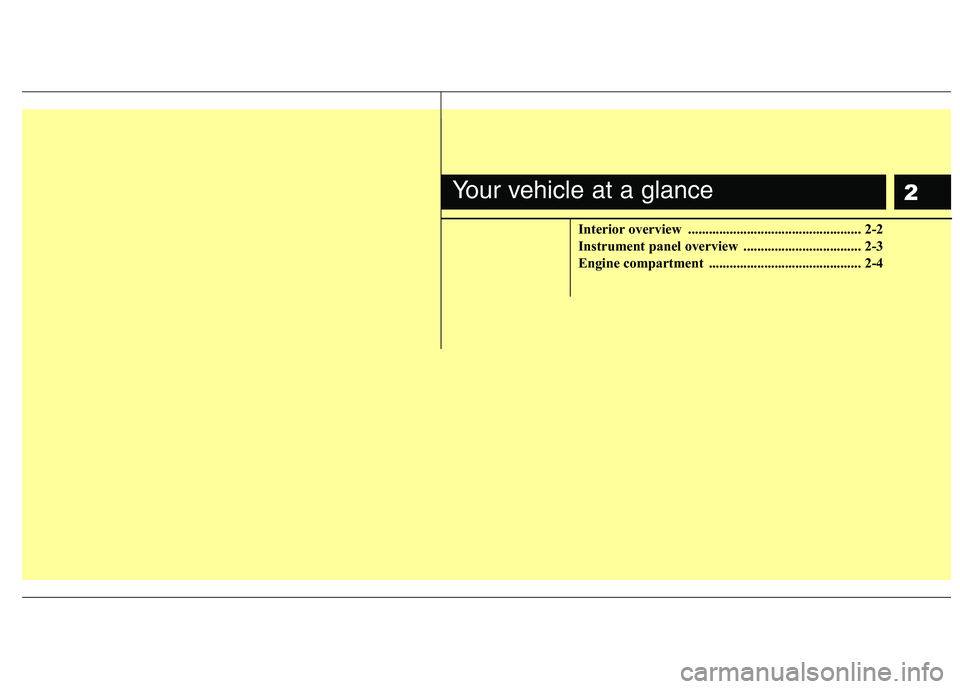

Interior overview .................................................. 2-2
Instrument panel overview .................................. 2-3
Engine compartment ............................................ 2-4
Your vehicle at a glance
Page 15 of 354
Your vehicle at a glance
2
2

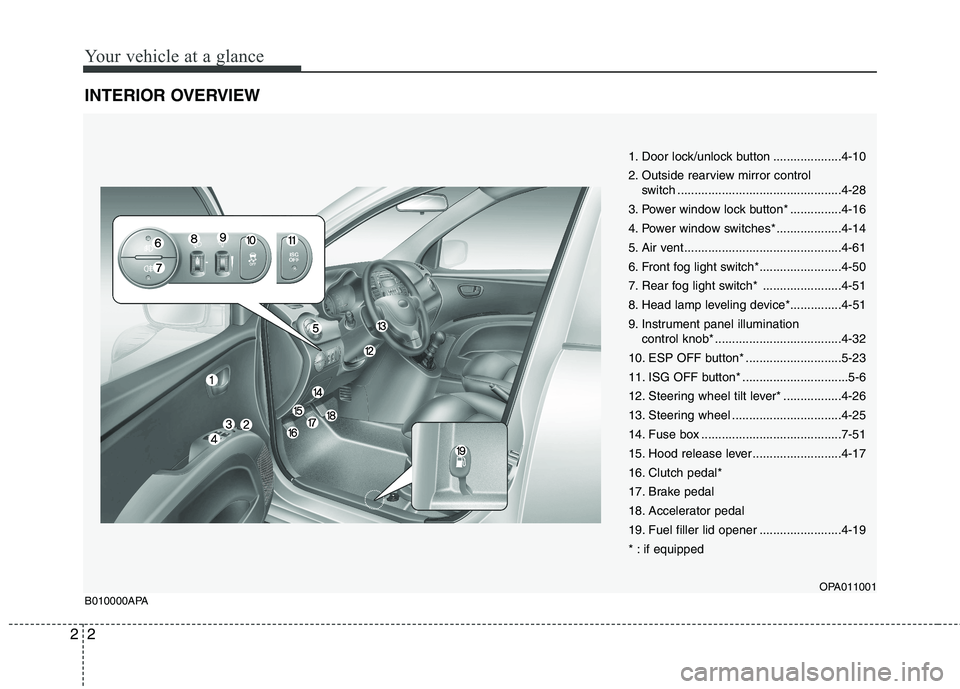

INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-10
2. Outside rearview mirror control
switch ................................................4-28
3. Power window lock button* ...............4-16
4. Power window switches* ...................4-14
5. Air vent ..............................................4-61
6. Front fog light switch*........................4-50
7. Rear fog light switch* .......................4-51
8. Head lamp leveling device*...............4-51
9. Instrument panel illumination control knob* .....................................4-32
10. ESP OFF button* ............................5-23
11. ISG OFF button* ...............................5-6
12. Steering wheel tilt lever* .................4-26
13. Steering wheel ................................4-25
14. Fuse box .........................................7-51
15. Hood release lever ..........................4-17
16. Clutch pedal*
17. Brake pedal
18. Accelerator pedal
19. Fuel filler lid opener ........................4-19
* : if equipped
OPA011001
B010000APA
Page 16 of 354
23
Your vehicle at a glance

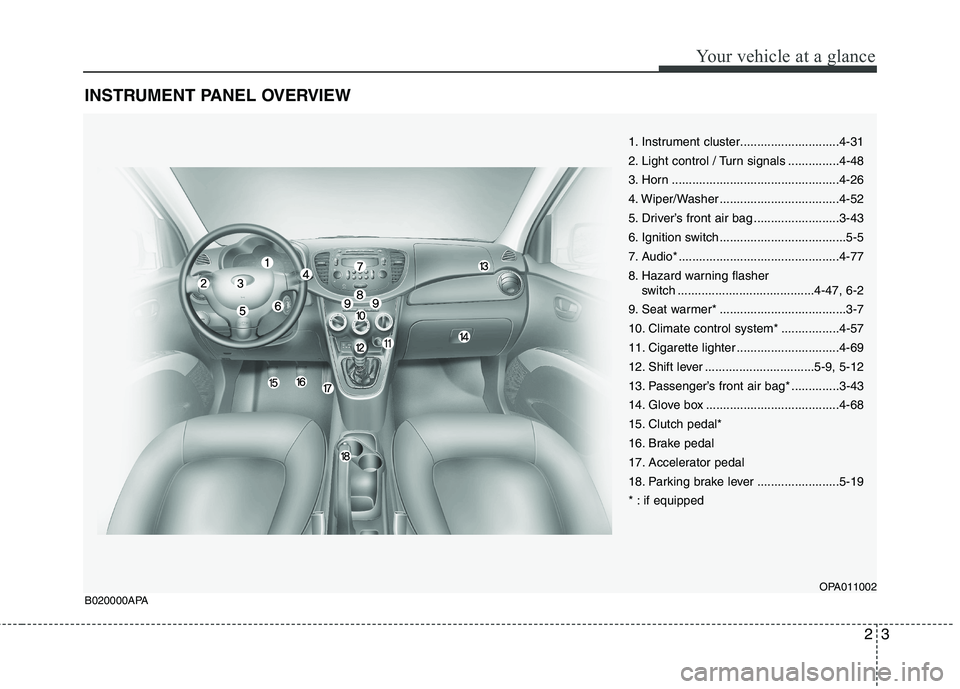

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-31
2. Light control / Turn signals ...............4-48
3. Horn .................................................4-26
4. Wiper/Washer ...................................4-52
5. Driver’s front air bag .........................3-43
6. Ignition switch .....................................5-5
7. Audio* ...............................................4-77
8. Hazard warning flasher switch ........................................4-47, 6-2
9. Seat warmer* .....................................3-7
10. Climate control system* .................4-57
11. Cigarette lighter ..............................4-69
12. Shift lever ................................5-9, 5-12
13. Passenger’s front air bag* ..............3-43
14. Glove box .......................................4-68
15. Clutch pedal*
16. Brake pedal
17. Accelerator pedal
18. Parking brake lever ........................5-19
* : if equipped
OPA011002
B020000APA
Page 17 of 354
Your vehicle at a glance
4
2

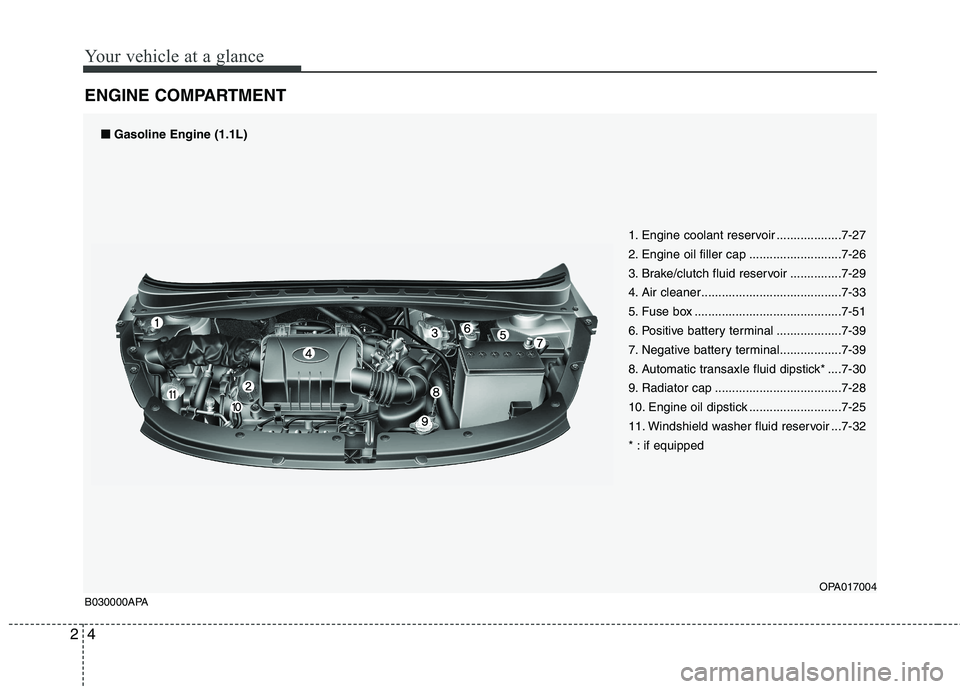

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-27
2. Engine oil filler cap ...........................7-26
3. Brake/clutch fluid reservoir ...............7-29
4. Air cleaner.........................................7-33
5. Fuse box ...........................................7-51
6. Positive battery terminal ...................7-39
7. Negative battery terminal..................7-39
8. Automatic transaxle fluid dipstick* ....7-30
9. Radiator cap .....................................7-28
10. Engine oil dipstick ...........................7-25
11. Windshield washer fluid reservoir ...7-32
* : if equipped
OPA017004
B030000APA■
■
Gasoline Engine (1.1L)
Page 18 of 354
25
Your vehicle at a glance
1. Engine coolant reservoir ...................7-27
2. Engine oil filler cap ...........................7-26
3. Brake/clutch fluid reservoir ...............7-29
4. Air cleaner.........................................7-33
5. Fuse box ...........................................7-51
6. Positive battery terminal ...................7-39
7. Negative battery terminal..................7-39
8. Automatic transaxle fluid dipstick* ....7-30
9. Radiator cap .....................................7-28
10. Engine oil dipstick ...........................7-25
11. Windshield washer fluid reservoir ...7-32
* : if equipped
■
■

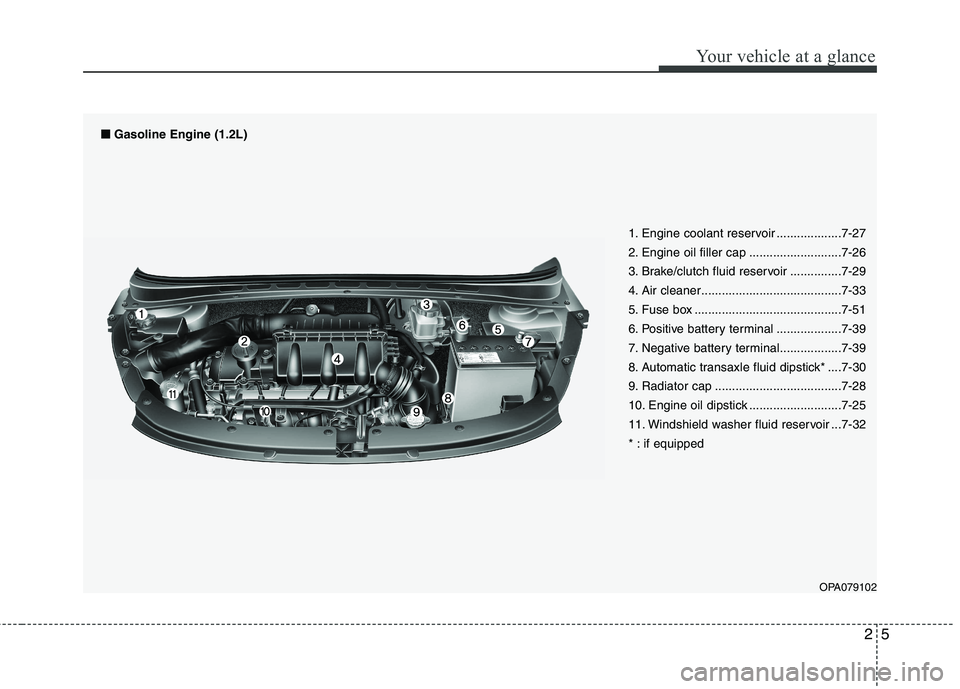

Gasoline Engine (1.2L)
OPA079102
Page 19 of 354
Your vehicle at a glance
6
2
1. Engine coolant reservoir ...................7-27
2. Engine oil filler cap ...........................7-26
3. Brake/clutch fluid reservoir ...............7-29
4. Air cleaner.........................................7-33
5. Fuse box ...........................................7-51
6. Positive battery terminal ...................7-39
7. Negative battery terminal..................7-39
8. Radiator cap .....................................7-28
9. Engine oil dipstick .............................7-25
10. Windshield washer fluid reservoir ...7-32
* : if equipped
■
■

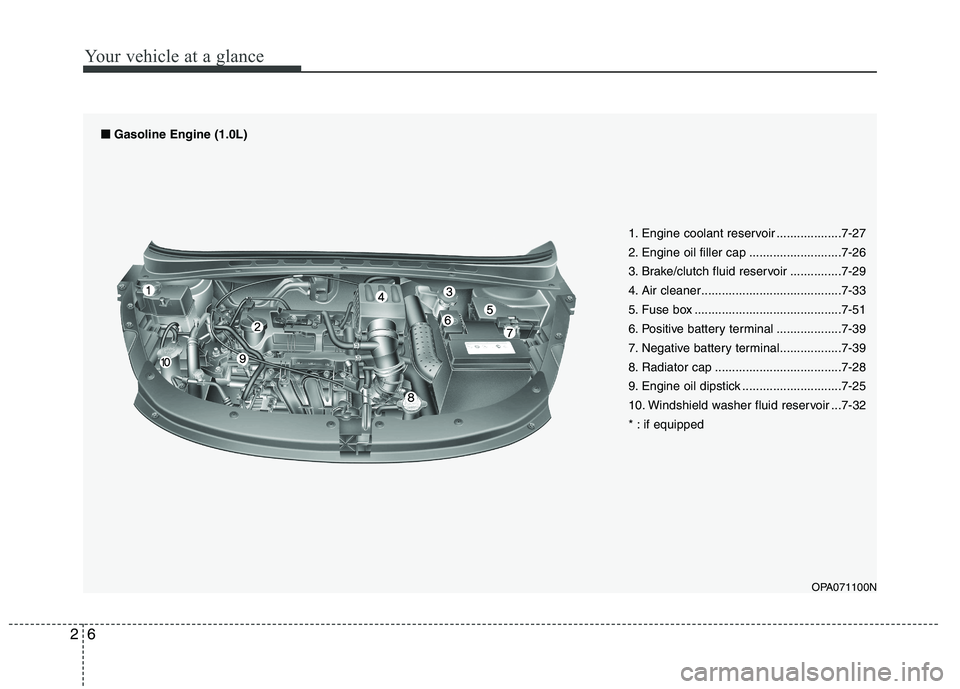

Gasoline Engine (1.0L)
OPA071100N
Page 20 of 354
3

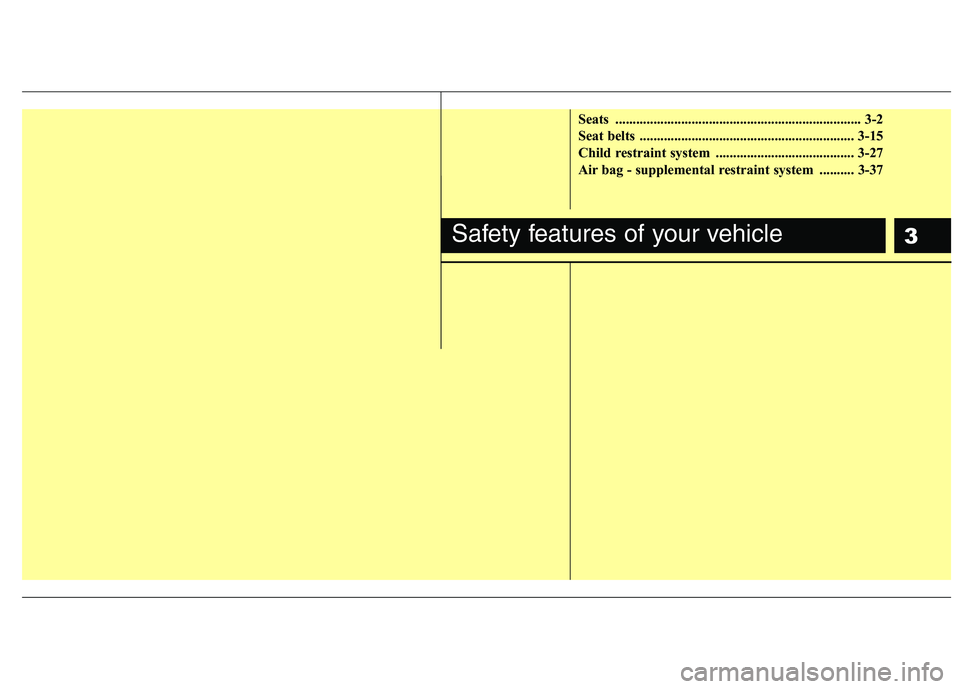

Seats ....................................................................... 3-2
Seat belts .............................................................. 3-15
Child restraint system ........................................ 3-27
Air bag - supplemental restraint system .......... 3-37
Safety features of your vehicle
