alternator belt HYUNDAI I10 2011 Owners Manual

Maintenance
10
7
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.* 1
: Adjust alternator and power steering (and water pump drive belt) and air conditioner drive belt (if equipped). Inspect and if n ec-
essary correct or replace.
* 2
: Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
* 3
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
* 4
: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. A qualified technician should perform the op er-
ation.
G040500APA

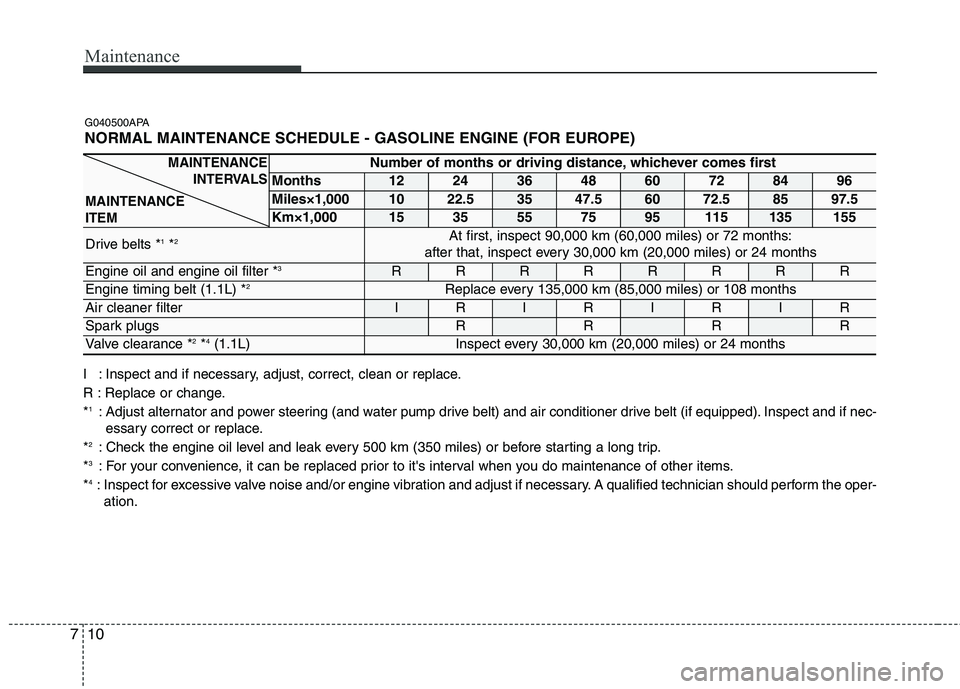

NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE (FOR EUROPE)
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001022.53547.56072.58597.5
Km×1,0001535557595115135155
Drive belts *
1
*2At first, inspect 90,000 km (60,000 miles) or 72 months:
after that, inspect every 30,000 km (20,000 miles) or 24 months
Engine oil and engine oil filter * 3RRRRRRRR
Engine timing belt (1.1L) *2Replace every 135,000 km (85,000 miles) or 108 months
Air cleaner filter IRIRIRIR
Spark plugsRRRR
Valve clearance *2
*4
(1.1L) Inspect every 30,000 km (20,000 miles) or 24 months
MAINTENANCE
INTERVALS
MAINTENANCE ITEM

Maintenance
16
7
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.* 1
: Adjust alternator and power steering (and water pump drive belt) and air conditioner drive belt (if equipped). Inspect and if n ec-
essary correct or replace.
* 2
: Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
* 3
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
** : Driving in summer season temperature over 40°C (104°F - SAUDI, UAE, OMAN, KUWAIT, BAHRAIN, QATAR, IRAN,YEMEN ETC) or driving over 170 km/h (106 mile/h) must conform the severe driving condition.
MAINTENANCE INTERVALS
MAINTENANCE ITEM
Replace every 40,000 km (25,000 miles) * 3
G040100APA

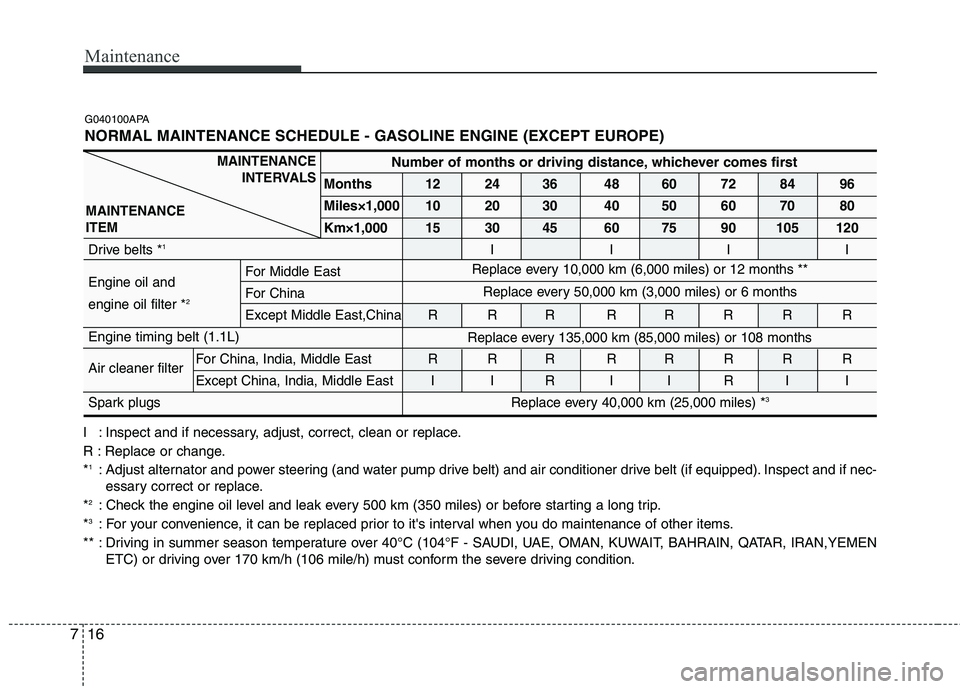

NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE (EXCEPT EUROPE)
Replace every 10,000 km (6,000 miles) or 12 months **
Replace every 50,000 km (3,000 miles) or 6 months
Replace every 135,000 km (85,000 miles) or 108 months
Number of months or driving distance, whichever comes first
Months 12 24 36 48 60 72 84 96
Miles×1,000 10 20 30 40 50 60 70 80
Km×1,000 15 30 45 60 75 90 105 120
Drive belts * 1
IIII
Engine oil and For Middle East
For China
engine oil filter * 2
Except Middle East,China R R R R R R R R
Engine timing belt (1.1L)
Air cleaner filter For China, India, Middle East R R R R R R R R
Except China, India, Middle East I I R I I R I I
Spark plugs
