Features of your vehicle
28
4
D140100AUN
Inside rearview mirror
Adjust the rearview mirror to center on
the view through the rear window. Make
this adjustment before you start driving.
D140101AUN
Day/night rearview mirror (if equipped)
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of vehi-
cles behind you during night driving.
Remember that you lose some rearviewclarity in the night position.
D140200APA
Outside rearview mirror
Be sure to adjust mirror angles before
driving.
Your vehicle is equipped with left-hand
and/or right-hand outside rearview mir-
rors. The mirrors can be adjusted
remotely with the remote switch (or lever)
(if equipped). The mirror heads can be
folded back to prevent damage during an
automatic car wash or when passing in a
narrow street.
MIRRORS
WARNING -
Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision through
the rear window.
OPA047027
Day
Night
WARNING -
Rearview mir-
rors
The right outside rearview mirror is convex. In some countries, the
left outside rearview mirror is
also convex. Objects seen in the
mirror are closer than they
appear.
Use your interior rearview mirror or direct observation to deter-
mine the actual distance of fol-
lowing vehicles when changinglanes.WARNING
Do not adjust the rearview mirror
while the vehicle is moving. This
could result in loss of control, and
an accident which could cause
death, serious injury or property
damage.

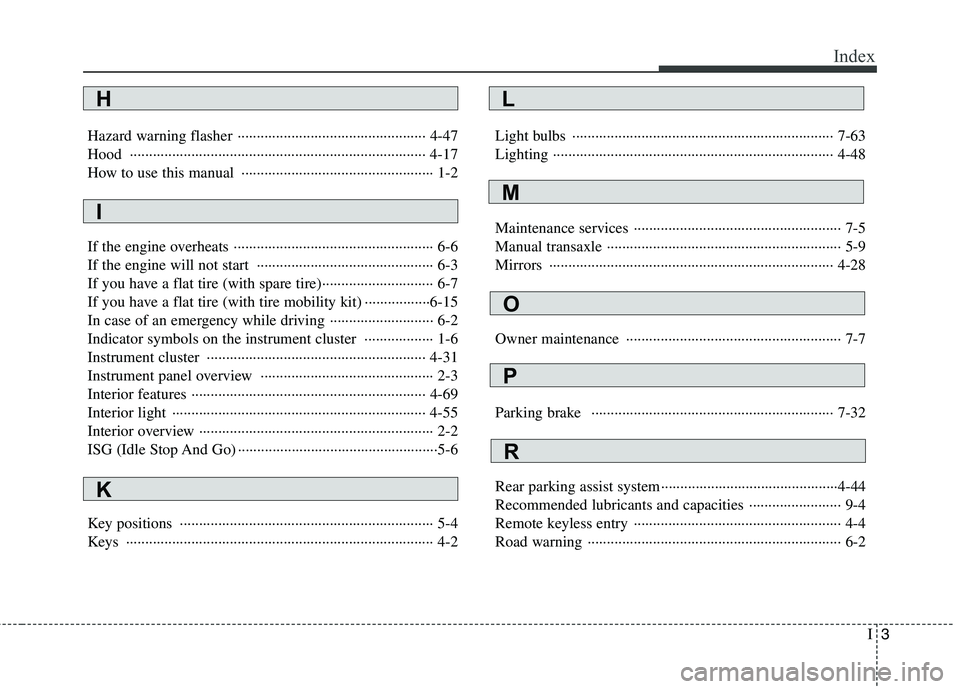

I3
Index
Hazard warning flasher ················································· 4-47
Hood ············································································· 4-17
How to use this manual ·················································· 1-2
If the engine overheats ···················································· 6-6
If the engine will not start ·············································· 6-3
If you have a flat tire (with spare tire)····························· 6-7
If you have a flat tire (with tire mobility kit) ·················6-15
In case of an emergency while driving ··························· 6-2
Indicator symbols on the instrument cluster ·················· 1-6
Instrument cluster ························································· 4-31
Instrument panel overview ············································· 2-3
Interior features ····························································· 4-69
Interior light ·································································· 4-55
Interior overview ····························································· 2-2
ISG (Idle Stop And Go) ····················································5-6
Key positions ·································································· 5-4
Keys ················································································ 4-2 Light bulbs ···································································· 7-63
Lighting ········································································· 4-48
Maintenance services ······················································ 7-5
Manual transaxle ····························································· 5-9
Mirrors ·········································································· 4-28
Owner maintenance ························································ 7-7
Parking brake ······························································· 7-32
Rear parking assist system ··············································4-44
Recommended lubricants and capacities ························ 9-4
Remote keyless entry ······················································ 4-4
Road warning ·································································· 6-2
H
I
K
L
M
O
P
R
