Maintenance
Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light hous-
ing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light
housing notches and snap the lens into
place.
CAUTION
Be careful not to dirty or damage
lens, lens tab, and plastic housings.
■Room lamp
■Glove box lamp ■Luggage room lamp
OTD079037/OBA073024/OBA073023

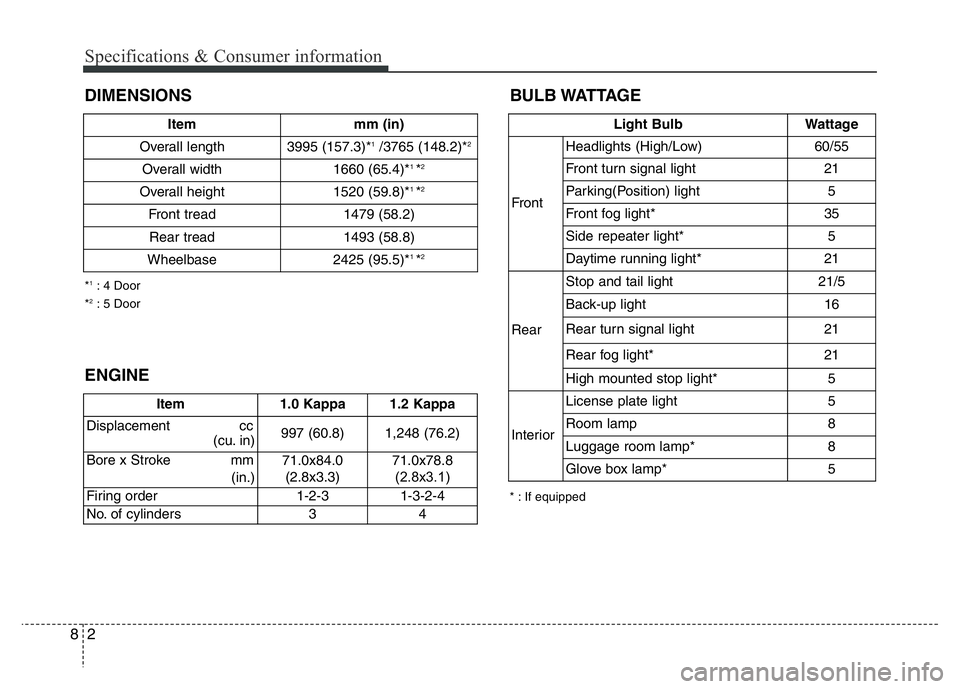

BULB WATTAGE
Specifications & Consumer information
2 8
DIMENSIONS
* : If equipped *
1: 4 Door
*2: 5 Door
Light Bulb Wattage
FrontHeadlights (High/Low) 60/55
Front turn signal light 21
Parking(Position) light 5
Front fog light* 35
Side repeater light* 5
Daytime running light* 21
RearStop and tail light 21/5
Back-up light 16
Rear turn signal light 21
Rear fog light* 21
High mounted stop light* 5
InteriorLicense plate light 5
Room lamp 8
Luggage room lamp* 8
Glove box lamp* 5
ENGINE
Item 1.0 Kappa 1.2 Kappa
Displacement cc
(cu. in) 997 (60.8) 1,248 (76.2)
Bore x Stroke mm
(in.)71.0x84.0
(2.8x3.3)71.0x78.8
(2.8x3.1)
Firing order 1-2-3 1-3-2-4
No. of cylinders 3 4
Item mm (in)
Overall length 3995 (157.3)*
1/3765 (148.2)*2
Overall width 1660 (65.4)*1 *2
Overall height 1520 (59.8)*1 *2
Front tread 1479 (58.2)
Rear tread 1493 (58.8)
Wheelbase 2425 (95.5)*
1 *2
