INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-17
2. Outside rearview mirror folding
button* ..............................................4-39
3. Outside rearview mirror control
switch* ..............................................4-38
4. Power window lock button* ................4-28
5. Power window switches* ..................4-26
6. Central door lock switch* ..................4-18
7. Headlight leveling device* ................4-64
8. Rear parking assist system OFF
button* ..............................................5-33
9. ESC OFF button* ..............................5-26
10. Steering wheel tilt lever* ..................4-35
11. Fuse box ..........................................7-49
12. Hood release lever ..........................4-30
13. Clutch pedal* ..................................5-11
14. Brake pedal ....................................5-20
15. Fuel filler lid opener ........................4-32
16. Seats ................................................3-2
17. Key ignition switch/
Engine start/stop button ..............5-4/5-6
* : if equipped
OBA013003L
■Left-hand drive

23
Your vehicle at a glance
1. Door lock/unlock button ....................4-17
2. Outside rearview mirror folding
button* ..............................................4-39
3. Outside rearview mirror control
switch* ..............................................4-38
4. Power window lock button* ................4-28
5. Power window switches* ..................4-26
6. Central door lock switch* ..................4-18
7. Headlight leveling device* ................4-64
8. Rear parking assist system OFF
button* ..............................................5-33
9. ESC OFF button* ..............................5-26
10. Steering wheel tilt lever* ..................4-35
11. Fuse box ..........................................7-49
12. Hood release lever ..........................4-30
13. Clutch pedal* ..................................5-11
14. Brake pedal ....................................5-20
15. Fuel filler lid opener ........................4-32
16. Seats ................................................3-2
17. Key ignition switch/
Engine start/stop button ..............5-4/5-6
* : if equipped
OBA013003R
■Right-hand drive

Your vehicle at a glance
4 2

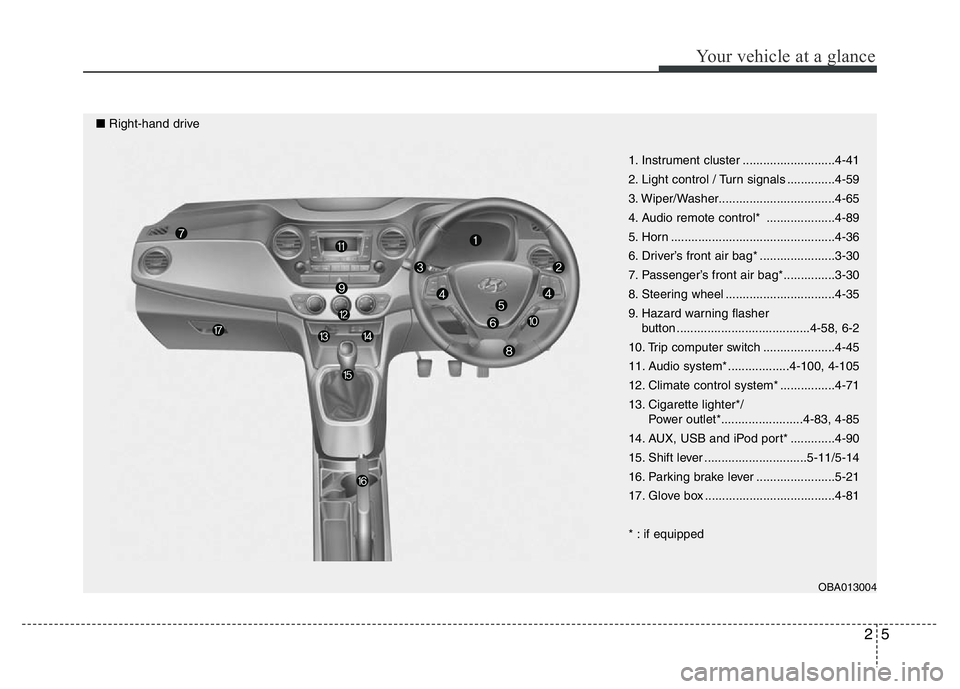

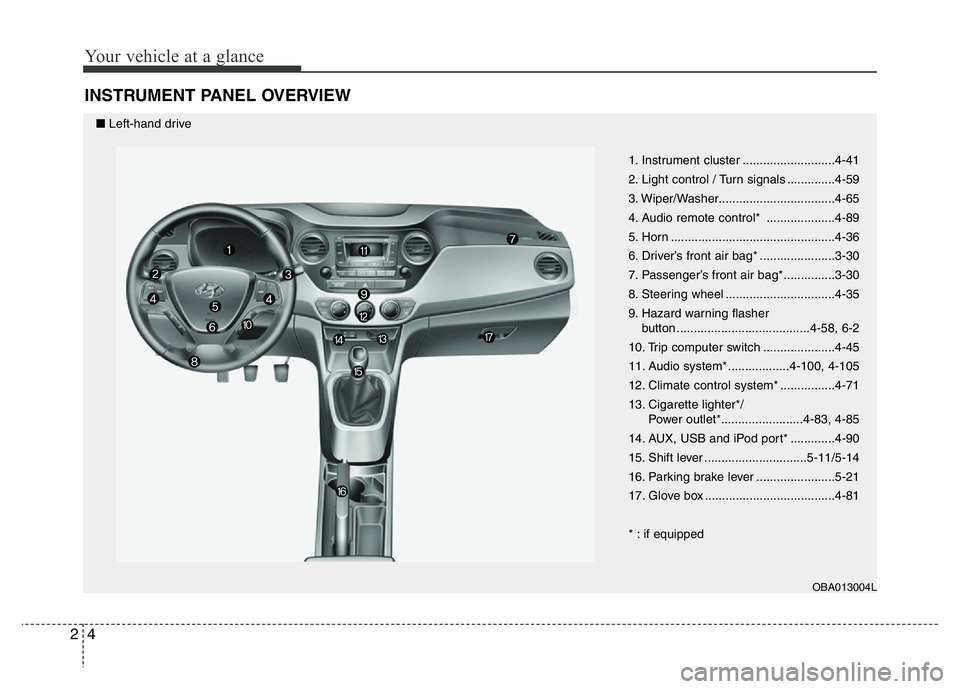

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster ...........................4-41
2. Light control / Turn signals ..............4-59
3. Wiper/Washer..................................4-65
4. Audio remote control* ....................4-89
5. Horn ................................................4-36
6. Driver’s front air bag* ......................3-30
7. Passenger’s front air bag*...............3-30
8. Steering wheel ................................4-35
9. Hazard warning flasher
button .......................................4-58, 6-2
10. Trip computer switch .....................4-45
11. Audio system* ..................4-100, 4-105
12. Climate control system* ................4-71
13. Cigarette lighter*/
Power outlet*........................4-83, 4-85
14. AUX, USB and iPod port* .............4-90
15. Shift lever ..............................5-11/5-14
16. Parking brake lever .......................5-21
17. Glove box ......................................4-81
* : if equipped
OBA013004L
■Left-hand drive

25
Your vehicle at a glance
1. Instrument cluster ...........................4-41
2. Light control / Turn signals ..............4-59
3. Wiper/Washer..................................4-65
4. Audio remote control* ....................4-89
5. Horn ................................................4-36
6. Driver’s front air bag* ......................3-30
7. Passenger’s front air bag*...............3-30
8. Steering wheel ................................4-35
9. Hazard warning flasher
button .......................................4-58, 6-2
10. Trip computer switch .....................4-45
11. Audio system* ..................4-100, 4-105
12. Climate control system* ................4-71
13. Cigarette lighter*/
Power outlet*........................4-83, 4-85
14. AUX, USB and iPod port* .............4-90
15. Shift lever ..............................5-11/5-14
16. Parking brake lever .......................5-21
17. Glove box ......................................4-81
* : if equipped
OBA013004
■Right-hand drive

Your vehicle at a glance
6 2

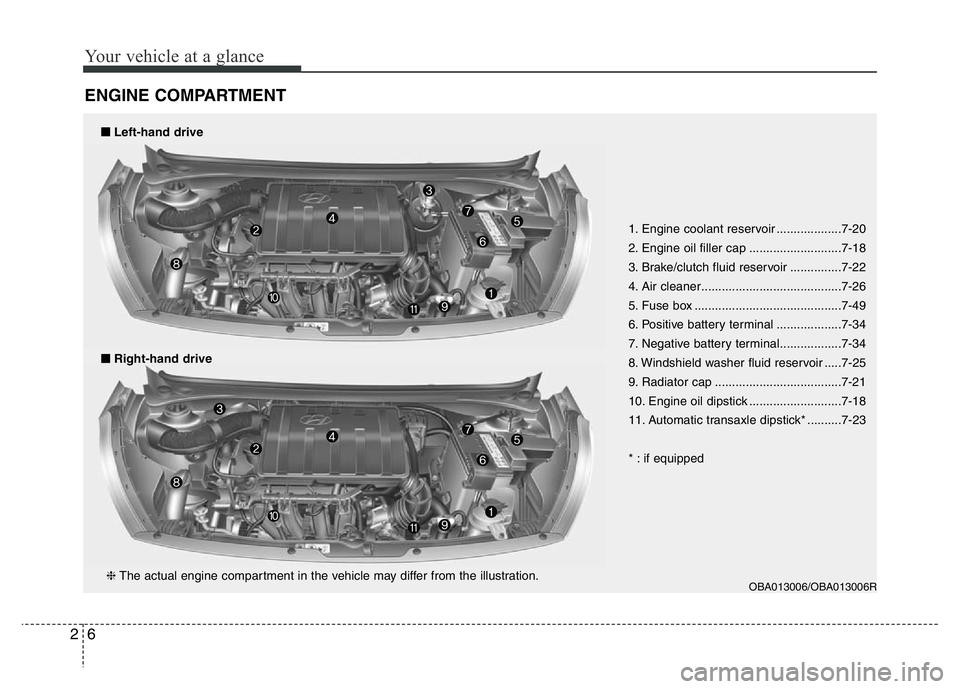

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-20
2. Engine oil filler cap ...........................7-18
3. Brake/clutch fluid reservoir ...............7-22
4. Air cleaner.........................................7-26
5. Fuse box ...........................................7-49
6. Positive battery terminal ...................7-34
7. Negative battery terminal..................7-34
8. Windshield washer fluid reservoir .....7-25
9. Radiator cap .....................................7-21
10. Engine oil dipstick ...........................7-18
11. Automatic transaxle dipstick* ..........7-23
* : if equipped
■Right-hand drive
■Left-hand drive
OBA013006/OBA013006R❈The actual engine compartment in the vehicle may differ from the illustration.

Safety features of your vehicle

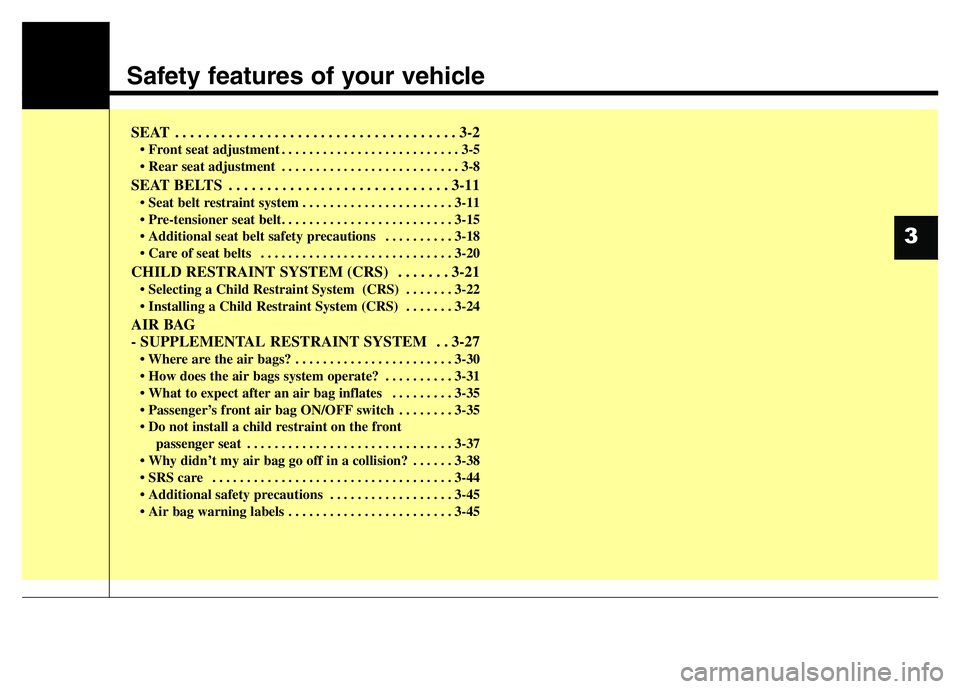

SEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
SEAT BELTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-11
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-15
• Additional seat belt safety precautions . . . . . . . . . . 3-18
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
CHILD RESTRAINT SYSTEM (CRS) . . . . . . . 3-21
• Selecting a Child Restraint System (CRS) . . . . . . . 3-22
• Installing a Child Restraint System (CRS) . . . . . . . 3-24
AIR BAG
- SUPPLEMENTAL RESTRAINT SYSTEM . . 3-27
• Where are the air bags? . . . . . . . . . . . . . . . . . . . . . . . 3-30
• How does the air bags system operate? . . . . . . . . . . 3-31
• What to expect after an air bag inflates . . . . . . . . . 3-35
• Passenger’s front air bag ON/OFF switch . . . . . . . . 3-35
• Do not install a child restraint on the front
passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
• Why didn’t my air bag go off in a collision? . . . . . . 3-38
• SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
• Additional safety precautions . . . . . . . . . . . . . . . . . . 3-45
• Air bag warning labels . . . . . . . . . . . . . . . . . . . . . . . . 3-45
3

Safety features of your vehicle
2 3

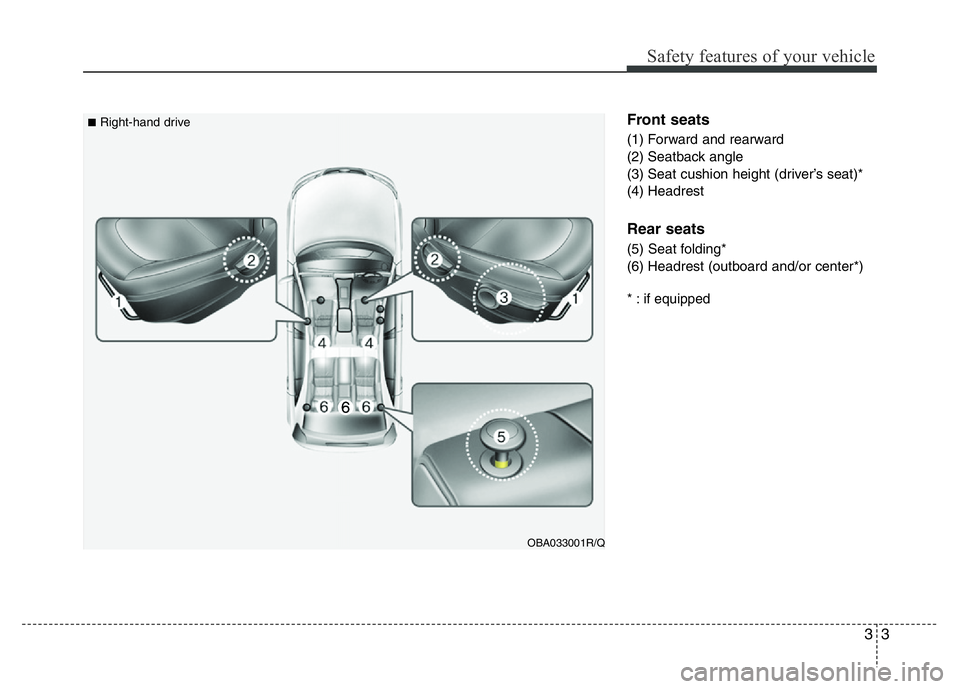

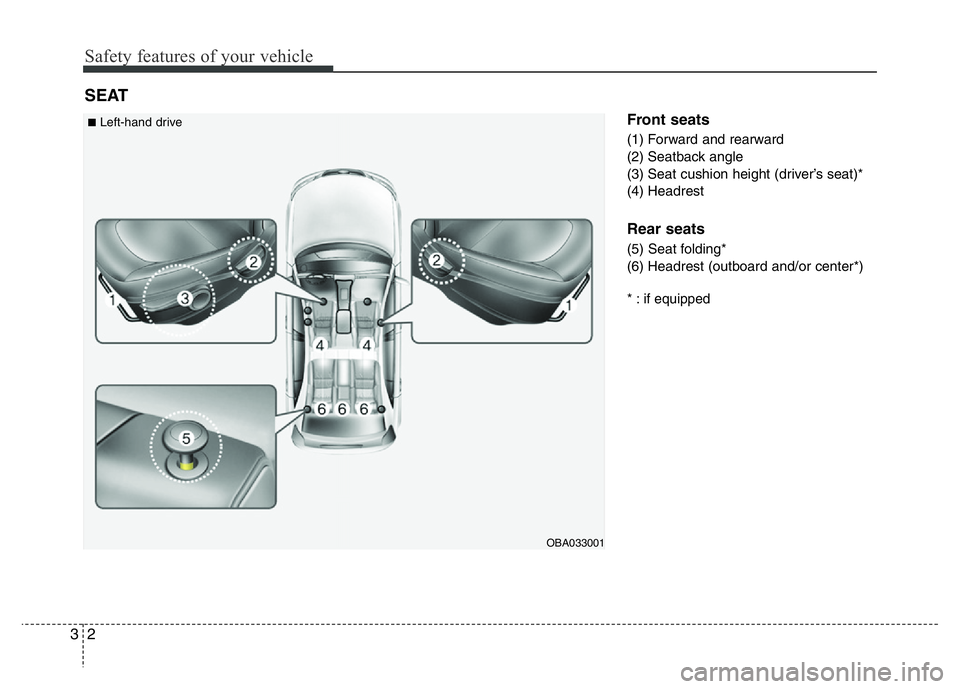

Front seats
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion height (driver’s seat)*
(4) Headrest
Rear seats
(5) Seat folding*
(6) Headrest (outboard and/or center*)
* : if equipped
SEAT
OBA033001 ■
Left-hand drive

33
Safety features of your vehicle
Front seats
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion height (driver’s seat)*
(4) Headrest
Rear seats
(5) Seat folding*
(6) Headrest (outboard and/or center*)
* : if equipped
OBA033001R/Q ■
Right-hand drive

Safety features of your vehicle
4 3

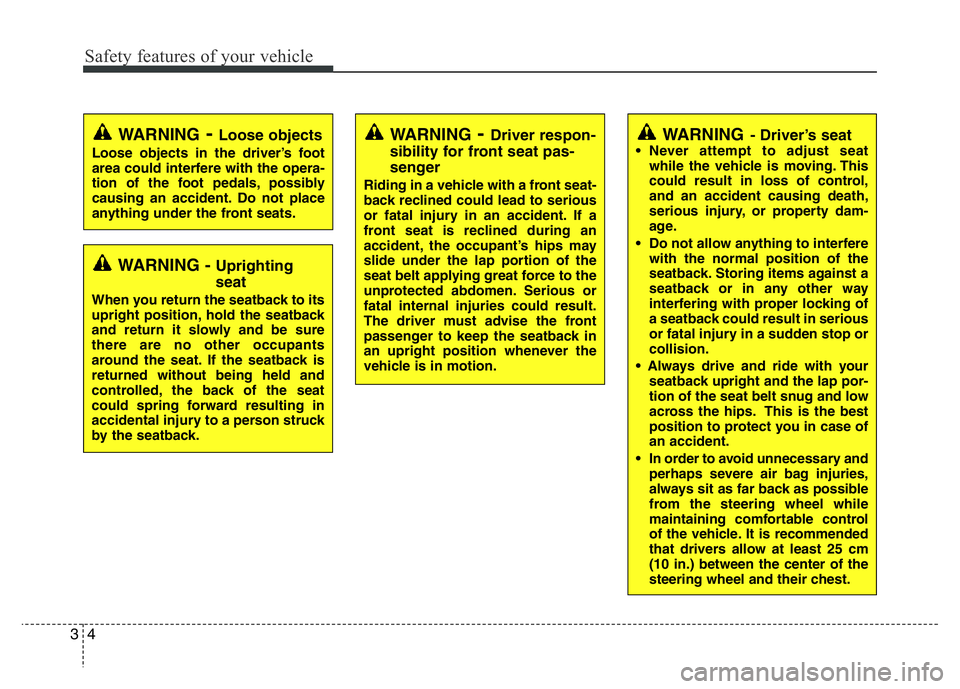

WARNING- Driver’s seat• Never attempt to adjust seat
